Sybex CCNA 640 -802 Chapter 10: Security Instructor & Todd Lammle

Chapter 10 Objectives The CCNA Topics Covered in this chapter include: • Introduction to Security – Types of attacks – Mitigating attacks • Access-lists – – Standard Extended Named Monitoring Access-lists 2

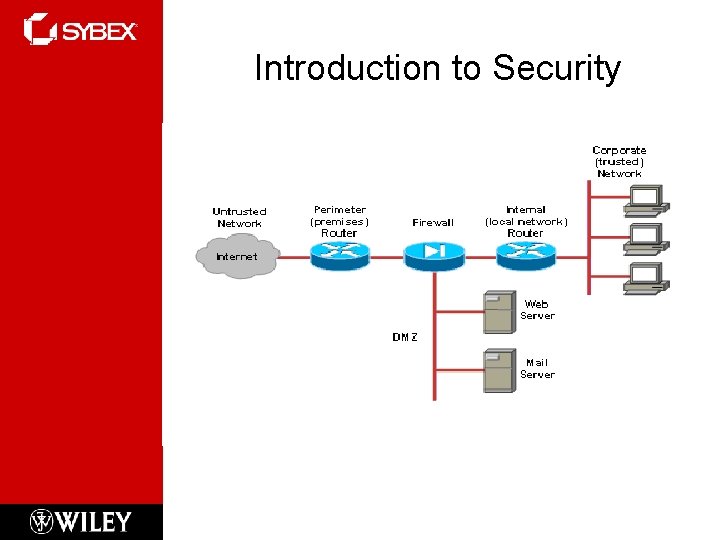

Introduction to Security

Attacks • • APPLICATION-LAYER ATTACKS AUTOROOTERS BACKDOORS DENIAL OF SERVICE (DOS) AND DISTRIBUTED DENIAL OF SERVICE (DDOS) ATTACKS – (MANY OTHERS)

Mitigating Attacks • Appliances – IDS: Intrusion Detection System – IPS: Intrusion Prevention System • STATEFUL IOS FIREWALL INSPECTION ENGINE • FIREWALL VOICE TRAVERSAL • ICMP INSPECTION • AUTHENTICATION PROXY

Access Lists • Purpose: – Used to permit or deny packets moving through the router – Permit or deny Telnet (VTY) access to or from a router – Create dial-on demand (DDR) interesting traffic that triggers dialing to a remote location

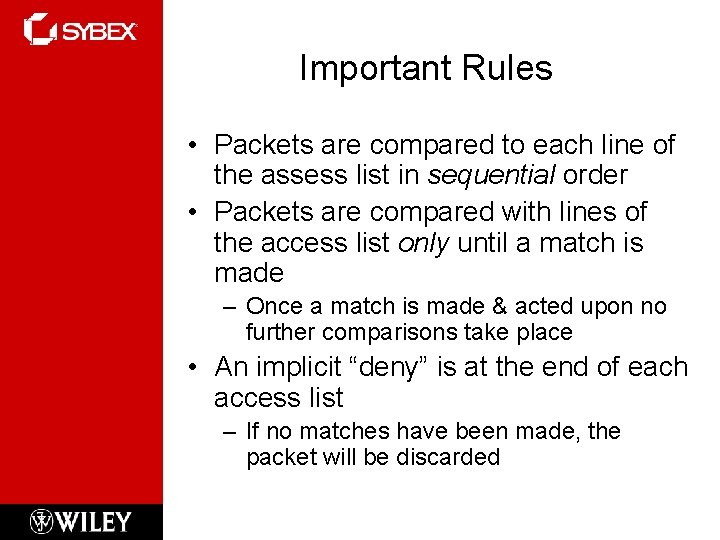

Important Rules • Packets are compared to each line of the assess list in sequential order • Packets are compared with lines of the access list only until a match is made – Once a match is made & acted upon no further comparisons take place • An implicit “deny” is at the end of each access list – If no matches have been made, the packet will be discarded

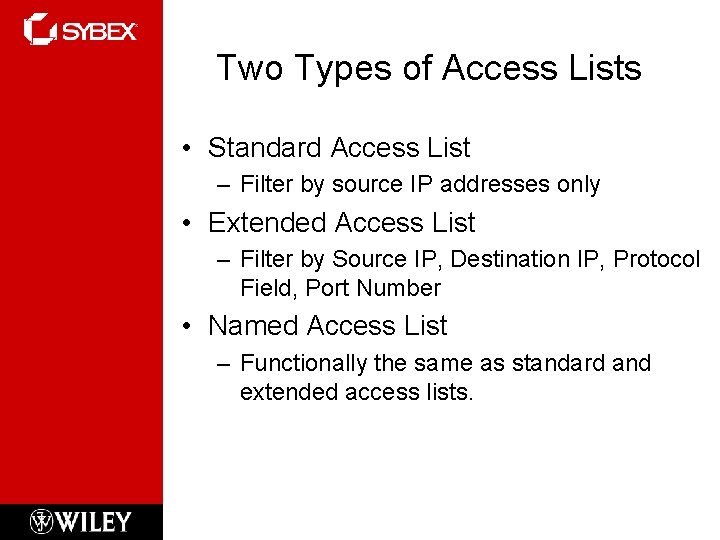

Two Types of Access Lists • Standard Access List – Filter by source IP addresses only • Extended Access List – Filter by Source IP, Destination IP, Protocol Field, Port Number • Named Access List – Functionally the same as standard and extended access lists.

Application of Access Lists • Inbound Access Lists – Packets are processed before being routed to the outbound interface. Any packets that are denied won’t be routed because they are discarded before the routing process. • Outbound Access Lists – Packets are routed to the outbound interface & then processed through the access list

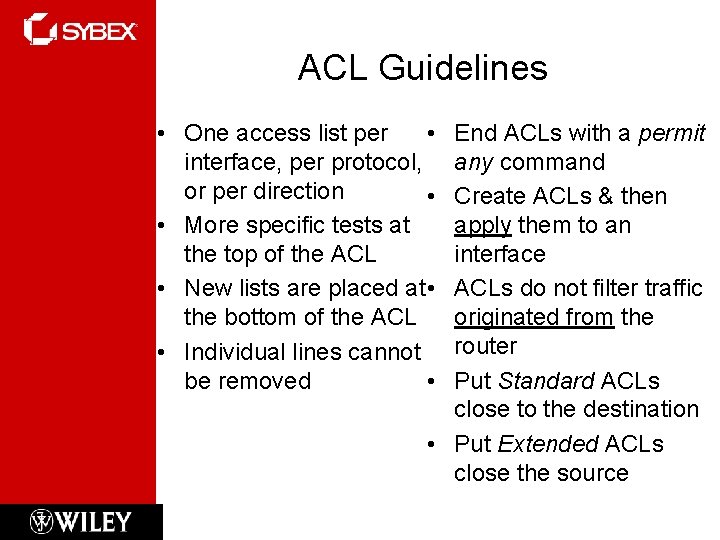

ACL Guidelines • One access list per • interface, per protocol, or per direction • • More specific tests at the top of the ACL • New lists are placed at • the bottom of the ACL • Individual lines cannot be removed • End ACLs with a permit any command Create ACLs & then apply them to an interface ACLs do not filter traffic originated from the router Put Standard ACLs close to the destination • Put Extended ACLs close the source

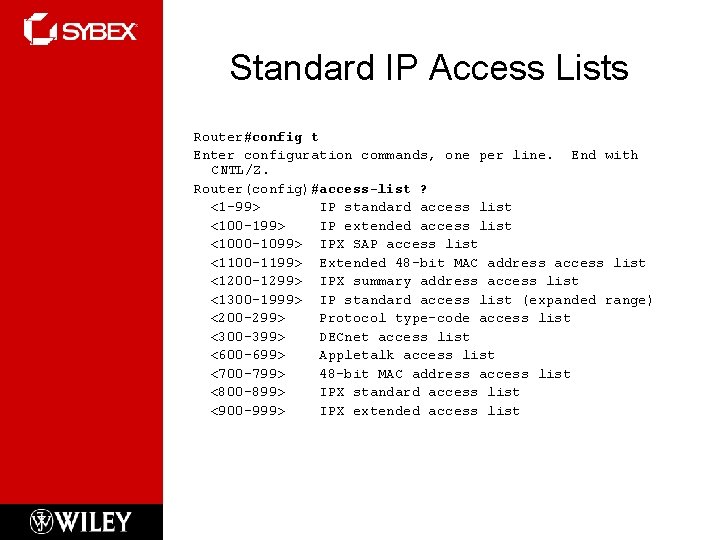

Standard IP Access Lists Router#config t Enter configuration commands, one per line. End with CNTL/Z. Router(config)#access-list ? <1 -99> IP standard access list <100 -199> IP extended access list <1000 -1099> IPX SAP access list <1100 -1199> Extended 48 -bit MAC address access list <1200 -1299> IPX summary address access list <1300 -1999> IP standard access list (expanded range) <200 -299> Protocol type-code access list <300 -399> DECnet access list <600 -699> Appletalk access list <700 -799> 48 -bit MAC address access list <800 -899> IPX standard access list <900 -999> IPX extended access list

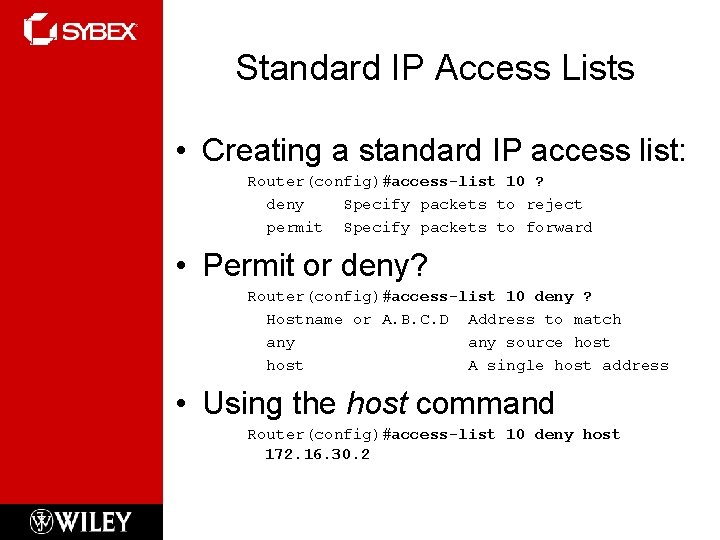

Standard IP Access Lists • Creating a standard IP access list: Router(config)#access-list 10 ? deny Specify packets to reject permit Specify packets to forward • Permit or deny? Router(config)#access-list 10 deny ? Hostname or A. B. C. D Address to match any source host A single host address • Using the host command Router(config)#access-list 10 deny host 172. 16. 30. 2

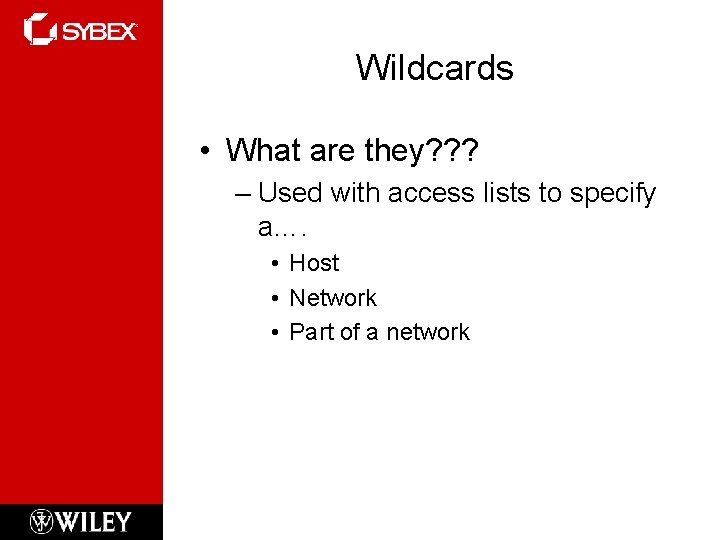

Wildcards • What are they? ? ? – Used with access lists to specify a…. • Host • Network • Part of a network

Block Sizes 64 32 16 8 4 • Rules: – When specifying a range of addresses, choose the closest block size – Each block size must start at 0 – A ‘ 0’ in a wildcard means that octet must match exactly – A ‘ 255’ in a wildcard means that octet can be any value – The command any is the same thing as writing out the wildcard: 0. 0 255

Specifying a Range of Subnets (Remember: specify a range of values in a block size) Requirement: Block access in the range from 172. 16. 8. 0 through 172. 16. 15. 0 = block size 8 Network number = 172. 16. 8. 0 Wildcard = 0. 0. 7. 255 **The wildcard is always one number less than the block size

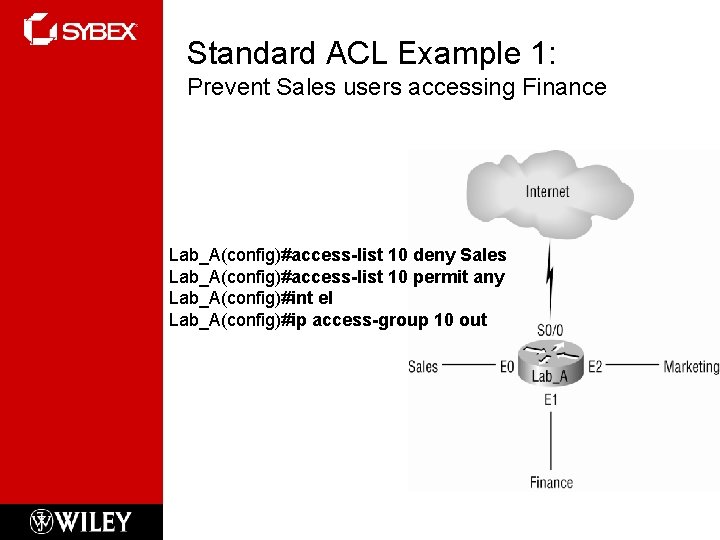

Standard ACL Example 1: Prevent Sales users accessing Finance Lab_A(config)#access-list 10 deny Sales Lab_A(config)#access-list 10 permit any Lab_A(config)#int el Lab_A(config)#ip access-group 10 out

Standard ACL example 2: Prevent Accounting users accessing HR server Lab_B(config)#access-list 10 deny 192. 168. 10. 128 0. 0. 0. 31 Lab_B(config)#access-list 10 permit any Lab_B(config)#int e 0 Lab_B(config)#ip access-group 10 out

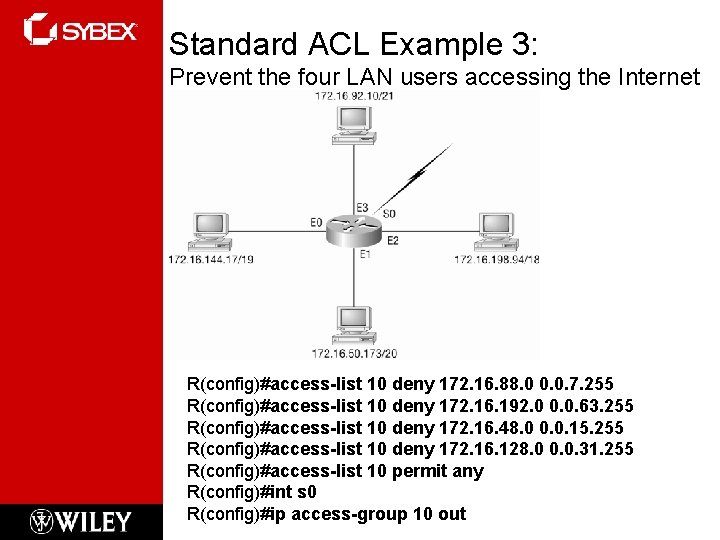

Standard ACL Example 3: Prevent the four LAN users accessing the Internet R(config)#access-list 10 deny 172. 16. 88. 0 0. 0. 7. 255 R(config)#access-list 10 deny 172. 16. 192. 0 0. 0. 63. 255 R(config)#access-list 10 deny 172. 16. 48. 0 0. 0. 15. 255 R(config)#access-list 10 deny 172. 16. 128. 0 0. 0. 31. 255 R(config)#access-list 10 permit any R(config)#int s 0 R(config)#ip access-group 10 out

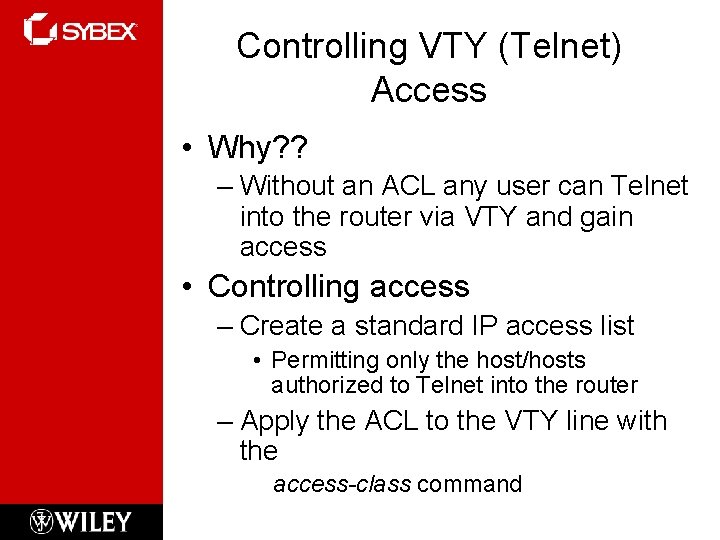

Controlling VTY (Telnet) Access • Why? ? – Without an ACL any user can Telnet into the router via VTY and gain access • Controlling access – Create a standard IP access list • Permitting only the host/hosts authorized to Telnet into the router – Apply the ACL to the VTY line with the access-class command

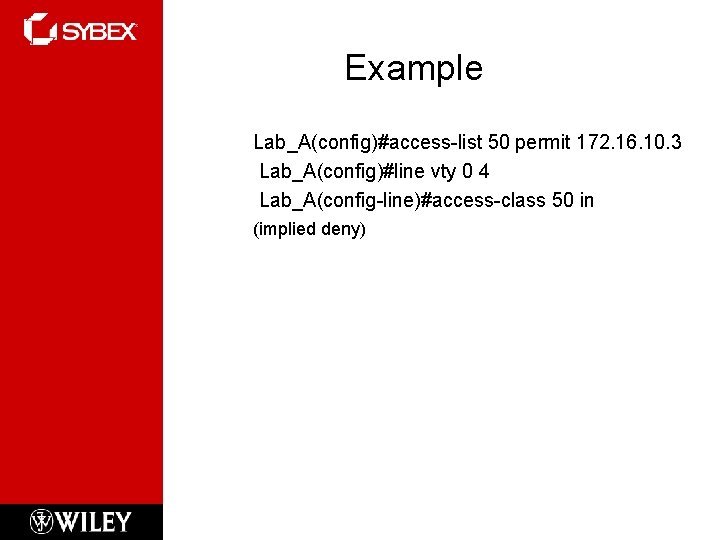

Example Lab_A(config)#access-list 50 permit 172. 16. 10. 3 Lab_A(config)#line vty 0 4 Lab_A(config-line)#access-class 50 in (implied deny)

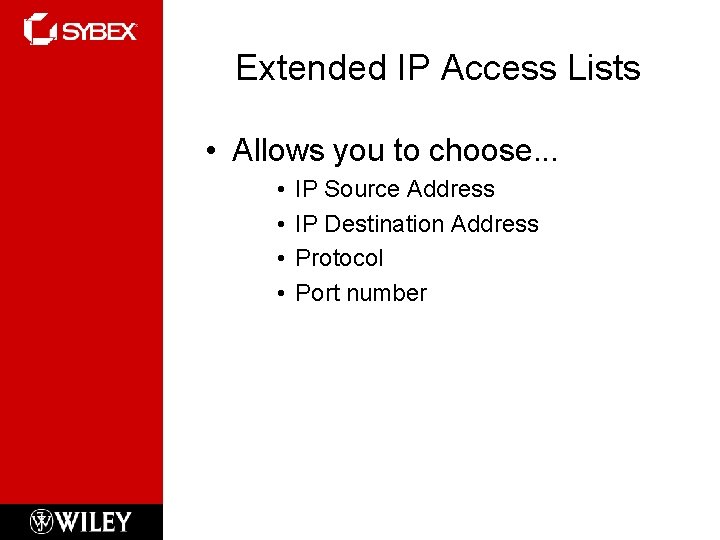

Extended IP Access Lists • Allows you to choose. . . • • IP Source Address IP Destination Address Protocol Port number

Extended IP ACLs Router(config)#access-list ? <1 -99> IP standard access list <100 -199> IP extended access list <1000 -1099> IPX SAP access list <1100 -1199> Extended 48 -bit MAC address access list <1200 -1299> IPX summary address access list <200 -299> Protocol type-code access list <300 -399> DECnet access list <600 -699> Appletalk access list <700 -799> 48 -bit MAC address access list <800 -899> IPX standard access list <900 -999> IPX extended access list Router(config)#access-list 110 ? deny Specify packets to reject dynamic Specify a DYNAMIC list of PERMITs or DENYs permit Specify packets to forward

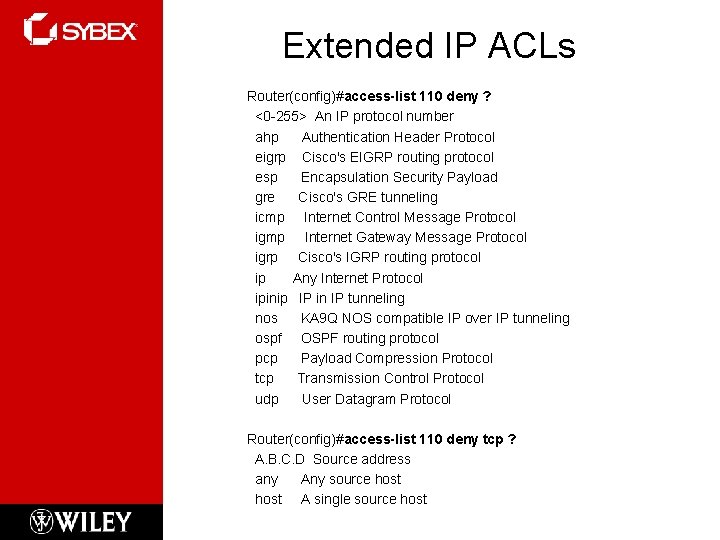

Extended IP ACLs Router(config)#access-list 110 deny ? <0 -255> An IP protocol number ahp Authentication Header Protocol eigrp Cisco's EIGRP routing protocol esp Encapsulation Security Payload gre Cisco's GRE tunneling icmp Internet Control Message Protocol igmp Internet Gateway Message Protocol igrp Cisco's IGRP routing protocol ip Any Internet Protocol ipinip IP in IP tunneling nos KA 9 Q NOS compatible IP over IP tunneling ospf OSPF routing protocol pcp Payload Compression Protocol tcp Transmission Control Protocol udp User Datagram Protocol Router(config)#access-list 110 deny tcp ? A. B. C. D Source address any Any source host A single source host

Extended IP ACL Steps #1: Select the access list: Router. A(config)#access-list 110 #2: Decide on deny or permit: Router. A(config)#access-list 110 deny #3: Choose the protocol type: Router. A(config)#access-list 110 deny tcp #4: Choose source IP address of the host or network: Router. A(config)#access-list 110 deny tcp any #5: Choose destination IP address Router. A(config)#access-list 110 deny tcp any host 172. 16. 30. 2 #6: Choose the type of service, port, & logging Router. A(config)#access-list 110 deny tcp any host 172. 16. 30. 2 eq 23 log

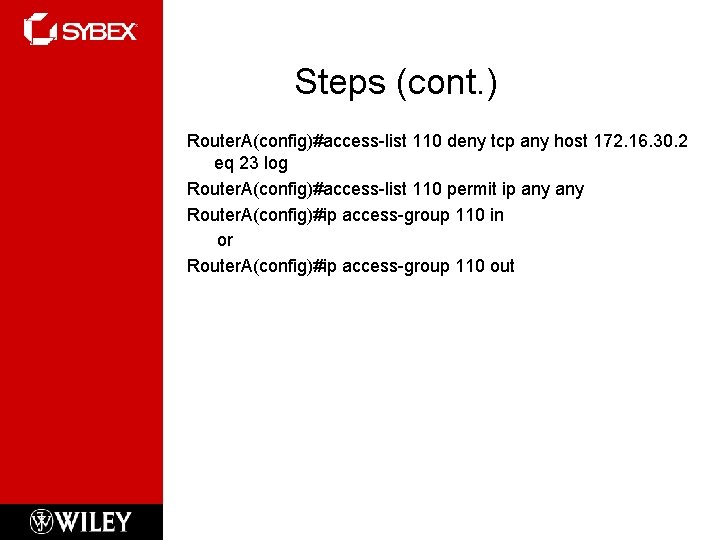

Steps (cont. ) Router. A(config)#access-list 110 deny tcp any host 172. 16. 30. 2 eq 23 log Router. A(config)#access-list 110 permit ip any Router. A(config)#ip access-group 110 in or Router. A(config)#ip access-group 110 out

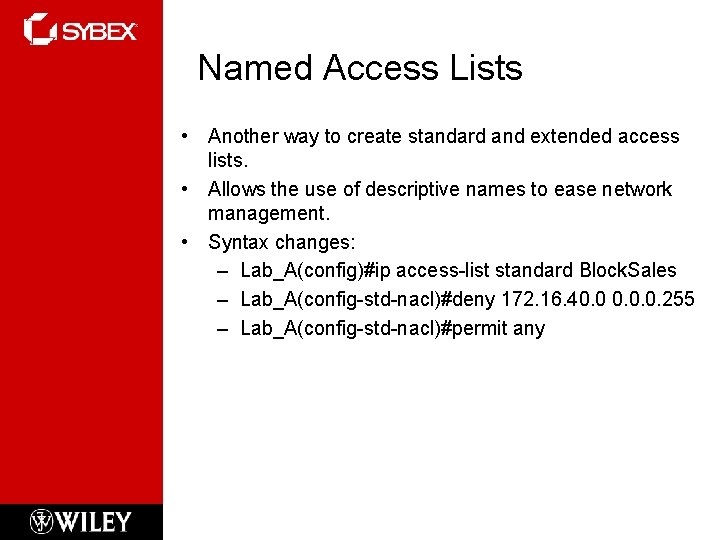

Named Access Lists • Another way to create standard and extended access lists. • Allows the use of descriptive names to ease network management. • Syntax changes: – Lab_A(config)#ip access-list standard Block. Sales – Lab_A(config-std-nacl)#deny 172. 16. 40. 0. 0. 255 – Lab_A(config-std-nacl)#permit any

Monitoring IP Access Lists • Display all access lists & their parameters show access-list • Show only the parameters for the access list 110 show access-list 110 • Shows only the IP access lists configured show ip access-list • Shows which interfaces have access lists set show ip interface • Shows the access lists & which interfaces have access lists set show running-config

Written Labs and Review Questions – Open your books and go through all the written labs and the review questions. – Review the answers in class. 28
