SXBlue II GPS CHAPTER I ABOUT HARDWARE AND
SXBlue II GPS CHAPTER – I ABOUT HARDWARE AND SOFTWARE www. geneq. com
Parts of SXBlue II • • One SXBlue II GPS Receiver with battery pack One Precision Antenna One Antenna cable One RS-232 cable One USB cable One Li-Ion Battery Charger One Nylon Carrying Case One CD-ROM containing manuals, utilities (pocket max, PC-max, Active Sync. , Rinex converter tool), configuration files, etc
Parts of SX Blue II GPS: - SXBlue II Receiver Charger Jack Battery Pack
GPS LED Indicators ON/OFF Button Battery Gauge Indicator Battery Gauge Button
RS-232 Port USB Port GPS Antenna Connector
Precision Antenna • The Precision Antenna supplied with the SXBlue II GPS has been designed to provide reliable, stable and consistent sub-meter positioning.
• Red Power indicator – when the SXBlue II GPS is powered, this LED will illuminate. When battery is low, the Power indicator will start blinking for 20 minutes prior to auto shutdown. • Green GPS Lock indicator – once the SXBlue II GPS achieves a solid GPS lock, this LED will remain illuminated. If this LED continues to blink, it could be an indication of a receiver hardware failure. • Orange DGPS Position indicator – this LED will illuminate when the receiver has achieved a differential position and not relevant to us now. • Yellow Differential lock indicator – this indicator will illuminate continuously when the SXBlue II GPS has achieved a solid SBAS lock and this is not relevant now. • Bluetooth indicator – this LED will illuminate when there is a Bluetooth connection between the SXBlue II GPS and a Bluetooth compatible device and off when there is no Bluetooth connection.
The soft ware used are: • Active sync. : --(initially to be installed in to PC). It acts as ‘bridge’ between PC and any PDA. • Now we can access PDA with the help of PC. • Loading of Pocket max 2. 2. 0 (pda version): -- Place Pocket max software in to PDA devise and run it.

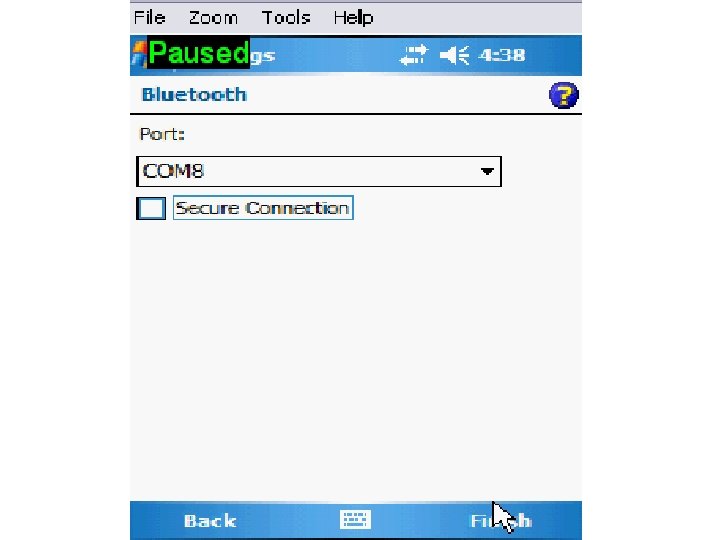

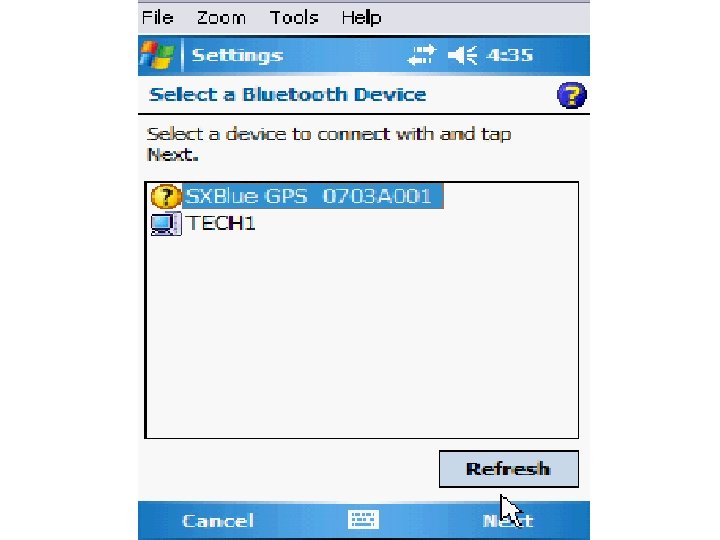

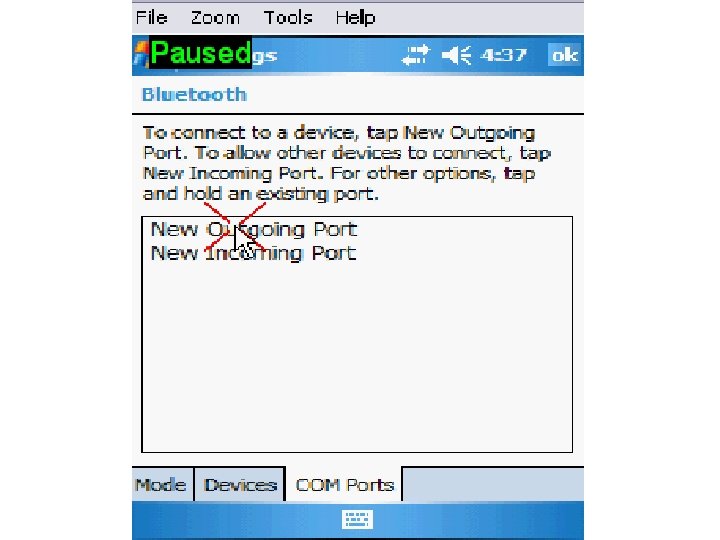

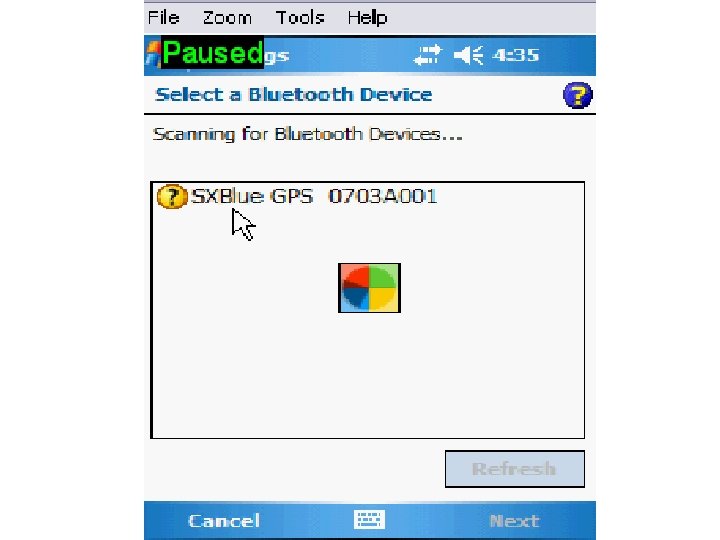

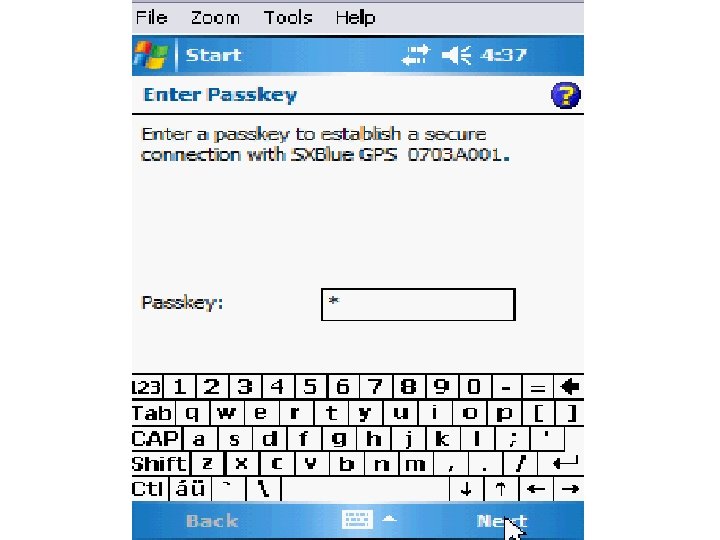

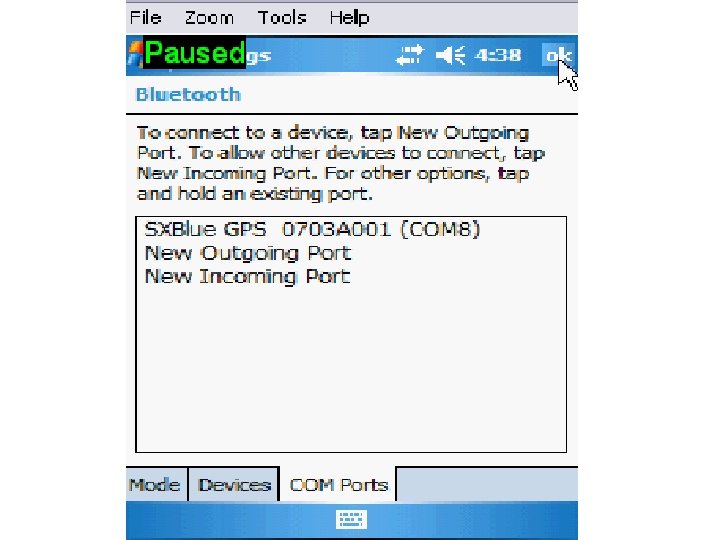

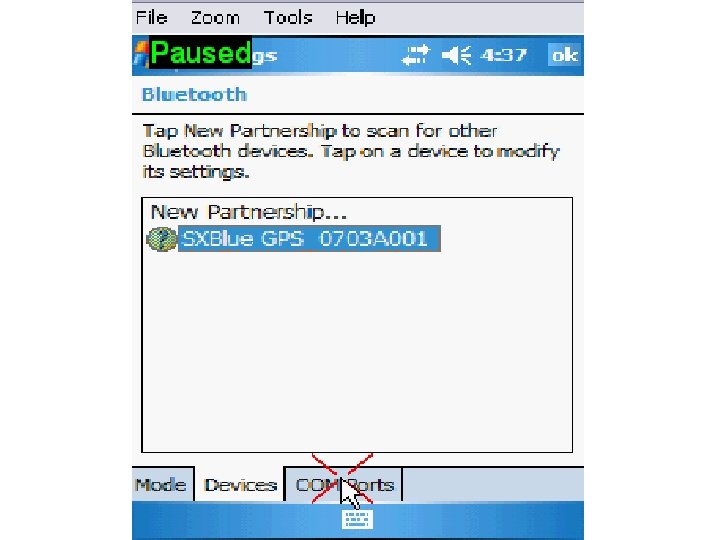

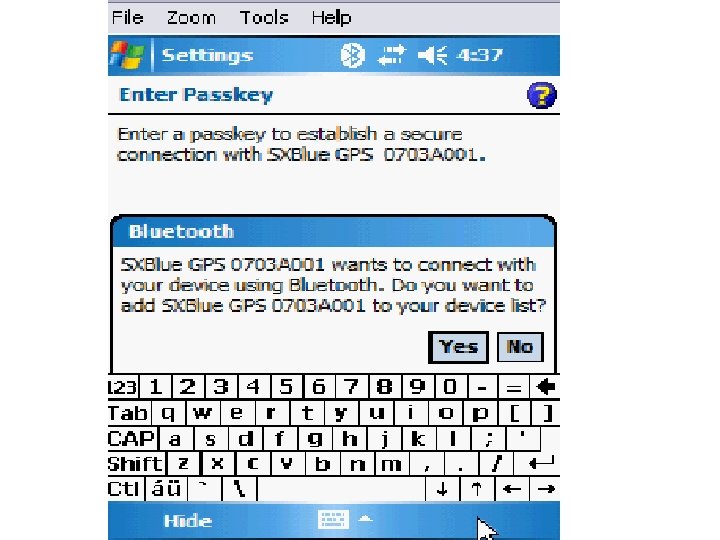

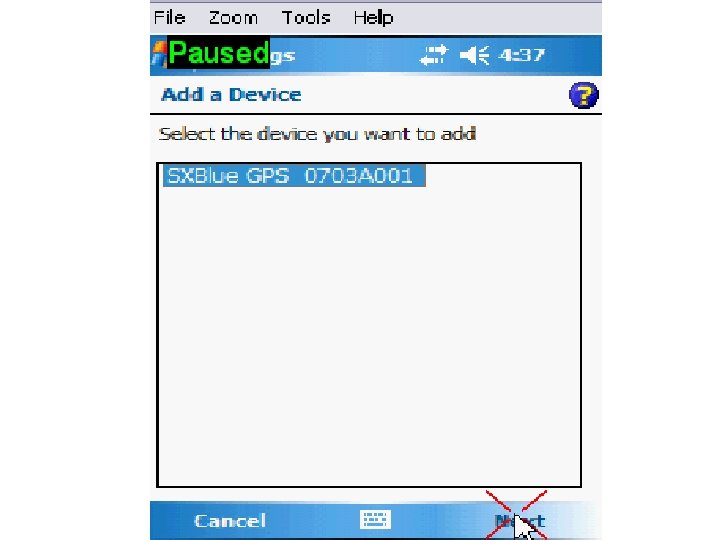

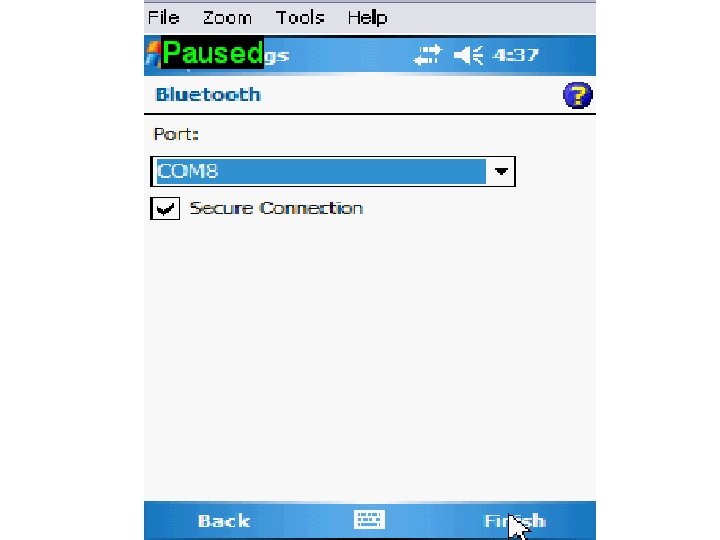

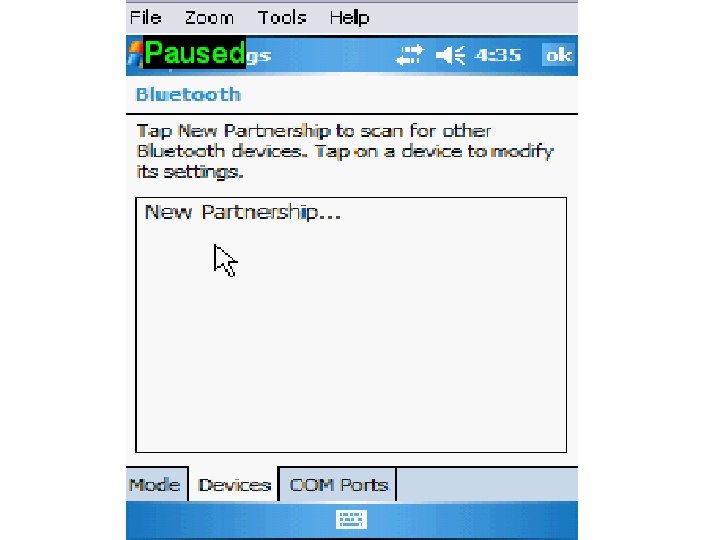

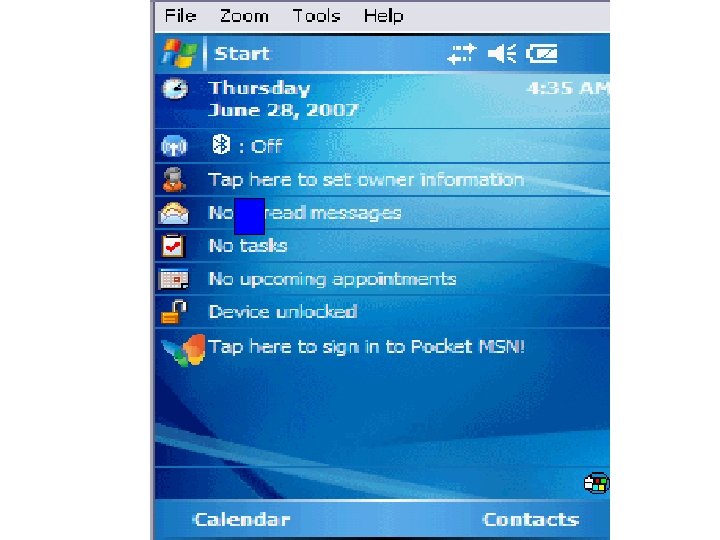

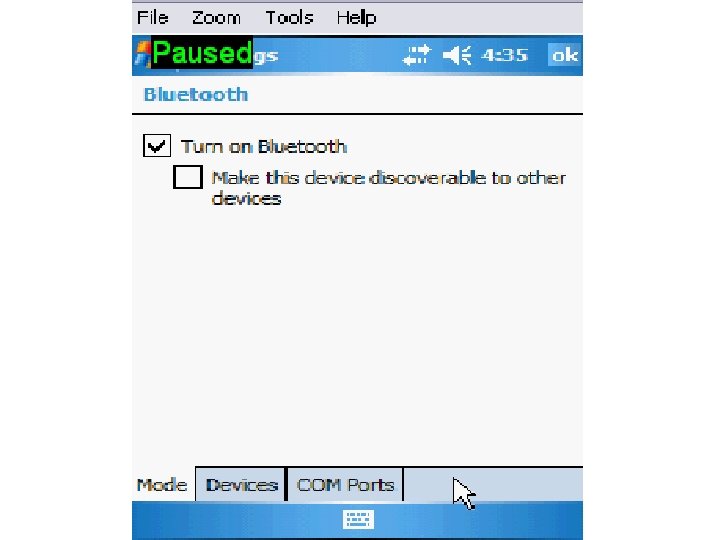

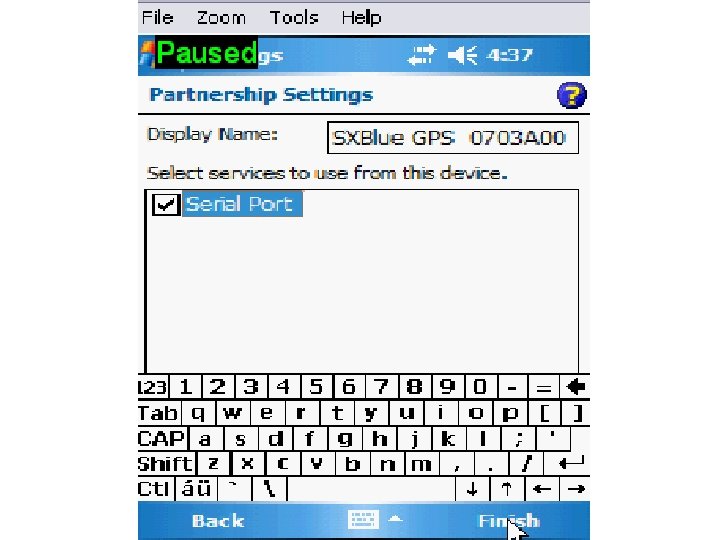

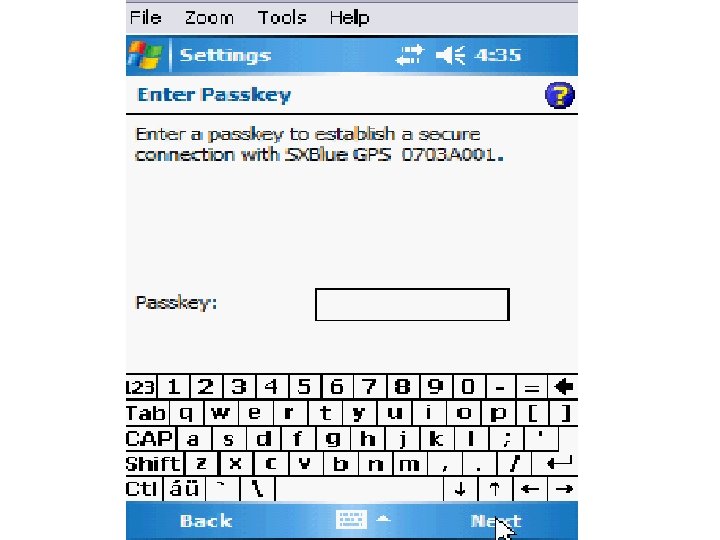

CHAPTER – II CONFIGURING DGPS WITH PDA Configuring Bluetooth Communication • The two major steps are: discovering a Bluetooth device and assigning a communication port number to the discovered device. • The data collection software will then call the assigned port number to receive the data from the SXBlue II GPS.

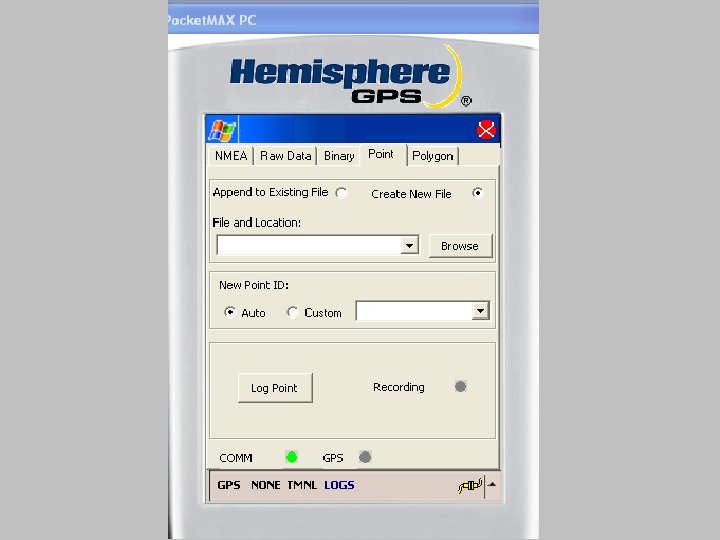

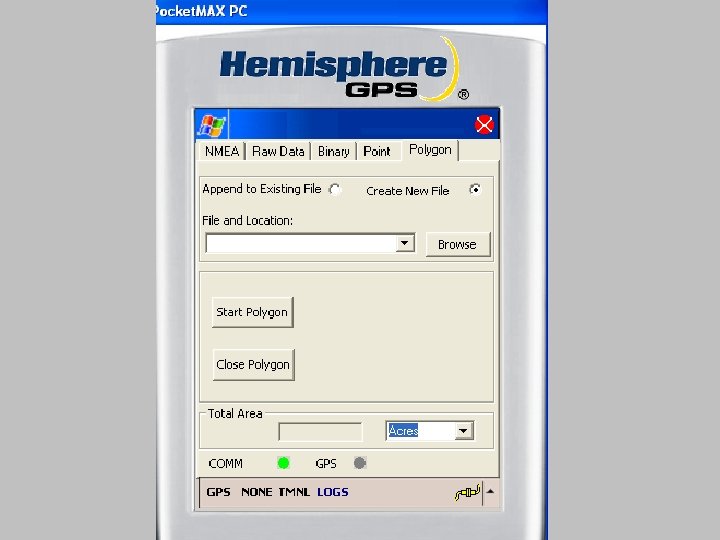

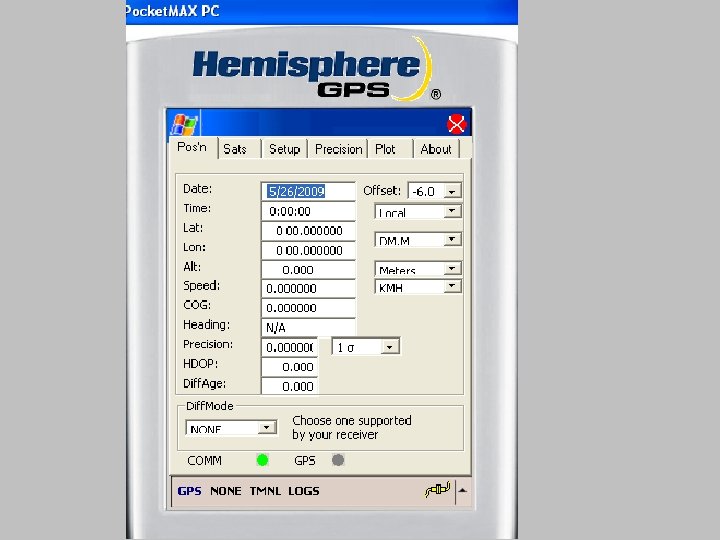

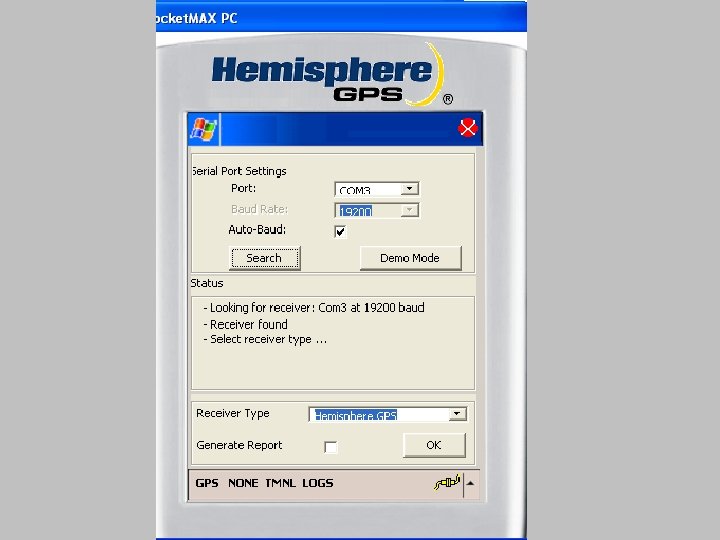

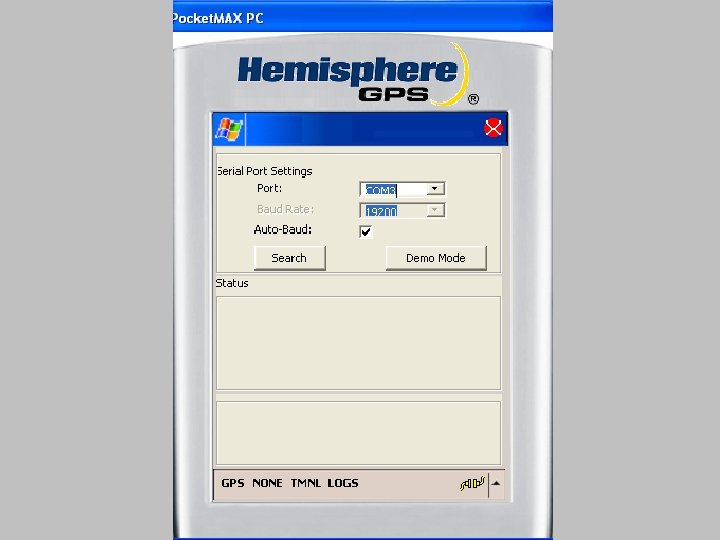

CHAPTER – III COLLECTION OF RAW DATA (STATIC/KINEMATIC) Just click on the pocket max in PDA the following pages will be displayed for the collection of data in static mode and in kinematic mode
Go to setup Keep 1 st, 3 rd, 5 th, 7 th, 8 th &9 th fields as 1 hz

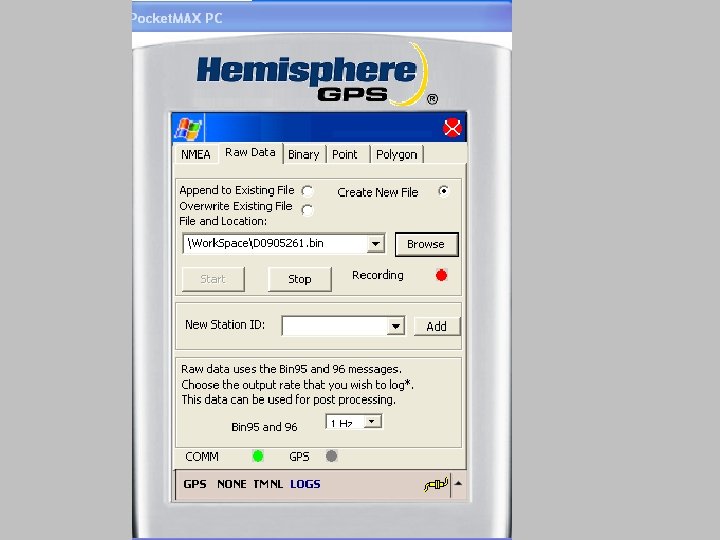

Go to ‘LOGS’ -----Raw data Keep Bin 95 and 96 as 1 Hz
