Switching Fabric An Engineering Approach to Computer Networking

Switching - Fabric An Engineering Approach to Computer Networking April 3, 2000 1

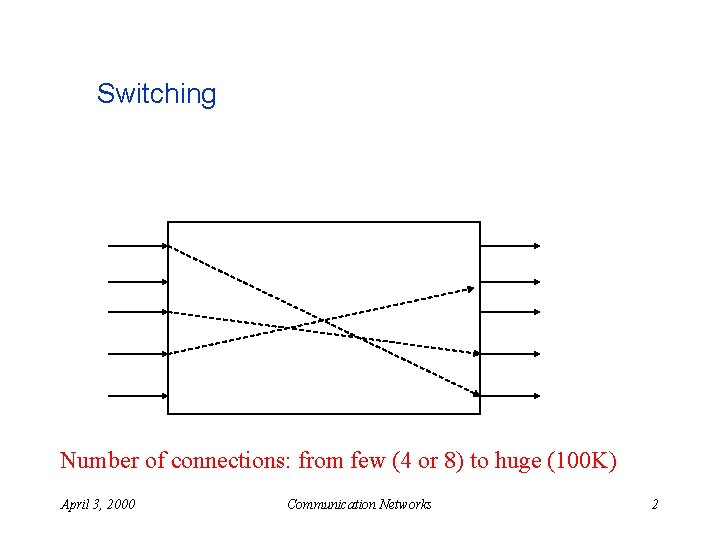

Switching Number of connections: from few (4 or 8) to huge (100 K) April 3, 2000 Communication Networks 2

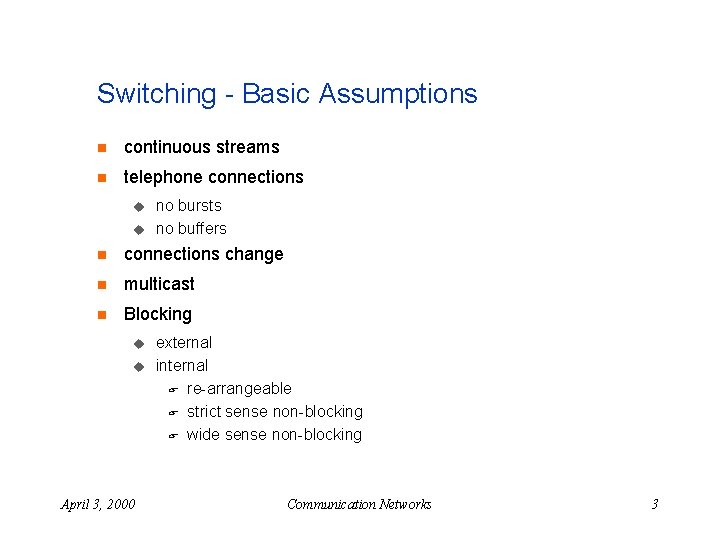

Switching - Basic Assumptions n continuous streams n telephone connections u u no bursts no buffers n connections change n multicast n Blocking u u April 3, 2000 external internal F re-arrangeable F strict sense non-blocking F wide sense non-blocking Communication Networks 3

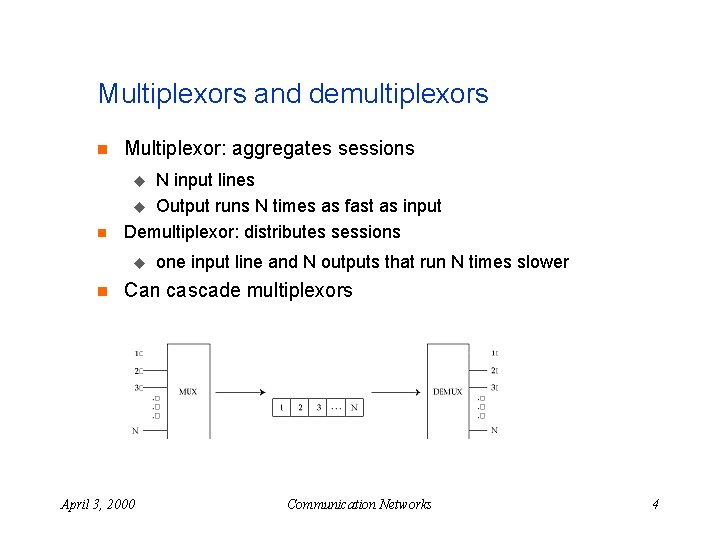

Multiplexors and demultiplexors n Multiplexor: aggregates sessions n N input lines u Output runs N times as fast as input Demultiplexor: distributes sessions u u n one input line and N outputs that run N times slower Can cascade multiplexors April 3, 2000 Communication Networks 4

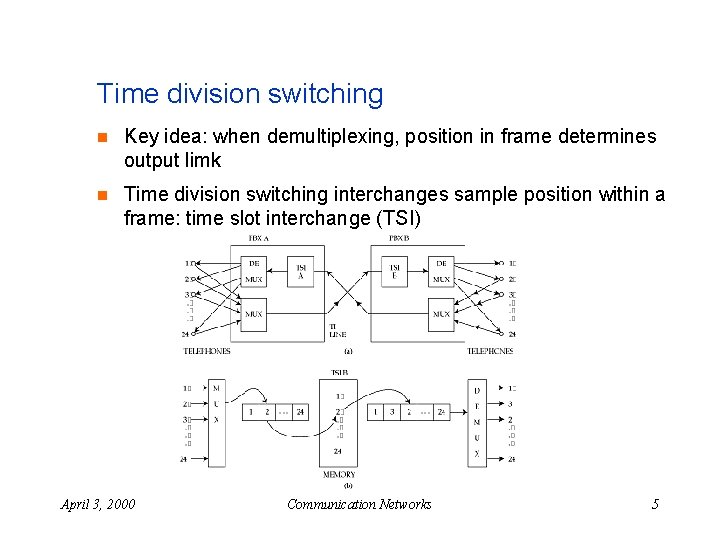

Time division switching n Key idea: when demultiplexing, position in frame determines output limk n Time division switching interchanges sample position within a frame: time slot interchange (TSI) April 3, 2000 Communication Networks 5

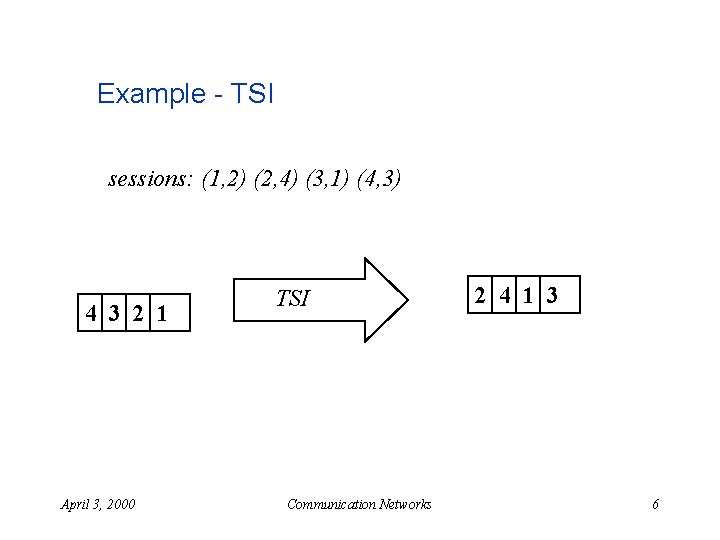

Example - TSI sessions: (1, 2) (2, 4) (3, 1) (4, 3) 4 3 2 1 April 3, 2000 TSI Communication Networks 2 4 1 3 6

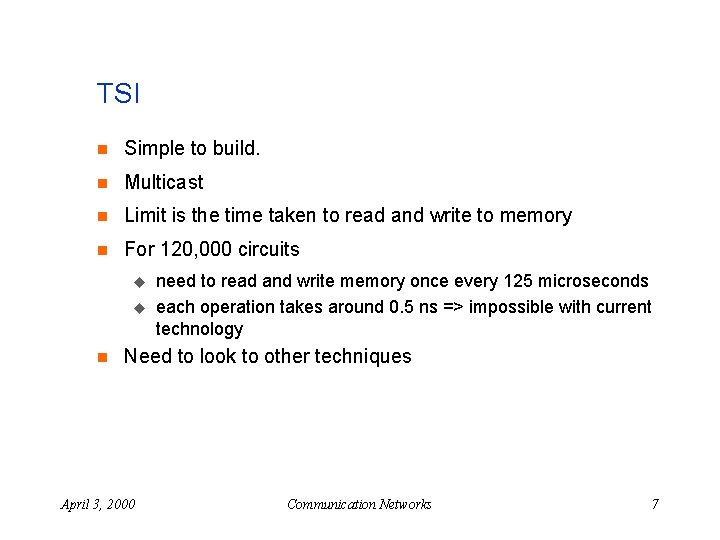

TSI n Simple to build. n Multicast n Limit is the time taken to read and write to memory n For 120, 000 circuits u u n need to read and write memory once every 125 microseconds each operation takes around 0. 5 ns => impossible with current technology Need to look to other techniques April 3, 2000 Communication Networks 7

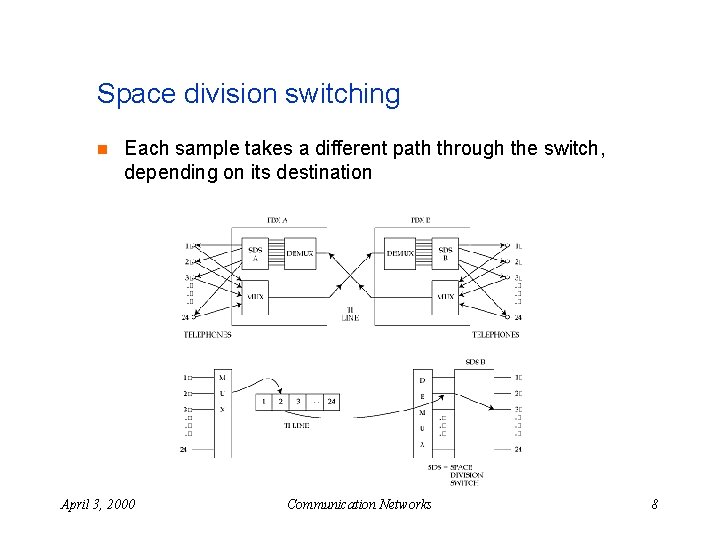

Space division switching n Each sample takes a different path through the switch, depending on its destination April 3, 2000 Communication Networks 8

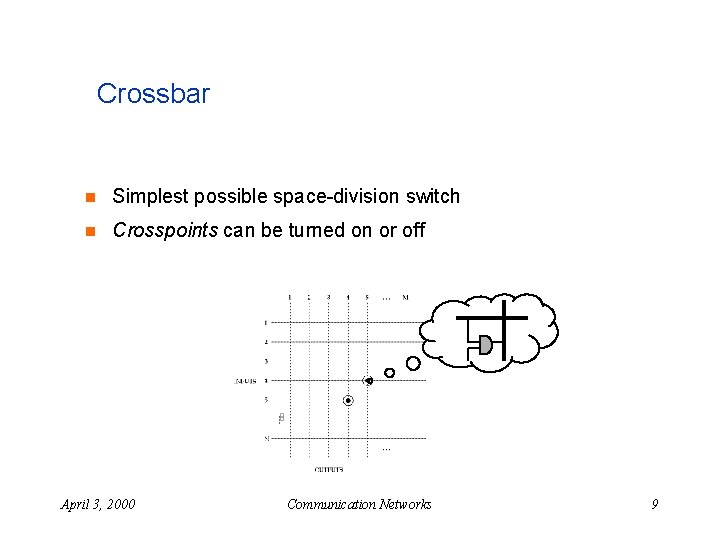

Crossbar n Simplest possible space-division switch n Crosspoints can be turned on or off April 3, 2000 Communication Networks 9

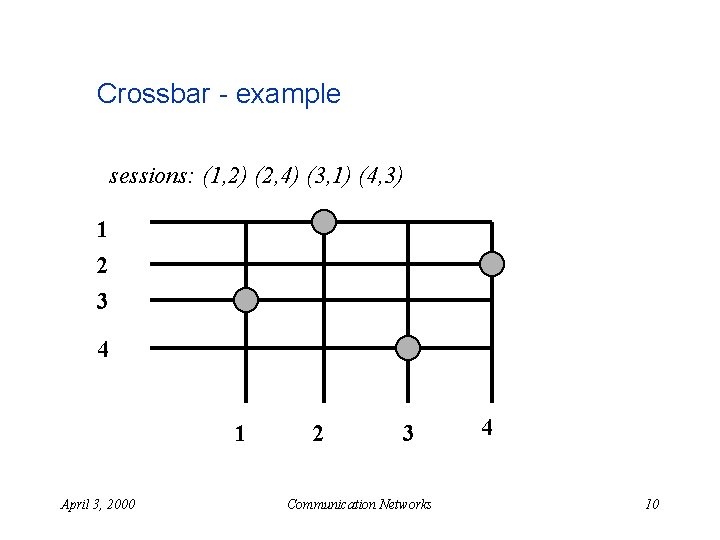

Crossbar - example sessions: (1, 2) (2, 4) (3, 1) (4, 3) 1 2 3 4 1 April 3, 2000 2 3 Communication Networks 4 10

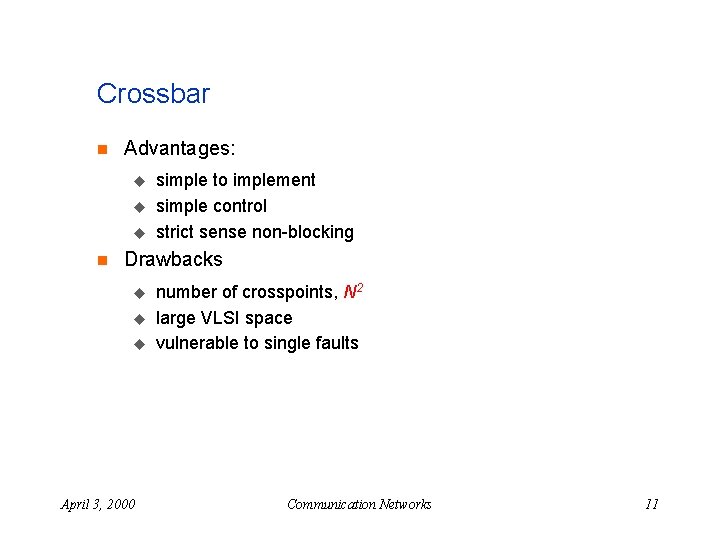

Crossbar n Advantages: u u u n simple to implement simple control strict sense non-blocking Drawbacks u u u April 3, 2000 number of crosspoints, N 2 large VLSI space vulnerable to single faults Communication Networks 11

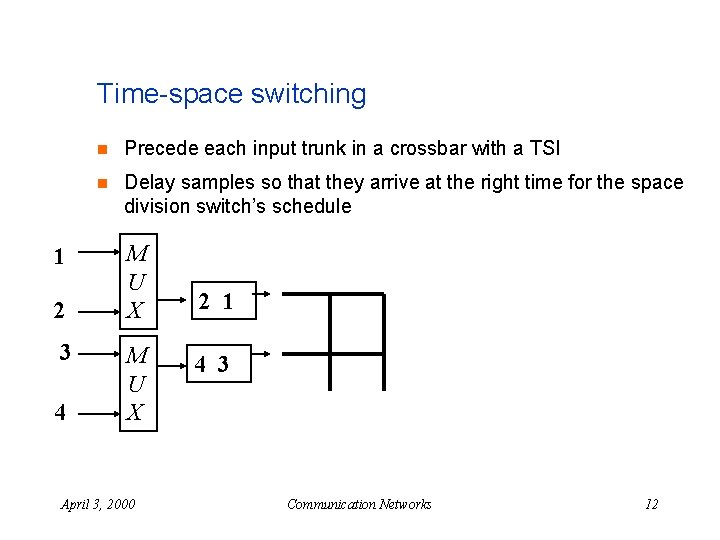

Time-space switching 1 2 3 4 n Precede each input trunk in a crossbar with a TSI n Delay samples so that they arrive at the right time for the space division switch’s schedule M U X April 3, 2000 2 1 4 3 Communication Networks 12

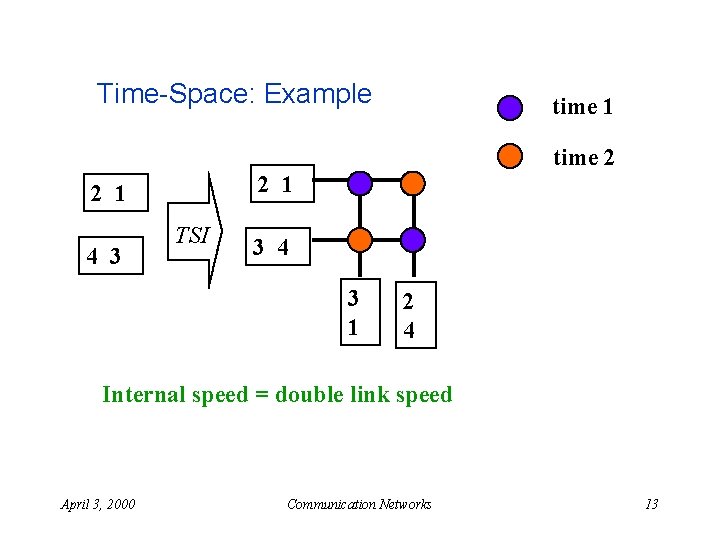

Time-Space: Example time 1 time 2 2 1 4 3 TSI 3 4 3 1 2 4 Internal speed = double link speed April 3, 2000 Communication Networks 13

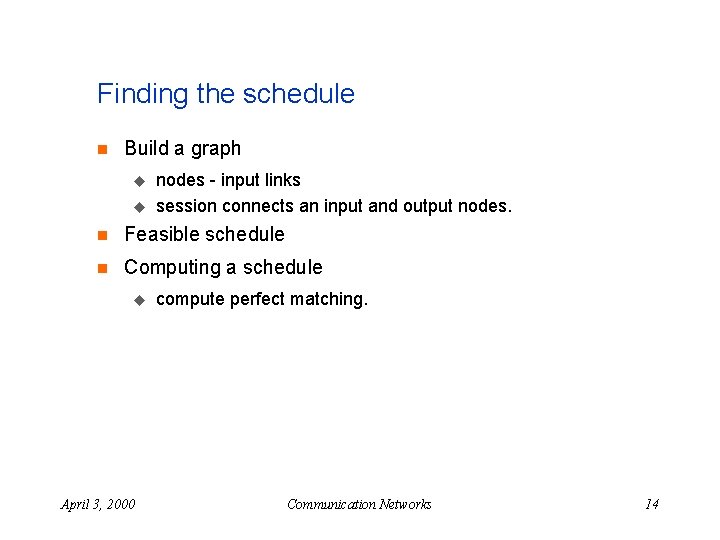

Finding the schedule n Build a graph u u nodes - input links session connects an input and output nodes. n Feasible schedule n Computing a schedule u April 3, 2000 compute perfect matching. Communication Networks 14

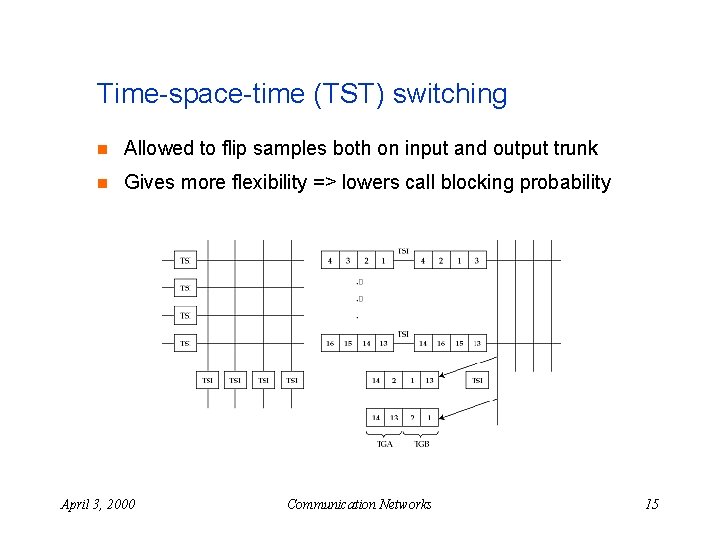

Time-space-time (TST) switching n Allowed to flip samples both on input and output trunk n Gives more flexibility => lowers call blocking probability April 3, 2000 Communication Networks 15

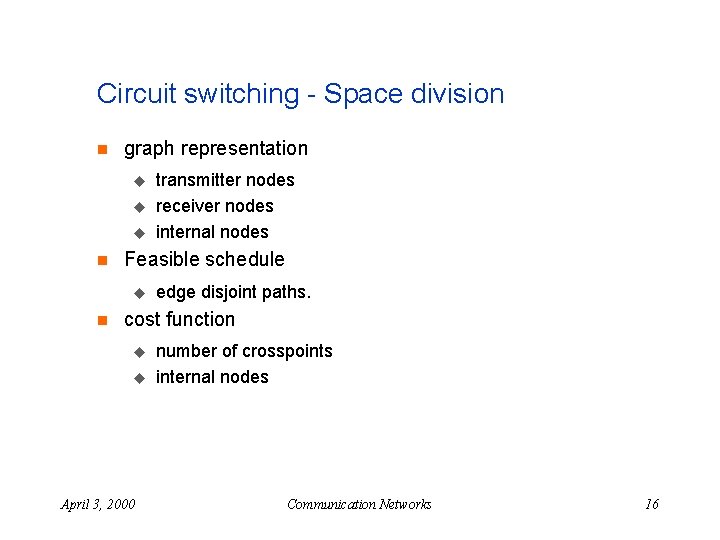

Circuit switching - Space division n graph representation u u u n Feasible schedule u n transmitter nodes receiver nodes internal nodes edge disjoint paths. cost function u u April 3, 2000 number of crosspoints internal nodes Communication Networks 16

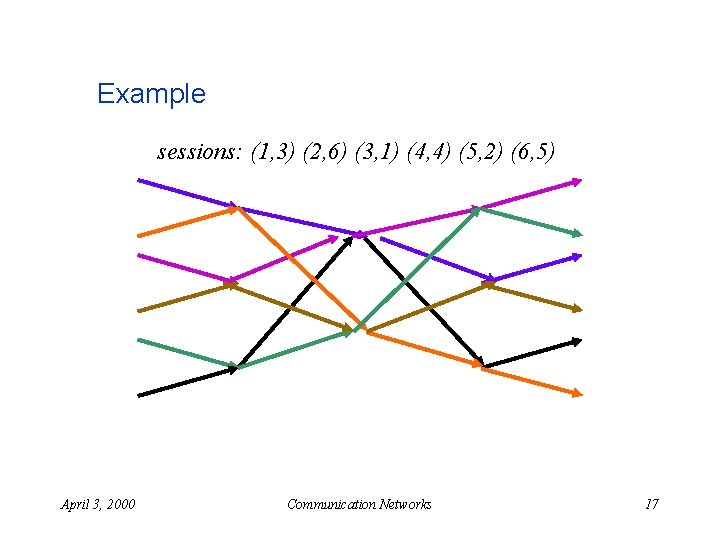

Example sessions: (1, 3) (2, 6) (3, 1) (4, 4) (5, 2) (6, 5) April 3, 2000 Communication Networks 17

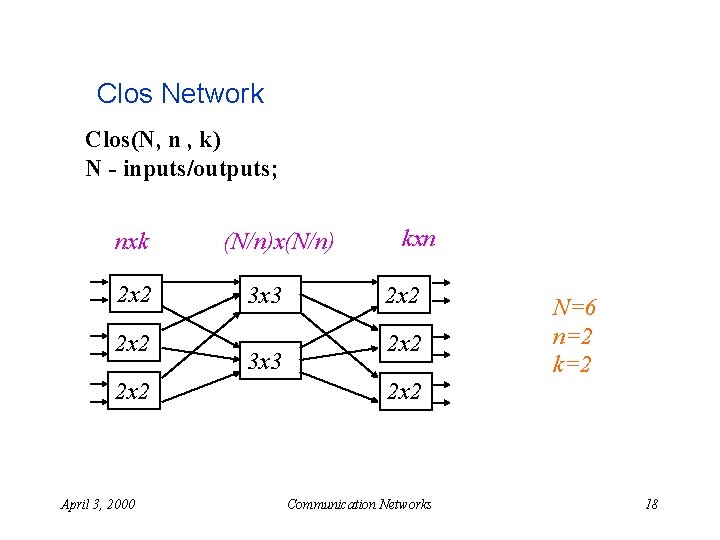

Clos Network Clos(N, n , k) N - inputs/outputs; nxk 2 x 2 April 3, 2000 (N/n)x(N/n) 3 x 3 kxn 2 x 2 N=6 n=2 k=2 2 x 2 Communication Networks 18

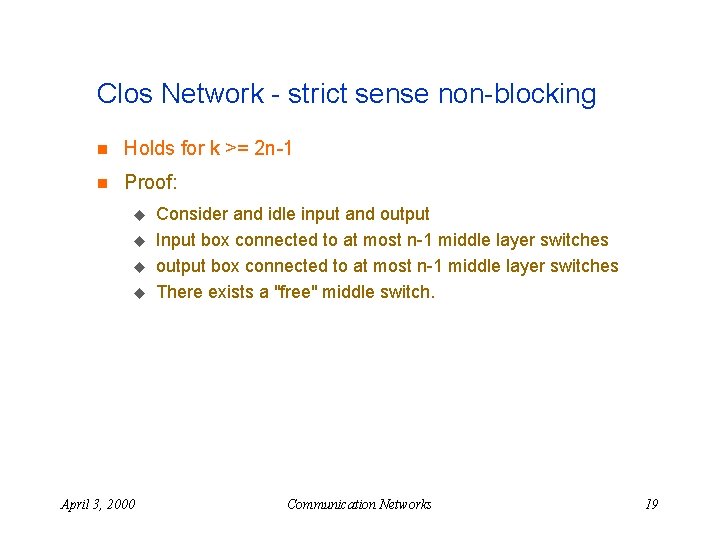

Clos Network - strict sense non-blocking n Holds for k >= 2 n-1 n Proof: u u April 3, 2000 Consider and idle input and output Input box connected to at most n-1 middle layer switches output box connected to at most n-1 middle layer switches There exists a "free" middle switch. Communication Networks 19

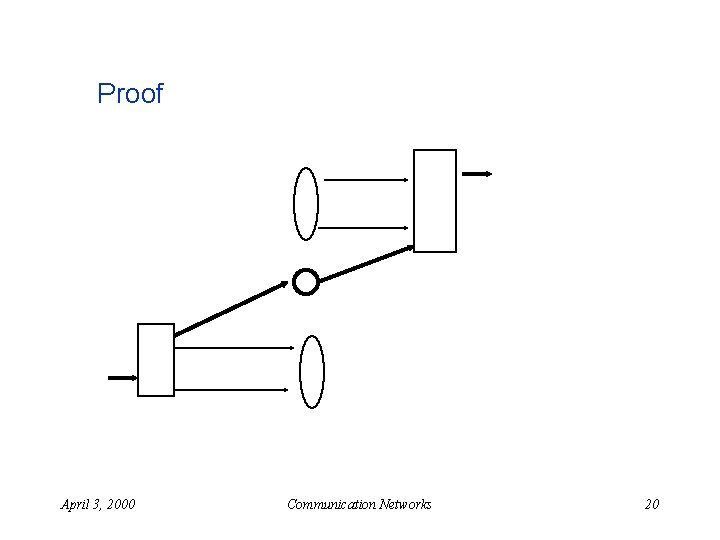

Proof April 3, 2000 Communication Networks 20

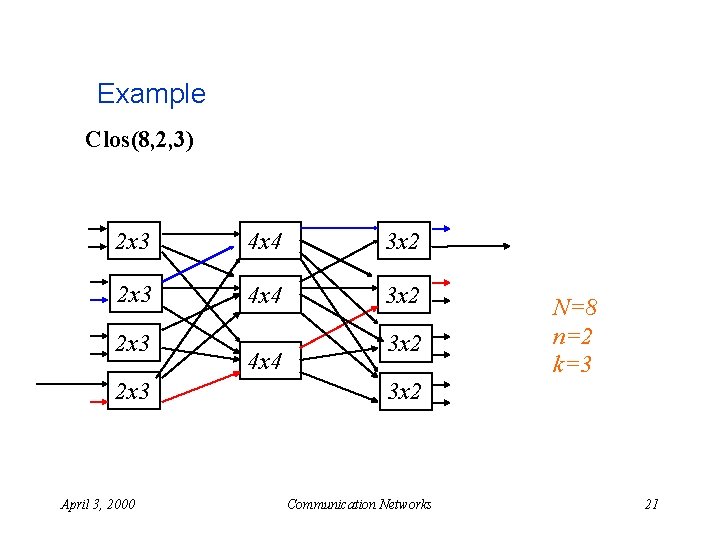

Example Clos(8, 2, 3) 2 x 3 4 x 4 3 x 2 2 x 3 April 3, 2000 4 x 4 3 x 2 N=8 n=2 k=3 3 x 2 Communication Networks 21

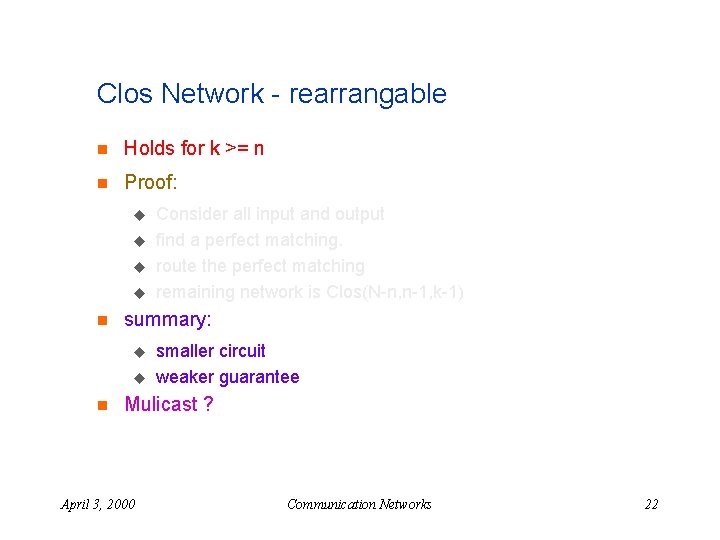

Clos Network - rearrangable n Holds for k >= n n Proof: u u n summary: u u n Consider all input and output find a perfect matching. route the perfect matching remaining network is Clos(N-n, n-1, k-1) smaller circuit weaker guarantee Mulicast ? April 3, 2000 Communication Networks 22

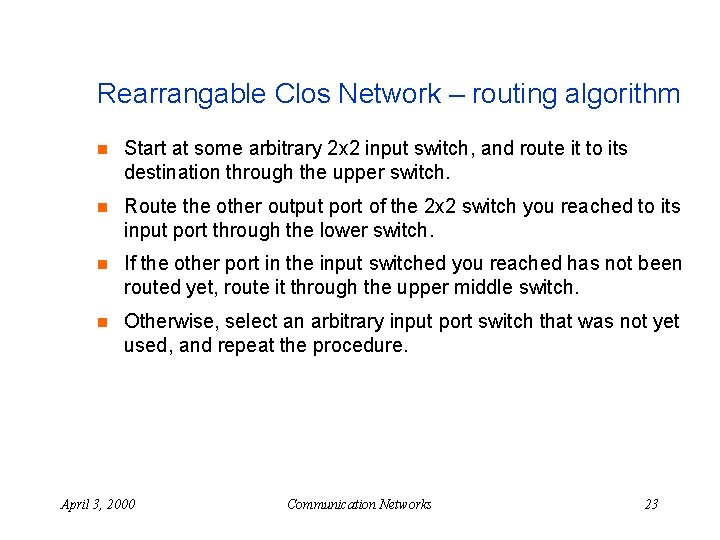

Rearrangable Clos Network – routing algorithm n Start at some arbitrary 2 x 2 input switch, and route it to its destination through the upper switch. n Route the other output port of the 2 x 2 switch you reached to its input port through the lower switch. n If the other port in the input switched you reached has not been routed yet, route it through the upper middle switch. n Otherwise, select an arbitrary input port switch that was not yet used, and repeat the procedure. April 3, 2000 Communication Networks 23

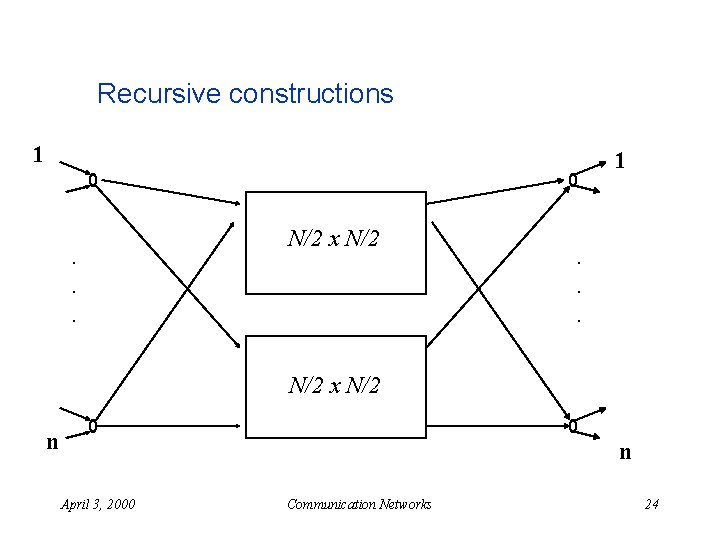

Recursive constructions 1 1 . . . N/2 x N/2 n n April 3, 2000 Communication Networks 24

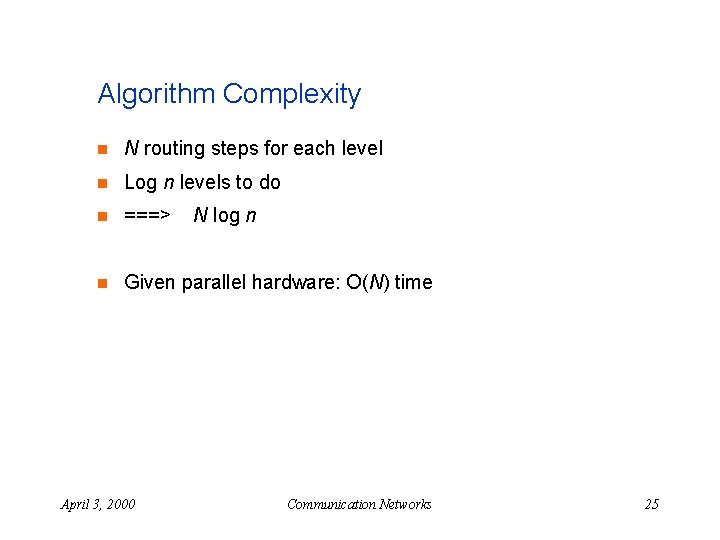

Algorithm Complexity n N routing steps for each level n Log n levels to do n ===> n Given parallel hardware: O(N) time April 3, 2000 N log n Communication Networks 25

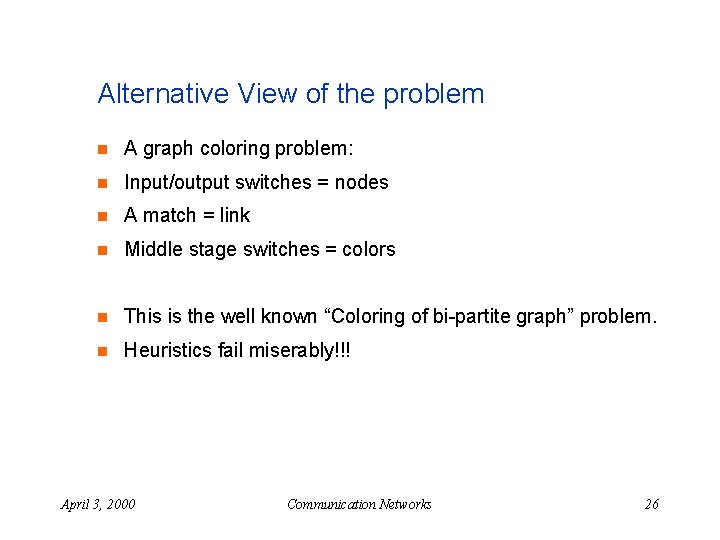

Alternative View of the problem n A graph coloring problem: n Input/output switches = nodes n A match = link n Middle stage switches = colors n This is the well known “Coloring of bi-partite graph” problem. n Heuristics fail miserably!!! April 3, 2000 Communication Networks 26

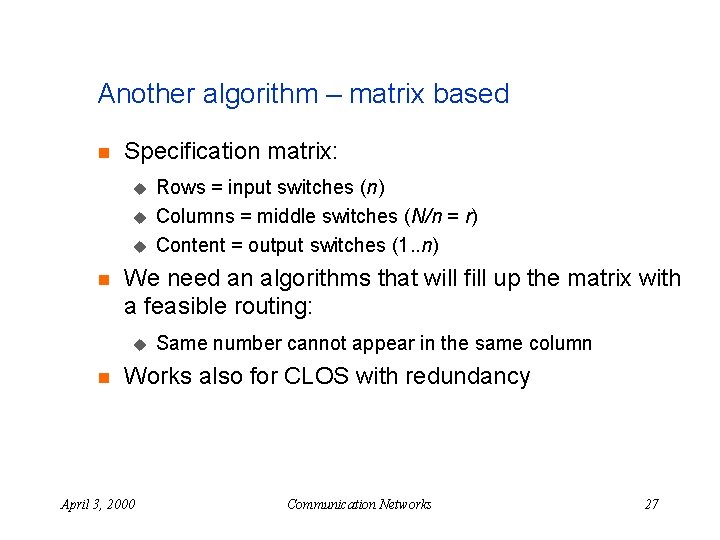

Another algorithm – matrix based n Specification matrix: u u u n We need an algorithms that will fill up the matrix with a feasible routing: u n Rows = input switches (n) Columns = middle switches (N/n = r) Content = output switches (1. . n) Same number cannot appear in the same column Works also for CLOS with redundancy April 3, 2000 Communication Networks 27

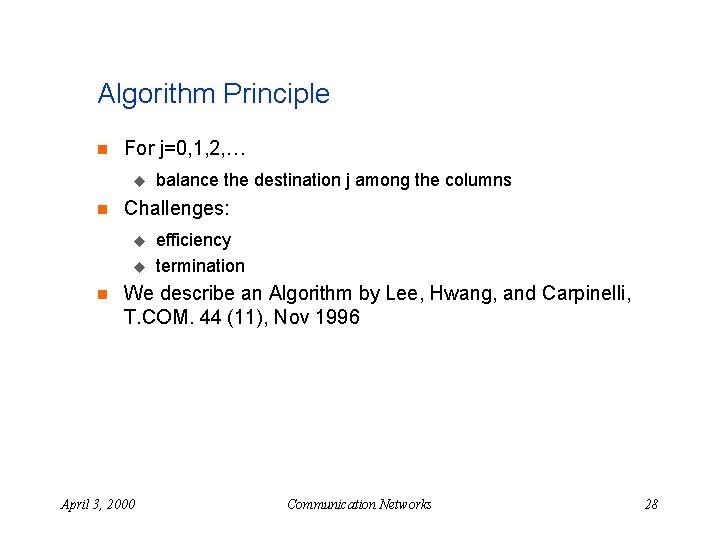

Algorithm Principle n For j=0, 1, 2, … u n Challenges: u u n balance the destination j among the columns efficiency termination We describe an Algorithm by Lee, Hwang, and Carpinelli, T. COM. 44 (11), Nov 1996 April 3, 2000 Communication Networks 28

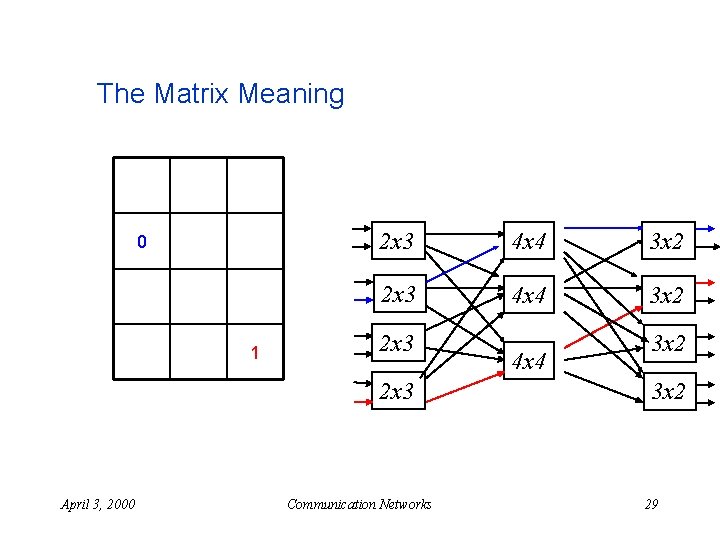

The Matrix Meaning 0 1 2 x 3 4 x 4 3 x 2 2 x 3 April 3, 2000 Communication Networks 4 x 4 3 x 2 29

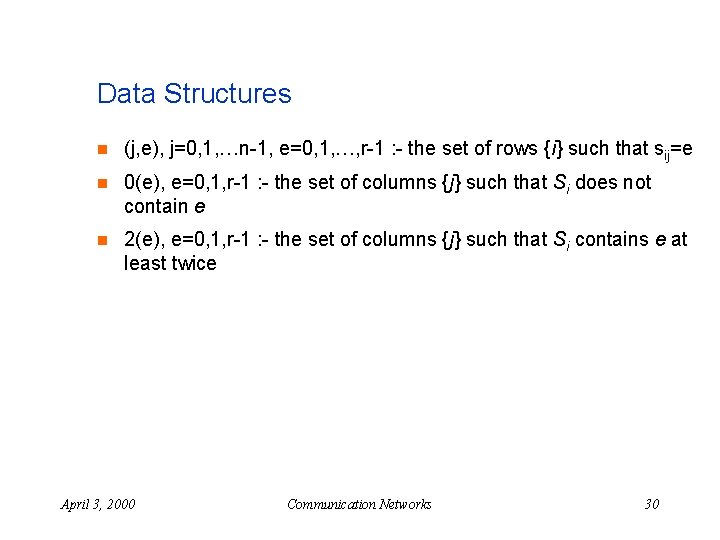

Data Structures n (j, e), j=0, 1, …n-1, e=0, 1, …, r-1 : - the set of rows {i} such that sij=e n 0(e), e=0, 1, r-1 : - the set of columns {j} such that Si does not contain e n 2(e), e=0, 1, r-1 : - the set of columns {j} such that Si contains e at least twice April 3, 2000 Communication Networks 30

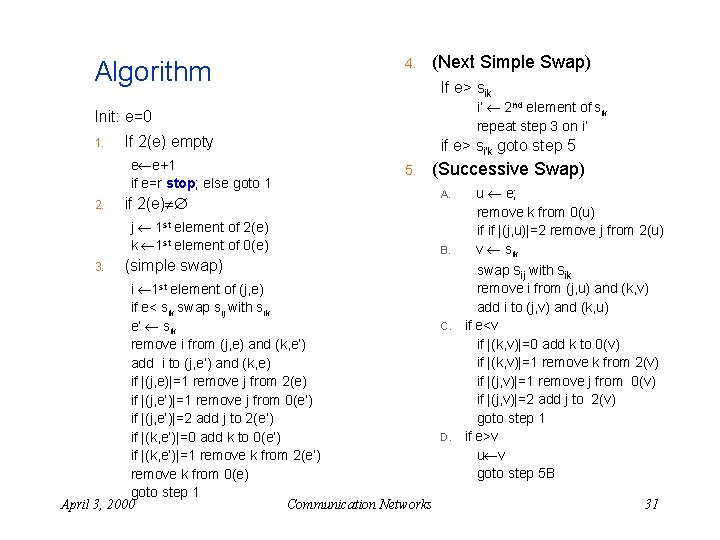

Algorithm 4. (Next Simple Swap) If e> sik i’ 2 nd element of sik repeat step 3 on i’ Init: e=0 1. If 2(e) empty e e+1 if e=r stop; else goto 1 2. if e> si’k goto step 5 5. (Successive Swap) if 2(e) j 1 st element of 2(e) k 1 st element of 0(e) 3. A. B. (simple swap) i 1 st element of (j, e) if e< sik swap sij with sik e’ sik remove i from (j, e) and (k, e’) add i to (j, e’) and (k, e) if |(j, e)|=1 remove j from 2(e) if |(j, e’)|=1 remove j from 0(e’) if |(j, e’)|=2 add j to 2(e’) if |(k, e’)|=0 add k to 0(e’) if |(k, e’)|=1 remove k from 2(e’) remove k from 0(e) goto step 1 April 3, 2000 Communication Networks C. D. u e; remove k from 0(u) if if |(j, u)|=2 remove j from 2(u) v sik swap sij with sik remove i from (j, u) and (k, v) add i to (j, v) and (k, u) if e<v if |(k, v)|=0 add k to 0(v) if |(k, v)|=1 remove k from 2(v) if |(j, v)|=1 remove j from 0(v) if |(j, v)|=2 add j to 2(v) goto step 1 if e>v u v goto step 5 B 31

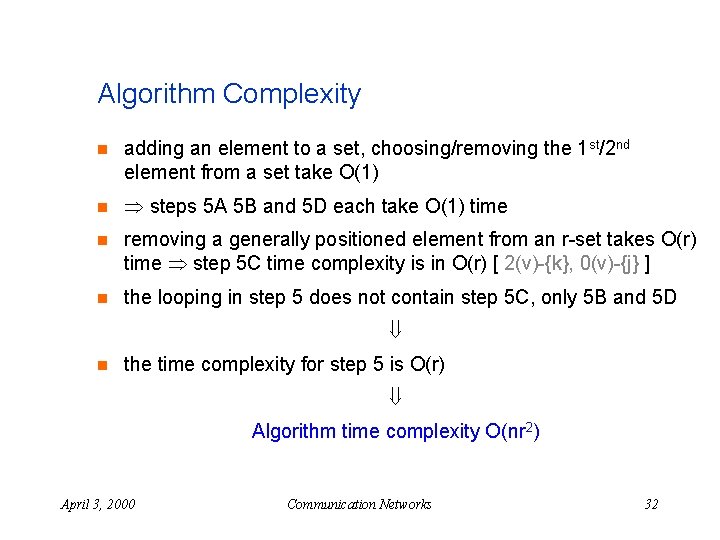

Algorithm Complexity n adding an element to a set, choosing/removing the 1 st/2 nd element from a set take O(1) n steps 5 A 5 B and 5 D each take O(1) time n removing a generally positioned element from an r-set takes O(r) time step 5 C time complexity is in O(r) [ 2(v)-{k}, 0(v)-{j} ] n the looping in step 5 does not contain step 5 C, only 5 B and 5 D n the time complexity for step 5 is O(r) Algorithm time complexity O(nr 2) April 3, 2000 Communication Networks 32

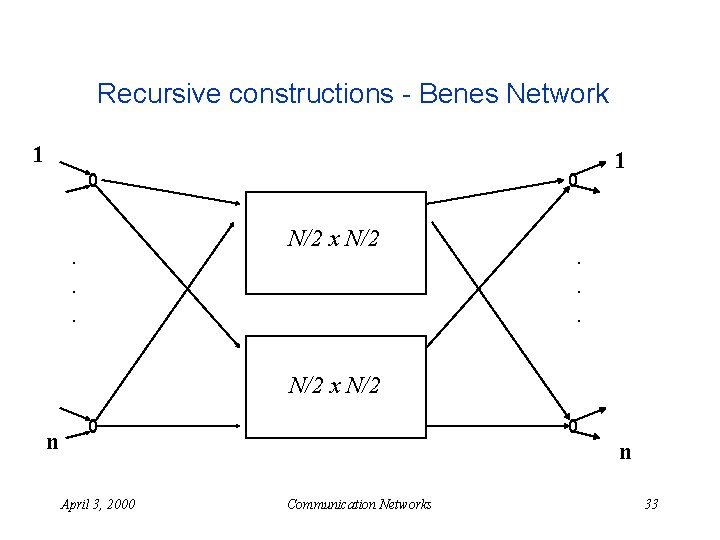

Recursive constructions - Benes Network 1 1 . . . N/2 x N/2 n n April 3, 2000 Communication Networks 33

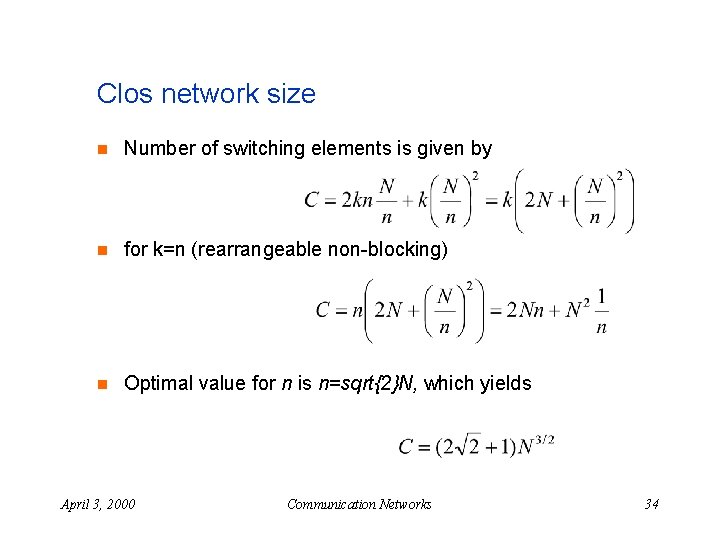

Clos network size n Number of switching elements is given by n for k=n (rearrangeable non-blocking) n Optimal value for n is n=sqrt{2}N, which yields April 3, 2000 Communication Networks 34

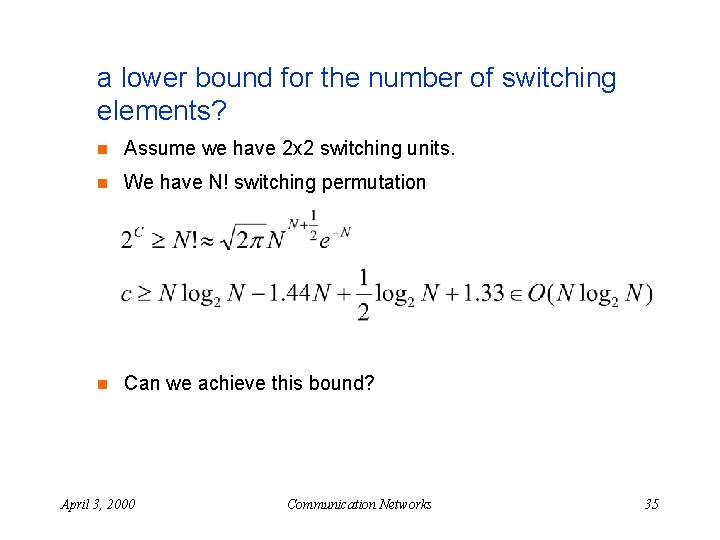

a lower bound for the number of switching elements? n Assume we have 2 x 2 switching units. n We have N! switching permutation n Can we achieve this bound? April 3, 2000 Communication Networks 35

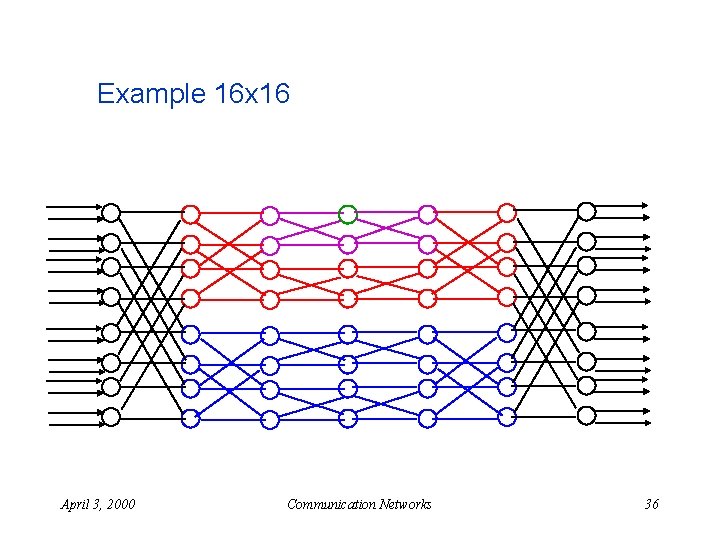

Example 16 x 16 April 3, 2000 Communication Networks 36

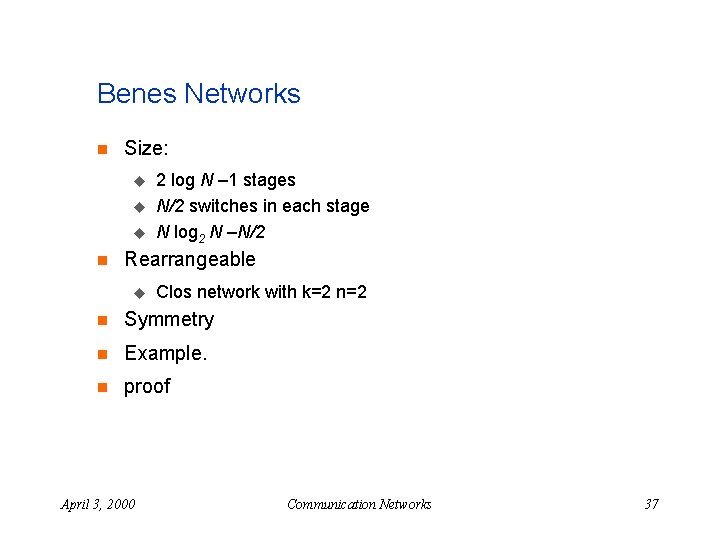

Benes Networks n Size: u u u n 2 log N – 1 stages N/2 switches in each stage N log 2 N –N/2 Rearrangeable u Clos network with k=2 n Symmetry n Example. n proof April 3, 2000 Communication Networks 37

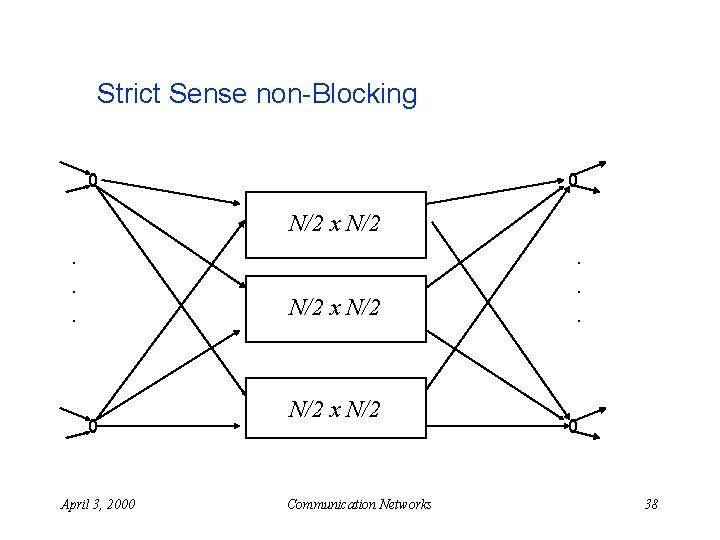

Strict Sense non-Blocking N/2 x N/2. . . N/2 x N/2 April 3, 2000 Communication Networks 38

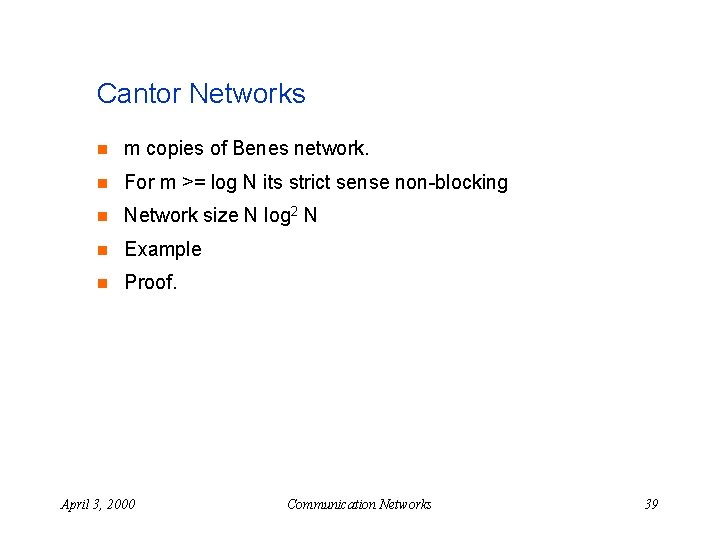

Cantor Networks n m copies of Benes network. n For m >= log N its strict sense non-blocking n Network size N log 2 N n Example n Proof. April 3, 2000 Communication Networks 39

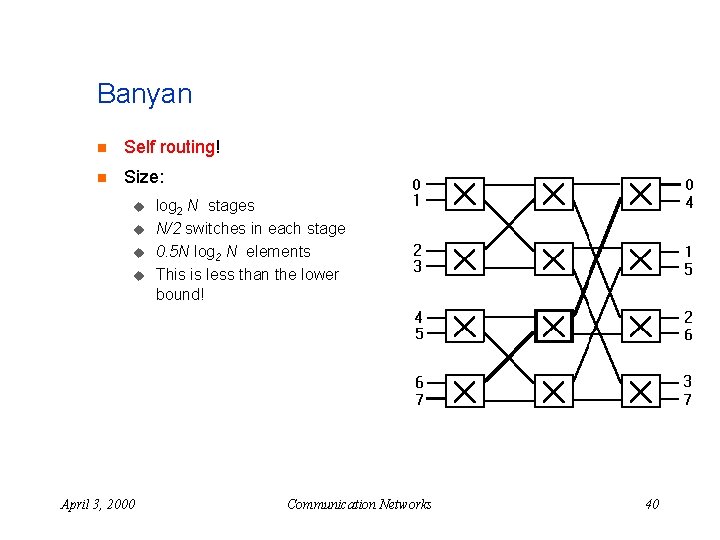

Banyan n Self routing! n Size: u u April 3, 2000 log 2 N stages N/2 switches in each stage 0. 5 N log 2 N elements This is less than the lower bound! Communication Networks 40

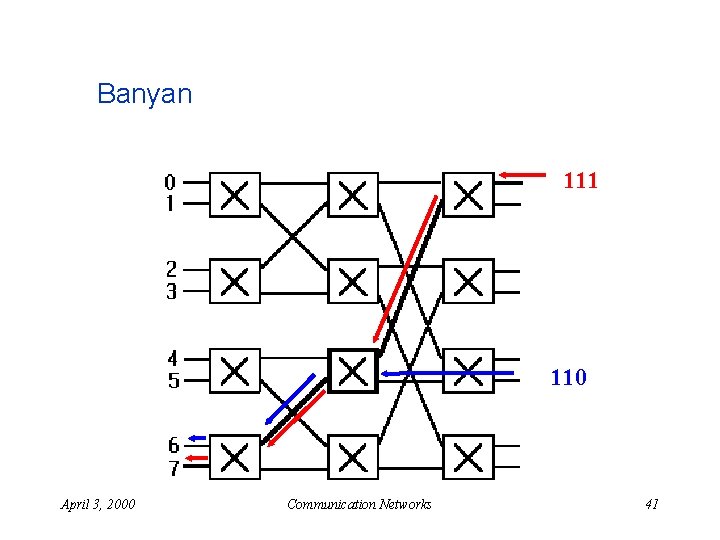

Banyan 111 110 April 3, 2000 Communication Networks 41

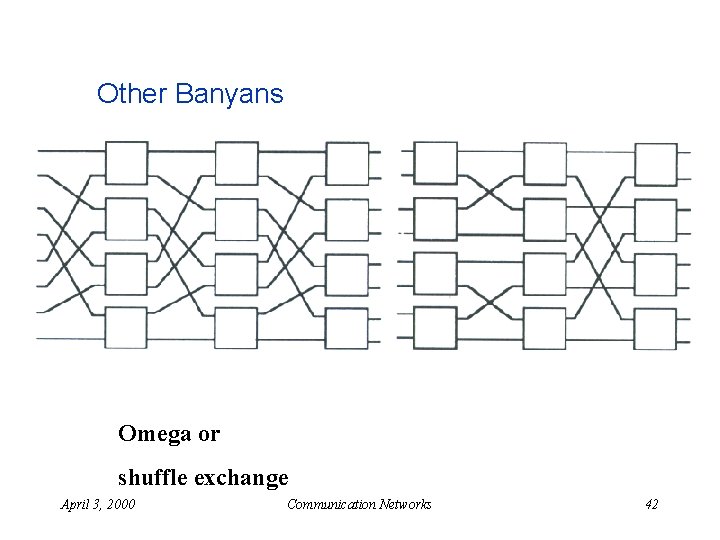

Other Banyans Omega or shuffle exchange April 3, 2000 Communication Networks 42

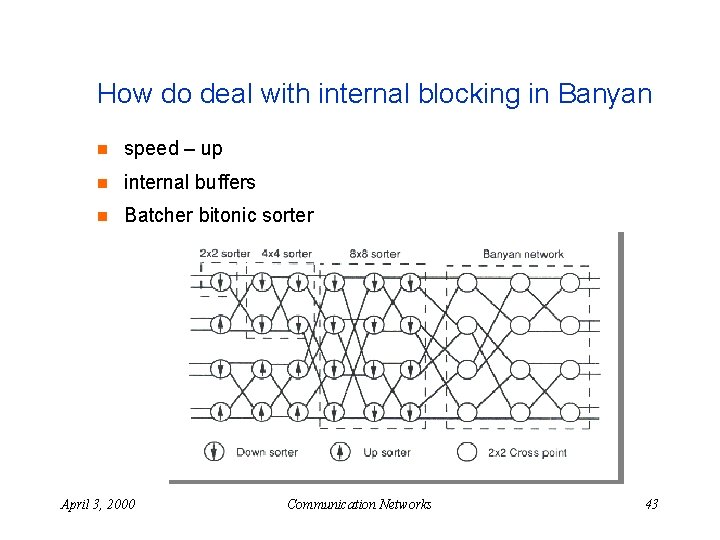

How do deal with internal blocking in Banyan n speed – up n internal buffers n Batcher bitonic sorter April 3, 2000 Communication Networks 43

April 3, 2000 Communication Networks 44
