Switchgear Intelligent Control Device SICD Switchgear Intelligent Control

Switchgear Intelligent Control Device --SICD ¡ Switchgear Intelligent Control Device is an advanced solution for 3 -35 k. V indoor switchgear. Not only inherited the ISPCI function, also add the control switch and multiple protection features. The compact panel structure, easy for installation and maintenance, Unique voice alarm prompts improve the safety performance.

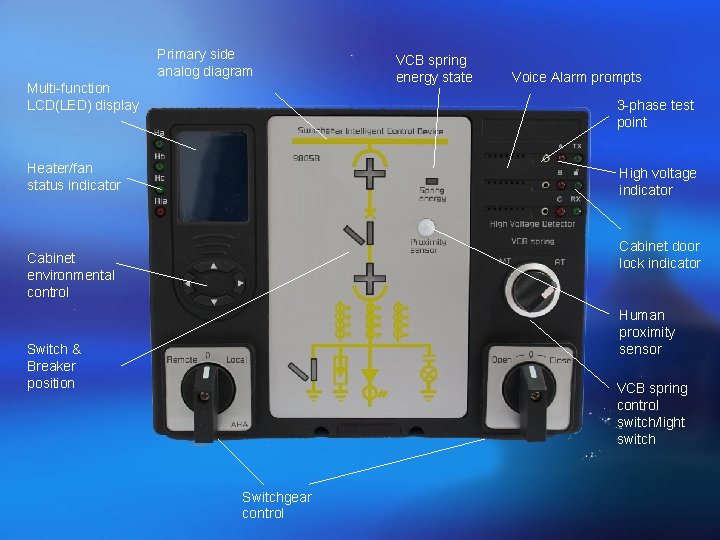

Primary side analog diagram Multi-function LCD(LED) display VCB spring energy state Voice Alarm prompts 3 -phase test point Heater/fan status indicator High voltage indicator Cabinet door lock indicator Cabinet environmental control Human proximity sensor Switch & Breaker position VCB spring control switch/light switch Switchgear control

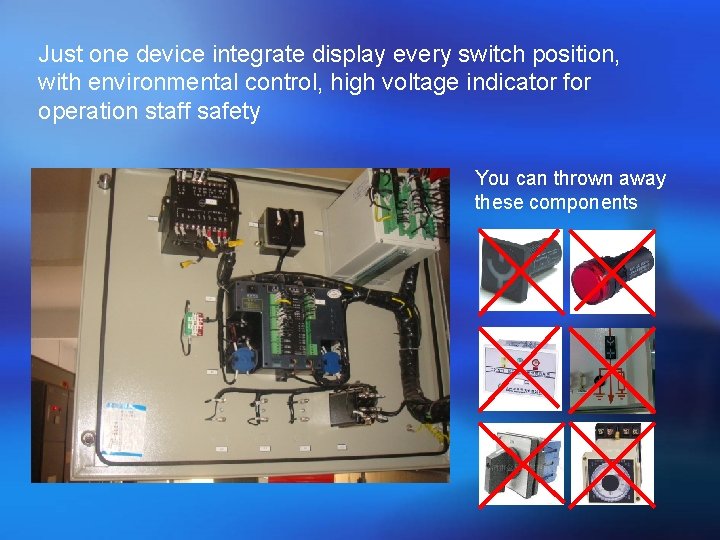

Just one device integrate display every switch position, with environmental control, high voltage indicator for operation staff safety You can thrown away these components

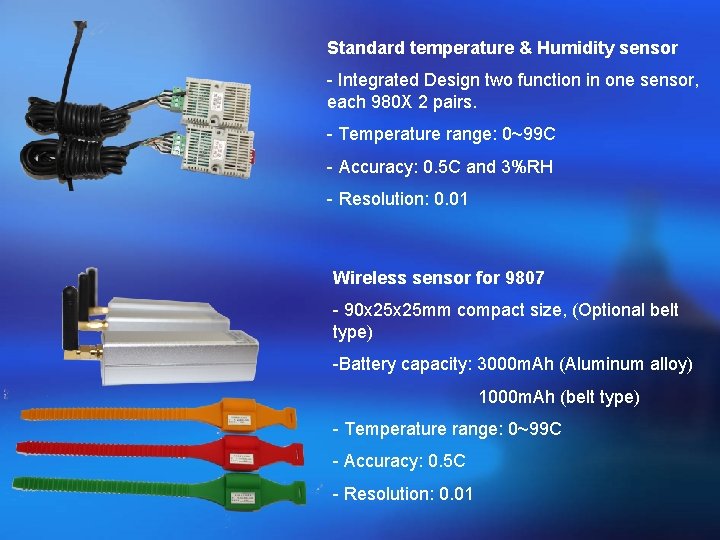

Standard temperature & Humidity sensor - Integrated Design two function in one sensor, each 980 X 2 pairs. - Temperature range: 0~99 C - Accuracy: 0. 5 C and 3%RH - Resolution: 0. 01 Wireless sensor for 9807 - 90 x 25 mm compact size, (Optional belt type) -Battery capacity: 3000 m. Ah (Aluminum alloy) 1000 m. Ah (belt type) - Temperature range: 0~99 C - Accuracy: 0. 5 C - Resolution: 0. 01

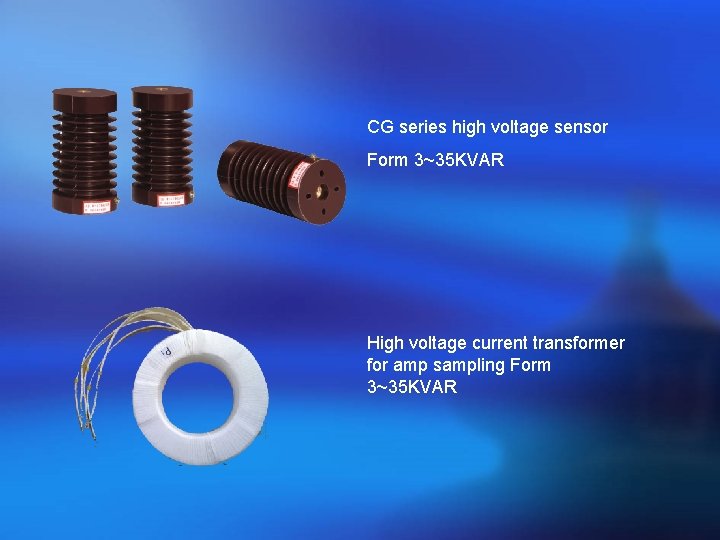

CG series high voltage sensor Form 3~35 KVAR High voltage current transformer for amp sampling Form 3~35 KVAR

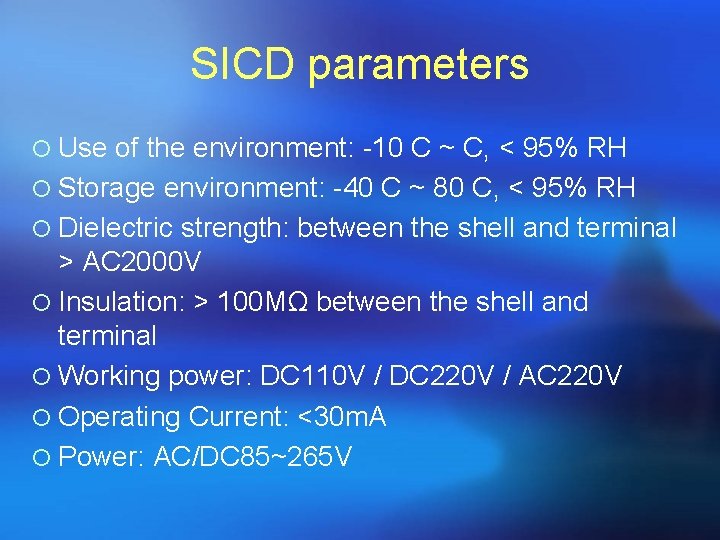

SICD parameters ¡ Use of the environment: -10 C ~ C, < 95% RH ¡ Storage environment: -40 C ~ 80 C, < 95% RH ¡ Dielectric strength: between the shell and terminal > AC 2000 V ¡ Insulation: > 100 MΩ between the shell and terminal ¡ Working power: DC 110 V / DC 220 V / AC 220 V ¡ Operating Current: <30 m. A ¡ Power: AC/DC 85~265 V

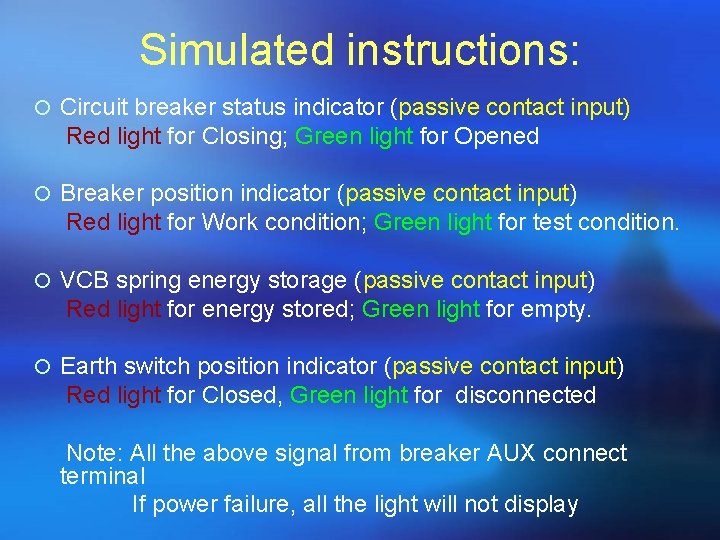

Simulated instructions: ¡ Circuit breaker status indicator (passive contact input) Red light for Closing; Green light for Opened ¡ Breaker position indicator (passive contact input) Red light for Work condition; Green light for test condition. ¡ VCB spring energy storage (passive contact input) Red light for energy stored; Green light for empty. ¡ Earth switch position indicator (passive contact input) Red light for Closed, Green light for disconnected Note: All the above signal from breaker AUX connect terminal If power failure, all the light will not display

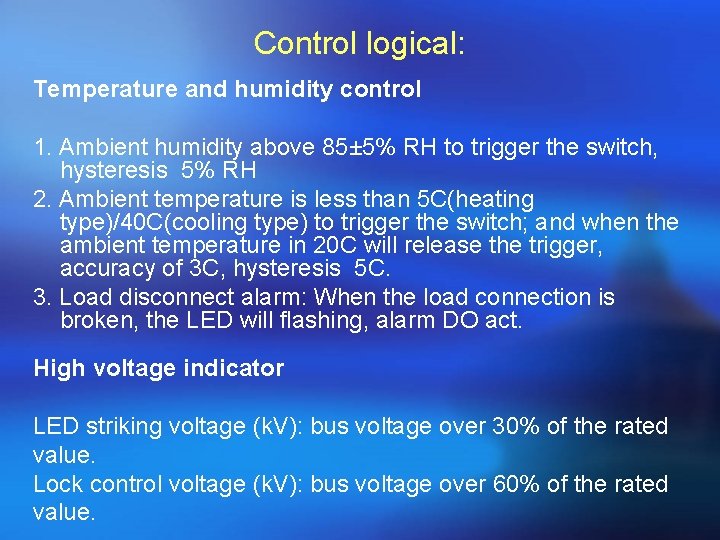

Control logical: Temperature and humidity control 1. Ambient humidity above 85± 5% RH to trigger the switch, hysteresis 5% RH 2. Ambient temperature is less than 5 C(heating type)/40 C(cooling type) to trigger the switch; and when the ambient temperature in 20 C will release the trigger, accuracy of 3 C, hysteresis 5 C. 3. Load disconnect alarm: When the load connection is broken, the LED will flashing, alarm DO act. High voltage indicator LED striking voltage (k. V): bus voltage over 30% of the rated value. Lock control voltage (k. V): bus voltage over 60% of the rated value.

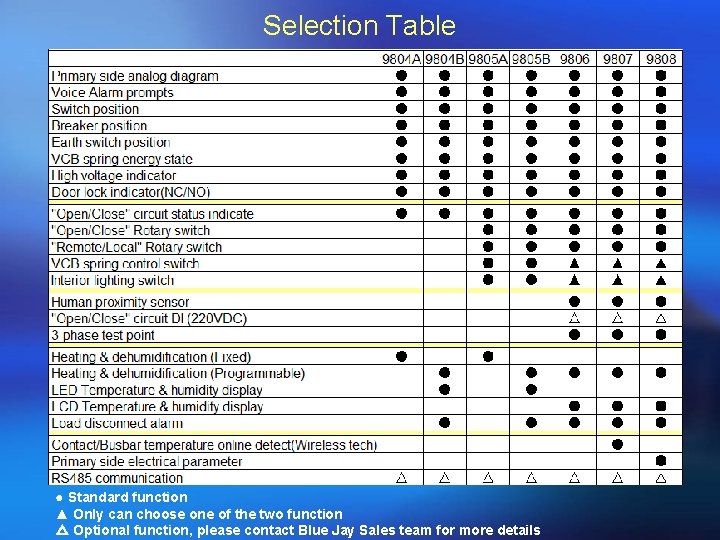

Selection Table ● Standard function ▲ Only can choose one of the two function △ Optional function, please contact Blue Jay Sales team for more details

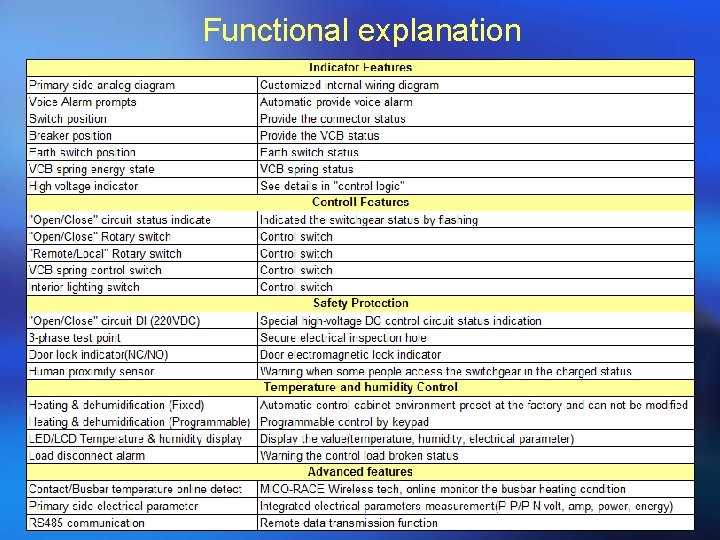

Functional explanation

Ordering info ¡ Place order need to provide the primary side wiring diagram ¡ Please confirm switchgear rated capacity ¡ Please confirm wiring diagram line color ¡ Please confirm temperature and humidity control logic, and sensor wiring length

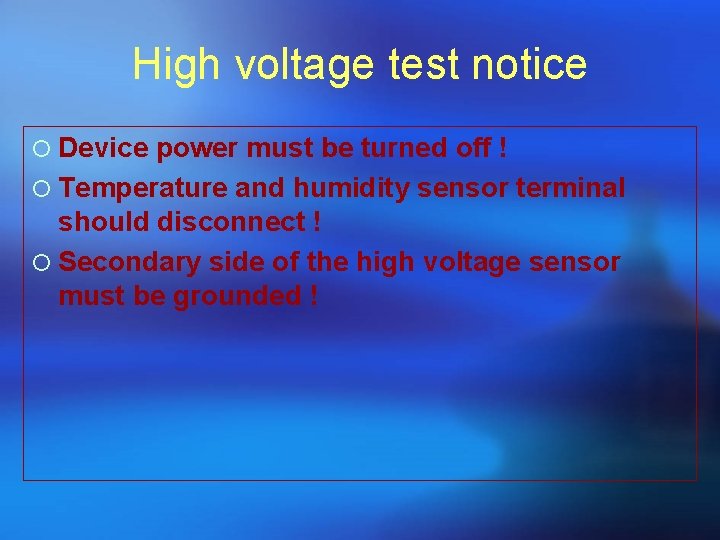

High voltage test notice ¡ Device power must be turned off ! ¡ Temperature and humidity sensor terminal should disconnect ! ¡ Secondary side of the high voltage sensor must be grounded !
