Switch Commands Exec Commands Switch exec Commands clear
- Slides: 8

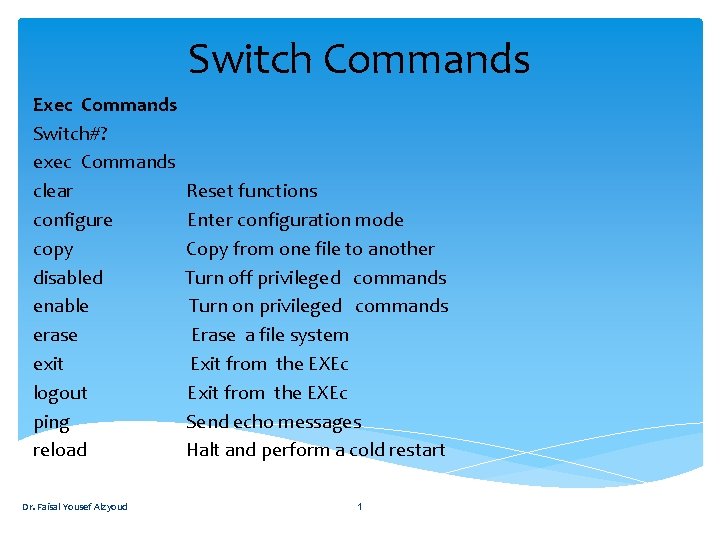

Switch Commands Exec Commands Switch#? exec Commands clear configure copy disabled enable erase exit logout ping reload Dr. Faisal Yousef Alzyoud Reset functions Enter configuration mode Copy from one file to another Turn off privileged commands Turn on privileged commands Erase a file system Exit from the EXEc Send echo messages Halt and perform a cold restart 1
show Show running system information trace Trace route to a destination write Write running configuration to memory, network or terminal Config Commands Configure commands cdp Global CDP configuration subcommands enable Modify enable password parameters end Exit from configure mode exit Exit from configure mode host name Set System’s network name interface Select an interface to configure ip Global IP configuration subcommands line configure terminal line no Negate a command or set its default vlan Vlan commands Dr. Faisal Yousef Alzyoud 2
Interface Commands Switch (configure-if#)? cdp Global CDP configuration subcommands description Interface specific description duplex Configure duplex operations exit Exit from interface configuration mode mac-address Manually set interface MAC address no Negate a command or set its default shutdown Shutdown the selected interface speed Configure speed operations switchport Set switch mode characteristics Dr. Faisal Yousef Alzyoud 3
Routers Commands Exec Commands exec Commands clear configure copy debug disabled enable erase exit logout no ping reload Dr. Faisal Yousef Alzyoud Reset functions Enter configuration mode Copy from one file to another Debugging functions Turn off privileged commands Turn on privileged commands Erase a file system Exit from the EXEc Disable debugging informations Send echo messages Halt and perform a cold restart 4
show Show running system information trace Trace route to a destination undebug Disable Debugging functions write Write running configuration to memory, network or terminal Configure Commands access-list Add access list entry cdp Global CDP configuration subcommands enable Modify enable password parameters end Exit from configure mode exit Exit from configure mode host name Set System’s network name interface Select an interface to configure ip Global IP configuration subcommands line configure terminal line no Negate a command or set its default router Enable a routing process username Establish User Name Authentication Dr. Faisal Yousef Alzyoud 5

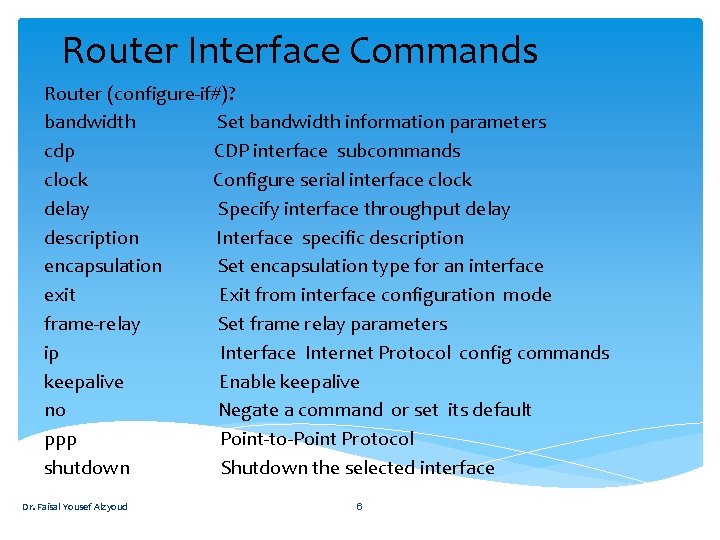

Router Interface Commands Router (configure-if#)? bandwidth Set bandwidth information parameters cdp CDP interface subcommands clock Configure serial interface clock delay Specify interface throughput delay description Interface specific description encapsulation Set encapsulation type for an interface exit Exit from interface configuration mode frame-relay Set frame relay parameters ip Interface Internet Protocol config commands keepalive Enable keepalive no Negate a command or set its default ppp Point-to-Point Protocol shutdown Shutdown the selected interface Dr. Faisal Yousef Alzyoud 6

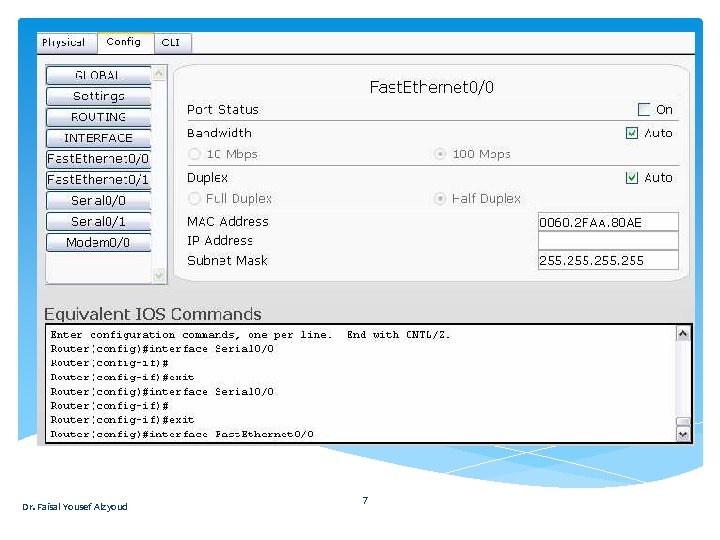

Dr. Faisal Yousef Alzyoud 7
Simulate the following topology using your assumption for IP addresses. Dr. Faisal Yousef Alzyoud 8
