Swachha Udupi Mission Solid and Liquid Resource Management

Swachha Udupi Mission Solid and Liquid Resource Management Presented by: DC Udupi August 7 th & 8 th , 2018

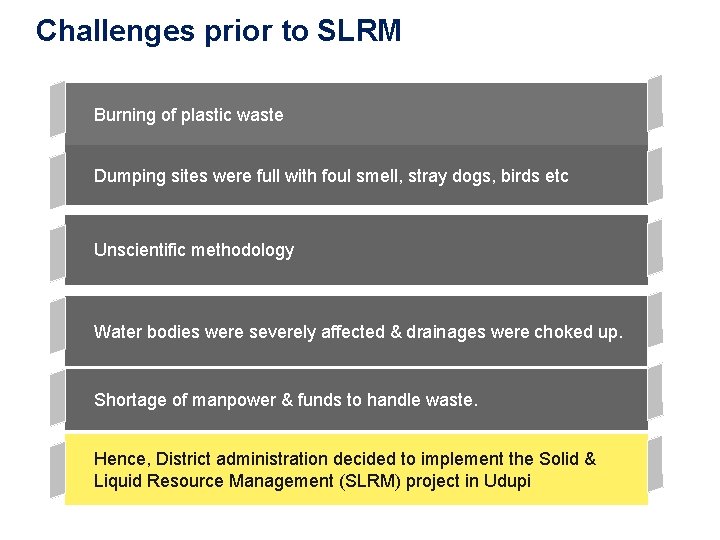

Challenges prior to SLRM Burning of plastic waste Dumping sites were full with foul smell, stray dogs, birds etc Unscientific methodology Water bodies were severely affected & drainages were choked up. Shortage of manpower & funds to handle waste. Hence, District administration decided to implement the Solid & Liquid Resource Management (SLRM) project in Udupi

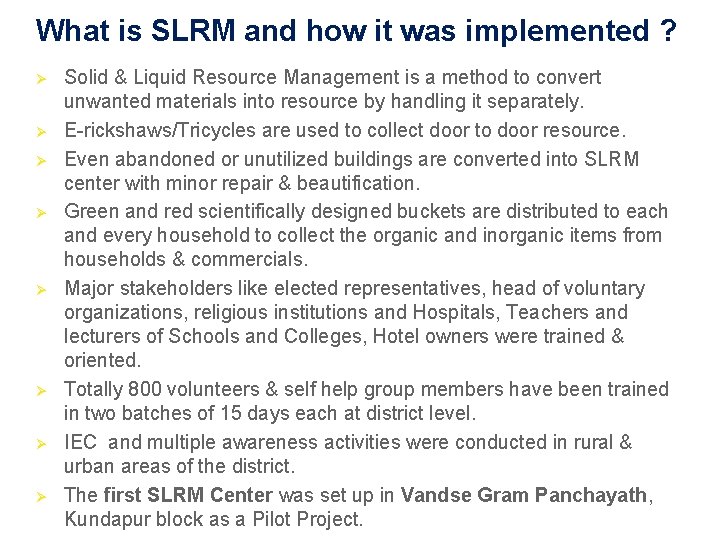

What is SLRM and how it was implemented ? Ø Ø Ø Ø Solid & Liquid Resource Management is a method to convert unwanted materials into resource by handling it separately. E-rickshaws/Tricycles are used to collect door to door resource. Even abandoned or unutilized buildings are converted into SLRM center with minor repair & beautification. Green and red scientifically designed buckets are distributed to each and every household to collect the organic and inorganic items from households & commercials. Major stakeholders like elected representatives, head of voluntary organizations, religious institutions and Hospitals, Teachers and lecturers of Schools and Colleges, Hotel owners were trained & oriented. Totally 800 volunteers & self help group members have been trained in two batches of 15 days each at district level. IEC and multiple awareness activities were conducted in rural & urban areas of the district. The first SLRM Center was set up in Vandse Gram Panchayath, Kundapur block as a Pilot Project.

Training programmes

Vandse Gram Panchayath before the SLRM implementation Water Bodies & Animals were affected Tourists littering Map of Vandse G. P Bad road conditions Road side dumping Population : 2751 Area: 9. 88 square km No. of HHS: 795 Waste generated per day: 400 kg

Converting abandoned building to SLRM Center Before Renovation After Renovation

Training activity Public awareness Awareness & Door to door collection Bucket distribution Door to door Collection bought to center

1. Segregation of Inorganic items 2. Cleaning of Plastic covers 3. Drying of plastic covers Processing of Inorganic Items 4. Drying of Recyclable items 5. Packing of Recyclable items 6. Sale of Recyclable items

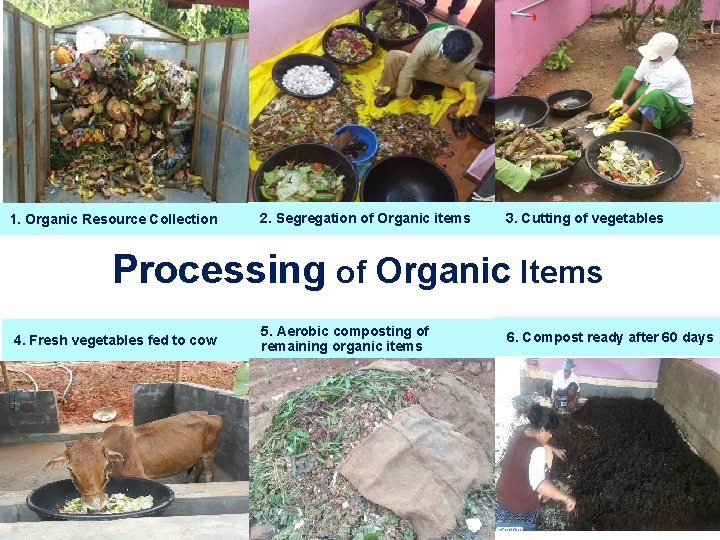

1. Organic Resource Collection 2. Segregation of Organic items 3. Cutting of vegetables Processing of Organic Items 4. Fresh vegetables fed to cow 5. Aerobic composting of remaining organic items 6. Compost ready after 60 days

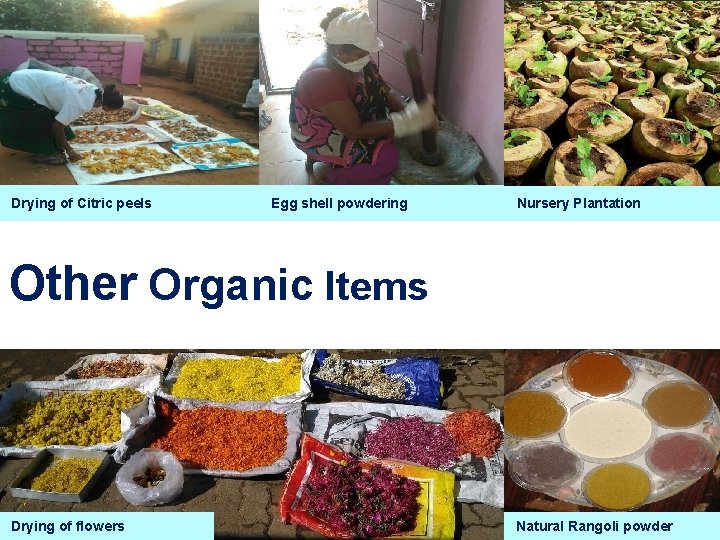

Drying of Citric peels Egg shell powdering Nursery Plantation Other Organic Items Drying of flowers Natural Rangoli powder

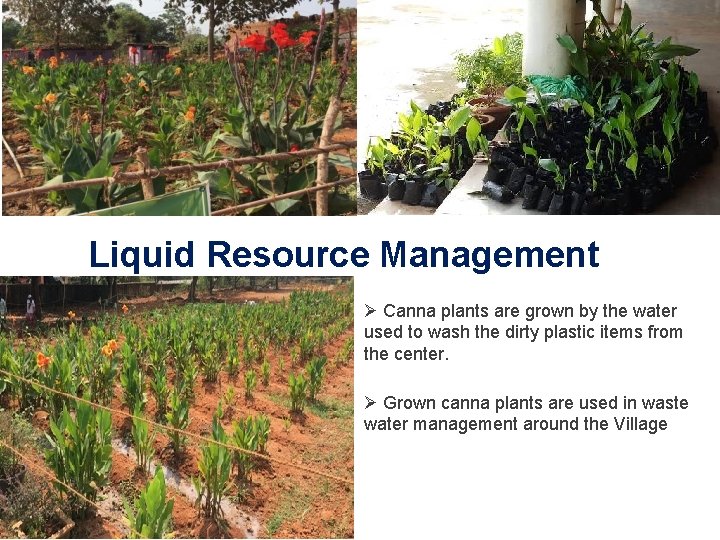

Liquid Resource Management Ø Canna plants are grown by the water used to wash the dirty plastic items from the center. Ø Grown canna plants are used in waste water management around the Village

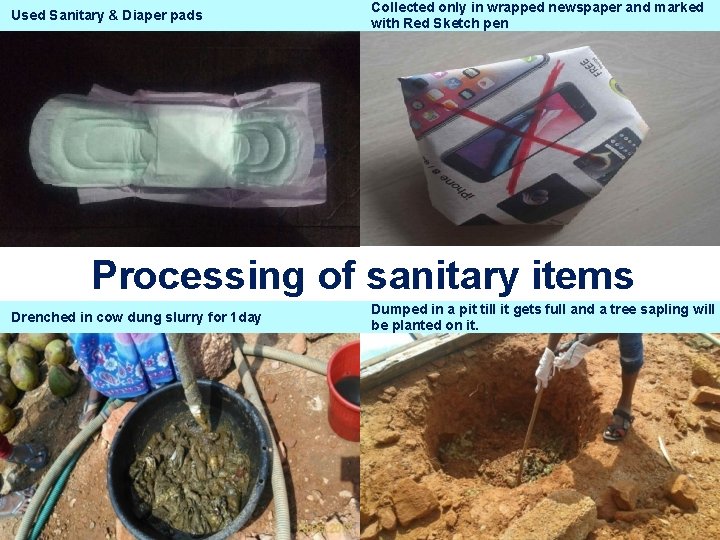

Used Sanitary & Diaper pads Collected only in wrapped newspaper and marked with Red Sketch pen Processing of sanitary items Drenched in cow dung slurry for 1 day Dumped in a pit till it gets full and a tree sapling will be planted on it.

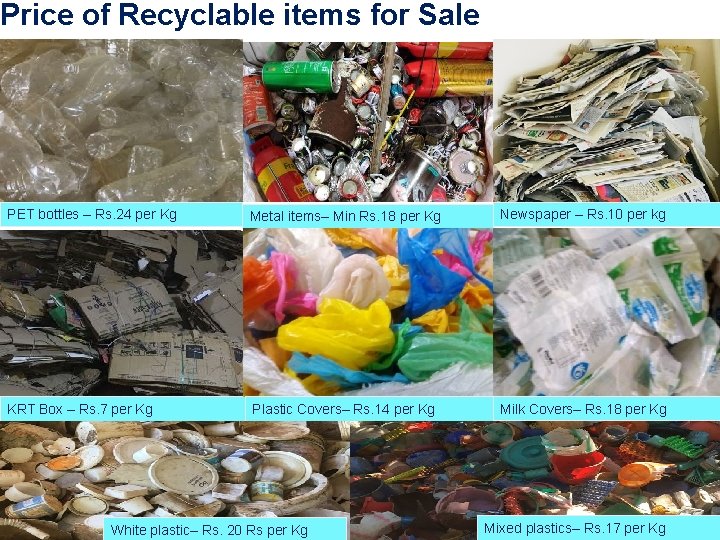

Price of Recyclable items for Sale PET bottles – Rs. 24 per Kg Metal items– Min Rs. 18 per Kg Newspaper – Rs. 10 per kg KRT Box – Rs. 7 per Kg Plastic Covers– Rs. 14 per Kg Milk Covers– Rs. 18 per Kg White plastic– Rs. 20 Rs per Kg Mixed plastics– Rs. 17 per Kg

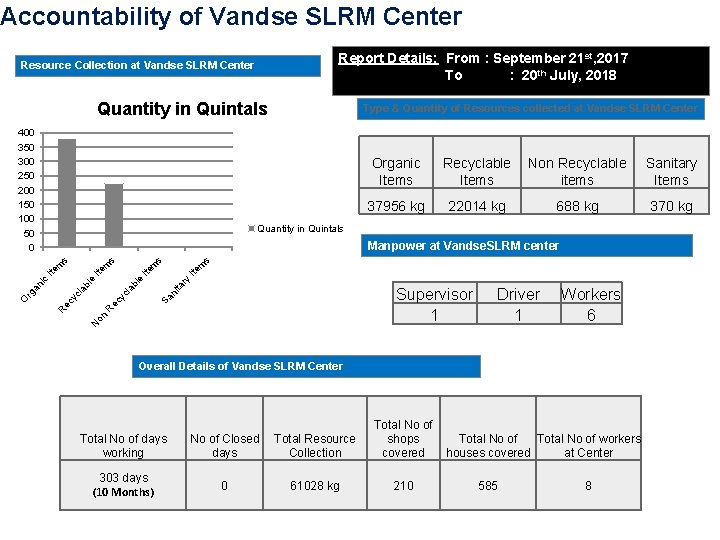

Accountability of Vandse SLRM Center Report Details: From : September 21 st, 2017 To : 20 th July, 2018 Resource Collection at Vandse SLRM Center Quantity in Quintals 400 350 300 250 200 150 100 50 0 Organic Items Recyclable Items Non Recyclable items Sanitary Items 37956 kg 22014 kg 688 kg 370 kg Quantity in Quintals s m Ite ite ta r y le Sa ni ab Supervisor 1 ec y N on R yc ec R cl la an bl ic e Ite m m s s m s Manpower at Vandse. SLRM center rg O Type & Quantity of Resources collected at Vandse SLRM Center Driver 1 Workers 6 Overall Details of Vandse SLRM Center Total No of days working No of Closed days Total Resource Collection Total No of shops covered 303 days (10 Months) 0 61028 kg 210 Total No of workers houses covered at Center 585 8

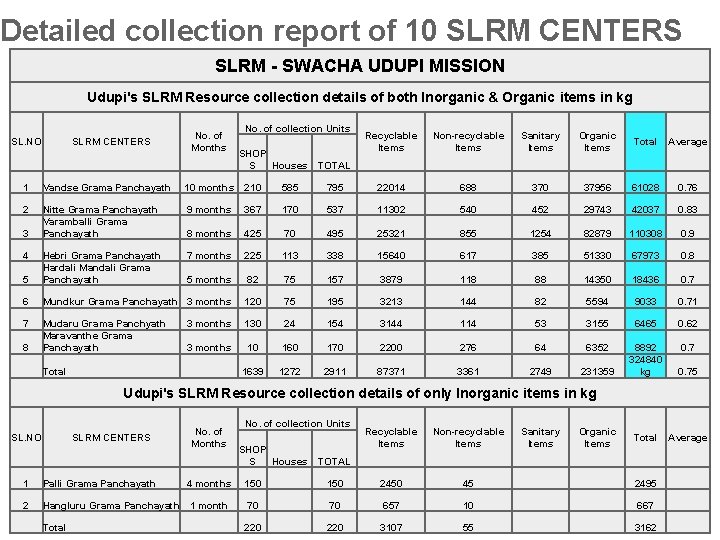

Detailed collection report of 10 SLRM CENTERS SLRM - SWACHA UDUPI MISSION Udupi's SLRM Resource collection details of both Inorganic & Organic items in kg SL. NO SLRM CENTERS No. of Months No. of collection Units SHOP S Houses Recyclable Items Non-recyclable Items Sanitary Items Organic Items Total Average TOTAL 1 Vandse Grama Panchayath 10 months 210 585 795 22014 688 370 37956 61028 0. 76 2 Nitte Grama Panchayath Varamballi Grama Panchayath 9 months 367 170 537 11302 540 452 29743 42037 0. 83 8 months 425 70 495 25321 855 1254 82879 110308 0. 9 7 months 225 113 338 15640 617 385 51330 67973 0. 8 5 Hebri Grama Panchayath Hardali Mandali Grama Panchayath 5 months 82 75 157 3879 118 88 14350 18436 0. 7 6 Mundkur Grama Panchayath 3 months 120 75 195 3213 144 82 5594 9033 0. 71 7 Mudaru Grama Panchyath Maravanthe Grama Panchayath 3 months 130 24 154 3144 114 53 3155 6465 0. 62 3 months 10 160 170 2200 276 64 6352 0. 7 1639 1272 2911 87371 3361 2749 231359 8892 324840 kg 0. 75 Total Average 3 4 8 Total Udupi's SLRM Resource collection details of only Inorganic items in kg SL. NO SLRM CENTERS No. of Months No. of collection Units SHOP S Houses Recyclable Items Non-recyclable Items Sanitary Items Organic Items TOTAL 1 Palli Grama Panchayath 4 months 150 2450 45 2495 2 Hangluru Grama Panchayath 1 month 70 70 657 10 667 Total 220 3107 55 3162

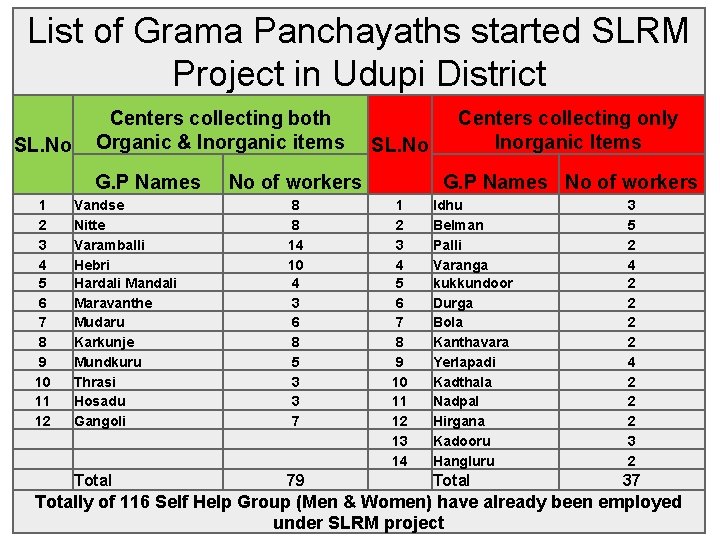

List of Grama Panchayaths started SLRM Project in Udupi District SL. No Centers collecting both Organic & Inorganic items G. P Names 1 2 3 4 5 6 7 8 9 10 11 12 SL. No No of workers Vandse Nitte Varamballi Hebri Hardali Mandali Maravanthe Mudaru Karkunje Mundkuru Thrasi Hosadu Gangoli 8 8 14 10 4 3 6 8 5 3 3 7 Total 79 Centers collecting only Inorganic Items G. P Names No of workers 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Idhu Belman Palli Varanga kukkundoor Durga Bola Kanthavara Yerlapadi Kadthala Nadpal Hirgana Kadooru Hangluru Total 3 5 2 4 2 2 2 3 2 37 Totally of 116 Self Help Group (Men & Women) have already been employed under SLRM project

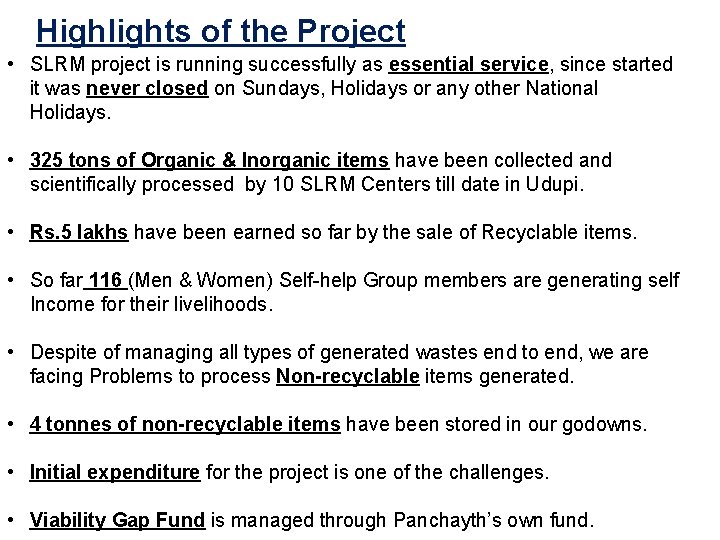

Highlights of the Project • SLRM project is running successfully as essential service, since started it was never closed on Sundays, Holidays or any other National Holidays. • 325 tons of Organic & Inorganic items have been collected and scientifically processed by 10 SLRM Centers till date in Udupi. • Rs. 5 lakhs have been earned so far by the sale of Recyclable items. • So far 116 (Men & Women) Self-help Group members are generating self Income for their livelihoods. • Despite of managing all types of generated wastes end to end, we are facing Problems to process Non-recyclable items generated. • 4 tonnes of non-recyclable items have been stored in our godowns. • Initial expenditure for the project is one of the challenges. • Viability Gap Fund is managed through Panchayth’s own fund.

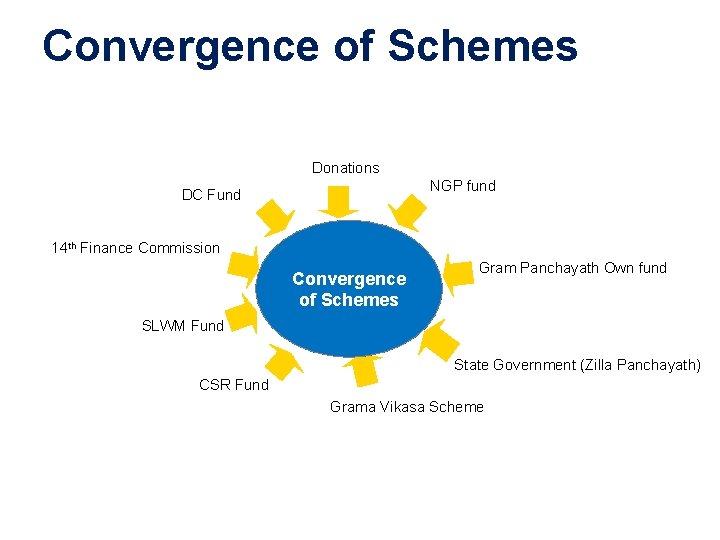

Convergence of Schemes Donations NGP fund DC Fund 14 th Finance Commission Convergence of Schemes Gram Panchayath Own fund SLWM Fund State Government (Zilla Panchayath) CSR Fund Grama Vikasa Scheme

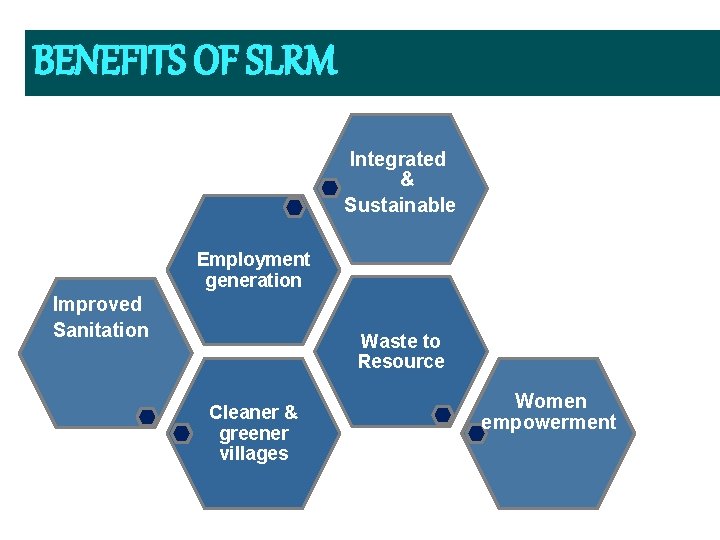

BENEFITS OF SLRM Integrated & Sustainable Employment generation Improved Sanitation Waste to Resource Cleaner & greener villages Women empowerment

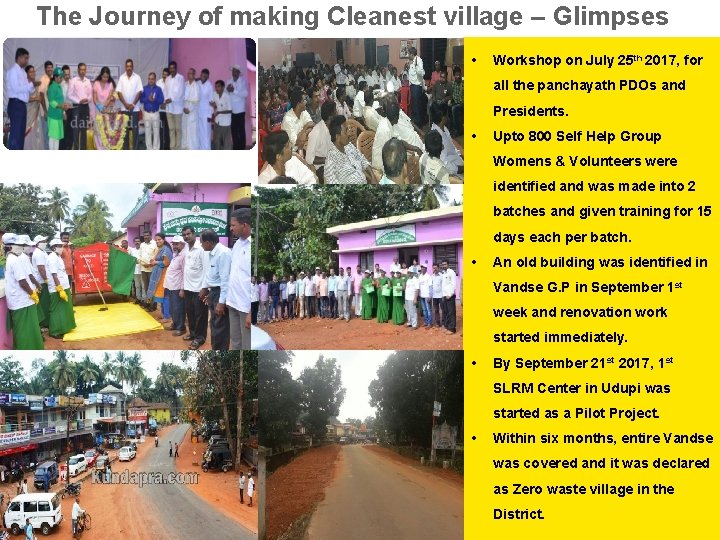

The Journey of making Cleanest village – Glimpses • Workshop on July 25 th 2017, for all the panchayath PDOs and Presidents. • Upto 800 Self Help Group Womens & Volunteers were identified and was made into 2 batches and given training for 15 days each per batch. • An old building was identified in Vandse G. P in September 1 st week and renovation work started immediately. • By September 21 st 2017, 1 st SLRM Center in Udupi was started as a Pilot Project. • Within six months, entire Vandse was covered and it was declared as Zero waste village in the District.

Paper clippings regarding SLRM project of Vandse

Solid & Liquid Resource Management Centre - Vandse

Extra Income Generating Activities

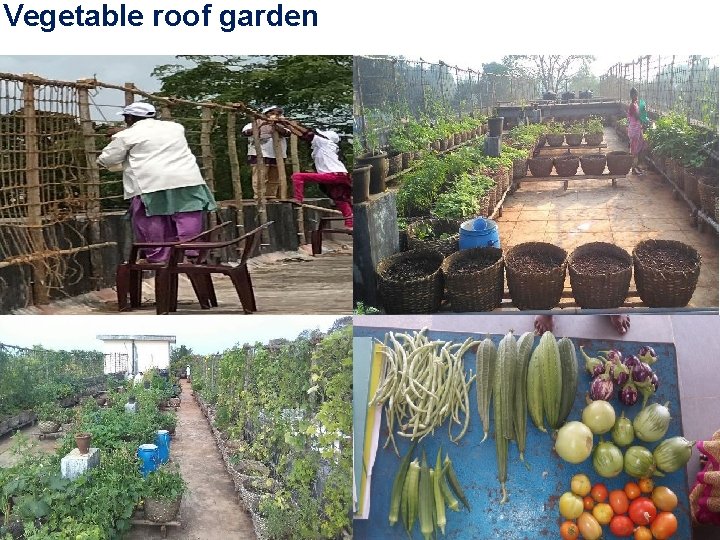

Vegetable roof garden

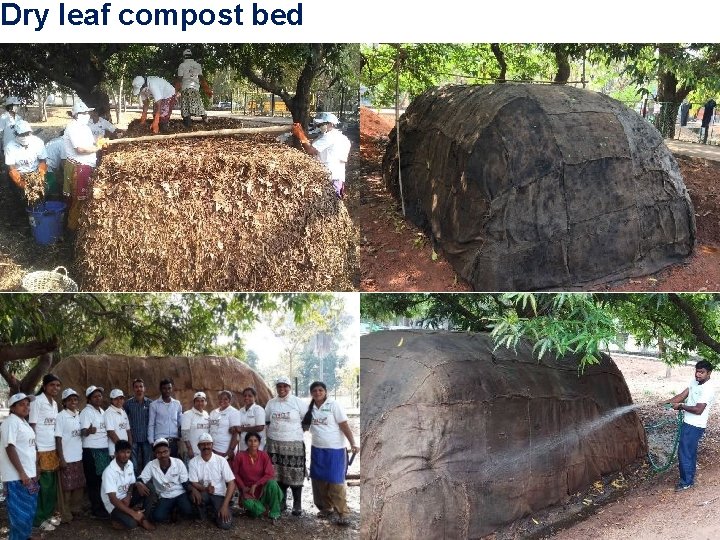

Dry leaf compost bed

SLRM Marketing team

Green Protocol & Green Marriage

Rose Campaign for Plastic carry bag ban

Training & Technical Support : Mr. C. Srinivasan, Vellore. Project Director & Consultant, Indian Green Service (IGS), Vellore, Resource Person – Mo. UD, Go. I, Solid & Liquid Resource Management (SLRM)
