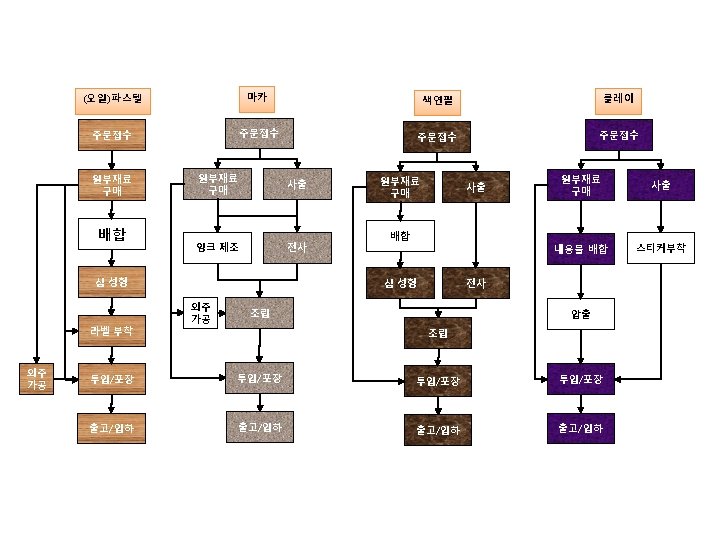

SW Architecture ERP Interface MES DB Database Server

▶ S/W Architecture ERP Interface MES DB Database Server ERP DB ORACLE 10 G Business Logic ADO. Net / OLE DB Provider MES Application Server (Windows, C#. Net) MES Application Server (Windows, IIS) EIS WIP QMS TRK C# . NET Framework (C#, ADO. NET) Barcode Data ERP Interface Module Order BOM WIP RTC Legacy Interface HTTP User Interface 품질/측정 Data ASP. NET Framework Communication Interface PLC/설비 Data 확장성 고려 Database Bridge PLN ERP PDA Data 범례: PLN : Planning (생산계획) WIP : Work in Process (재공/재고) QMS : Quality Management System (품질관리) TRK : Tracking (이력관리) EIS : Equipment Interface Server (하위통신담당)

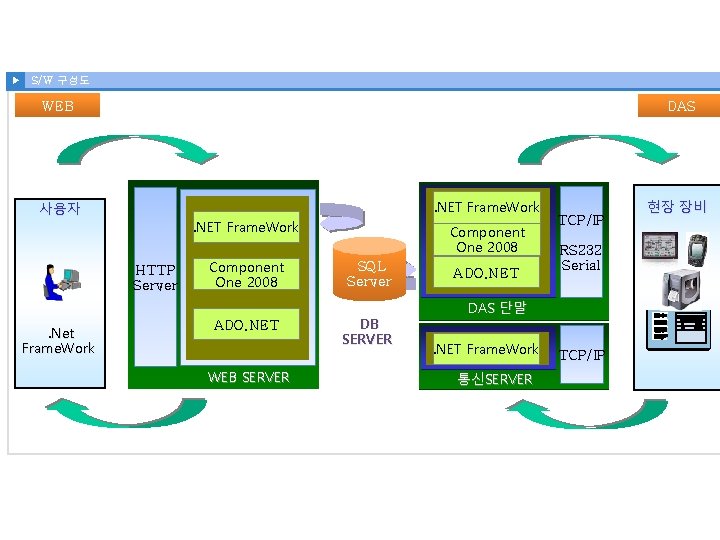

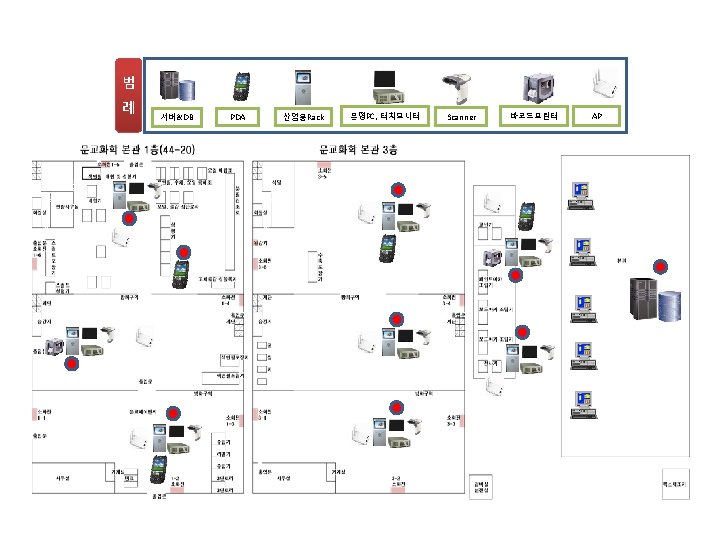

▶ S/W 구성도 WEB DAS . NET Frame. Work 사용자 . NET Frame. Work HTTP Server . Net Frame. Work Component One 2008 ADO. NET WEB SERVER Component One 2008 SQL Server DB SERVER ADO. NET TCP/IP RS 232 Serial DAS 단말. NET Frame. Work 통신SERVER TCP/IP 현장 장비
