Sutherland Medical Tubular Bandage Compression Presentation Overview of
Sutherland Medical Tubular Bandage Compression Presentation
Overview of presentation �Brief look at the vascular physiology �Ulcers (We will be concentrating on Venous Leg Ulcers) �Assessment of Leg Ulcers �Classification of bandages �Classification of tubular bandages �Sub bandage pressure �Pressure guidelines �Sutherland Medical Tubular Compression Bandages � 3 Layer Tubular Form Compression Clinical Study �Resources

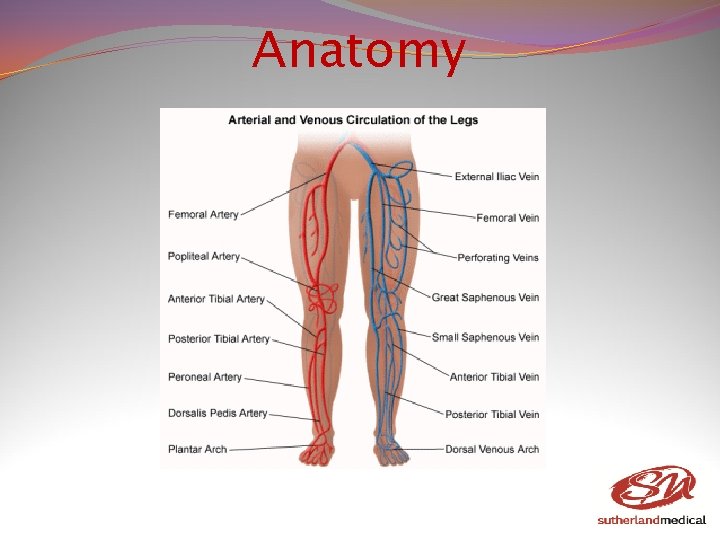

Anatomy

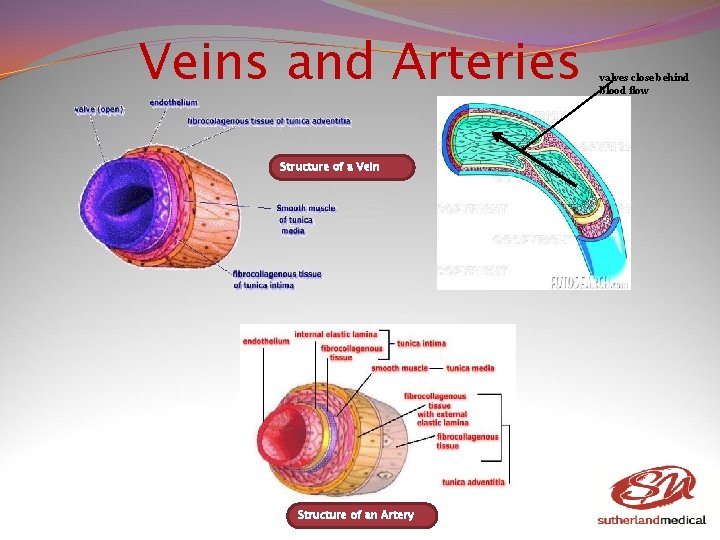

Veins and Arteries Structure of a Vein Structure of an Artery valves close behind blood flow

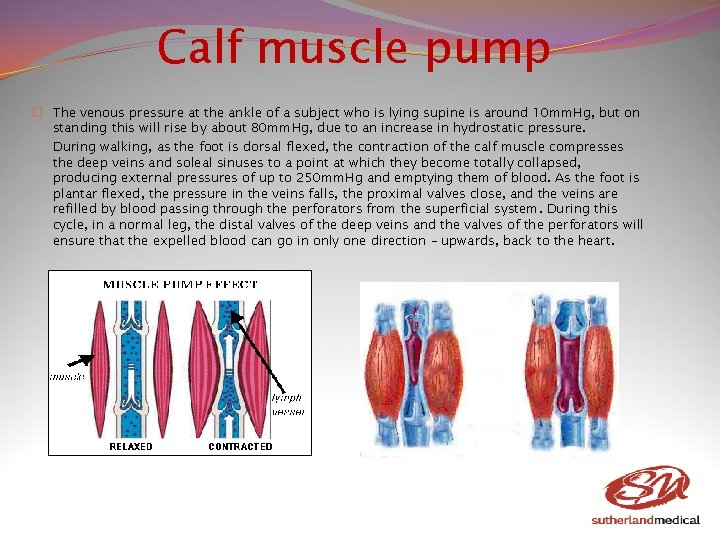

Calf muscle pump � The venous pressure at the ankle of a subject who is lying supine is around 10 mm. Hg, but on standing this will rise by about 80 mm. Hg, due to an increase in hydrostatic pressure. During walking, as the foot is dorsal flexed, the contraction of the calf muscle compresses the deep veins and soleal sinuses to a point at which they become totally collapsed, producing external pressures of up to 250 mm. Hg and emptying them of blood. As the foot is plantar flexed, the pressure in the veins falls, the proximal valves close, and the veins are refilled by blood passing through the perforators from the superficial system. During this cycle, in a normal leg, the distal valves of the deep veins and the valves of the perforators will ensure that the expelled blood can go in only one direction – upwards, back to the heart.
So what is one of the main consequences of compromised Venous blood flow?

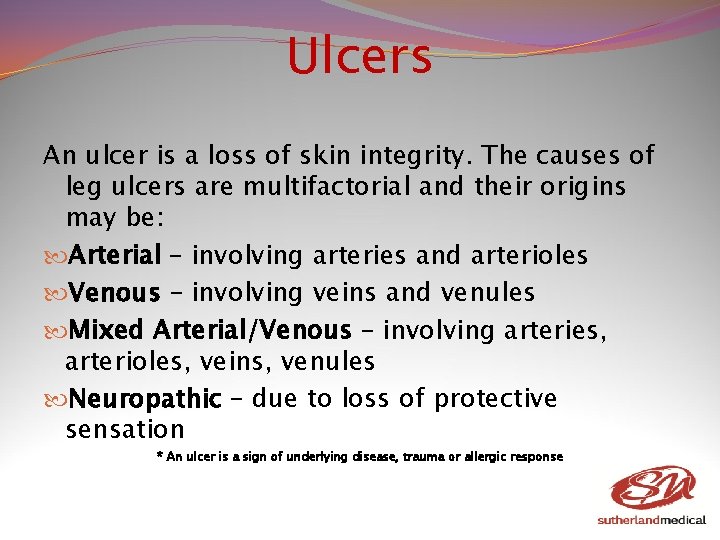

Ulcers An ulcer is a loss of skin integrity. The causes of leg ulcers are multifactorial and their origins may be: Arterial – involving arteries and arterioles Venous – involving veins and venules Mixed Arterial/Venous – involving arteries, arterioles, veins, venules Neuropathic – due to loss of protective sensation * An ulcer is a sign of underlying disease, trauma or allergic response

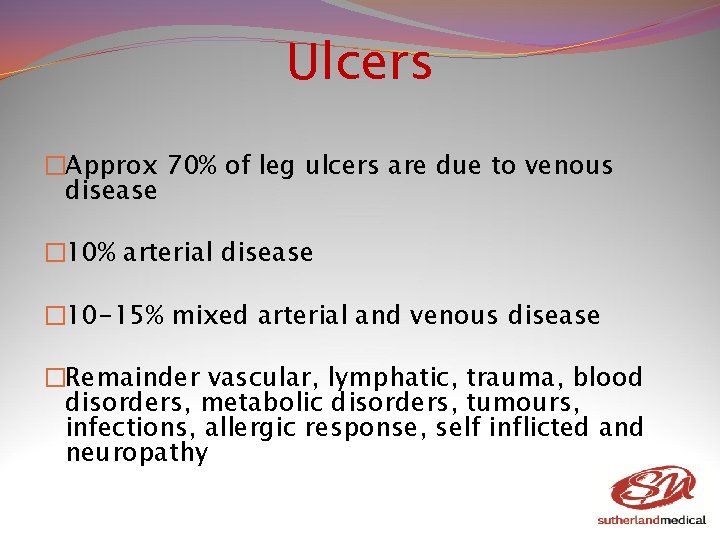

Ulcers �Approx 70% of leg ulcers are due to venous disease � 10% arterial disease � 10 -15% mixed arterial and venous disease �Remainder vascular, lymphatic, trauma, blood disorders, metabolic disorders, tumours, infections, allergic response, self inflicted and neuropathy

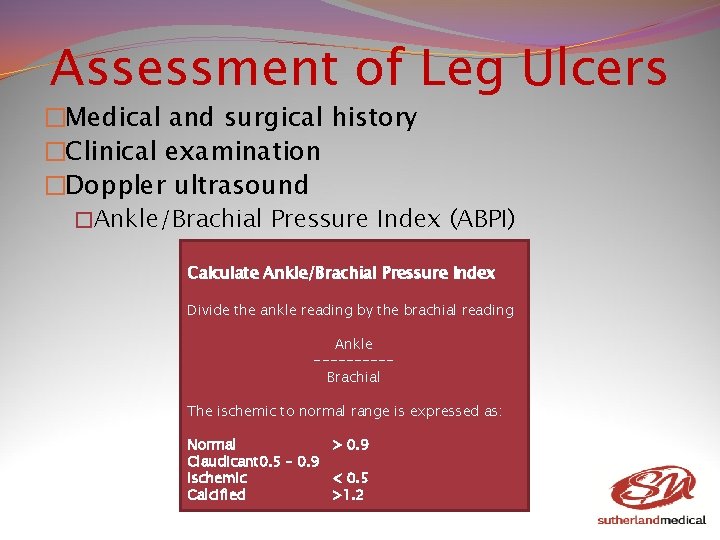

Assessment of Leg Ulcers �Medical and surgical history �Clinical examination �Doppler ultrasound �Ankle/Brachial Pressure Index (ABPI) Calculate Ankle/Brachial Pressure Index Divide the ankle reading by the brachial reading Ankle -----Brachial The ischemic to normal range is expressed as: Normal > 0. 9 Claudicant 0. 5 – 0. 9 Ischemic < 0. 5 Calcified >1. 2

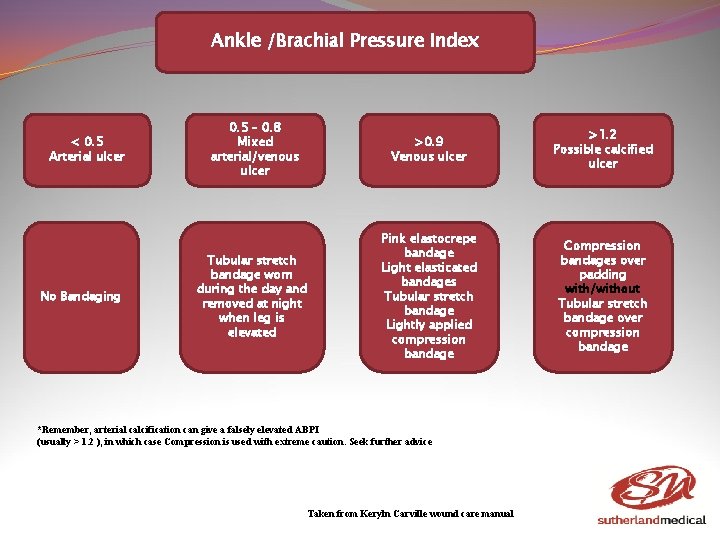

Ankle /Brachial Pressure Index < 0. 5 Arterial ulcer No Bandaging 0. 5 – 0. 8 Mixed arterial/venous ulcer >0. 9 Venous ulcer >1. 2 Possible calcified ulcer Tubular stretch bandage worn during the day and removed at night when leg is elevated Pink elastocrepe bandage Light elasticated bandages Tubular stretch bandage Lightly applied compression bandage Compression bandages over padding with/without Tubular stretch bandage over compression bandage *Remember, arterial calcification can give a falsely elevated ABPI (usually > 1. 2 ), in which case Compression is used with extreme caution. Seek further advice Taken from Keryln Carville wound care manual

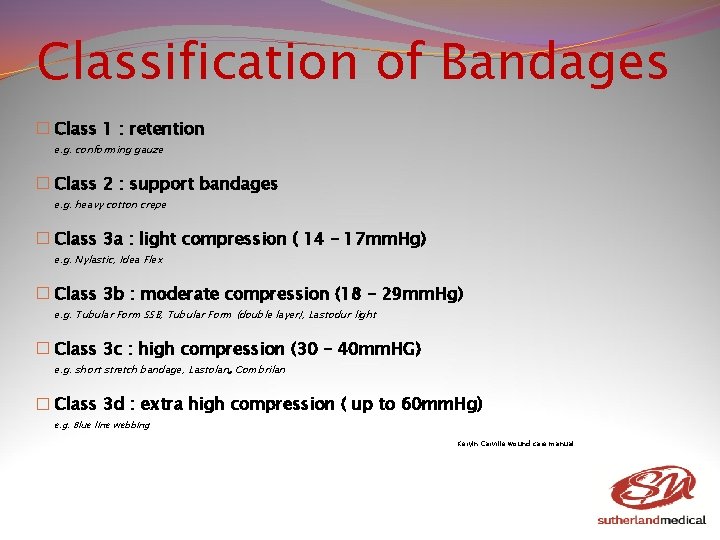

Classification of Bandages � Class 1 : retention e. g. conforming gauze � Class 2 : support bandages e. g. heavy cotton crepe � Class 3 a : light compression ( 14 – 17 mm. Hg) e. g. Nylastic, Idea Flex � Class 3 b : moderate compression (18 – 29 mm. Hg) e. g. Tubular Form SSB, Tubular Form (double layer), Lastodur light � Class 3 c : high compression (30 – 40 mm. HG) e. g. short stretch bandage, Lastolan, Combrilan � Class 3 d : extra high compression ( up to 60 mm. Hg) e. g. Blue line webbing Keryln Carville wound care manual

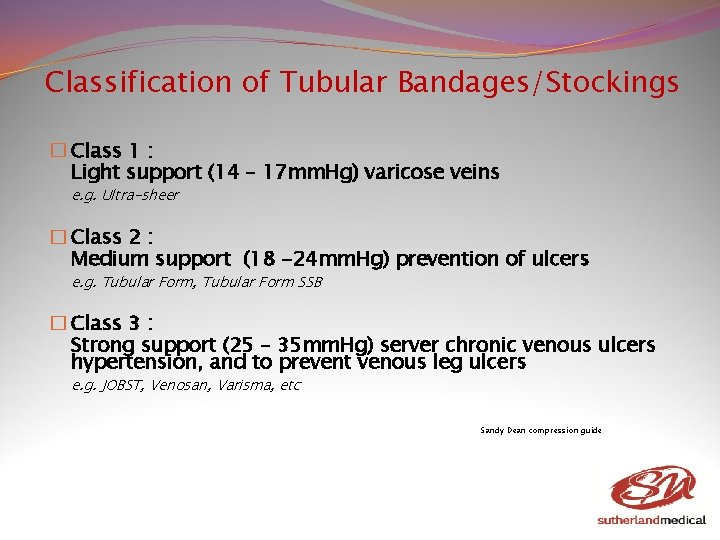

Classification of Tubular Bandages/Stockings � Class 1 : Light support (14 – 17 mm. Hg) varicose veins e. g. Ultra-sheer � Class 2 : Medium support (18 -24 mm. Hg) prevention of ulcers e. g. Tubular Form, Tubular Form SSB � Class 3 : Strong support (25 – 35 mm. Hg) server chronic venous ulcers hypertension, and to prevent venous leg ulcers e. g. JOBST, Venosan, Varisma, etc Sandy Dean compression guide

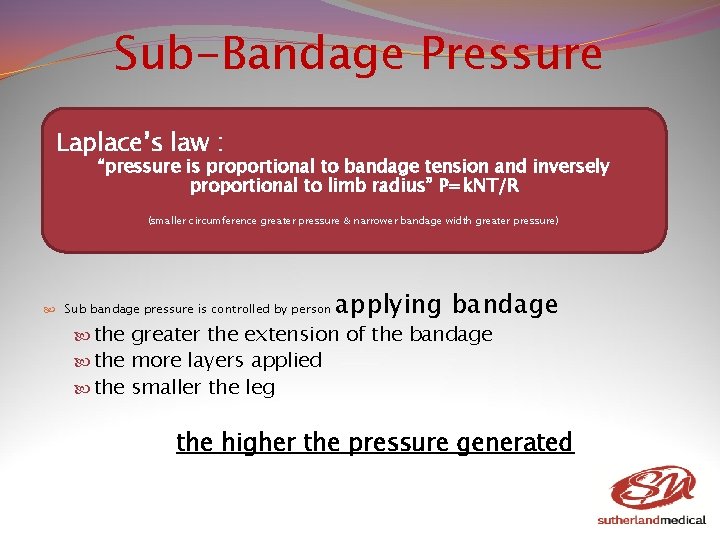

Sub-Bandage Pressure Laplace’s law : “pressure is proportional to bandage tension and inversely proportional to limb radius” P=k. NT/R (smaller circumference greater pressure & narrower bandage width greater pressure) Sub bandage pressure is controlled by person applying bandage the greater the extension of the bandage the more layers applied the smaller the leg the higher the pressure generated

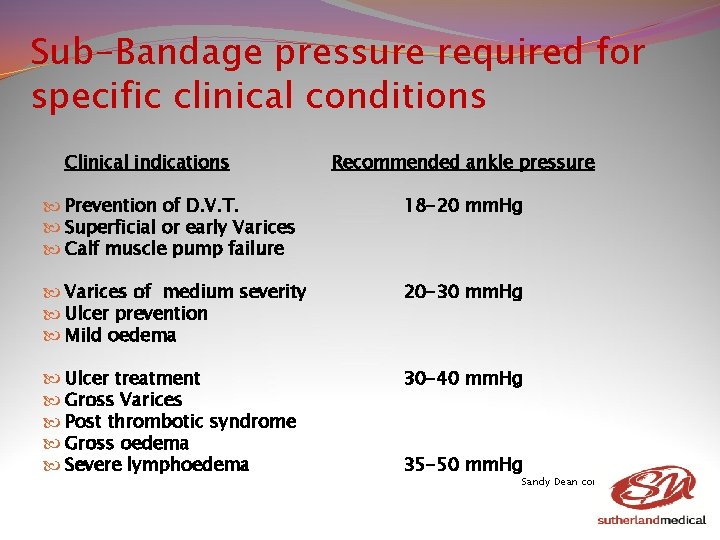

Sub-Bandage pressure required for specific clinical conditions Clinical indications Recommended ankle pressure Prevention of D. V. T. Superficial or early Varices Calf muscle pump failure 18 -20 mm. Hg Varices of medium severity Ulcer prevention Mild oedema 20 -30 mm. Hg Ulcer treatment Gross Varices Post thrombotic syndrome Gross oedema Severe lymphoedema 30 -40 mm. Hg 35 -50 mm. Hg Sandy Dean compression guide
Compression Bandages Class/Type Clinical indications Type 3 a light Compression Type 3 b light SSB Compression Type 3 c moderate Compression Average ankle pressure Bandage - Mild Varices 15 -20 mm. Hg Tubular Form Layered -Varices of medium 18 -25 mm. Hg Tubular form severity -Gross Varices 30 -40 mm. Hg -Post thrombotic leg ulcers -Gross oedema in ankles of average circumference Veno 4 Truepress Profore Combrilan

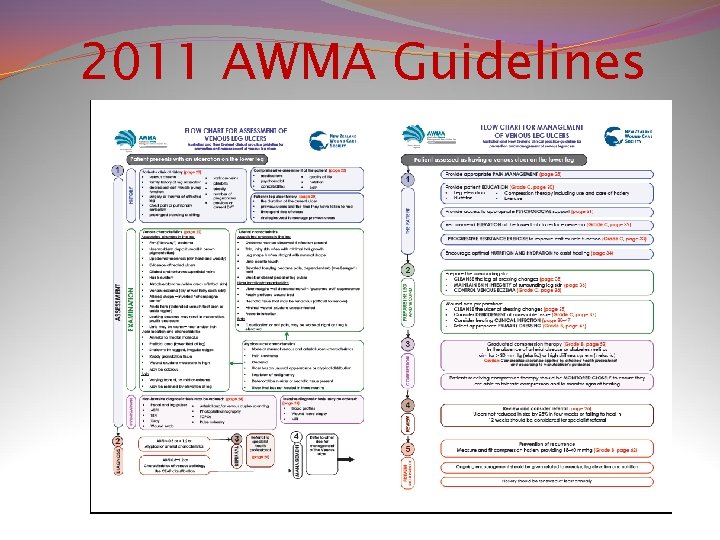

2011 AWMA Guidelines
2011 AWMA Guidelines
2011 AWMA Guidelines

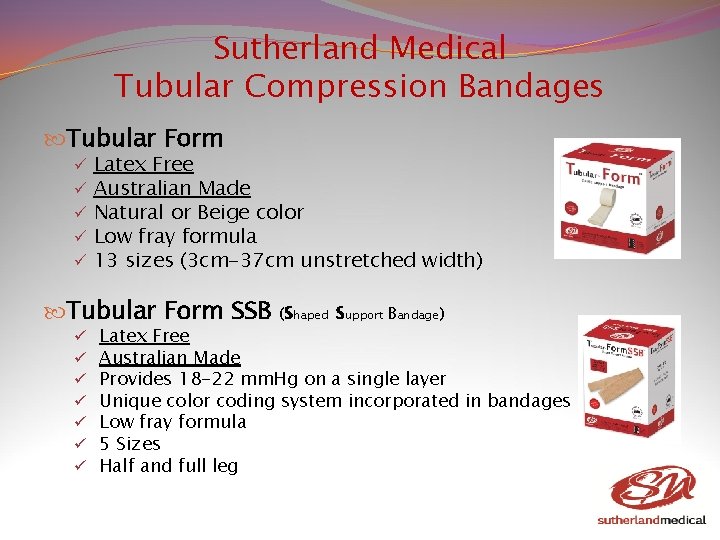

Sutherland Medical Tubular Compression Bandages Tubular Form ü ü ü Latex Free Australian Made Natural or Beige color Low fray formula 13 sizes (3 cm-37 cm unstretched width) Tubular Form SSB ü ü ü ü (Shaped Support Bandage) Latex Free Australian Made Provides 18 -22 mm. Hg on a single layer Unique color coding system incorporated in bandages Low fray formula 5 Sizes Half and full leg
Tubular Form The only Tubular Bandage to have practice based clinical evidence for treatment and healing of Venous Leg Ulcers
Study Overview Target 45 Patients Open randomized study Patients recruited from wound clinics in VIC and QLD Austin Repat Wound Clinic Royal Park (Melbourne Health) Wound Clinic Caulfield Wound Clinic (failed to recruit any patients) The Prince Charles Hospital (Pat Aldons-Senior Visiting Consulting Physician) Inclusion criteria – Venous Leg Ulcer 1– 20 cm requiring treatment Randomized to either 3 layers of Tubular Form or Short Stretch Bandage Followed up weekly for 12 weeks Assessments made on Healing of Leg Ulcer, compliance, cost/treatment, ? ? Sutherland Medical support acknowledgement in clinical paper Tubular Form product acknowledgement in clinical paper

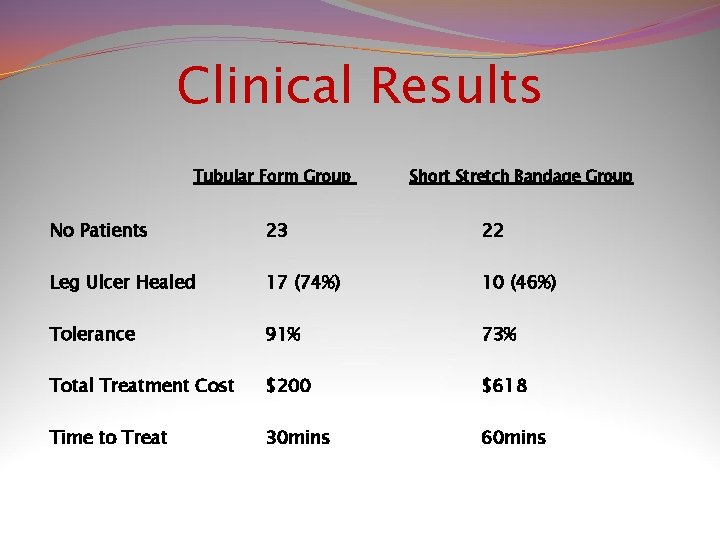

Clinical Results Tubular Form Group Short Stretch Bandage Group No Patients 23 22 Leg Ulcer Healed 17 (74%) 10 (46%) Tolerance 91% 73% Total Treatment Cost $200 $618 Time to Treat 30 mins 60 mins

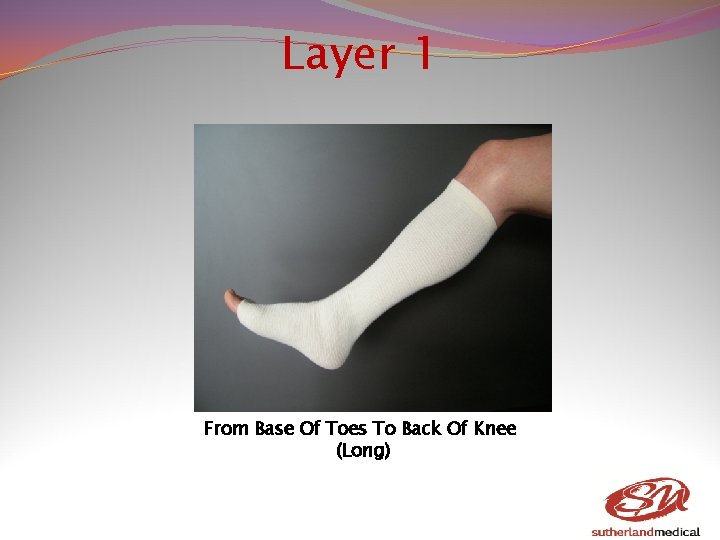

Layer 1 From Base Of Toes To Back Of Knee (Long)
Layer 2 From Base of toes to Mid Calf (Medium)
Layer 3 From Base Of Toes to Mid Point Between Mid Calf And The Ankle (Short)

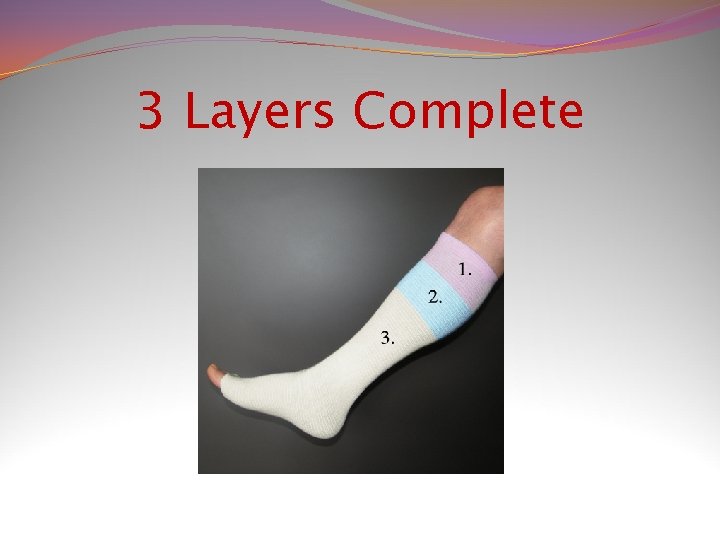

3 Layers Complete

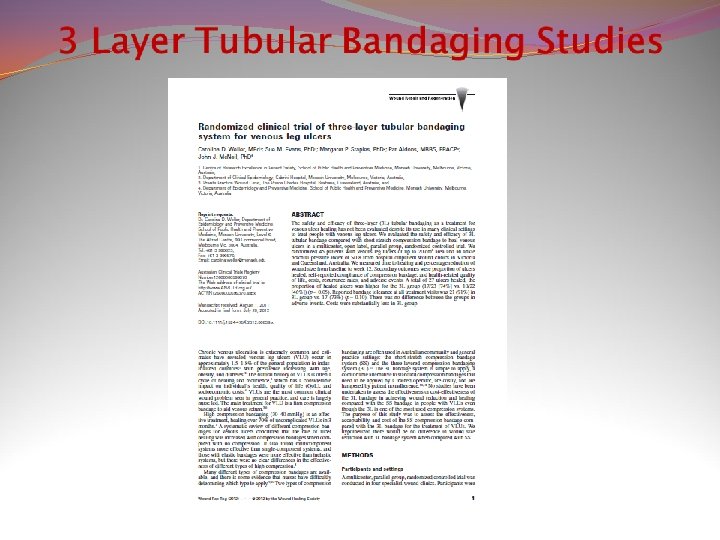

Tubular Plus “Compression in both groups was applied over a padding layer (Tubular Plus. Sutherland Medical) to protect underlying bony prominences and prevent skin breakdown. ” Weller et al: Wound Repair and Regeneration July 2012
Sutherland Medical Resources

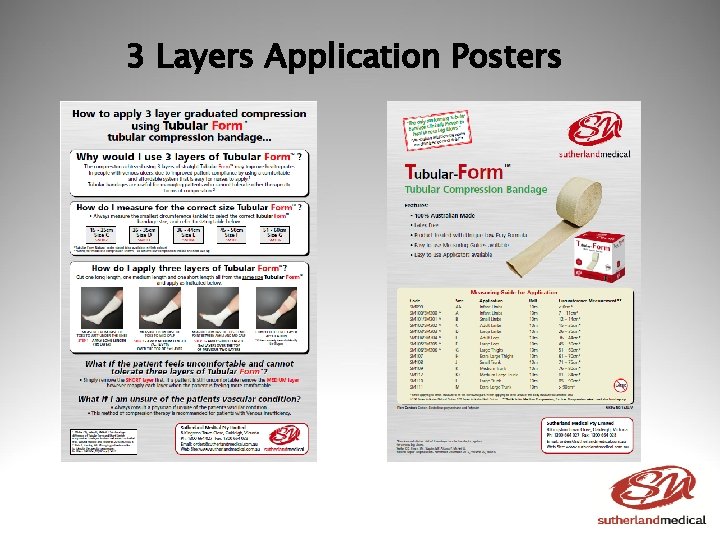

3 Layers Application Posters

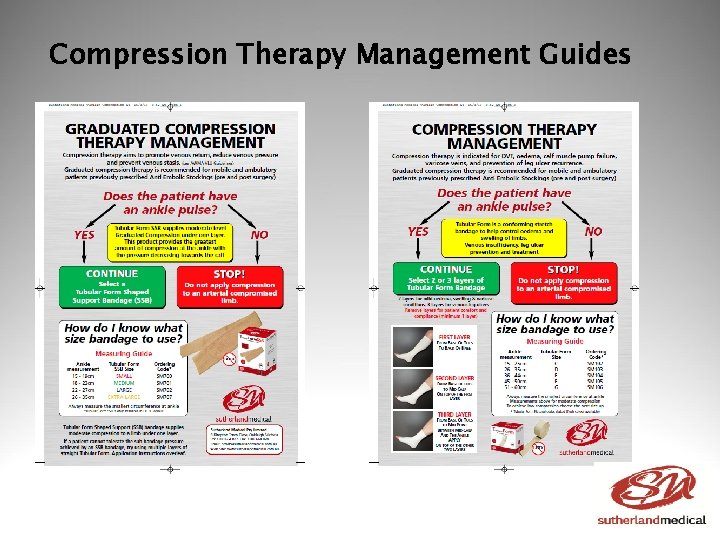

Compression Therapy Management Guides

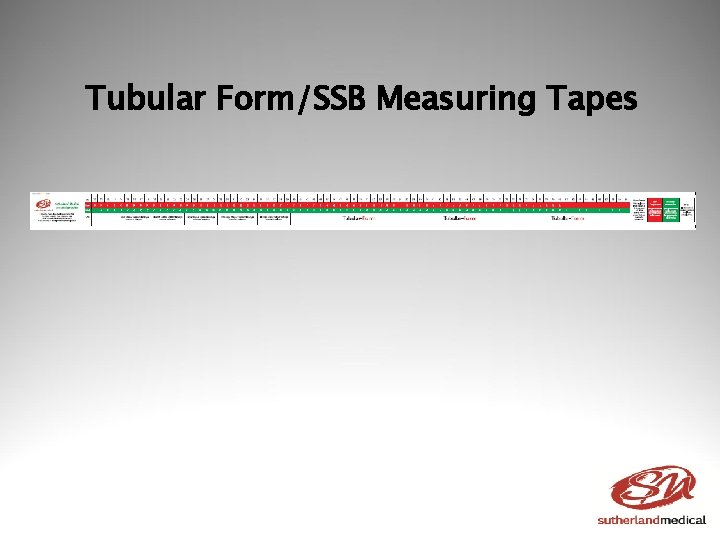

Tubular Form/SSB Measuring Tapes

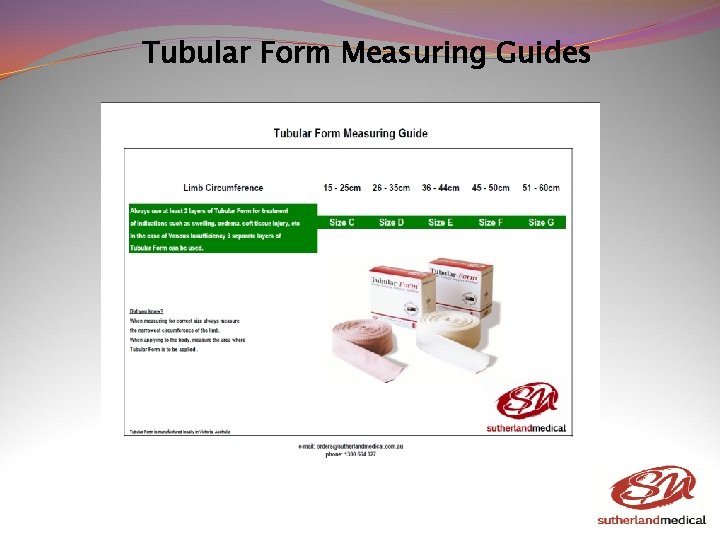

Tubular Form Measuring Guides

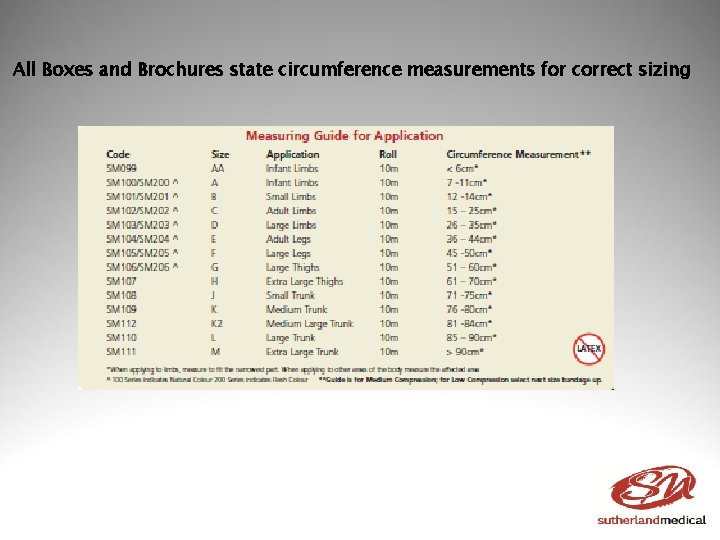

All Boxes and Brochures state circumference measurements for correct sizing
Our Tubular Range

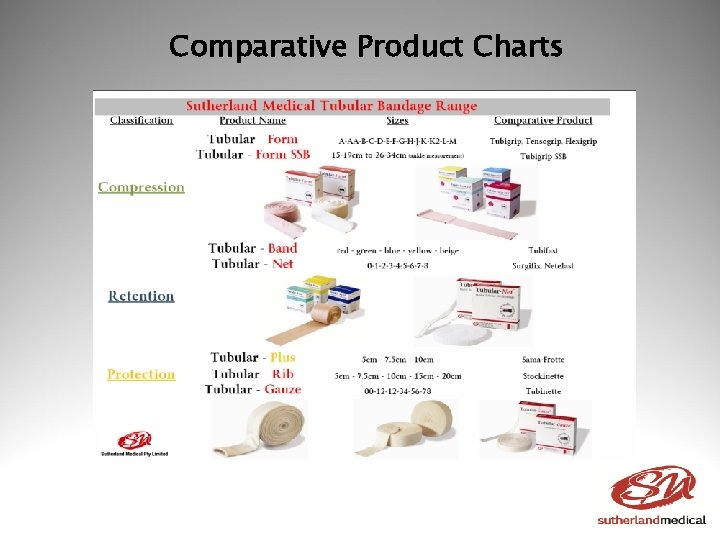

Comparative Product Charts
Ezy As Applicator
