SUSTAINABLE TRANSPORT THROUGH INTERMODALITY Palermo 18 19 March
SUSTAINABLE TRANSPORT THROUGH INTERMODALITY Palermo, 18 -19 March 2005

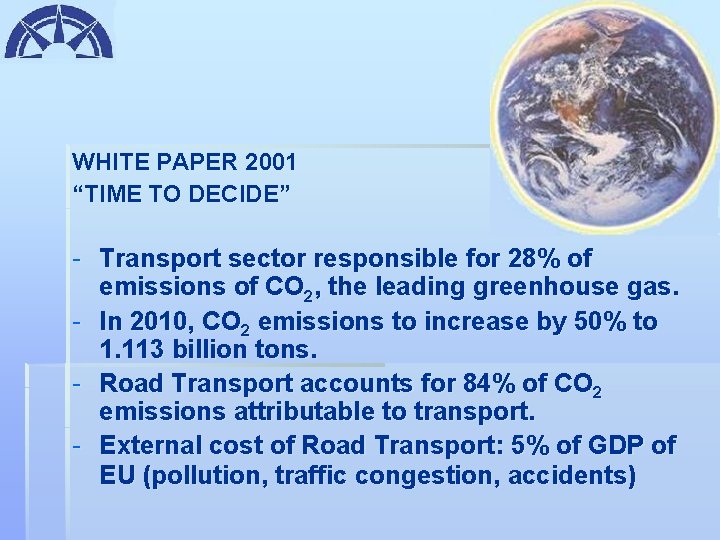

WHITE PAPER 2001 “TIME TO DECIDE” - Transport sector responsible for 28% of emissions of CO 2, the leading greenhouse gas. - In 2010, CO 2 emissions to increase by 50% to 1. 113 billion tons. - Road Transport accounts for 84% of CO 2 emissions attributable to transport. - External cost of Road Transport: 5% of GDP of EU (pollution, traffic congestion, accidents)

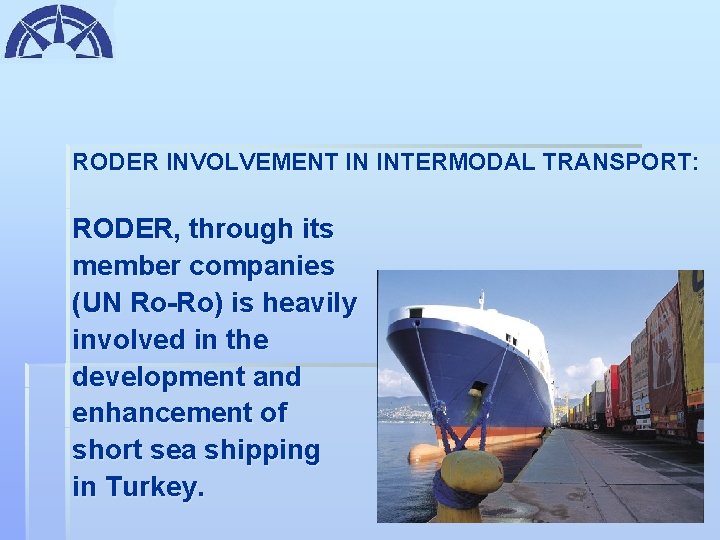

RODER INVOLVEMENT IN INTERMODAL TRANSPORT: RODER, through its member companies (UN Ro-Ro) is heavily involved in the development and enhancement of short sea shipping in Turkey.

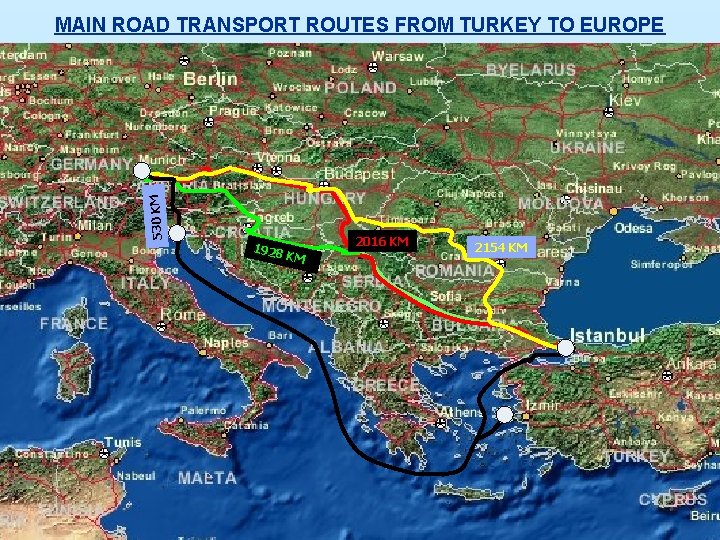

530 KM MAIN ROAD TRANSPORT ROUTES FROM TURKEY TO EUROPE 1928 KM 2016 KM 2154 KM

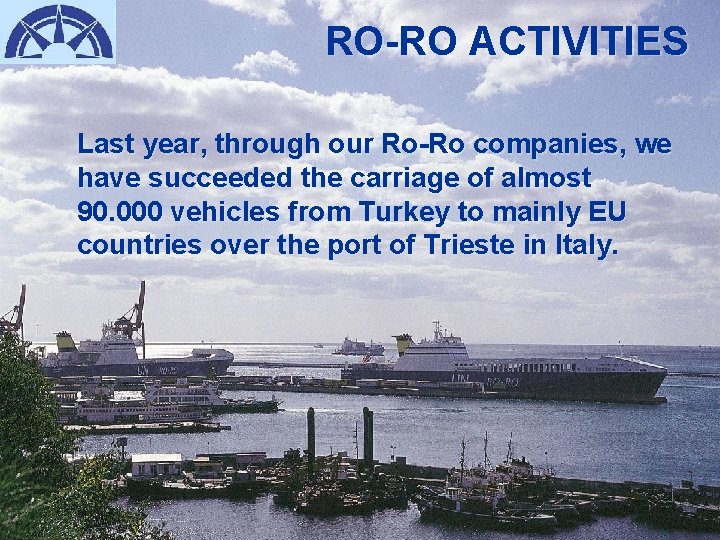

RO-RO ACTIVITIES Last year, through our Ro-Ro companies, we have succeeded the carriage of almost 90. 000 vehicles from Turkey to mainly EU countries over the port of Trieste in Italy.

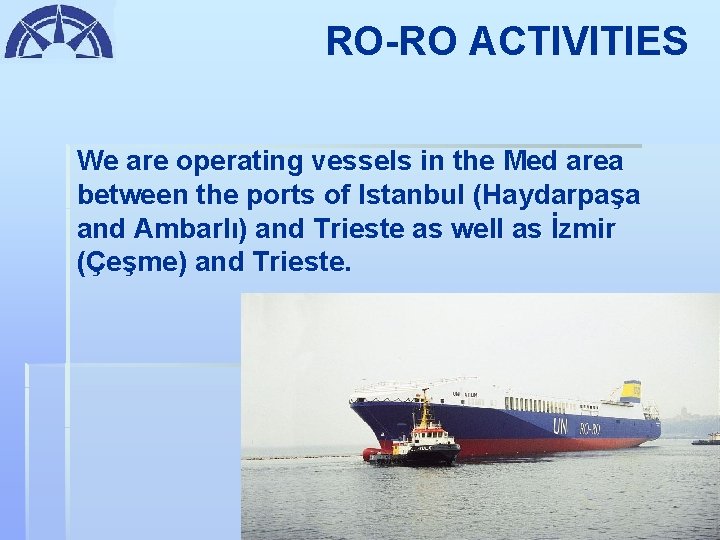

RO-RO ACTIVITIES We are operating vessels in the Med area between the ports of Istanbul (Haydarpaşa and Ambarlı) and Trieste as well as İzmir (Çeşme) and Trieste.

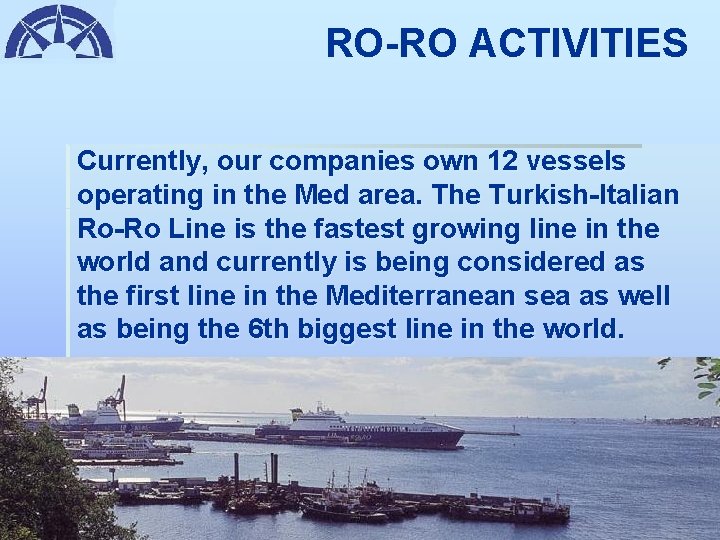

RO-RO ACTIVITIES Currently, our companies own 12 vessels operating in the Med area. The Turkish-Italian Ro-Ro Line is the fastest growing line in the world and currently is being considered as the first line in the Mediterranean sea as well as being the 6 th biggest line in the world.

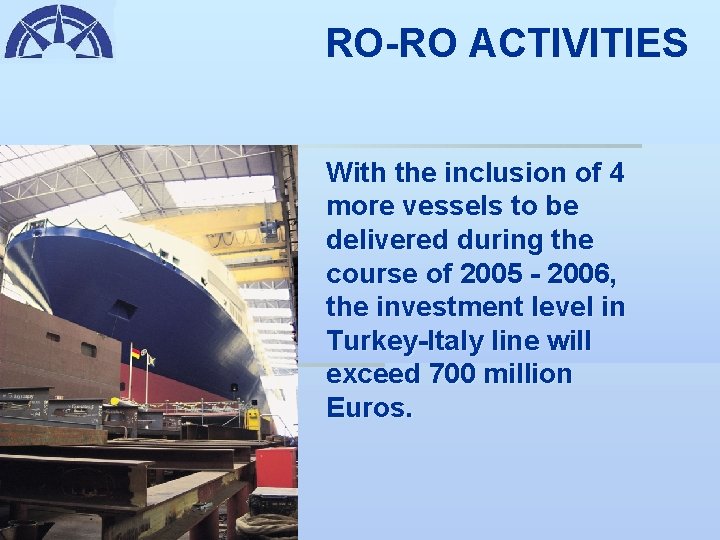

RO-RO ACTIVITIES With the inclusion of 4 more vessels to be delivered during the course of 2005 - 2006, the investment level in Turkey-Italy line will exceed 700 million Euros.
RO-RO ACTIVITIES We are also very much active in the Black Sea region where we operate 3 Ro-Ro vessels between Samsun (Turkey) and Novorossiysk (Russian Federation) as well as a vessel operating between Zonguldak (Turkey) and Evpatoria (Ukraine), through our Black Sea Ro-Ro company.

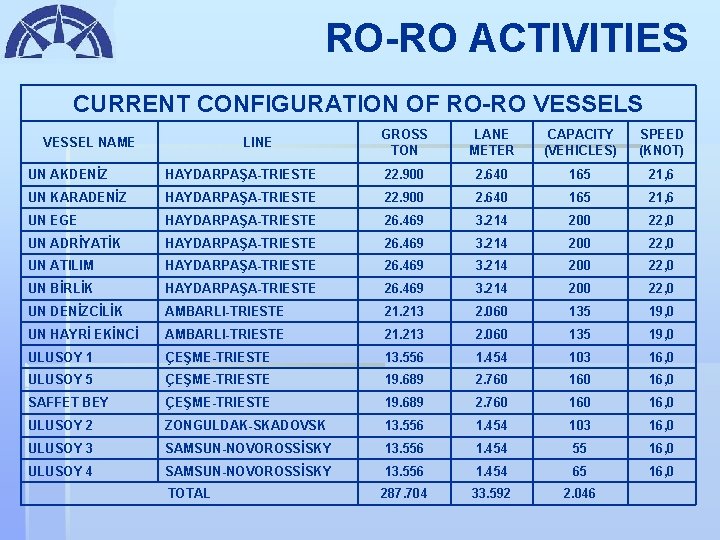

RO-RO ACTIVITIES CURRENT CONFIGURATION OF RO-RO VESSELS VESSEL NAME LINE GROSS TON LANE METER CAPACITY (VEHICLES) SPEED (KNOT) UN AKDENİZ HAYDARPAŞA-TRIESTE 22. 900 2. 640 165 21, 6 UN KARADENİZ HAYDARPAŞA-TRIESTE 22. 900 2. 640 165 21, 6 UN EGE HAYDARPAŞA-TRIESTE 26. 469 3. 214 200 22, 0 UN ADRİYATİK HAYDARPAŞA-TRIESTE 26. 469 3. 214 200 22, 0 UN ATILIM HAYDARPAŞA-TRIESTE 26. 469 3. 214 200 22, 0 UN BİRLİK HAYDARPAŞA-TRIESTE 26. 469 3. 214 200 22, 0 UN DENİZCİLİK AMBARLI-TRIESTE 21. 213 2. 060 135 19, 0 UN HAYRİ EKİNCİ AMBARLI-TRIESTE 21. 213 2. 060 135 19, 0 ULUSOY 1 ÇEŞME-TRIESTE 13. 556 1. 454 103 16, 0 ULUSOY 5 ÇEŞME-TRIESTE 19. 689 2. 760 16, 0 SAFFET BEY ÇEŞME-TRIESTE 19. 689 2. 760 16, 0 ULUSOY 2 ZONGULDAK-SKADOVSK 13. 556 1. 454 103 16, 0 ULUSOY 3 SAMSUN-NOVOROSSİSKY 13. 556 1. 454 55 16, 0 ULUSOY 4 SAMSUN-NOVOROSSİSKY 13. 556 1. 454 65 16, 0 TOTAL 287. 704 33. 592 2. 046

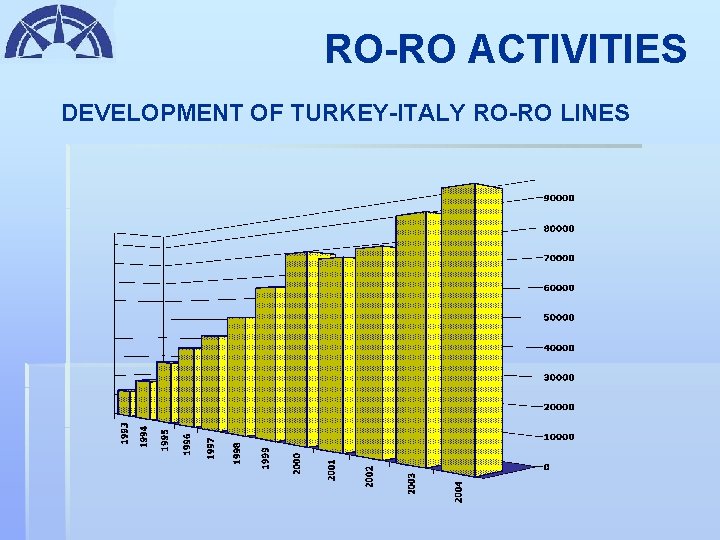

RO-RO ACTIVITIES DEVELOPMENT OF TURKEY-ITALY RO-RO LINES

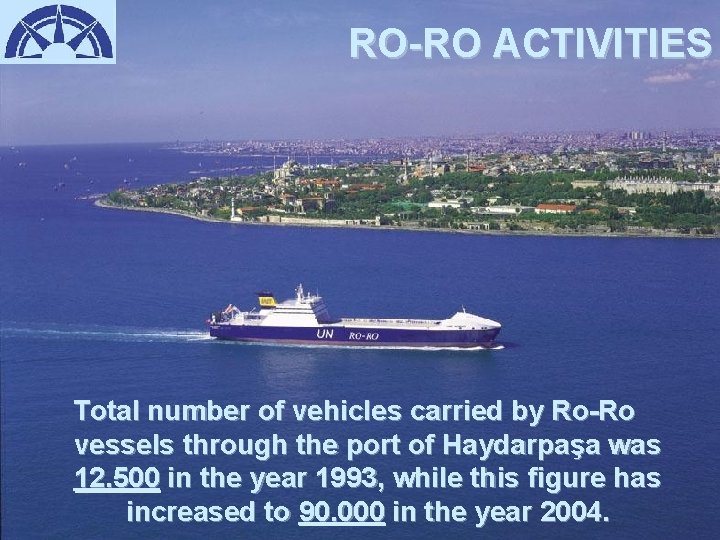

RO-RO ACTIVITIES Total number of vehicles carried by Ro-Ro vessels through the port of Haydarpaşa was 12. 500 in the year 1993, while this figure has increased to 90. 000 in the year 2004.

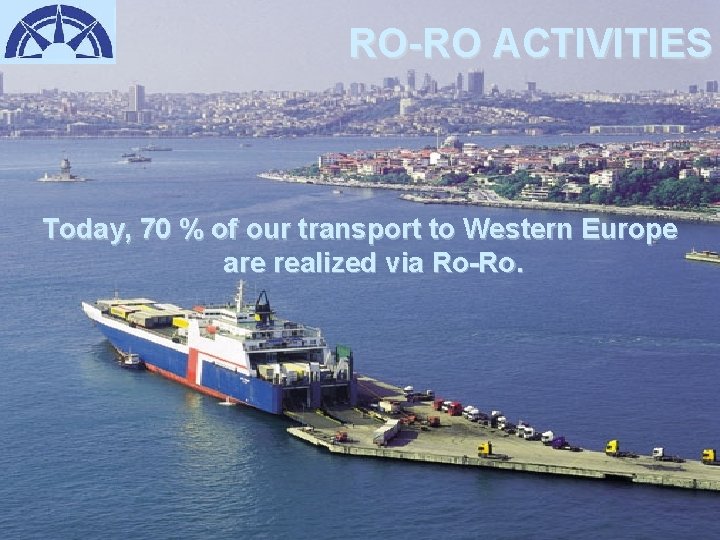

RO-RO ACTIVITIES Today, 70 % of our transport to Western Europe are realized via Ro-Ro.

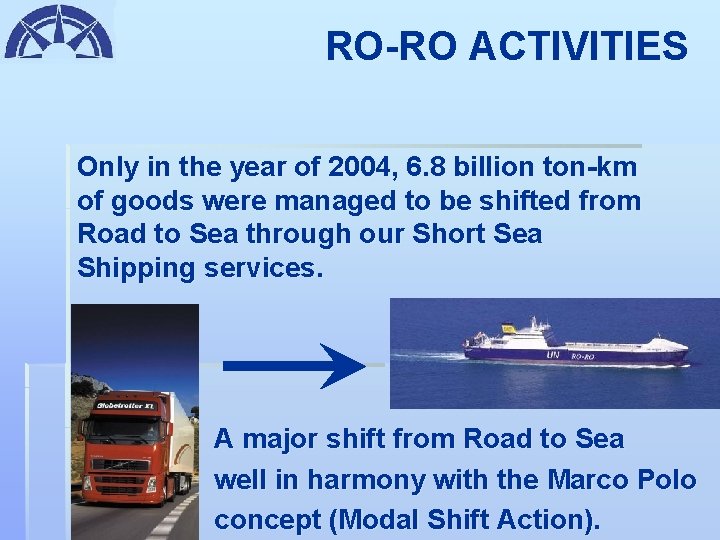

RO-RO ACTIVITIES Only in the year of 2004, 6. 8 billion ton-km of goods were managed to be shifted from Road to Sea through our Short Sea Shipping services. A major shift from Road to Sea well in harmony with the Marco Polo concept (Modal Shift Action).

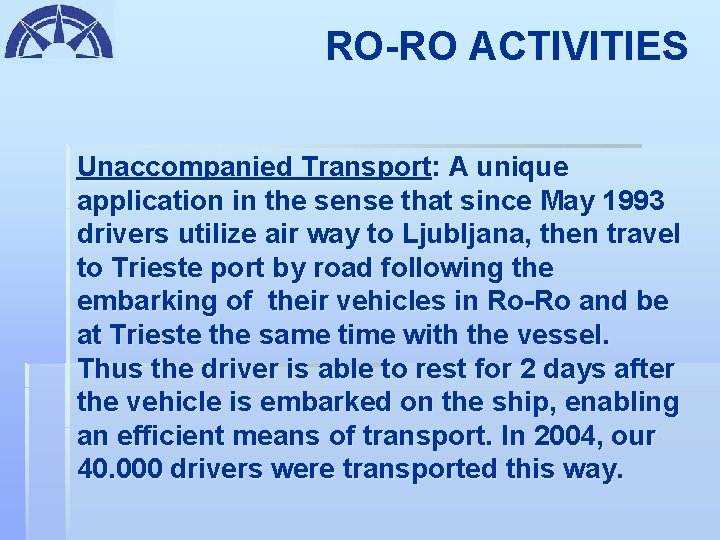

RO-RO ACTIVITIES Unaccompanied Transport: A unique application in the sense that since May 1993 drivers utilize air way to Ljubljana, then travel to Trieste port by road following the embarking of their vehicles in Ro-Ro and be at Trieste the same time with the vessel. Thus the driver is able to rest for 2 days after the vehicle is embarked on the ship, enabling an efficient means of transport. In 2004, our 40. 000 drivers were transported this way.

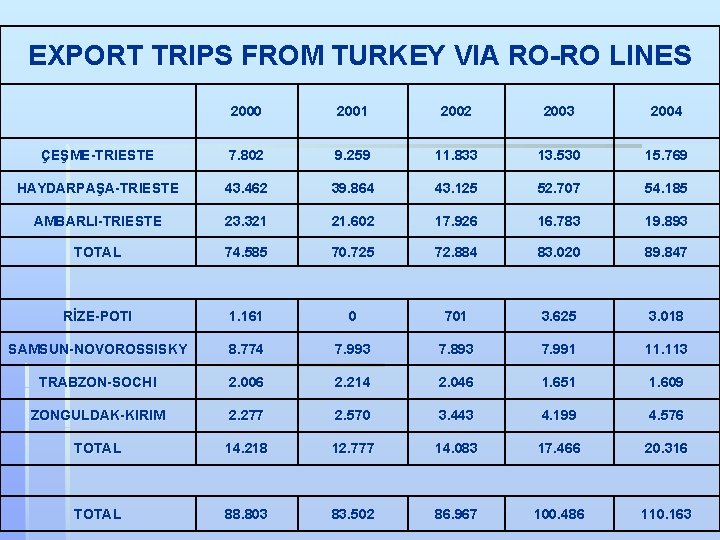

EXPORT TRIPS FROM TURKEY VIA RO-RO LINES 2000 2001 2002 2003 2004 ÇEŞME-TRIESTE 7. 802 9. 259 11. 833 13. 530 15. 769 HAYDARPAŞA-TRIESTE 43. 462 39. 864 43. 125 52. 707 54. 185 AMBARLI-TRIESTE 23. 321 21. 602 17. 926 16. 783 19. 893 TOTAL 74. 585 70. 725 72. 884 83. 020 89. 847 RİZE-POTI 1. 161 0 701 3. 625 3. 018 SAMSUN-NOVOROSSISKY 8. 774 7. 993 7. 893 7. 991 11. 113 TRABZON-SOCHI 2. 006 2. 214 2. 046 1. 651 1. 609 ZONGULDAK-KIRIM 2. 277 2. 570 3. 443 4. 199 4. 576 TOTAL 14. 218 12. 777 14. 083 17. 466 20. 316 TOTAL 88. 803 83. 502 86. 967 100. 486 110. 163

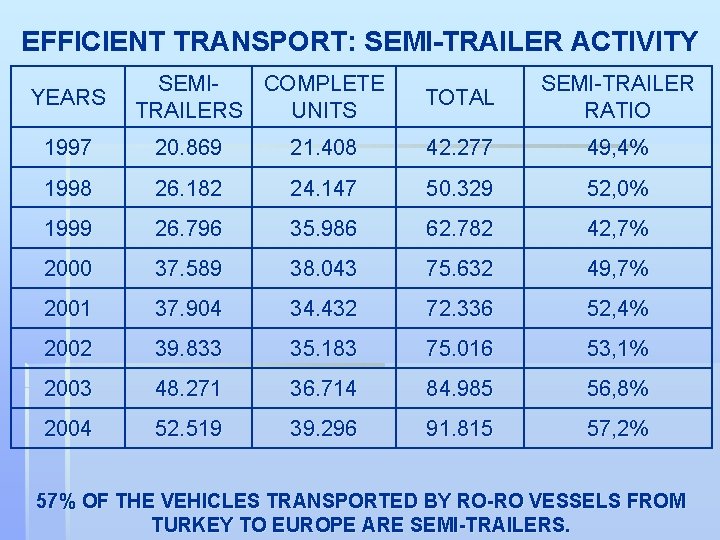

EFFICIENT TRANSPORT: SEMI-TRAILER ACTIVITY YEARS SEMICOMPLETE TRAILERS UNITS TOTAL SEMI-TRAILER RATIO 1997 20. 869 21. 408 42. 277 49, 4% 1998 26. 182 24. 147 50. 329 52, 0% 1999 26. 796 35. 986 62. 782 42, 7% 2000 37. 589 38. 043 75. 632 49, 7% 2001 37. 904 34. 432 72. 336 52, 4% 2002 39. 833 35. 183 75. 016 53, 1% 2003 48. 271 36. 714 84. 985 56, 8% 2004 52. 519 39. 296 91. 815 57, 2% 57% OF THE VEHICLES TRANSPORTED BY RO-RO VESSELS FROM TURKEY TO EUROPE ARE SEMI-TRAILERS.

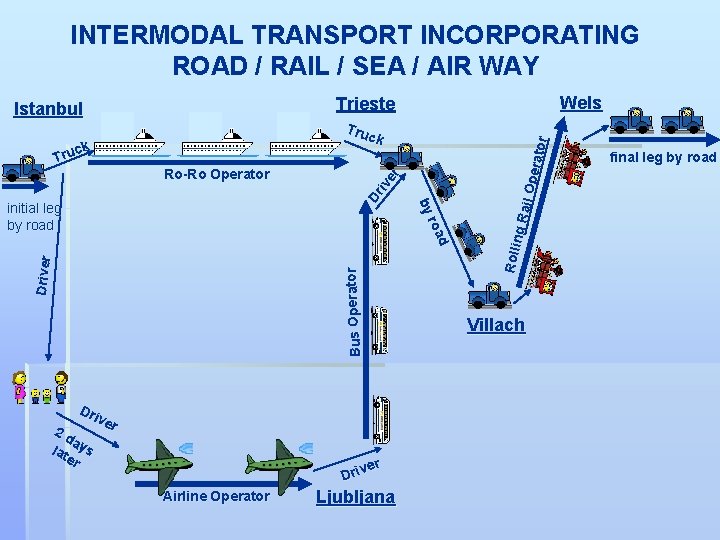

INTERMODAL TRANSPORT INCORPORATING ROAD / RAIL / SEA / AIR WAY Wels ck Tru Ro-Ro Operator Bus Operator Driver Dr ive r 2 d a lat ys er er Driv Airline Operator Ljubljana d roa by initial leg by road Dr iv er Tru ck Rolli ng R ail O pera tor Trieste Istanbul Villach final leg by road

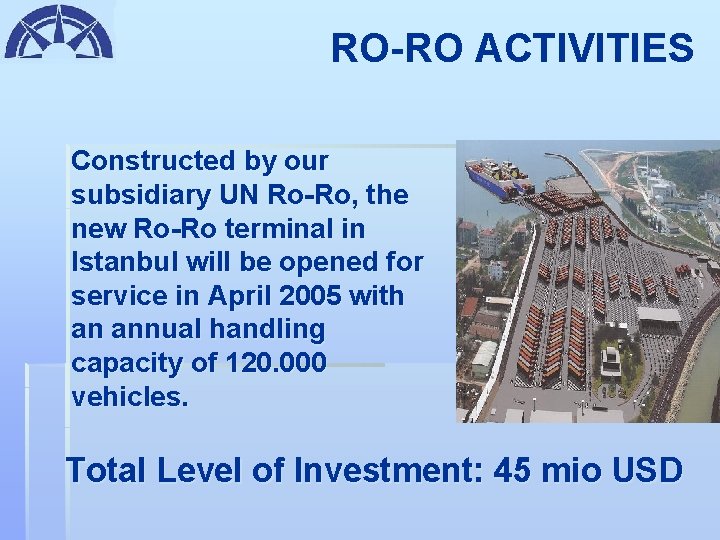

RO-RO ACTIVITIES Constructed by our subsidiary UN Ro-Ro, the new Ro-Ro terminal in Istanbul will be opened for service in April 2005 with an annual handling capacity of 120. 000 vehicles. Total Level of Investment: 45 mio USD

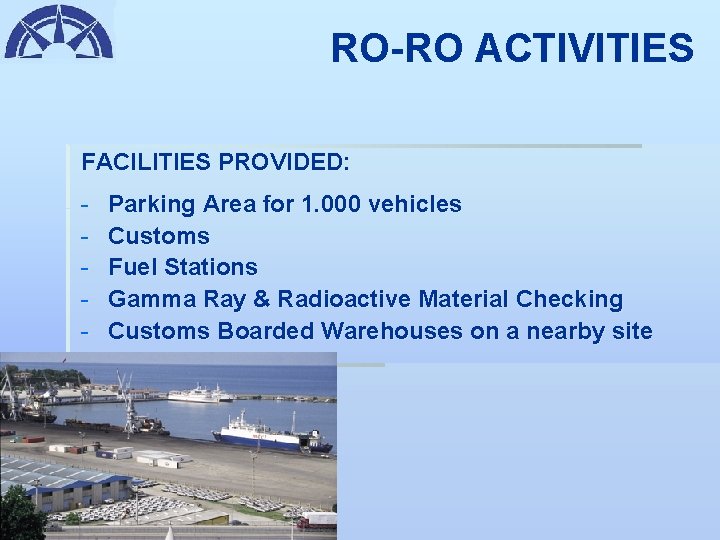

RO-RO ACTIVITIES FACILITIES PROVIDED: - Parking Area for 1. 000 vehicles Customs Fuel Stations Gamma Ray & Radioactive Material Checking Customs Boarded Warehouses on a nearby site
ROLLING MOTORWAY ACTIVITIES We are continuously encouraging our members to utilize the Road-Rail combinations in Europe, particularly in Hungary-Austria (Szeged-Wels and Sopron -Wels) and those running in Austria (Villach-Wels) as well as those lines in Italy -Austria (Trieste. Salzburg).

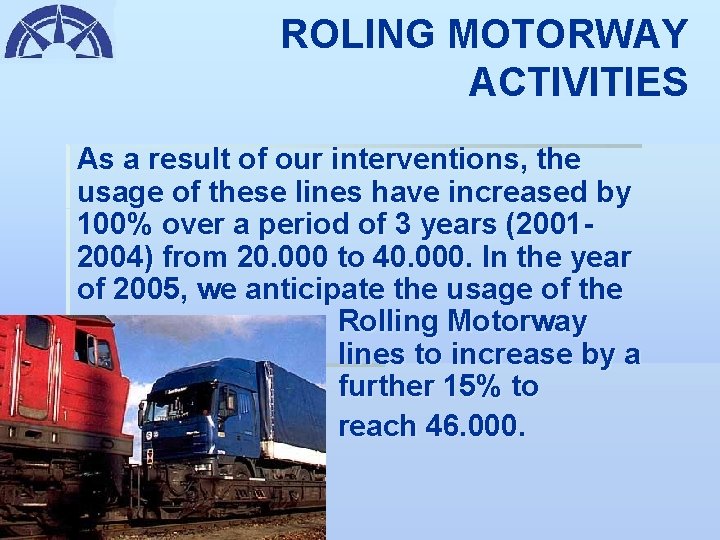

ROLING MOTORWAY ACTIVITIES As a result of our interventions, the usage of these lines have increased by 100% over a period of 3 years (20012004) from 20. 000 to 40. 000. In the year of 2005, we anticipate the usage of the Rolling Motorway lines to increase by a further 15% to reach 46. 000.

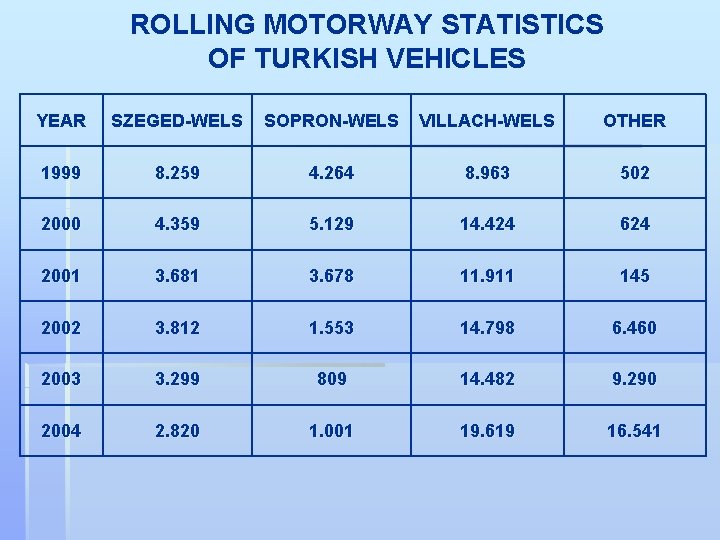

ROLLING MOTORWAY STATISTICS OF TURKISH VEHICLES YEAR SZEGED-WELS SOPRON-WELS VILLACH-WELS OTHER 1999 8. 259 4. 264 8. 963 502 2000 4. 359 5. 129 14. 424 624 2001 3. 681 3. 678 11. 911 145 2002 3. 812 1. 553 14. 798 6. 460 2003 3. 299 809 14. 482 9. 290 2004 2. 820 1. 001 19. 619 16. 541

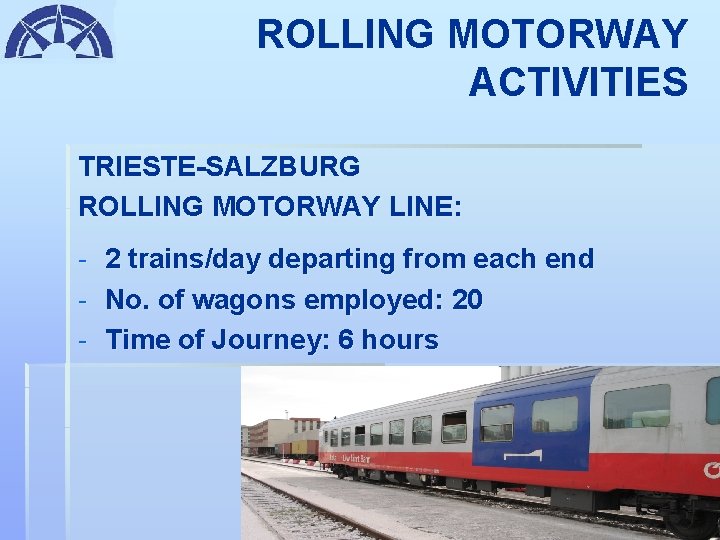

ROLLING MOTORWAY ACTIVITIES TRIESTE-SALZBURG ROLLING MOTORWAY LINE: - 2 trains/day departing from each end - No. of wagons employed: 20 - Time of Journey: 6 hours

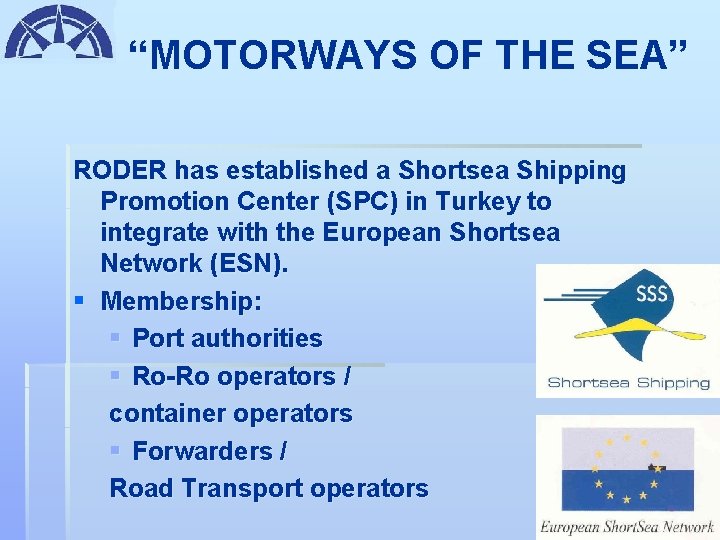

“MOTORWAYS OF THE SEA” RODER has established a Shortsea Shipping Promotion Center (SPC) in Turkey to integrate with the European Shortsea Network (ESN). § Membership: § Port authorities § Ro-Ro operators / container operators § Forwarders / Road Transport operators

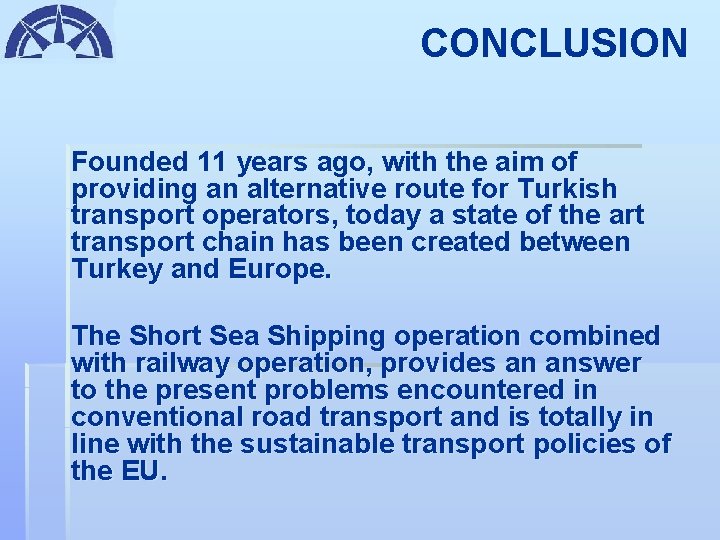

CONCLUSION Founded 11 years ago, with the aim of providing an alternative route for Turkish transport operators, today a state of the art transport chain has been created between Turkey and Europe. The Short Sea Shipping operation combined with railway operation, provides an answer to the present problems encountered in conventional road transport and is totally in line with the sustainable transport policies of the EU.
THANK YOU. . .
