Sustainable House of the Future Active House 2020
Sustainable House of the Future – Active House 2020 Gitte Gylling Sørensen Industrial Ph. D at the VKR Group’s eight DEMO houses The VKR Group’s eight DEMO houses #1

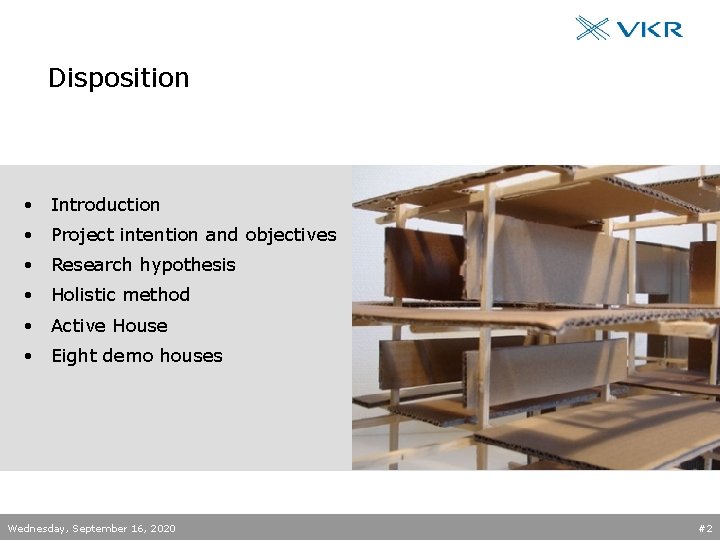

Disposition • Introduction • Project intention and objectives • Research hypothesis • Holistic method • Active House • Eight demo houses Wednesday, September 16, 2020 #2
Introduction Who am I? • Gitte Gylling Sørensen • M. Sc. Eng. in Architecture Aalborg University June 2009 • Industrial Ph. D student at VKR Holding by December 1 st 2009 • Enrolled at Aalborg University • Industrial Ph. D title: Sustainable House of the Future - Active House 2020 Wednesday, September 16, 2020 #3
Introduction Who am I? Interests • Techné / the meeting between science and phenomenology • Sustainability • Light / natural / artificial • Materiality / texture of material • Experience of space Wednesday, September 16, 2020 #4
Intention and objectives of Ph. D project • To develop a suggestion for a common European standard for future energy and CO 2 -neutral Active Houses. • Developing knowledge about the holistic approach to integrating fresh air, plenty of daylight and healthy indoor climate into a sustainable way of living. • Developing a method for integrating quantitative and qualitative parameters in developing buildings. Wednesday, September 16, 2020 #5
Research Hypothesis • By Through taking development a holistic approach of a to Besides being energy neutral it is scientific future buildings method on both buildings can of great importance toquantitative human be and defined qualitative levels measured better in beings that and their home is adapted accordance buildings are with created. bothenvironment quantitative into the surrounding and qualitative values within the possess a high level of comfort, parameters Energy, Indoor where daylight and fresh air. Climate are and Environment. important parameters. Wednesday, September 16, 2020 #6
Method Holistic evaluation Definition of method for analysis Definition of Quantitative measurement methods and matrixes Definition of Qualitative measurement methods and matrixes Measurement data input Analysis of input ENERGY By project manager INDOOR CLIMATE By project manager ENVIRONMENT By project manager Wednesday, September 16, 2020 Comparative studies Quantitative measurements: Energy behaviour, energy balance, measurements of indoor climate Qualitative measurements: End-users’ real behaviour and experience of the house Result New knowledge Suggestion for a common European standard for future energy and CO 2 neutral Active Houses. #7
Quantitative measurements Data matrix Energy Design phase Calculated/preconditions Construction phase Measuring uninhabited Operation Phase Measuring inhabited • Space heating • Hot utility water • Thermographic investigation • Electricity consumption: • Blower Door test • Electricity consumption: Lighting, Appliances, Technical installations • Energy production by solar collectors, solar heat pump, solar cells • Passive solar heat • U-value for roof, external walls and ground deck • Passive solar heat CO 2 from operation (calculations) • Energy features of windows, U-, g- value, Ueff Indoor Climate • Window area • Daylight factor • Timer for overheat temperature • Temperature • Hot utility water • Calibration, functional test and adjustment of the technical installations • Daylight factor • Lighting level • Air temperature • CO 2 -concentration • Air humidity • Mechanical and natural ventilation Environment • Energy used for production of materials/CO 2 content of materials • CO 2 footprint • Relation to local energy supply • Relation to incident solar radiation and wind Wednesday, September 16, 2020 • Local building tradition • Solar intensity • Adaptation to the surroundings and the landscape • Air temperature • Air humidity • Wind speed • CO 2 footprint #8
Quantitative measurements Data matrix Energy e. g. the measured solar thermal energy production [Window. Master measured values] Indoor climate e. g. measured lighting level [How could this be measured? ] Environment e. g. site solar intensity [How could this be measured? ] Wednesday, September 16, 2020 #9
Qualitative measurements Data matrix Energy Design phase Calculated/preconditions Construction phase Measuring uninhabited Operation Phase Measuring inhabited • What effects are applied into the design to attract attention to energy? • How is energy considered in relation to erecting the building? • Experience of living a plus energy life? • Is focus in creating a feeling of balance between energy and living in the building? • Is the building created with attention to energy or has been subsequently applied? • How is the experience in creating shape with energy objectives for the designer? • How has the interdisciplinary collaboration been carried out? Indoor Climate Environment • How is the interdisciplinary collaboration unfolded during construction? • Measured energy when new? • Experience of balanced relation between life and nature? • Effect on everyday life? • Awareness of human consumption? • Experienced changes in position to nature and energy consumption? • Infect on other people? • How is the daylight access integrated in the design? • Immediate experience of daylight? • Experience of living a plus energy life? • What factors are prioritised when designing the good indoor climate? • Immediate experience of air quality? • Experience of daylight effect on interior space? • Has the circumstances for creating been integrated in the process of designing the building? • • Experience of the influence of fresh air and daylight inside the building and different spaces? • How is the local building tradition integrated in the design? • Situation and location in landscape? • Experience of relations between indoors and out doors? • Adaptation to the surroundings and the landscape? • Consideration to environment during construction phase? • Relation between environment and sustainable architecture? • Creating relation between place and architecture? Wednesday, September 16, 2020 • Experience of daylight inside and outside at the site? #10

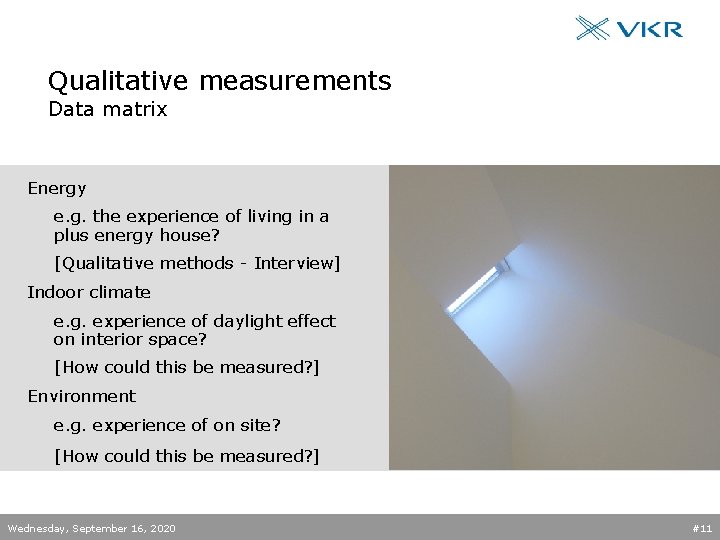

Qualitative measurements Data matrix Energy e. g. the experience of living in a plus energy house? [Qualitative methods - Interview] Indoor climate e. g. experience of daylight effect on interior space? [How could this be measured? ] Environment e. g. experience of on site? [How could this be measured? ] Wednesday, September 16, 2020 #11
Active House What is an Active House? An Active House is CO 2 -neutral. By using renewable energy sources it has an exceptionally low level of energy consumption and procduces more energy than it concumes. An Active House has a healthy indoor climate, allowing. people to express themselves and live their lives in comfort. Wednesday, September 16, 2020 INDOOR CLIMATE ENERGY ENVIRONMENT An Active House is designed, situated and constructed to interact with its environment. #12

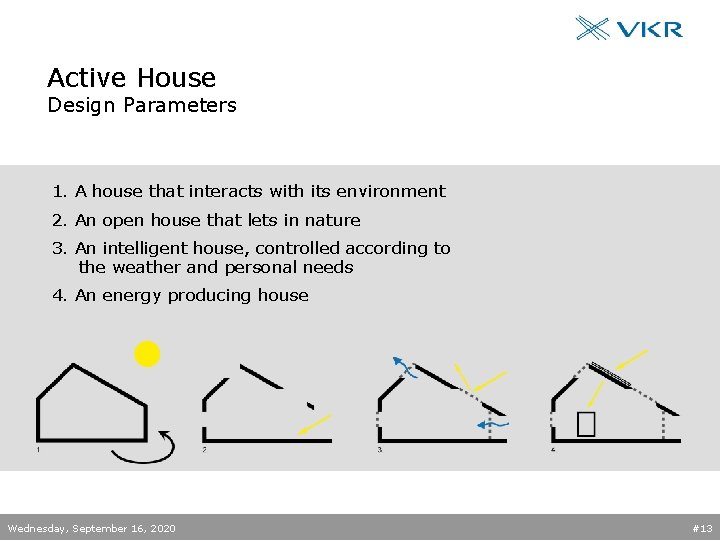

Active House Design Parameters 1. A house that interacts with its environment 2. An open house that lets in nature 3. An intelligent house, controlled according to the weather and personal needs 4. An energy producing house Wednesday, September 16, 2020 #13
Eight unique demonstration houses - in five European contries Wednesday, September 16, 2020 #14
Home for Life Lystrup, Denmark Single-family house of 190 m 2 50 m 2 photovoltaic modules 6, 7 m 2 solar thermal collectors 40% window to floor area Calculated energy consumption - 9, 4 k. Wh/m 2/year http: //www. solar-aktivhaus. com/solaraktivhaus/en/haustechnikkonzept. asp Wednesday, September 16, 2020 #15
Green Lighthouse Copenhagen, Denmark Public Office house of 950 m 2 Calculated energy consumption 3 k. Wh/m 2/year http: //greenlighthouse. ku. dk/ Wednesday, September 16, 2020 #16
House of the Future (Haus der Zukunft) Germany Single-family house of 175 m 2 55 m 2 photovoltaic modules 35 m 2 solar thermal collectors Calculated energy consumption 0 k. Wh/m 2/year http: //www. solar-aktivhaus. com/solaraktivhaus/en/haustechnikkonzept. asp Wednesday, September 16, 2020 #17
Solar Active House (Solar Akivhaus) Austria Single-family house of 150 m 2 Calculated energy consumption 0 k. Wh/m 2/year http: //www. solar-aktivhaus. com/solaraktivhaus/en/das_solar_aktivhaus. asp Wednesday, September 16, 2020 #18

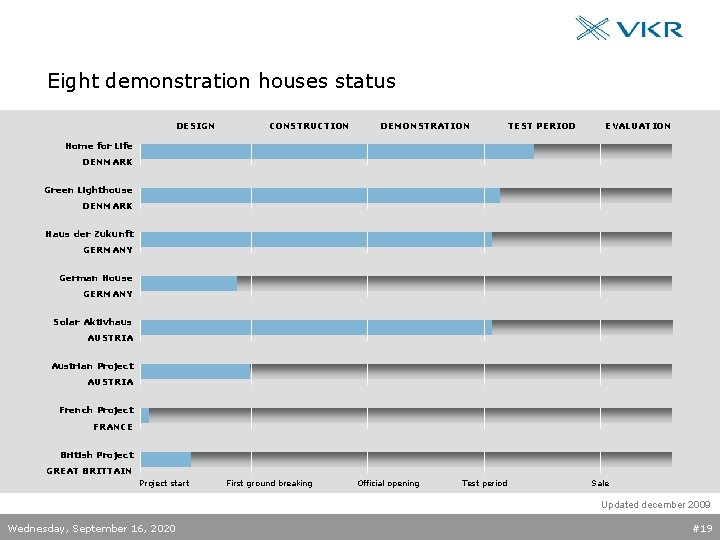

Eight demonstration houses status DESIGN CONSTRUCTION DEMONSTRATION TEST PERIOD EVALUATION Home for Life DENMARK Green Lighthouse DENMARK Haus der Zukunft GERMANY German House GERMANY Solar Aktivhaus AUSTRIA Austrian Project AUSTRIA French Project FRANCE British Project GREAT BRITTAIN Project start First ground breaking Official opening Test period Sale Updated december 2009 Wednesday, September 16, 2020 #19
Sustainable House of the Future – Active House 2020 ggs@vkr-holding. com tel. +45 29 42 02 81 Gitte Gylling Sørensen Industrial Ph. D at the VKR Group’s eight DEMO houses The VKR Group’s eight DEMO houses #20
