Sustainable Groundwater Management Applications for Central Gulf Coast

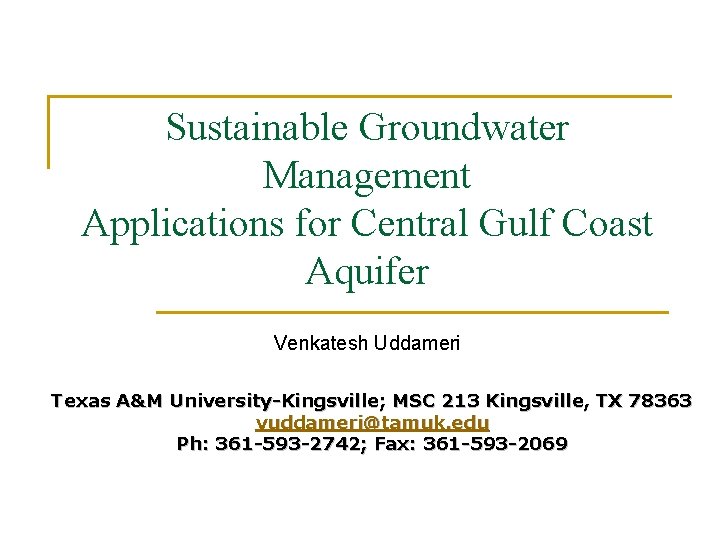

Sustainable Groundwater Management Applications for Central Gulf Coast Aquifer Venkatesh Uddameri Texas A&M University-Kingsville; MSC 213 Kingsville, TX 78363 vuddameri@tamuk. edu Ph: 361 -593 -2742; Fax: 361 -593 -2069

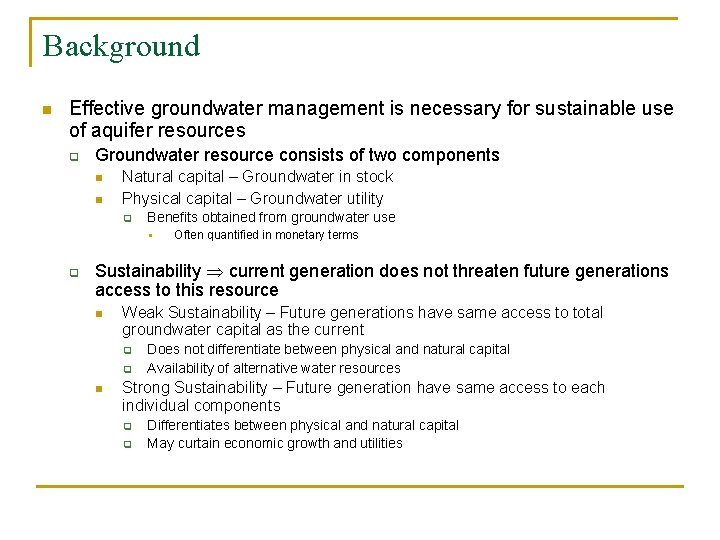

Background n Effective groundwater management is necessary for sustainable use of aquifer resources q Groundwater resource consists of two components n n Natural capital – Groundwater in stock Physical capital – Groundwater utility q Benefits obtained from groundwater use § q Often quantified in monetary terms Sustainability current generation does not threaten future generations access to this resource n Weak Sustainability – Future generations have same access to total groundwater capital as the current q q n Does not differentiate between physical and natural capital Availability of alternative water resources Strong Sustainability – Future generation have same access to each individual components q q Differentiates between physical and natural capital May curtain economic growth and utilities

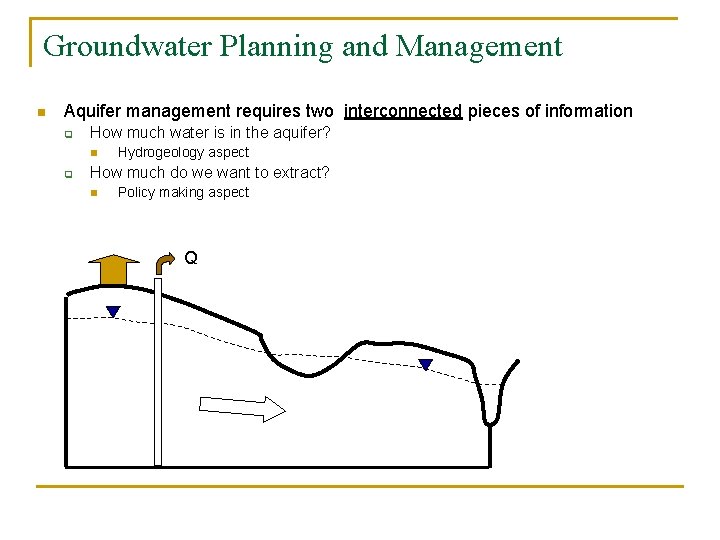

Groundwater Planning and Management n Aquifer management requires two interconnected pieces of information q How much water is in the aquifer? n q Hydrogeology aspect How much do we want to extract? n Policy making aspect Q

Groundwater Management n Groundwater Planning can be mathematically expressed as follows: Policy Hydrogeology H 1 H 2 = F * H 1 F = 0 Mining F = 1 Conservation Risk-Attitudes

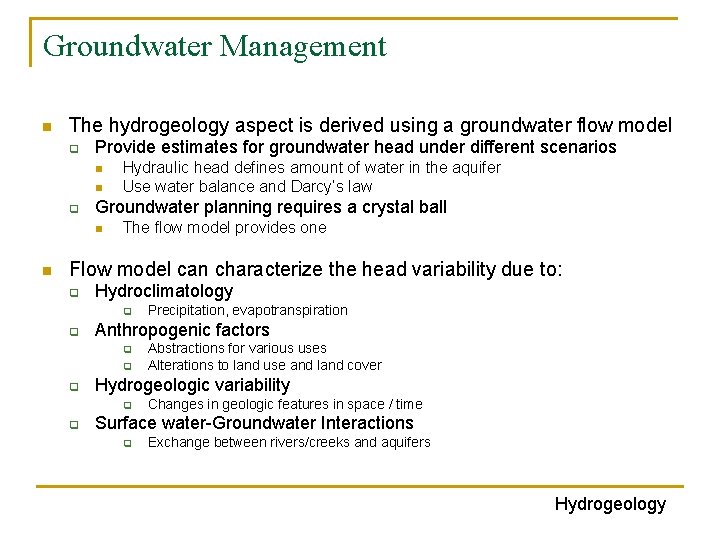

Groundwater Management n The hydrogeology aspect is derived using a groundwater flow model q Provide estimates for groundwater head under different scenarios n n q Groundwater planning requires a crystal ball n n Hydraulic head defines amount of water in the aquifer Use water balance and Darcy’s law The flow model provides one Flow model can characterize the head variability due to: q Hydroclimatology q q Anthropogenic factors q q q Abstractions for various uses Alterations to land use and land cover Hydrogeologic variability q q Precipitation, evapotranspiration Changes in geologic features in space / time Surface water-Groundwater Interactions q Exchange between rivers/creeks and aquifers Hydrogeology

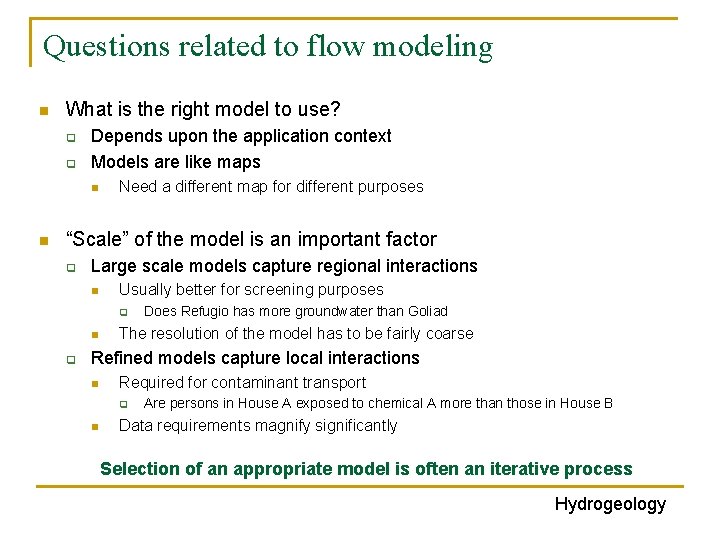

Questions related to flow modeling n What is the right model to use? q q Depends upon the application context Models are like maps n n Need a different map for different purposes “Scale” of the model is an important factor q Large scale models capture regional interactions n Usually better for screening purposes q n q Does Refugio has more groundwater than Goliad The resolution of the model has to be fairly coarse Refined models capture local interactions n Required for contaminant transport q n Are persons in House A exposed to chemical A more than those in House B Data requirements magnify significantly Selection of an appropriate model is often an iterative process Hydrogeology

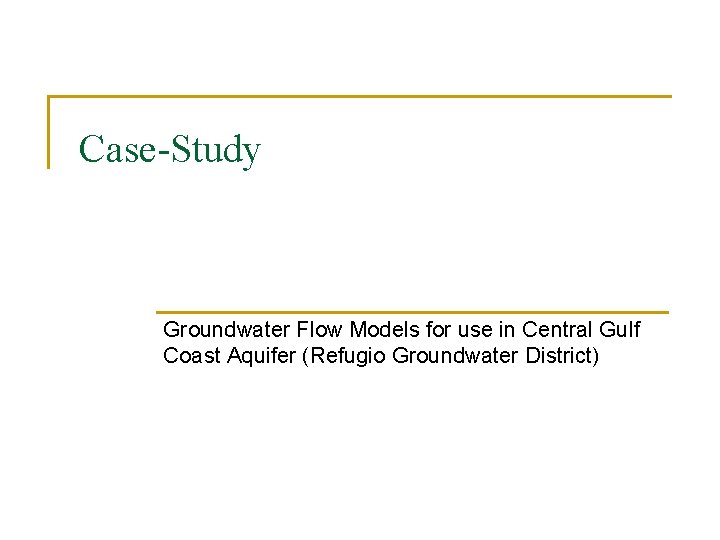

Case-Study Groundwater Flow Models for use in Central Gulf Coast Aquifer (Refugio Groundwater District)

A County-scale Model n A two-layer county scale model was calibrated for Refugio county q q GHB and horizontal hydraulic conductivity as calibration parameters 0. 3 mi x 0. 3 mi grid size Layer -II Hydrogeology

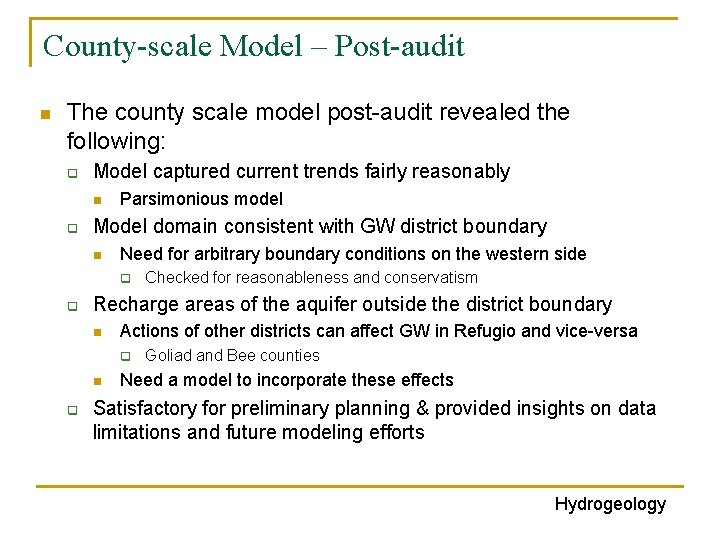

County-scale Model – Post-audit n The county scale model post-audit revealed the following: q Model captured current trends fairly reasonably n q Parsimonious model Model domain consistent with GW district boundary n Need for arbitrary boundary conditions on the western side q q Recharge areas of the aquifer outside the district boundary n Actions of other districts can affect GW in Refugio and vice-versa q n q Checked for reasonableness and conservatism Goliad and Bee counties Need a model to incorporate these effects Satisfactory for preliminary planning & provided insights on data limitations and future modeling efforts Hydrogeology

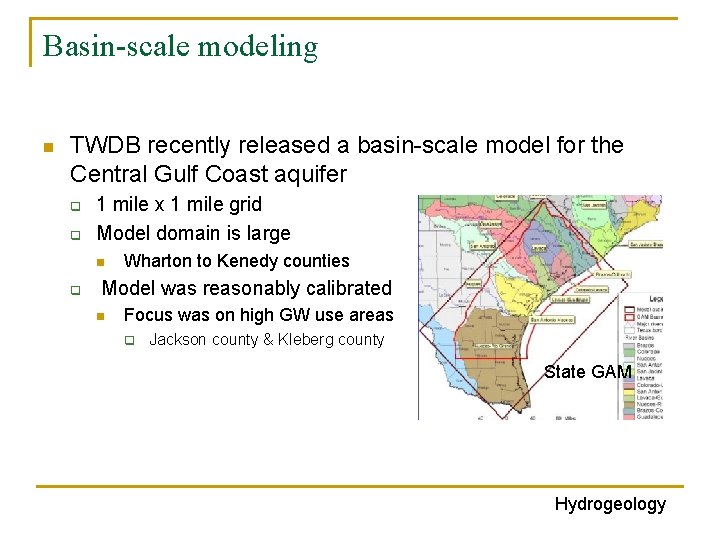

Basin-scale modeling n TWDB recently released a basin-scale model for the Central Gulf Coast aquifer q q 1 mile x 1 mile grid Model domain is large n q Wharton to Kenedy counties Model was reasonably calibrated n Focus was on high GW use areas q Jackson county & Kleberg county State GAM Hydrogeology

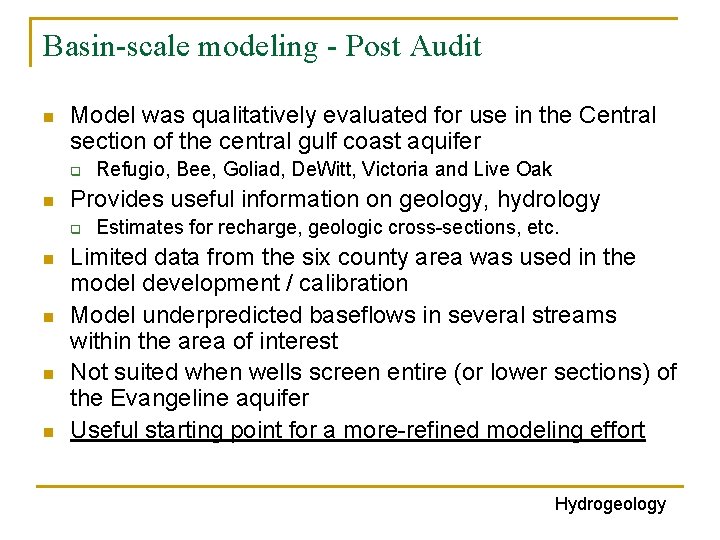

Basin-scale modeling - Post Audit n Model was qualitatively evaluated for use in the Central section of the central gulf coast aquifer q n Provides useful information on geology, hydrology q n n Refugio, Bee, Goliad, De. Witt, Victoria and Live Oak Estimates for recharge, geologic cross-sections, etc. Limited data from the six county area was used in the model development / calibration Model underpredicted baseflows in several streams within the area of interest Not suited when wells screen entire (or lower sections) of the Evangeline aquifer Useful starting point for a more-refined modeling effort Hydrogeology

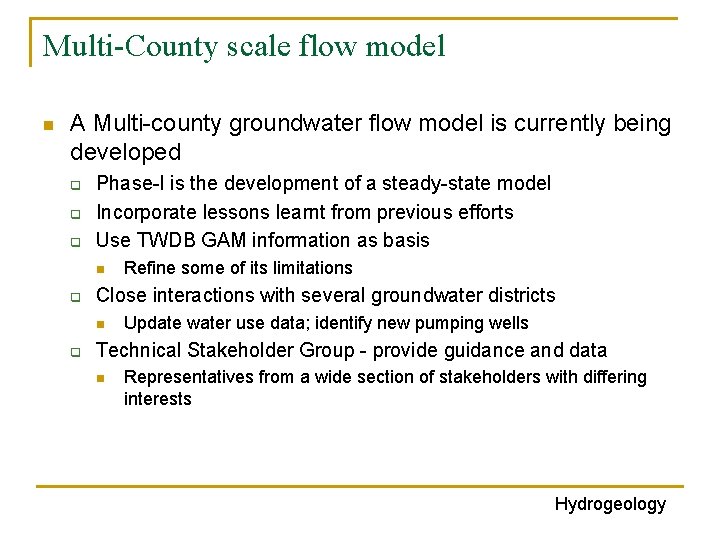

Multi-County scale flow model n A Multi-county groundwater flow model is currently being developed q q q Phase-I is the development of a steady-state model Incorporate lessons learnt from previous efforts Use TWDB GAM information as basis n q Close interactions with several groundwater districts n q Refine some of its limitations Update water use data; identify new pumping wells Technical Stakeholder Group - provide guidance and data n Representatives from a wide section of stakeholders with differing interests Hydrogeology

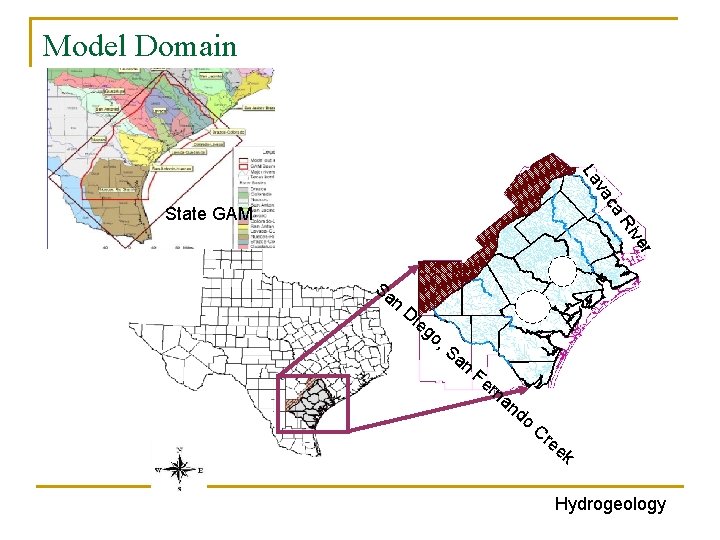

Model Domain ca va La r ve Ri State GAM Sa n Di e go , Sa n Fe rn an do Cr ee k Hydrogeology

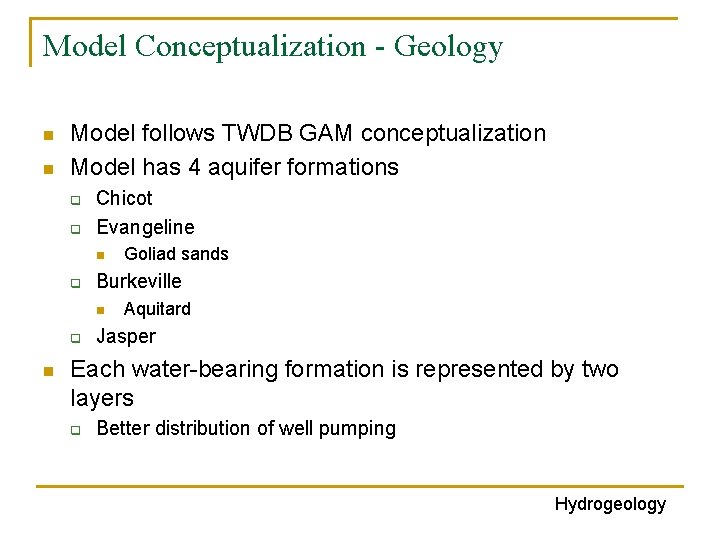

Model Conceptualization - Geology n n Model follows TWDB GAM conceptualization Model has 4 aquifer formations q q Chicot Evangeline n q Burkeville n q n Goliad sands Aquitard Jasper Each water-bearing formation is represented by two layers q Better distribution of well pumping Hydrogeology

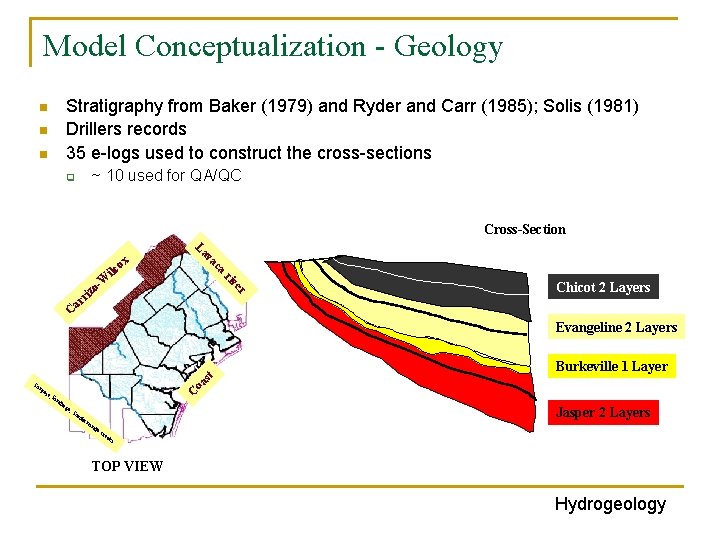

Model Conceptualization - Geology Stratigraphy from Baker (1979) and Ryder and Carr (1985); Solis (1981) Drillers records 35 e-logs used to construct the cross-sections n n n ~ 10 used for QA/QC q Cross-Section a ac ve ri izo r r r Ca v La ox ilc -W Chicot 2 Layers Evangeline 2 Layers os oa nj e, S an C Sa st Burkeville 1 Layer die g o, S an fer Jasper 2 Layers na nd oc re ek s TOP VIEW Hydrogeology

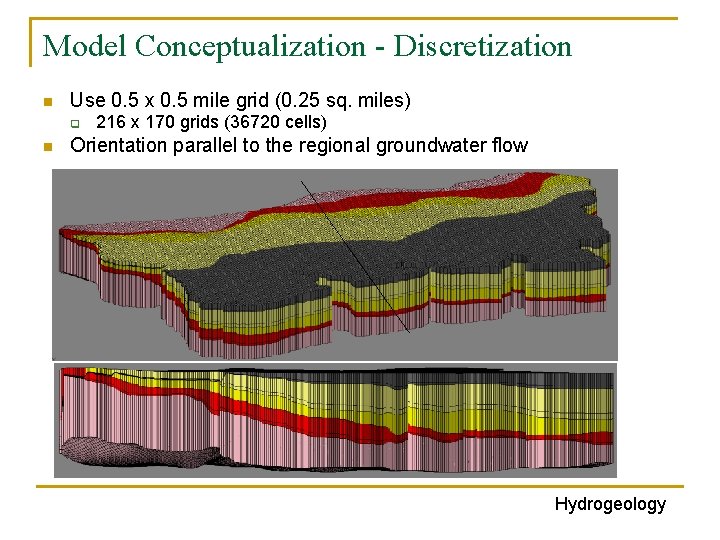

Model Conceptualization - Discretization n Use 0. 5 x 0. 5 mile grid (0. 25 sq. miles) q n 216 x 170 grids (36720 cells) Orientation parallel to the regional groundwater flow Hydrogeology

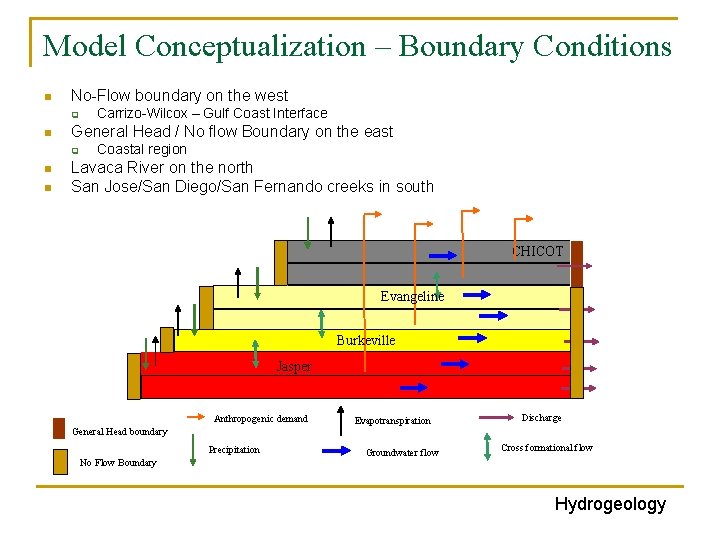

Model Conceptualization – Boundary Conditions n No-Flow boundary on the west q n General Head / No flow Boundary on the east q n n Carrizo-Wilcox – Gulf Coast Interface Coastal region Lavaca River on the north San Jose/San Diego/San Fernando creeks in south CHICOT Evangeline Burkeville Jasper Anthropogenic demand Evapotranspiration Discharge General Head boundary Precipitation No Flow Boundary Groundwater flow Cross formational flow Hydrogeology

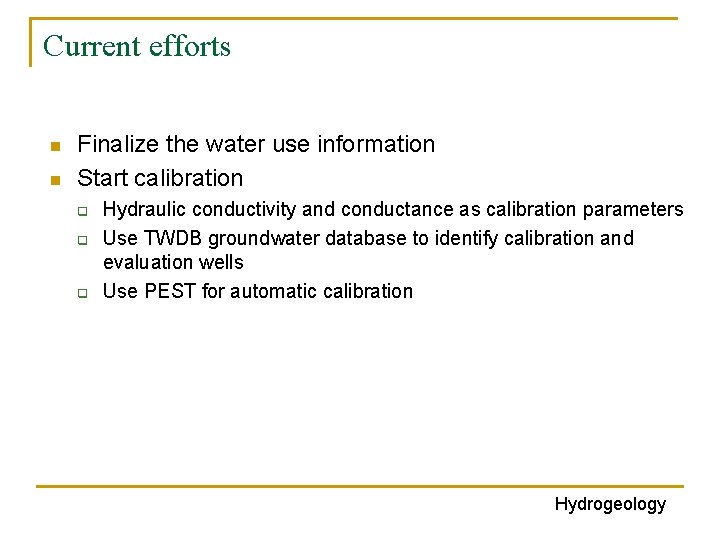

Current efforts n n Finalize the water use information Start calibration q q q Hydraulic conductivity and conductance as calibration parameters Use TWDB groundwater database to identify calibration and evaluation wells Use PEST for automatic calibration Hydrogeology

Policy aspects of Groundwater availability

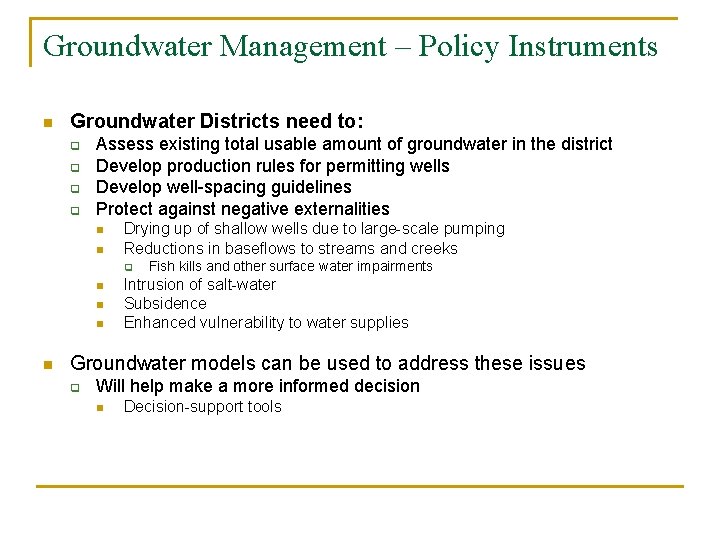

Groundwater Management – Policy Instruments n Groundwater Districts need to: q q Assess existing total usable amount of groundwater in the district Develop production rules for permitting wells Develop well-spacing guidelines Protect against negative externalities n n Drying up of shallow wells due to large-scale pumping Reductions in baseflows to streams and creeks q n n Fish kills and other surface water impairments Intrusion of salt-water Subsidence Enhanced vulnerability to water supplies Groundwater models can be used to address these issues q Will help make a more informed decision n Decision-support tools

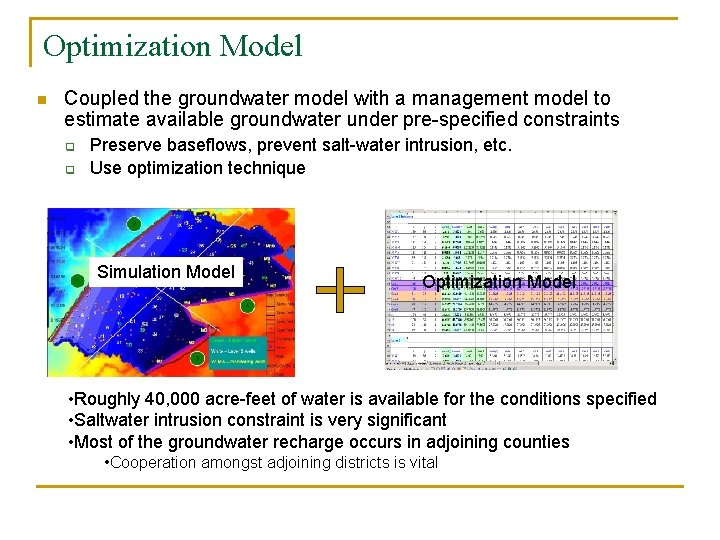

Optimization Model n Coupled the groundwater model with a management model to estimate available groundwater under pre-specified constraints q q Preserve baseflows, prevent salt-water intrusion, etc. Use optimization technique Simulation Model Optimization Model • Roughly 40, 000 acre-feet of water is available for the conditions specified • Saltwater intrusion constraint is very significant • Most of the groundwater recharge occurs in adjoining counties • Cooperation amongst adjoining districts is vital

What about Uncertainties? Does geologic variability or diverse preferences of decision-makers have a bigger impact on water availability estimates?

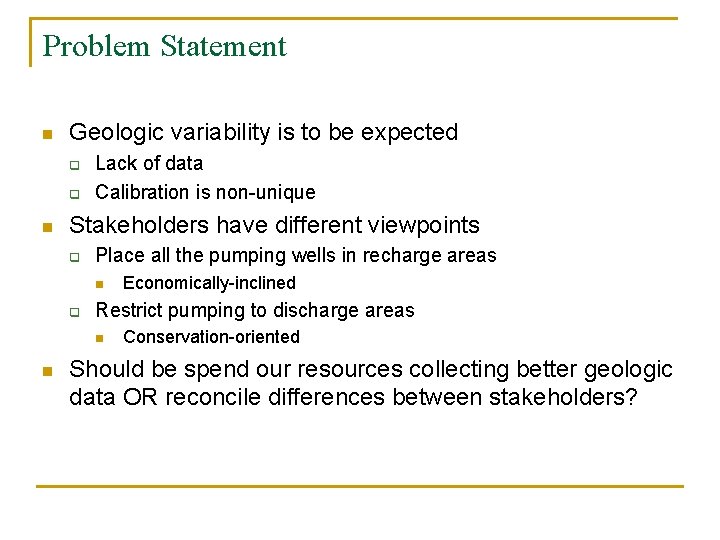

Problem Statement n Geologic variability is to be expected q q n Lack of data Calibration is non-unique Stakeholders have different viewpoints q Place all the pumping wells in recharge areas n q Restrict pumping to discharge areas n n Economically-inclined Conservation-oriented Should be spend our resources collecting better geologic data OR reconcile differences between stakeholders?

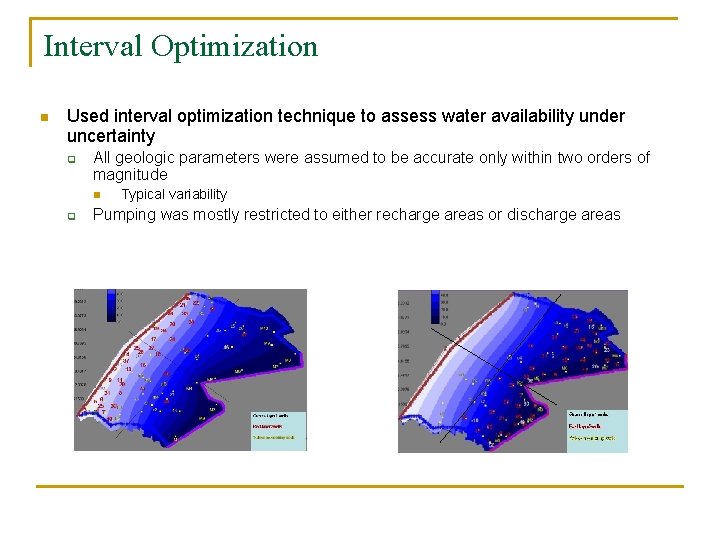

Interval Optimization n Used interval optimization technique to assess water availability under uncertainty q All geologic parameters were assumed to be accurate only within two orders of magnitude n q Typical variability Pumping was mostly restricted to either recharge areas or discharge areas

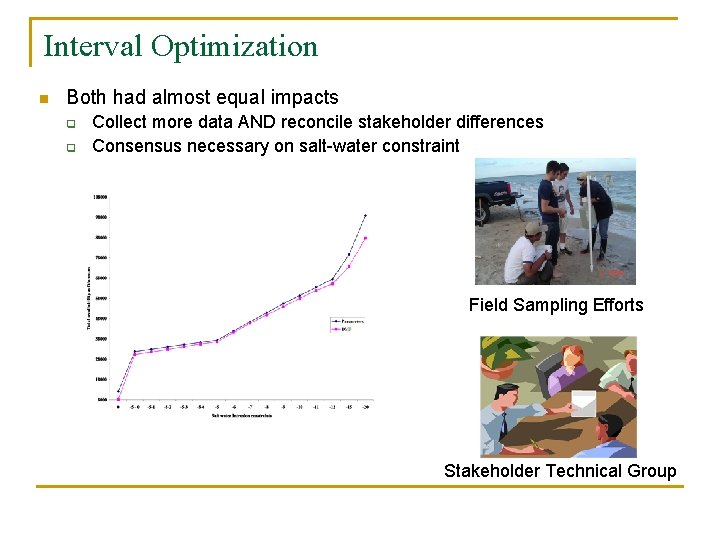

Interval Optimization n Both had almost equal impacts q q Collect more data AND reconcile stakeholder differences Consensus necessary on salt-water constraint Field Sampling Efforts Stakeholder Technical Group

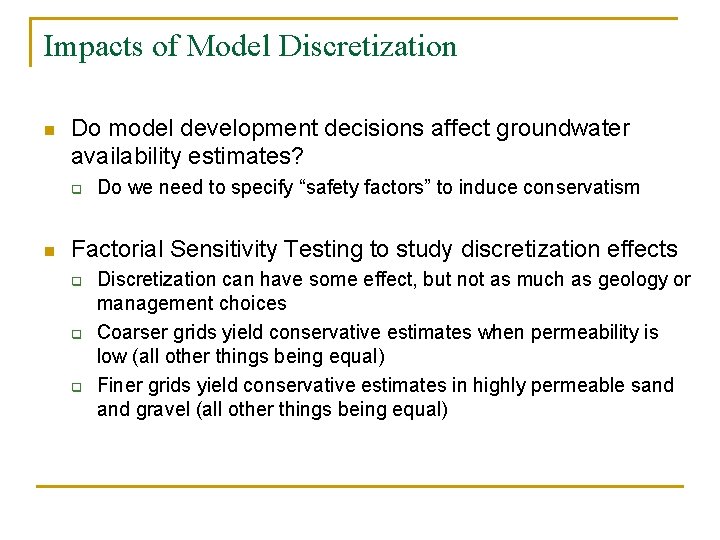

Impacts of Model Discretization n Do model development decisions affect groundwater availability estimates? q n Do we need to specify “safety factors” to induce conservatism Factorial Sensitivity Testing to study discretization effects q q q Discretization can have some effect, but not as much as geology or management choices Coarser grids yield conservative estimates when permeability is low (all other things being equal) Finer grids yield conservative estimates in highly permeable sand gravel (all other things being equal)

Developing Well Spacing Guidelines How can we use models to obtain well spacing guidelines

Well Spacing Guidelines n A nonlinear optimization approach was used to determine Well spacing guidelines for Refugio GCD using Theis equation q q Applicable to confined aquifers Conservative in unconfined aquifers n Unconfined aquifers have greater storage

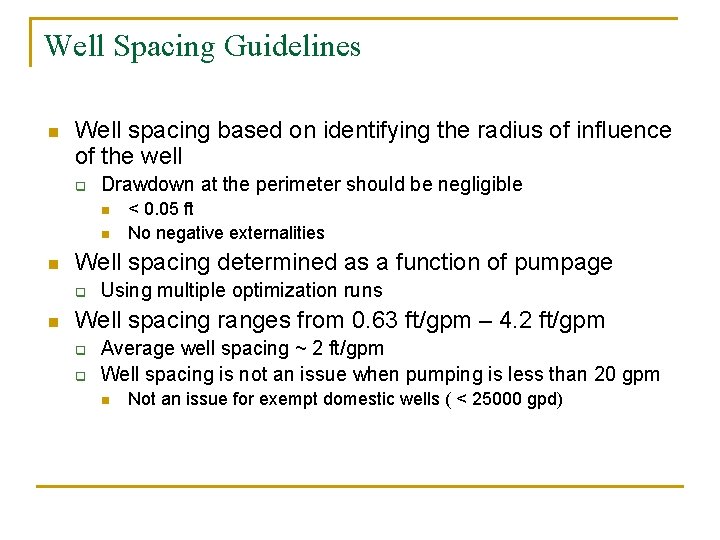

Well Spacing Guidelines n Well spacing based on identifying the radius of influence of the well q Drawdown at the perimeter should be negligible n n n Well spacing determined as a function of pumpage q n < 0. 05 ft No negative externalities Using multiple optimization runs Well spacing ranges from 0. 63 ft/gpm – 4. 2 ft/gpm q q Average well spacing ~ 2 ft/gpm Well spacing is not an issue when pumping is less than 20 gpm n Not an issue for exempt domestic wells ( < 25000 gpd)

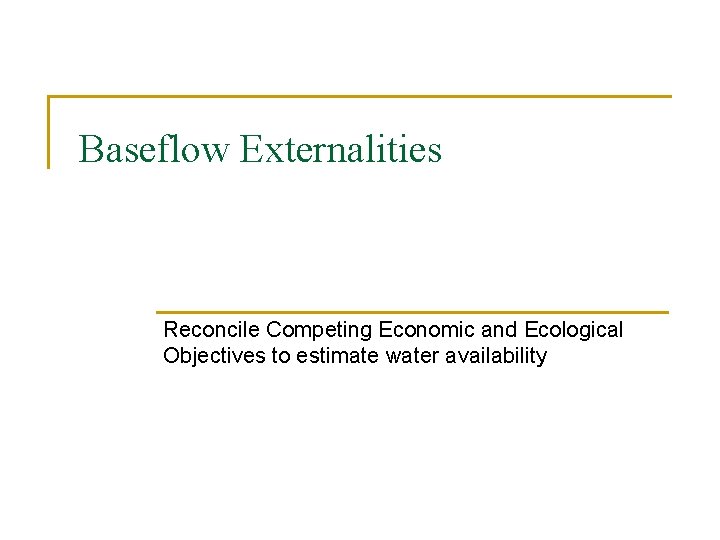

Baseflow Externalities Reconcile Competing Economic and Ecological Objectives to estimate water availability

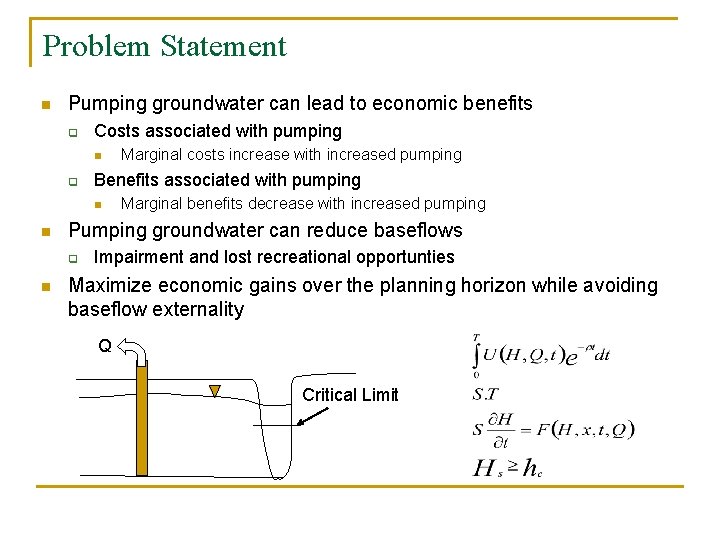

Problem Statement n Pumping groundwater can lead to economic benefits q Costs associated with pumping n q Benefits associated with pumping n n Marginal benefits decrease with increased pumping Pumping groundwater can reduce baseflows q n Marginal costs increase with increased pumping Impairment and lost recreational opportunties Maximize economic gains over the planning horizon while avoiding baseflow externality Q Critical Limit

Baseflow Externality n Hydroeconomic analysis to identify allowable pumping rates during the planning period q n Model results indicated that explicit policy statements are necessary to avoid baseflow externality q n Optimal control theory If pumping is not curtailed to some critical limit, there will be significant reductions to baseflows Comparison with a purely economic-driven policy was helpful q q Shadow price of maintaining a particular baseflow Compare shadow price with willingness to pay

Closing Remarks n Models are useful tools to guide policy planning endeavors q n Models need to be understood and accepted by stakeholders q n Will never provide exact answers Modeling is a process not an event Models should be evaluated in the context of the application q Keep the “big picture” in mind n n Easy to lose sight of forest for the trees Evaluating models => Assessing its assumptions q All models have assumptions!!

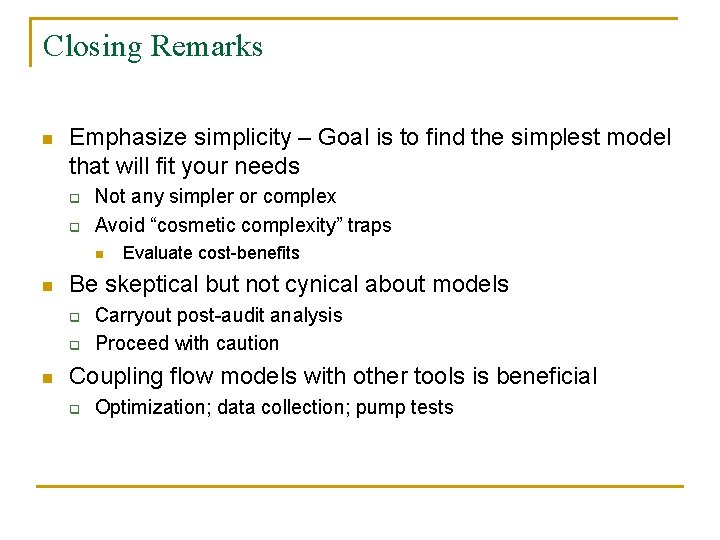

Closing Remarks n Emphasize simplicity – Goal is to find the simplest model that will fit your needs q q Not any simpler or complex Avoid “cosmetic complexity” traps n n Be skeptical but not cynical about models q q n Evaluate cost-benefits Carryout post-audit analysis Proceed with caution Coupling flow models with other tools is beneficial q Optimization; data collection; pump tests

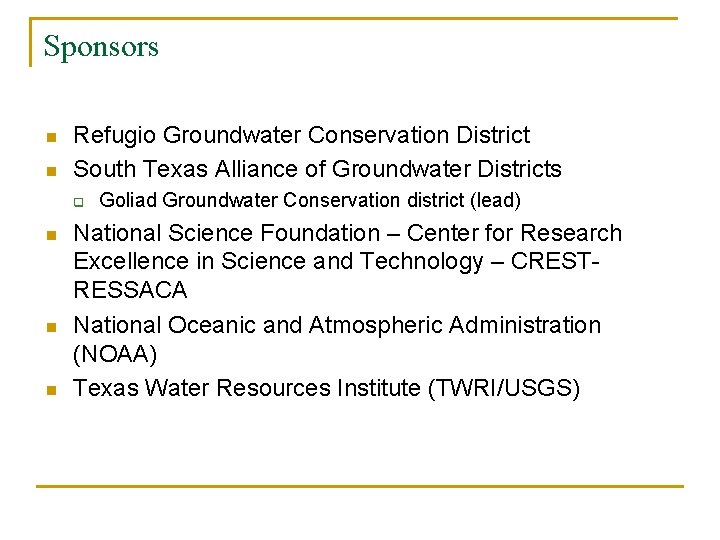

Sponsors n n Refugio Groundwater Conservation District South Texas Alliance of Groundwater Districts q n n n Goliad Groundwater Conservation district (lead) National Science Foundation – Center for Research Excellence in Science and Technology – CRESTRESSACA National Oceanic and Atmospheric Administration (NOAA) Texas Water Resources Institute (TWRI/USGS)
