SUSTAINABLE DEVELOPMENT The Southampton City District Energy Scheme
SUSTAINABLE DEVELOPMENT The Southampton City District Energy Scheme a partnership between and WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
INTRODUCTIONS Diana Maddock Director & Original sponsor of the Home Energy Conservation Act Tim Garner Business Development Manager WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
PRESENTATION 1. What is CHP and District Heating 2. 2. Group and Company Background 3. Why Southampton - how did it start ? 4. The First Step - The Partnership with the Council 5. The Energy Generation Plant 6. Our Consumers 7. Southampton - into the new Millennium WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS

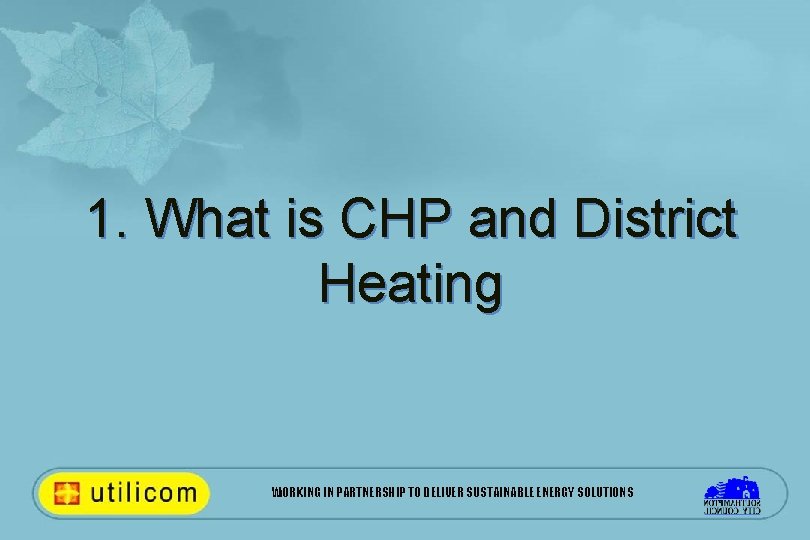

1. What is CHP and District Heating WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
What is CHP? Combined Heat & Power (CHP) - recovery of heat produced when generating electricity (usually wasted) WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
What is CHP? CHP - operates at 70 -85% efficiency compared to typical power stations 25 -35%. CHP - Replacing central power stations with more efficient local generation WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
What is District Energy ? • • • On site heat, chilled water and electricity distribution network Used for distributing energy from boilers & CHP Current heating piping systems - heat losses are 1°C per km Reliability of current piping systems - 100% Large sections could use plastic PE-X Pipes WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
2. Group and Company Background WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
• • Utilicom is the UK subsidiary of the Idex Group International Group of Family owned companies Established 1963 President - Alain Planchot Head office Paris Annual turnover 400 M Euros 3, 000 employees Core business: Ø Development, Operation & Maintenance of Community Heating Schemes WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
Example Project: Palais de Congres - Paris • 1, 000 bed Hotel, cinema, theatre and retail complex – 200, 000 m 2 • All plant in Energy Centre funded by Idex • Energy supplies since 1972 • Original 27 year contract renewed for a further circa 20 years • Large scale heating, cooling and electricity generation plant WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS

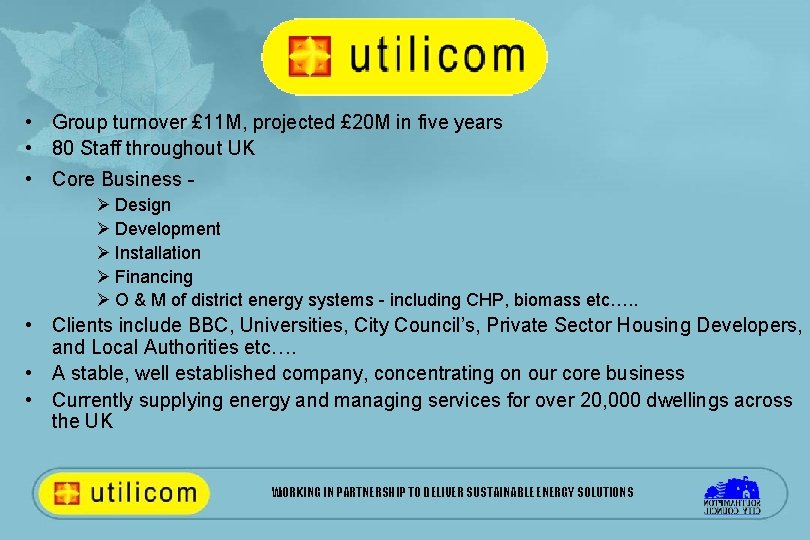

• Group turnover £ 11 M, projected £ 20 M in five years • 80 Staff throughout UK • Core Business Ø Design Ø Development Ø Installation Ø Financing Ø O & M of district energy systems - including CHP, biomass etc…. . • Clients include BBC, Universities, City Council’s, Private Sector Housing Developers, and Local Authorities etc…. • A stable, well established company, concentrating on our core business • Currently supplying energy and managing services for over 20, 000 dwellings across the UK WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
Example Project: University of London CHP Schemes • 4. 5 MW of CHP serving UCL, UCLHT and five colleges of the University of London • 20 year energy supply contracts – based on PFI/PPP model • Operational since 1999 • £ 6 M capital cost • Energy Sales £ 3 M p. a. • Already expanded to serve 3 third party consumers WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS

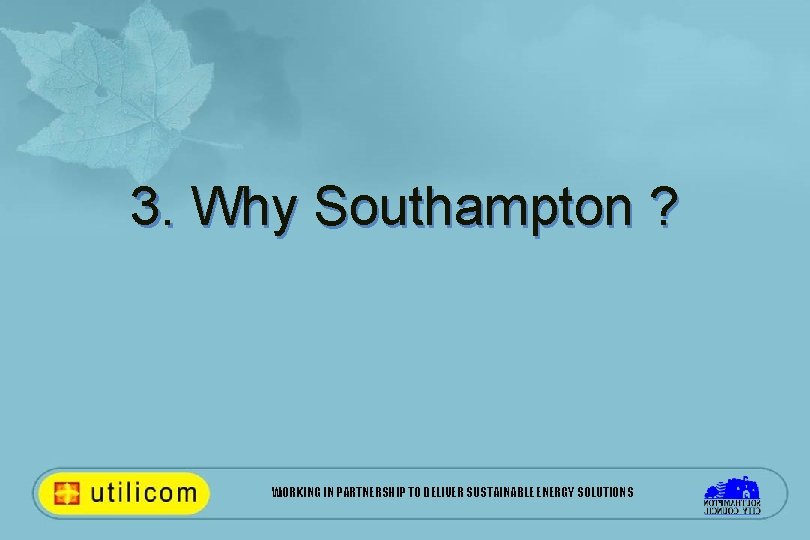

3. Why Southampton ? WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
The Catalyst - The Geothermal Well and Resource WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
The Rock and the Pump WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
4. The First Step - The Partnership with the Council WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
The Cornerstone – The Joint Co-operation Agreement The Scheme has always had cross party support - the first step was to sign a Joint Co-Operation agreement - 1987 - first in the UK pre-dating PFI This committed Utilicom to: – Developing a district heating scheme in Southampton initially based around geothermal energy – Sell heat to Council buildings with agreed savings – Provide all necessary funding and technical/management expertise to ensure the scheme developed successfully – Provide open book accounting and a long term profit share to SCC and committed SCC to: – – – Take heat wherever practical for SCC buildings Provide land for the Heat Station for a peppercorn Help Utilicom promote the scheme to other potential users Provide general support to Utilicom in developing the scheme - planning, highways etc… Treat Utilicom as a ‘statutory utility’ within the boundaries of the City WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
Company Organisation Structure UTILICOM GROUP LIMITED UTILICOM LTD SGHC SOUTHAMPTON CITY COUNCIL CO-OPERATION AGREEMENT = Total Risk Transfer to the Private Sector WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS

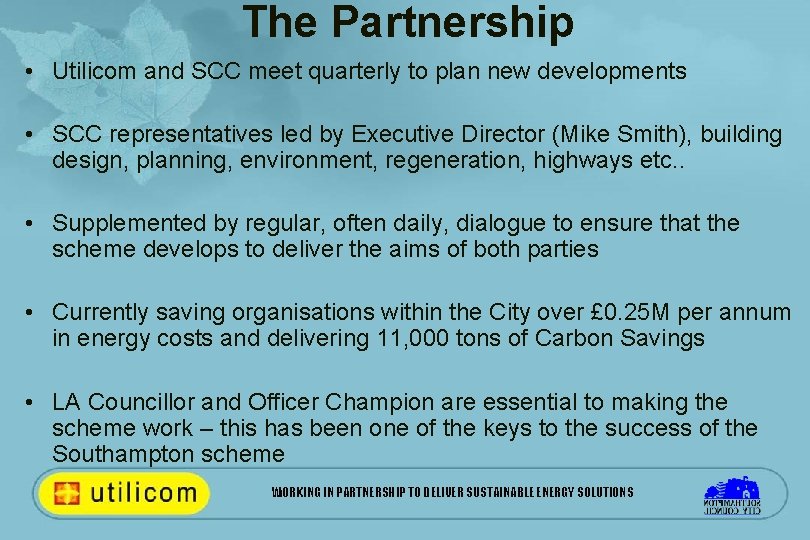

The Partnership • Utilicom and SCC meet quarterly to plan new developments • SCC representatives led by Executive Director (Mike Smith), building design, planning, environment, regeneration, highways etc. . • Supplemented by regular, often daily, dialogue to ensure that the scheme develops to deliver the aims of both parties • Currently saving organisations within the City over £ 0. 25 M per annum in energy costs and delivering 11, 000 tons of Carbon Savings • LA Councillor and Officer Champion are essential to making the scheme work – this has been one of the keys to the success of the Southampton scheme WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
5. The Energy Generation Plant WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS

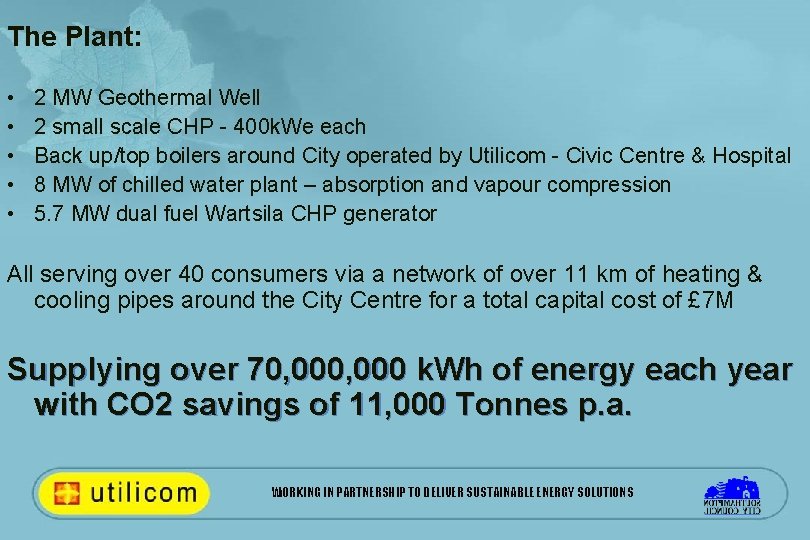

The Plant: • • • 2 MW Geothermal Well 2 small scale CHP - 400 k. We each Back up/top boilers around City operated by Utilicom - Civic Centre & Hospital 8 MW of chilled water plant – absorption and vapour compression 5. 7 MW dual fuel Wartsila CHP generator All serving over 40 consumers via a network of over 11 km of heating & cooling pipes around the City Centre for a total capital cost of £ 7 M Supplying over 70, 000 k. Wh of energy each year with CO 2 savings of 11, 000 Tonnes p. a. WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
The Southampton Energy Centre Centralised Heat Sources CHP, Boilers etc Buried Pre-insulated distribution mains Consumer interface/meter WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
Our 5. 7 MW CHP being delivered ! WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
We also have smaller scale CHP and CH schemes ! WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
HOLYROOD ESTATE • City Council owned housing, approx 300 flats in 9 blocks, each with only a single room heater and electric immersion • Utilicom designed and project managed installation of district heating and hot water system including CHP to serve entire estate • Cost guarantee given by Utilicom to SCC for future energy supplies • SCC Housing very satisfied - voids virtually gone and ability to let flats on the estate enormously increased. WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
Public Sector Housing Holyrood Estate – 300 dwellings supplied with heat from local Energy Centre including CHP - guaranteed heat price, with full maintenance of all in dwelling equipment WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
6. The Consumers WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
WHO DO WE SERVE ? Consumers include: • Civic Centre • 4 Hotels • RSH Hospital • Offices • Southampton Institute • Swimming & Diving Complex • Entire 53 Acre West Quay Shopping Centre • Public and Private Sector Housing ………. . and many more - largest Commercially developed district energy scheme in the UK - £ 2 M of energy sales p. a. WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS

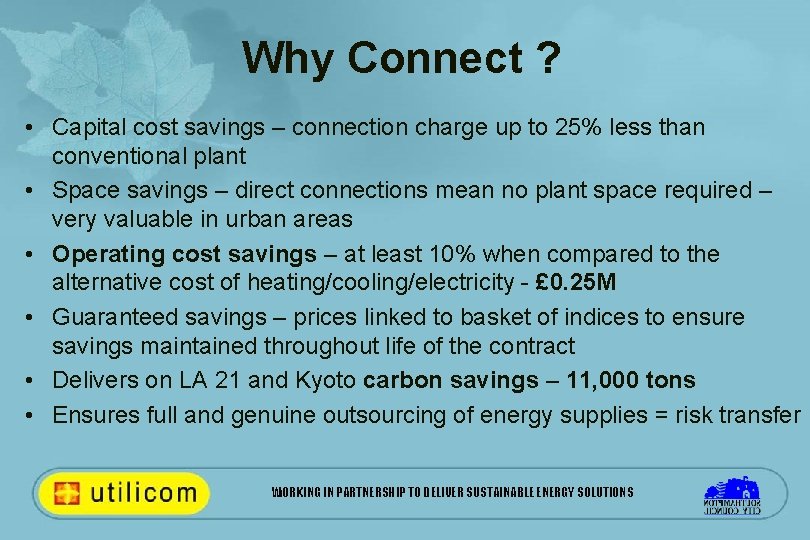

Why Connect ? • Capital cost savings – connection charge up to 25% less than conventional plant • Space savings – direct connections mean no plant space required – very valuable in urban areas • Operating cost savings – at least 10% when compared to the alternative cost of heating/cooling/electricity - £ 0. 25 M • Guaranteed savings – prices linked to basket of indices to ensure savings maintained throughout life of the contract • Delivers on LA 21 and Kyoto carbon savings – 11, 000 tons • Ensures full and genuine outsourcing of energy supplies = risk transfer WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
How are connections funded ? • Connection charges from the consumer • Long term energy supply revenues – repaying bank or private sector finance • Grant funding – Community Energy Fund and others… WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS

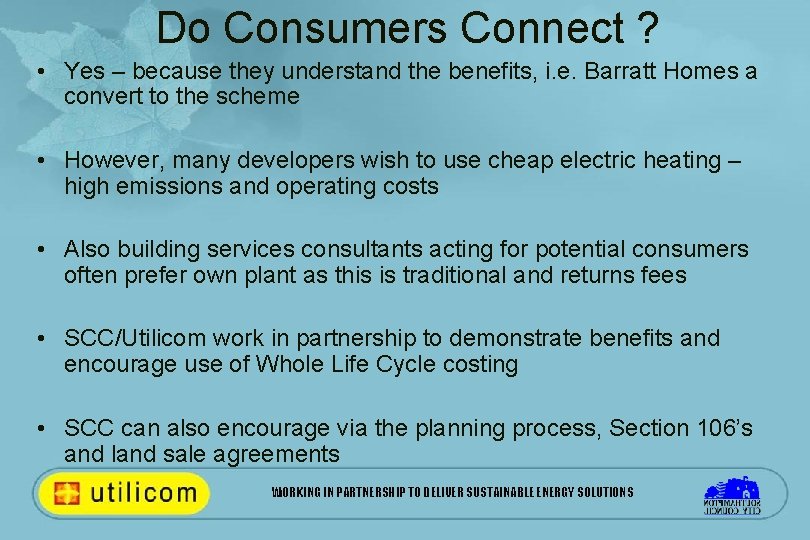

Do Consumers Connect ? • Yes – because they understand the benefits, i. e. Barratt Homes a convert to the scheme • However, many developers wish to use cheap electric heating – high emissions and operating costs • Also building services consultants acting for potential consumers often prefer own plant as this is traditional and returns fees • SCC/Utilicom work in partnership to demonstrate benefits and encourage use of Whole Life Cycle costing • SCC can also encourage via the planning process, Section 106’s and land sale agreements WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
The Civic Centre – The first consumer WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
BBC TV Studios – heating 1990, cooling 2000 WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
Swimming and Diving Complex WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
Connected Offices – Skandia, SCC, No. 1 London Road WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
De. Vere 5* Grand Harbour Hotel - Connected 1994 via 600 m ‘energy link’ all heating and cooling from scheme WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
West Quay Shopping Centre - heated & chilled by our scheme WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
Private Housing Barratt’s Park View and the Dell developments – both connected to the scheme – circa 600 dwellings including Holyrood Estate - the first private housing in the UK to connect to an existing district energy scheme WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
Independent Study on Customer Satisfaction and Cost Effectiveness WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS

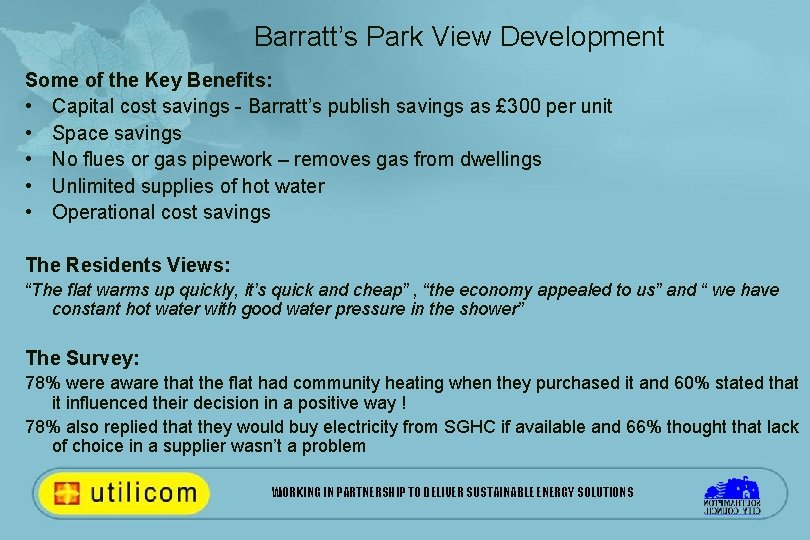

Barratt’s Park View Development Some of the Key Benefits: • Capital cost savings - Barratt’s publish savings as £ 300 per unit • Space savings • No flues or gas pipework – removes gas from dwellings • Unlimited supplies of hot water • Operational cost savings The Residents Views: “The flat warms up quickly, it’s quick and cheap” , “the economy appealed to us” and “ we have constant hot water with good water pressure in the shower” The Survey: 78% were aware that the flat had community heating when they purchased it and 60% stated that it influenced their decision in a positive way ! 78% also replied that they would buy electricity from SGHC if available and 66% thought that lack of choice in a supplier wasn’t a problem WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
Barratt’s - Urban Living Brochure WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
Key Worker Housing UNITE - Orions Point • Ex British Gas Offices being converted to 400 bedrooms 82 Flats and 40 one bed Studios for Student Accommodation • Linked to our district heating scheme in June 2003 WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS

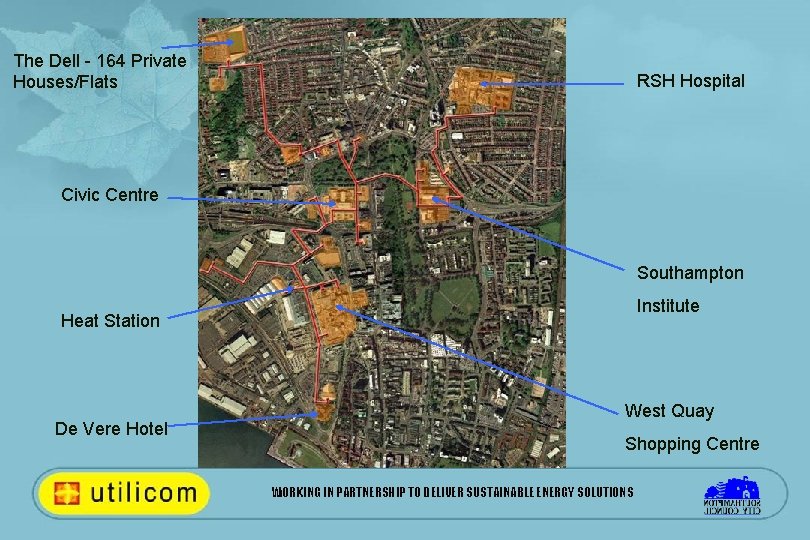

The Dell - 164 Private Houses/Flats RSH Hospital Civic Centre Southampton Institute Heat Station De Vere Hotel West Quay Shopping Centre WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
A selection of our satisfied consumers with their awards from us ! WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
7. Southampton into the new Millennium WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
The Future – to 2010 • Further large scale CHP - increase to 20 MW ? • Heating and especially cooling mains continue to grow - energy sales doubled • Electricity sales to local consumers • Incorporation of other technologies – anaerobic digestion of the Cities Waste – fuel cells – biomass etc…- currently developing wood fired boilers/CHP schemes WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
Our Vision for SGHC • Expand community heating/cooling throughout the City of Southampton maximising use of CHP • Demonstrate viability of innovative energy generation and distribution technologies • Provide simple agreements for energy supplies ensuring long term energy savings • Maintain 100% consumer supplies and satisfaction • Promote Environmental issues whilst maintaining ‘No Green Premium’ • Replicate & assist others in implementation of similar schemes WORKING IN PARTNERSHIP TO DELIVER SUSTAINABLE ENERGY SOLUTIONS
