Sustainability Green Energy Codes What it is Sustainability
Sustainability, Green & Energy Codes

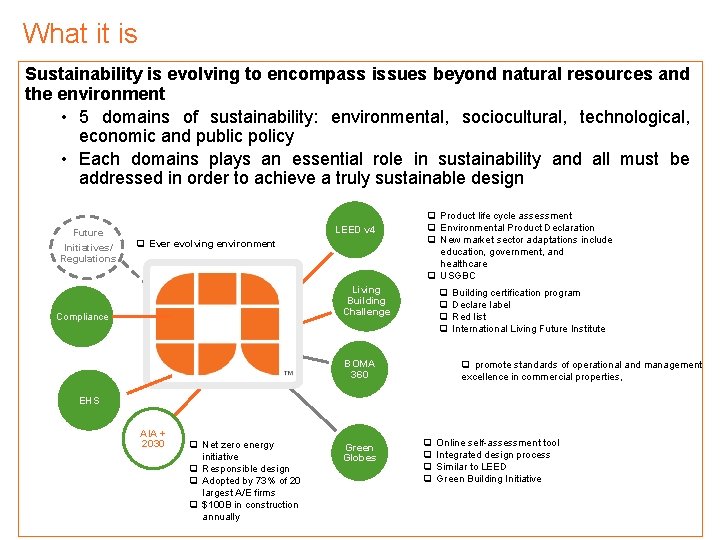

What it is Sustainability is evolving to encompass issues beyond natural resources and the environment • 5 domains of sustainability: environmental, sociocultural, technological, economic and public policy • Each domains plays an essential role in sustainability and all must be addressed in order to achieve a truly sustainable design Future Initiatives/ Regulations LEED v 4 q Ever evolving environment q Product life cycle assessment q Environmental Product Declaration q New market sector adaptations include education, government, and healthcare q USGBC Living Building Challenge Compliance q q Building certification program Declare label Red list International Living Future Institute q promote standards of operational and management excellence in commercial properties, BOMA 360 EHS EH&S AIA + 2030 2| q Net zero energy initiative q Responsible design q Adopted by 73% of 20 largest A/E firms q $100 B in construction annually Green Globes q q Online self-assessment tool Integrated design process Similar to LEED Green Building Initiative
Future of Sustainability International Green Construction Code (Ig. CC) Original LEED GENERAL DEVELOPMENT OF SUSTAINABILITY Green Globes Well Building 2000 2005 2010 LEED 2009 2015 2020 2025 2030 Living Product Challenge 1. 0 Architecture 2030 LEED v 4 Cradle to Cradle 3| Google Portico 2040 2050 Imperative BREEAM Living Building Challenge 1. 0 2035

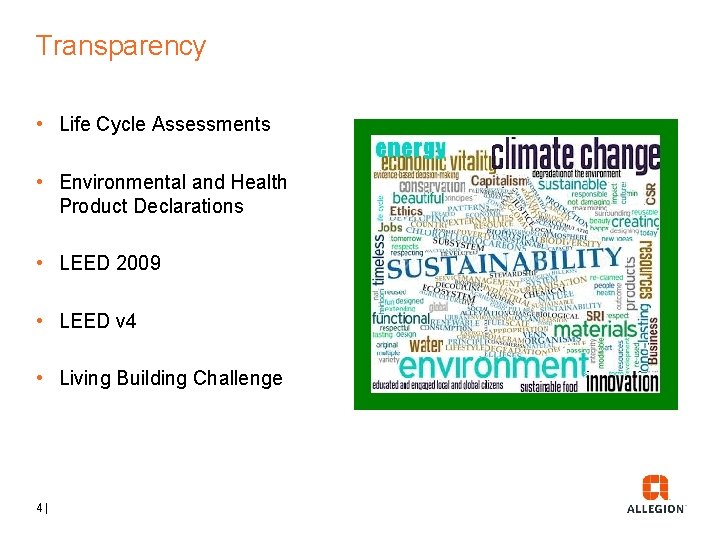

Transparency • Life Cycle Assessments • Environmental and Health Product Declarations • LEED 2009 • LEED v 4 • Living Building Challenge 4|

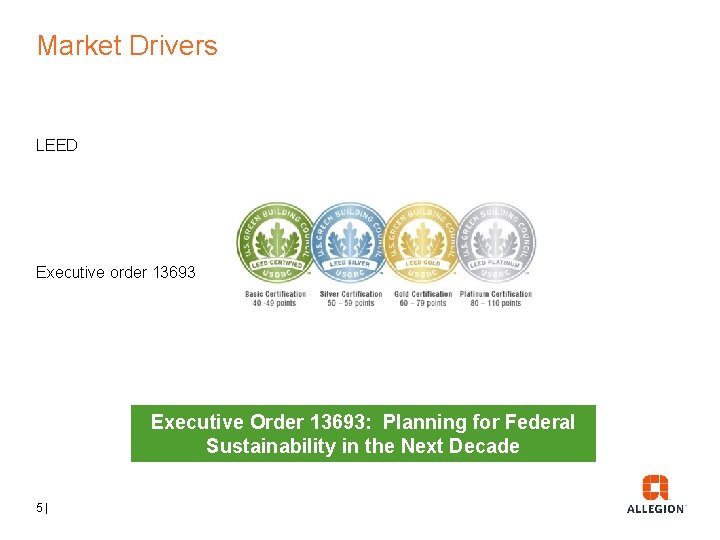

Market Drivers LEED Executive order 13693 Executive Order 13693: Planning for Federal Sustainability in the Next Decade 5|

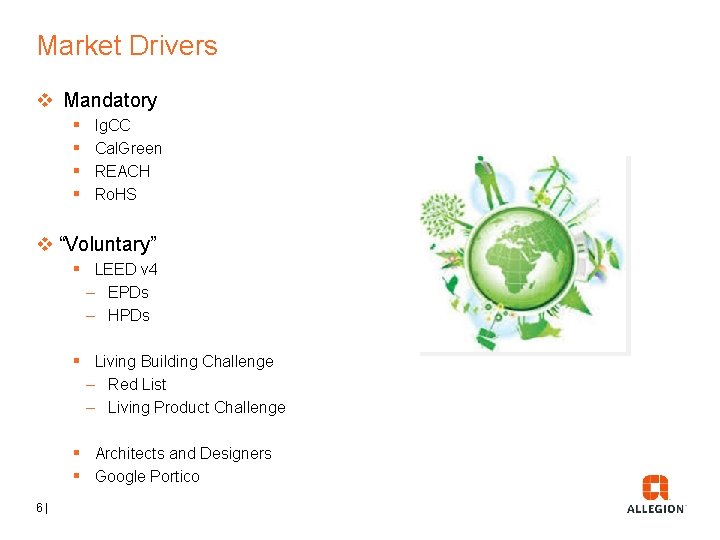

Market Drivers v Mandatory § § Ig. CC Cal. Green REACH Ro. HS v “Voluntary” § LEED v 4 – EPDs – HPDs § Living Building Challenge – Red List – Living Product Challenge § Architects and Designers § Google Portico 6|
Market Drivers Sustainable Purchasing Requirements v. DOD v. GSA v. Colleges and Universities v. Corporations 7|

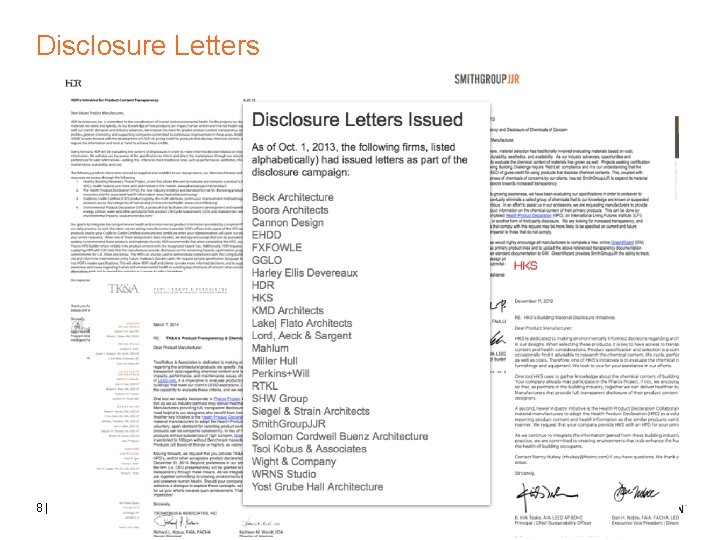

Disclosure Letters 8|

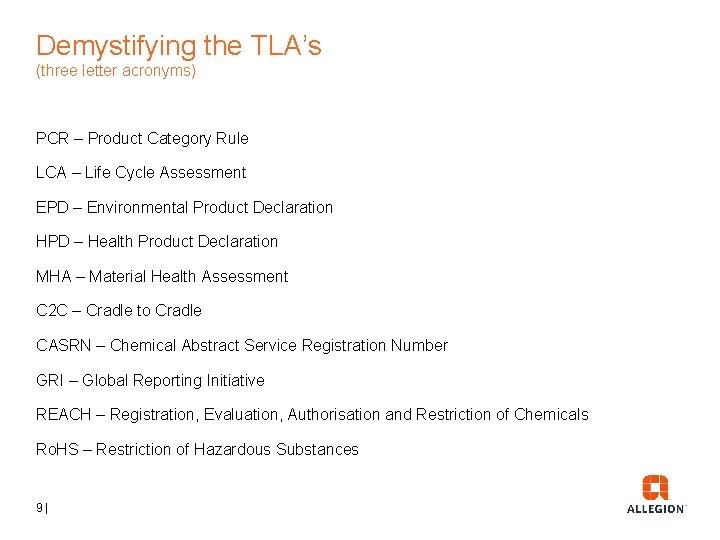

Demystifying the TLA’s (three letter acronyms) PCR – Product Category Rule LCA – Life Cycle Assessment EPD – Environmental Product Declaration HPD – Health Product Declaration MHA – Material Health Assessment C 2 C – Cradle to Cradle CASRN – Chemical Abstract Service Registration Number GRI – Global Reporting Initiative REACH – Registration, Evaluation, Authorisation and Restriction of Chemicals Ro. HS – Restriction of Hazardous Substances 9|
What is a PCR? Product Category Rules (PCR) define the rules and requirements for EPDs of a certain product category • Form of guidance and rules for the collection of data • Explains how the calculations should be done to transfer the data to the environmental impact • PCRs can be developed by consensus group and are peer-reviewed by a manufacturer or industry association/committee • Allegion’s PCRs • Hardware PCR(BHMA) • Hollow Metal PCR(SDI) • Auto Operators (BHMA) 10 |
What is an LCA? A collection of data from point of extraction, thru manufacturing, delivery, installation and the life of the product/ building to disposal that assesses environmental impact of a product. • Conforms to ISO 14040 / 14044 • ISO 14040, which lays out the principles and framework of LCA. • ISO 14044, which describes requirements and guidelines. • Good for 5 years 11 |

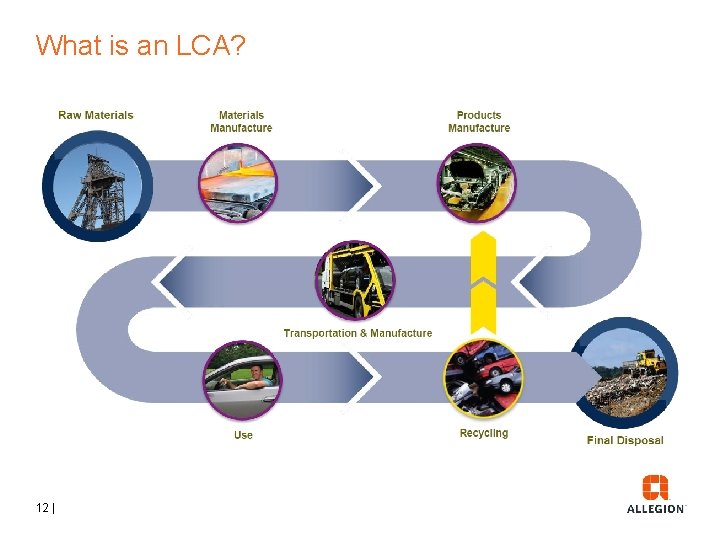

What is an LCA? 12 |

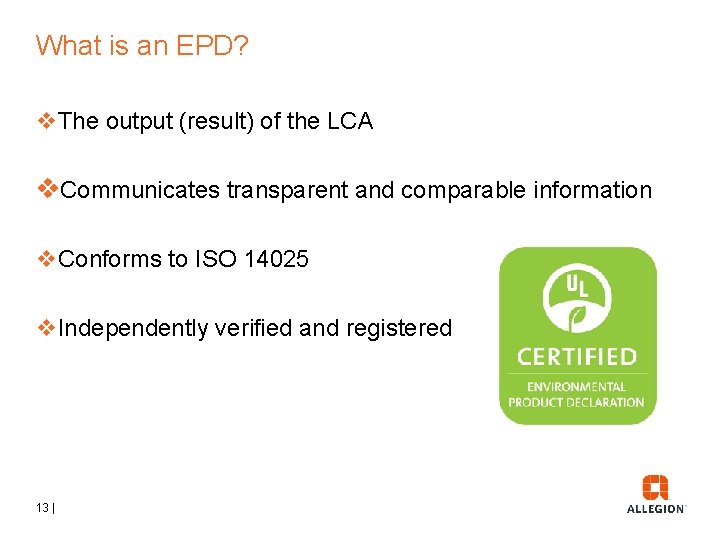

What is an EPD? v. The output (result) of the LCA v. Communicates transparent and comparable information v. Conforms to ISO 14025 v. Independently verified and registered 13 |

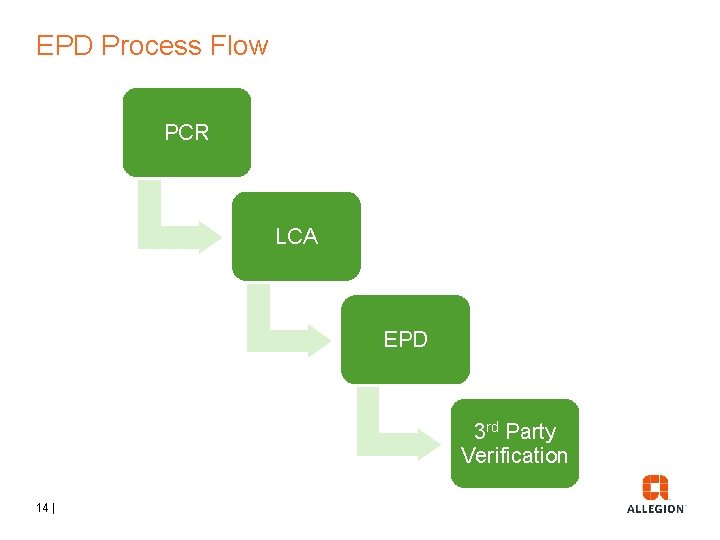

EPD Process Flow PCR LCA EPD 3 rd Party Verification 14 |

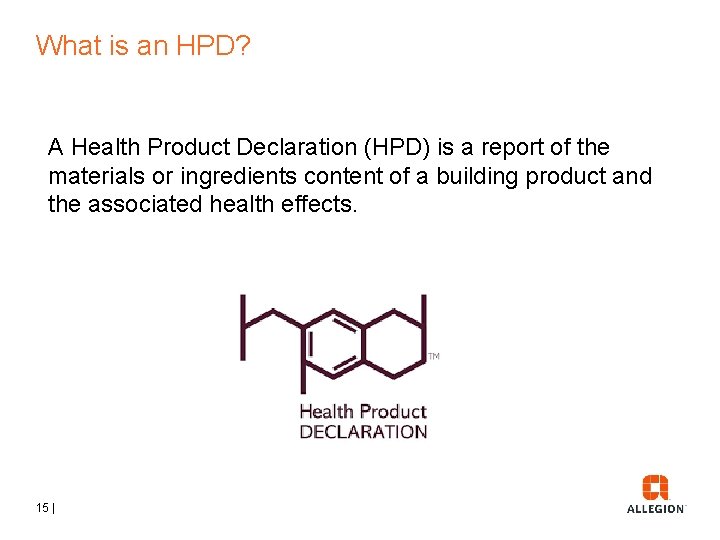

What is an HPD? A Health Product Declaration (HPD) is a report of the materials or ingredients content of a building product and the associated health effects. 15 |

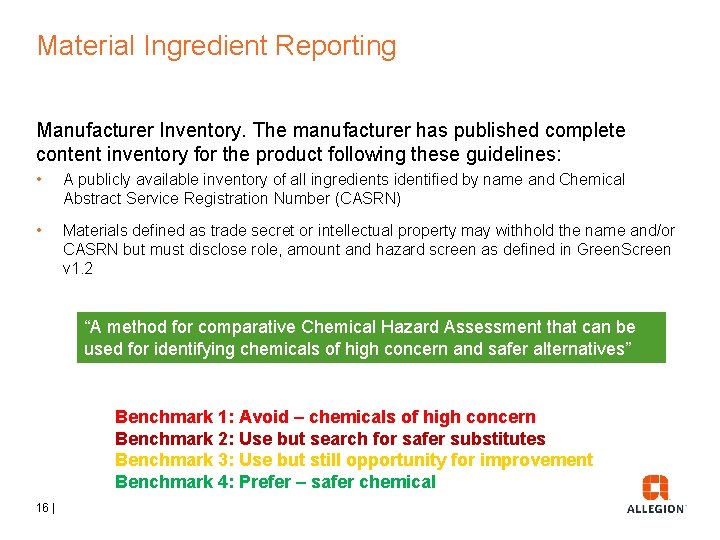

Material Ingredient Reporting Manufacturer Inventory. The manufacturer has published complete content inventory for the product following these guidelines: • A publicly available inventory of all ingredients identified by name and Chemical Abstract Service Registration Number (CASRN) • Materials defined as trade secret or intellectual property may withhold the name and/or CASRN but must disclose role, amount and hazard screen as defined in Green. Screen v 1. 2 “A method for comparative Chemical Hazard Assessment that can be used for identifying chemicals of high concern and safer alternatives” Benchmark 1: Avoid – chemicals of high concern Benchmark 2: Use but search for safer substitutes Benchmark 3: Use but still opportunity for improvement Benchmark 4: Prefer – safer chemical 16 |
HPD Process Flow Each part is analyzed to its homogenous level CAS #s Supply Chain Verification 3 rd Party Verification 17 |

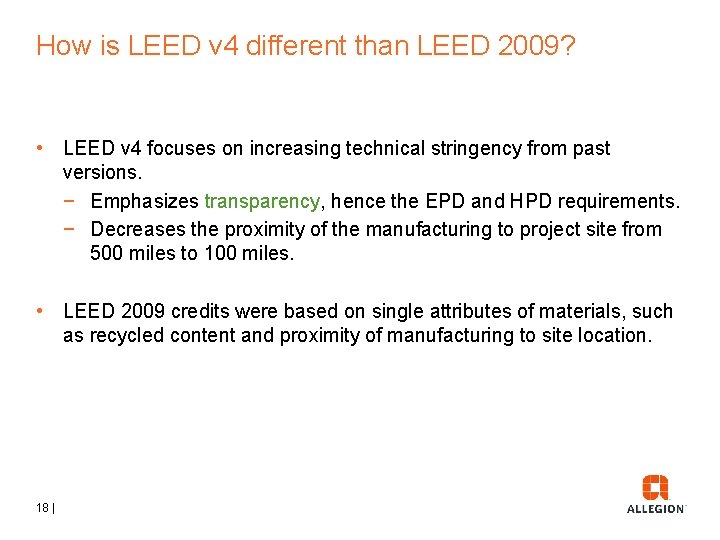

How is LEED v 4 different than LEED 2009? • LEED v 4 focuses on increasing technical stringency from past versions. − Emphasizes transparency, hence the EPD and HPD requirements. − Decreases the proximity of the manufacturing to project site from 500 miles to 100 miles. • LEED 2009 credits were based on single attributes of materials, such as recycled content and proximity of manufacturing to site location. 18 |
Living Building Challenge International Living Futures Institute - Seattle Claims to be the “world’s most rigorous proven performance standard for buildings 20 Imperatives 7 categories Place, Water, Energy, Health & Happiness, Materials, Equity, Beauty Projects are predominately in the US 19 |

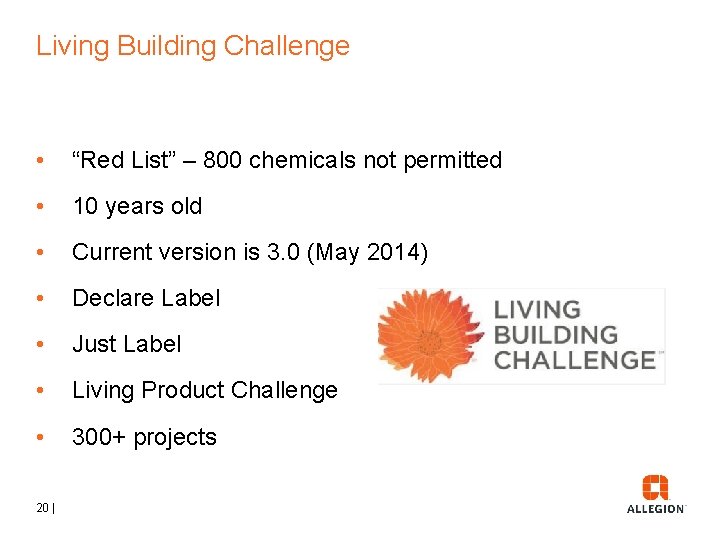

Living Building Challenge • “Red List” – 800 chemicals not permitted • 10 years old • Current version is 3. 0 (May 2014) • Declare Label • Just Label • Living Product Challenge • 300+ projects 20 |
Sustainability Market Data

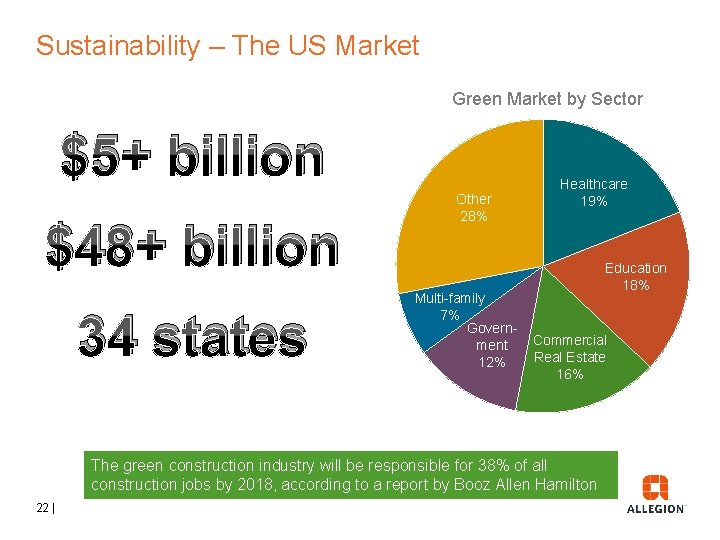

Sustainability – The US Market Green Market by Sector $5+ billion $48+ billion 34 states Other 28% Multi-family 7% Government 12% Healthcare 19% Education 18% Commercial Real Estate 16% The green construction industry will be responsible for 38% of all construction jobs by 2018, according to a report by Booz Allen Hamilton 22 |

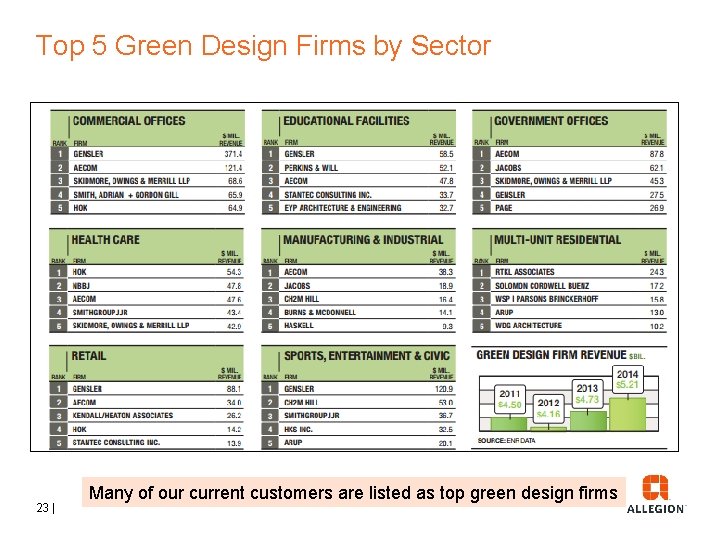

Top 5 Green Design Firms by Sector 23 | Many of our current customers are listed as top green design firms
Top 5 Green Contractors by Sector 24 |

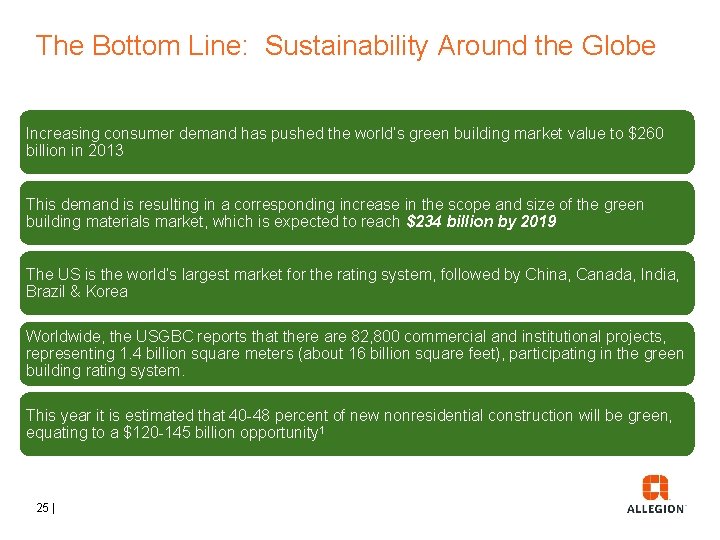

The Bottom Line: Sustainability Around the Globe Increasing consumer demand has pushed the world’s green building market value to $260 billion in 2013 This demand is resulting in a corresponding increase in the scope and size of the green building materials market, which is expected to reach $234 billion by 2019 The US is the world’s largest market for the rating system, followed by China, Canada, India, Brazil & Korea Worldwide, the USGBC reports that there are 82, 800 commercial and institutional projects, representing 1. 4 billion square meters (about 16 billion square feet), participating in the green building rating system. This year it is estimated that 40 -48 percent of new nonresidential construction will be green, equating to a $120 -145 billion opportunity 1 25 |
Green Codes

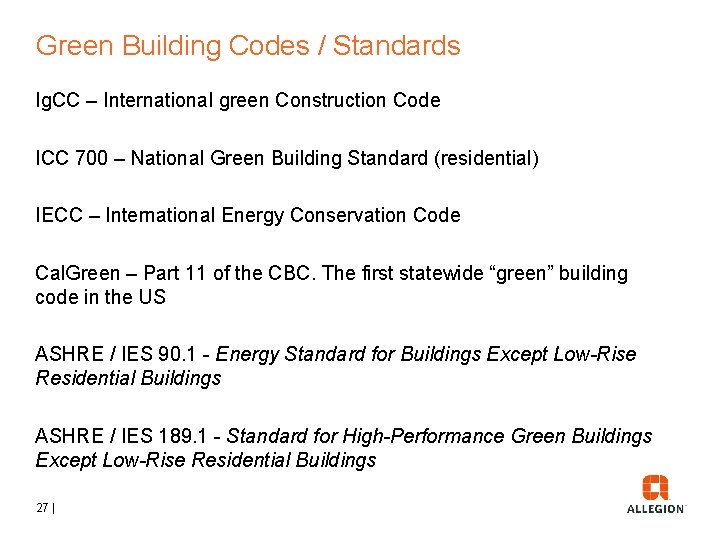

Green Building Codes / Standards Ig. CC – International green Construction Code ICC 700 – National Green Building Standard (residential) IECC – International Energy Conservation Code Cal. Green – Part 11 of the CBC. The first statewide “green” building code in the US ASHRE / IES 90. 1 - Energy Standard for Buildings Except Low-Rise Residential Buildings ASHRE / IES 189. 1 - Standard for High-Performance Green Buildings Except Low-Rise Residential Buildings 27 |

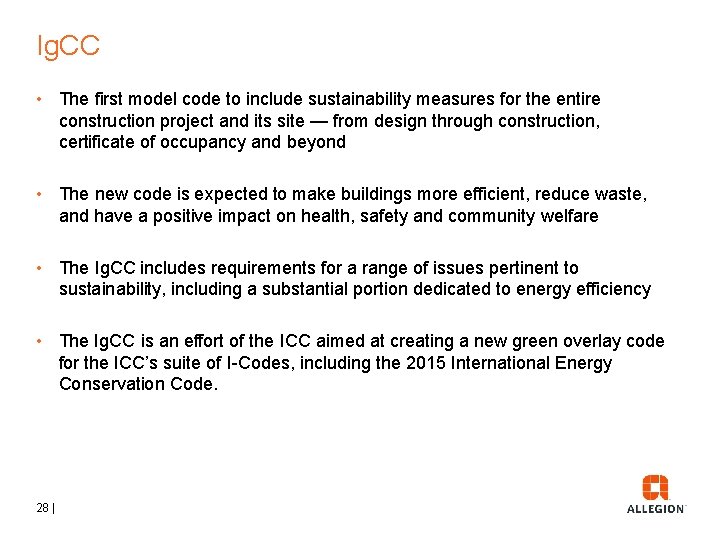

Ig. CC • The first model code to include sustainability measures for the entire construction project and its site — from design through construction, certificate of occupancy and beyond • The new code is expected to make buildings more efficient, reduce waste, and have a positive impact on health, safety and community welfare • The Ig. CC includes requirements for a range of issues pertinent to sustainability, including a substantial portion dedicated to energy efficiency • The Ig. CC is an effort of the ICC aimed at creating a new green overlay code for the ICC’s suite of I-Codes, including the 2015 International Energy Conservation Code. 28 |

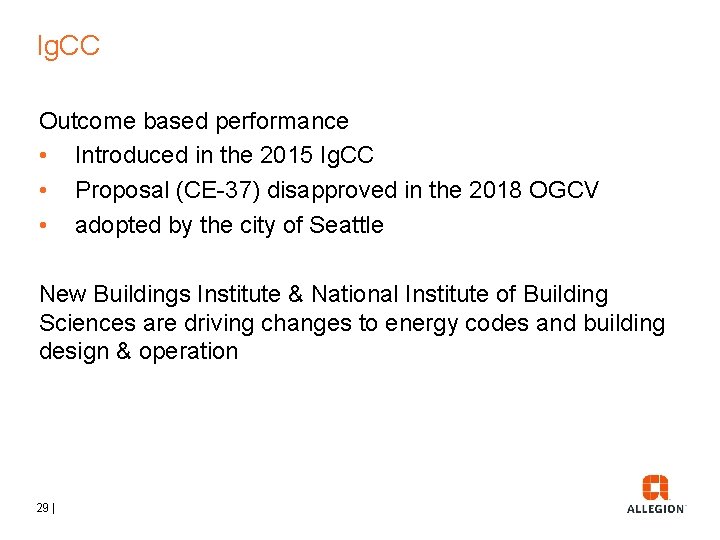

Ig. CC Outcome based performance • Introduced in the 2015 Ig. CC • Proposal (CE-37) disapproved in the 2018 OGCV • adopted by the city of Seattle New Buildings Institute & National Institute of Building Sciences are driving changes to energy codes and building design & operation 29 |
Cal. Green 30 |

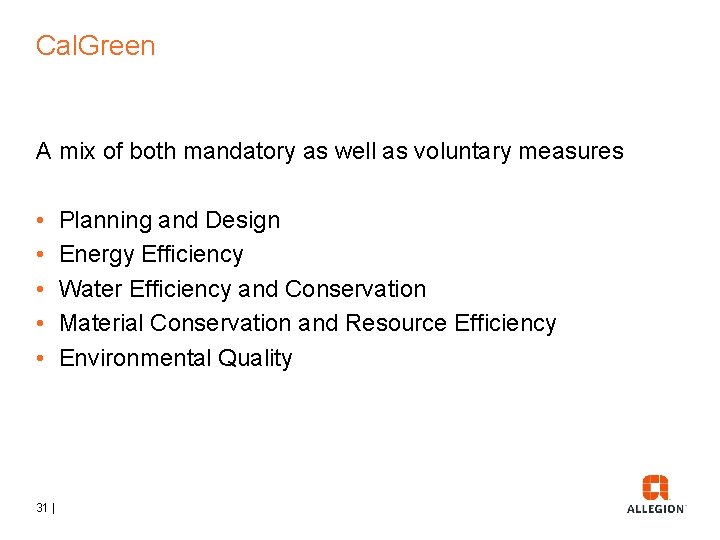

Cal. Green A mix of both mandatory as well as voluntary measures • • • 31 | Planning and Design Energy Efficiency Water Efficiency and Conservation Material Conservation and Resource Efficiency Environmental Quality

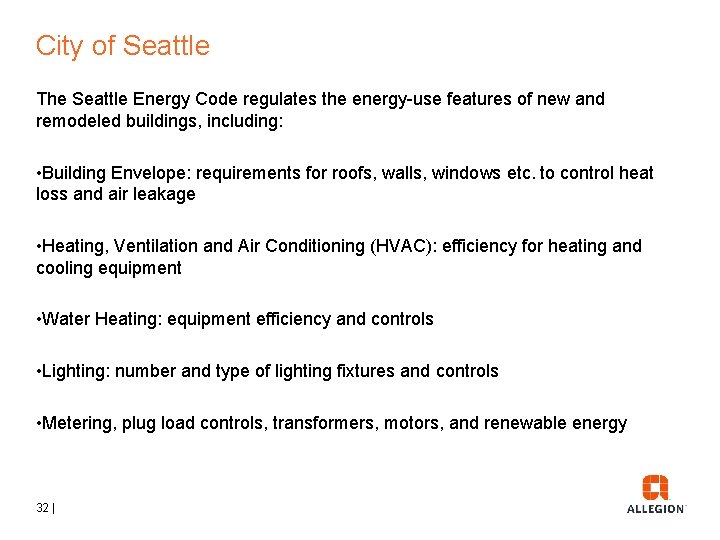

City of Seattle The Seattle Energy Code regulates the energy-use features of new and remodeled buildings, including: • Building Envelope: requirements for roofs, walls, windows etc. to control heat loss and air leakage • Heating, Ventilation and Air Conditioning (HVAC): efficiency for heating and cooling equipment • Water Heating: equipment efficiency and controls • Lighting: number and type of lighting fixtures and controls • Metering, plug load controls, transformers, motors, and renewable energy 32 |

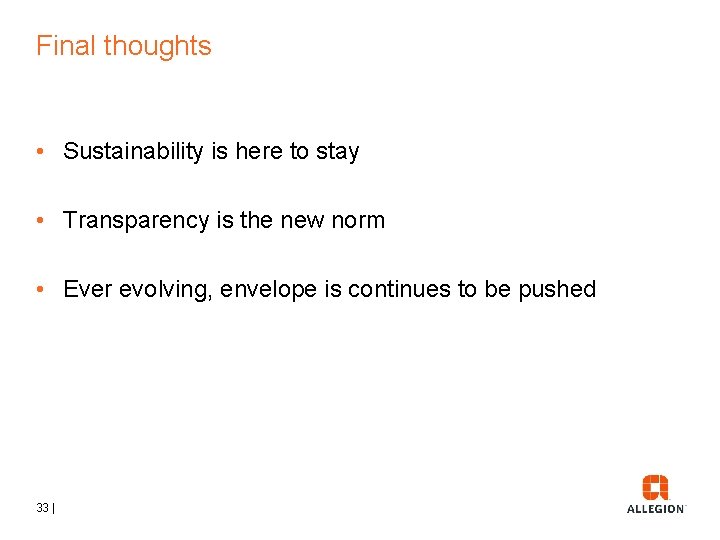

Final thoughts • Sustainability is here to stay • Transparency is the new norm • Ever evolving, envelope is continues to be pushed 33 |
Thank you 34 |
