Surveying Techniques I The USGS supplies 1 24

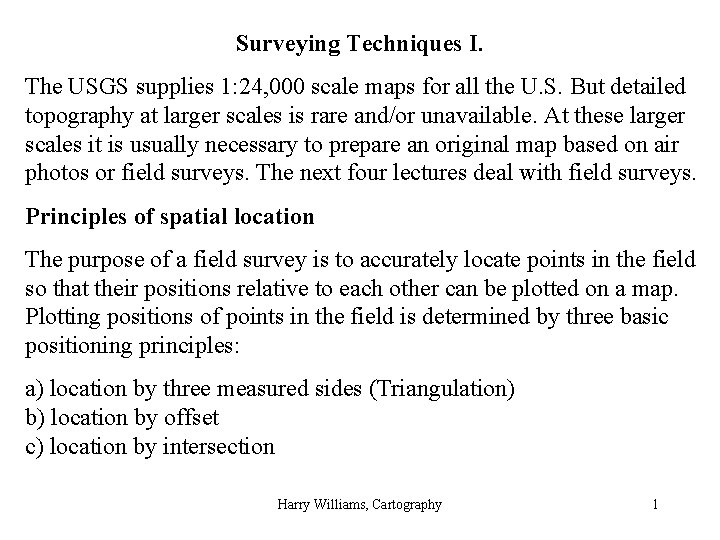

Surveying Techniques I. The USGS supplies 1: 24, 000 scale maps for all the U. S. But detailed topography at larger scales is rare and/or unavailable. At these larger scales it is usually necessary to prepare an original map based on air photos or field surveys. The next four lectures deal with field surveys. Principles of spatial location The purpose of a field survey is to accurately locate points in the field so that their positions relative to each other can be plotted on a map. Plotting positions of points in the field is determined by three basic positioning principles: a) location by three measured sides (Triangulation) b) location by offset c) location by intersection Harry Williams, Cartography 1

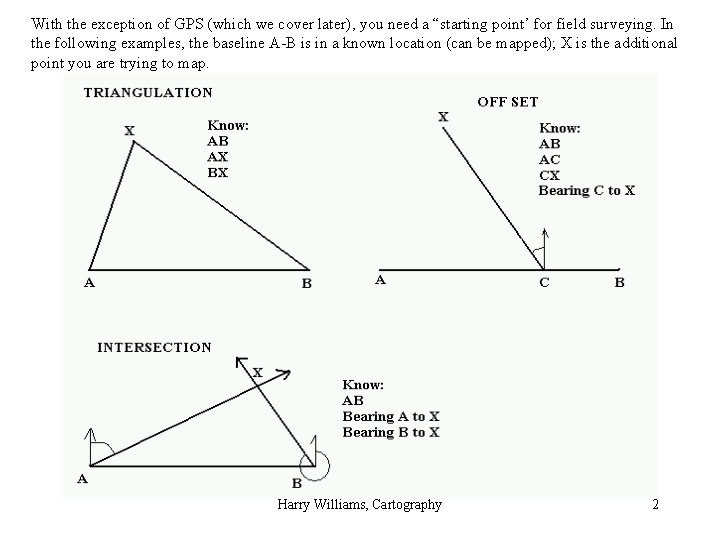

With the exception of GPS (which we cover later), you need a “starting point’ for field surveying. In the following examples, the baseline A-B is in a known location (can be mapped); X is the additional point you are trying to map. Harry Williams, Cartography 2

Triangulation is based on having three measured distances (AB the base line), AX and BX. Once the location of X is fixed it can be used to build additional triangles. X A B Location by offset is based on having a bearing (angle) and distance from a known point to an unknown point (the known point could be a measured distance along a known base line AB or it could be a bench mark, for example). Intersection is based on having two bearings from two known points to an unknown point (the two known points are usually at each end of a base line AB). Because distances are not required, this methods works wherever there is a line of sight (e. g. across lakes, rivers, canyons etc. ). Harry Williams, Cartography 3

Planimetric Position. All of these survey techniques are designed to locate objects in their correct planimetric position (horizontal distances between all objects on map are correct). This is not the same as ground distance, which is affected by slope. Maps are planimetric. A Map distance B A Ground distance B Harry Williams, Cartography 4

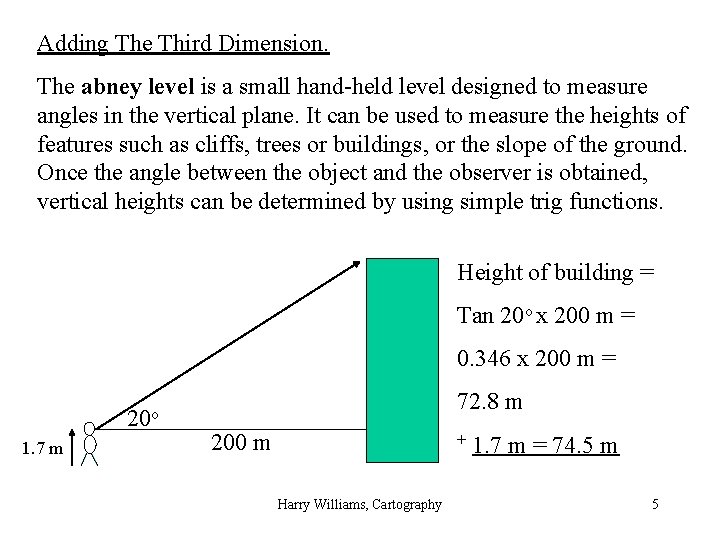

Adding The Third Dimension. The abney level is a small hand-held level designed to measure angles in the vertical plane. It can be used to measure the heights of features such as cliffs, trees or buildings, or the slope of the ground. Once the angle between the object and the observer is obtained, vertical heights can be determined by using simple trig functions. Height of building = Tan 20 o x 200 m = 0. 346 x 200 m = 20 o 1. 7 m 72. 8 m 200 m + 1. 7 m = 74. 5 m Harry Williams, Cartography 5

The Surveyor’s Level (or Transit). This is basically a telescope mounted on a tripod. The telescope can be leveled, so that the central cross hair is aligned to a level plane and can be used to calculate height. Additional upper and lower cross hairs are used to calculate distance. The telescope is mounted on a swivel allowing rotation in a horizontal plane. View level upper crosshair Horizontal plane central crosshair lower crosshair Harry Williams, Cartography 6

View through the level: Graduated staff 8 7. 8 feet – used for distance calculation 7 6. 8 feet – used for height calculation 6 5. 8 feet – used for distance calculation 5 Distance calculation varies from level to level; for our level, distance = upper crosshair – lower crosshair x 100 = 7. 8 – 5. 8 feet = 2 feet x 100 = 200 feet. Harry Williams, Cartography 7

Calculating height: The level gives relative heights – these can be tied to a nearby bench mark or spot height to give absolute heights. Example, point C is a bench mark at 200 m elevation. The height difference between point B and point C is the staff reading at point C minus the staff reading at point B: 2. 882 – 0. 142 = 2. 74 m. Therefore, the height of point B is 200 + 2. 74 m = 202. 74 m. Harry Williams, Cartography 8

Total Station Surveying: A total station is a survey instrument that can measure horizontal and vertical angles and distances. Measurements recorded by the total station will produce an x, y, and z value. The x-value represents the easting, the y-value represents the northing, and the z-value represents the elevation. Harry Williams, Cartography 9

NORTH Z (elevation) Y reading (northing) X reading (easting) Harry Williams, Cartography EAST 10

reflector The total station works by firing an infrared laser beam at a reflector mounted on a stadia rod. The distance between the total station and the reflector is calculated based on the time taken for the beam to reflect back to the total station. Total stations were originally developed for the construction industry – e. g. surveying new roads, laying out building foundations, utility lines etc. . Harry Williams, Cartography 11

Example based on NORTH UTM: TOTAL STATION UTM = 3676595 m N 672156 m E ANGLE Y=150 m; X=70 m CE AN 672156 +70 672226 m E The total station also calculates the elevation of the unknown point. Y T DIS UNKNOWN POINT UTM=3676595 -150 3676445 m N X Harry Williams, Cartography 12

Most total stations have the ability to record survey data as a digital file, which can be imported to a PC-based GIS program. MAP Harry Williams, Cartography 13

Why use a total station? Accuracy: total stations are very accurate (can be around 1 cm horizontal and vertical accuracy over distances up to 2 miles. GPS can be fairly accurate for horizontal positioning (e. g. around 1 m), but are less accurate for vertical position (e. g. 5 x less accurate than for horizontal position) (Note: very expensive GPS systems can obtain 1 cm horizontal accuracy and, presumably, 5 cm vertical accuracy). Harry Williams, Cartography 14

When do you use a total station? For mapping small areas (the range of a total station is around 2 miles or so – assuming you have good lines of sight). A good example would be mapping an archaeological dig site. There are many other applications in earth science that require great accuracy e. g. monitoring cliff erosion, glacier movement, changes in beach profiles, sand dune movement, river bank erosion. . and so on. Harry Williams, Cartography 15
