Surveying Basics Surveying Terms Bench mark BM relatively

Surveying Basics

Surveying Terms Bench mark (BM) - relatively permanent point of known elevation BS = 6. 32 ft HI = 106. 32 ft FS = 3. 10 ft Point B Point A Elevation = 103. 22 ft Starting point (elevation 100. 00 ft)

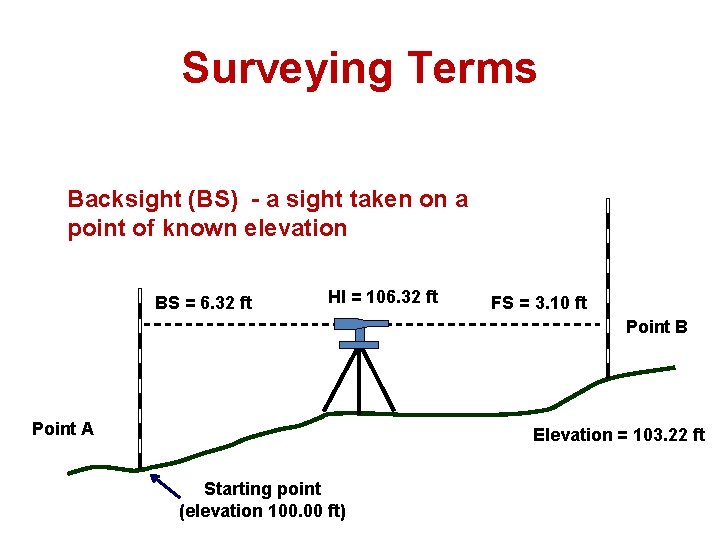

Surveying Terms Backsight (BS) - a sight taken on a point of known elevation BS = 6. 32 ft HI = 106. 32 ft FS = 3. 10 ft Point B Point A Elevation = 103. 22 ft Starting point (elevation 100. 00 ft)

Height of Instrument (HI) - the elevation of the line of sight of the telescope or laser transmitter BS = 6. 32 ft HI = 106. 32 ft FS = 3. 10 ft Point B Point A Elevation = 103. 22 ft Starting point (elevation 100. 00 ft)

Introduction to GNSS

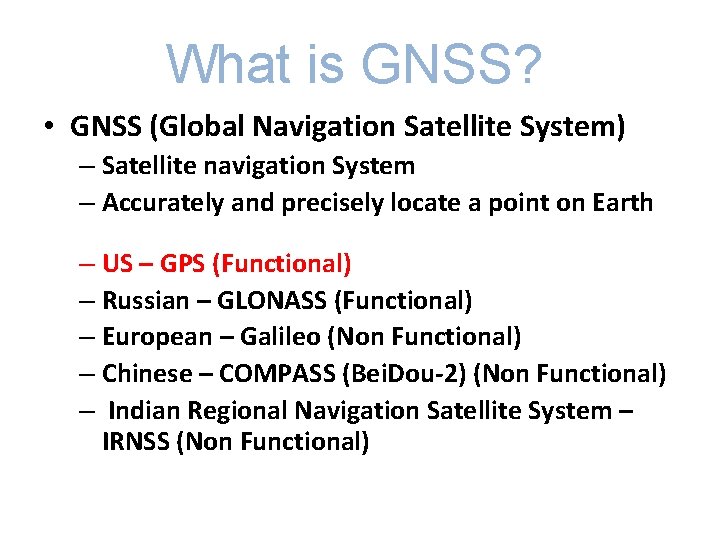

What is GNSS? • GNSS (Global Navigation Satellite System) – Satellite navigation System – Accurately and precisely locate a point on Earth – US – GPS (Functional) – Russian – GLONASS (Functional) – European – Galileo (Non Functional) – Chinese – COMPASS (Bei. Dou-2) (Non Functional) – Indian Regional Navigation Satellite System – IRNSS (Non Functional)

How does GPS Work? Each GPS satellite transmits data that indicates its location and the current time Satellites can be used if they are in the sight of a receiver as long as they are 25⁰ or greater above the horizon GPS receivers require unobstructed view of the sky and they only receive data, don’t transmit it

How does it Find Location? Trilateration: The process of determining absolute or relative locations of points by measurement of distances, using the geometry of circles or spheres • Can be accomplished using information from 3 separate satellites

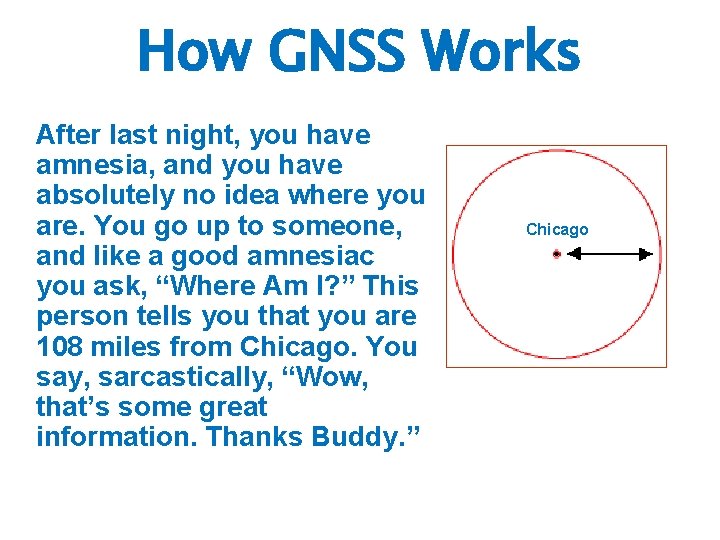

How GNSS Works After last night, you have amnesia, and you have absolutely no idea where you are. You go up to someone, and like a good amnesiac you ask, “Where Am I? ” This person tells you that you are 108 miles from Chicago. You say, sarcastically, “Wow, that’s some great information. Thanks Buddy. ” Chicago

We’re Getting Closer You still have absolutely no idea where you are, so once again you go up to someone and ask, “Where Am I? ” This person tells you that you’re 170 miles from Cedar Rapids. You just scratch your head, but then you start to remember what you learned today, and, with the US map in your pocket to guide you, you proceed. Chicago Cedar Rapids

Now We Know! You see a another smiling face and ask “where am I” one more time. This time you get the reply “you are 110 miles from Oshkosh. The light pops on in your brain. It’s all clear now. You draw three circles extending in the radii of 108 miles from Chicago, 170 from Cedar Rapids, and 110 miles from Oshkosh. The circles intersect in Janesville! Aren’t you glad that you were here today? Chicago Janesville Oshkosh Cedar Rapids

2 D Trilateration Procedure 1. You know the location of 3 satellites 2. Given the distance you are from those 3 satellites 3. Draw a circle, center is the location of the satellite, radius is distance from satellite 4. Repeat for all satellites 5. Your location is where the 3 circles intersect

Trilateration (continued) • In 3 -D you can use 4 satellites (using spheres opposed to circles) to locate a precise location and include elevation • The more satellites that are in range the more accurate GNSS can be, mathematical models are used by GNSS units to determine best accuracy.

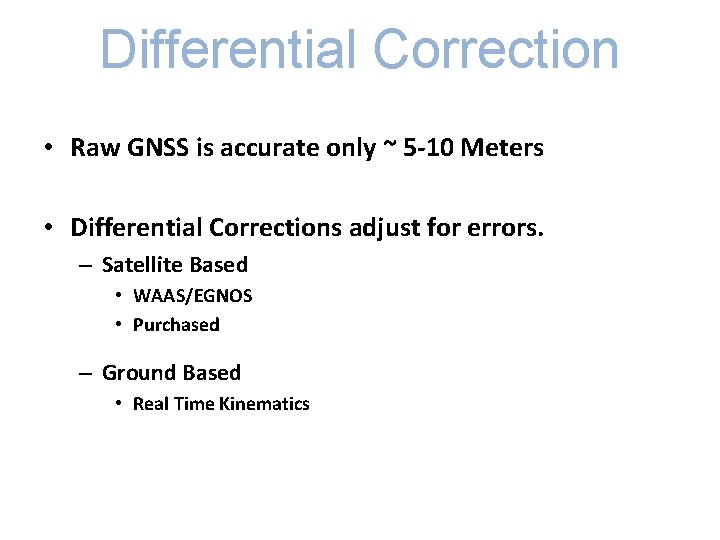

Differential Correction • Raw GNSS is accurate only ~ 5 -10 Meters • Differential Corrections adjust for errors. – Satellite Based • WAAS/EGNOS • Purchased – Ground Based • Real Time Kinematics

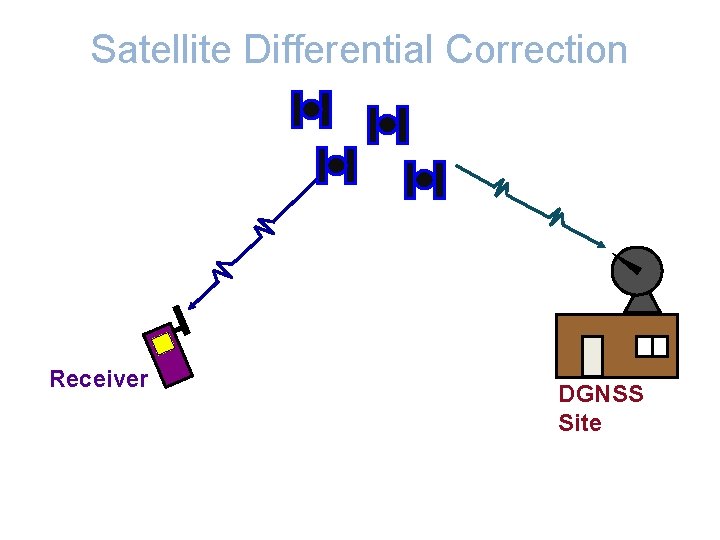

Satellite Differential Correction Receiver DGNSS Site

RTK Differential Correction Receiver Radio/Cell DGNSS Site

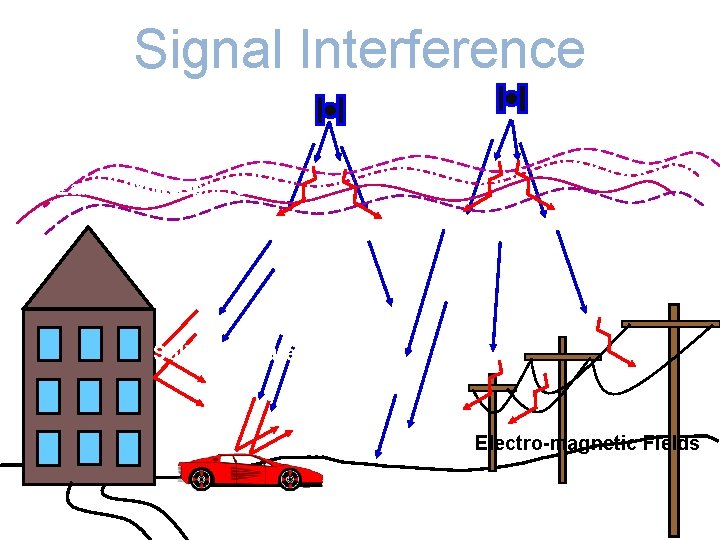

Signal Interference Earth’s Atmosphere Solid Structures Metal Electro-magnetic Fields

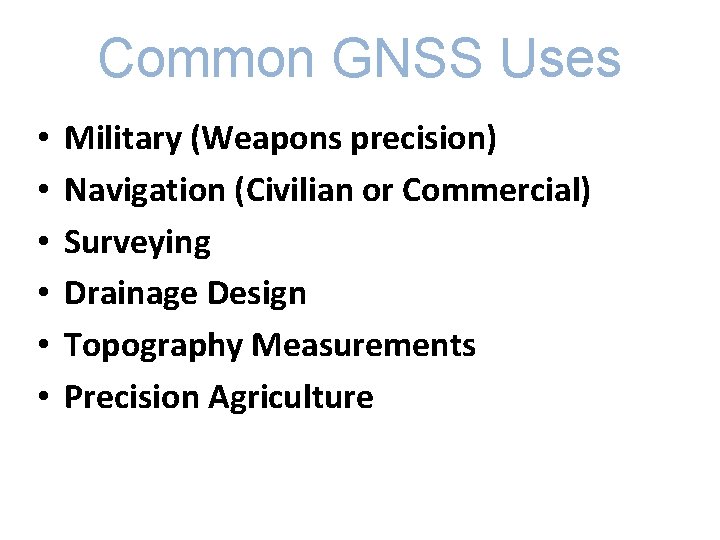

Common GNSS Uses • • • Military (Weapons precision) Navigation (Civilian or Commercial) Surveying Drainage Design Topography Measurements Precision Agriculture

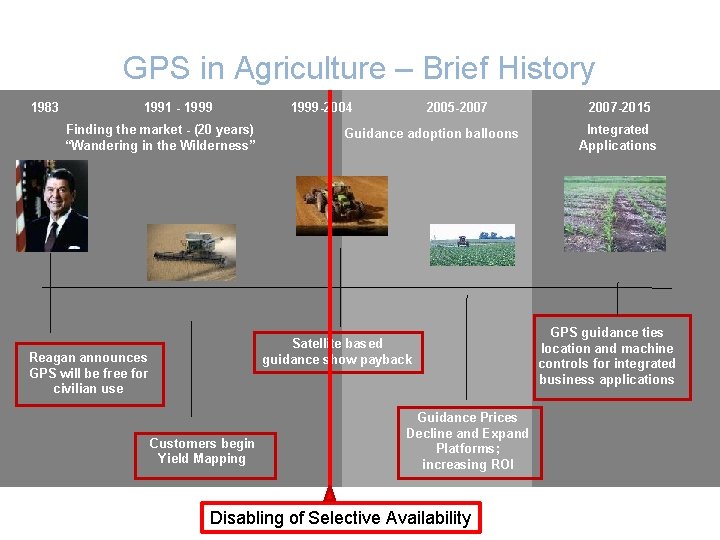

GPS in Agriculture – Brief History 1983 1991 - 1999 Finding the market - (20 years) “Wandering in the Wilderness” 1999 -2004 2005 -2007 Guidance adoption balloons Satellite based guidance show payback Reagan announces GPS will be free for civilian use Customers begin Yield Mapping Guidance Prices Decline and Expand Platforms; increasing ROI Disabling of Selective Availability 2007 -2015 Integrated Applications GPS guidance ties location and machine controls for integrated business applications

Other GNSS Facts • GNSS time is theoretically accurate to about 14 nanoseconds • GNSS systems have settled disputes between land owners • GNSS data has revealed that Mt. Everest is getting taller!

Wisconsin Li. DAR Data

Available Data

Available Data

Illinois Li. DAR Data

Available Data

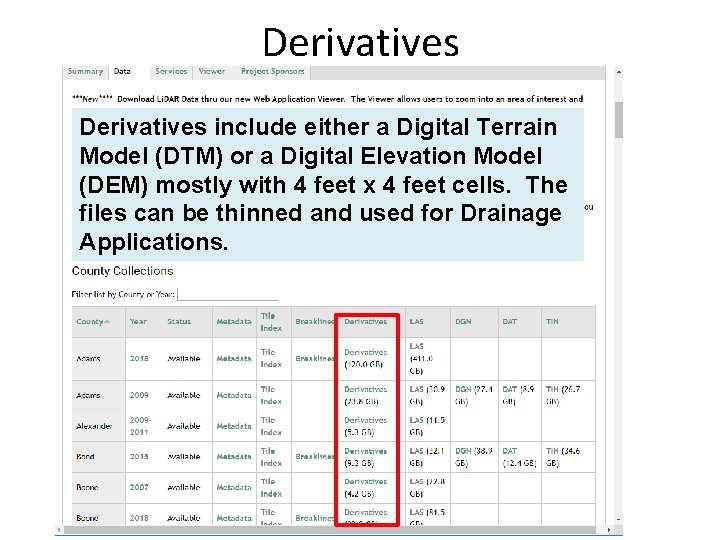

Derivatives include either a Digital Terrain Model (DTM) or a Digital Elevation Model (DEM) mostly with 4 feet x 4 feet cells. The files can be thinned and used for Drainage Applications.

Downloads It is possible to download files for an entire county (huge files), or individual tiles.

Laser (LAS) Files LAS files (small files) can be downloaded for small areas. However, these files contain all the laser returns (elevation, trees, buildings, etc) and require further processing for use in Drainage Applications.

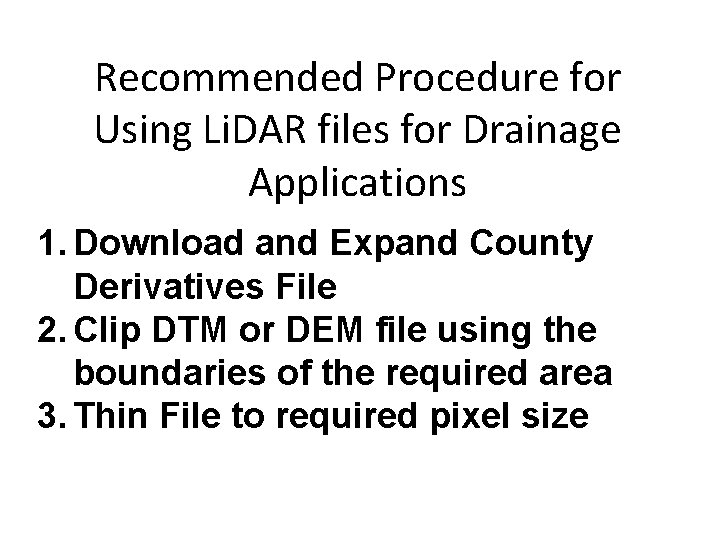

Recommended Procedure for Using Li. DAR files for Drainage Applications 1. Download and Expand County Derivatives File 2. Clip DTM or DEM file using the boundaries of the required area 3. Thin File to required pixel size

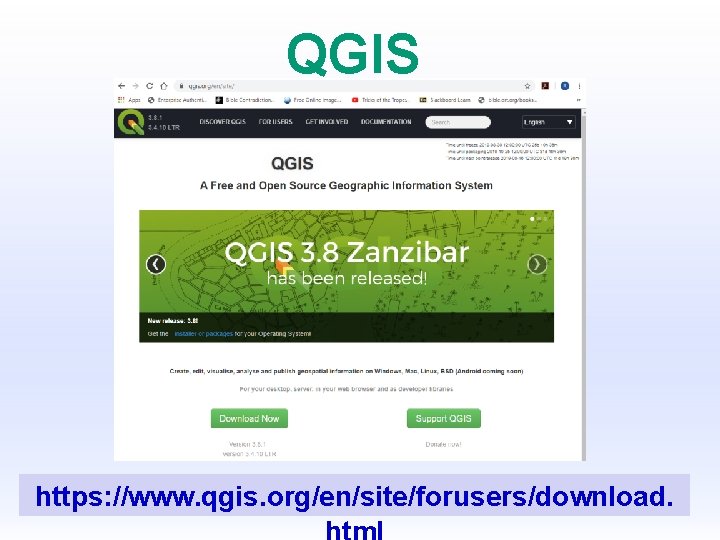

QGIS https: //www. qgis. org/en/site/forusers/download.

QGIS

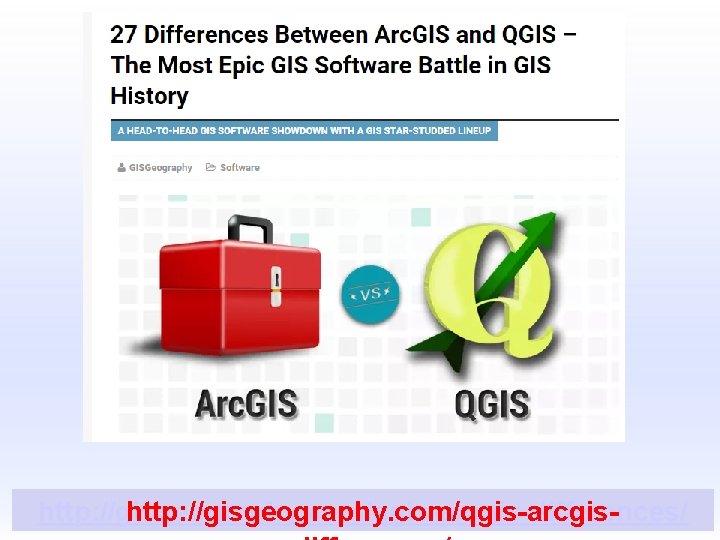

QGIS http: //gisgeography. com/qgis-arcgis-differences/ http: //gisgeography. com/qgis-arcgis-

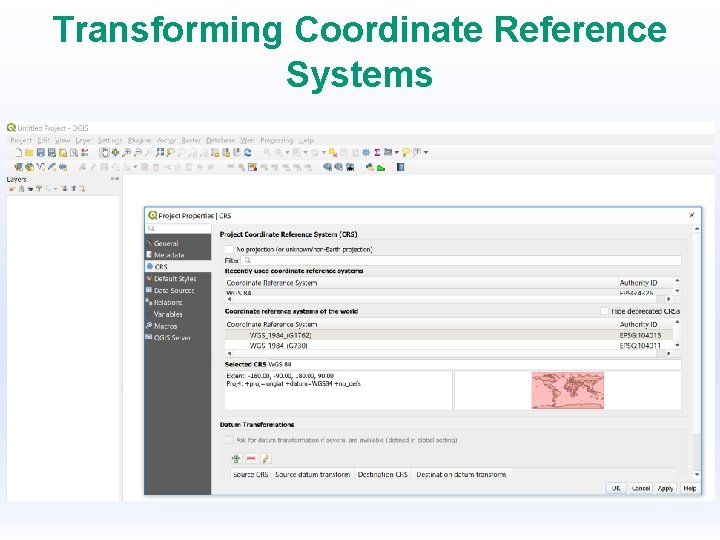

Transforming Coordinate Reference Systems
