Survey of Race Condition Analysis Techniques Team Extremely Awesome Nels Beckman Project Presentation 17 -654: Analysis of Software Artifacts Spring 2006 1

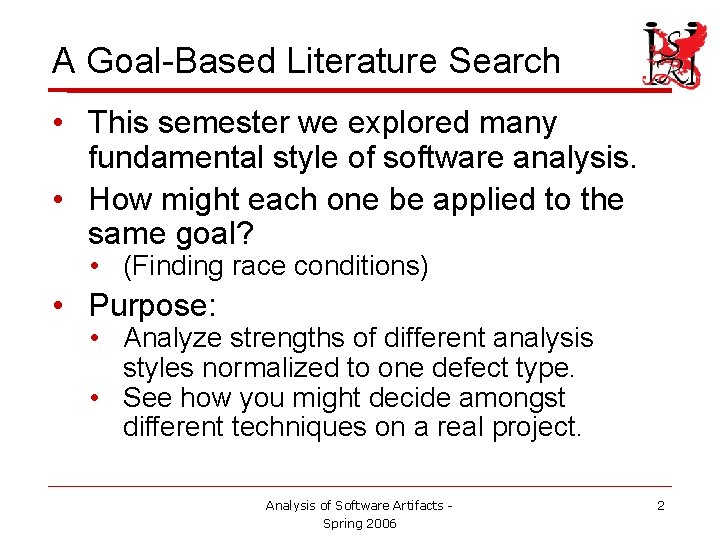

A Goal-Based Literature Search • This semester we explored many fundamental style of software analysis. • How might each one be applied to the same goal? • (Finding race conditions) • Purpose: • Analyze strengths of different analysis styles normalized to one defect type. • See how you might decide amongst different techniques on a real project. Analysis of Software Artifacts Spring 2006 2
What is a Race Condition? • One Definition: • “A race occurs when two threads can access (read or write) a data variable simultaneously and at least one of the two accesses is a write. ” (Henzinger 04) • Note: • Locks not specifically mentioned. Analysis of Software Artifacts Spring 2006 3
Why Race Conditions? • Race conditions are insidious bugs: • • Can corrupt memory. Often not detected until later in execution. Appearance is non-deterministic. Difficult to reason about the interaction of multiple threads. • My intuition? • It should be relatively easy to ensure that I am at least locking properly. Analysis of Software Artifacts Spring 2006 4
But First: Locking Discipline • Mutual Exclusion Locking Discipline • A programing discipline that will ensure an absence of race conditions. • Requires a lock be held on every access to a shared variable. • Not the only way to achieve freedom from races! • See example, next slide. • Some tools check MLD, not race safety. Analysis of Software Artifacts Spring 2006 5

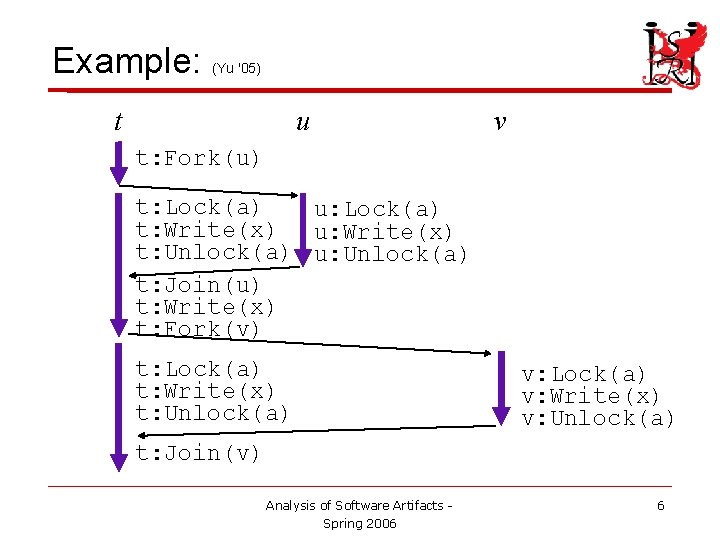

Example: (Yu '05) u t v t: Fork(u) t: Lock(a) u: Lock(a) t: Write(x) u: Write(x) t: Unlock(a) u: Unlock(a) t: Join(u) t: Write(x) t: Fork(v) t: Lock(a) t: Write(x) t: Unlock(a) v: Lock(a) v: Write(x) v: Unlock(a) t: Join(v) Analysis of Software Artifacts Spring 2006 6
Four Broad Analysis Types • Type-Based Race Prevention • Languages that cannot express “racy” programs. • Dynamic Race Detectors • Using instrumented code to detect races. • Model-Checkers • Searching for reachable race states. • Flow-Based Race Detectors • Of the style seen in this course. Analysis of Software Artifacts Spring 2006 7
Dimensions of Comparison • Ease of Use • Annotations • • Expression • • What is the associated burden with annotating the code? Does tools restrict my ability to say what I want? Scalability • Could this tool legitamately claim to work on a large code base? • Soundness • What level of assurance is provided? • Precision • Can I have confidence in the results? Analysis of Software Artifacts Spring 2006 8
Type-Based Race Prevention • Goal: • To prevent race conditions using the language itself. • Method: • Encode locking discipline into language. • Relate shared state and the locks that protect them. • Use typing annotations. • Recall ownership types; this will seem familiar. Analysis of Software Artifacts Spring 2006 9
Example: Race-Free Cyclone • To give a better feel, let's look at Cyclone. • Other type-based systems are very similar. Analysis of Software Artifacts Spring 2006 10
Example: Race-Free Cyclone • Things we want to express: • “This lock protects this variable. ” int*loc p 1 = new 42; p 2 = new 43; Analysis of Software Artifacts Spring 2006 11
Example: Race-Free Cyclone • Things we want to express: • “This lock protects this variable. ” int*loc p 1 = new 42; p 2 = new 43; Declares a variable of type “an integer protected by the lock named l. ” Analysis of Software Artifacts Spring 2006 12
Example: Race-Free Cyclone • Things we want to express: • “This lock protects this variable. ” int*loc p 1 = new 42; p 2 = new 43; (loc is a special lock name. It means this variable is never shared. ) Analysis of Software Artifacts Spring 2006 13
Example: Race-Free Cyclone • Things we want to express: • “This is a new lock. ” let lk<l> = newlock(); Analysis of Software Artifacts Spring 2006 14
Example: Race-Free Cyclone • Things we want to express: • “This is a new lock. ” let lk<l> = newlock(); Variable name Analysis of Software Artifacts Spring 2006 15
Example: Race-Free Cyclone • Things we want to express: • “This is a new lock. ” let lk<l> = newlock(); Lock type name Analysis of Software Artifacts Spring 2006 16
Example: Race-Free Cyclone • Things we want to express: • “This function should only be called when in posession of this lock. ” void inc<l: LU>(int*l p; {l}) { // blah } Analysis of Software Artifacts Spring 2006 17
Example: Race-Free Cyclone • Things we want to express: • “This function should only be called when in posession of this lock. ” void inc<l: LU>(int*l p; {l}) { // blah } This can be ignored for now. . . Analysis of Software Artifacts Spring 2006 18
Example: Race-Free Cyclone • Things we want to express: • “This function should only be called when in posession of this lock. ” void inc<l: LU>(int*l p; {l}) { // blah } When passed an int whose protection lock is l. . . Analysis of Software Artifacts Spring 2006 19
Example: Race-Free Cyclone • Things we want to express: • “This function should only be called when in posession of this lock. ” void inc<l: LU>(int*l p; {l}) { // blah } The caller must already possess lock l. . . Analysis of Software Artifacts Spring 2006 20
Example: Race-Free Cyclone void inc<l: LU>(int*l p; {l}) { *p = *p + 1; } void inc 2<l: LU>(lock_t<l> plk, int*l p; {}) { sync(plk) { inc(p); } } void f(; {}) { let lk<l> = newlock(); int*l p 1 = new 42; int*loc p 2 = new 43; spawn(g); inc 2(lk, p 1); inc 2(nonlock, p 2); } Analysis of Software Artifacts Spring 2006 21
Example: Race-Free Cyclone void inc<l: LU>(int*l p; {l}) { *p = *p + 1; } void inc 2<l: LU>(lock_t<l> plk, int*l p; {}) { sync(plk) { inc(p); } } It would be a type error void f(; {}) { to call inc without let lk<l> = newlock(); possessing the lock for the first argument. int*l p 1 = new 42; int*loc p 2 = new 43; spawn(g); inc 2(lk, p 1); inc 2(nonlock, p 2); } Analysis of Software Artifacts Spring 2006 22
Example: Race-Free Cyclone void inc<l: LU>(int*l p; {}) { *p = *p + 1; } void inc 2<l: LU>(lock_t<l> plk, int*l p; {}) { sync(plk) { inc(p); } } Imagine if the effects void f(; {}) { clause were empty. . . let lk<l> = newlock(); int*l p 1 = new 42; int*loc p 2 = new 43; spawn(g); inc 2(lk, p 1); inc 2(nonlock, p 2); } Analysis of Software Artifacts Spring 2006 23
Example: Race-Free Cyclone void inc<l: LU>(int*l p; {}) { *p = *p + 1; } void inc 2<l: LU>(lock_t<l> plk, int*l p; {}) { sync(plk) { inc(p); } } A dereference would also void f(; {}) { signal a compiler error, let lk<l> = newlock(); since it is unprotected. int*l p 1 = new 42; int*loc p 2 = new 43; spawn(g); inc 2(lk, p 1); inc 2(nonlock, p 2); } Analysis of Software Artifacts Spring 2006 24

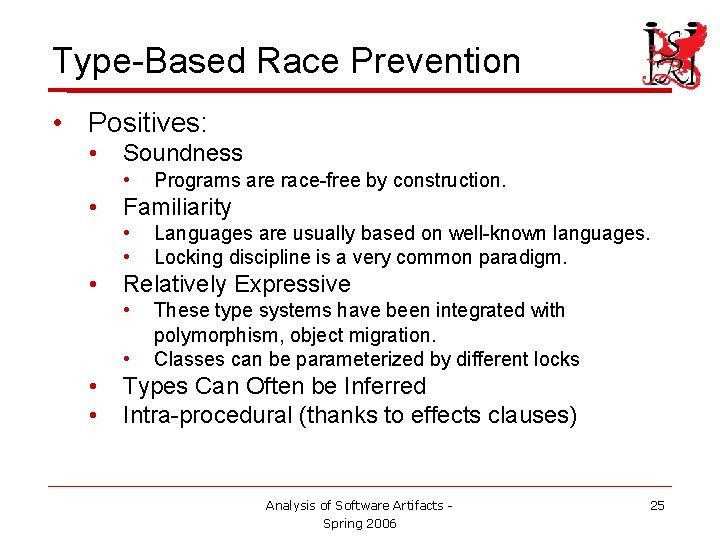

Type-Based Race Prevention • Positives: • Soundness • • Familiarity • • • Languages are usually based on well-known languages. Locking discipline is a very common paradigm. Relatively Expressive • • Programs are race-free by construction. These type systems have been integrated with polymorphism, object migration. Classes can be parameterized by different locks Types Can Often be Inferred Intra-procedural (thanks to effects clauses) Analysis of Software Artifacts Spring 2006 25
Type-Based Race Prevention • Negatives: • Restrictive: • Not all race-free programs are legal. • e. g. Object initialization, other forms of syncrhonization (fork/join, etc. ). • Annotation Burden: • Lots of annotations to write, even for non-shared data. • Especially to make more complicate features, like polymorphism, work. • Another Language Analysis of Software Artifacts Spring 2006 26
Type-Based Race Prevention • Open Research Questions: • Reduce Restrictions as Much as Possible • • Initialization phase Subclassing without run-time checks in OO Encoding of thread starts and stops Remove annotations for non-threaded code Analysis of Software Artifacts Spring 2006 27
Type-Based Race Prevention • Open Research Questions: • Personally, sceptical that inference can improve a whole lot. • Programmer intent still must be specified somehow in locking discipline. • But escape analysis could infer thread-locals. Analysis of Software Artifacts Spring 2006 28

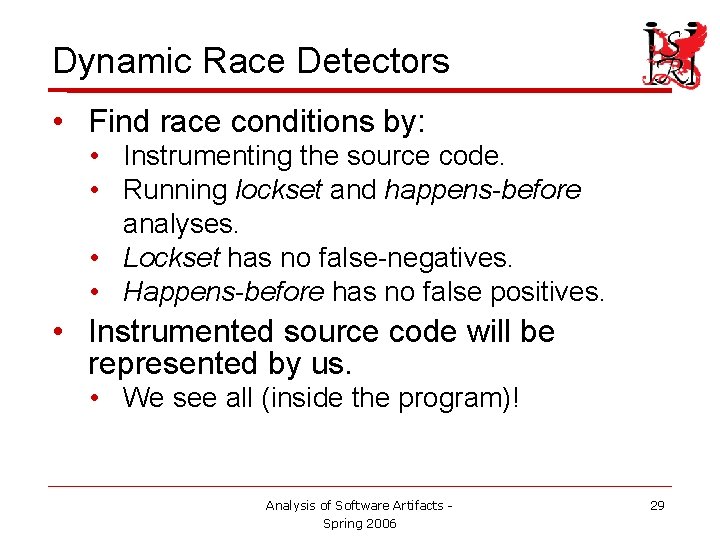

Dynamic Race Detectors • Find race conditions by: • Instrumenting the source code. • Running lockset and happens-before analyses. • Lockset has no false-negatives. • Happens-before has no false positives. • Instrumented source code will be represented by us. • We see all (inside the program)! Analysis of Software Artifacts Spring 2006 29
Lockset Analysis • Imagine we’re watching the program execute…. . . marbury = 5; madison = 5; make. Stuff. Happen(); . . . Analysis of Software Artifacts Spring 2006 30

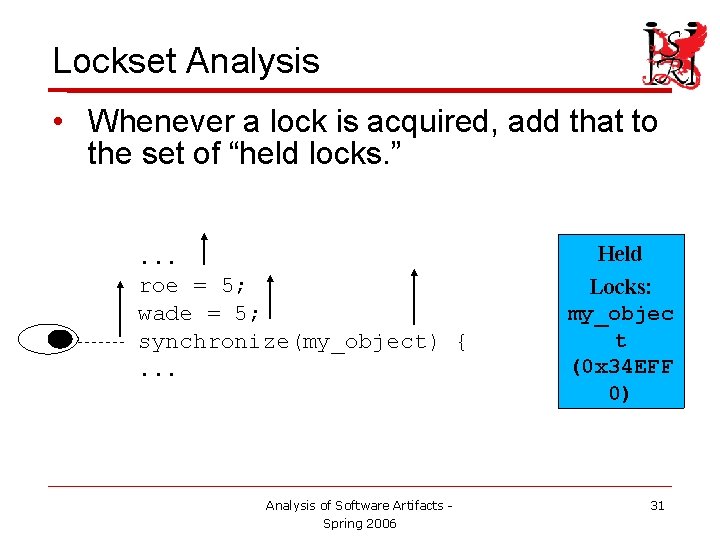

Lockset Analysis • Whenever a lock is acquired, add that to the set of “held locks. ”. . . roe = 5; wade = 5; synchronize(my_object) {. . . Analysis of Software Artifacts Spring 2006 Held Locks: my_objec t (0 x 34 EFF 0) 31
Lockset Analysis • Likewise, remove locks when they are released. . brown = 43; board = “yes”; } // end synch. . . Analysis of Software Artifacts Spring 2006 Held Locks: 32
Lockset Analysis • The first time a variable is accessed, set its “candidate set” to be the set of held locks. . rob_frost = false; . . . Candidate Set: rob_fros t (0 x. FFFF 0 1) (0 x. FFFF 0 8) Analysis of Software Artifacts Spring 2006 Held Locks: lock 1 (0 x. FFFF 0 1) lock 2 (0 x. FFFF 08) 33
Lockset Analysis • The next time that variable is accessed, take the intersection of the candidate set and the set of currently held locks… . . . if(!rob_frost) {. . . Candidate Set: rob_fros t (0 x. FFFF 0 1) (0 x. FFFF 0 8) Analysis of Software Artifacts Spring 2006 ∩ Held Locks: lock 1 (0 x. ABFF 4 4) 34
Lockset Analysis • If the intersection is empty, flag a potential race condition! . . . if(!rob_frost) {. . . Candidate Set: rob_fros t (0 x. FFFF 0 1) (0 x. FFFF 0 8) Analysis of Software Artifacts Spring 2006 ∩ Held Locks: lock 1 (0 x. ABFF 4 4) 35

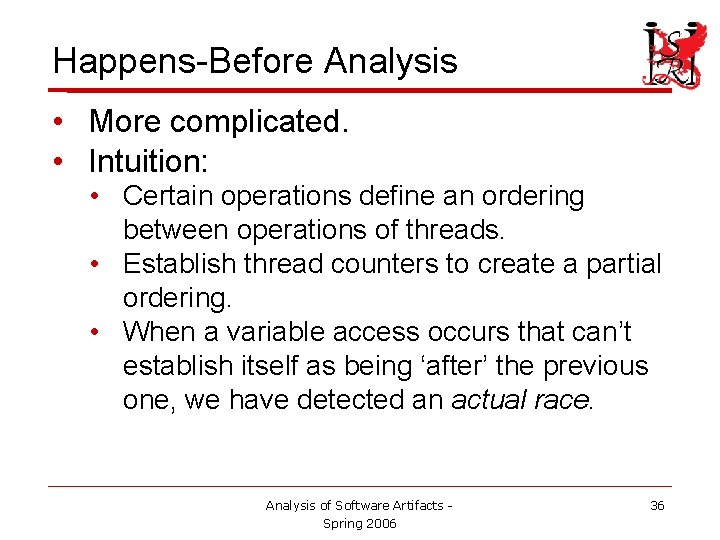

Happens-Before Analysis • More complicated. • Intuition: • Certain operations define an ordering between operations of threads. • Establish thread counters to create a partial ordering. • When a variable access occurs that can’t establish itself as being ‘after’ the previous one, we have detected an actual race. Analysis of Software Artifacts Spring 2006 36

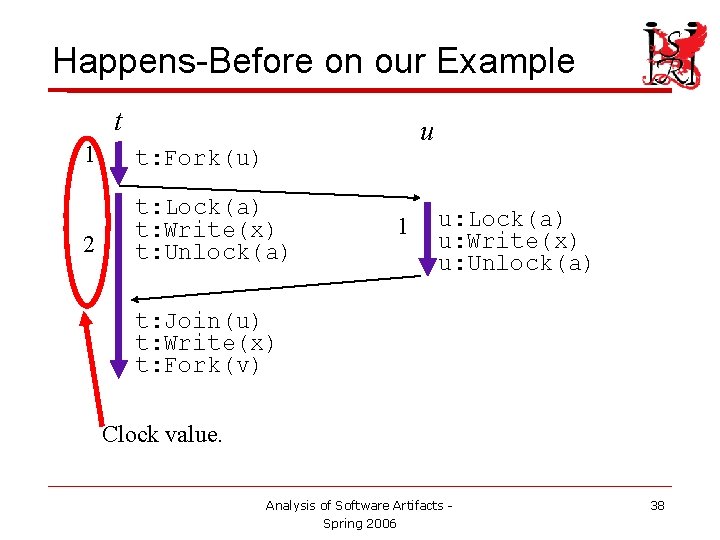

Happens-Before on our Example t u 1 t: Fork(u) 2 t: Lock(a) t: Write(x) t: Unlock(a) 1 u: Lock(a) u: Write(x) u: Unlock(a) t: Join(u) t: Write(x) t: Fork(v) Analysis of Software Artifacts Spring 2006 37
Happens-Before on our Example t u 1 t: Fork(u) 2 t: Lock(a) t: Write(x) t: Unlock(a) 1 u: Lock(a) u: Write(x) u: Unlock(a) t: Join(u) t: Write(x) t: Fork(v) Clock value. Analysis of Software Artifacts Spring 2006 38
Happens-Before on our Example t u 1 t: Fork(u) 2 t: Lock(a) t: Write(x) t: Unlock(a) 1 u: Lock(a) u: Write(x) u: Unlock(a) t: Join(u) t: Write(x) t: Fork(v) x: u-1 t-2 Each variable stores the thread clock value for the most recent access of each thread. Analysis of Software Artifacts Spring 2006 39
Happens-Before on our Example t u 1 t: Fork(u) 2 t: Lock(a) t: Write(x) t: Unlock(a) t: Join(u) t: Write(x) t: Fork(v) 1 u: Lock(a) u: Write(x) u: Unlock(a) t: self-2 u-1 x: u-1 t-2 Also, threads learn about and store the clock values of other threads through synchronization activities. Analysis of Software Artifacts Spring 2006 40
Happens-Before on our Example t u 1 t: Fork(u) 2 t: Lock(a) t: Write(x) t: Unlock(a) t: Join(u) t: Write(x) t: Fork(v) 1 … 32 t: self-2 u-32 x: u-32 t-2 If u were to go off, incrementing its count and accessing variables, t would find out after the join. Analysis of Software Artifacts Spring 2006 41

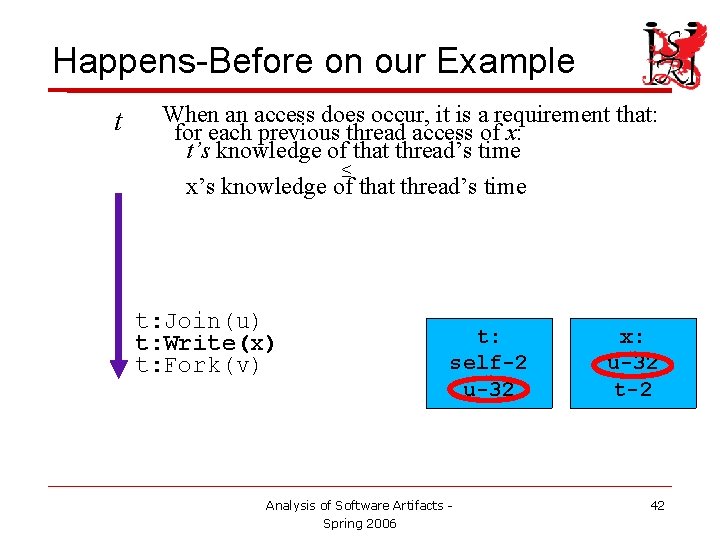

Happens-Before on our Example t When an access does occur, it is a requirement that: for each previous thread access of x: t’s knowledge of that thread’s time ≤ x’s knowledge of that thread’s time t: Join(u) t: Write(x) t: Fork(v) t: self-2 u-32 Analysis of Software Artifacts Spring 2006 x: u-32 t-2 42

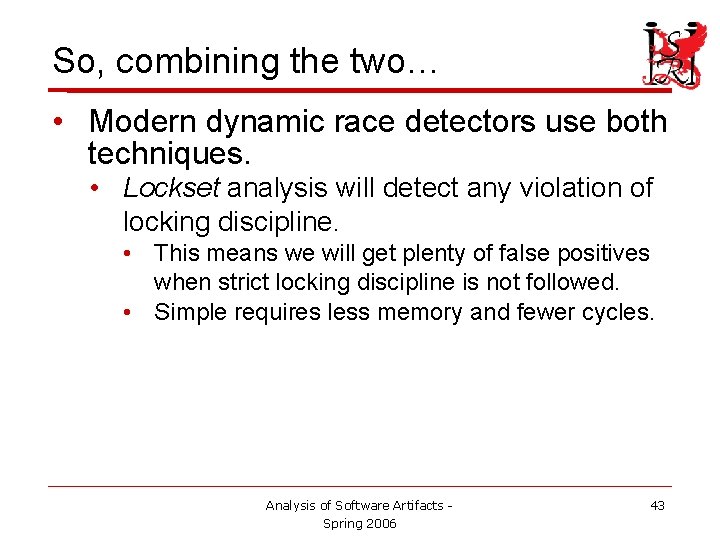

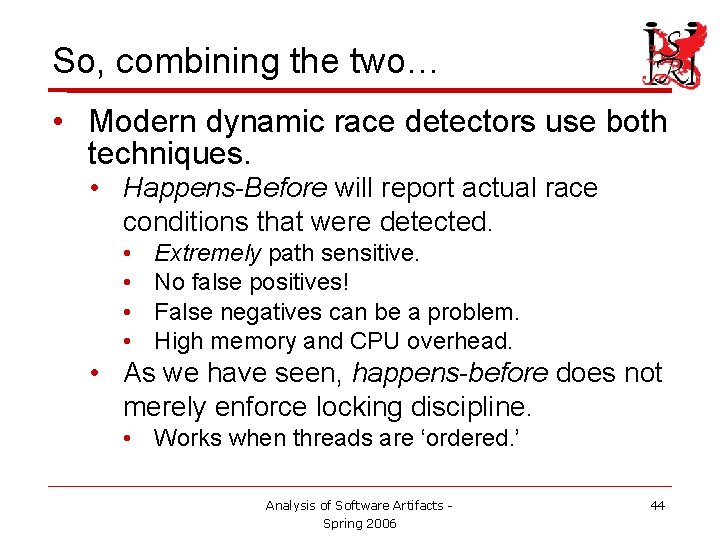

So, combining the two… • Modern dynamic race detectors use both techniques. • Lockset analysis will detect any violation of locking discipline. • This means we will get plenty of false positives when strict locking discipline is not followed. • Simple requires less memory and fewer cycles. Analysis of Software Artifacts Spring 2006 43
So, combining the two… • Modern dynamic race detectors use both techniques. • Happens-Before will report actual race conditions that were detected. • • Extremely path sensitive. No false positives! False negatives can be a problem. High memory and CPU overhead. • As we have seen, happens-before does not merely enforce locking discipline. • Works when threads are ‘ordered. ’ Analysis of Software Artifacts Spring 2006 44
So, combining the two… • Performance-wise: • Use lockset, then switch to happens-before for variables where a race is detected. • Of course this is dynamic! No guarantee or reoccurrence! • Similarly, modify detection granularity at runtime. Analysis of Software Artifacts Spring 2006 45
Future Research • Use static tools to limit search space • We can soundly approximate every location where race might occur. • Performance improvements • Could be used for in-field monitoring. • Improve chances of HB hitting? Analysis of Software Artifacts Spring 2006 46

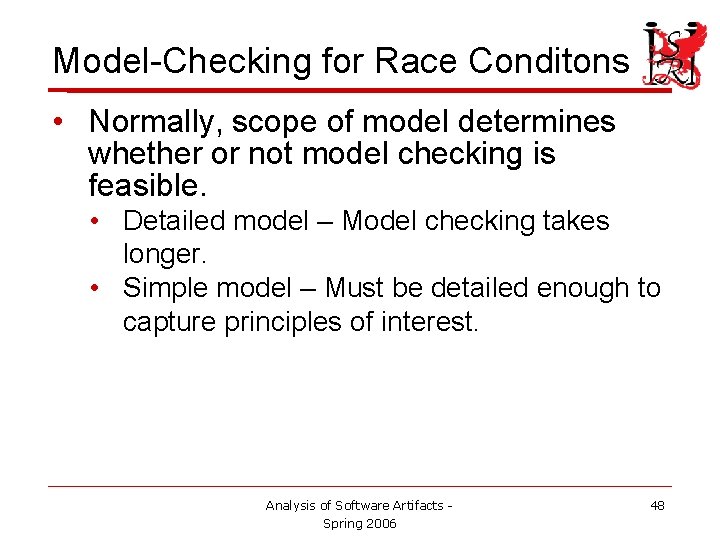

Model-Checking for Race Conditons • The Art of Model Checking • Develop a model of your software system that can be completely explored to find reachable error states Analysis of Software Artifacts Spring 2006 47
Model-Checking for Race Conditons • Normally, scope of model determines whether or not model checking is feasible. • Detailed model – Model checking takes longer. • Simple model – Must be detailed enough to capture principles of interest. Analysis of Software Artifacts Spring 2006 48
Model-Checking for Race Conditons • Model-checking concurrent programs is quite a challenge • Take a large state space • Add all possible thread interleavings • Result – Very large state space • Details of specific models would be too muc to go into Analysis of Software Artifacts Spring 2006 49

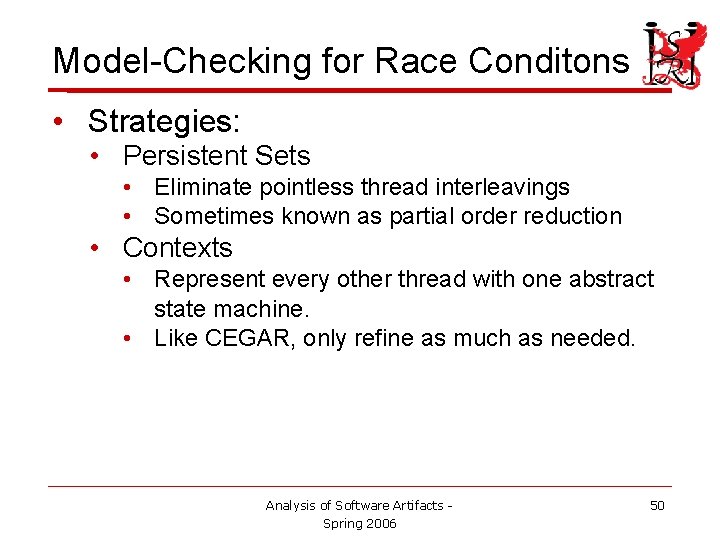

Model-Checking for Race Conditons • Strategies: • Persistent Sets • Eliminate pointless thread interleavings • Sometimes known as partial order reduction • Contexts • Represent every other thread with one abstract state machine. • Like CEGAR, only refine as much as needed. Analysis of Software Artifacts Spring 2006 50

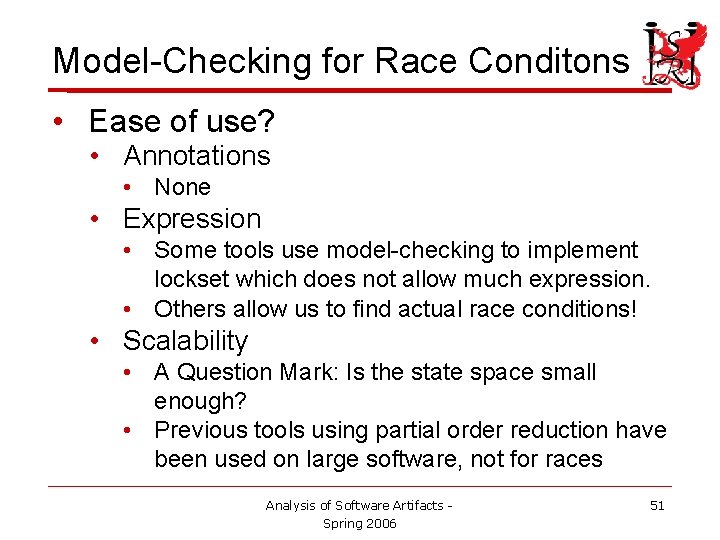

Model-Checking for Race Conditons • Ease of use? • Annotations • None • Expression • Some tools use model-checking to implement lockset which does not allow much expression. • Others allow us to find actual race conditions! • Scalability • A Question Mark: Is the state space small enough? • Previous tools using partial order reduction have been used on large software, not for races Analysis of Software Artifacts Spring 2006 51
Model-Checking for Race Conditons • Soundness? • Yes, model-checking in this manner is sound, as long as it terminates. • Precision? • Depends on how your model is used. • In one model lockset analysis is used. Tends to be imprecise. • Another model directly searches for “racy” states, which makes it very precise, but it doesn't yet work in the presence of aliasing. Analysis of Software Artifacts Spring 2006 52
Good 'ole Flow-Based Analysis • Has been approached in a few ways • Engineering Approach • • • Sacrifice Soundness Increase Precision as Much as Possible Rank Results Use Heuristics and Good Judgement Think of PREfix or Coverity • Rely on Alias Analysis • Rely on Programmer Annotations Analysis of Software Artifacts Spring 2006 53
Good 'ole Flow-Based Analysis • Engineering Approach: • Start with interprocedural lockset analysis • Make simple improvements: • “use statistical analysis to computer the probability that s. . . similar to known locks. ” • “realize that the first, last or only shared data in a critical section are special. ” • “if the number of distinct entry locksets in a function exceeds a fixed limit we skip the function” • (Engler ’ 03) Analysis of Software Artifacts Spring 2006 54

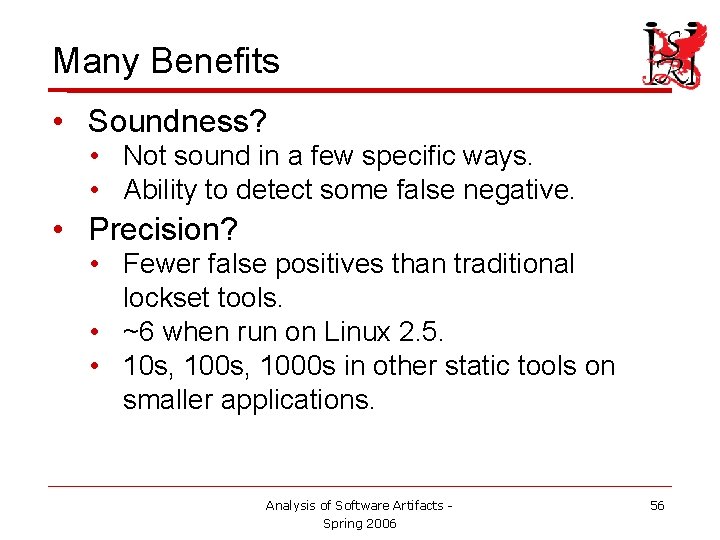

Many Benefits • Ease of Use? • Annotations • None or a constant number that give immidiate precision improvements. • Expression • Non-lock based idioms are 'hard-coded' by heuristics. • Scalability • More than any other. • Linux, Free. BSD, Commercial OS • 1. 8 MLOC in 2 -14 minutes Analysis of Software Artifacts Spring 2006 55
Many Benefits • Soundness? • Not sound in a few specific ways. • Ability to detect some false negative. • Precision? • Fewer false positives than traditional lockset tools. • ~6 when run on Linux 2. 5. • 10 s, 1000 s in other static tools on smaller applications. Analysis of Software Artifacts Spring 2006 56

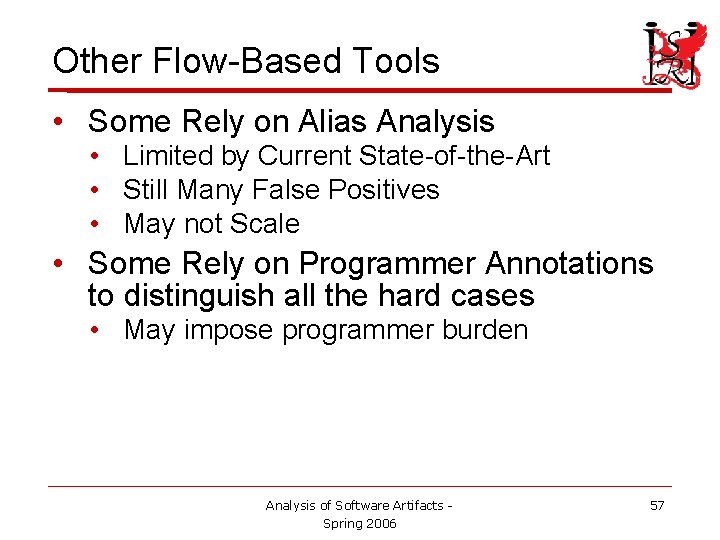

Other Flow-Based Tools • Some Rely on Alias Analysis • Limited by Current State-of-the-Art • Still Many False Positives • May not Scale • Some Rely on Programmer Annotations to distinguish all the hard cases • May impose programmer burden Analysis of Software Artifacts Spring 2006 57

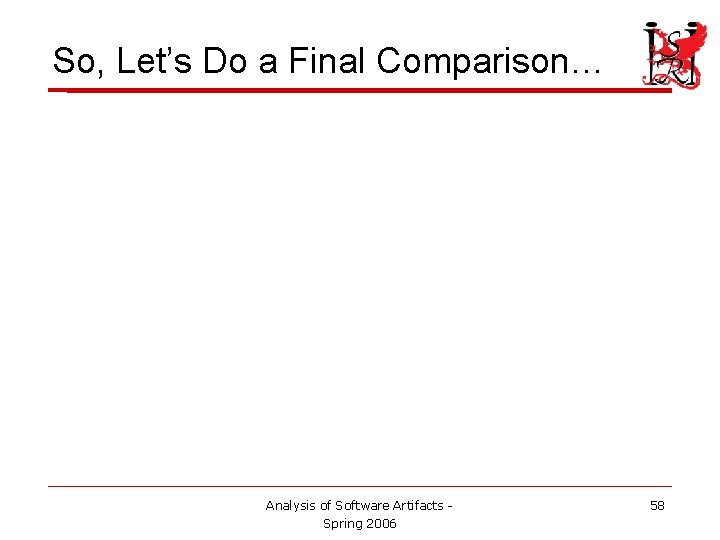

So, Let’s Do a Final Comparison… Analysis of Software Artifacts Spring 2006 58
Annotations • Type-Based Systems • Annotations are a major limiting factor. They can be inferred, but they must be understood by the programmer. • Dynamic Tools • Unnecessary • Model-Checking • Unnecessary • Flow-Based Analysis • Necessary in some form or another Analysis of Software Artifacts Spring 2006 59
Expression • Type-Based Systems • Limited to strict locking discipline. • Dynamic Tools • Thanks to combination of lockset and happensbefore, relative freedom. • Model-Checking • Can allow great expression (Depends on technology). • Flow-Based Analysis • Expression can be traded for soundness or annotations. Analysis of Software Artifacts Spring 2006 60
Scalability • Type-Based Systems • Scalability Limited by Annotations • Dynamic Tools • Getting better, but performance still a major issue (1 -3 x mem. Usage, 1. 5 x CPU usage) • Model-Checking • Not extremely scalable. Depends highly on number of processes. • Flow-Based Analysis • Has shown the best scalability. Analysis of Software Artifacts Spring 2006 61
Soundness • Type-Based Systems • Sound • Dynamic Tools • Fundamentally unsound; but lockset will catch most possible races in execution. • Model-Checking • Also sound. May not terminate. • Flow-Based Analysis • Different techniques trade soundness for precision. Analysis of Software Artifacts Spring 2006 62
Precision • Type-Based Systems • Low precision. Strict MLD. • Dynamic Tools • Better precision. • Model-Checking • Can be very high. Not complete (undecidability of reachability). • Flow-Based Analysis • High precision using an engineering approach. Analysis of Software Artifacts Spring 2006 63
Questions Analysis of Software Artifacts Spring 2006 64
