Surgical Suturing Machine By Rafat Odeh Wseem Halawah

Surgical Suturing Machine By: Rafat Odeh Wseem Halawah Motaz Madeni Omar Hamadneh

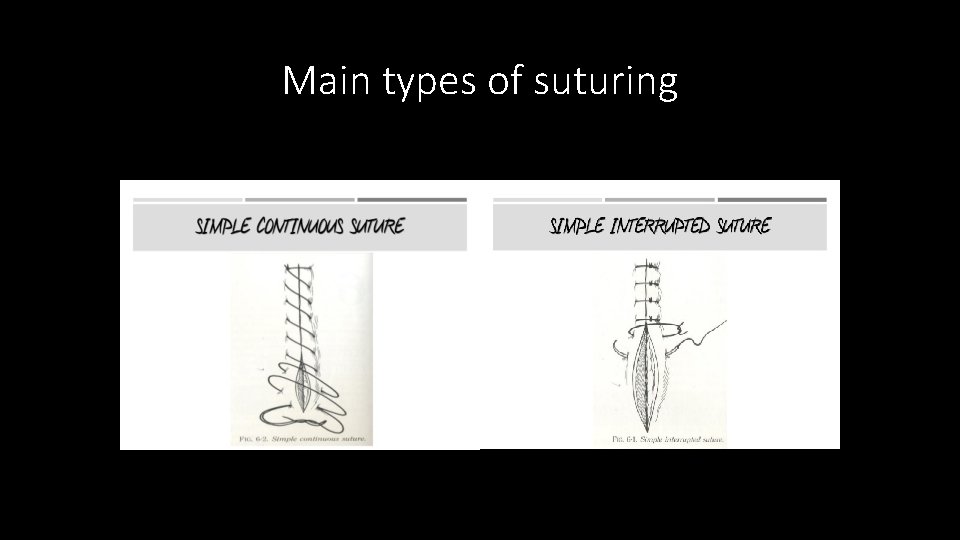

Main types of suturing

This suturing machine type 1 -Skin stitches type (not intradermal). 2 -Non-absorbable thread type. 3 -Interrupted suture. 4 -It creates knot. 5 -Automated movements (doesn’t receive it’s movements from the doctor).

Interrupted suture properties •

Final design

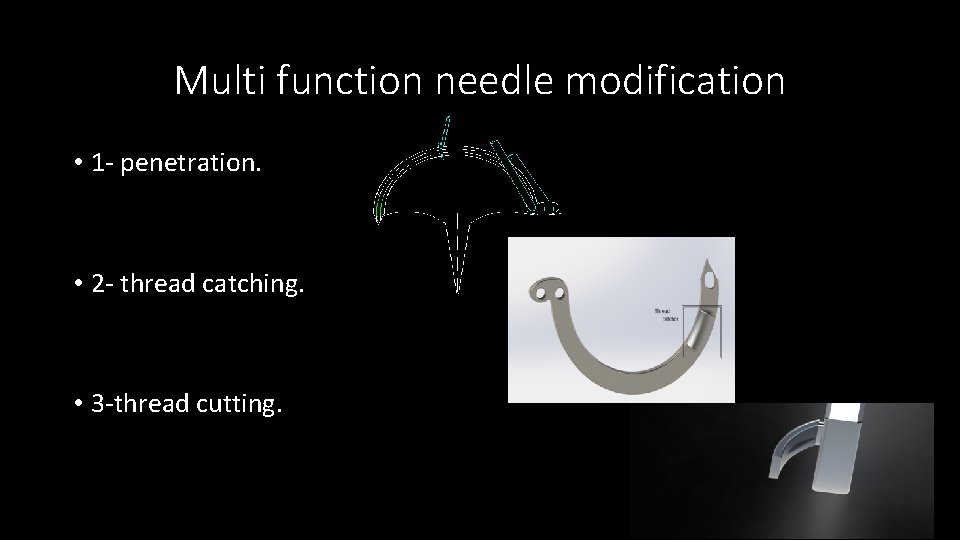

Multi function needle modification • 1 - penetration. • 2 - thread catching. • 3 -thread cutting.

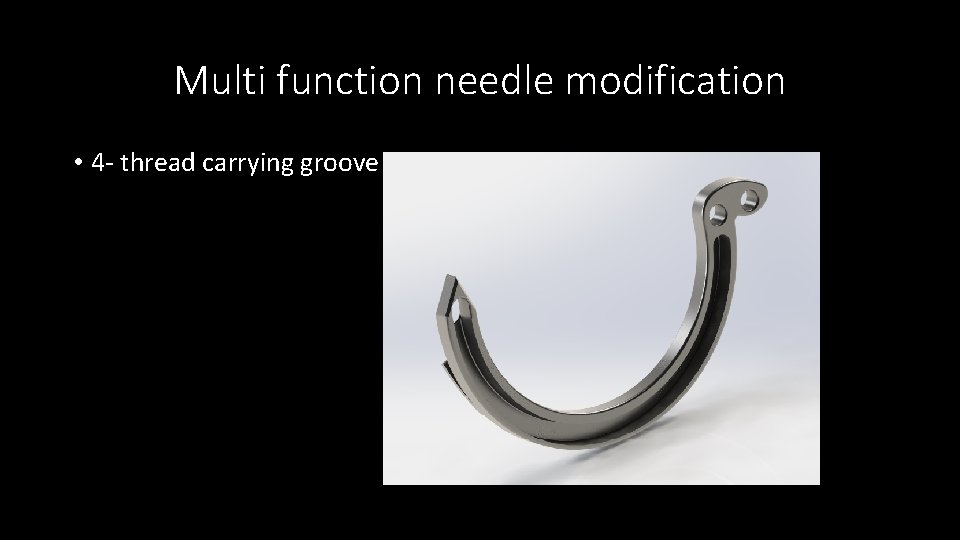

Multi function needle modification • 4 - thread carrying groove

Final design

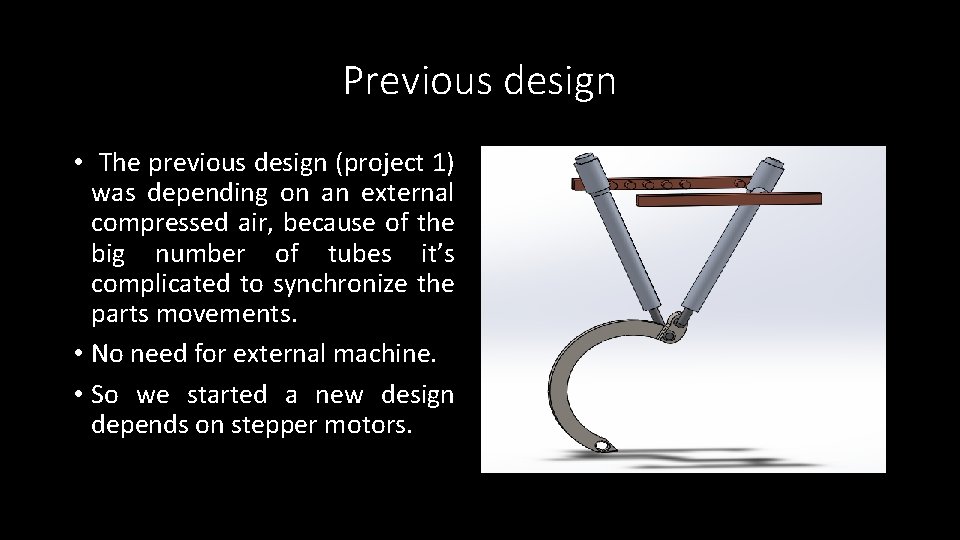

Previous design • The previous design (project 1) was depending on an external compressed air, because of the big number of tubes it’s complicated to synchronize the parts movements. • No need for external machine. • So we started a new design depends on stepper motors.

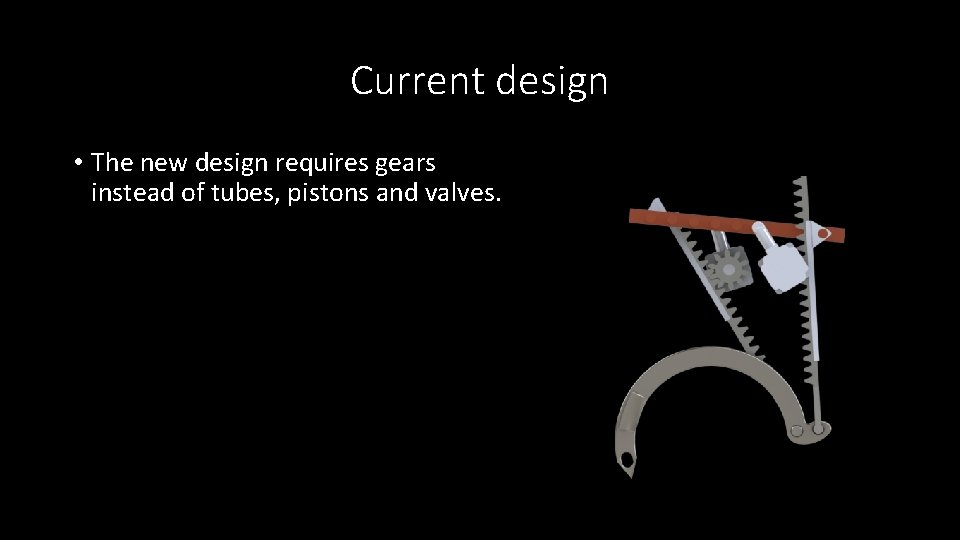

Current design • The new design requires gears instead of tubes, pistons and valves.

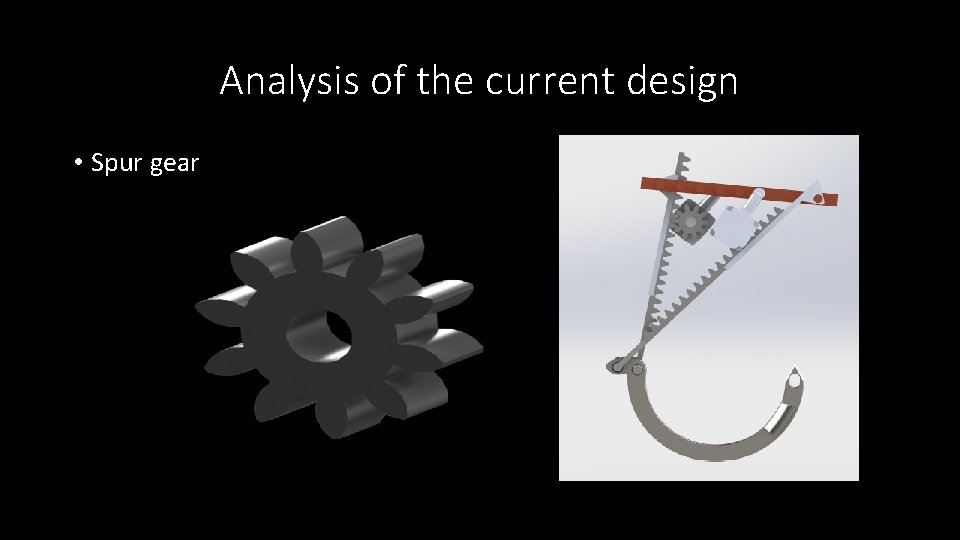

Analysis of the current design • Spur gear

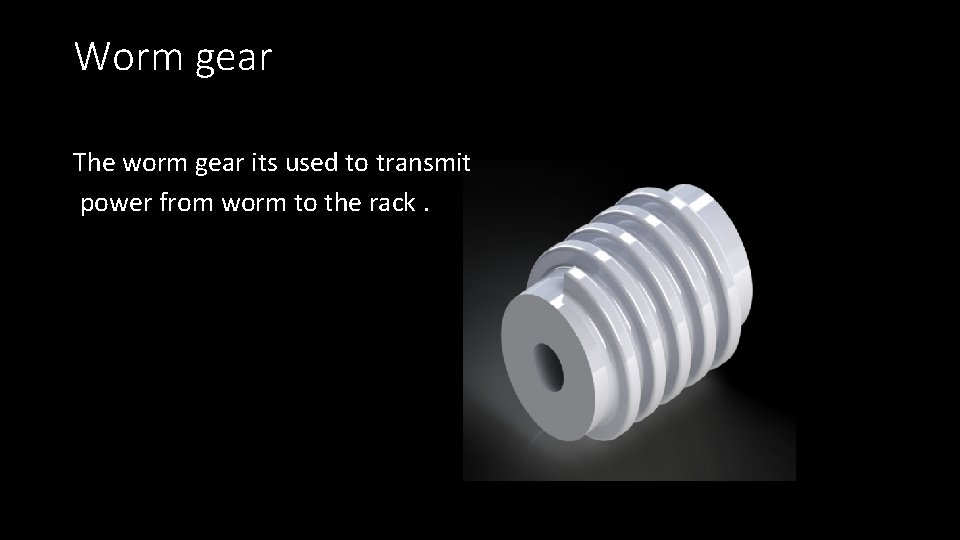

Worm gear The worm gear its used to transmit power from worm to the rack.

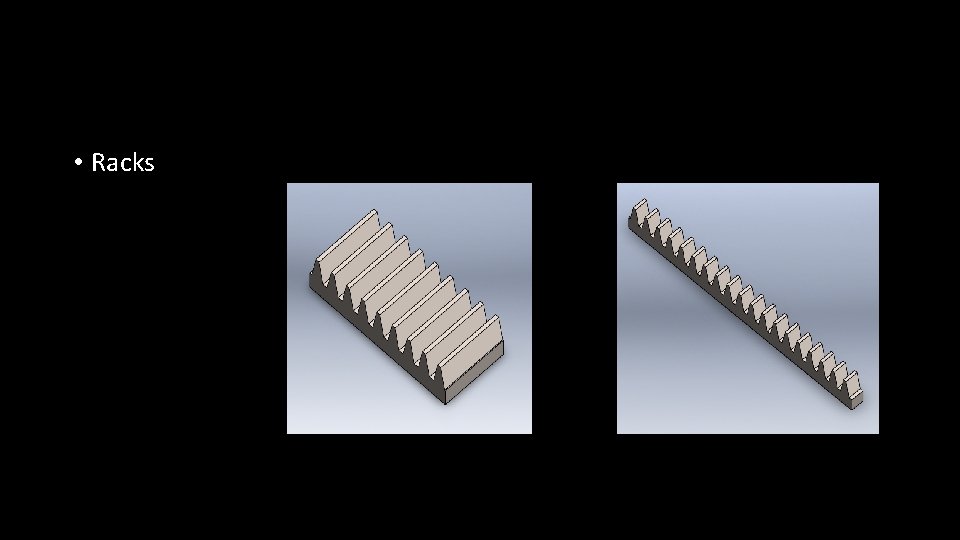

• Racks

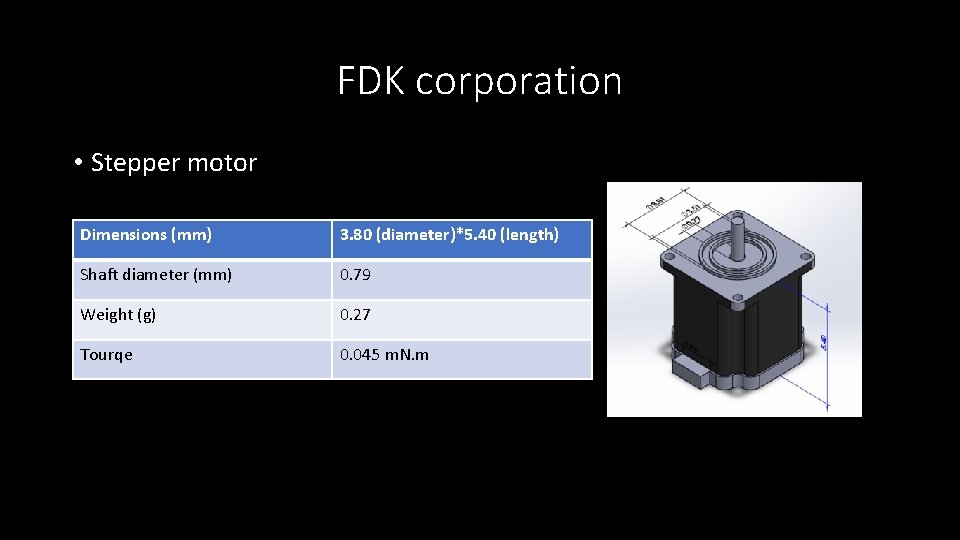

FDK corporation • Stepper motor Dimensions (mm) 3. 80 (diameter)*5. 40 (length) Shaft diameter (mm) 0. 79 Weight (g) 0. 27 Tourqe 0. 045 m. N. m

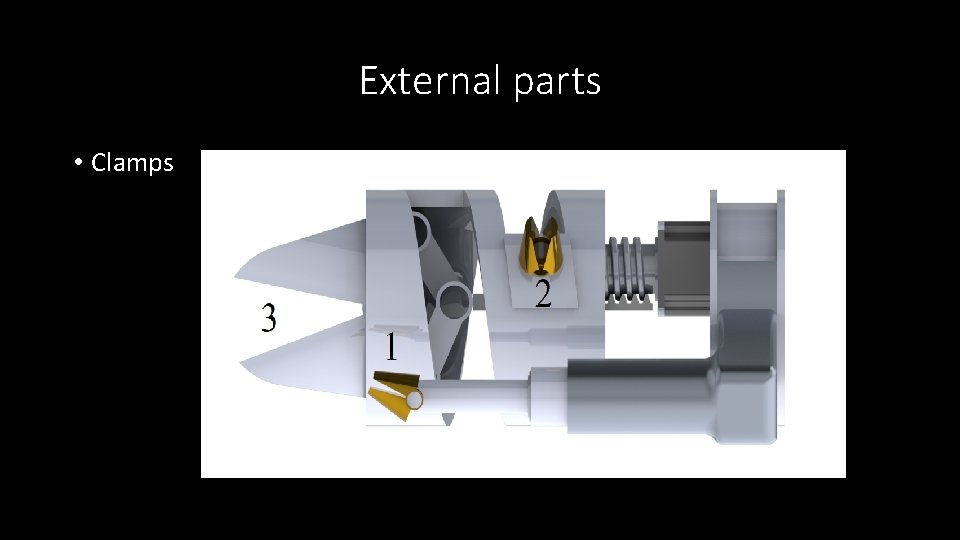

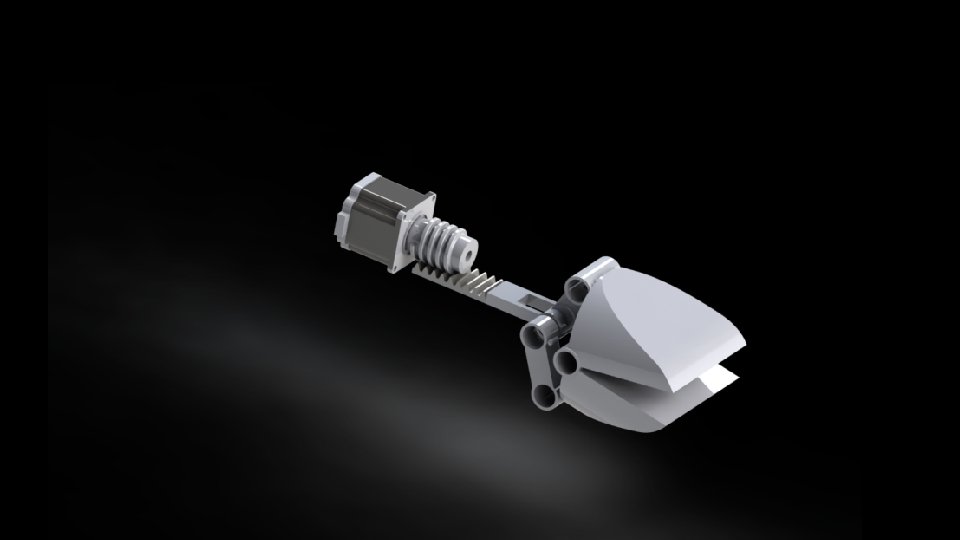

External parts • Clamps

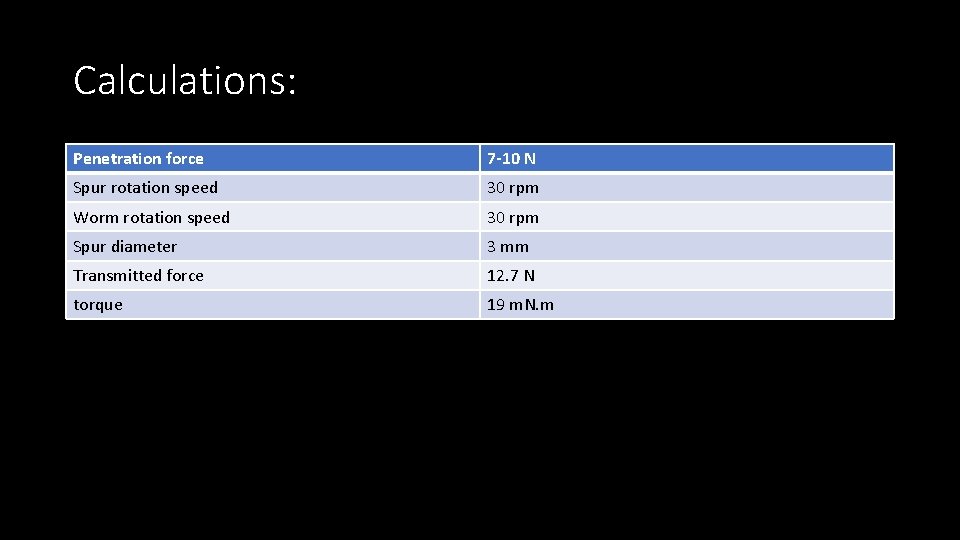

Calculations: Penetration force 7 -10 N Spur rotation speed 30 rpm Worm rotation speed 30 rpm Spur diameter 3 mm Transmitted force 12. 7 N torque 19 m. N. m

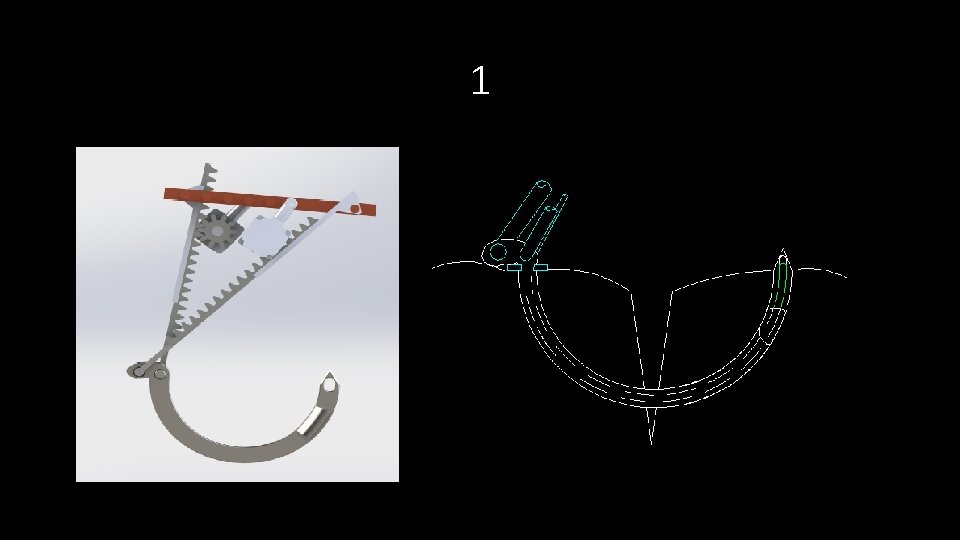

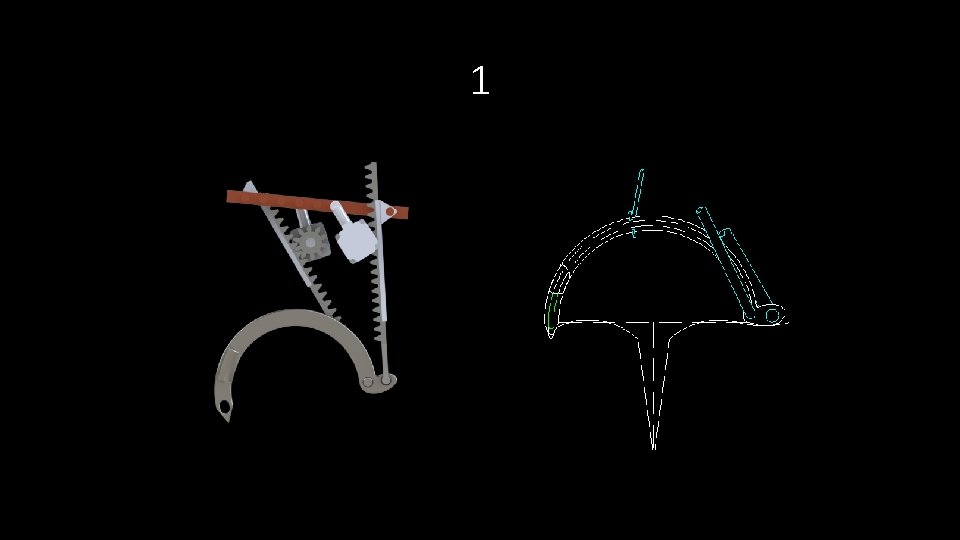

1

1

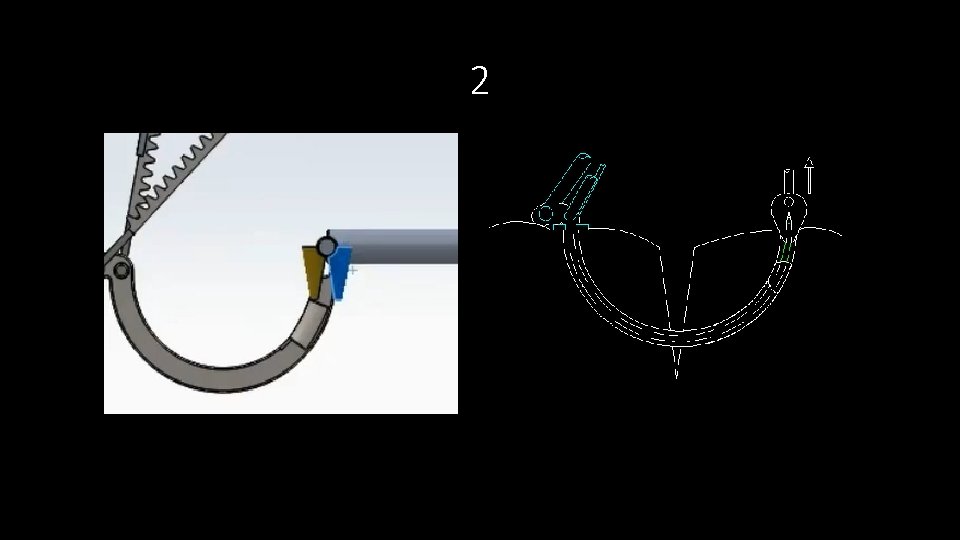

2

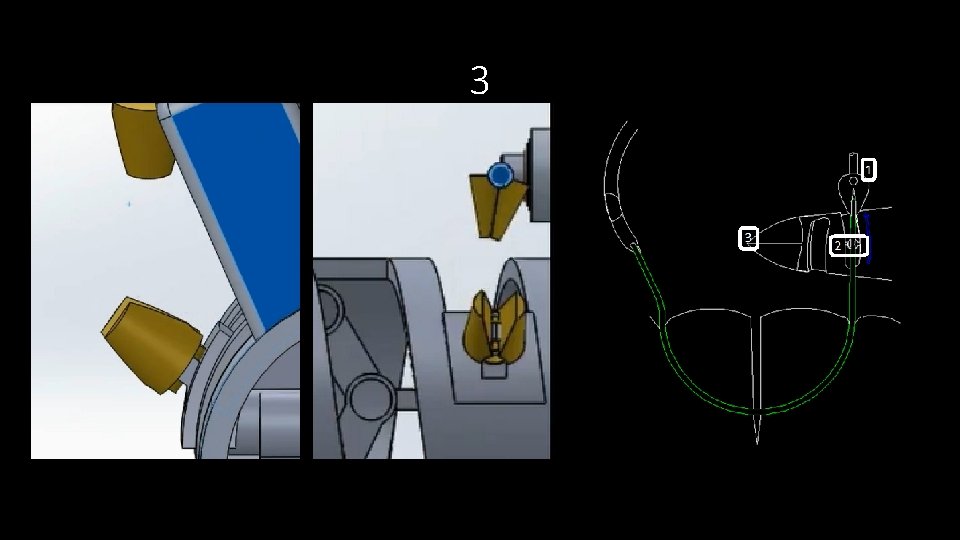

3

3

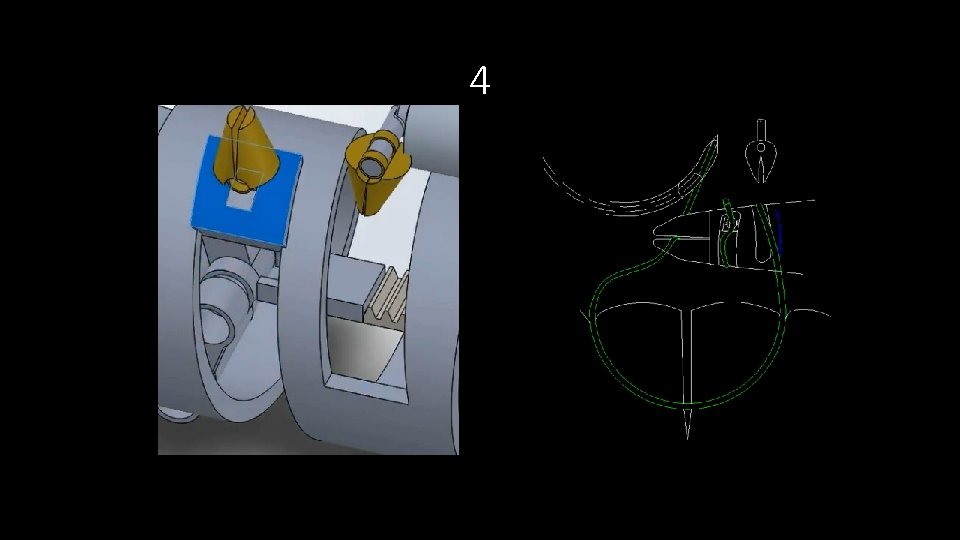

4

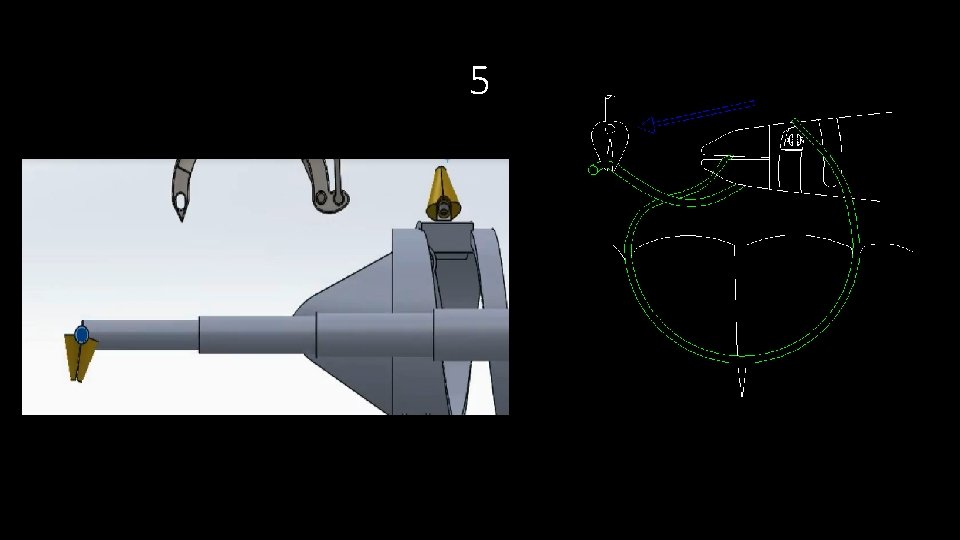

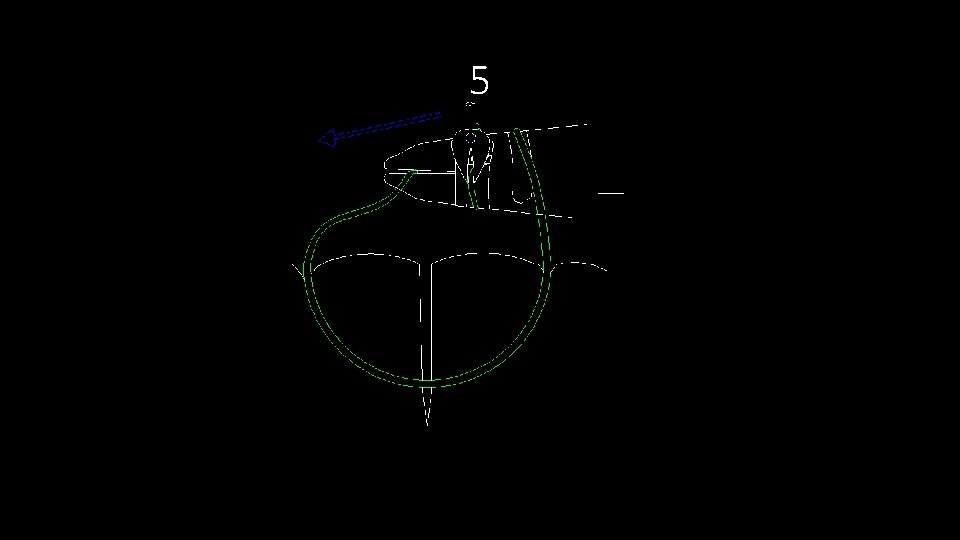

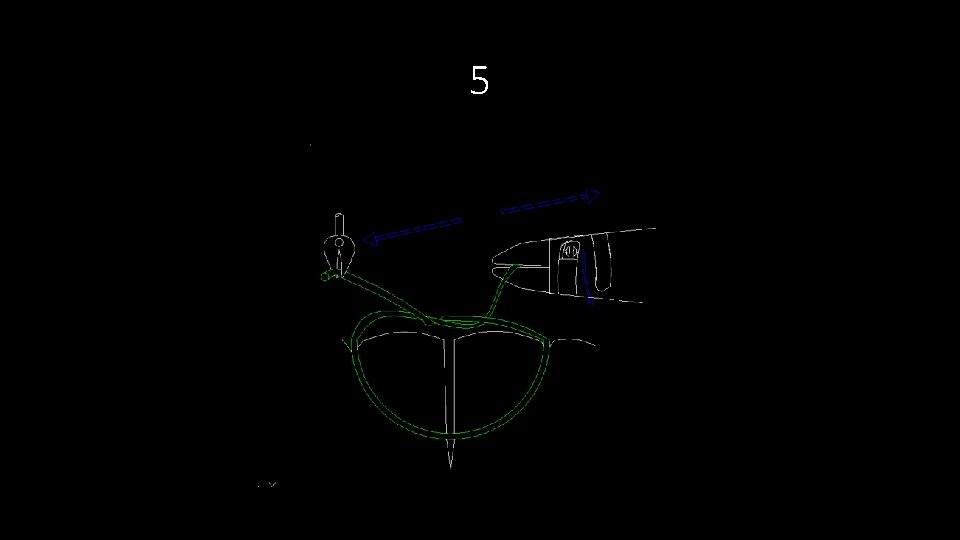

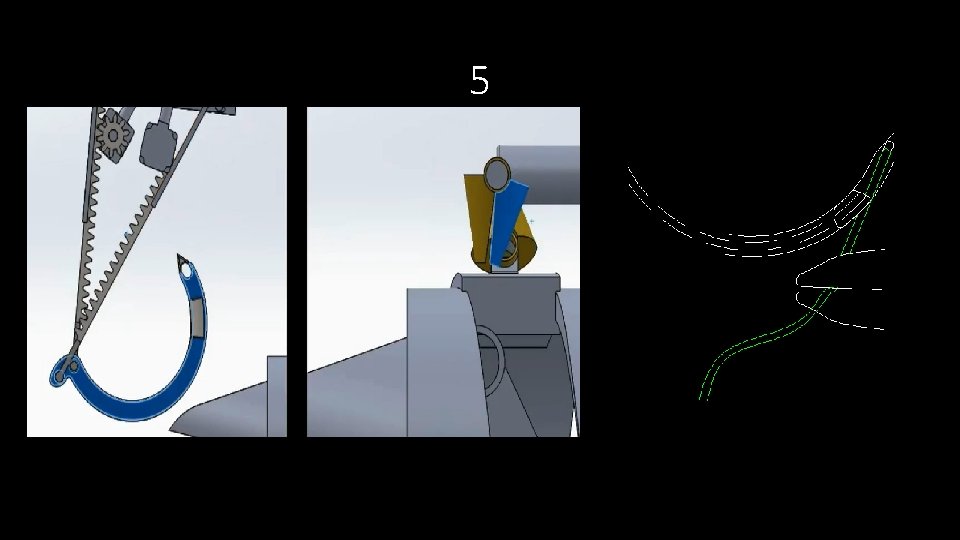

5

5

5

5

Short video

Conclusion
