Surface Light Fields for 3 D Photography Daniel

Surface Light Fields for 3 D Photography Daniel N. Wood University of Washington SIGGRAPH 2001 Course

Collaborators (and co-authors on SIGGRAPH 2000 paper) Daniel Azuma Wyvern Aldinger Brian Curless Tom Duchamp David Salesin Werner Stuetzle University of Washington

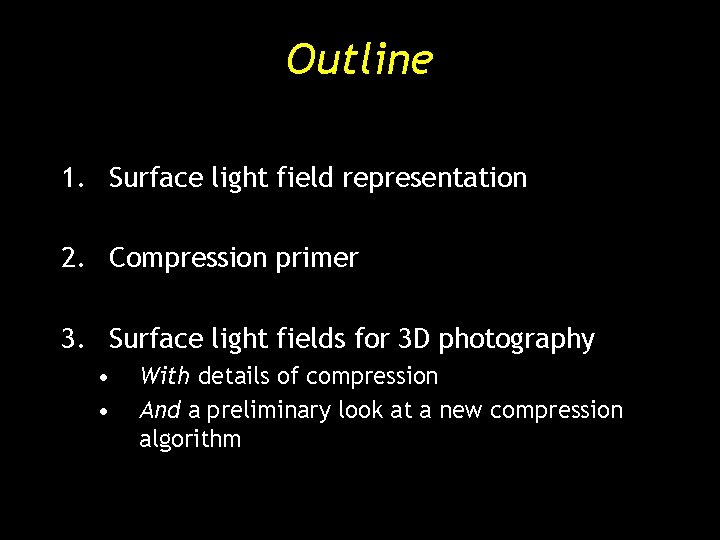

Outline 1. Surface light field representation 2. Compression primer 3. Surface light fields for 3 D photography • • With details of compression And a preliminary look at a new compression algorithm

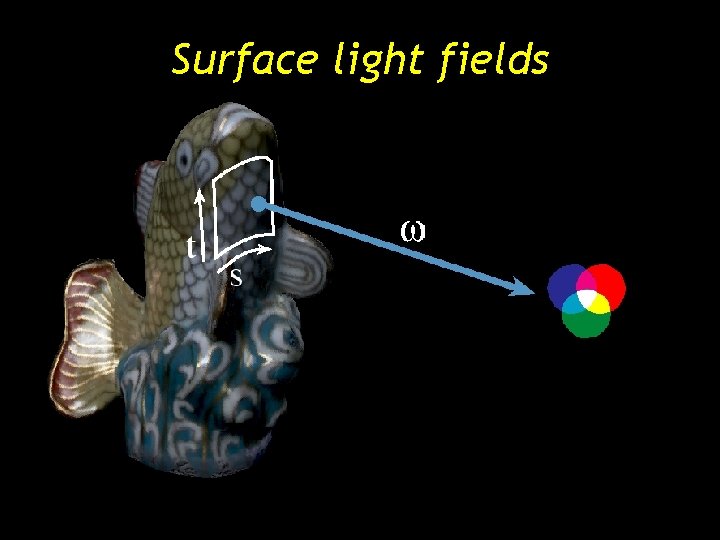

Surface light fields

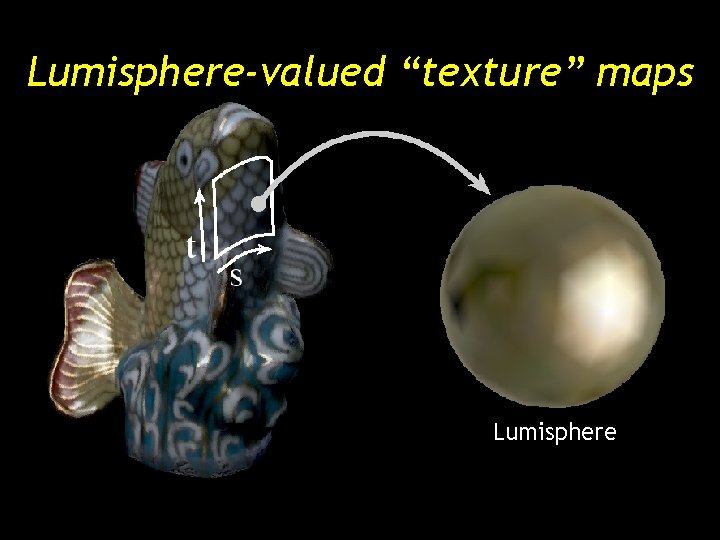

Lumisphere-valued “texture” maps Lumisphere

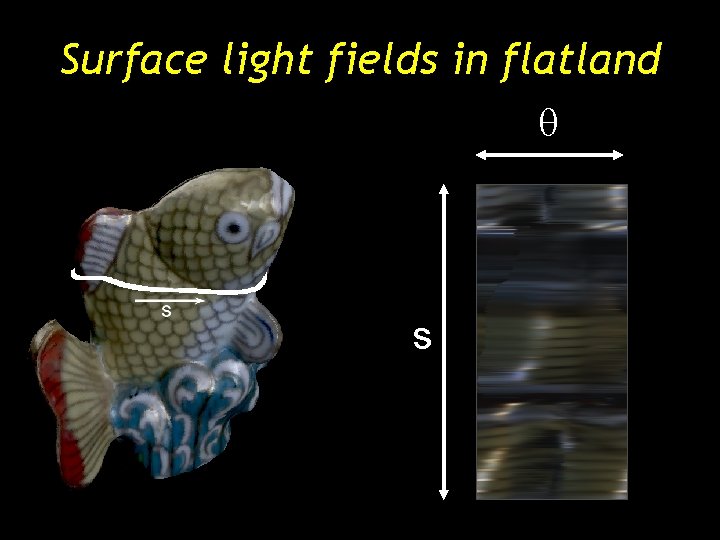

Surface light fields in flatland q s

Surface light fields in flatland q s

Surface light fields in flatland q s

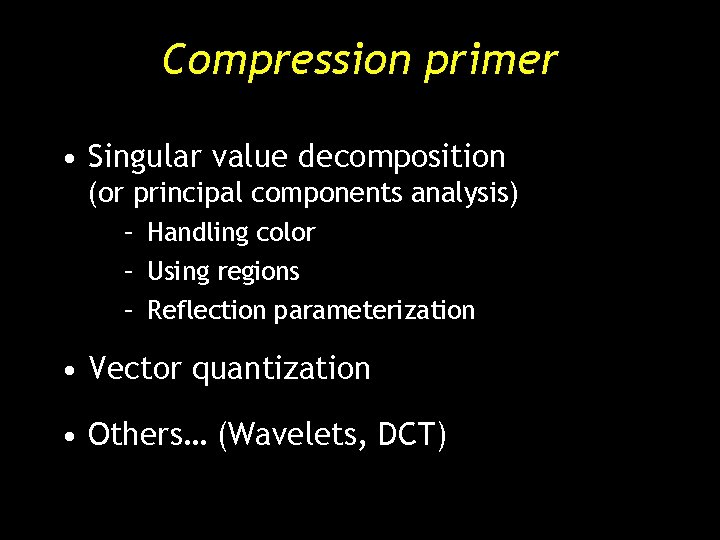

Compression primer • Singular value decomposition (or principal components analysis) – Handling color – Using regions – Reflection parameterization • Vector quantization • Others… (Wavelets, DCT)

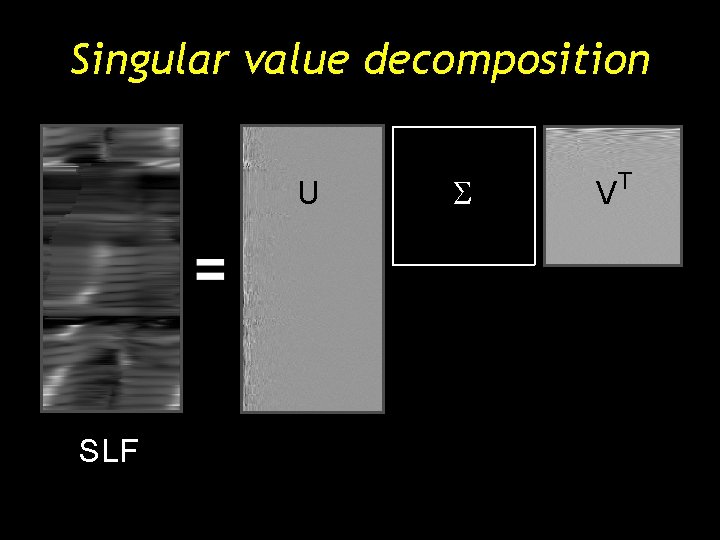

Singular value decomposition U SLF VT

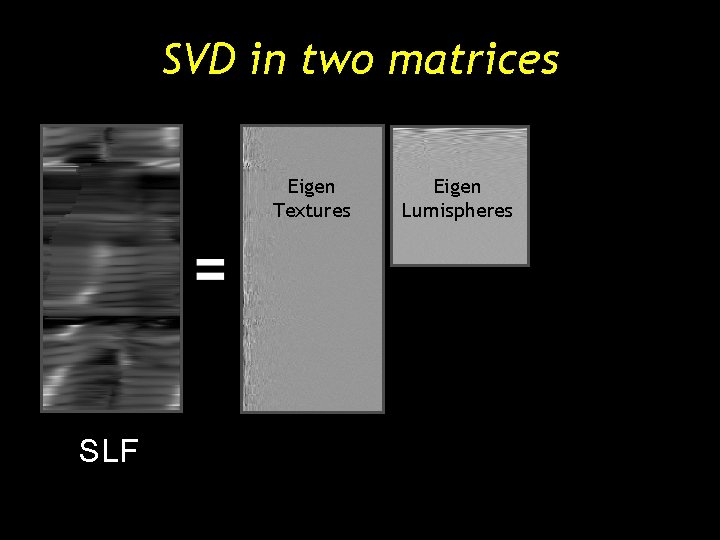

SVD in two matrices Eigen Textures SLF Eigen Lumispheres

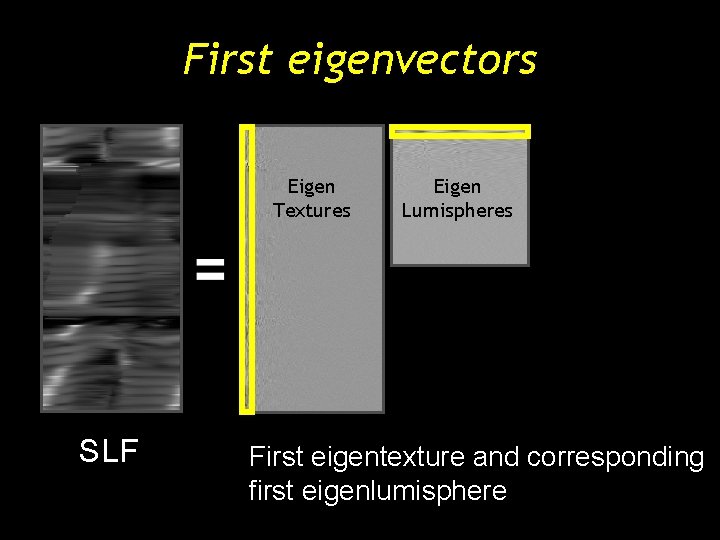

First eigenvectors Eigen Textures SLF Eigen Lumispheres First eigentexture and corresponding first eigenlumisphere

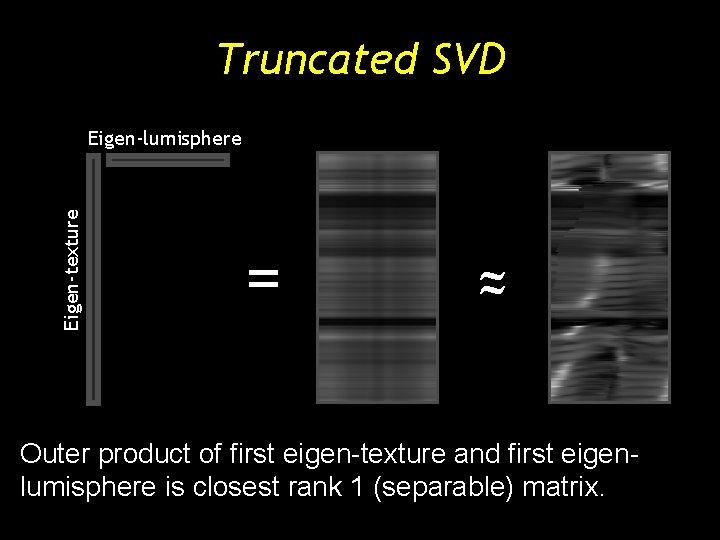

Truncated SVD Eigen-texture Eigen-lumisphere = ~ Outer product of first eigen-texture and first eigenlumisphere is closest rank 1 (separable) matrix.

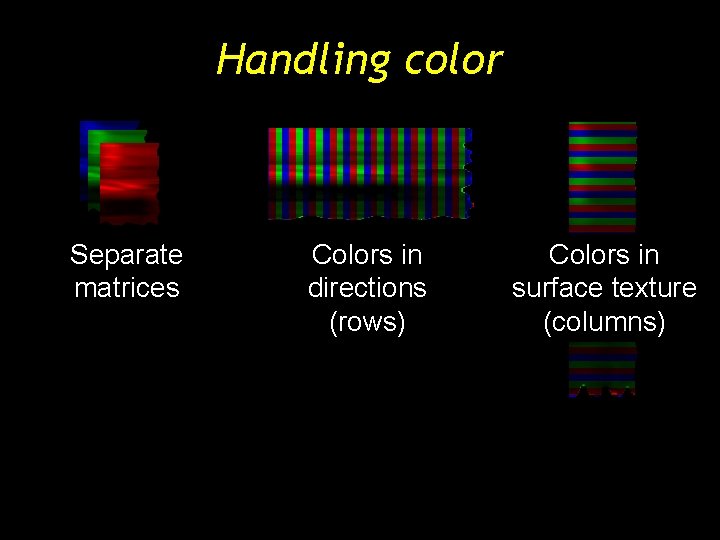

Handling color Separate matrices Colors in directions (rows) Colors in surface texture (columns)

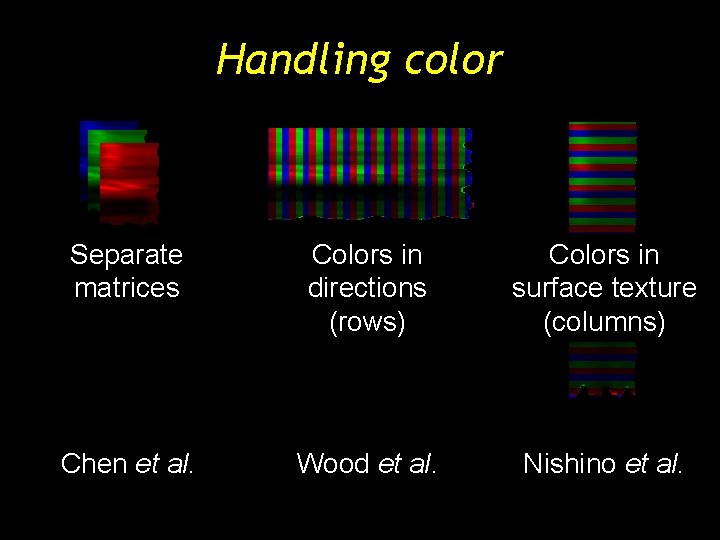

Handling color Separate matrices Colors in directions (rows) Colors in surface texture (columns) Chen et al. Wood et al. Nishino et al.

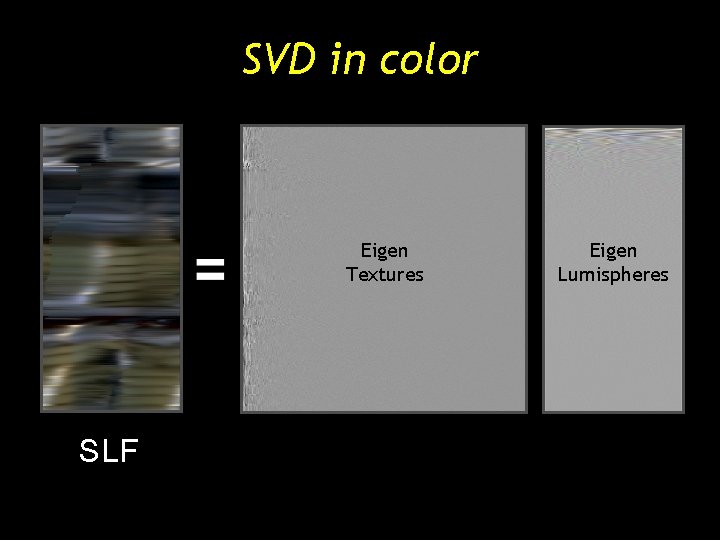

SVD in color Eigen Textures SLF Eigen Lumispheres

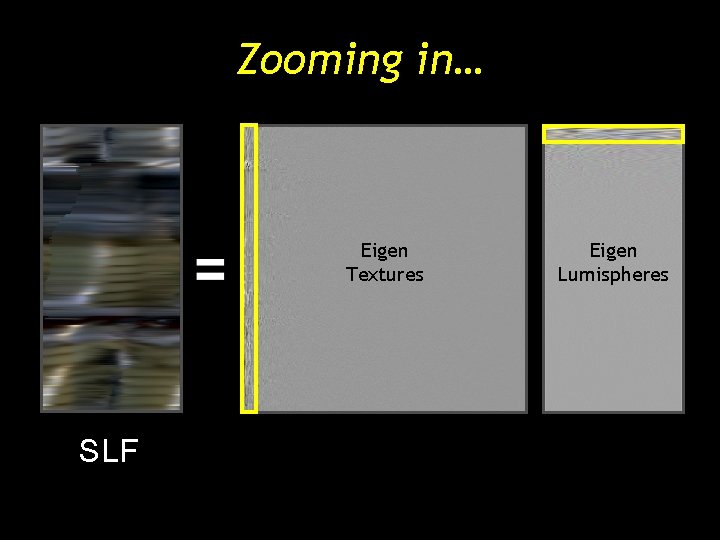

Zooming in… Eigen Textures SLF Eigen Lumispheres

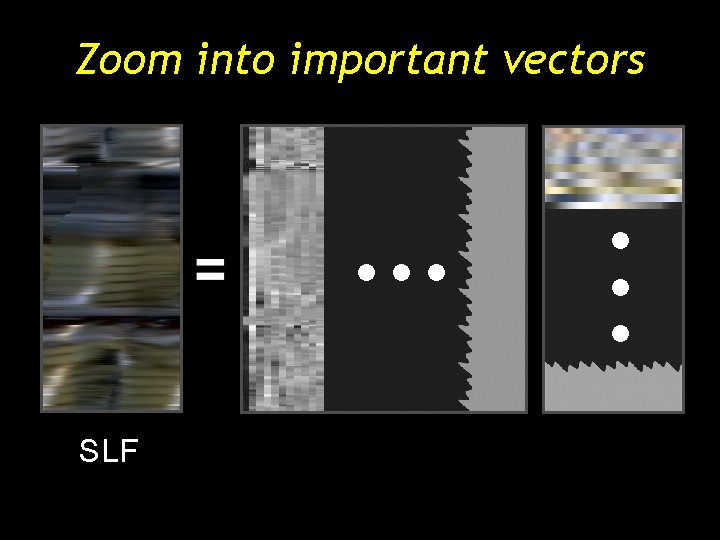

Zoom into important vectors . . . SLF . . .

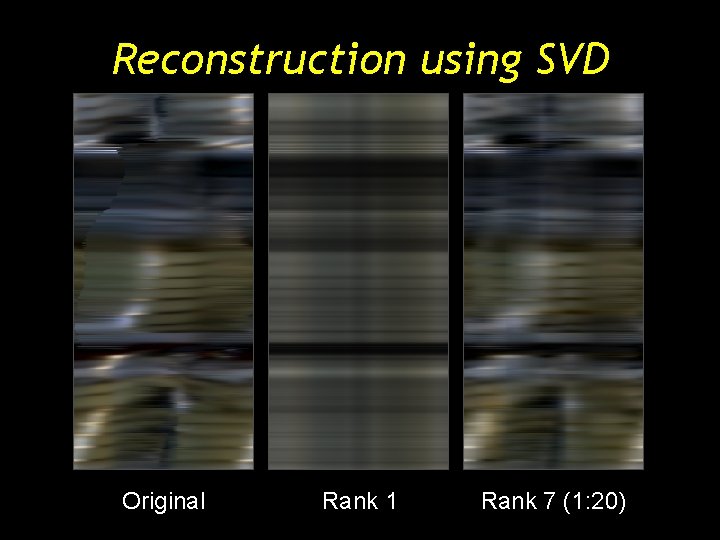

Reconstruction using SVD Original Rank 1 Rank 7 (1: 20)

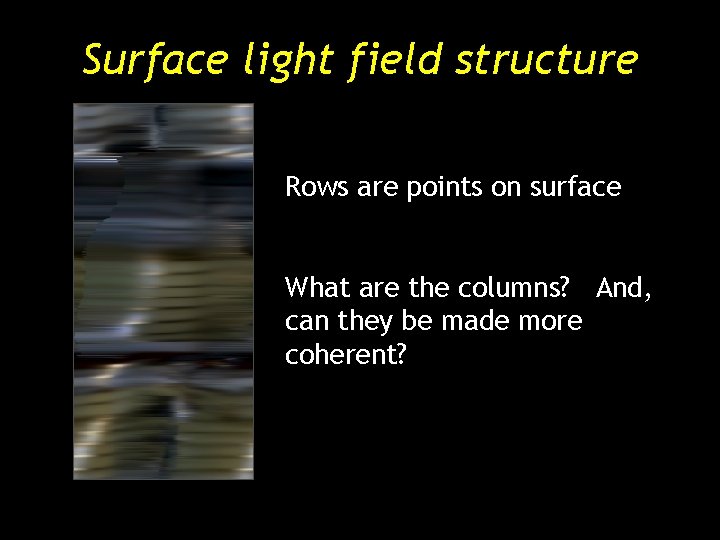

Surface light field structure Rows are points on surface What are the columns? And, can they be made more coherent?

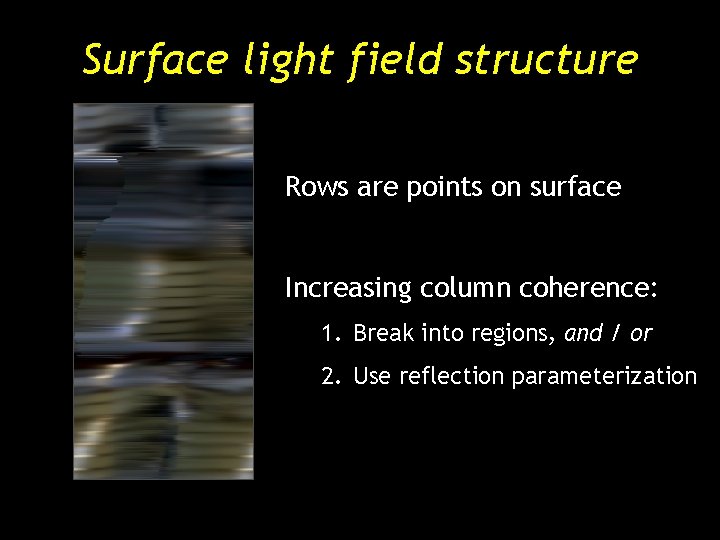

Surface light field structure Rows are points on surface Increasing column coherence: 1. Break into regions, and / or 2. Use reflection parameterization

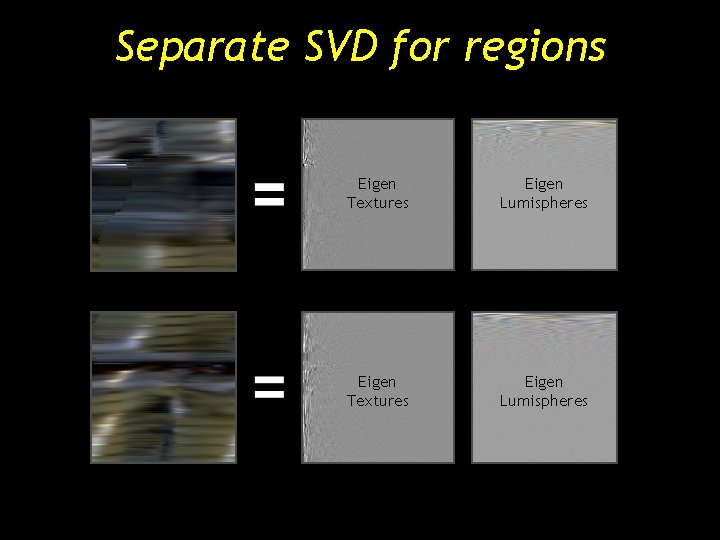

Separate SVD for regions Eigen Textures Eigen Lumispheres

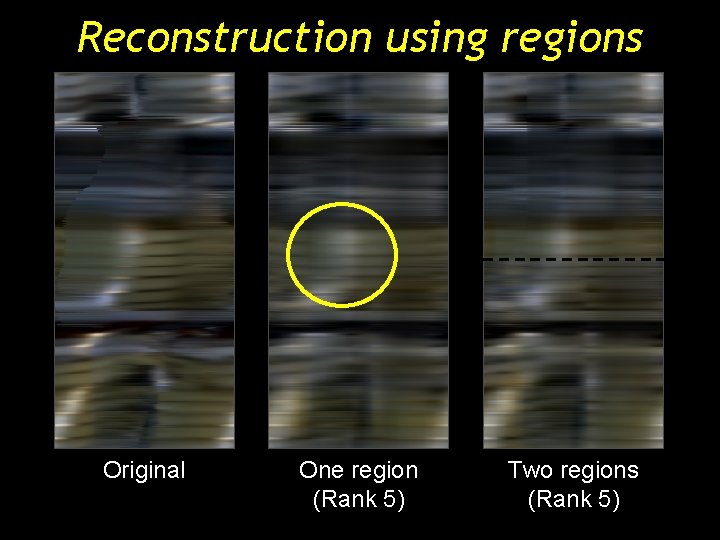

Reconstruction using regions Original One region (Rank 5) Two regions (Rank 5)

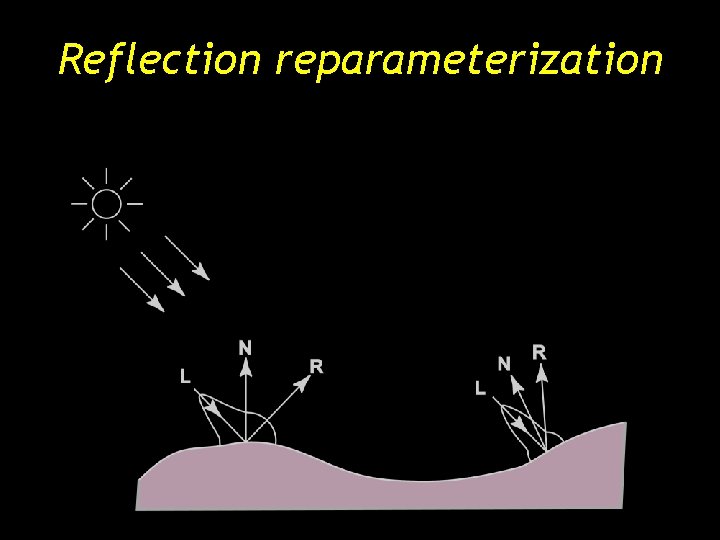

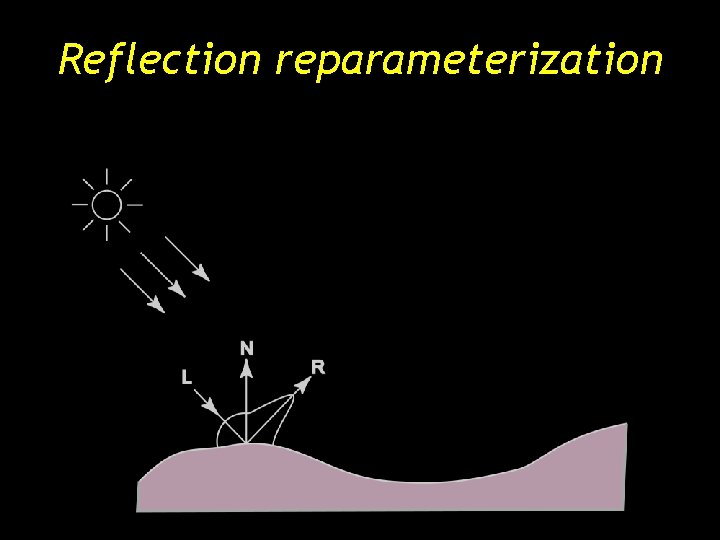

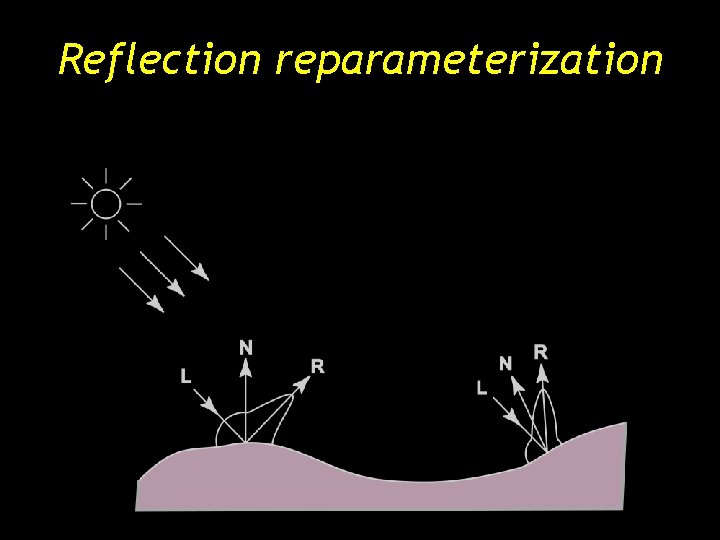

Reflection reparameterization

Reflection reparameterization

Reflection reparameterization

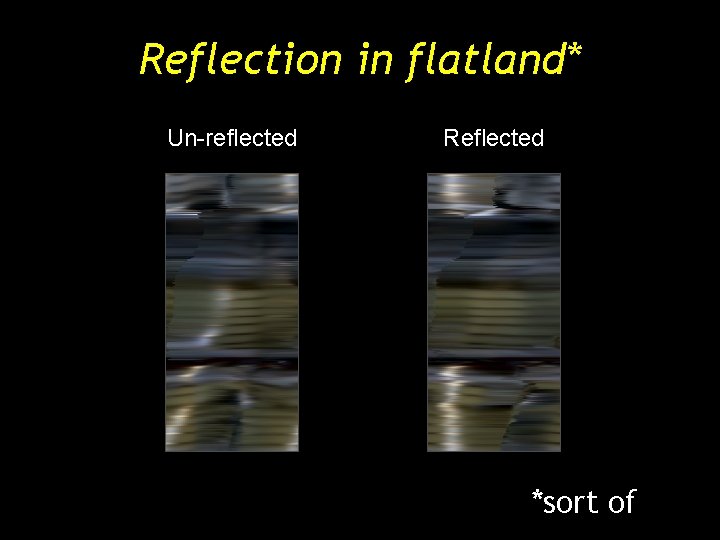

Reflection in flatland* Un-reflected Reflected *sort of

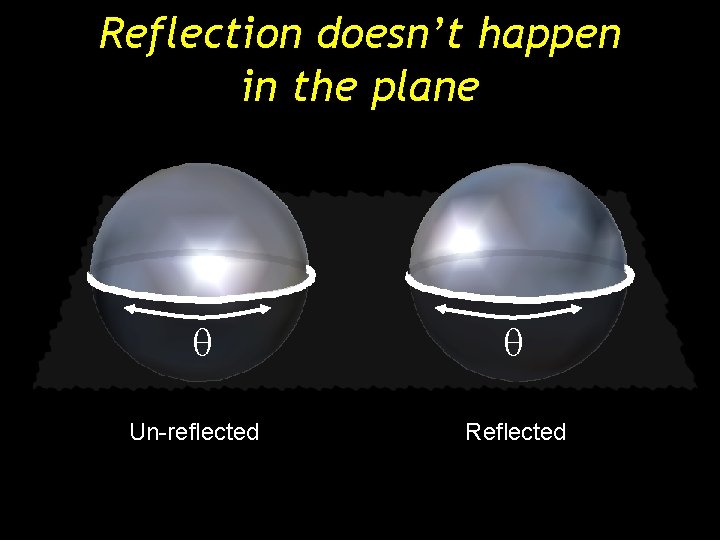

Reflection doesn’t happen in the plane q Un-reflected q Reflected

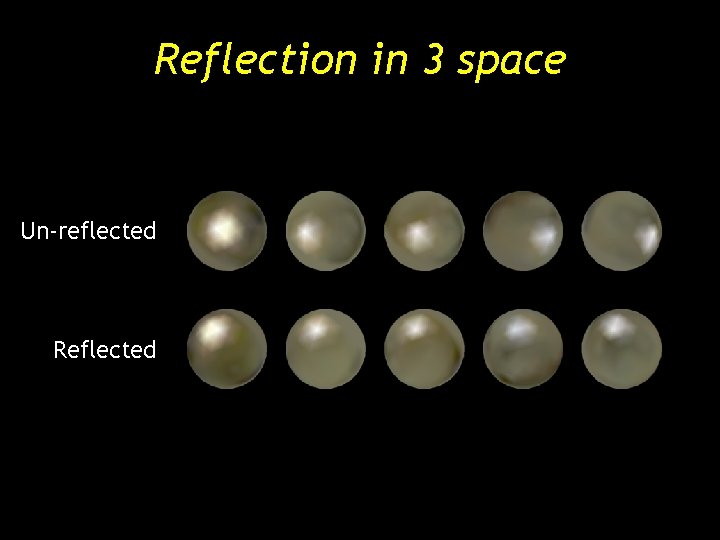

Reflection in 3 space Un-reflected Reflected

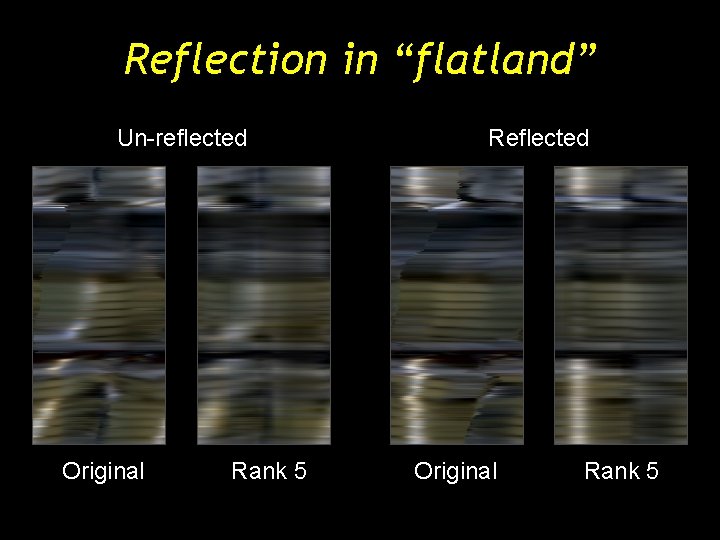

Reflection in “flatland” Un-reflected Original Rank 5 Reflected Original Rank 5

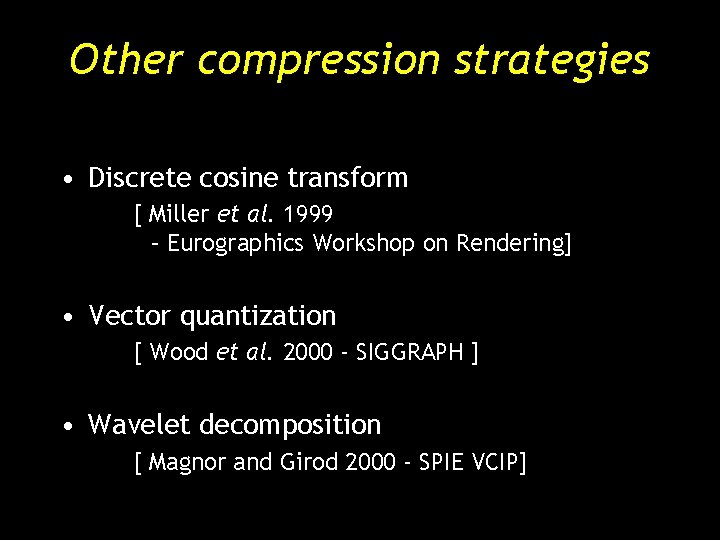

Other compression strategies • Discrete cosine transform [ Miller et al. 1999 – Eurographics Workshop on Rendering] • Vector quantization [ Wood et al. 2000 - SIGGRAPH ] • Wavelet decomposition [ Magnor and Girod 2000 - SPIE VCIP]

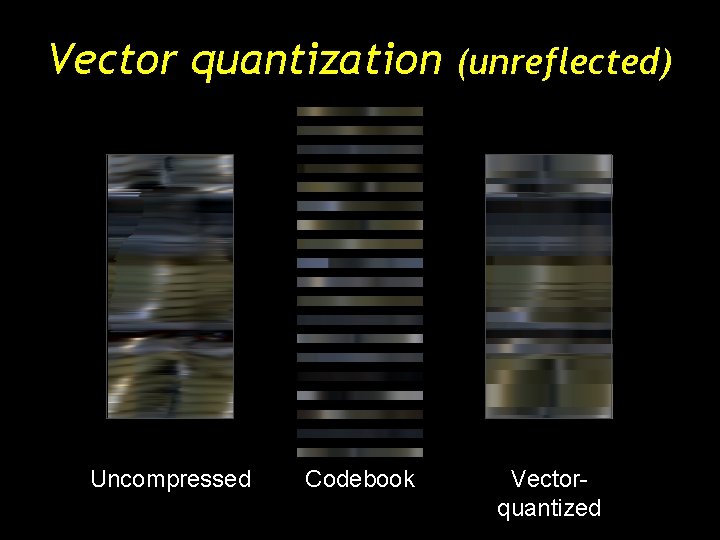

Vector quantization (unreflected) Uncompressed Codebook Vectorquantized

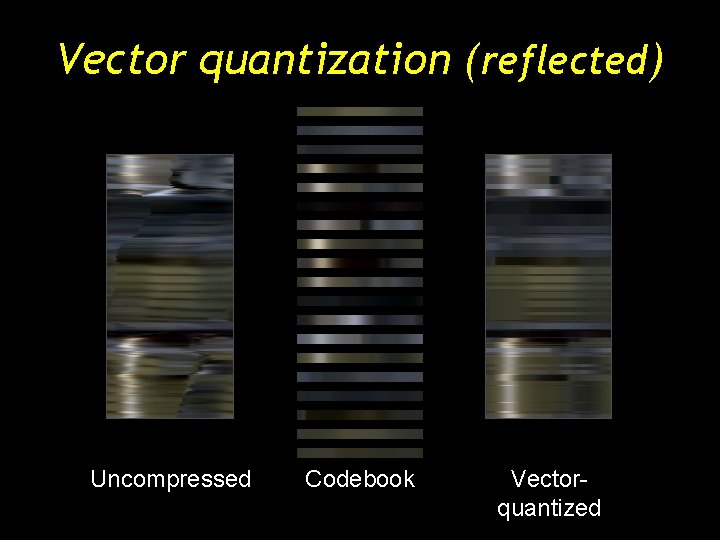

Vector quantization (reflected) Uncompressed Codebook Vectorquantized

Surface light fields for 3 D photography (SIGGRAPH 2000) Goals Rendering and editing Inputs Photographs and geometry Requirements Estimation and compression

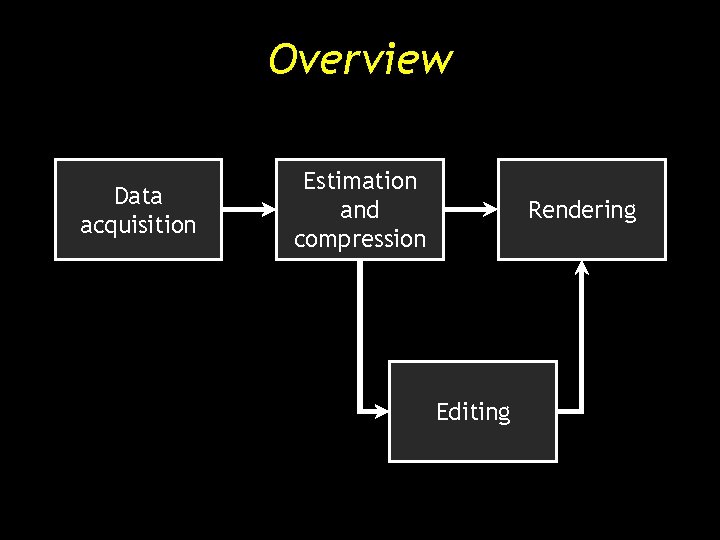

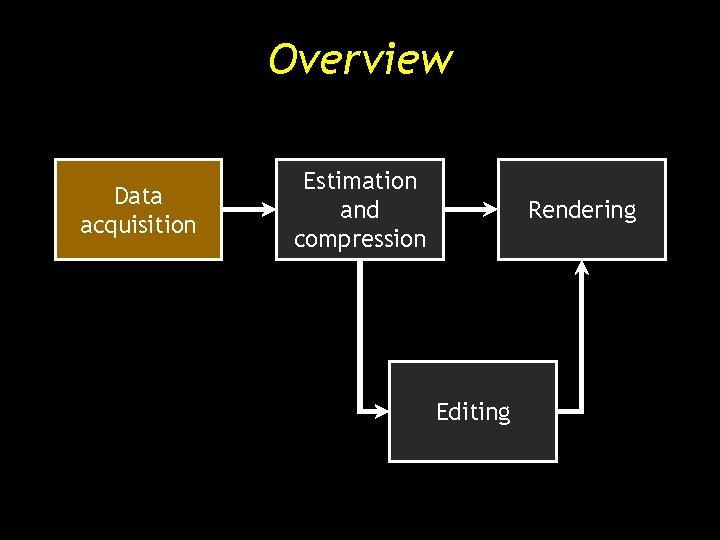

Overview Data acquisition Estimation and compression Rendering Editing

Overview Data acquisition Estimation and compression Rendering Editing

Scan and reconstruct geometry Range scans (only a few shown. . . ) Reconstructed geometry

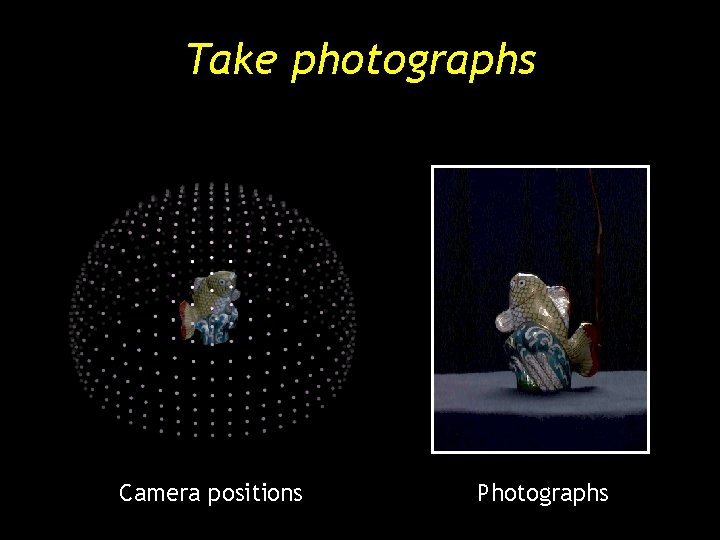

Take photographs Camera positions Photographs

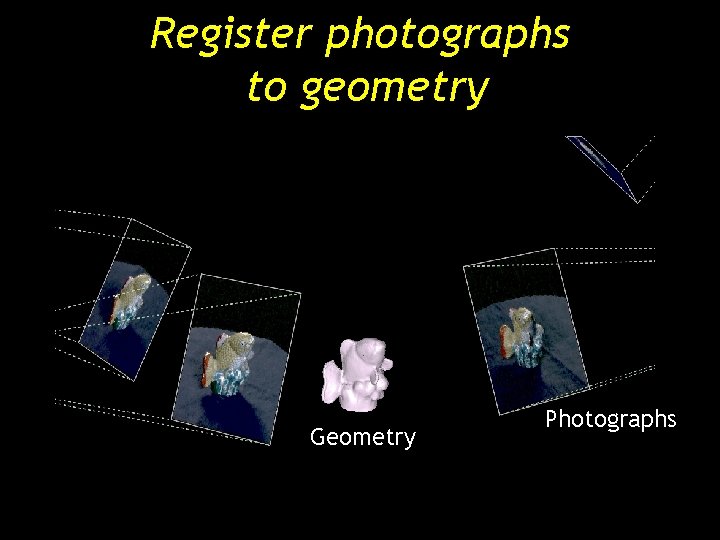

Register photographs to geometry Geometry Photographs

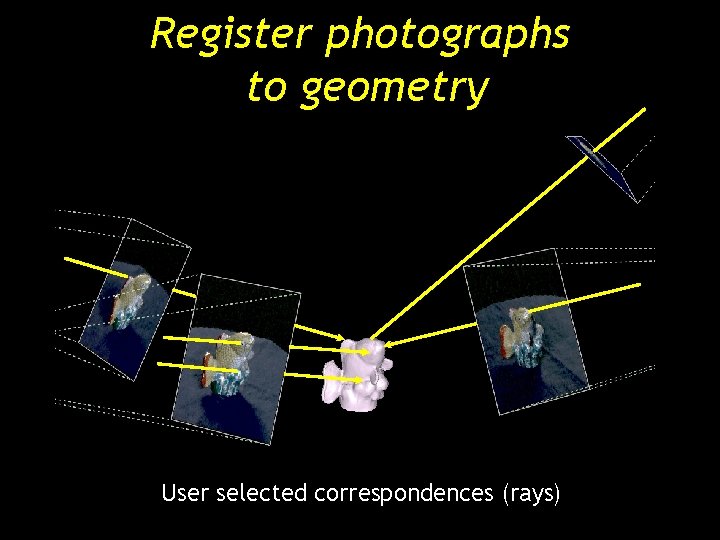

Register photographs to geometry User selected correspondences (rays)

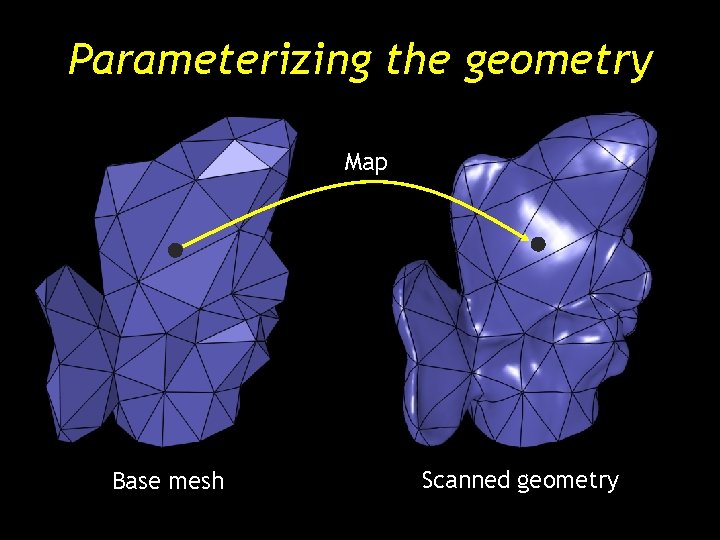

Parameterizing the geometry Map Base mesh Scanned geometry

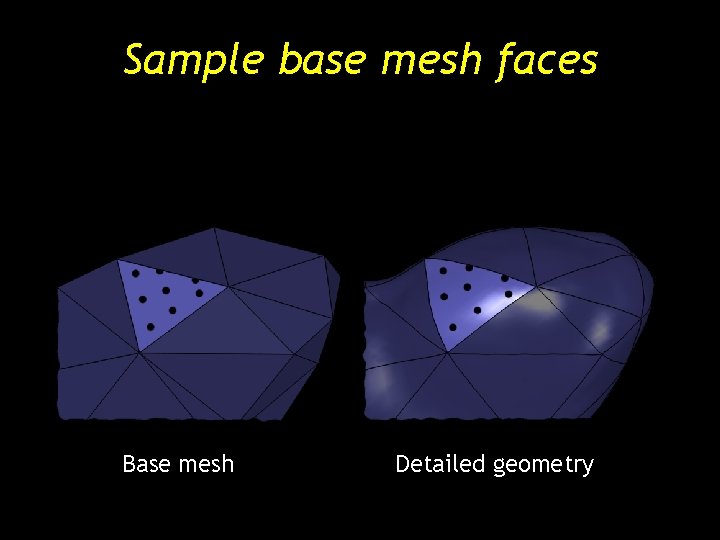

Sample base mesh faces Base mesh Detailed geometry

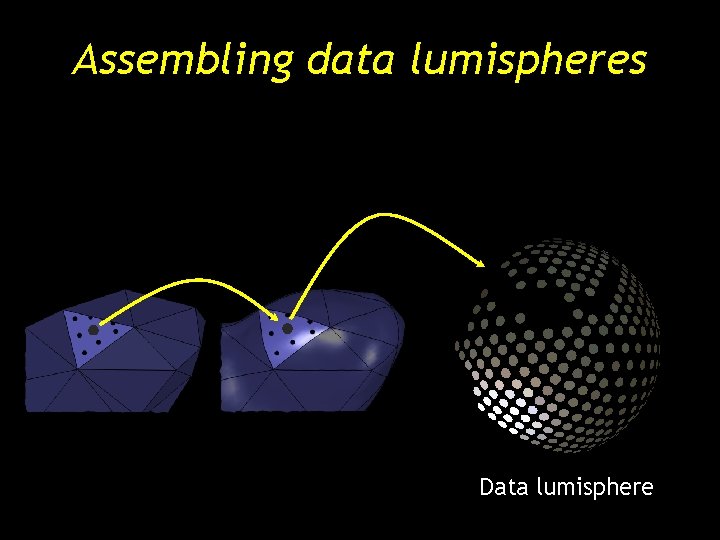

Assembling data lumispheres Data lumisphere

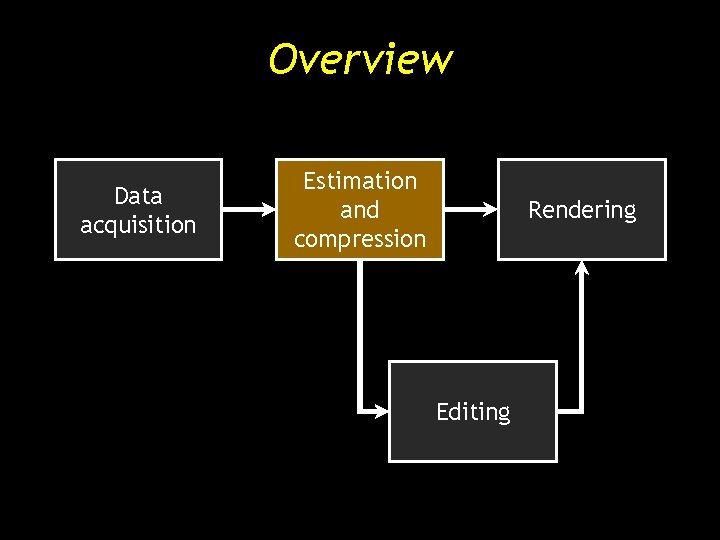

Overview Data acquisition Estimation and compression Rendering Editing

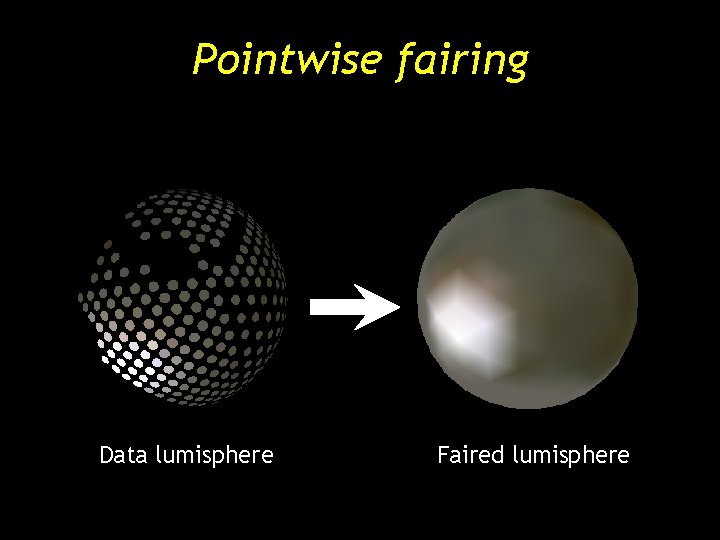

Pointwise fairing Data lumisphere Faired lumisphere

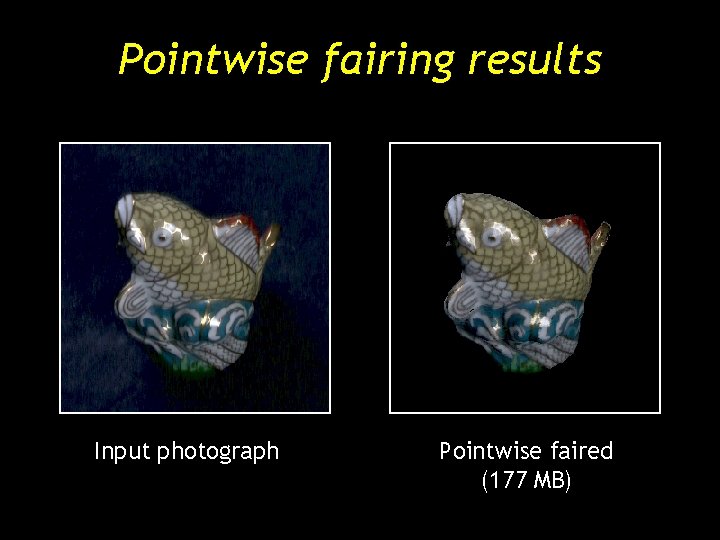

Pointwise fairing results Input photograph Pointwise faired (177 MB)

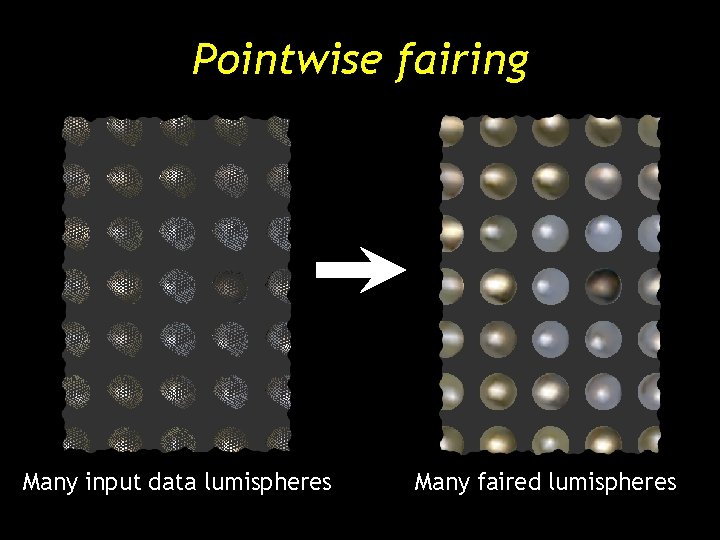

Pointwise fairing Many input data lumispheres Many faired lumispheres

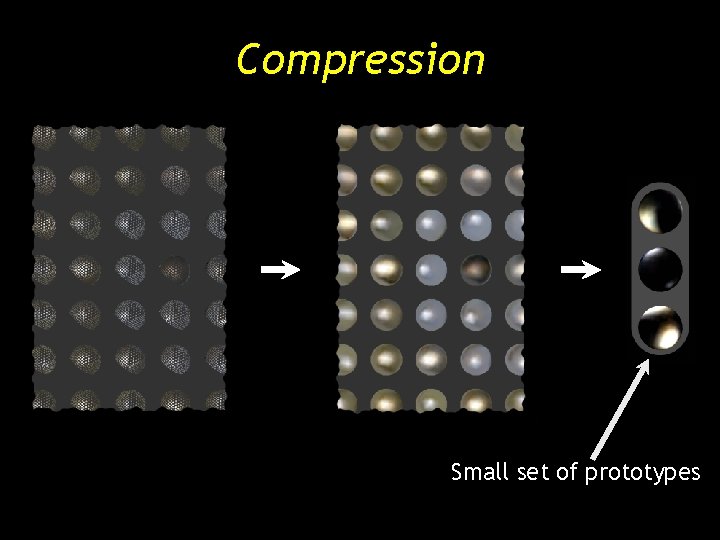

Compression Small set of prototypes

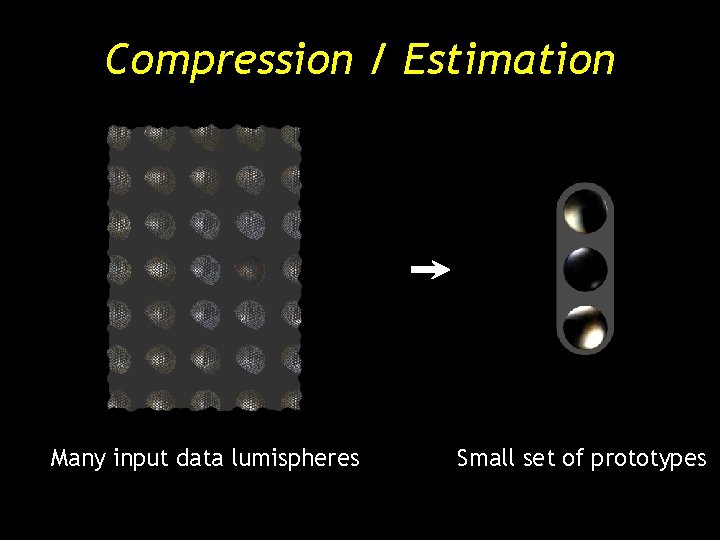

Compression / Estimation Many input data lumispheres Small set of prototypes

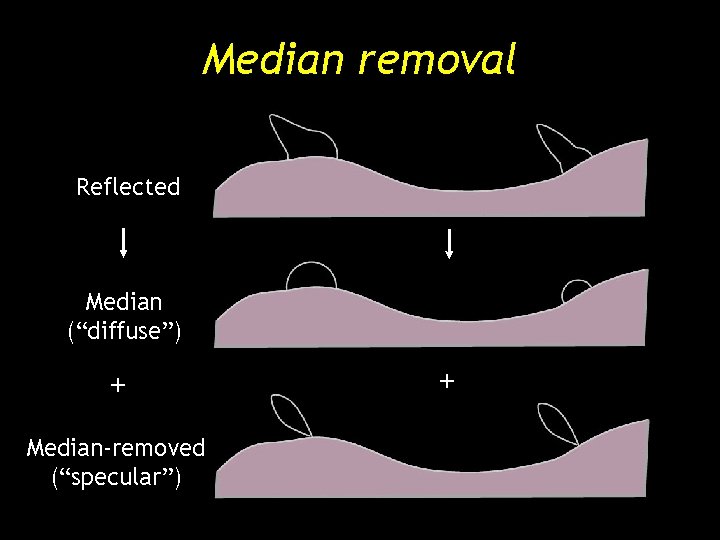

Median removal Reflected Median (“diffuse”) + Median-removed (“specular”) +

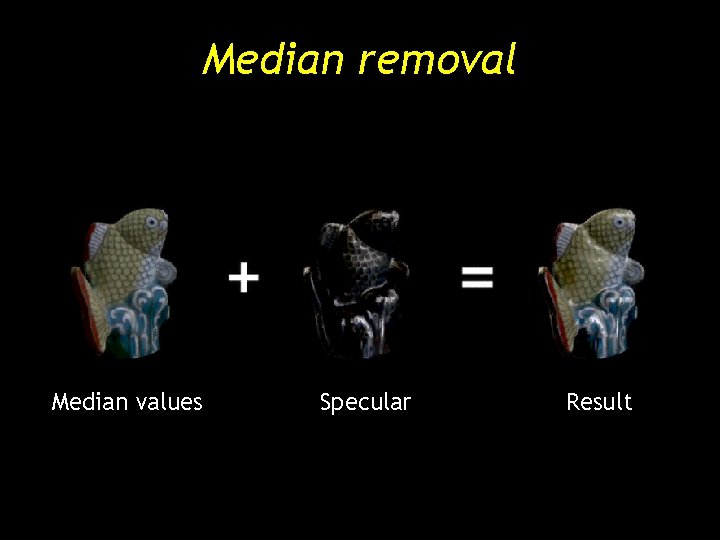

Median removal Median values Specular Result

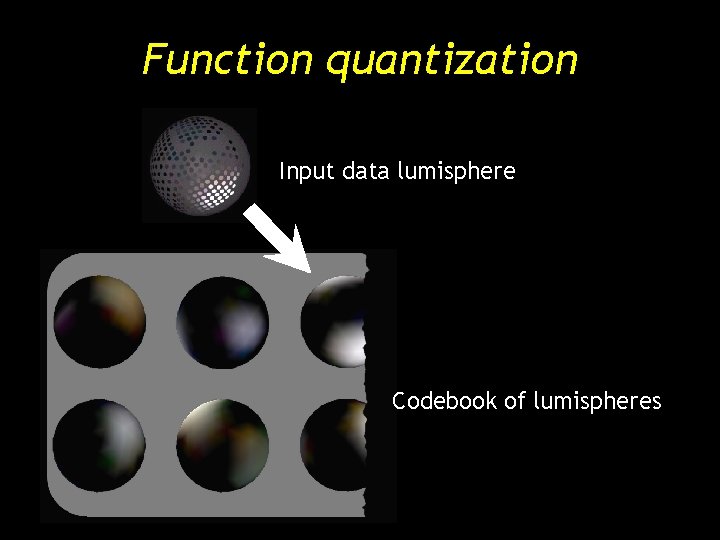

Function quantization Input data lumisphere Codebook of lumispheres

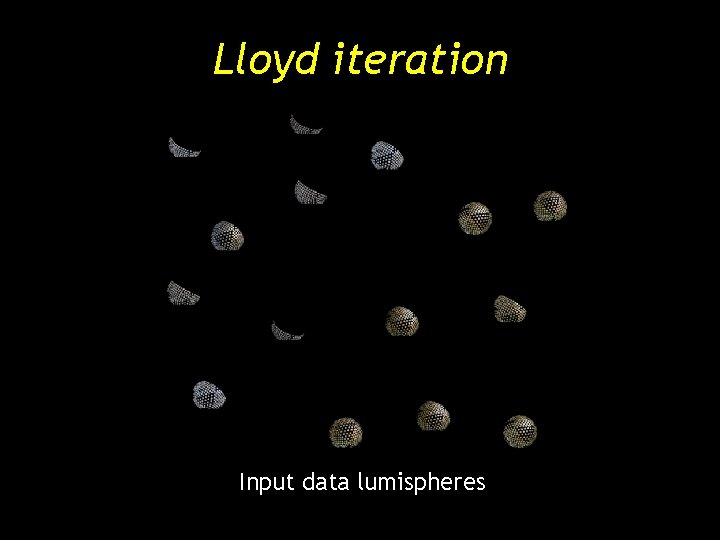

Lloyd iteration Input data lumispheres

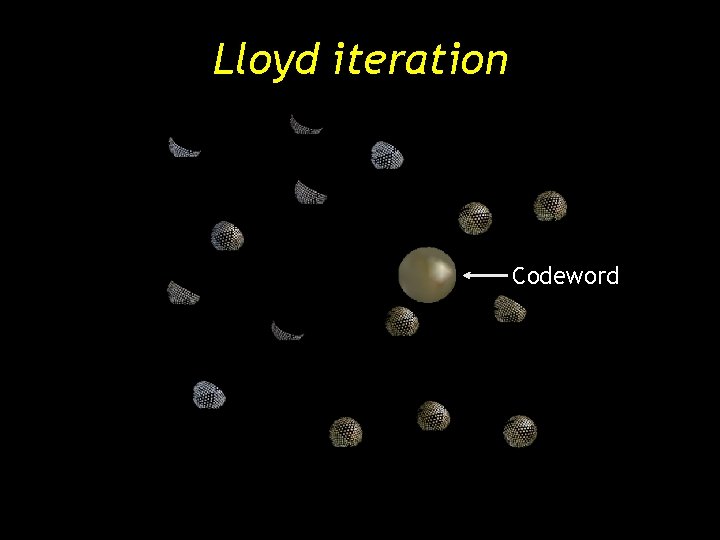

Lloyd iteration Codeword

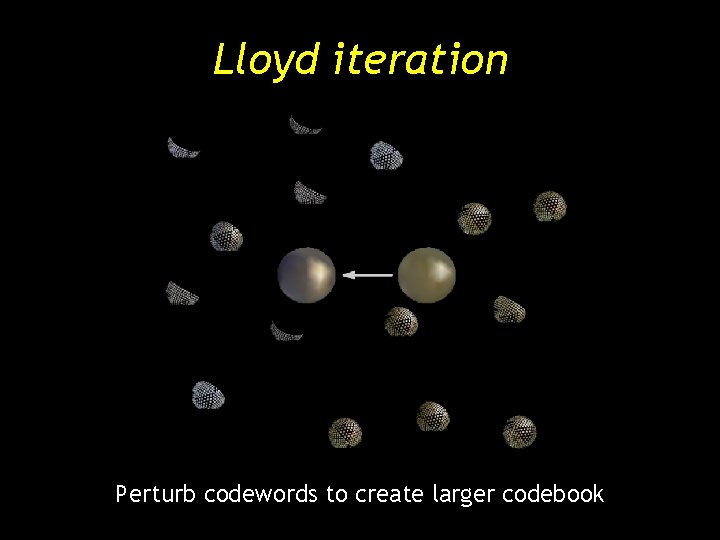

Lloyd iteration Perturb codewords to create larger codebook

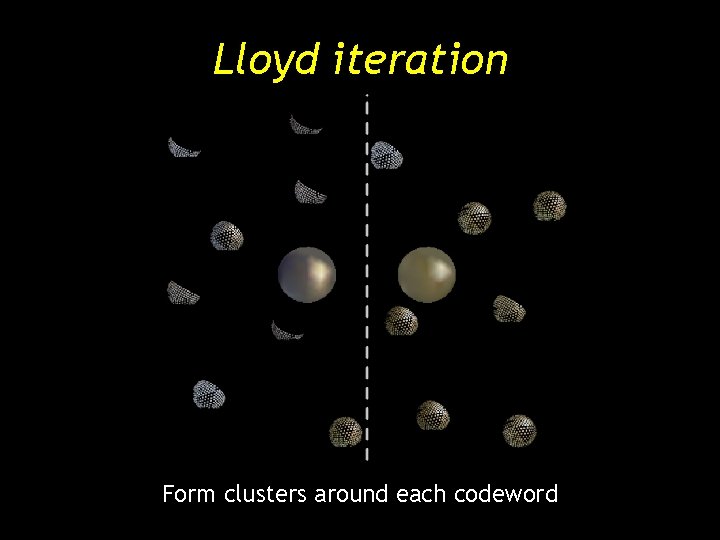

Lloyd iteration Form clusters around each codeword

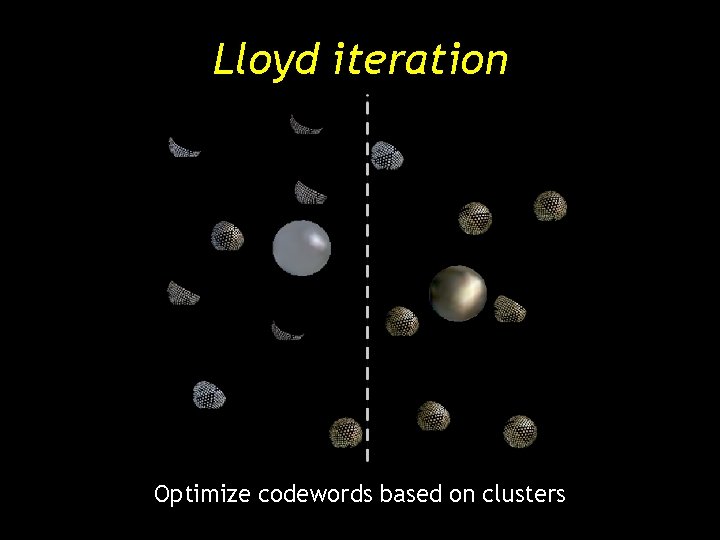

Lloyd iteration Optimize codewords based on clusters

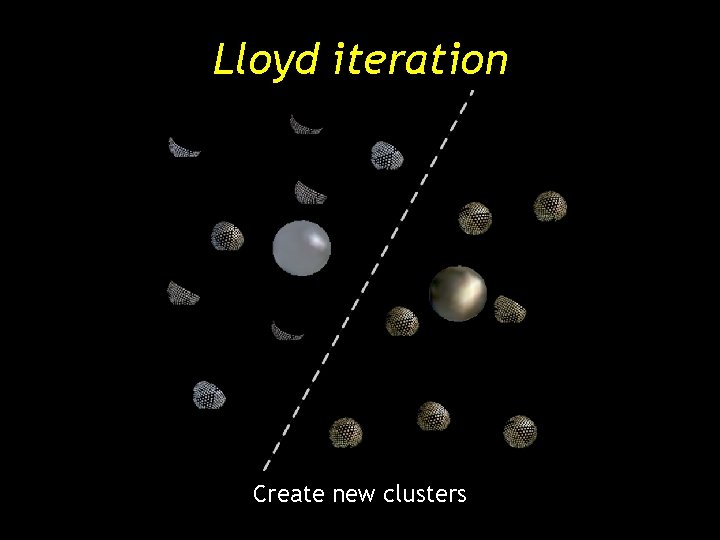

Lloyd iteration Create new clusters

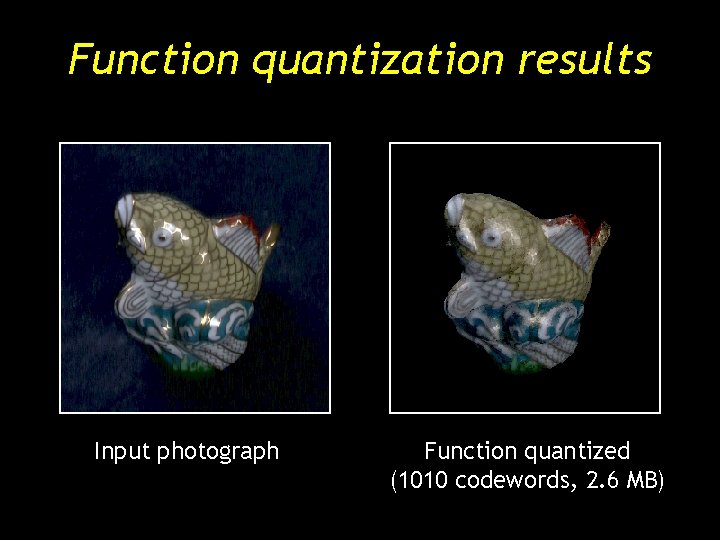

Function quantization results Input photograph Function quantized (1010 codewords, 2. 6 MB)

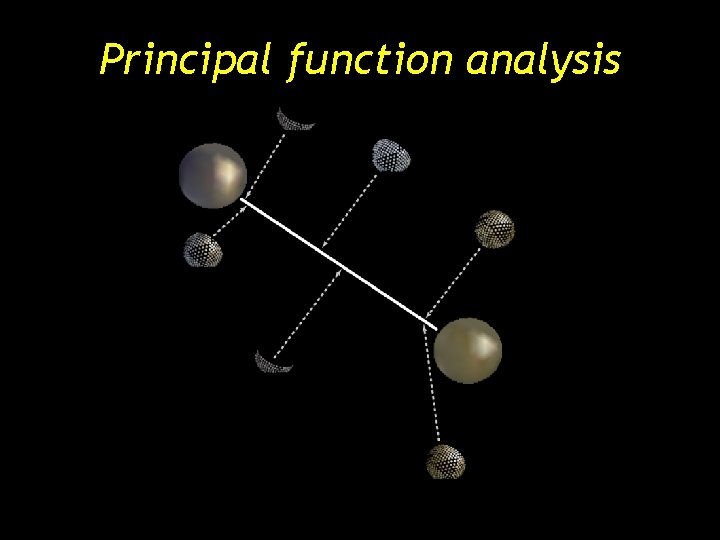

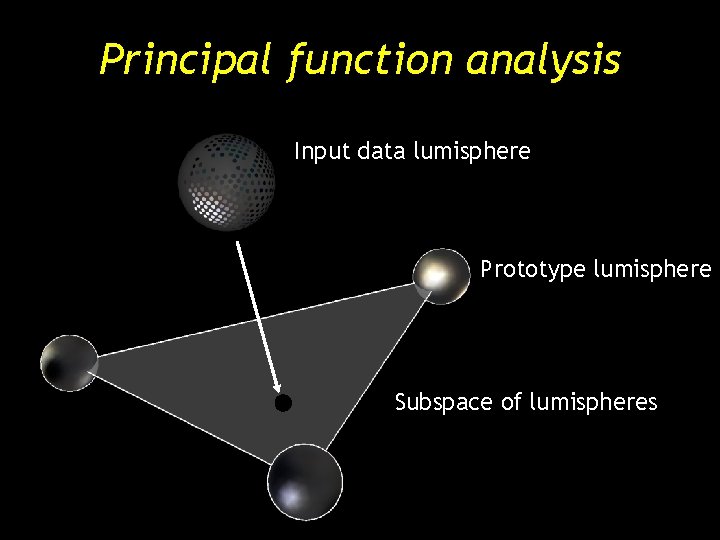

Principal function analysis Input data lumisphere Prototype lumisphere Subspace of lumispheres

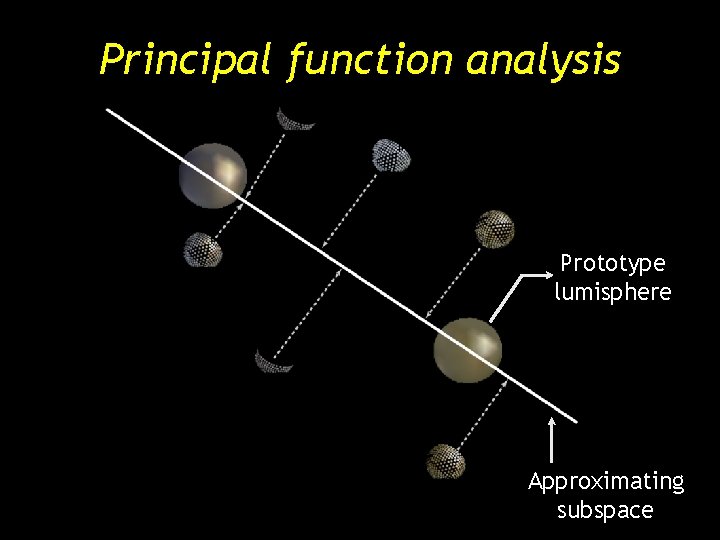

Principal function analysis Prototype lumisphere Approximating subspace

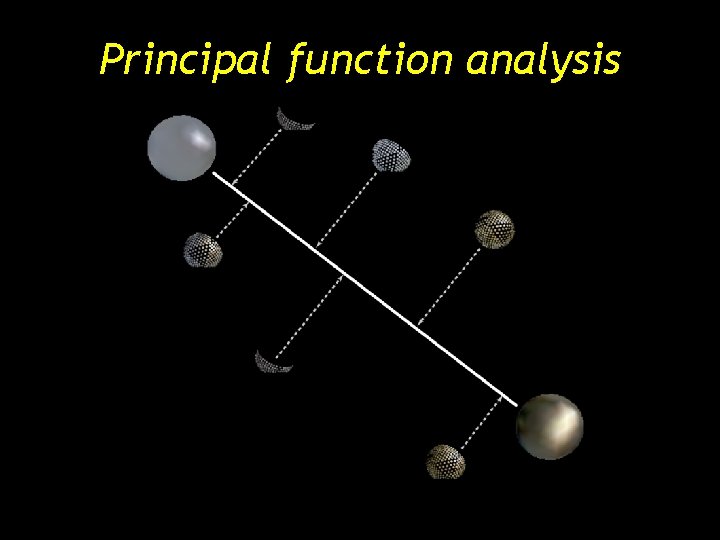

Principal function analysis

Principal function analysis

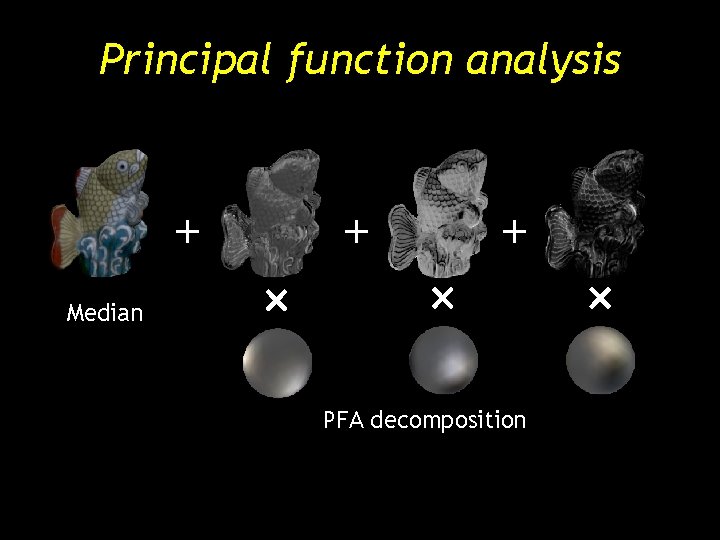

Principal function analysis + Median + + PFA decomposition

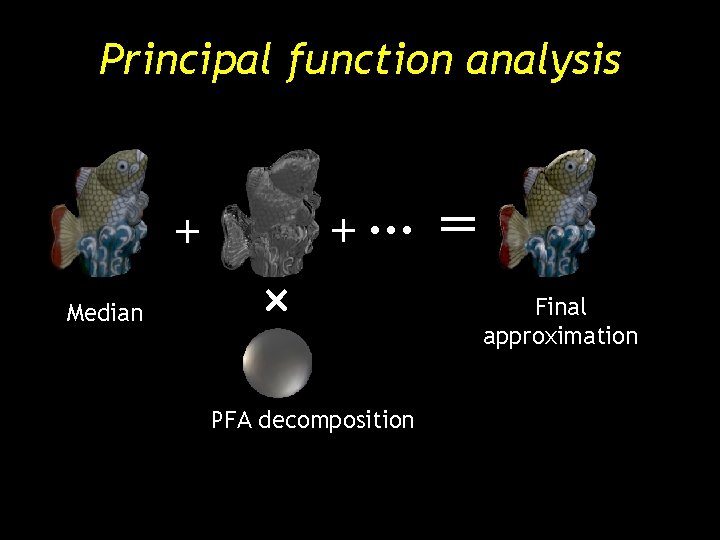

Principal function analysis +… + Median PFA decomposition = Final approximation

Principal function analysis results Input photograph PFA compressed (Order 5 - 2. 5 MB)

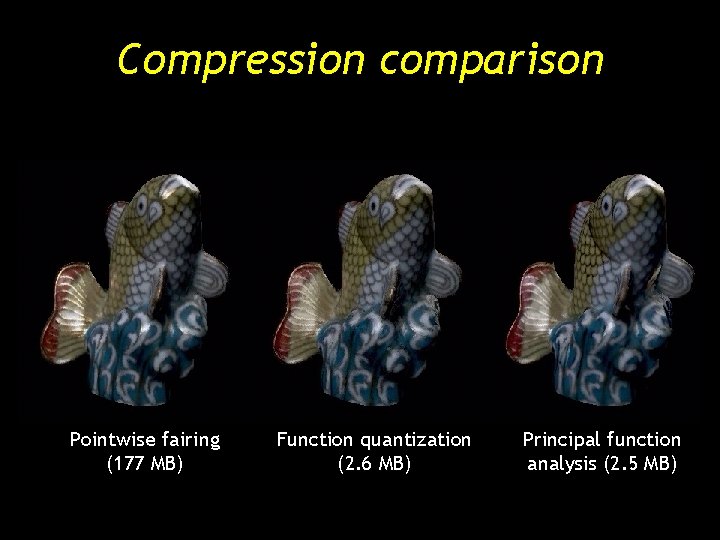

Compression comparison Pointwise fairing (177 MB) Function quantization (2. 6 MB) Principal function analysis (2. 5 MB)

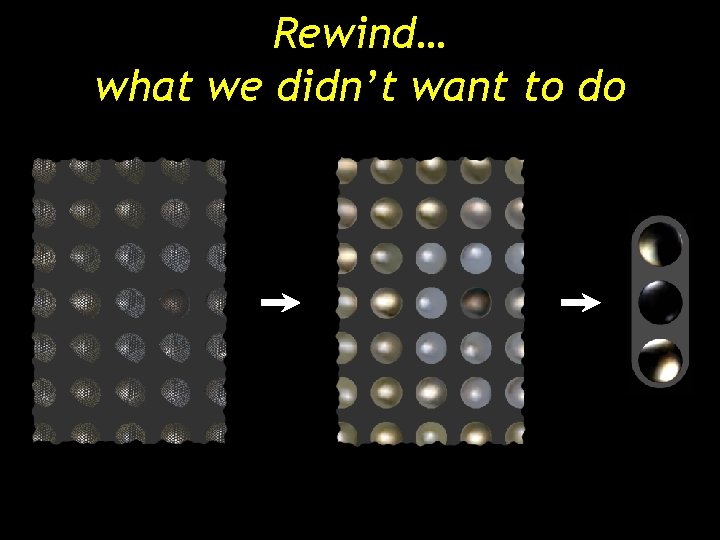

Rewind… what we didn’t want to do

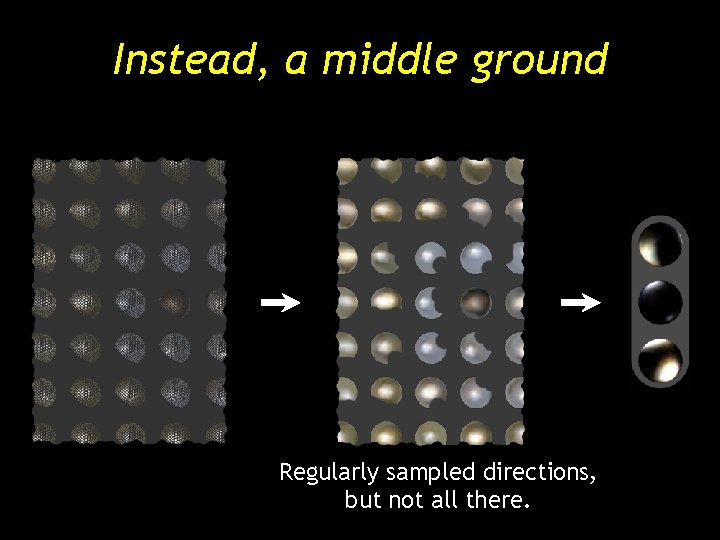

Instead, a middle ground Regularly sampled directions, but not all there.

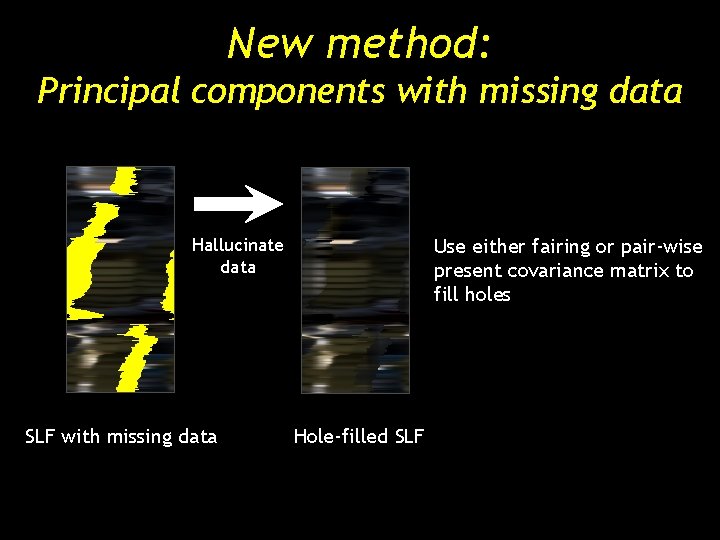

New method: Principal components with missing data Hallucinate data SLF with missing data Use either fairing or pair-wise present covariance matrix to fill holes Hole-filled SLF

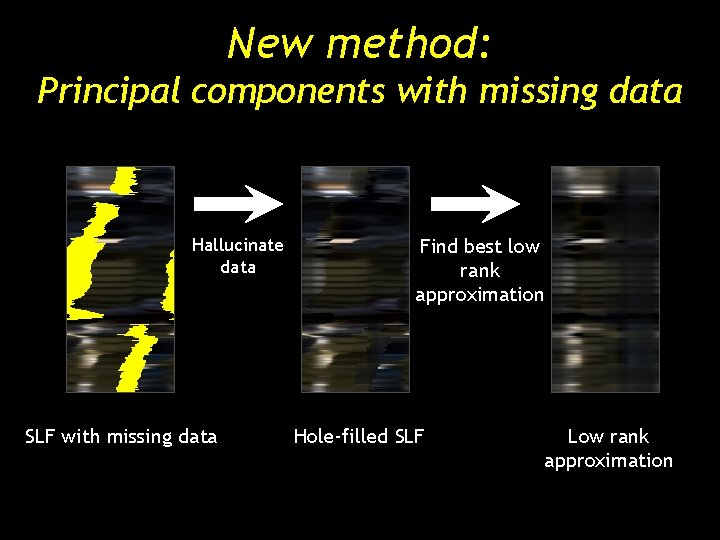

New method: Principal components with missing data Hallucinate data SLF with missing data Find best low rank approximation Hole-filled SLF Low rank approximation

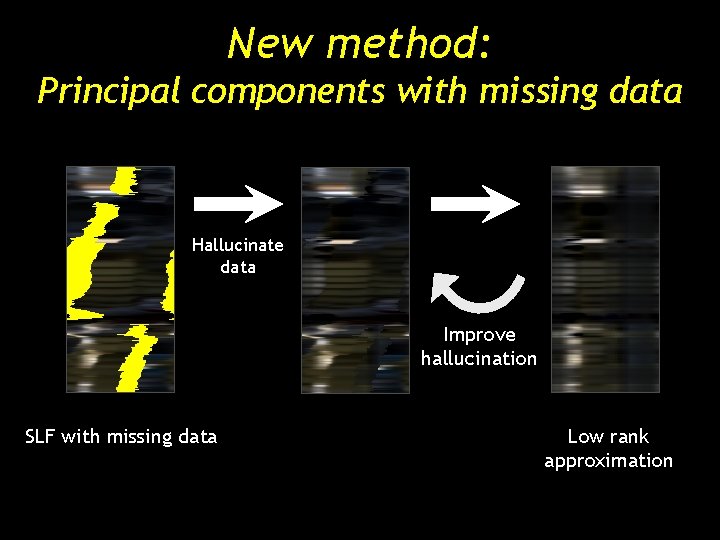

New method: Principal components with missing data Hallucinate data Improve hallucination SLF with missing data Low rank approximation

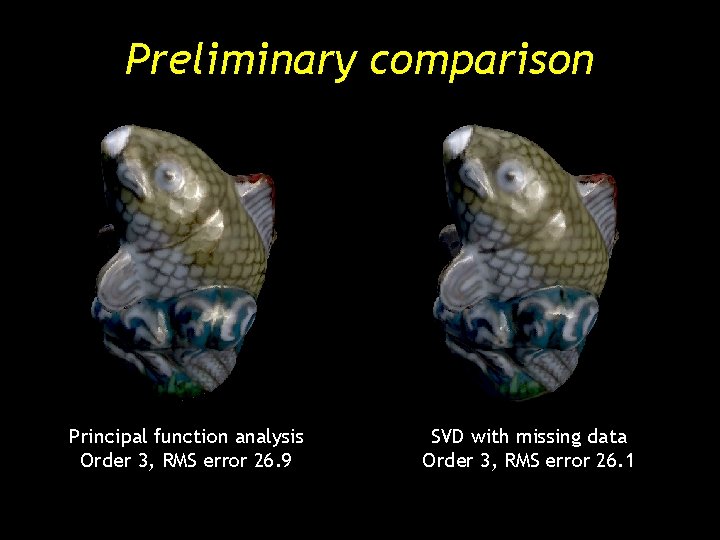

Preliminary comparison Principal function analysis Order 3, RMS error 26. 9 SVD with missing data Order 3, RMS error 26. 1

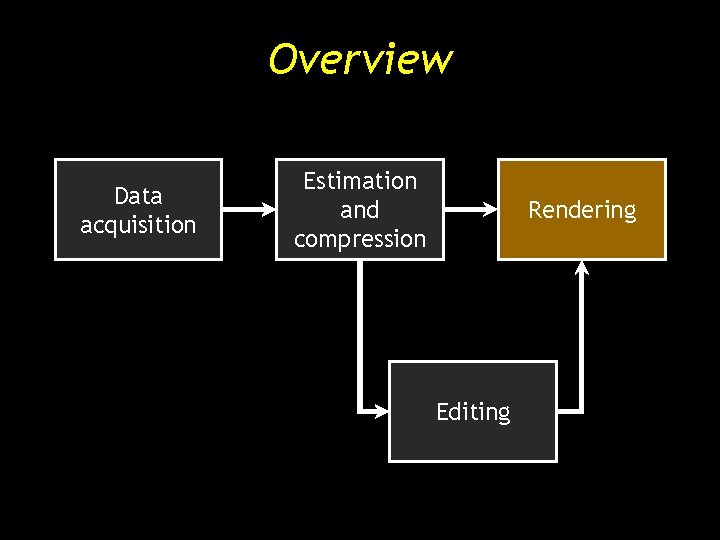

Overview Data acquisition Estimation and compression Rendering Editing

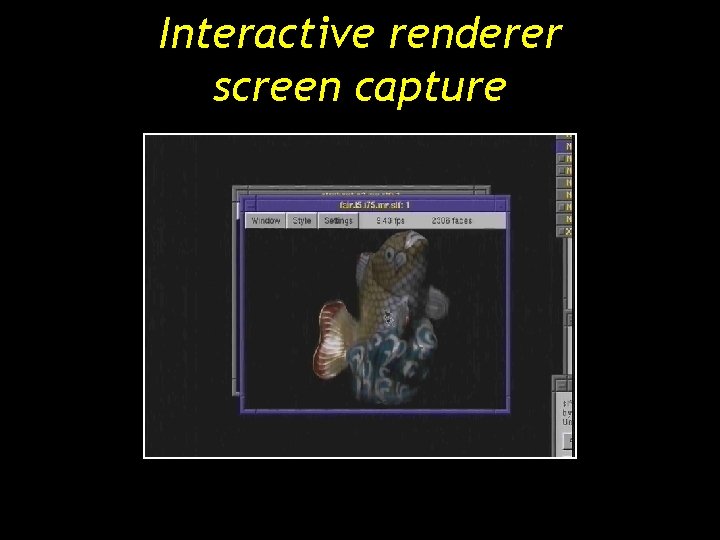

Interactive renderer screen capture

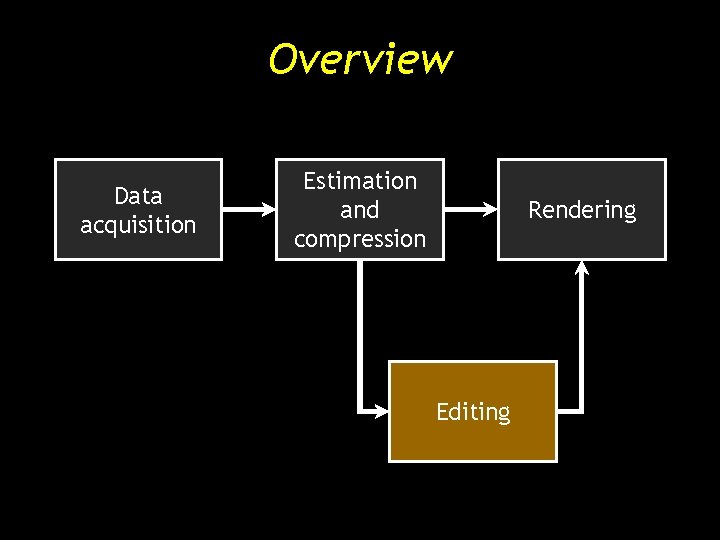

Overview Data acquisition Estimation and compression Rendering Editing

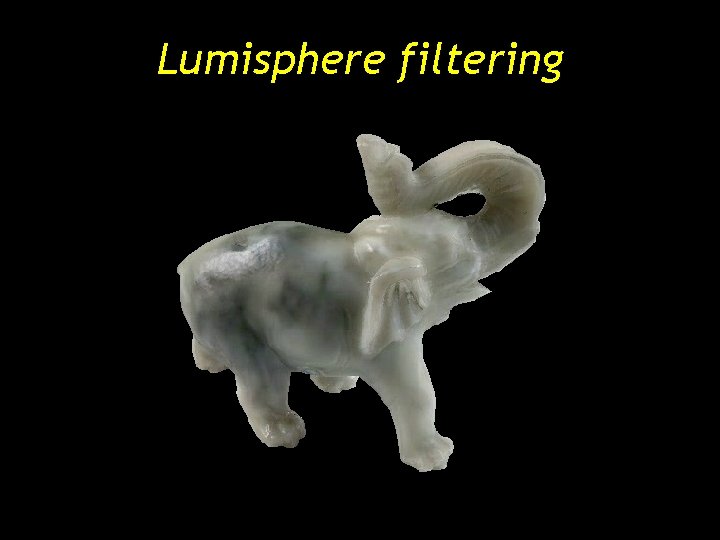

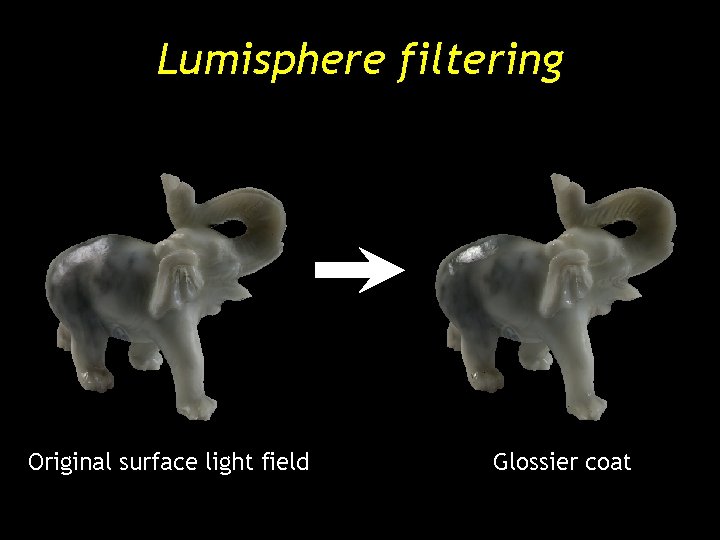

Lumisphere filtering Original surface light field Glossier coat

Lumisphere filtering

Rotating the environment Original surface light field Rotated environment

Deformation Original Deformed

Deformation

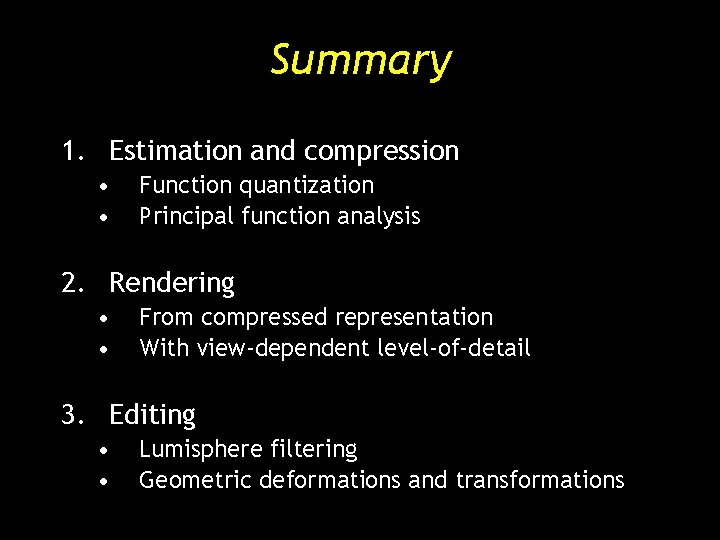

Summary 1. Estimation and compression • • Function quantization Principal function analysis 2. Rendering • • From compressed representation With view-dependent level-of-detail 3. Editing • • Lumisphere filtering Geometric deformations and transformations

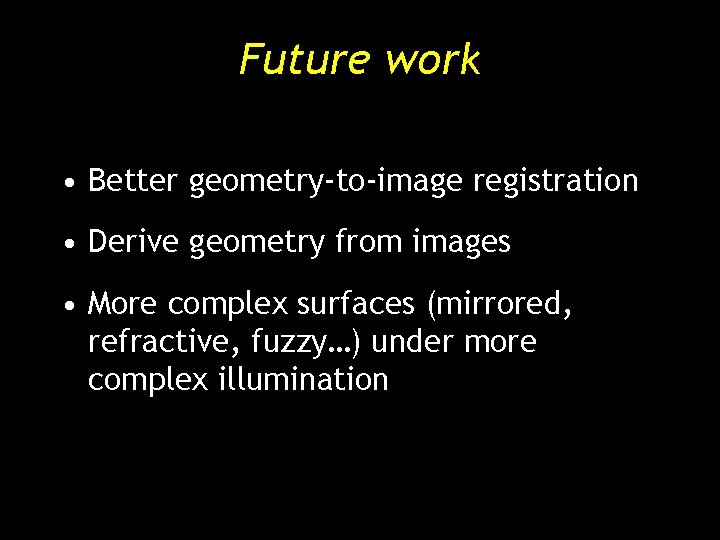

Future work • Better geometry-to-image registration • Derive geometry from images • More complex surfaces (mirrored, refractive, fuzzy…) under more complex illumination

Acknowledgements • Marc Levoy and Pat Hanrahan – (Thanks for the use of the Stanford Spherical Gantry) • Michael Cohen and Richard Szeliski • National Science Foundation

Nearly the end

For more information http: //graphics. washington. edu/projects/slf Talks, papers, … and raw data.
