WHY USE REMOTE CONTROL DRILLS? SURFACE DRILLS A turn-key remote solution to improve the safety and productivity of operating surface drills in dangerous areas. § § § Get maximum production from your mine Continue with operations, safely, where there is wall instability Ensure the safety of operators at all times Get the optimal use from your drill fleet Get more value from your mine

SAFETY FOR OPERATORS AND EQUIPMENT SURFACE DRILLS Improve your equipment safety, increase operator efficiency and maximise your fleet productivity with RCT’s comprehensive range of control and automation solutions for drills. § § § § Line-of-Sight Remote Controls Teleremote Control Systems Operator Stations Communications Setup Barrier Systems Test and Service Kits Skills Training (Operator and Maintenance) Transmitter On-board machine receiver On-board machine interface

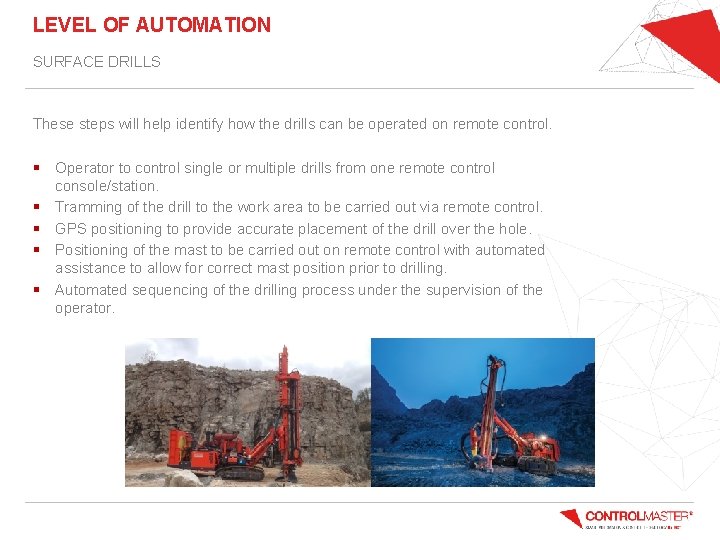

LEVEL OF AUTOMATION SURFACE DRILLS These steps will help identify how the drills can be operated on remote control. § Operator to control single or multiple drills from one remote control § § console/station. Tramming of the drill to the work area to be carried out via remote control. GPS positioning to provide accurate placement of the drill over the hole. Positioning of the mast to be carried out on remote control with automated assistance to allow for correct mast position prior to drilling. Automated sequencing of the drilling process under the supervision of the operator.

STEPS TO AUTOMATION SURFACE DRILLS 1. Remote Control Transmitter/receiver Drill cameras and lights Drill logics package Teleremote video transmitter/receiver package Electrical interface Skills training Drill compatible with remote control integration 2. Teleremote communications system Operator stations Barrier systems Skills training 3. Automation Navigation positioning technologies Drill data logging Automated set point drilling via GPS positioning

TELEREMOTE DRILL SOLUTIONS SURFACE DRILLS 1 2 Outline and agree to scope of project 4 Engineering design and drafting to meet remote specifications 7 3 Drill assessment, technical hardware assessment and site analysis 5 Operator skills training. Maintenance skills training Decision on drill hardware, software and work area components Teleremote option Manufacturing, test and commissioning. Drafting of technical manuals 8 6 Drill onsite install testing and commissioning. Customer handover After sales product support and scheduled maintenance 9 Ongoing customer service, product and parts support

DRILL REMOTE EQUIPMENT SURFACE DRILLS

DRILL REMOTE EQUIPMENT SURFACE DRILLS

DRILLS WITH REMOTE CONTROL SOLUTIONS SURFACE DRILLS To date, RCT has provided remote control solutions to drills including: DRILLS § Sandvik: COMMANDO 300 DC § Atlas Copco: SIMBA § Bucyrus: SKSS-16 § Caterpillar: MD 6240 § Cubex § Gardner Denver: MK 10 § Maclean: BH-3 § Tamrock: Monomatic LLSBR § Terex: SKSS Series

PROJECT STRUCTURE SURFACE DRILLS Automation Software Control & Automation Solutions Integration of Enabling Technologies Drill Control Systems Drill Data Logging & Monitoring Automation Hardware Support

OPERATOR STATION SOLUTIONS SURFACE DRILLS Single Control Station Multi-Control Station Surface Control Stations

OPERATOR COMFORT FOR IMPROVED SAFETY SURFACE DRILLS Ensure your operators can work effectively from a well-equipped Operator Surface Solution. § Climate control § Window treatments § Air filtration management § IP, fibre optic and mesh communication § Diesel powered generator § Network ready § Auxiliary power management systems § PPE Storage § Ergonomically designed § Fridge operator console and chair § Vision monitors and vision management system § Sound system § Site specific requirements i. e. , decals, lighting and fire extinguishers

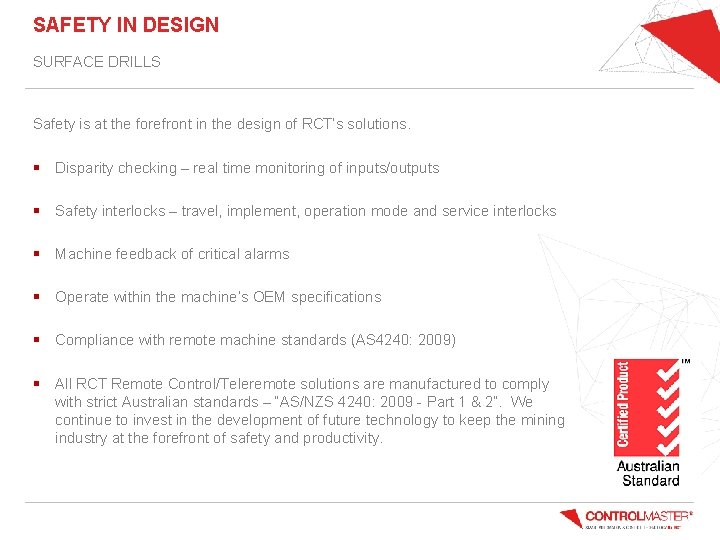

SAFETY IN DESIGN SURFACE DRILLS Safety is at the forefront in the design of RCT’s solutions. § Disparity checking – real time monitoring of inputs/outputs § Safety interlocks – travel, implement, operation mode and service interlocks § Machine feedback of critical alarms § Operate within the machine’s OEM specifications § Compliance with remote machine standards (AS 4240: 2009) § All RCT Remote Control/Teleremote solutions are manufactured to comply with strict Australian standards – “AS/NZS 4240: 2009 - Part 1 & 2”. We continue to invest in the development of future technology to keep the mining industry at the forefront of safety and productivity.

PROJECT – POLYUS’ OLIMPIADA MINE SURFACE DRILLS § RCT is currently working on a project with Russia’s Caterpillar dealer, Vostochnaya Technica at Polyus’ Olimpiada surface mine, Russia. § RCT is designing, manufacturing and installing eight Control. Master® solutions on: Caterpillar trucks (x 5), shovel (x 1), dozer (x 1) and drill (x 1). § The project is a crucial turning point for the mine’s transition into an autonomous machine operation.

PROJECT – POLYUS’ OLIMPIADA MINE SURFACE DRILLS § RCT’s custom-made drill console will mimic all the functions of the Atlas Copco DMC Series drill that was being utilised onsite. § The console consists of four joysticks which can be used over four different modes to perform 50 functions. § It was an important requirement that the icons would translate well to Russian, but also have a universal meaning. Therefore, ISO symbols were used for main functions and all text displaying on the screen itself is multilingual, to cater for its client in Russia and around world.

SUPPORT FOR YOUR SOLUTION SURFACE DRILLS RCT supports customers in over 64 countries worldwide. RCT is a full service company offering the complete safety and productivity package of skills training, parts supply, technical support and customer service support with all its proprietary products. § OEM maintenance agreement § Servicing documentation § Auditing and installation § Operator training § Operational servicing § Maintenance training § Preventive maintenance § Service exchange equipment § Customised servicing schedule

OPERATOR AND MAINTENACE SKILLS TRAINING SURFACE DRILLS Get the most from your investment with RCT’s comprehensive range of training courses. § Well trained personnel can better use, maintain and service remote and § § Teleremote equipment Knowledgeable personnel can minimise equipment downtime by diagnosing and fixing a problem more efficiently Allows mine sites to be more self sufficient

OPERATOR AND MAINTENACE SKILLS TRAINING SURFACE DRILLS Training courses include a range of levels to suit your solution and your requirements. Courses available: § Level 1 (Safe Operating Procedures) § Level 2 (Safe Testing Procedures and Service) § Level 3 (Teleremote Communication Systems) § Level 4 (Internal Programming/Testing Procedures) § Level 5 (Internal Servicing Procedures)

A TURN-KEY SOLUTION SURFACE DRILLS RCT will supply a turn-key remote solution to improve the safety and productivity of operating surface drills in hazardous areas. RCT is committed to providing the following for all our customers: § Industry leading technology backed by over 45 years of industry experience in providing safe, reliable and productive remote control solutions § A global customer service, parts and supply network § R&D and technical support for future product integration with automation § On demand after sales service, product support, maintenance and skills training

PROVEN EXPERIENCE SURFACE DRILLS § RCT’s remote solutions are comprehensive integrated with the OEM machine § § § systems They are robust, serviceable and proven in the field Nothing we do is a prototype or experimental If we cannot provide a turn-key solution from supply to installation and commissioning, with operator and service training, we will not accept the project/job
