Supreme Power Engine Basics The four cycle engine

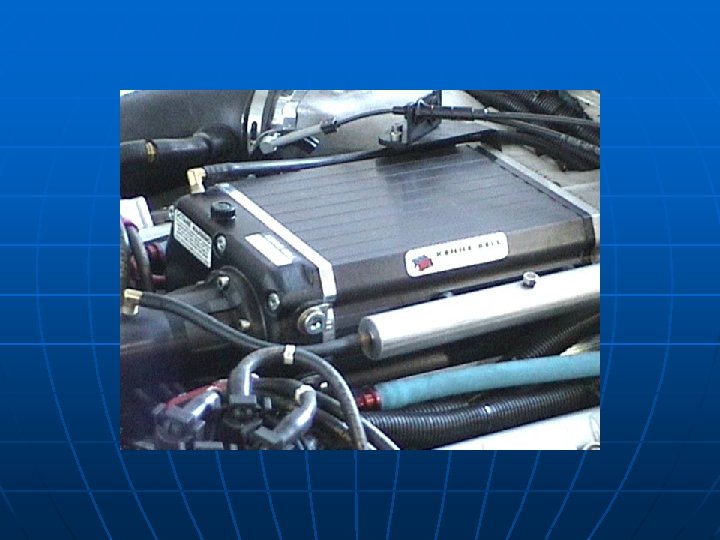

Supreme Power
Engine Basics The four cycle engine
Engine Operation The Otto Cycle engine
Properties of Combustion Air Fuel Spark/heat source

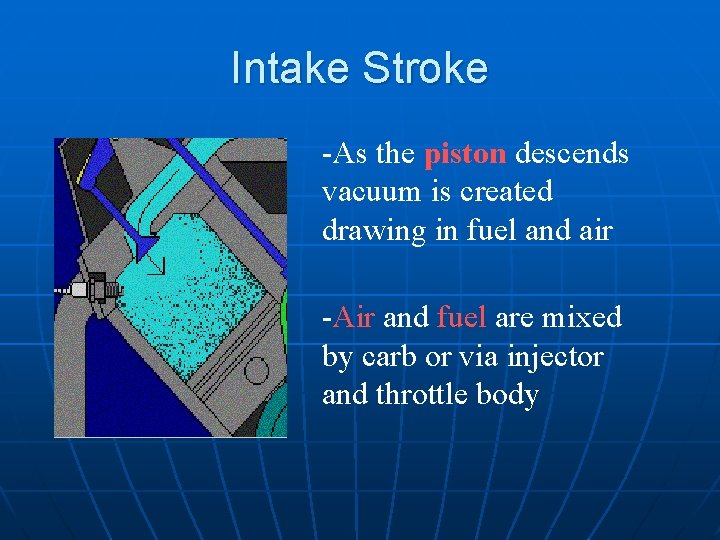

Intake Stroke -As the piston descends vacuum is created drawing in fuel and air -Air and fuel are mixed by carb or via injector and throttle body
Air/Fuel Mixture
Intake Stroke -Atomized fuel enters the combustion chamber via the intake valve the exhaust valve remains closed

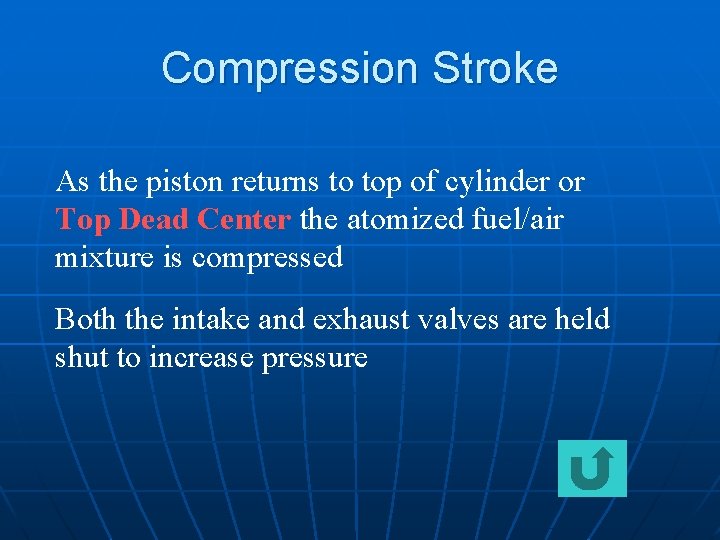

Compression Stroke As the piston returns to top of cylinder or Top Dead Center the atomized fuel/air mixture is compressed Both the intake and exhaust valves are held shut to increase pressure

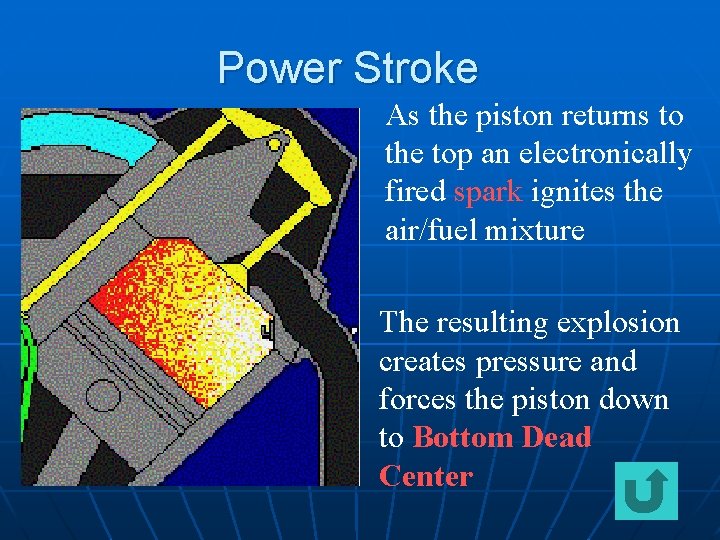

Power Stroke As the piston returns to the top an electronically fired spark ignites the air/fuel mixture The resulting explosion creates pressure and forces the piston down to Bottom Dead Center

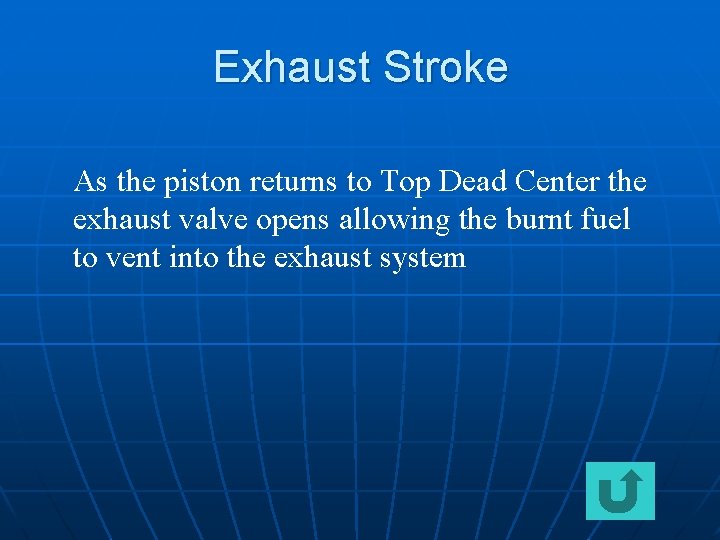

Exhaust Stroke As the piston returns to Top Dead Center the exhaust valve opens allowing the burnt fuel to vent into the exhaust system

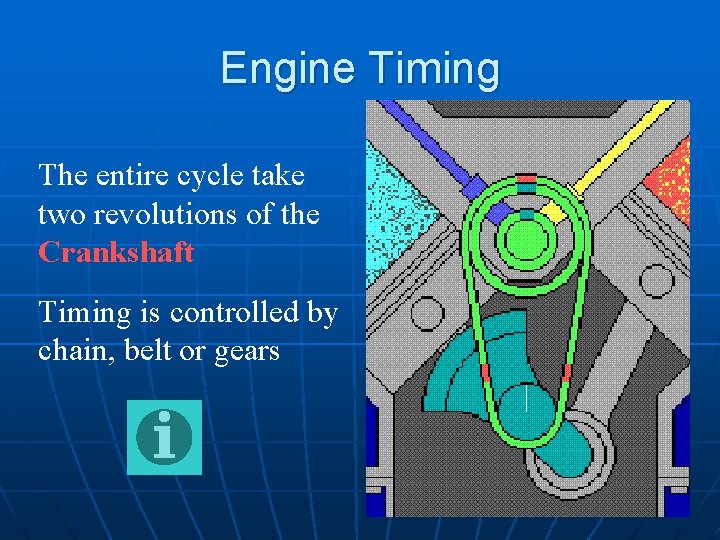

Engine Timing The entire cycle take two revolutions of the Crankshaft Timing is controlled by chain, belt or gears

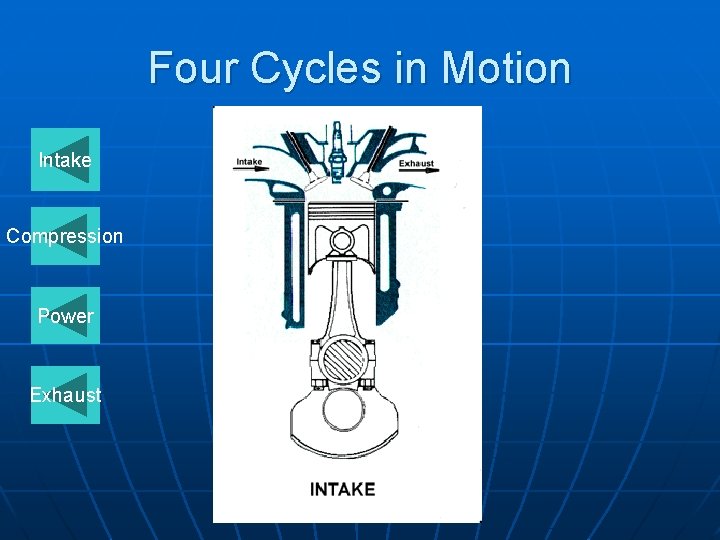

Four Cycles in Motion Intake Compression Power Exhaust
Four Cycles in Motion Intake Compression Power Exhaust
Linear Motion into Rotational Force

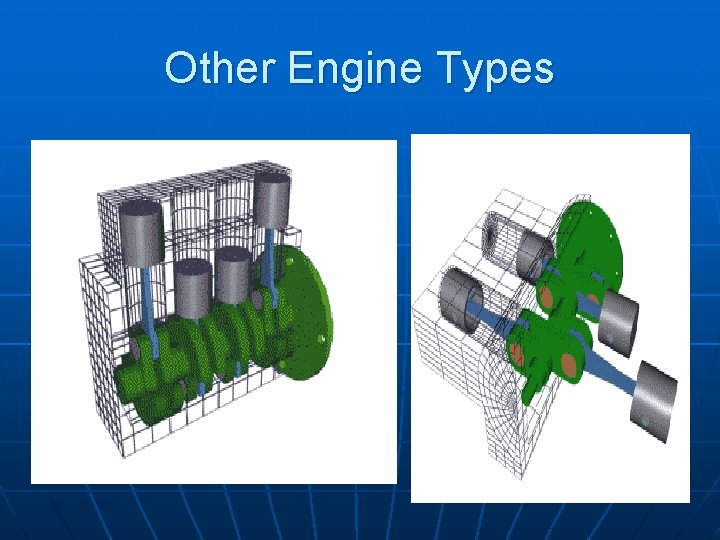

Other Engine Types

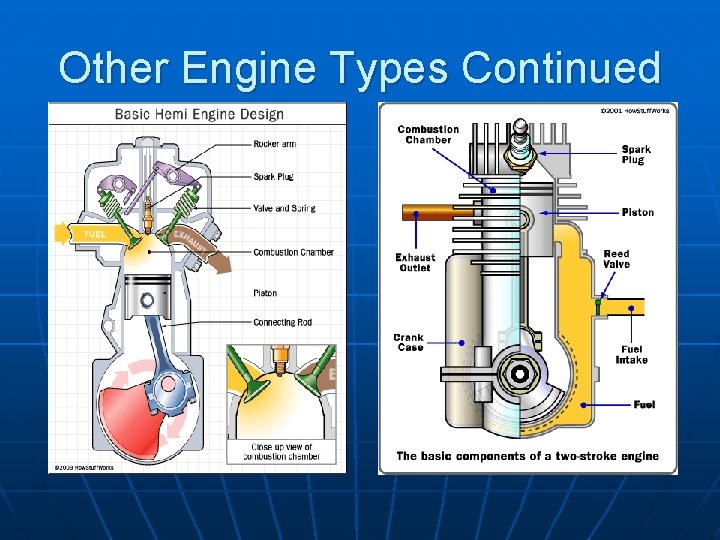

Other Engine Types Continued

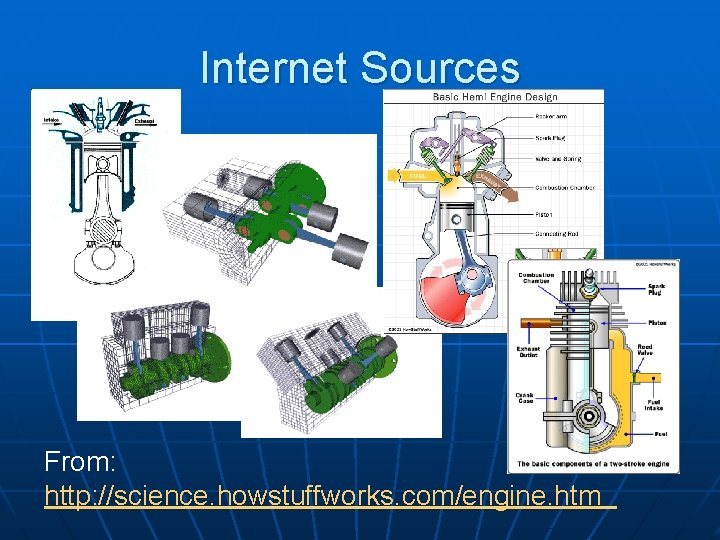

Internet Sources From: http: //science. howstuffworks. com/engine. htm
Internet Sources From http: //www. autoshoponline. com/auto 101/eng 1. html

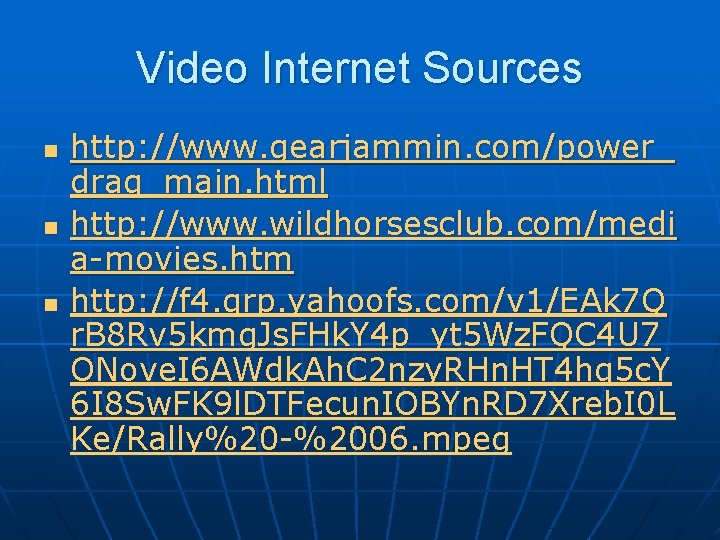

Video Internet Sources n n n http: //www. gearjammin. com/power_ drag_main. html http: //www. wildhorsesclub. com/medi a-movies. htm http: //f 4. grp. yahoofs. com/v 1/EAk 7 Q r. B 8 Rv 5 kmg. Js. FHk. Y 4 p_yt 5 Wz. FQC 4 U 7 ONove. I 6 AWdk. Ah. C 2 nzy. RHn. HT 4 hq 5 c. Y 6 I 8 Sw. FK 9 l. DTFecun. IOBYn. RD 7 Xreb. I 0 L Ke/Rally%20 -%2006. mpeg
