Supra Scan RECIPE Ingredients 1 a Supra And
- Slides: 68
Supra Scan?
RECIPE
Ingredients: 1) a Supra And / Or
Ingredients: 2) a Scanner
Ingredients: 3) a Slit Lamp Adapter
Ingredients: 4) a Haag Streit Slit Lamp
The QM concept :
A Scanner Adapter
Product
A simple copy of the PASCAL ?
Wavelenght
Wavelengths 2 complementary wavelengths! The Scanner can be multi wavelengths Green 532 nm For periphery Yellow 577 nm For macular area Only 532 nm
Wavelengths Compatibility
Powerfull!

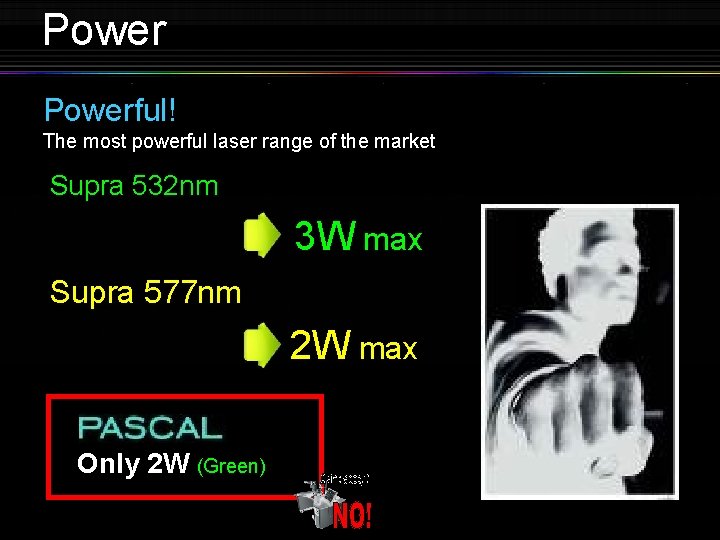

Powerful! The most powerful laser range of the market Supra 532 nm 3 W max Supra 577 nm 2 W max Only 2 W (Green)
Continuous zoom
Continuous Zoom Allow any spot size from 50 to 500µ Just turn!!! Only 4 fixed steps 60, 100, 200, 400µ
Patterns
Patterns 5 differents patterns as the PASCAL:
Patterns Symmetrical patterns Homogenous treatment Non Symmetrical patterns Fixed patterns
µpulse mode
Emission mode combinations Combine the µpulse mode & the scanner Simplify µpulse treatments (QM exclusivity) The treatment is no longer a « blind treatment » Doctor can proceed to « treatment areas »
Emission mode combinations Combine the µpulse mode & the scanner Simplify µpulse treatments (QM exclusivity) Ex: macular edema No µpulse mode
Ergonomics

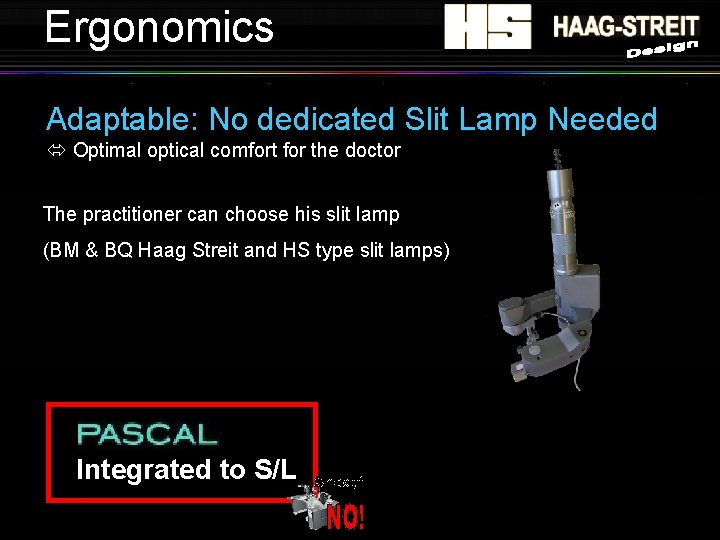

Ergonomics Adaptable: No dedicated Slit Lamp Needed Optimal optical comfort for the doctor The practitioner can choose his slit lamp (BM & BQ Haag Streit and HS type slit lamps) Integrated to S/L
Ergonomics Haag-Streit type slit lamp adapter The reference Higher definition and better illumination: Better anterior chamber illumination Better peripheral vision (posterior pole) S/L: Zeiss Type
Transportable
Light weight & small footprint The first scanner transportable Dedicated carrying case provided with the Supra Scan:
Scanner: Basics
Scanner Basics No more predefined treatment parameters New way of treatment Power levels are quite variable Very short pulse durations: 10 ms / 20 ms Very very short pulse duration: µpulse mode Doctor determine the treatment threshold (With the coloration of the impacts on the retina)
TITRATE First step: Titrate / Single Spot Doctor start to shoot on the retina until he reaches the correct coloration
TITRATE Subthreshold Barely Visible etc… White Burn
PATTERN SELECTION Second Step: Pattern Selection A pattern for each Practice / Pathology
PATTERNS
CIRCLES Possible applications: Tears
TRIPLE ARCS Possible applications: PRP in periphery
SQUARES Possible applications: 2 x 2 3 x 3 4 x 4 5 x 5 PRP
MACULAR GRID Application: Macular Edema
Software

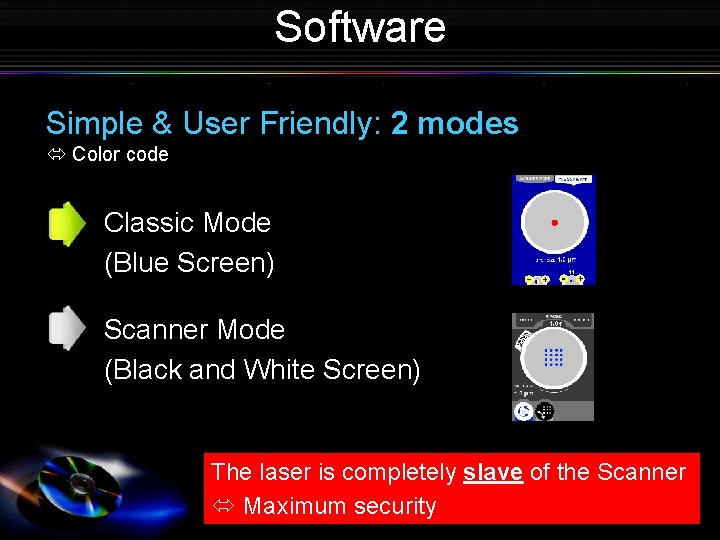

Software Simple & User Friendly: 2 modes Color code Classic Mode (Blue Screen) Scanner Mode (Black and White Screen) The laser is completely slave of the Scanner Maximum security
Software: Classic Mode
Software: Pattern Mode
Software: Welcome Page Scanner Mode Classic Mode
Software: Titrate Power level Titrate
Software: Patterns : Circle Spacing Pattern Selection Spot Size Radius Rotation Tears 1/4 - 1/8 / … Complete Circle
Software: Patterns : Triple Arc Extension Reduction PRP in periphery
Software: Patterns : Square 2 x 2 3 x 3 4 x 4 5 x 5 Extension Reduction PRP
Software: Patterns : Macular Grid Central Fixation Point Macular Edema
Launching
DEADLINE
BOOTH

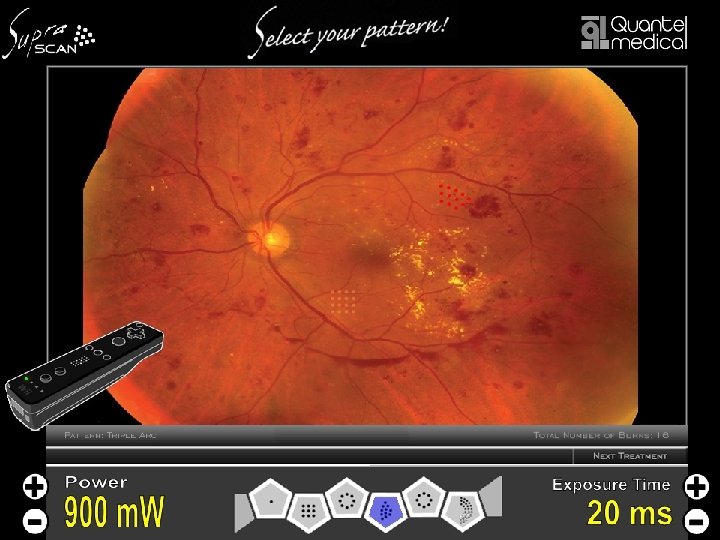

BOOTH 2 Supra Scan Large Screen Supra Video - Wavelength reminder - Pulse durations reminder - Scanner presentation Wiimote Photocoagulation
Availibility… For the very first time by Quantel Medical: PRODUCT LAUNCHING PRODUCT AVAILABLE
BROCHURE
CLINICAL EVALUATIONS AVAILABLE !!! Effect of Pulse duration on size and character of the lesion and character of the lesion in retinal photocoagulation Pain response and follow-up of patients indergoing PRP laser photocoagulation with reduced exposure times Other studies will start shortly…
Availability
AVAILABILITY Last quarter 09: Very few. . . 15 Only pieces First come, First served !
Competition
Wavelength(s) 532 nm or 577 nm Only 532 nm 3 W or 2 W 2 W 2 W 10 ms to "continuous" 10 ms – 1000 ms Yes No No Continous Zoom Fixed steps - Classic Mode from 50 to 500µm 60, 100, 200, 400µm - Pattern Mode from 100 to 500µm 100, 200, 400µm ≠ Patterns Nb of Patterns : 5 Squares, Nb of Patterns : 5 Squares, Circles, Triple Arcs, Macular Grid, Single Spot Circles, Triple Arcs, Macular Grid, Single Spot Squares, Circles, Triple Arcs, Macular Grid, Single Spot Slit Lamp Haag Streit types Zeiss Type Adaptable YES No (intagrated) Transportable Yes No No Certifications CE / (FDA pending) CE / FDA Affordable Very Expensive Power max Pulse Duration Micropulse Spot Size Price
PLT ≠ SLT Often presented as a SLT but it’s not a SLT! It is only a pattern… Milliseconds are not Nanoseconds! Pattern Laser Trabeculoplasty… Clinical trials are pending (not started) Moderated ALT that’s all !
Wavelength(s) 532 nm or 577 nm Only 532 nm 3 W or 2 W 2 W 10 ms to "continuous" 10 ms – 1000 ms Yes No Continous Zoom Fixed steps - Classic Mode from 50 to 500µm 50, 100, 200, 300, 400µm - Pattern Mode from 100 to 500µm 100, 200, 300, 400µm ≠ Patterns Nb of Patterns : 5 Nb of Patterns : 6 Squares, Circles, Triple Arcs, Macular Grid, Single Spot Square, Circle, Arc, Sector, Line, Spot repetition Slit Lamp Haag Streit types Haag Streit Type Adaptable YES No (integrable) Transportable Yes No Certifications CE / (FDA pending) CE pending Affordable Very Expensive Power max Pulse Duration Micropulse Spot Size Price
