Support for Distributed Processing CS 6560 Operating Systems
Support for Distributed Processing CS 6560: Operating Systems Design
Motivation So far, we talked about mechanisms and policies that Virtualize the underlying machine Support multi-programming of a single machine With the proliferation of cheap but powerful machines (devices) and ubiquitous network connections Computing is occurring on more than one machine Examples: email, web searching, NFS, SETI@home, cell phone apps, etc 2
Why Distributed Systems? Distributed system vs. mainframe Microprocessors offer better price/performance More scalable => more computing power Inherent distribution, e. g. computer-supported cooperative work Reliability, Incremental growth Distributed system vs. independent computers/devices Some applications require sharing of data, e. g. airline reservations Sharing of hardware, e. g. expensive devices (color laser printer) Easier human-to-human communication, e. g. electronic mail Spread the workload over the machines in the most effective way We want access to our data and services “everywhere”, e. g. cell phones Disadvantages: lack of software, coordination, management, and security are harder 3

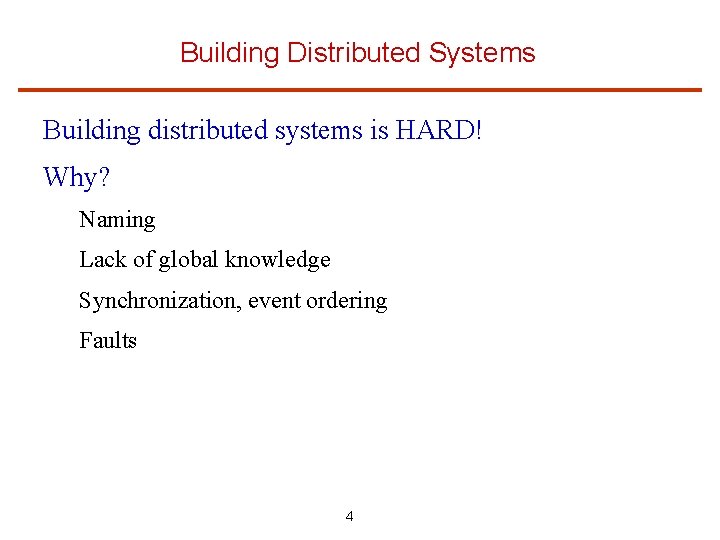

Building Distributed Systems Building distributed systems is HARD! Why? Naming Lack of global knowledge Synchronization, event ordering Faults 4
Fault Models Processor: Failstop: processor fails by halting. The fact that a processor has failed is detectable by other processors. Crash: processor fails by halting. The fact that a processor has failed may not be detectable by other processors. Byzantine failures: processor fails by exhibiting arbitrary behavior. Fairly easy to see how to extend to components like disks, NICs, etc. 5
Fault Models What about networks? Links can fail altogether – failstop Messages can be: Dropped – failstop (? ) Delayed for an arbitrarily long time – crash (? ) Corrupted – byzantine (? ) Networks can be partitioned 6
Lack of Global Knowledge Lack of global knowledge also complicates designs. Two very strong, similar results in distributed systems: Cannot solve the consensus problem in the face of 1 node failure for asynchronous systems. Straightforward if no failures are possible or the system is synchronous (i. e. , communication happens in well-determined rounds) Cannot solve the coordinated attack problem if messages can be lost. Trivial problem if messages cannot be lost. 7

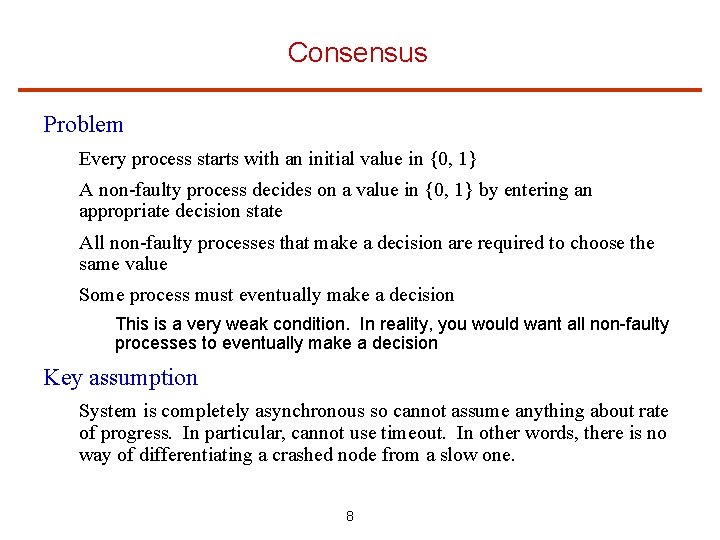

Consensus Problem Every process starts with an initial value in {0, 1} A non-faulty process decides on a value in {0, 1} by entering an appropriate decision state All non-faulty processes that make a decision are required to choose the same value Some process must eventually make a decision This is a very weak condition. In reality, you would want all non-faulty processes to eventually make a decision Key assumption System is completely asynchronous so cannot assume anything about rate of progress. In particular, cannot use timeout. In other words, there is no way of differentiating a crashed node from a slow one. 8
Coordinated Attack Problem (Gray 1987) Two divisions of an army are camped on two hilltops overlooking a common valley. In the valley awaits the enemy. It is clear that if both divisions attack the enemy simultaneously, they will win the battle; whereas if only one division attacks, it will be defeated. The divisions do not initially have plans for launching an attack on the enemy, and the commanding general of the first division wishes to coordinate a simultaneous attack. The generals can only communicate by means of a messenger. Normally, it takes the messenger one hour to get from one encampment to another. However, it is possible that he will get lost in the dark or, worse yet, be captured by the enemy. Fortunately, on this particular night, everything goes smoothly. How long will it take them to coordinate an attack? 9
Coordinated Attack The answer is NEVER! Suppose General A sends a message to B saying “let’s attack at 5 am, ” and the messenger delivers it 1 hour later. Does this work? 10
Coordinated Attack The answer is NEVER! Suppose General A sends a message to B saying “let’s attack at 5 am, ” and the messenger delivers it 1 hour later. Does this work? No, how does general A find out that general B actually received the message? General B would have to send an ACK. But how does general B find out that general A received the ACK? And so on… 11
Communication Protocols 12
Communication Components Send Receive P 0 P 1 N 0 N 1 Communication Fabric Network: a set of computers connected by communication links Communication rules: protocols Types of networks: Local-area networks (LAN) Wide-area networks (WAN) -- collection of interconnected networks across administrative domains System-area networks (SAN) Different network characteristics want different protocols 13
Terminology Basic Message Passing: Send: Analogous to mailing a letter Receive: Analogous to picking up a letter from the mailbox Network performance: Latency: The time from when a Send is initiated until the first byte is received by a Receive. Bandwidth: The rate at which a sender is able to send data to a receiver. (e. g. , MB/s) B Byte (8 bits), b bit 14
Basic Message Passing: Easy, Right? What can be easier than this, right? Well, think of the post office: to send a letter 15
Basic Message Passing: Not So Easy Why is it so complicated to send a letter if basic message passing is so easy? Well, it’s really not easy! Issues include: Naming: How to specify the receiver? Routing: How to forward the message to the correct receiver through intermediaries? Buffering: What if the out port is not available? What if the receiver is not ready to receive the message? Reliability: What if the message is lost in transit? What if the message is corrupted in transit? Blocking: What if the receiver is ready to receive before the sender is ready to send? 16
Communications Abstractions: Byte Stream Datagrams Shared Memory Remote Procedure Call 17

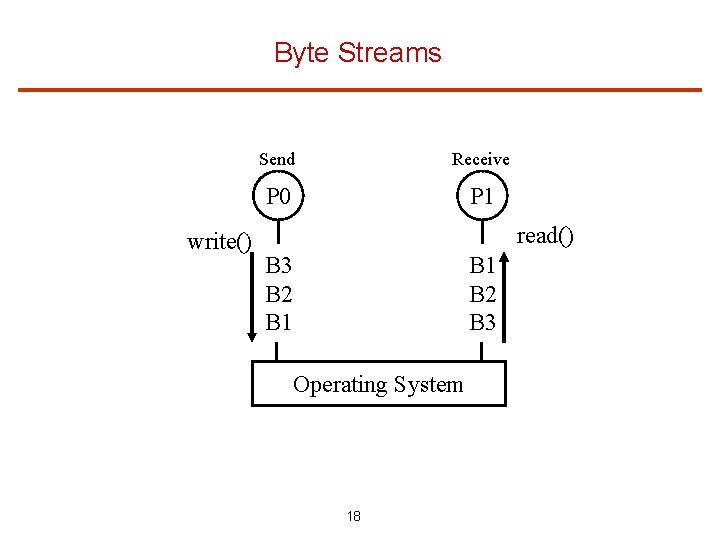

Byte Streams write() Send Receive P 0 P 1 read() B 3 B 2 B 1 B 2 B 3 Operating System 18
Byte Streams No cardinality, i. e. cannot go directly to Nth byte, must read all bytes in FIFO order OS can “break” groups of bytes into read and writes in whatever grouping is most convenient E. g. P 0 does 1 write() call of 1000 bytes. P 1 may have to call the read() method 10 times to get all 1000 bytes 19
Datagrams/Packets P 1 P 0 D 2 B 4 B 5 B 6 B 1 B 2 B 3 D 1 B 2 B 3 B 4 B 5 B 6 Operating System 20
Datagrams write() system call sends a discrete byte array The array is called a “datagram” or a “packet” Discrete: OS cannot “break” a datagram into parts without reassembling it for the user Either entire datagram/packet is received or none of it is E. g. , a single bad byte means OS cannot deliver the datagram 21
Datagram Variants Every datagram abstraction must pick between these dimensions: Ordered vs. Unordered datagrams always received in the order of write() calls, OS free to re-order for unordered. Reliable vs. Unreliable unreliable: OS can “throw away” entire datagram if it gets into trouble, e. g. , no more buffers, or the network lost it, or a dog ate it. reliable: OS will deliver complete datagram under many adverse conditions. 22
Shared Memory P 0 P 1 byte[] buf B B[3]=6 6 X=B[3] Operating System 23
Shared Memory The two, or more, processes share a byte buffer Why not share objects? Byte buffer is least common denominator single data-type, no methods, no object hierarchy, no exceptions Difficult to preserve memory abstraction across a network 24
Remote Procedure Call P 0 P 1 X = p 1. foo(6) int foo (int i) { return i + 3; } Operating System 25
RPC Map communication to a method call Method invocation on one process (caller) mapped by OS into a call on another process (callee) Issues: Parameter passing What if processes written in different languages? What if callee crashes or is disconnected during the call? 26
Communications Namespaces File system Internet IP addresses Domain Name System TCP and UDP ports RPC System-V (Unix) Shared memory Semaphores Message queues 27
Internet Namespaces IP addresses: Every entity given a 4 byte number like a phone number typically written as 4 decimals separated by dots, e. g. 128. 6. 4. 4 Domain Name System (DNS): domains separated by “dot” notation E. g. remus. rutgers. edu DNS maps names to IP addresses (names to numbers) E. g. remus. rutgers. edu -> 128. 6. 13. 3 Use the command “nslookup” to see the mapping 28
Internet Namespaces (cont. ) TCP: Transmission Control Protocol UDP: User Datagram Protocol Communication under these protocols involves an IP address and a “port” at that IP address The port is a 16 -bit integer TCP and UDP ports are separate namespaces Use command “netstat” to see which ports are in use. 29
System-V Inter-Process Communication (IPC) System-V Unixes (all today) have own namespace for: shared memory (segments) message queues semaphores These have permissions like the file system, but are not part of the file system Use ipcs command to see the active segments, queues, and semaphores 30
Protocol Architecture To communicate, computers must agree on the syntax and the semantics of communication E. g. , if I were lecturing in Portuguese, this lecture would be useless Really hard to implement a reliable communication protocol on top of a network substrate, where packets may be lost or reordered So why do it? To prevent higher levels from having to implement it. Common approach: protocol functionality is distributed in multiple layers. Layer N provides services to layer N+1, and relies on services of layer N-1 Communication is achieved by having similar layers at both endpoints which understand each other 31
ISO/OSI Protocol Stack application transport network data link physical message format dl hdr net hdr transp hdr appl hdr data “Officially”: seven layers In practice four: application, transport, network, data link / physical 32
Application Layer Application to application communication Supports application functionality Examples File transfer protocol (FTP) Simple mail transfer protocol (SMTP) Hypertext transfer protocol (HTTP) Message Passing Interface (MPI) User can add other protocols, for example a distributed shared memory protocol 33

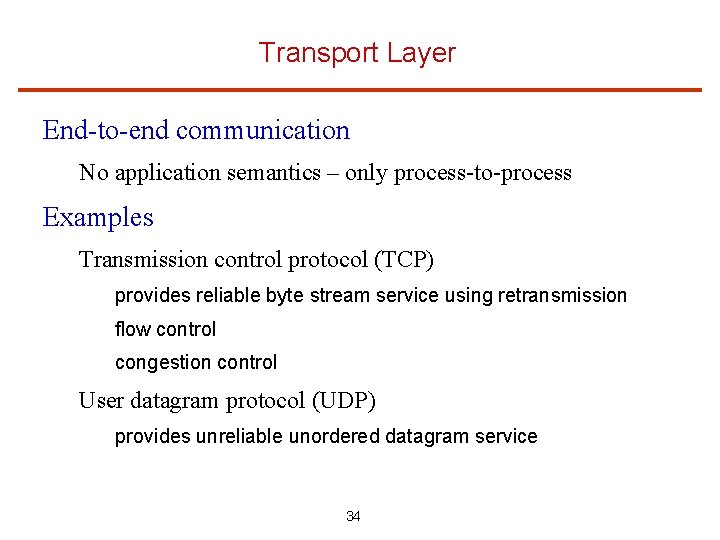

Transport Layer End-to-end communication No application semantics – only process-to-process Examples Transmission control protocol (TCP) provides reliable byte stream service using retransmission flow control congestion control User datagram protocol (UDP) provides unreliable unordered datagram service 34
Network Layer Host-to-host Potentially across multiple networks Example: internet protocol (IP) Understands the host address Responsible for packet delivery Provides routing function across the network But can lose or misorder packets So, what did UDP add to IP? 35
Network Layer Host-to-host Potentially across multiple networks Example: internet protocol (IP) Understands the host address Responsible for packet delivery Provides routing function across the network But can lose or misorder packets So, what did UDP add to IP? Port addressing, as opposed to simple host addressing 36

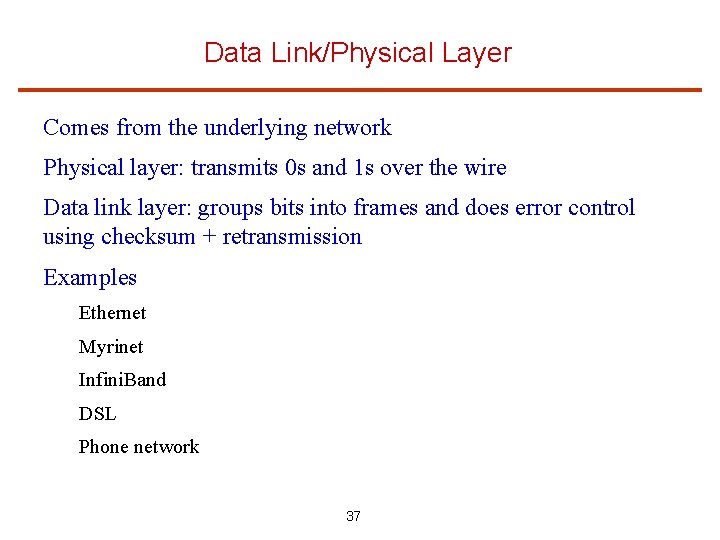

Data Link/Physical Layer Comes from the underlying network Physical layer: transmits 0 s and 1 s over the wire Data link layer: groups bits into frames and does error control using checksum + retransmission Examples Ethernet Myrinet Infini. Band DSL Phone network 37
Communication Hardware Characteristics: Circuit vs. Packet Switching Circuit switching Example: telephony Resources are reserved and dedicated during the connection Fixed path between peers for the duration of the connection Packet switching Example: internet Entering data (variable-length messages) are divided into (fixed-length) packets Packets in the network share resources and may take different paths to the destination 38
Network-Level Characteristics: Virtual Circuit vs. Datagram Virtual circuits Cross between circuit and packet switching Resources are reserved to a logical connection, but are not dedicated to the connection Fixed path between peers for the duration of the connection Dynamic routing The path for each message (datagram) is chosen only when the message is sent or received at an intermediate host Separate messages may take different paths through the network A datagram is broken into one or more packets for physical transmission 39
Internet Hierarchy FTP Vo. IP HTTP TCP DNS UDP IP Ethernet DSL SVM application layer transport layer network layer phone 40 data link layer
Details of the Network Layer Protocol Addressing: how hosts are named Service model: how hosts interact with the network, what is the packet format Routing: how a route from source to destination is chosen 41
IP Addressing Addresses unique 32 -bit address for each host dotted-decimal notation: 128. 112. 102. 65 (4 eight-bit numbers) four address formats: class A (large nets), class B (medium nets), class C (small nets), and class D (multicast). E. g. , a class A address represents “network. local”, a class C address represents “network. local”. IP to physical address translation each host only recognizes the physical address of its network interfaces Address Resolution Protocol (ARP) to obtain the translation each host caches a list of IP-to-physical translations which expires after a while 42
ARP A host broadcasts (on a LAN) a query packet asking for a translation for some IP address Hosts which know the translation reply Each host knows its own IP and physical translation Reverse ARP (RARP) translates physical to IP address and it is used to assign IP addresses dynamically. Has been replaced by the Dynamic Host Configuration Protocol (DHCP) Host 2 Router A wants to send an IP packet to router B. It uses ARP to obtain the physical address of router B Network 13: Ethernet Host 1: router A 43 Host 4: router B

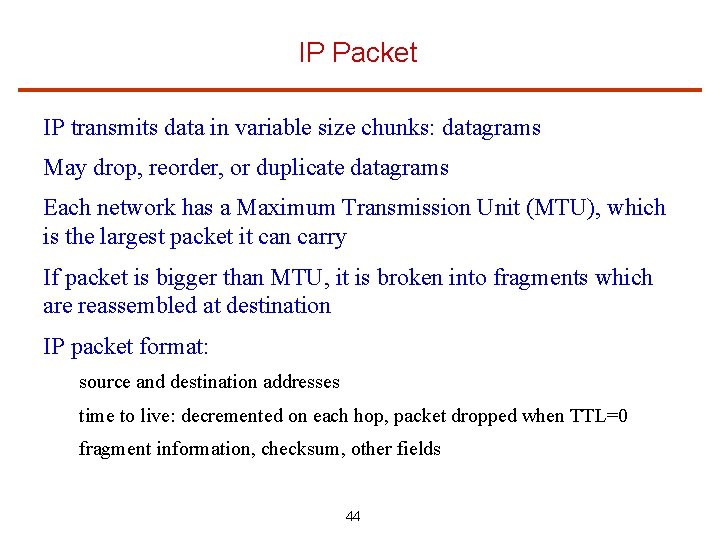

IP Packet IP transmits data in variable size chunks: datagrams May drop, reorder, or duplicate datagrams Each network has a Maximum Transmission Unit (MTU), which is the largest packet it can carry If packet is bigger than MTU, it is broken into fragments which are reassembled at destination IP packet format: source and destination addresses time to live: decremented on each hop, packet dropped when TTL=0 fragment information, checksum, other fields 44

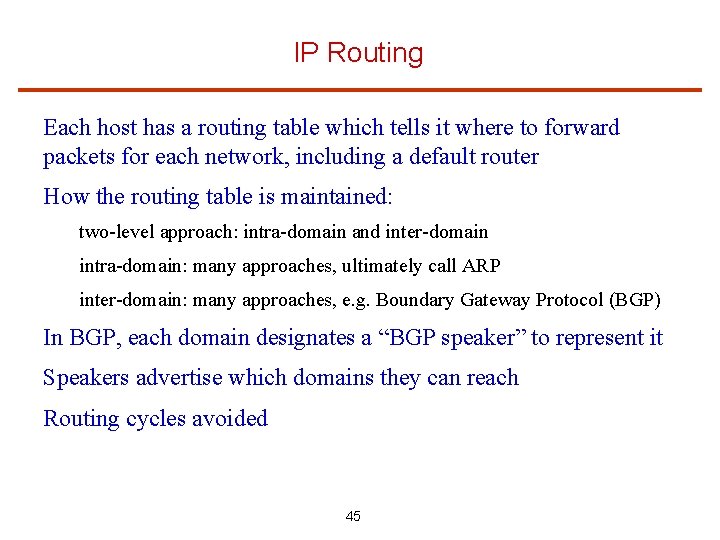

IP Routing Each host has a routing table which tells it where to forward packets for each network, including a default router How the routing table is maintained: two-level approach: intra-domain and inter-domain intra-domain: many approaches, ultimately call ARP inter-domain: many approaches, e. g. Boundary Gateway Protocol (BGP) In BGP, each domain designates a “BGP speaker” to represent it Speakers advertise which domains they can reach Routing cycles avoided 45
Details of the Transport Layer Protocol User Datagram Protocol (UDP): connectionless unreliable, unordered datagrams the main difference from IP: IP sends datagrams between hosts, UDP sends datagrams between processes identified as (host, port) pairs Transmission Control Protocol: connection-oriented reliable; acknowledgment, timeout, and retransmission byte stream delivered in order (datagrams are hidden) flow control: slows down the sender if the receiver is overwhelmed congestion control: slows down the sender if the network is overwhelmed 46
TCP: Connection Setup TCP is a connection-oriented protocol three-way handshake: client sends a SYN packet: “I want to connect” server sends back its SYN + ACK: “I accept” client acks the server’s SYN: “OK” 47
TCP: Reliable Communication Packets can get lost – retransmit when necessary Each packet carries a sequence number Sequence number: last byte of data sent before this packet Receiver acknowledges data after receiving them Ack up to last byte in contiguous stream received Optimization: piggyback acks on normal messages TCP keeps an average round-trip transmission time (RTT) Timeout if no ack received after twice the estimated RRT, and resend data starting from the last ack How to retransmit? Delay sender until get ack? Make copy of data? 48

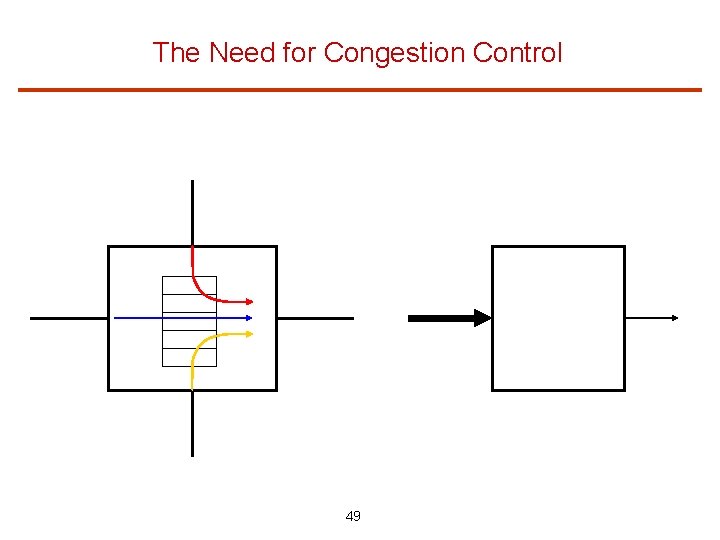

The Need for Congestion Control 49

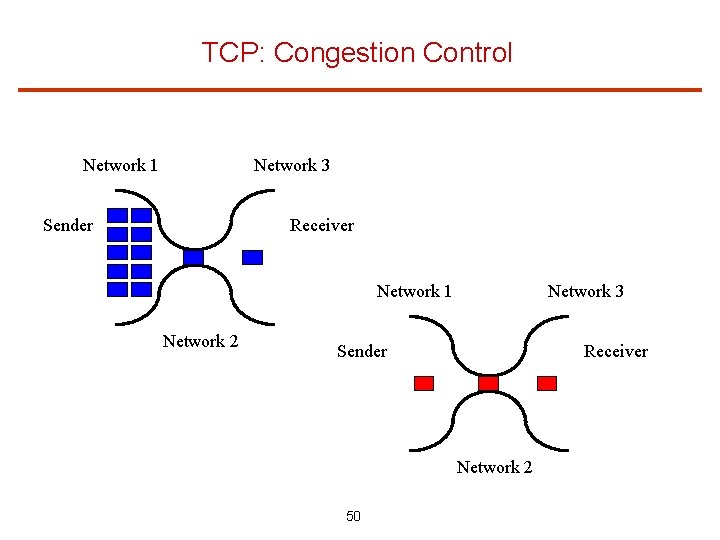

TCP: Congestion Control Network 1 Network 3 Receiver Sender Network 1 Network 2 Network 3 Sender Receiver Network 2 50
TCP: Congestion Control Basic idea: only put packets into the network as fast as they are exiting To maintain high performance, however, have to keep the pipe full Network capacity is equal to latency-bandwidth product Really want to send network capacity before receiving an ack After that, send more whenever get another ack Keep network full of in-transit data Only put into the net what is getting out the other end This is the sliding window protocol 51
TCP: Congestion Control Detect network congestion then reduce amount being sent to alleviate congestion Detecting congestion: TCP interprets a timeout waiting for an ACK as a symptom of congestion Is this always right? Current approach: slow start + congestion avoidance Start by sending 1 packet, increase congestion window multiplicatively with each ACK until timeout. When timeout occurs, restart but make maximum window = current window/2. When window size reaches this threshold, start increasing window additively until timeout. 52
Receiver's Window An additional complication: Just because the network has a certain amount of capacity, doesn’t mean the receiving host can buffer that amount of data What if the receiver is not ready to read the incoming data? Receiver decides how much memory to dedicate to this connection Receiver continuously advertises the current window size (with ACKS) = allocated memory - unread data Sender stops sending when the unack-ed data = the receiver’s current window size Transmission window = min(congestion window, receiver’s window) 53
Remote Procedure Call 54

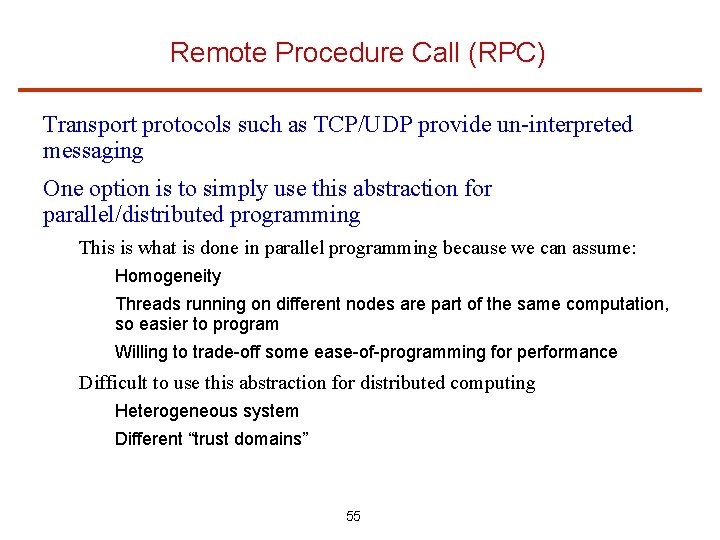

Remote Procedure Call (RPC) Transport protocols such as TCP/UDP provide un-interpreted messaging One option is to simply use this abstraction for parallel/distributed programming This is what is done in parallel programming because we can assume: Homogeneity Threads running on different nodes are part of the same computation, so easier to program Willing to trade-off some ease-of-programming for performance Difficult to use this abstraction for distributed computing Heterogeneous system Different “trust domains” 55
RPC (Cont’d) Why RPC? Procedure call is an accepted and well-understood mechanism for control transfer within a program Presumably, accepted is equivalent to “good” – clean semantics Providing procedure call semantics for distributed computing makes distributed computing much more like programming on a single machine Don’t have to worry about remote execution except … Abstraction helps to hide: The possibly heterogeneous nature of the hardware platform The fact that the distributed machines do not share memory 56
RPC Structure client program call return client stub server program • Binding • Marshalling & Unmarshalling • Send/receive messages RPC ML return server stub RPC ML network 57 call
RPC Structure (Cont’d) Stubs make RPCs look “just” like normal procedure calls Binding Naming Location Marshalling & Unmarshalling Translate internal data message representation How to transmit pointer-based data structure (e. g. graph)? Serialization How to transmit data between heterogeneous machines? Virtual data types Send/receive messages 58
RPC Binding server address or handle register service directory server service lookup port mapper 2 create client program 3 port # 4 client handle 1 server program server machine client machine 59 register program, version, and port
Client Stub Example void remote_add(Server s, int *x, int *y, int *sum) { s. send. Int(Add. Procedure); s. send. Int(*x); s. send. Int(*y); s. flush() status = s. receive. Int(); /* if no errors */ *sum = s. receive. Int(); } 60
Server Stub Example void server. Loop(Client c) { while (1) { int Procedure = c_receive. Int(); switch (Procedure) { case Add. Procedure: int x = c. receive. Int(); int y = c. receive. Int(); int sum; add(x, y, &sum); c. send. Int(Status. OK); c. send. Int(sum); break; } } } 61
RPC Semantics While goal is to make RPC look like local procedure call as much as possible, there are some differences in the semantics that cannot/should not be hidden Global variables are not accessible inside the RPC Call-by-copy/restore for reference-style params; call-by-value for others Communication errors that may leave client uncertain about whether the call really happened various semantics possible: at-least-once, at-most-once, exactly-once difference is visible unless the call is idempotent, i. e. multiple executions of the call have the same effect (no side effects). E. g. read the first 1 K bytes of a file. 62
RPC Semantics At-least-once: in case of timeouts, keep trying RPC until actually completes At-most-once: try once and report failure after timeout period Exactly-once: ideal but difficult to guarantee; one approach is to use at-least-once semantics and have a cache of previously completed operations on the server side; the cache has to be logged into stable storage 63
Distributed Transactions 64
Transactions Next layer up in communication abstraction A unit of computation that has the ACID properties Atomic: each transaction either occurs completely or not at all – no partial results. Consistent: when executed alone and to completion, a transaction preserves whatever invariants have been defined for the system state. Isolated: any set of transactions is serializable, i. e. concurrent transactions do not interfere with each other. Durable: effects of committed transactions should survive subsequent failures. Can you see why this is a useful mechanism to support the building of distributed systems? Think of banking system 65
Transactions Transaction is a mechanism for both synchronization and tolerating failures Isolation synchronization Atomicity, durability failures Isolation: two-phase locking Atomicity: two-phase commit Durability: stable storage and recovery 66
Two-Phase Locking For isolation, we need concurrency control by using locking, or more specifically, two-phase locking Read/write locks to protect concurrent data Mapping locks to data is the responsibility of the programmer What happens if the programmer gets its wrong? Acquire/release locks in two phases Phase 1 (growing phase): acquire locks as needed Phase 2 (shrinking phase): once release any lock, cannot acquire any more locks. Can only release locks from now on 67
Two-Phase Locking Usually, locks are acquired when needed (not at the beginning of the transaction, to increase concurrency), but held until transaction either commits or aborts – strict two-phase locking Why? A transaction always reads a value written by a committed transaction What about deadlock? If process refrains from updating permanent state until the shrinking phase, failure to acquire a lock can be dealt with by releasing all acquired locks, waiting a while, and trying again (may cause livelock) Other approaches: Order locks; Avoid deadlock; Detect & recover If all transactions use two-phase locking, it can be proven that all schedules formed by interleaving them are serializable (I in ACID) 68
Atomicity and Recovery 3 levels of storage Volatile: memory Nonvolatile: disk Stable storage: mirrored disks or RAID 4 classes of failures Transaction abort (e. g. , a required resource is not available) System crash Media failure (stable storage is the solution) Catastrophe (no solution for this) 69

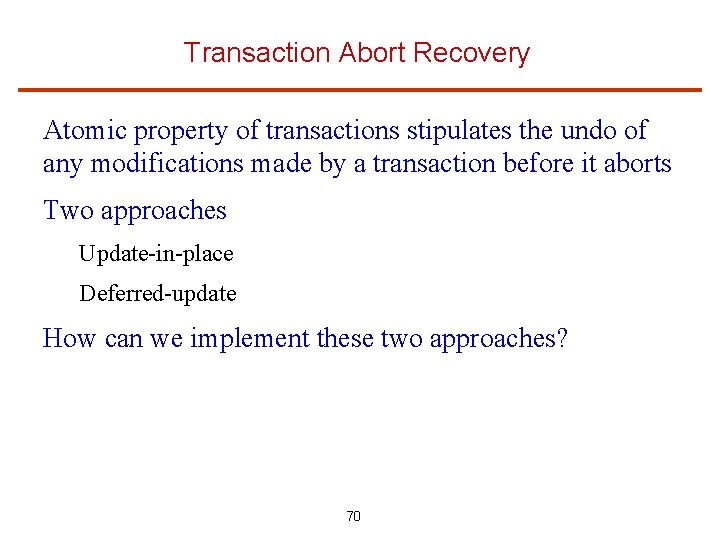

Transaction Abort Recovery Atomic property of transactions stipulates the undo of any modifications made by a transaction before it aborts Two approaches Update-in-place Deferred-update How can we implement these two approaches? 70
Transaction Abort Recovery Atomic property of transactions stipulates the undo of any modifications made by a transaction before it aborts Two approaches Update-in-place Deferred-update How can we implement these two approaches? Update-in-place: write-ahead log and rollback if aborted Deferred-update: private workspace 71
System Crash Recovery Maintain a log of initiated transaction records, aborts, and commits on nonvolatile (better yet, stable) storage Whenever commits a transaction, force description of the transaction to nonvolatile (better yet, stable) storage What happens after a crash? 72
System Crash Recovery Maintain a log of initiated transaction records, aborts, and commits on nonvolatile (better yet, stable) storage Whenever commits a transaction, force description of the transaction to nonvolatile (better yet, stable) storage What happens after a crash? State can be recovered by reading and undoing the non-committed transactions in the log (from end to beginning) 73
Distributed Recovery All processes (possibly running on different machines) involved in a transaction must reach a consistent decision on whether to commit or abort Isn’t this the consensus problem? How is this doable? 74
Two-Phase Commit Well, not quite the consensus problem – can unilaterally decide to abort. That is, system is not totally asynchronous Two-phase commit protocol used to guarantee atomicity Process attempting to perform transaction becomes “coordinator” Phase 1: coordinator writes “prepare” to log and sends “prepare” messages to other processes. Other processes perform operations and write “ready” to log (if completed successfully). After that, they send “ready” message to coordinator. Phase 2: if all replies are “ready”, coordinator writes a record of the transaction to the log and sends a “commit” message to each of the other processes. Other processes write “commit” in their logs and reply with a “finished” message. If not all replies are “ready”, transaction is aborted. Coordinator reflects that in the log and sends “abort” message to other processes. Other processes release locks, update their logs, and abort transaction. 75
Transactions – What’s the Problem? Transaction seems like a very useful mechanism for distributed computing Why is it not used everywhere? 76
Transactions – What’s the Problem? Transaction seems like a very useful mechanism for distributed computing Why is it not used everywhere? ACID properties are not always required. Weaker semantics can improve performance. Examples: when all operations in the distributed system are idempotent/read only (Bit. Torrent -style systems) or non-critical (search engine results) 77
Distributed File Systems File service Directory service Naming File sharing semantics Server system structure Client-side caching Server-side replication Examples 78

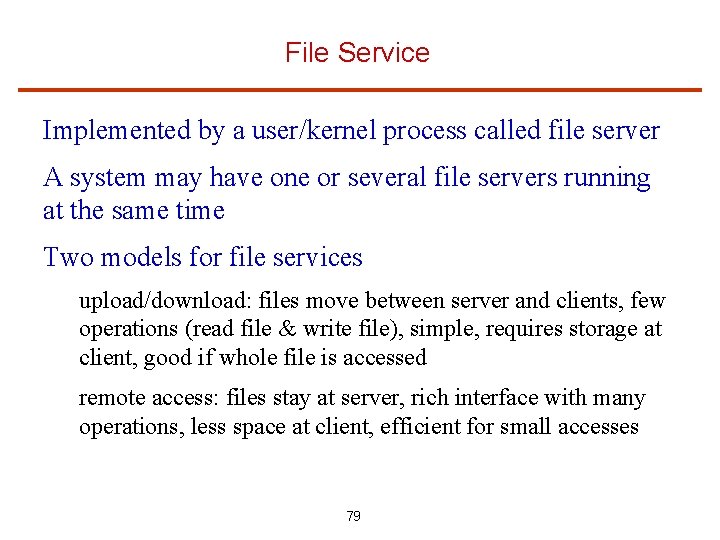

File Service Implemented by a user/kernel process called file server A system may have one or several file servers running at the same time Two models for file services upload/download: files move between server and clients, few operations (read file & write file), simple, requires storage at client, good if whole file is accessed remote access: files stay at server, rich interface with many operations, less space at client, efficient for small accesses 79
Directory Service Provides naming usually within a hierarchical file system Clients can have the same view (global root directory) or different views of the file system (remote mounting) Location transparency: location of the file doesn’t appear in the name of the file ex: /server 1/dir 1/file specifies the server but not where the file is located server can move the file in the network without changing the path Location independence: a single name space that looks the same on all machines, files can be moved between servers without changing their names -> difficult 80
Two-Level Naming Symbolic name (external), e. g. prog. c; binary name (internal), e. g. local i-node number as in Unix Directories provide the translation from symbolic to binary names Binary name format i-node: no cross references among servers (server, i-node): a directory in one server can refer to a file on a different server Capability specifying address of server, number of file, access permissions, etc {binary_name+}: binary names refer to the original file and all of its backups 81

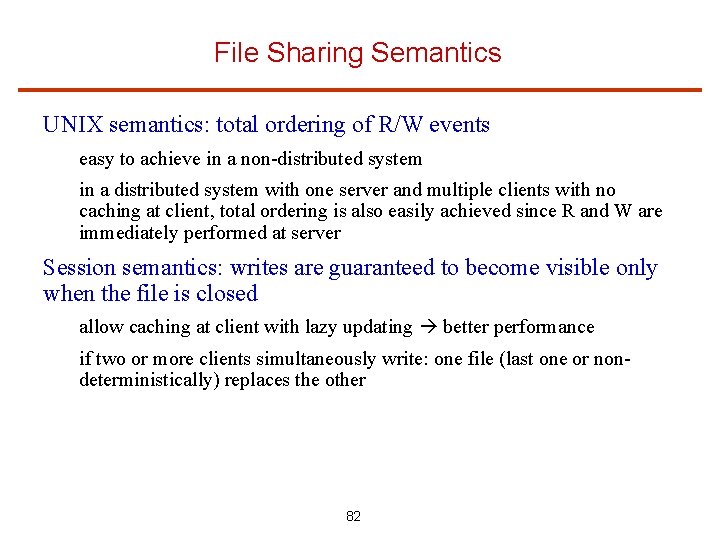

File Sharing Semantics UNIX semantics: total ordering of R/W events easy to achieve in a non-distributed system in a distributed system with one server and multiple clients with no caching at client, total ordering is also easily achieved since R and W are immediately performed at server Session semantics: writes are guaranteed to become visible only when the file is closed allow caching at client with lazy updating better performance if two or more clients simultaneously write: one file (last one or nondeterministically) replaces the other 82
File Sharing Semantics (cont’d) Immutable files: create and read file operations (no write) writing a file means to create a new one and enter it into the directory replacing the previous one with the same name: atomic operations collision in writing: last copy or non-deterministically what happens if the old copy is being read? Transaction semantics: mutual exclusion on file accesses; either all file operations are completed or none is. Good for banking systems 83
Server System Structure File + directory service: combined or not Cache directory hints at client to accelerate the path name look up – directory and hints must be kept coherent State information about clients at the server stateless server: no client information is kept between requests stateful server: servers maintain state information about clients between requests 84
Stateless vs. Stateful Servers Stateful Server Stateless Server requests are self-contained better fault tolerance open/close at client (fewer msgs) no space reserved for tables thus, no limit of open files 85 shorter messages better performance (info in memory until close) open/close at server file locking possible read ahead possible
Caching Three possible places: server’s memory, client’s disk, client’s memory Caching in server’s memory: avoids disk access but still have network access Caching at client’s disk (if available): tradeoff between disk access and remote memory access Caching at client in main memory inside each process address space: no sharing at client in the kernel: kernel involvement on hits in a separate user-level cache manager: flexible and efficient if paging/sharing can be controlled from user-level Server-side caching eliminates coherence problem. Client-side cache coherence? Next… 86
Client Cache Coherence in DFS How to maintain coherence (according to a model, e. g. session semantics) of copies of the same file at various clients Write-through: writes sent to the server as soon as they are performed at the client high traffic, requires cache managers to check (modification time) with server before can provide cached content to any client Delayed write: coalesces multiple writes; better performance but ambiguous semantics Write-on-close: implements session semantics Central control: file server keeps a directory of open/cached files at clients and sends invalidations Unix semantics, but problems with robustness and scalability 87
File Replication Multiple copies are maintained, each copy on a separate file server - multiple reasons: Increase availability: file accessible even if a server is down Increase reliability: file accessible even if a server loses its copy Improve scalability: reduce the contention by splitting the workload over multiple servers Replication transparency explicit file replication: programmer controls replication lazy file replication: copies made by the server in background use group communication: all copies made at the same time in the foreground How replicas should be modified? Next… 88

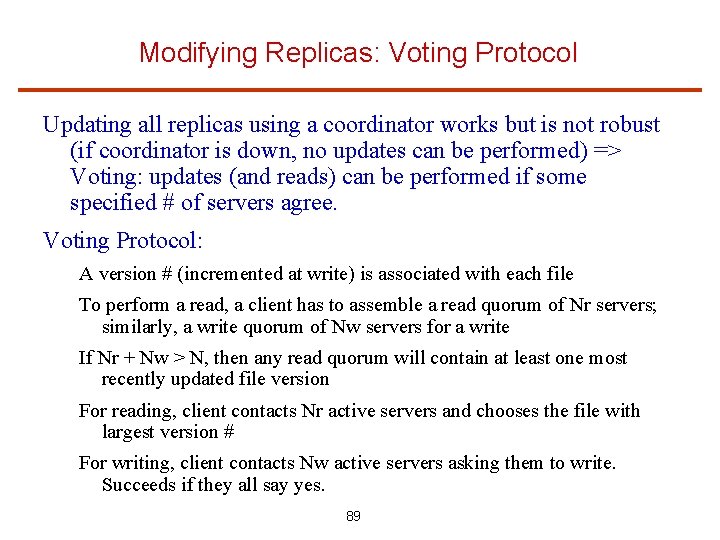

Modifying Replicas: Voting Protocol Updating all replicas using a coordinator works but is not robust (if coordinator is down, no updates can be performed) => Voting: updates (and reads) can be performed if some specified # of servers agree. Voting Protocol: A version # (incremented at write) is associated with each file To perform a read, a client has to assemble a read quorum of Nr servers; similarly, a write quorum of Nw servers for a write If Nr + Nw > N, then any read quorum will contain at least one most recently updated file version For reading, client contacts Nr active servers and chooses the file with largest version # For writing, client contacts Nw active servers asking them to write. Succeeds if they all say yes. 89
Modifying Replicas: Voting Protocol Nr is usually small (reads are frequent), but Nw is usually close to N (want to make sure all replicas are updated). Problem with achieving a write quorum in the face of server failures Voting with ghosts: allows to establish a write quorum when several servers are down by temporarily creating dummy (ghost) servers (at least one must be real) Ghost servers are not permitted in a read quorum (they don’t have any files) When server comes back, it must restore its copy first by obtaining a read quorum. Only after the copy is restored, can it return to operation A membership service keeps track of all servers, creates ghosts for crashed servers, and eliminates ghosts when servers reboot 90
Network File System (NFSv 3) A “stateless” DFS from Sun; only state is map of handles to files An NFS server exports directories Clients access exported directories by mounting them Because NFS is stateless, OPEN and CLOSE RPCs are not provided by the server (implemented at the client); clients need to block on close until all dirty data are stored on disk at the server NFS provides file locking (separate network lock manager protocol) but UNIX semantics is not achieved due to client caching dirty cache blocks are sent to server in chunks, every 30 sec or at close a timer is associated with each cache block at the client (3 sec for data blocks, 30 sec for directory blocks). When the timer expires, the entry is discarded (if clean, of course) when a file is opened, last modification time at the server is checked 91
Network File System (NFSv 4) NFSv 4 is stateful; implements OPEN and CLOSE Locking protocol has been integrated into the protocol “Open Delegation” allows client itself to handle OPEN, CLOSE, and locking operations. Eliminates traffic for OPEN, CLOSE, locking, and cache consistency checks Delegations have leases just like locks. Delegations may be revoked (when another client accesses the same file for writing) using a “callback” from the server to the client Compound RPC allows client to send many operations as a single request to server. Server replies for the operations are also grouped into one reply to client 92
Distributed Algorithms Have already talked about consensus and coordinated attack problems Now: Happened-before relation Distributed mutual exclusion Distributed elections Distributed deadlock prevention and avoidance Distributed deadlock detection 93
Happened-Before Relation It is sometimes important to determine an ordering of events in a distributed system. Ex: resources can only be used after they have been released; changes to shared data must be done in the correct order The happened-before relation ( ) provides a partial ordering of events If A and B are events in the same process, and A was executed before B, then A B If A is the event of sending a msg by one process and B is the event of receiving the msg by another, then A B If A B and B C, then A C If events A and B are not related by the relation, they executed “concurrently” 94
Achieving Global Ordering Common or synchronized clock not available, so use “timestamps” to achieve global ordering Global ordering requirement: If A B, then the timestamp of A is less than the timestamp of B The timestamp can take the value of a logical clock, i. e. a simple counter that is incremented between any two successive events executed within a process If event A was executed before B in a process, then LC(A) < LC(B) If A is the event of receiving a msg with timestamp t and LC(A) < t, then LC(A) = t + 1 If LC(A) in one process i is the same as LC(B) in another process j, then use process ids to break ties and create a total ordering 95

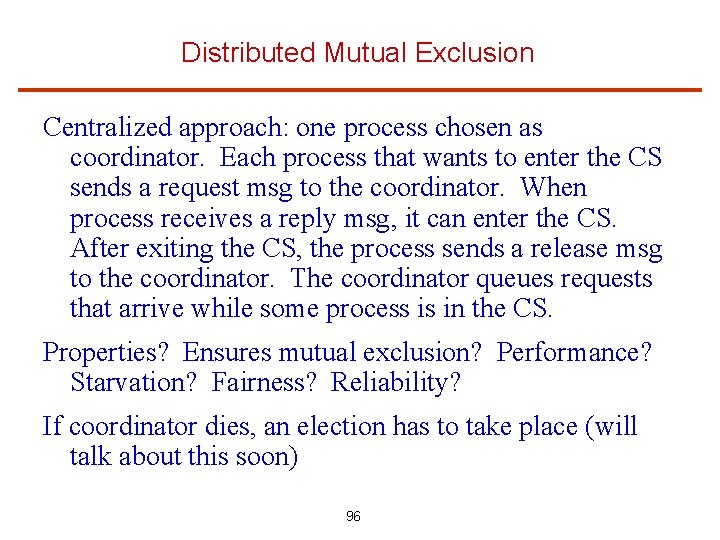

Distributed Mutual Exclusion Centralized approach: one process chosen as coordinator. Each process that wants to enter the CS sends a request msg to the coordinator. When process receives a reply msg, it can enter the CS. After exiting the CS, the process sends a release msg to the coordinator. The coordinator queues requests that arrive while some process is in the CS. Properties? Ensures mutual exclusion? Performance? Starvation? Fairness? Reliability? If coordinator dies, an election has to take place (will talk about this soon) 96
Distributed Mutual Exclusion Fully distributed approach: when a process wants to enter the CS, it generates a new timestamp TS and sends the message request(Pi, TS) to all other processes, including itself. When the process receives all replies, it can enter the CS, queuing incoming requests and deferring them. Upon exit of the CS, the process can reply to all its deferred requests. Three rules when deciding whether a process should reply immediately to a request: If process in CS, then it defers its reply If process does not want to enter CS, then it replies immediately If process does want to enter CS, then it compares its own request timestamp with the timestamp of the incoming request. If its own request timestamp is larger, then it replies immediately. Otherwise, it defers the reply Properties? Ensures mutual exclusion? Performance? Starvation? Fairness? Reliability? 97
Distributed Mutual Exclusion Token passing approach: idea is to circulate a token (a special message) around the system. Possession of the token entitles the holder to enter the CS. Processes logically organized in a ring structure. Properties? Ensures mutual exclusion? Performance? Starvation? Fairness? Reliability? If token is lost, then election is necessary to generate a new token. If a process fails, a new ring structure has to be established. 98
Distributed Elections Certain algorithms depend on a coordinator process. Election algorithms assume that a unique priority number is associated with each process (the process id to simplify matters). The algorithms elect the active process with the largest priority number as the coordinator. This number must be sent to each active process in the system. The algorithms provide a mechanism for a recovered process to identify the current coordinator. 99
Distributed Elections The Bully algorithm: suppose that a process sends a request that is not answered by the coordinator within an interval T. In this situation, the coordinator is assumed to have failed and the process tries to elect itself as the new coordinator. Process Pi sends an election msg to every process Pj with a higher priority number (j > i). Process Pi waits for a time T for an answer from any of those processes. If no response is received, all processes Pj are assumed to have failed and Pi elects itself as the new coordinator. Pi starts a copy of the coordinator and sends a msg to all processes with priority less than i informing them that it is the new coordinator. If a response is received, Pi begins a time interval T’, waiting to receive a msg informing it that a process with a higher priority number has been elected. If no such msg is received, the process with higher priority is assumed to have failed, and Pi re-starts the algorithm. 100
Distributed Elections The process that completes its algorithm has the highest number and is elected the coordinator. It has sent its number to all other active processes. After a process recovers, it immediately starts the algorithm. If there are no active processes with higher numbers, the recovering process becomes the coordinator (even if the current coordinator is still active). 101
Distributed Deadlock Avoidance The deadlock prevention and avoidance algorithms we talked about before can also be used in distributed systems. Prevention: resource ordering of all resources in the system. Simple and little overhead. Avoidance: Banker’s algorithm. High overhead (too many msgs, centralized banker) and excessively conservative. New deadlock avoidance algorithms: wait-die and wound-wait. Idea is to avoid circular wait. Both use timestamps assigned to processes at creation time. 102
Distributed Deadlock Avoidance Wait-die: Non-preemptive. When process Pi requests a resource currently held by Pj, Pi is only allowed to wait if it has a smaller timestamp than Pj (that is, Pi is older than Pj). Otherwise, Pi is killed. Exs: P 1, P 2, and P 3 have timestamps 5, 10, and 15, resp. If P 1 requests a resource held by P 2, P 1 will wait. If P 3 requests a resource held by P 2, P 3 will die. Wound-wait: Preemptive. When process Pi requests a resource currently held by Pj, Pi waits if it has a larger timestamp than Pj (that is, Pi is younger than Pj). Otherwise, the resource is preempted from Pj and Pj is killed. In the first example above, P 2 will lose the resource and die. In the second, P 3 will wait. Strategies avoid starvation, if killed processes are NOT assigned new timestamps when they are re-started. Problem: unnecessary killings may occur. 103
Distributed Deadlock Detection Deadlock detection eliminates this problem. Deadlock detection is based on a wait-for graph describing the resource allocation state. Assuming a single resource of each type, a cycle in the graph represents a deadlock. Problem is how to maintain the wait-for graph. Simple solution: a centralized approach where each node keeps a local wait-for graph. Whenever a new edge is inserted or removed in one of the local graphs, the local site sends a msg to the coordinator for it to update its global wait-for graph. The coordinator can then check for cycles. 104
The End 105
