Supplementary Training Modules on Good Manufacturing Practice Water

Supplementary Training Modules on Good Manufacturing Practice Water for Pharmaceutical Use Part 1: Introduction and treatment WHO Technical Report Series No 970, 2012. Annex 2 Water | Slide 1 of 25 2013

Water for Pharmaceutical Use Objective l General principles, water system requirements and uses l Water quality specifications l Application of specific types of water to processes and dosage forms l Water purification systems, storage and distribution l Operational considerations l Inspection of water systems Water | Slide 2 of 25 2013

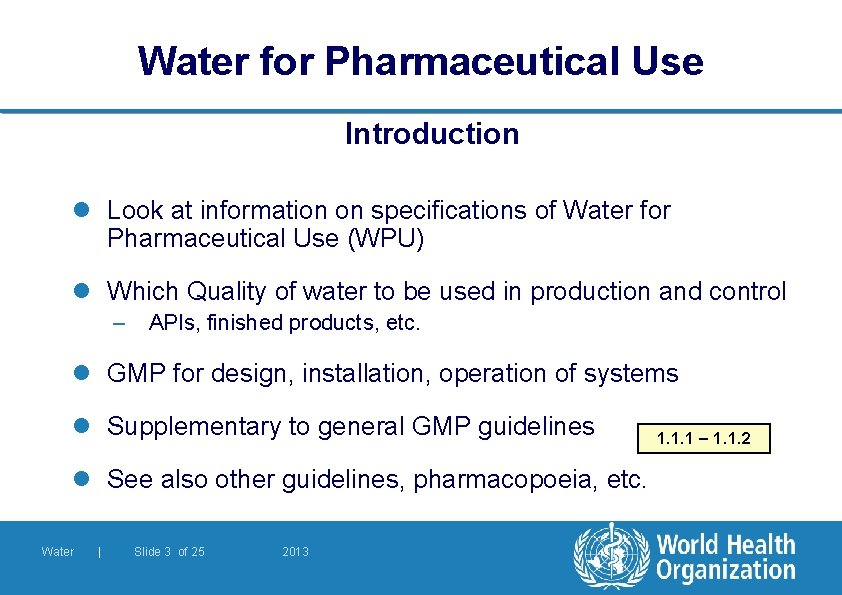

Water for Pharmaceutical Use Introduction l Look at information on specifications of Water for Pharmaceutical Use (WPU) l Which Quality of water to be used in production and control – APIs, finished products, etc. l GMP for design, installation, operation of systems l Supplementary to general GMP guidelines l See also other guidelines, pharmacopoeia, etc. Water | Slide 3 of 25 2013 1. 1. 1 – 1. 1. 2

Water for Pharmaceutical Use Additional guidelines l WHO Guideline for Drinking water quality (WHO) l Water and steam systems (ISPE) l Bioprocessing Equipment Standard (ASME – BPE 2000) l European Pharmacopoeia, United States Pharmacopeia, International Pharmacopoeia l Inspection of Utilities (PIC/S) 1. 1. 3 Water | Slide 4 of 25 2013

Water for Pharmaceutical Use Principles l Like any starting material, production of water should conform to Good Manufacturing Practice (GMP) norms l Potential for microbial growth l Systems must be properly validated / qualified l Water for parenteral use should not be contaminated with pyrogens or endotoxins l Specifications and periodic sampling and testing required Water | Slide 5 of 25 2013

Water for Pharmaceutical Use Why purify raw water? l Although reasonably pure, it is always variable due to seasonal variations, regional variation in water quality l Must remove impurities and control microbes to avoid contaminating products l Treatment depends on water’s chemistry and contaminants, influenced by, e. g. rainfall, erosion, pollution, dissolution, sedimentation, decomposition Water | Slide 6 of 25 2013

Water for Pharmaceutical Use Contaminants of water (1) l There is no pure water in nature, as it can contain up to 90 possible unacceptable contaminants l Contaminant groups: – Inorganic compounds – Organic compounds – Solids – Gases – Microorganisms Water | Slide 7 of 25 2013

Water for Pharmaceutical Use Contaminants of water (2) Problem minerals l Calcium, magnesium, copper, aluminium, heavy metals, arsenic, lead, cadmium, nitrates l Iron, manganese, silicates, carbon dioxide l Hydrogen sulfide l Phosphates Water | Slide 8 of 25 2013

Water for Pharmaceutical Use Contaminants of water (3) Microorganisms – Biofilm formation l Protozoa – Cryptosporidium – Giardia l Bacteria – Pseudomonas – Gram negative, non-fermenting bacteria – Escherichia coli and coliforms Water | Slide 9 of 25 2013

Water for Pharmaceutical Use Biofilm formation 1. Free-swimming aquatic bacteria use polymucosaccharides to colonize surfaces 2. Complex communities evolve which shed microcolonies and bacteria Water | Slide 10 of 25 2013

Water for Pharmaceutical Use Background to water requirements and use l Water is the most widely used substance / raw material l Used in production, processing, formulation, cleaning, quality control l Unique chemical properties – Able to dissolve, absorb, adsorb, suspend compounds and contaminants l Different grades of water quality available l See also EMEA "Note for guidance on the quality of water for pharmaceutical use" 1. 2. 1 Water | Slide 11 of 25 2013

Water for Pharmaceutical Use Background to water requirements and use (2) l Control quality of water during production, storage and distribution l Contaminants, microbial and chemical quality l Microbial contamination risk and concern l Water is used on demand – not like other materials where sampled and tested, and THEN used. Thus no batch or lot release before use. It has to meet the specification "on demand" when used 1. 2. 2 – Micro test results require incubation periods therefore results later after already used Water | Slide 12 of 25 2013

Water for Pharmaceutical Use Background to water requirements and use (2) l Microbial control is a high priority l Microbes may proliferate (production, storage and distribution) l System design, periodic sanitization and other measures l Different grades of water quality (dependent on its use) 1. 2. 3. – 1. 2. 4. Water | Slide 13 of 25 2013

Water for Pharmaceutical Use General Principles of water systems l Design, installation, commissioning, qualification / validation, operation, performance and maintenance to ensure reliable, consistent production of water of required quality l Prevent unacceptable microbial, chemical and physical contamination during production, storage and distribution l Operate within design capacity l Quality Assurance involved in approval of use after installation and maintenance work, or changes Water | Slide 14 of 25 2013 2. 1. – 2. 3.

Water for Pharmaceutical Use Water system requirements (2) Regular monitoring of: l Water quality – Chemical and microbiological – Endotoxin level where relevant l System performance, storage and distribution systems l Records of results, trends and action taken l Validated sanitization procedure followed on a routine basis 2. 4. – 2. 5. Water | Slide 15 of 25 2013

Water for Pharmaceutical Use Water quality specifications Presentation of water processed, stored and distributed in bulk. (Not applicable for patient administration) Specifications in pharmacopoeia include different types of water l Drinking water / potable water l Bulk Purified water (BPW) l Bulk Highly Purified Water (BHPW) l Bulk Water for Injection (BWFI) 3. Water | Slide 16 of 25 2013

Water for Pharmaceutical Use Drinking water / potable water l Must comply with specification (WHO, ISO and national or regional agencies) – regular testing needed l Supplied under continuous positive pressure l Defect free plumbing system to prevent contamination l Could be from public water supply system or natural sources l Source water quality influences the treatment required 3. 2. 1. , 3. 2. 3. , 3. 2. 6. Water | Slide 17 of 25 2013

Water for Pharmaceutical Use Drinking water: Natural sources could include springs, wells, rivers and lakes Treatment includes desalinization, softening, removal of specific ions, particle reduction and antimicrobial treatment. Water | Slide 18 of 25 2013 3. 2. 2

Water for Pharmaceutical Use Bulk Purified Water (BPW) l Prepared from potable water (as minimum quality feed) l Meet pharmacopoeia specification - chemical and microbial purity l Alert and action limits (determined) l Protected from recontamination l Protected from microbial proliferation l RO/EDI 3. 3. 1. Water | Slide 19 of 25 2013

Water for Pharmaceutical Use Bulk Highly Purified Water (BHPW) l Prepared from potable water (as minimum feed) l Specification only in the European Pharmacopoeia l Same quality standard as WFI (microbiological and limit for endotoxins) l Prepared by combination of methods including double reverse osmosis (RO) plus ultrafiltration (UF) and deionization (DI) l Protect from recontamination and microbial proliferation 3. 4. 1. – 3. 4. 3. Water | Slide 20 of 25 2013

Water for Pharmaceutical Use Bulk Water for Injections (BWFI) l Prepared from potable water source treated further, or PW l WFI is not sterile and is not a final dosage form l WFI is an intermediate bulk product l According to The International and European Pharmacopoeias – final purification step should be distillation l To meet pharmacopoeia specification for chemical and microbial purity (including endotoxin) l Alert and action limits Water | Slide 21 of 25 2013 3. 5. 1 – 3. 5. 4.

Water for Pharmaceutical Use Application of specific types of water to processes and dosage forms l Water used for different stages of: – Washing, preparation, synthesis, manufacturing, formulation l Which grade of water is suitable for a particular stage? – As required by national authority – Consider nature and intended use of intermediate or finished product – Stage in process where water is used l Let's look at types of water and indicate their use Water | Slide 22 of 25 2013 4. 1. – 4. 2.

Water for Pharmaceutical Use Application of specific types of water to processes and dosage forms l BHPW – preparation of products when water of high quality (i. e. very low in microorganisms and endotoxins) is needed l BWFI – manufacture of injectable products for dissolving or diluting substances or preparations during the manufacturing of parenterals – manufacture of sterile water for preparation of injections – final rinse after cleaning of equipment and components – preparation of steam 4. 3. – 4. 5. Water | Slide 23 of 25 2013

Water for Pharmaceutical Use Complete the table Use Which type of water? Preparation of injectable products ? Final rinse of equipment after cleaning ? Final rinse of equipment and components that come into contact with injectable products ? ? ? Water | Slide 24 of 25 HPW Potable water 2013

Water for Pharmaceutical Use Water purification systems: So far: l Principles for pharmaceutical water systems l Water quality specifications – Drinking-water, Bulk purified water, Bulk highly purified water, Bulk water for injections l Specific types of water for processes and dosage forms l General considerations for water purification systems l Next slides focus on water purification, storage and distribution systems Water | Slide 25 of 25 2013
