Superscalar Pipeline Architectures By: Matthew Osborne, Philip Ho, Xun Chen April 19, 2004

Superscalar Pipeline Architectures By: Matthew Osborne, Philip Ho, Xun Chen April 19, 2004

Superscalar Architecture • Relatively new, first appeared in early 1990 s • Builds on

Superscalar Architecture • Relatively new, first appeared in early 1990 s • Builds on the concept of pipelining • Superscalar architectures can process multiple instructions in one clock cycle (multiple instruction execution units) • Allows for instruction execution rate to exceed the clock rate (CPI of less than 1)

Overview of Selected Superscalar Architectures • • • Intel MIPS Power. PC T 1000

Overview of Selected Superscalar Architectures • • • Intel MIPS Power. PC T 1000 Architectures Hobbes: A Multi-threaded superscalar

Intel Superscalar Architecture According to Sara Sarimento, in her essay “Recent History of Intel

Intel Superscalar Architecture According to Sara Sarimento, in her essay “Recent History of Intel Architecture – A Refresher” - Intel’s first use of a superscalar architecture was its Pentium Processor - “Instruction Level Parallelism” instructions independent of the outcome of one another execute concurrently to utilize more of the available hardware resources and increase instruction throughput.

Intel P 5 Microarchitecture • Used in initial Pentium processor • Could execute up

Intel P 5 Microarchitecture • Used in initial Pentium processor • Could execute up to 2 instructions simultaneously • Instructions sent through the pipeline in order - if the next two instructions had a dependency issue, only one instruction (pipe) would be executed and the second execution unit (pipe) went unused for that clock cycle.

Intel P 6 Microarchitecture - Used in the Pentium II, III and Pro processors

Intel P 6 Microarchitecture - Used in the Pentium II, III and Pro processors -3 instruction decoders, which break each CISC instruction (macro-op) into equivalent micro-operations (µops) for the Out-of-Order Execution unit -10 stage instruction pipeline utilized in this architecture

Intel P 6 Microarchitecture • “Out of Order” instruction execution - executes instructions without

Intel P 6 Microarchitecture • “Out of Order” instruction execution - executes instructions without data dependency issues out of order for a higher level of hardware utilization • “Scheduler” unit resolves data dependency issues between individual instructions • “Re-Order Buffer” puts instructions back in order before writing them back to memory • Up to 3 instructions can be retired concurrently to memory

Intel Net. Burst Micro. Architecture -New architecture used for the Intel Pentium IV and

Intel Net. Burst Micro. Architecture -New architecture used for the Intel Pentium IV and Pentium Xeon processors

Intel Net. Burst Microarchitecture • • • Changes from P 6 Architecture Only one

Intel Net. Burst Microarchitecture • • • Changes from P 6 Architecture Only one instruction decoder present Decoder moved outside the Out-of-Order Execution Unit; an Execution Trace Cache was added in its place Increased number of pipeline stages to 20 Improved branch prediction algorithms ALUs operate twice as quickly as their P 6 counterparts

Intel Net. Burst Microarchitecture • • Execution Trace Cache Alleviates delays in fetching and

Intel Net. Burst Microarchitecture • • Execution Trace Cache Alleviates delays in fetching and translating CISC instructions to their appropriate µops Instructions are now decoded by a translation engine, with the resulting µops stored as traces (sequence of µops) in the Execution trace cache. Traces stored in path of predicted program execution flow, with results of branches in the code integrated into this path Delivers up to 3 µops to the core of the Execution Unit per clock cycle

Intel Net. Burst Microarchitecture Branch Prediction • Branch targets are predicted based on their

Intel Net. Burst Microarchitecture Branch Prediction • Branch targets are predicted based on their linear address using branch prediction logic and fetched as soon as possible • Targets are fetched from the Execution Trace Cache if cached there; otherwise they are fetched form the memory hierarchy • Downside: despite the improved prediction algorithm, one of the biggest costs of this architecture is mispredicted branches because of the longer instruction pipeline than previous architectures.

MIPS Superscalar Architecture • MIPS is a RISC instruction platform, versus Intel’s CISC instruction

MIPS Superscalar Architecture • MIPS is a RISC instruction platform, versus Intel’s CISC instruction platform (made design of Superscalar Architecture easier than for Intel’s CISC platform) • First MIPS processor with a Superscalar Architecture was the MIPS R 8000 64 bit, released in 1994.

MIPS R 8000 Processor R 8000 Chip Set Diagram Courtesy of Silicon Graphics http:

MIPS R 8000 Processor R 8000 Chip Set Diagram Courtesy of Silicon Graphics http: //sgi. cartsys. net/i 2 sec 7. html

MIPS R 8000 Features • Superscalar • Can support/process 4 in-order instructions each cycle

MIPS R 8000 Features • Superscalar • Can support/process 4 in-order instructions each cycle • Multi-component chip set (Integer Unit, Floating Point Unit, Tag RAMs and Data Streaming Cache) • Designed for peak performance with Floating Point Operations

MIPS R 8000 Pitfalls • Integer operation performance limited • Very high cost As

MIPS R 8000 Pitfalls • Integer operation performance limited • Very high cost As a result of these two key factors: • The R 8000 was only in the marketplace for about a year. • This processor was mainly used only in the scientific community

MIPS R 10000 Processor Superscalar Pipeline Architecture for the R 10000 processor. Diagram courtesy

MIPS R 10000 Processor Superscalar Pipeline Architecture for the R 10000 processor. Diagram courtesy of R 10000 Microprocessor User’s Manual. http: //techpubs. sgi. com/library/dynaweb_docs/hdwr/SGI_Dev eloper/books/R 10 K_UM/sgi_html/t 5. Ver. 2. 0. book_12. html

R 10000 Processor - Features • Introduced in 1995 • Improved integer instruction performance

R 10000 Processor - Features • Introduced in 1995 • Improved integer instruction performance • Ability to create a multi-processor system (can attach up to 4 R 10000 chips together) • Fetches and decodes 4 instructions each clock cycle/pipeline stage • “Out Of Order” Instruction Execution – First MIPS Processor to support this feature

R 10000 Block Diagram Each decoded instruction is sent to one of 3 instruction

R 10000 Block Diagram Each decoded instruction is sent to one of 3 instruction queues -Address Queue (Load/Store Instructions) -Integer Queue (Integer ALU Operations) -Floating Point Queue (Floating Point Arithmetic Operations)

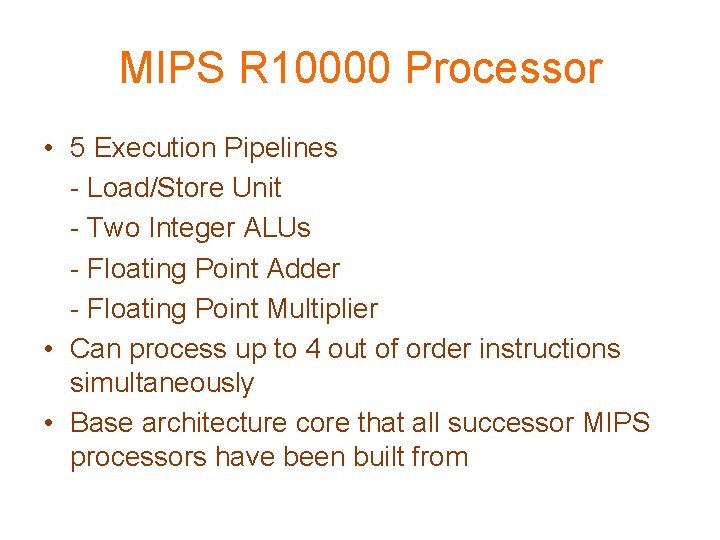

MIPS R 10000 Processor • 5 Execution Pipelines - Load/Store Unit - Two Integer

MIPS R 10000 Processor • 5 Execution Pipelines - Load/Store Unit - Two Integer ALUs - Floating Point Adder - Floating Point Multiplier • Can process up to 4 out of order instructions simultaneously • Base architecture core that all successor MIPS processors have been built from

Power. PC • Direct descendent of IBM 801, RT PC and RS/6000 • All

Power. PC • Direct descendent of IBM 801, RT PC and RS/6000 • All are RISC • RS/6000 first superscalar • Power. PC 601 superscalar design similar to RS/6000 • Later versions extend superscalar concept

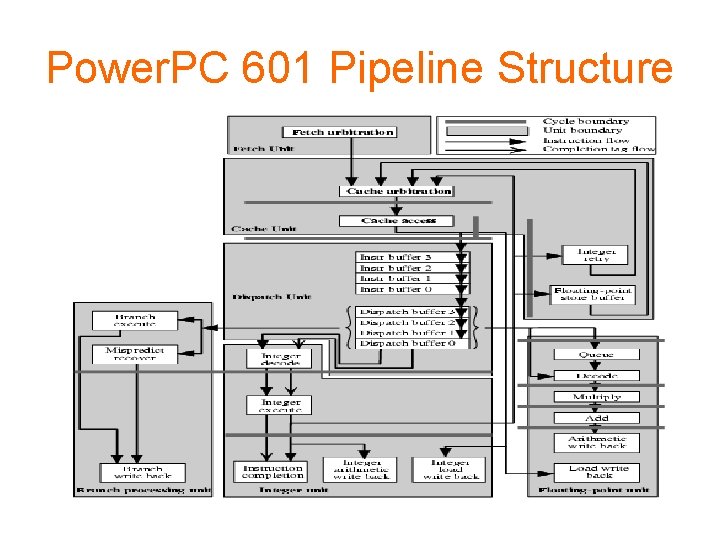

Power. PC 601 Pipeline Structure

Power. PC 601 Pipeline Structure

Power. PC 601 Pipeline

Power. PC 601 Pipeline

Power. PC 601 General View

Power. PC 601 General View

Power. PC storage model • Supports for byte(8 -bits), halfword(16 -bits), word(32 -bits) and

Power. PC storage model • Supports for byte(8 -bits), halfword(16 -bits), word(32 -bits) and doubleword(64 -bits) data types. • Handles string operations for multi-byte strings up to 128 bytes • 32 -bit Power. PC implementations supports a 4 GB effective address space. • 64 -bits Power. PC implementations supports a 16 exabyte effiective address space.

General-purpose registers (GPR) • User Instruction Set architecture specifies all implementations have 32 GPRs

General-purpose registers (GPR) • User Instruction Set architecture specifies all implementations have 32 GPRs • GPRs are the source and destination of all integer operations • No lookup is done for GPR 0’s contents.

Floating-point registers (FPR) • All implementations have 32 FPRs. • FPR are source and

Floating-point registers (FPR) • All implementations have 32 FPRs. • FPR are source and destination operands of all floating-point operations. • Contains 32 -bit and 64 -bit signed and unsigned integer vlaues, single-precision and double-precision floating-point values.

Special-purpose registers (SPR) • Give status and control of resources within the processor core.

Special-purpose registers (SPR) • Give status and control of resources within the processor core. • Read and written by applications without support from a system service include the Count Register, the Link Register and the Integer Exception Register. • Can only be ready by applications with support form a system service include the Time Base and other timers.

T 1000 Architectures • The T 1000 Architectures are reconfigurable computing architectures embedded into

T 1000 Architectures • The T 1000 Architectures are reconfigurable computing architectures embedded into a superscalar • T 1000 Architectures rely on the programmable functional unit ( PFU ), integrated into the datapath. • T 1000 is assumed to be a 4 -issue out-of-order machine. It helps tolerate the latencies of some data dependent instruction sequences. • T 1000 extended instruction is encoded as a register operation with a specific opcode.

Hobbes • A multi-threaded architecture attempt to increase pipeline utilization by concurrently executing instructions

Hobbes • A multi-threaded architecture attempt to increase pipeline utilization by concurrently executing instructions from different threads. • The architecture chosen was the aggressive speculative and out-of-order superscalar processor based on the MIPS R 2000 instruction set. • The Hobbes architecture combines multi-threading with superscalar issue, with the supposition that strengths of one should offset the weaknesses of the other. • By supporting superscalar issue from more than one thread, the architecture overcomes the lack of instruction -level parallelism that plagues other superscalar structures.

Background • The Hobbes micro-architecture draws its inspiration from two widely differing architectures: Multi-threaded

Background • The Hobbes micro-architecture draws its inspiration from two widely differing architectures: Multi-threaded and superscalar. • It is hoped that the combined of the fundamental concepts of these architecture will build upon their respective strengths and compensate for their corresponding weaknesses, allowing a hybrid to be greater than the sum of its parts.

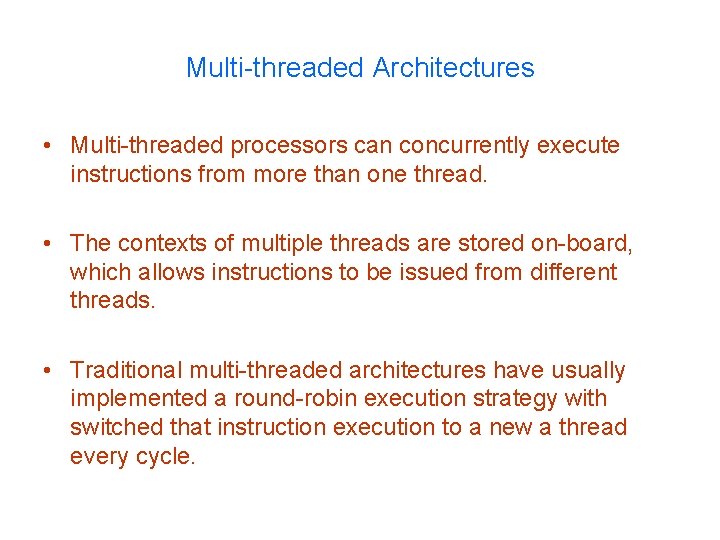

Multi-threaded Architectures • Multi-threaded processors can concurrently execute instructions from more than one thread.

Multi-threaded Architectures • Multi-threaded processors can concurrently execute instructions from more than one thread. • The contexts of multiple threads are stored on-board, which allows instructions to be issued from different threads. • Traditional multi-threaded architectures have usually implemented a round-robin execution strategy with switched that instruction execution to a new a thread every cycle.

The Thread Unit of Hobbes • The Thread unit contains all of the elements

The Thread Unit of Hobbes • The Thread unit contains all of the elements required to support a single thread. • It consists of a fetch buffer, issue buffer, decode logic, branch adder and the thread state storage.

The Thread Unit • Instruction fetch is performed by reading an entire cacheline of

The Thread Unit • Instruction fetch is performed by reading an entire cacheline of four words and storing it in the fetch buffer. • Each thread decodes and issues its instructions in program order. After and instruction has been decoded, it is stalled until all of its operands are available. • Once the operands are ready, the instruction is placed into the issue buffer and the issue unit is notified. • The register file is very similar to that found on the R 2000. The register file has two write ports and both of these may be from the same thread. • Branches which do not affect the register file are executed in the thread unit and are not issued to the execution unit.

The Execution Units of Hobbes • The Hobbes architecture has an almost identical set

The Execution Units of Hobbes • The Hobbes architecture has an almost identical set of execution units as out-of –order superscalar processor. • The characteristics of the execution units approximately correspond to those of the R 2000/R 2010. • Execution Units • Integer: 2 ALUs, Shifter, Multiply / Divide, Load / Store, Data cache interface • FP: FP Convert, FP Add, FP Multiply, FP Divide

Superscalar Architecture • Superscalar processors improve performance by reducing the average number of cycles

Superscalar Architecture • Superscalar processors improve performance by reducing the average number of cycles required to execute each instruction • This is accomplished by issuing and executing more than one independent instruction per cycle, rather than limiting execution to just on instruction per cycle as traditional pipelined architectures. • For superscalar architectures to experience speed-up over traditional pipelined architectures they require the average level of available instruction-level parallelism to be greater than one.

References • • Hennessy, John L and Patterson, David A. “Computer Organization and Design,

References • • Hennessy, John L and Patterson, David A. “Computer Organization and Design, The Hardware/Software Interface. ” San Francisco: Morgan Kaufmann Publishers 1998. Sarimento, Sara. “Recent History of Intel Architecture – A Refresher. ” 17 April 2004. Intel Corporation www. intel. com 18 April 2004 http: //www. intel. com/cd/ids/developer/asmona/eng/microprocessors/ia 32/pentium 4/optimization/44015. htm Zhou & Martonosi. “Augmenting Modern Suuperscalar Architectures with Configurable Extended Instructions”. 19 April 2004. http: //ipdps. eece. unm. edu/2000/raw/18000943. pdf Kish & Preiss. “Hobbes: A Multi-Threaded Superscalar Architecture 19, April 2004 http: //www. brpreiss. com/page 75. html R 10000 Processor User’s Manual. 9 Dec 1996. SGI Corporation. 22 April 2004 http: //techpubs. sgi. com/library/dynaweb_docs/hdwr/SGI_Developer/books/R 10 K_UM/sgi_html/ind ex. html#HEADING 1 “MIPS Architecture. ” 17 April 2004. Wikipedia, The Free Encyclopedia http: //en. wikipedia. org/wiki/Main_Page 23 April 2004 http: //en. wikipedia. org/wiki/MIPS_architecture. Mapleson, Ian. “Indigo 2 and Power Indigo 2 Technical Report. ” Silicon. Graphics. 23 April 2004 http: //sgi. cartsys. net/i 2 sec 7. html. “Power PC Architecture” 23 April 2004 http: //www 1. ibm. com/servers/eserver/pseries/hardware/whitepapers/power/ppc_arch. html
