Supermicro 2009 Embedded IPMI Super Blade GPU Solutions
Supermicro © 2009 Embedded IPMI Super. Blade® GPU Solutions Storage Universal I/O Double-Sided Datacenter Optimized Twin Architecture
Confidential Agenda n Introduction n Features n KVM and Virtual Media n Software Interface 2

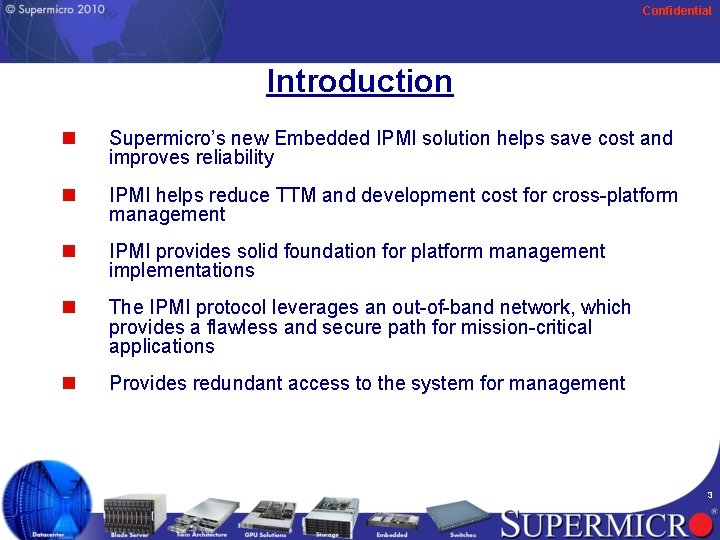

Confidential Introduction n Supermicro’s new Embedded IPMI solution helps save cost and improves reliability n IPMI helps reduce TTM and development cost for cross-platform management n IPMI provides solid foundation for platform management implementations n The IPMI protocol leverages an out-of-band network, which provides a flawless and secure path for mission-critical applications n Provides redundant access to the system for management 3

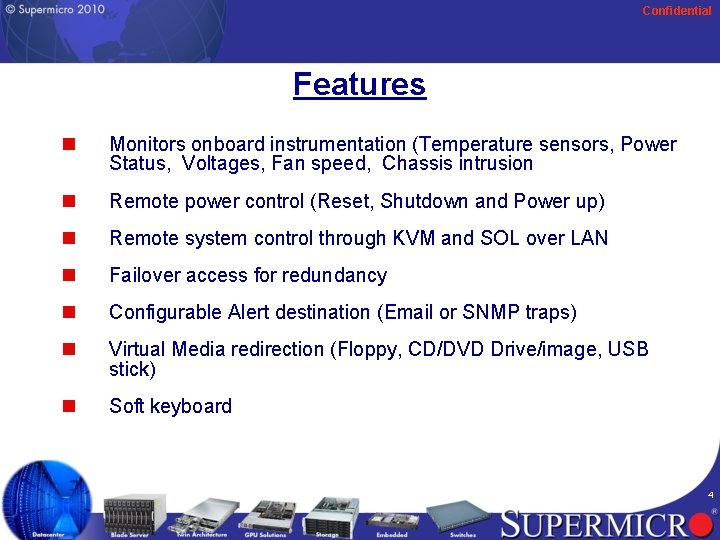

Confidential Features n Monitors onboard instrumentation (Temperature sensors, Power Status, Voltages, Fan speed, Chassis intrusion n Remote power control (Reset, Shutdown and Power up) n Remote system control through KVM and SOL over LAN n Failover access for redundancy n Configurable Alert destination (Email or SNMP traps) n Virtual Media redirection (Floppy, CD/DVD Drive/image, USB stick) n Soft keyboard 4

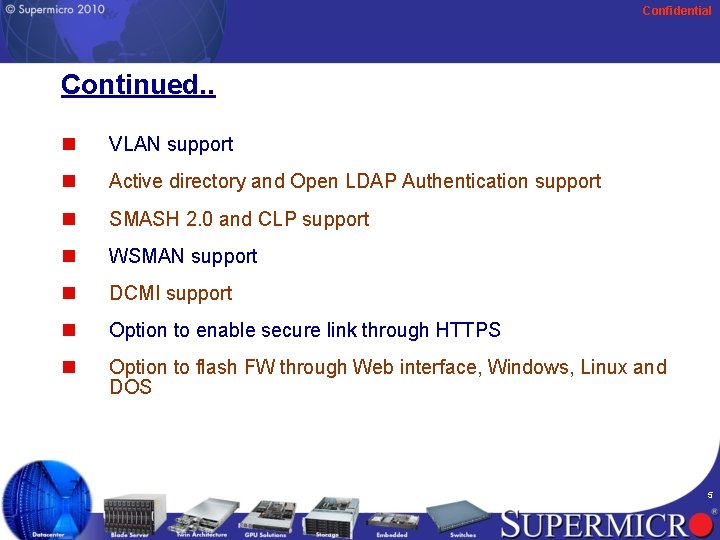

Confidential Continued. . n VLAN support n Active directory and Open LDAP Authentication support n SMASH 2. 0 and CLP support n WSMAN support n DCMI support n Option to enable secure link through HTTPS n Option to flash FW through Web interface, Windows, Linux and DOS 5

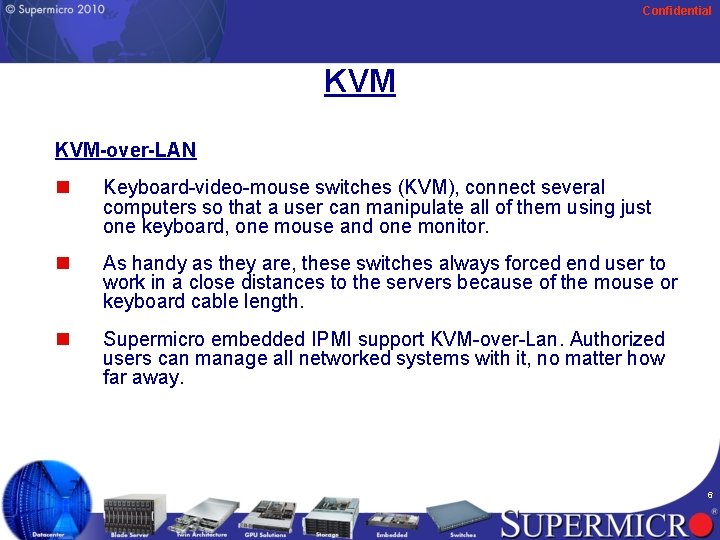

Confidential KVM-over-LAN n Keyboard-video-mouse switches (KVM), connect several computers so that a user can manipulate all of them using just one keyboard, one mouse and one monitor. n As handy as they are, these switches always forced end user to work in a close distances to the servers because of the mouse or keyboard cable length. n Supermicro embedded IPMI support KVM-over-Lan. Authorized users can manage all networked systems with it, no matter how far away. 6

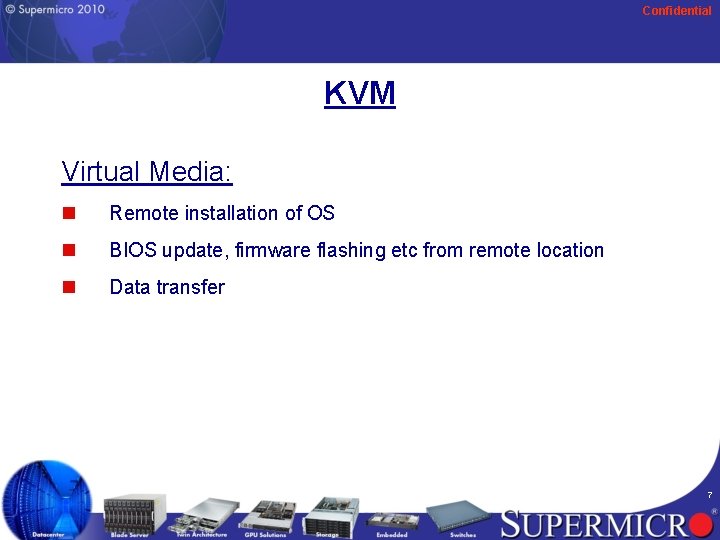

Confidential KVM Virtual Media: n Remote installation of OS n BIOS update, firmware flashing etc from remote location n Data transfer 7

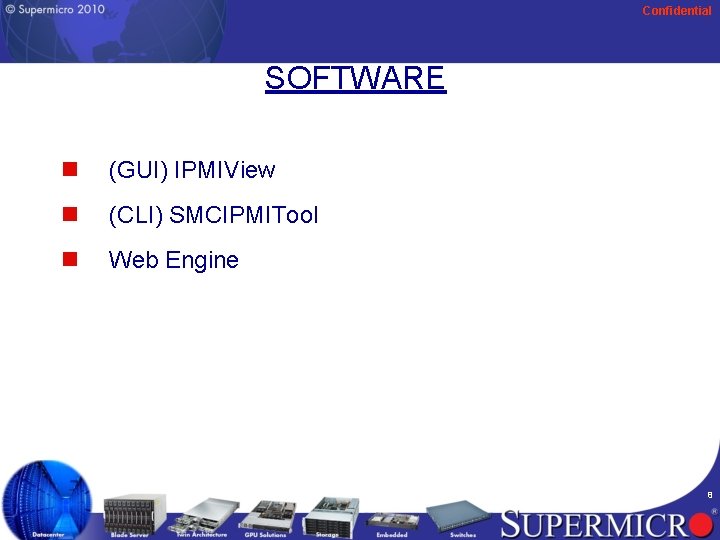

Confidential SOFTWARE n (GUI) IPMIView n (CLI) SMCIPMITool n Web Engine 8

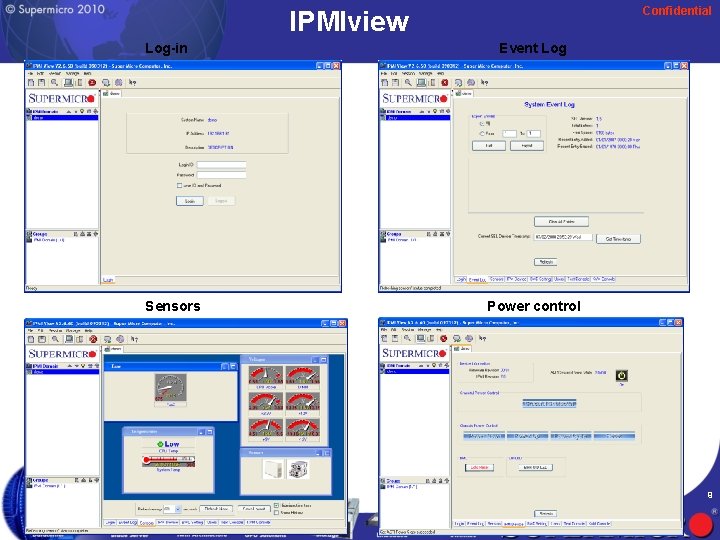

Confidential IPMIview Log-in Sensors Event Log Power control 9

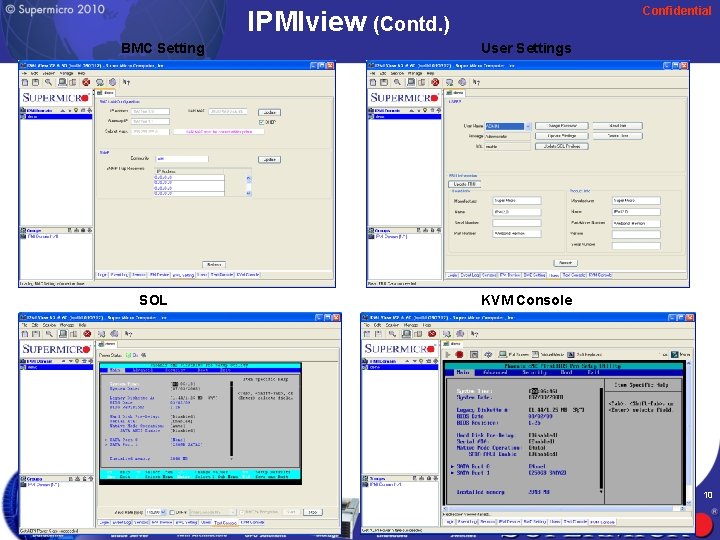

Confidential IPMIview (Contd. ) BMC Setting SOL User Settings KVM Console 10

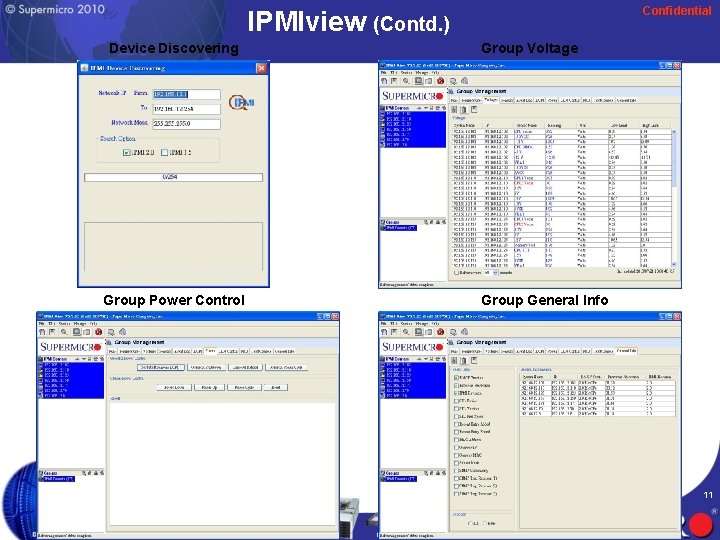

Confidential IPMIview (Contd. ) Device Discovering Group Power Control Group Voltage Group General Info 11

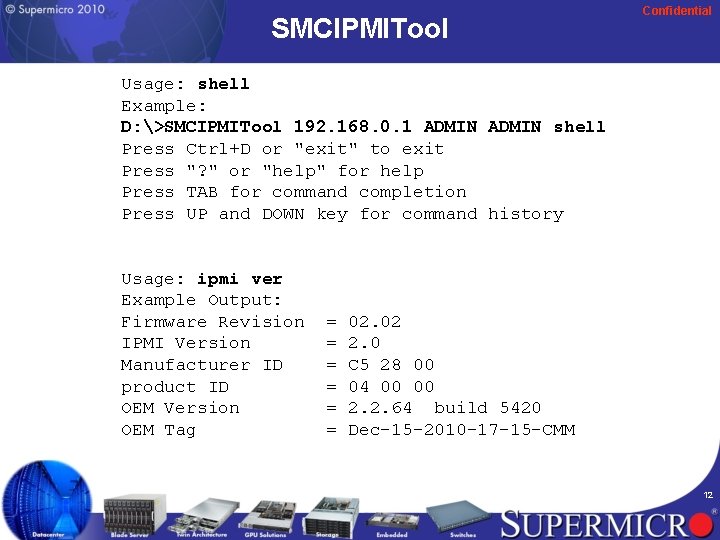

SMCIPMITool Confidential Usage: shell Example: D: >SMCIPMITool 192. 168. 0. 1 ADMIN shell Press Ctrl+D or "exit" to exit Press "? " or "help" for help Press TAB for command completion Press UP and DOWN key for command history Usage: ipmi ver Example Output: Firmware Revision IPMI Version Manufacturer ID product ID OEM Version OEM Tag = = = 02. 02 2. 0 C 5 28 00 04 00 00 2. 2. 64 build 5420 Dec-15 -2010 -17 -15 -CMM 12

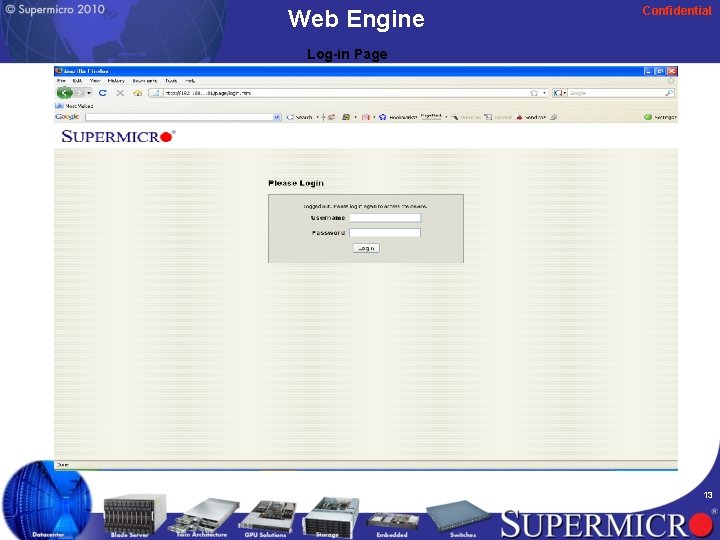

Web Engine Confidential Log-in Page 13

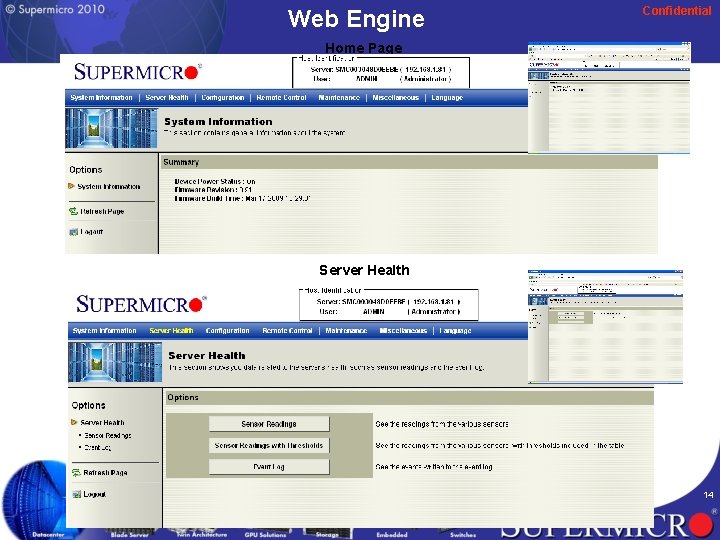

Web Engine Confidential Home Page Server Health 14

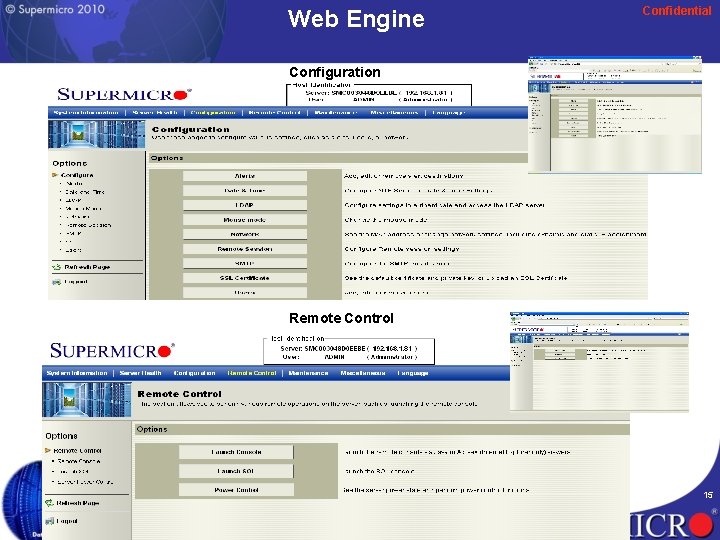

Web Engine Confidential Configuration Remote Control 15

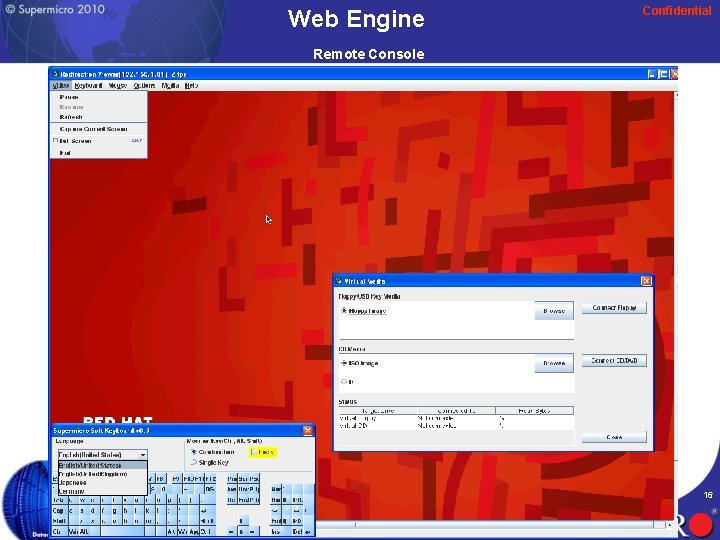

Web Engine Confidential Remote Console 16
