SUPER ULTRASONIC CO LTD 0328 0328 PORTABLE WELDING

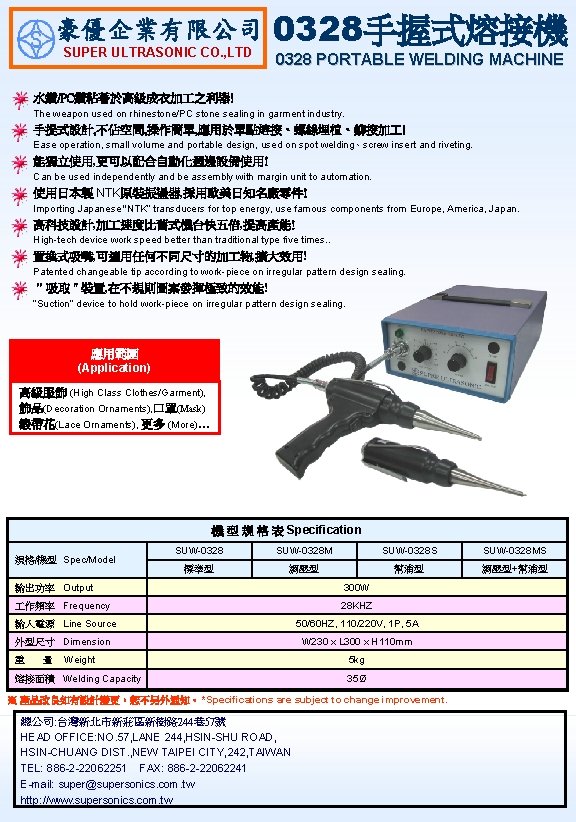

豪優企業有限公司 SUPER ULTRASONIC CO. , LTD 0328手握式熔接機 0328 PORTABLE WELDING MACHINE 水鑽/PC鑽粘著於高級成衣加 之利器! The weapon used on rhinestone/PC stone sealing in garment industry. 手提式設計, 不佔空間, 操作簡單, 應用於單點熔接、螺絲埋植、鉚接加 ! Ease operation, small volume and portable design, used on spot welding、screw insert and riveting. 能獨立使用, 更可以配合自動化週邊設備使用! Can be used independently and be assembly with margin unit to automation. 使用日本製 NTK原裝振盪器, 採用歐美日知名廠零件! Importing Japanese "NTK“ transducers for top energy, use famous components from Europe, America, Japan. 高科技設計, 加 速度比舊式機台快五倍, 提高產能! High-tech device work speed better than traditional type five times. . 置換式吸嘴, 可適用任何不同尺寸的加 物, 擴大效用! Patented changeable tip according to work-piece on irregular pattern design sealing. " 吸取 " 裝置, 在不規則圖案發揮極致的效能! “Suction” device to hold work-piece on irregular pattern design sealing. 應用範圍 (Application) 高級服飾 (High Class Clothes/Garment), 飾品(Decoration Ornaments), 口罩(Mask) 緞帶花(Lace Ornaments), 更多 (More)… 機 型 規 格 表 Specification 規格/機型 Spec/Model SUW-0328 M SUW-0328 S SUW-0328 MS 標準型 調壓型 幫浦型 調壓型+幫浦型 輸出功率 Output 300 W 作頻率 Frequency 28 KHZ 輸入電源 Line Source 外型尺寸 Dimension 50/60 HZ, 110/220 V, 1 P, 5 A W 230 x L 300 x H 110 mm Weight 5 kg 熔接面積 Welding Capacity 35Ø 重 量 ※ 產品改良如有設計變更,恕不另外通知。 *Specifications are subject to change improvement. 總公司: 台灣新北市新莊區新樹路 244巷 57號 HEAD OFFICE: NO. 57, LANE 244, HSIN-SHU ROAD, HSIN-CHUANG DIST. , NEW TAIPEI CITY, 242, TAIWAN TEL: 886 -2 -22062251 FAX: 886 -2 -22062241 E-mail: super@supersonics. com. tw http: //www. supersonics. com. tw
