Super Quality Services SINCE 1986 SHEROGRAPY Presentation Slide

Super Quality Services (SINCE 1986) SHEROGRAPY Presentation Slide 1 | Kim Hallqvist | Q-800 September 2009 Super quality services| sqs ppt-Q 810

SQS Activities Overview • SQS is one of the India's major NDT service providers. • Branches SQS MANIFA Services (Saudi Arabia) PT. Super Quality Services (Indonesia) • Methods : Radiographic Testing(High Energy X-Ray) – LINAC 9 Mev (Linear Accelerator) – BETATRON 7. 5 & 10 Mev • Ultrasonic Testing(UT) • Magnetic Particle Testing(MPT) • Liquid Penetration Testing(PT) • Positive Material Identification(PMI) Slide 2 | Kim Hallqvist | Q-800 September 2009 Super quality services| sqs ppt-Q 810 Super quality services| sqs-001 2016

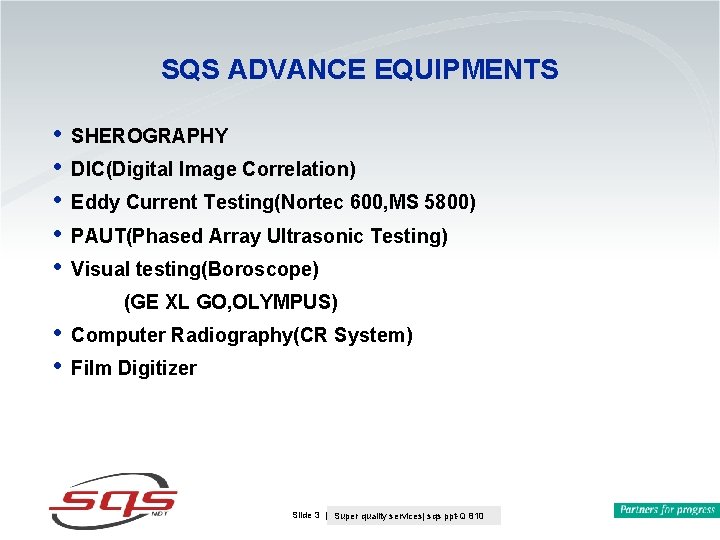

SQS ADVANCE EQUIPMENTS • • • SHEROGRAPHY DIC(Digital Image Correlation) Eddy Current Testing(Nortec 600, MS 5800) PAUT(Phased Array Ultrasonic Testing) Visual testing(Boroscope) (GE XL GO, OLYMPUS) • • Computer Radiography(CR System) Film Digitizer Slide 3 | Kim Hallqvist | Q-800 September 2009 Super quality services| sqs ppt-Q 810 Super quality services| sqs-001 2016

Introduction About SHEROGRAPHY Slide 4 | Kim Hallqvist | Q-800 September 2009 Super quality services| sqs ppt-Q 810 Super quality services| sqs-001 2016

WHO needs sherography ? … Slide 5 | Kim Hallqvist | Q-800 September 2009 Super quality services| sqs-001 2016 Super quality services| sqs ppt-Q 810

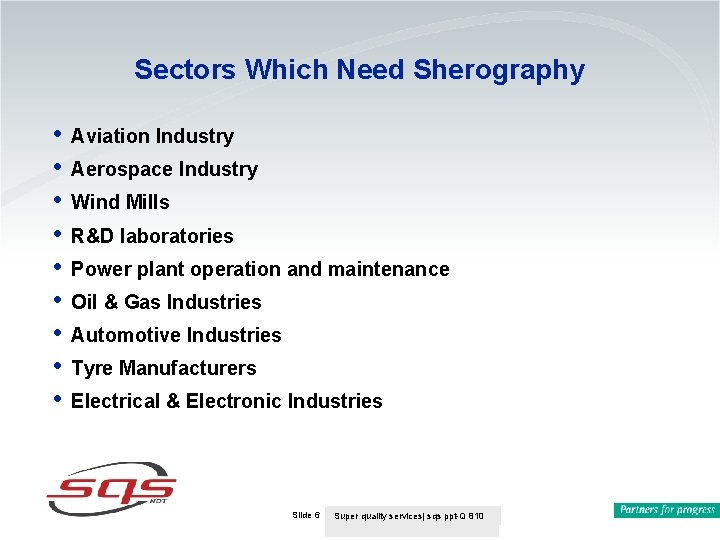

Sectors Which Need Sherography • • • Aviation Industry Aerospace Industry Wind Mills R&D laboratories Power plant operation and maintenance Oil & Gas Industries Automotive Industries Tyre Manufacturers Electrical & Electronic Industries Slide 6 | Kim Hallqvist | Q-800 September 2009 Super quality services| sqs ppt-Q 810 Super quality services| sqs-001 2016

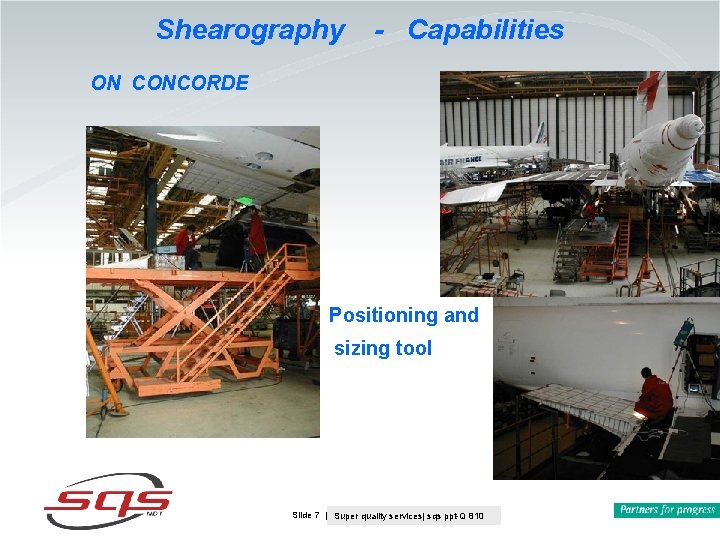

Shearography - Capabilities ON CONCORDE Positioning and sizing tool Slide 7 | Kim Hallqvist | Q-800 September 2009 Super quality services| sqs ppt-Q 810

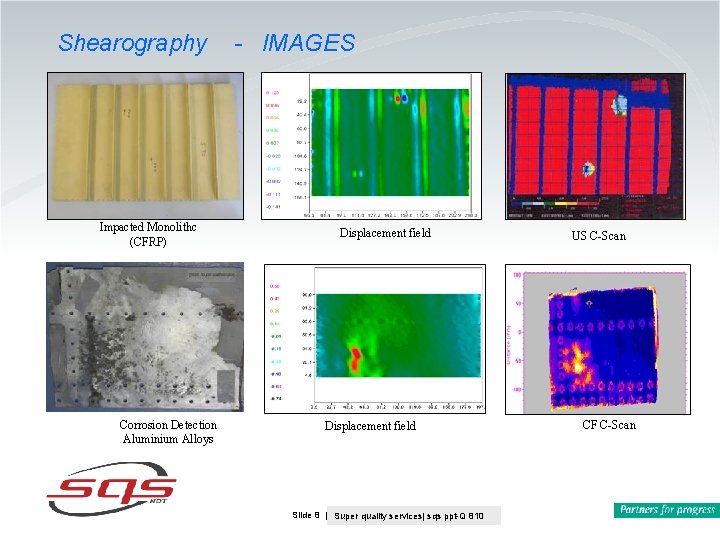

Shearography Impacted Monolithc (CFRP) Corrosion Detection Aluminium Alloys - IMAGES Displacement field Slide 8 | Kim Hallqvist | Q-800 September 2009 Super quality services| sqs ppt-Q 810 US C-Scan CF C-Scan

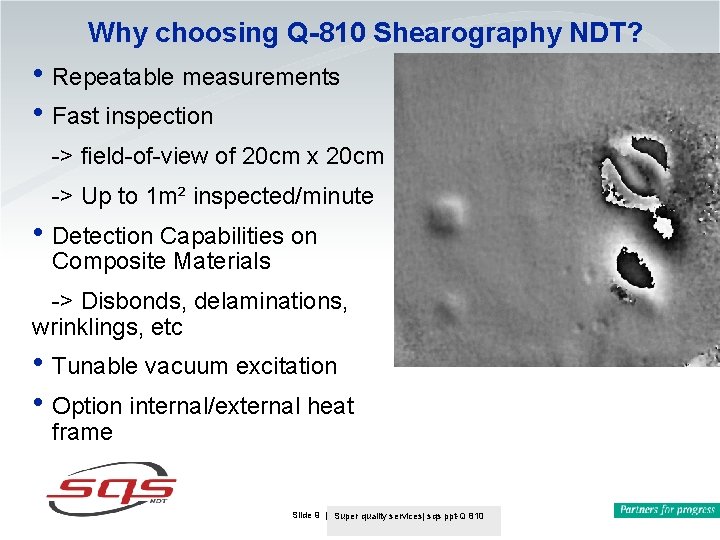

Why choosing Q-810 Shearography NDT? • Repeatable measurements • Fast inspection -> field-of-view of 20 cm x 20 cm -> Up to 1 m² inspected/minute • Detection Capabilities on Composite Materials -> Disbonds, delaminations, wrinklings, etc • Tunable vacuum excitation • Option internal/external heat frame Slide 9 | Kim Hallqvist | Q-800 September 2009 Super quality services| sqs ppt-Q 810 Super quality services| sqs-001 2016

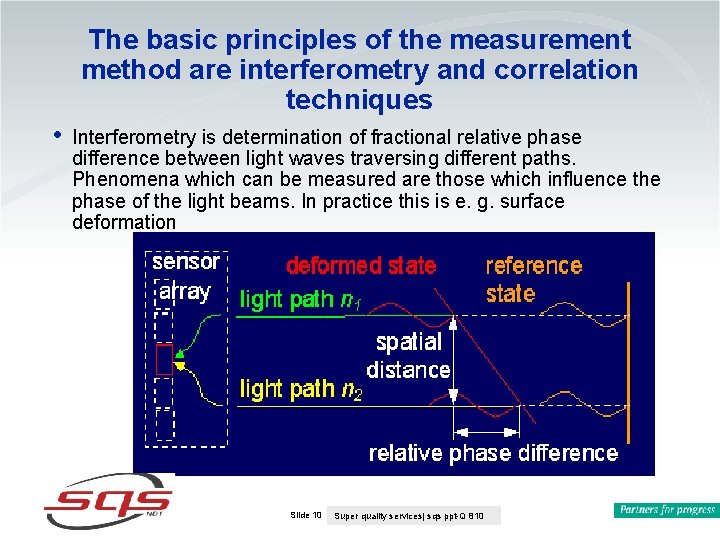

The basic principles of the measurement method are interferometry and correlation techniques • Interferometry is determination of fractional relative phase difference between light waves traversing different paths. Phenomena which can be measured are those which influence the phase of the light beams. In practice this is e. g. surface deformation Slide 10 | Kim Hallqvist | Q-800 September 2009 Super quality services| sqs ppt-Q 810

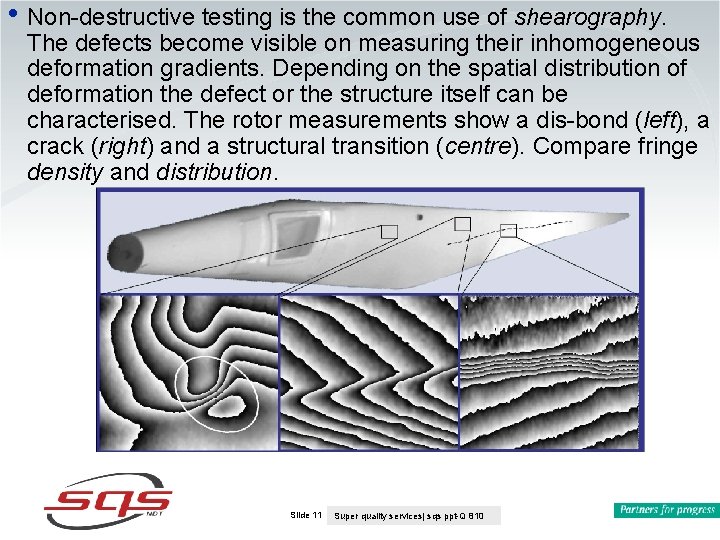

• Non-destructive testing is the common use of shearography. The defects become visible on measuring their inhomogeneous deformation gradients. Depending on the spatial distribution of deformation the defect or the structure itself can be characterised. The rotor measurements show a dis-bond (left), a crack (right) and a structural transition (centre). Compare fringe density and distribution. Slide 11 | Kim Hallqvist | Q-800 September 2009 Super quality services| sqs ppt-Q 810

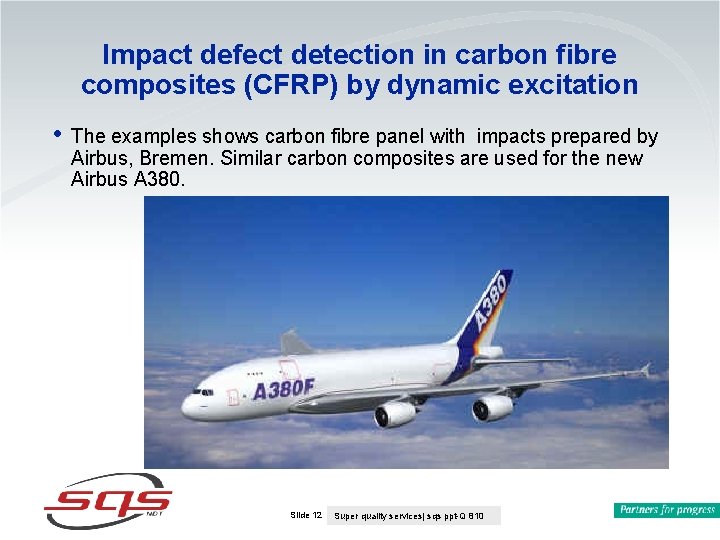

Impact defect detection in carbon fibre composites (CFRP) by dynamic excitation • The examples shows carbon fibre panel with impacts prepared by Airbus, Bremen. Similar carbon composites are used for the new Airbus A 380. Slide 12 | Kim Hallqvist | Q-800 September 2009 Super quality services| sqs ppt-Q 810

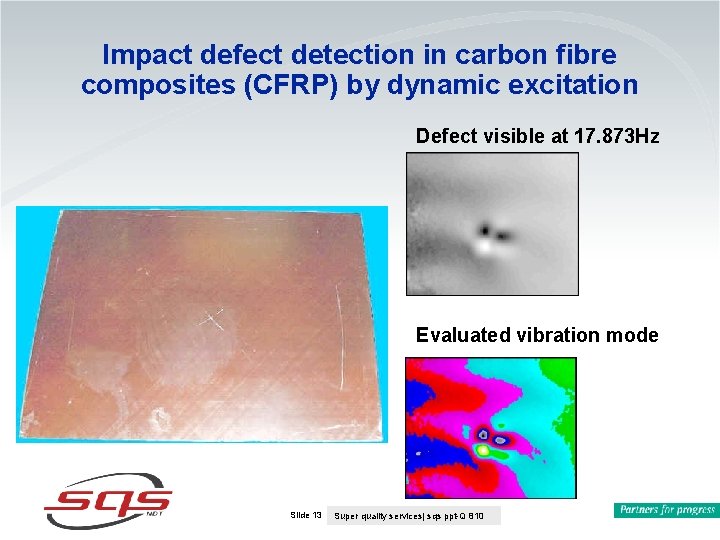

Impact defect detection in carbon fibre composites (CFRP) by dynamic excitation Defect visible at 17. 873 Hz Evaluated vibration mode Slide 13 | Kim Hallqvist | Q-800 September 2009 Super quality services| sqs ppt-Q 810

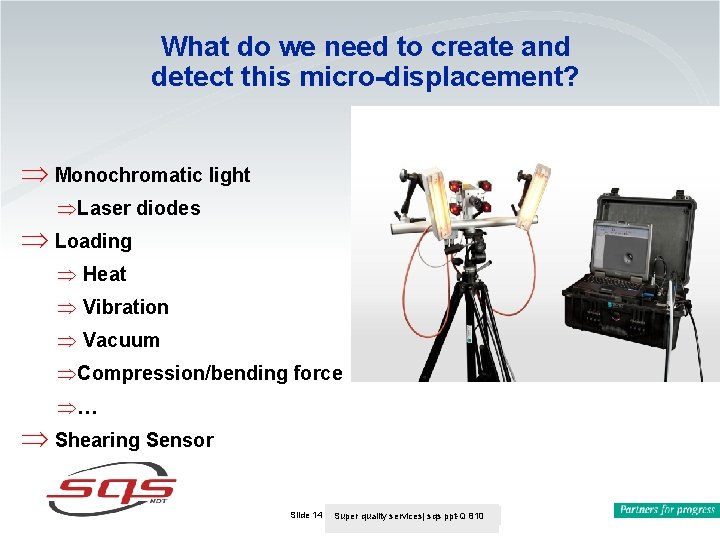

What do we need to create and detect this micro-displacement? Þ Monochromatic light ÞLaser diodes Þ Loading Þ Heat Þ Vibration Þ Vacuum ÞCompression/bending force Þ… Þ Shearing Sensor Super quality services| sqs-001 2016 Slide 14 | Kim Hallqvist | Q-800 September 2009 Super quality services| sqs ppt-Q 810

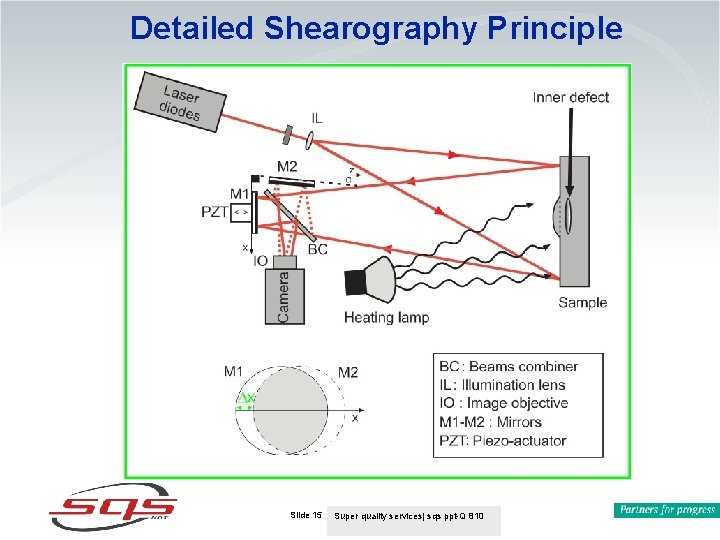

Detailed Shearography Principle Slide 15 | Kim Hallqvist | Q-800 September 2009 Super quality services| sqs ppt-Q 810 Super quality services| sqs-001 2016

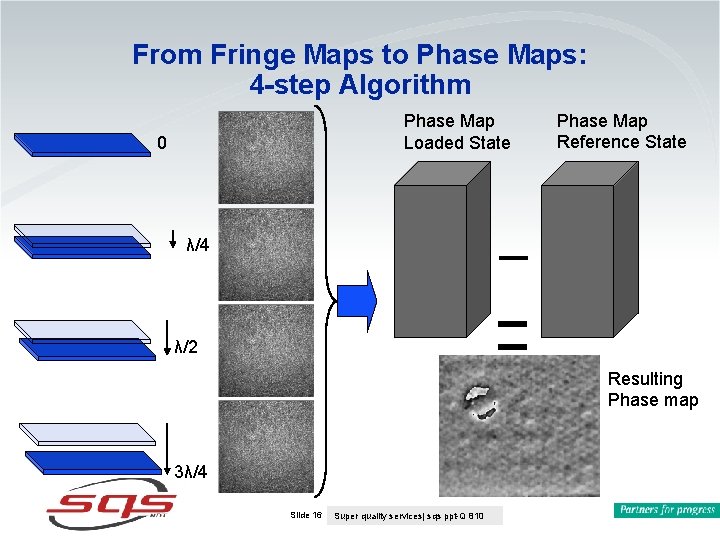

From Fringe Maps to Phase Maps: 4 -step Algorithm Phase Map Loaded State 0 Phase Map Reference State λ/4 λ/2 Resulting Phase map 3λ/4 Slide 16 | Kim Hallqvist | Q-800 September 2009 Super quality services| sqs ppt-Q 810 Super quality services| sqs-001 2016

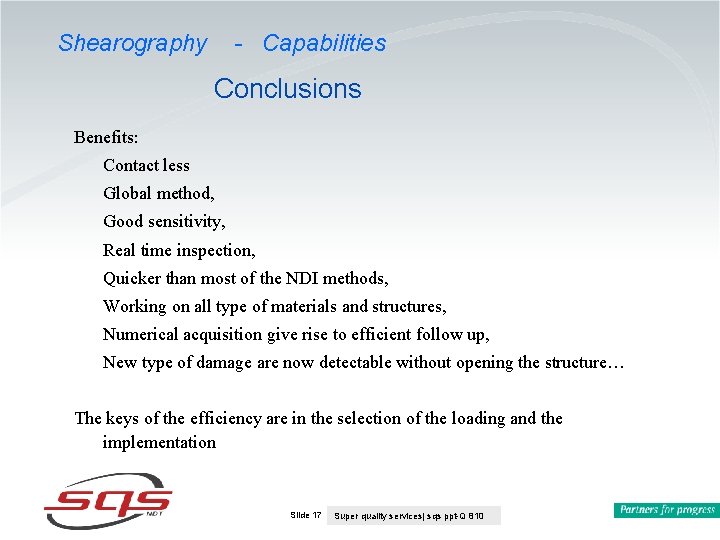

Shearography - Capabilities Conclusions Benefits: Contact less Global method, Good sensitivity, Real time inspection, Quicker than most of the NDI methods, Working on all type of materials and structures, Numerical acquisition give rise to efficient follow up, New type of damage are now detectable without opening the structure… The keys of the efficiency are in the selection of the loading and the implementation Slide 17 | Kim Hallqvist | Q-800 September 2009 Super quality services| sqs ppt-Q 810

Contact Details: - Admin office SUPER QUALITY SERVICES No: 95, SQS Building Palakarai Main Road Trichy-620001 Ph. No: -0431 -2414218, 0431 -2415087 Mobile No: -99943 -70218 Website: -www. sqsndt. co. in Email: -mail@sqsndt. co. in Super quality services| sqs-001 2016 Slide 18 | Kim Hallqvist | Q-800 September 2009 Super quality services| sqs ppt-Q 810
