SUMMER PRACTICAL TRAINING LEARNING BY DOING by S

SUMMER PRACTICAL TRAINING LEARNING BY DOING by S K Rai Assistant Professor The Department of ECE B K Birla Institute of Engineering & Technology Pilani (Raj. )-333 031

AN OLD PROVERB SAYS: I Read - I Forget I See - I Remember I Do - I Understand There is only one way to learn: JUST DO IT!

MICROCONTROLLER: 8051/8052 FAMILY Basic Understanding with Differences μp μc

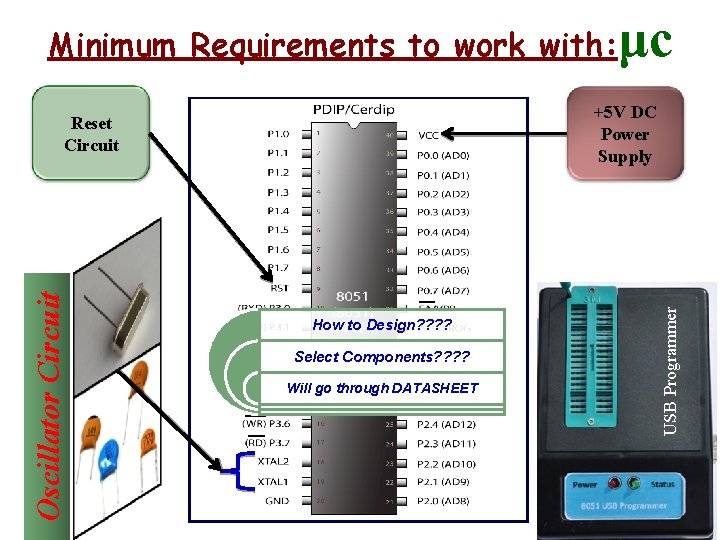

Minimum Requirements to work with: How to Design? ? Select Components? ? Will go through DATASHEET USB Programmer +5 V DC Power Supply Reset Circuit Oscillator Circuit μc

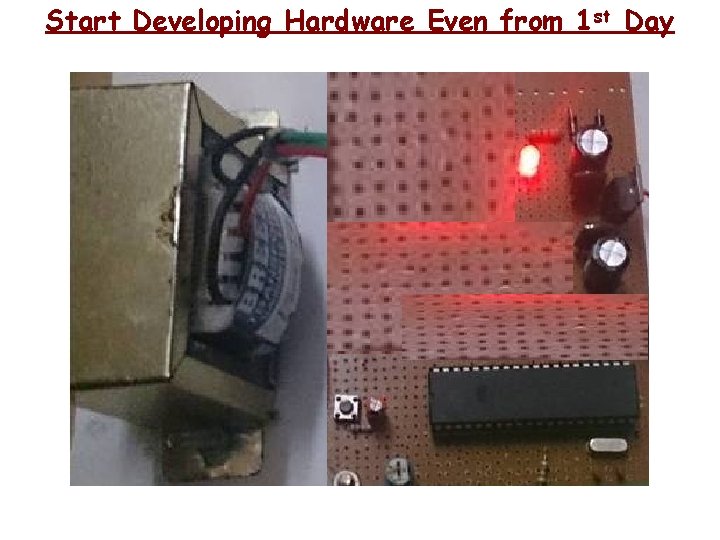

Start Developing Hardware Even from 1 st Day

Understanding Pin-diagram…… Port-1 Port-0 Port-3 Port-2

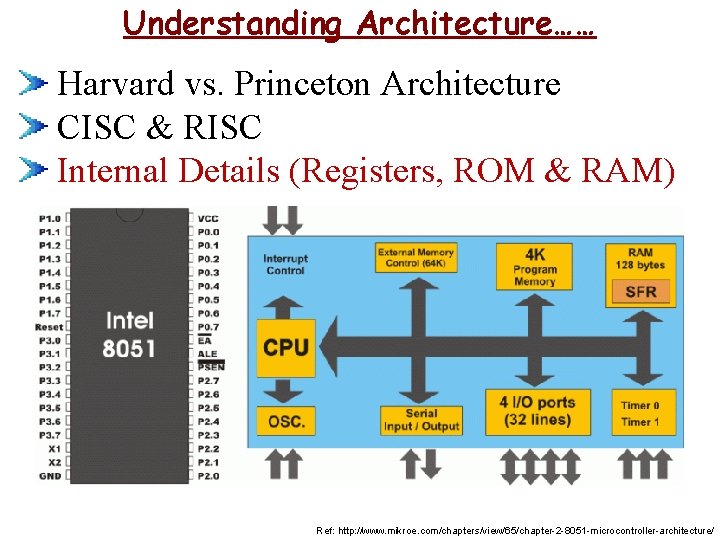

Understanding Architecture…… Harvard vs. Princeton Architecture CISC & RISC Internal Details (Registers, ROM & RAM) Ref: http: //www. mikroe. com/chapters/view/65/chapter-2 -8051 -microcontroller-architecture/

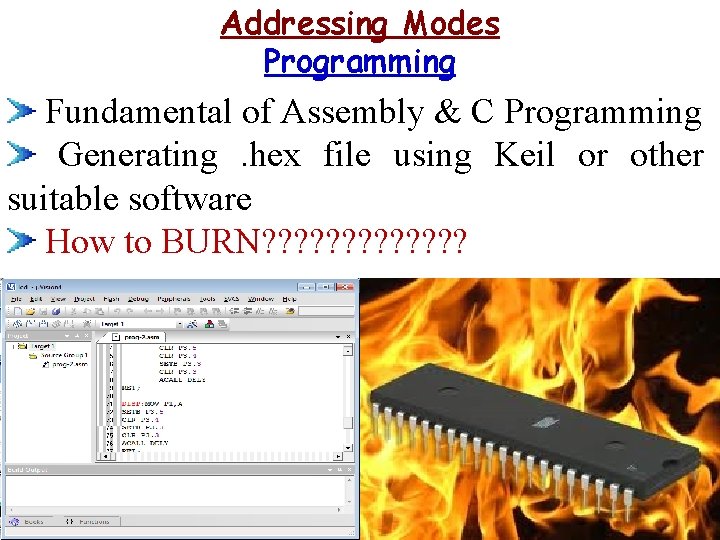

Addressing Modes Programming Fundamental of Assembly & C Programming Generating. hex file using Keil or other suitable software How to BURN? ? ? ?

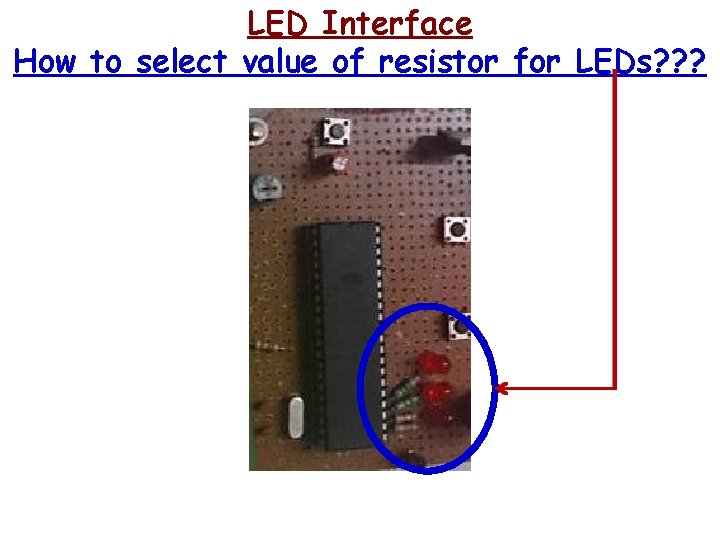

LED Interface How to select value of resistor for LEDs? ? ?

7 -Segment Interface with PORT-0 Pull-Up resistors? ? ? Port-0

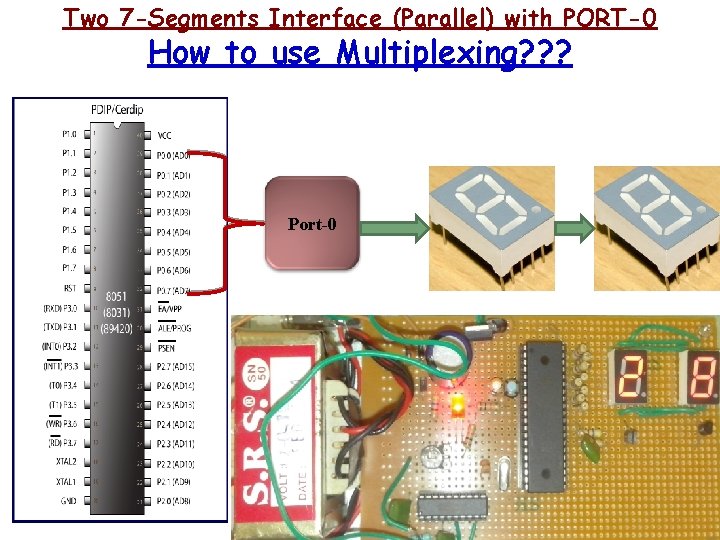

Two 7 -Segments Interface (Parallel) with PORT-0 How to use Multiplexing? ? ? Port-0

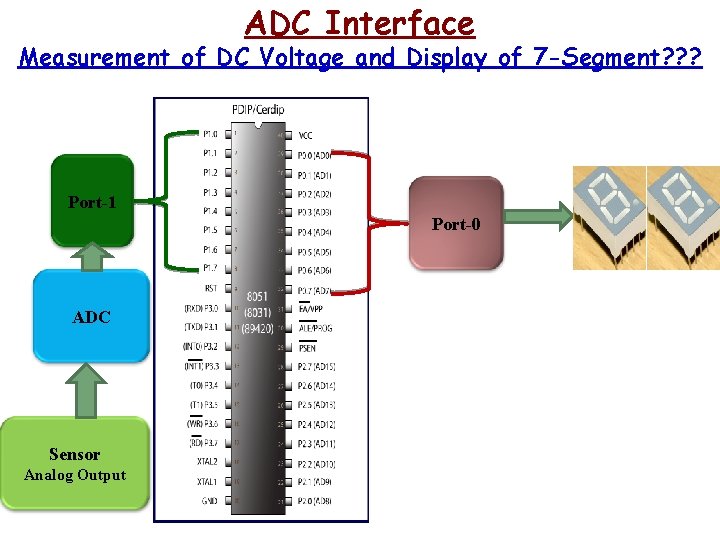

ADC Interface Measurement of DC Voltage and Display of 7 -Segment? ? ? Port-1 Port-0 ADC Sensor Analog Output

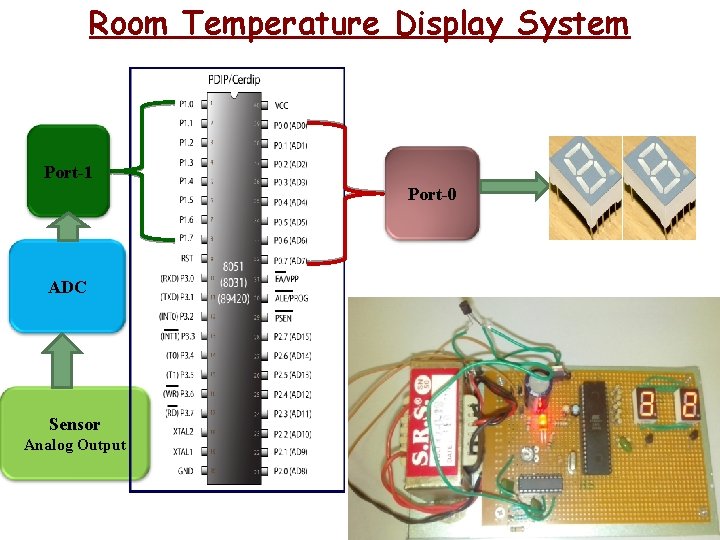

Room Temperature Display System Port-1 Port-0 ADC Sensor Analog Output

LCD Interface

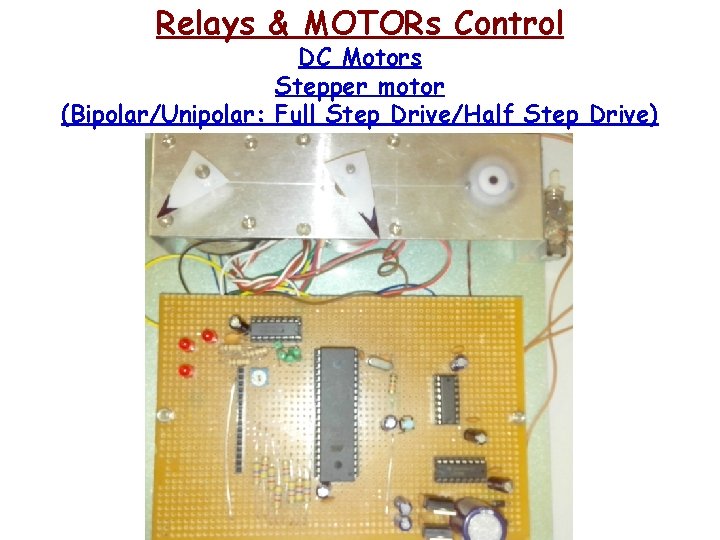

Relays & MOTORs Control DC Motors Stepper motor (Bipolar/Unipolar: Full Step Drive/Half Step Drive)

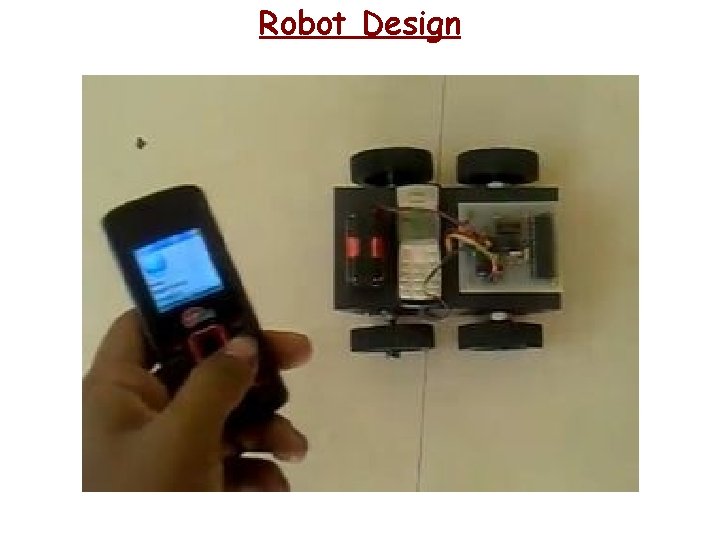

Robot Design
