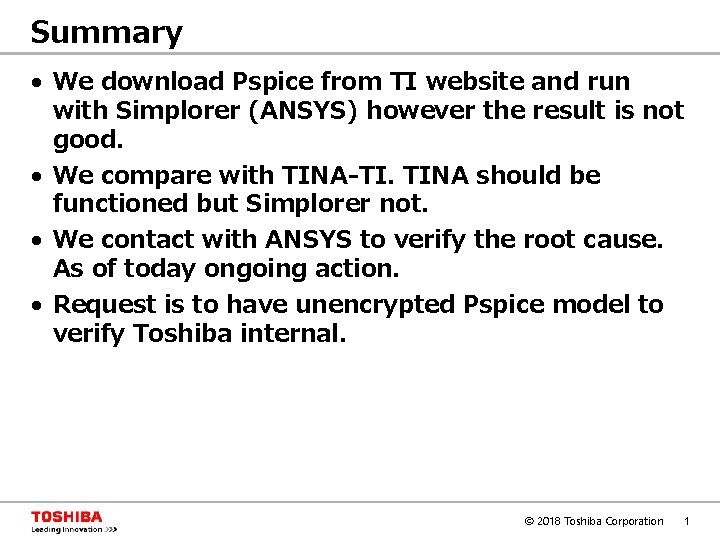

Summary • We download Pspice from TI website and run with Simplorer (ANSYS) however the result is not good. • We compare with TINA-TI. TINA should be functioned but Simplorer not. • We contact with ANSYS to verify the root cause. As of today ongoing action. • Request is to have unencrypted Pspice model to verify Toshiba internal. © 2018 Toshiba Corporation 1

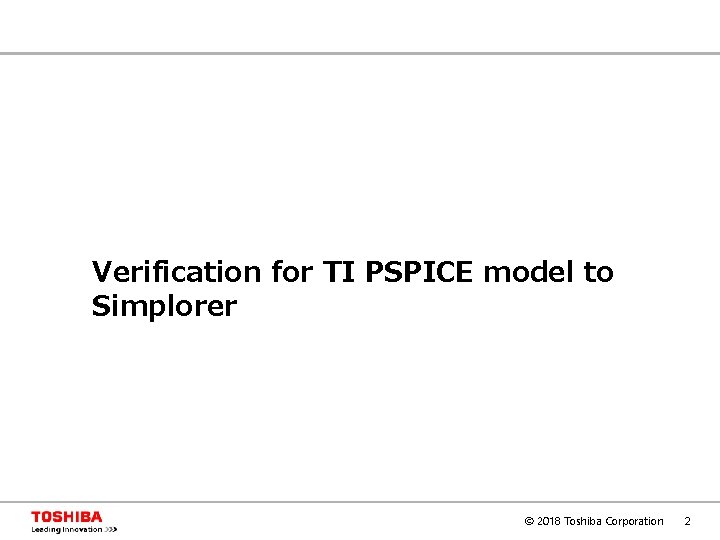

Verification for TI PSPICE model to Simplorer © 2018 Toshiba Corporation 2

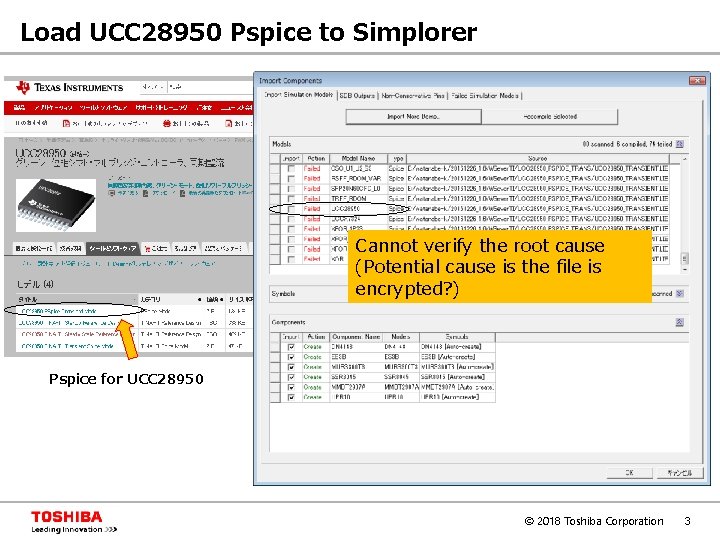

Load UCC 28950 Pspice to Simplorer Cannot verify the root cause (Potential cause is the file is encrypted? ) Pspice for UCC 28950 © 2018 Toshiba Corporation 3

Other PSPICE loading to Simplorer UCC 27524 UCC 28070 A UCC 27714 （Gate. Driver） Same error happen © 2018 Toshiba Corporation 4

Verification of built-in model with UCC 28950 for Simplorer © 2018 Toshiba Corporation 5

UCC 28950　Simplorer model Built-in model for Simplorer © 2018 Toshiba Corporation 6

Tina-TI model http: //www. tij. co. jp/product/jp/UCC 28950/toolssoftware Tina-TI Macro model symbol UCC 28950 for Tina-TI model © 2018 Toshiba Corporation 7

Comparison between Simplorer and TINA-TI Tina-TI ANSYS Simplorer Pin-out is matching © 2018 Toshiba Corporation 8

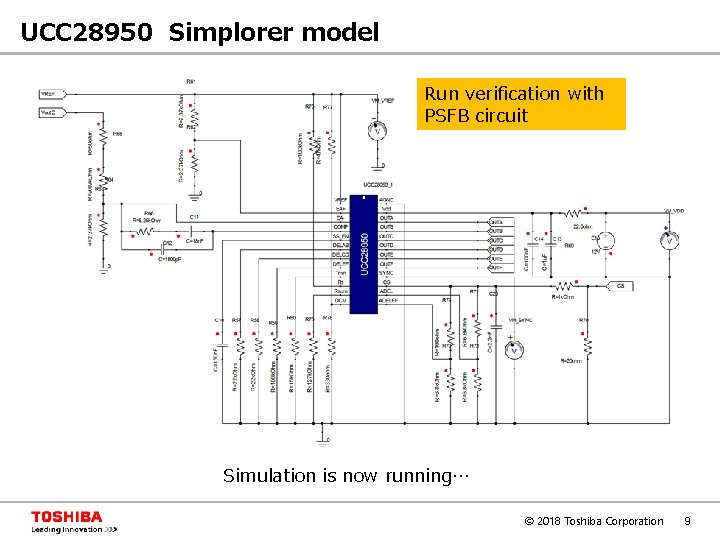

UCC 28950　Simplorer model Run verification with PSFB circuit Simulation is now running… © 2018 Toshiba Corporation 9

Verification of built-in model with UCC 1895 for Simplorer © 2018 Toshiba Corporation 10

Simplorer model Texas Instruments - PWM Controllers ManufacturersPower Management ICsPWM Controllers: UCCx 895 Built-in model for Simplorer © 2018 Toshiba Corporation 11

Tina-TI model http: //www. tij. co. jp/product/jp/UCC 1895/toolssoftware Tina-TI macro model symbol UCC 1895 for Tina-TI © 2018 Toshiba Corporation 12

Tina-TI circuit model (slum 186) Tina-Ti model (slum 186) TINA-TI model for UCC 1895 © 2018 Toshiba Corporation 13

Simplorer circuit model Develop UCCx 895 circuit with Simplorer based on TINA-TI circuit model © 2018 Toshiba Corporation 14

Comparison of simulation result Result from Tina-TI(slum 186) Result from Simplorer CS. V comes from the result of TINA-TI Control signal (Out. A, B, C, D) did not move after 12 V. （PSFB never do function） © 2018 Toshiba Corporation 15
