Summary Notes TERM TWO BASIC SEVEN 7 ACADEMIC

Summary Notes TERM TWO BASIC SEVEN 7 ACADEMIC YEAR 2013/2014 Prepared by Sir Lexis Oppong

INTRODUCTION TO WORD PROCESSING A Word Processor is used for creating a text-based documents such as letters, reports, newsletters, etc. One of the most common word processing applications is the Microsoft Word application. Microsoft Word 2003 will be used in this lesson. COMMONLY USED FEATURES OF WORD APPLICATION WINDOW Word processing applications have some tools that help you to easily create, edit and format document. Some of the common features are described below.

HOW TO RUN MICROSOFT OFFICE WORD PROGRAM. • To begin Microsoft Word 2003 observe the following steps: 1. Click Start button and select All Programs 2. Point to Microsoft Office. 3. Click on Microsoft Word 2003 to begin the program. • The Microsoft Word window appears and your screen looks similar to the one shown here. Prepared by Sir Lexis

MICROSOFT WORD 2003 WINDOW

v v v v THE FOLLOWING ARE THE FEATURES OF MICROSOFT WORD 2003 WINDOW Title bar Menu bar Standard Toolbar Formatting bar Control buttons Ruler Scroll bar Insertion point End of document marker Status bar Task pane Office assistant View buttons Windows help

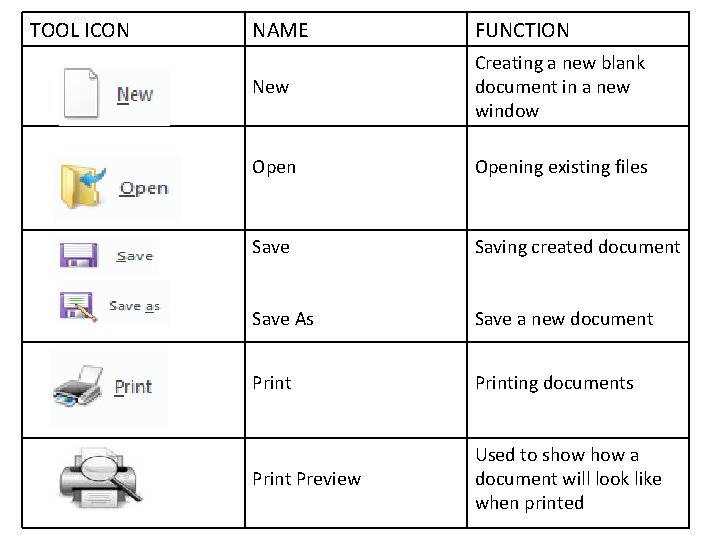

TOOL ICON NAME FUNCTION New Creating a new blank document in a new window Opening existing files Save Saving created document Save As Save a new document Printing documents Print Preview Used to show a document will look like when printed

TOOL ICON NAME FUNCTION Spelling & Grammar Checking and correcting spelling and grammatical errors Copy Used to copy text or an item Cut Used to remove or cut text or an item Paste Used to paste a cut or copied text or an item Undo Used to undo previous action Redo Used to redo an action

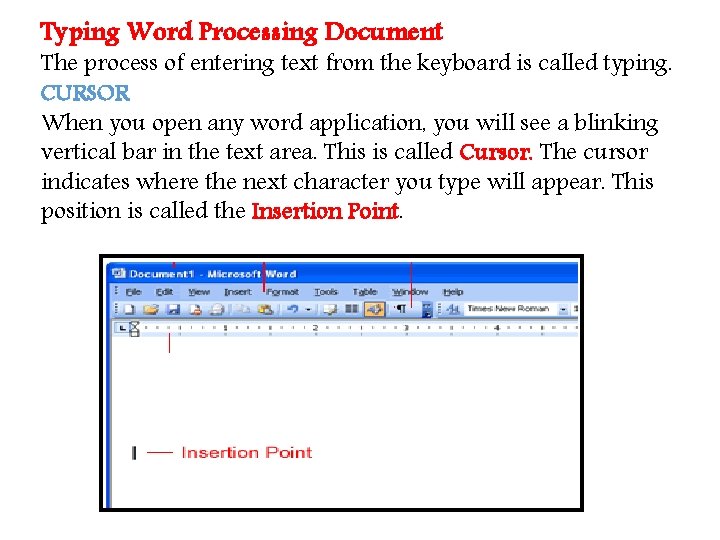

Typing Word Processing Document The process of entering text from the keyboard is called typing. CURSOR When you open any word application, you will see a blinking vertical bar in the text area. This is called Cursor. The cursor indicates where the next character you type will appear. This position is called the Insertion Point.

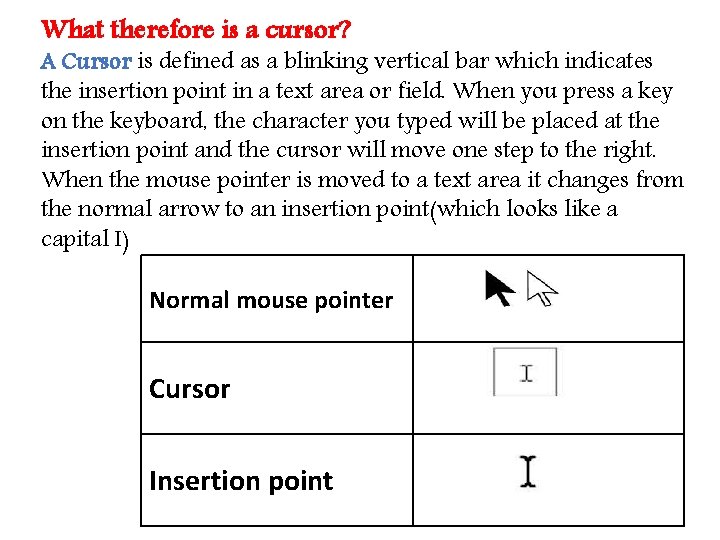

What therefore is a cursor? A Cursor is defined as a blinking vertical bar which indicates the insertion point in a text area or field. When you press a key on the keyboard, the character you typed will be placed at the insertion point and the cursor will move one step to the right. When the mouse pointer is moved to a text area it changes from the normal arrow to an insertion point(which looks like a capital I) Normal mouse pointer Cursor Insertion point

Summary notes

BASIC TEXT FORMATTING FONT A font is a complete set of characters of a single size and style of a particular typeface. Examples of font are Arial, Times New Roman, Widdings, System, Palatino, Century gothic, Bookman and Garamond. Below are some types and their names I am learning Fonts Algerian I am learning Fonts Blackadder TC I am learning Fonts Bauhaus 93 I am learning Fonts Times New Roman I am learning Fonts Broadway I am learning Fonts Copperplate Gothic

FORMATTING TOOLBAR AND IT’S FEATURES Text formatting is modifying the appearance of characters, text and images in a document. Formatting toolbar and its features A B C D E F G H I

A B A. Font name B. Font Size C. Bold D. Italic E. Underline F. Align left G. Centre align H. Right align I. Justify C D E F G H I J K L M N O j. Bullets K. Numbering L. Decrease indent M. Increase indent N. Border O. Font Colour P. Clear formatting P

A. B. C. D. E. F. G. H. I. Font name Font size Bold Align left Centre align Align right Justify Bullets Numbering Prepared by Sir Lexis

STEPS TO FORMAT TEXT ( changing font) After typing you can now format or make changes to your text. 1. Highlight or select the text you want to make changes to 2. Move the mouse pointer to the formatting toolbar. In the font box click the drop down arrow to show the installed fonts. 3. Scroll to find the font of your choice and click on it to effect the changes This is demonstrated in the diagram below Prepared by Sir Lexis

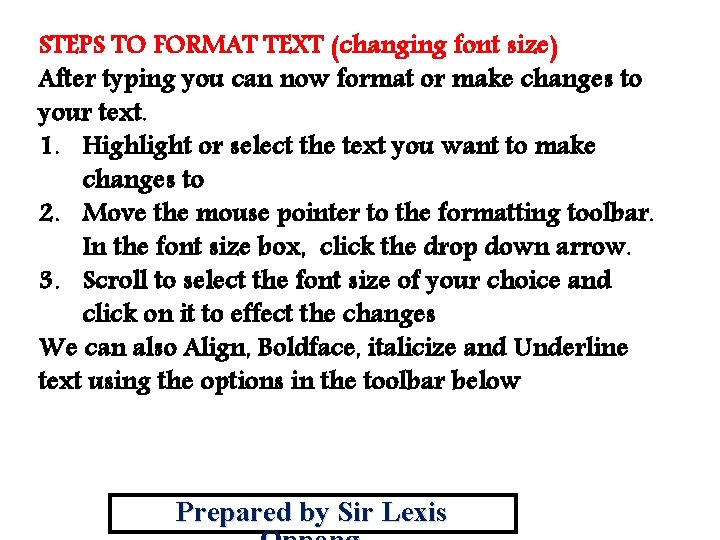

STEPS TO FORMAT TEXT (changing font size) After typing you can now format or make changes to your text. 1. Highlight or select the text you want to make changes to 2. Move the mouse pointer to the formatting toolbar. In the font size box, click the drop down arrow. 3. Scroll to select the font size of your choice and click on it to effect the changes We can also Align, Boldface, italicize and Underline text using the options in the toolbar below Prepared by Sir Lexis

We can also Align, Boldface, italicize and Underline text using the options in the toolbar below Bold italic Underline Align Text Bullets & Numbering

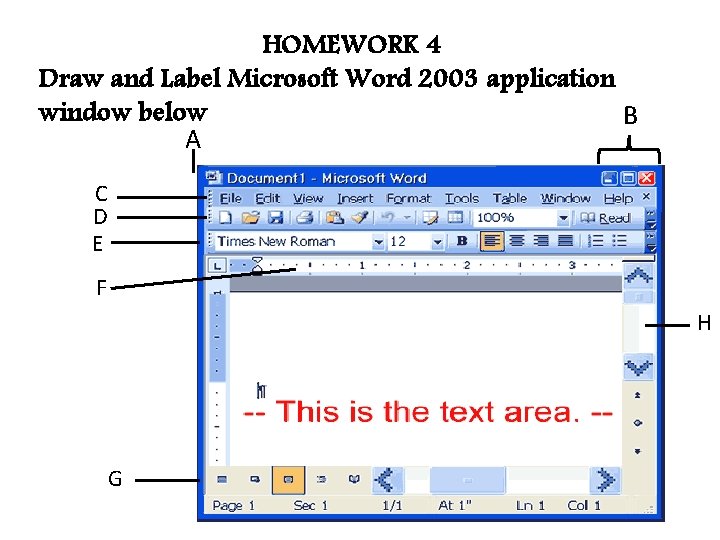

HOMEWORK 4 Draw and Label Microsoft Word 2003 application window below B A C D E F H G

THE INTERNET INTORUCTION TO THE INTERNET A. Definition of Internet The internet is a worldwide interconnection of computer networks. Internet is popularly known as Net. A computer network is simply two or more computers connected together that allows the computers to communicate and share information.

These days the internet connects millions of computers from schools, homes, industries, etc together. Resources used for internet connectivity You can connect your computer to the internet through an Internet Service Provider (ISP). B. Internet Service Provider (ISP) An ISP is an organization that provides access to the internet, usually for a monthly fee. The ISP connects your computer to their system which is already connected to the internet thereby allowing you to also have access to the internet.

Examples of Internet Service Providers in Ghana are Ø Ghana Telecom Ø Network Computer System (NCS) Ø U-Com Ø Zip-Net Broadband Ø Africa Online Ø Internet Ghana Ø Wireless Ghana Ø i. Burst Ø Broadband 4 U Ø Net. SAT Ltd.

C. WORLD WIDE WEB (WWW) The world wide web is an interconnected system of pages or documents containing texts, images, sounds and video that can be accessed through the internet. The pages or documents on the World Wide Web are linked together using hyperlinks. D. HYPERLINKS Hyperlinks are text or images on web pages which when clicked will send you to another web page. Every web page on the internet has a unique address called Web address or Uniform Resource Locater (URL).

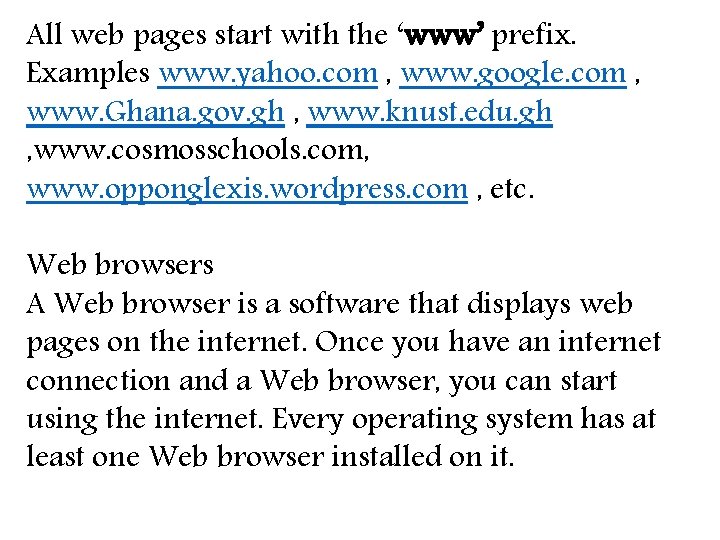

All web pages start with the ‘www’ prefix. Examples www. yahoo. com , www. google. com , www. Ghana. gov. gh , www. knust. edu. gh , www. cosmosschools. com, www. opponglexis. wordpress. com , etc. Web browsers A Web browser is a software that displays web pages on the internet. Once you have an internet connection and a Web browser, you can start using the internet. Every operating system has at least one Web browser installed on it.

Examples of web browsers include v Microsoft Internet Explorer v Mozilla Firefox v Netscape Navigator v Opera FEATURES OF WEB BROWSERS Although there are different types of web browsers, there are some common features that are common to most of them.

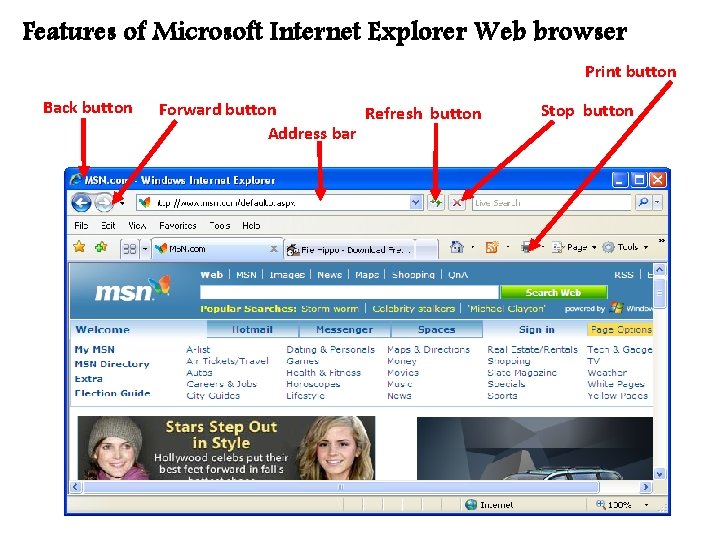

Features of Microsoft Internet Explorer Web browser Print button Back button Forward button Refresh button Address bar Stop button

Functions 1. Address bar: This is where you type in a web address of the web page you want to visit. 2. Forward button: forward button take you to the next opened web page. 3. Back button: This button takes you back to the previous opened web page 4. Stop button: Stop button when clicked stops loading a page. 5. Refresh button: Refresh button reloads the current page. 6. Print button: Print button prints the current Web page.

LAUNCHING AND EXITING A WEB PAGE Launching a Web Page 1. Double click a web browser icon on your desktop to launch it. 2. Delete the existing address in the address bar. 3. Type in the address of the web page you want to view. 4. Press the Enter key on your keyboard. EXITING A WEB PAGE Exiting a Web Page To exit a web page, just click on the Close button on the Title bar of the Web browser.

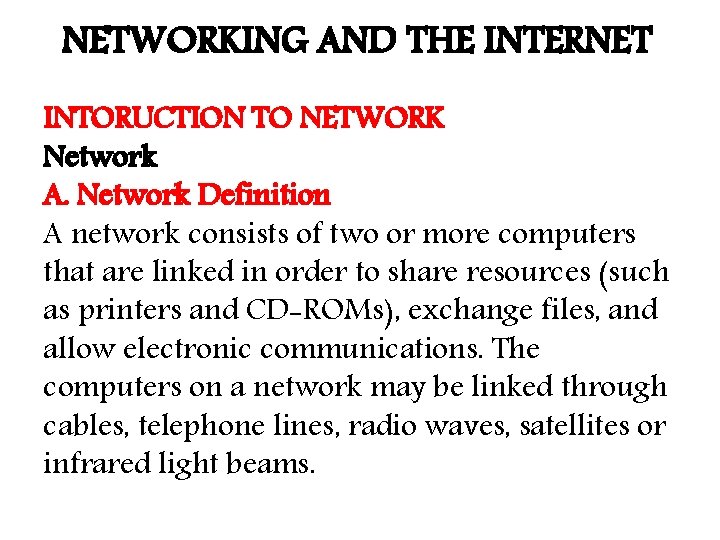

NETWORKING AND THE INTERNET INTORUCTION TO NETWORK Network A. Network Definition A network consists of two or more computers that are linked in order to share resources (such as printers and CD-ROMs), exchange files, and allow electronic communications. The computers on a network may be linked through cables, telephone lines, radio waves, satellites or infrared light beams.

B. Benefits of Computer Networks 1. File Sharing - Network file sharing between computers gives you more flexibility rather than using floppy drives or Zip drives. you can use the network to save copies of your important data on a different computer, examples share photos, music files and documents. 2. Sharing Devices. Sharing devices is another benefit in which a network exceeds stand-alone computers. For example laser printers, fax machines, modems, scanners and CD-ROM players, when these peripherals are added to a network, they can be shared by many users. 3. Sharing Internet Access. In computer network, students can access the internet simultaneously. 4. Speed. Using a network is faster way for sharing and transferring files. Without a network, files are shared by copying them to floppy disk.

5. Cost. Networkable versions of many popular software programs are available at considerable savings compared to buying individual licensed copies. Its allows easier upgrading of the program. 6. Security. Files and programs on a network are more secure as the users do not have to worry about illegal copying of programs. Passwords can be applied for specific directories to restrict access to unauthorized users. 7. Centralized Software Management. One of the greatest benefits of installing a school network is the fact that all of the software can be loaded on one computer (the server). This saves time and energy when installing updates and tracking files. 8. Electronic Mail. A network that provides the hardware necessary to install an e mail system. E-mail’s help in personal and professional communication for all school personnel as it enables the spread of general information to the entire school staff. Example, electronic mail on LAN (Local Area Network) enables students to communicate with teachers and peers at their own school when connected to the Internet, it enables users to communicate with others.

9. Flexible Access. School networks allow students to access their files from computers throughout the school. Some schools provide public access to students to begin an assignment in the computer lab and save then access the file when they are at a cyber cafe or home.

B. Devices Needed in Computer Network. Hub A central device that provides a common connection point for nodes on a network. Network Interface Card A NIC (network interface card) is a piece of computer hardware designed to allow computers to communicate over a computer network.

Router A device that forwards data packets along networks. A router is connected to at least, two networks, commonly two LANs or WANs or a LAN and its ISP’s network. Connector Short for Registered Jack-45, an eight-wire connector used commonly to connect computers onto a local-area network (LAN), especially Ethernets. RJ-45 connectors look similar to RJ-1 1 connectors used for connecting telephone equipment.

Modem Short for modulator-demodulator. A modem is a device or program that enables a computer to transmit data over telephone or cable lines. Computer information are stored digitally, whereas information transmitted over telephone lines are transmitted in a form of analogue waves. A modem converts between these two forms.

TYPES OF NETWORKS Three types of networks: • Local Area Network or LAN • Metropolitan Area Network or MAN • Wide Area Network or WAN

A LAN covers a small region of space, typically a single building. A MAN is a collection of LANs with the same geographical area, for instance a city. A WAN can be a collection of LANs or MANs or the mix of two with a very large geographical area, for instance a country or even beyond the border.

LOCAL AREA NETWORK (LAN) Local Area Network (LAN) is the smallest network compared to the other two networks. The simplest form of LAN is to connect two computers together. LAN is operated within a limited physical area, such as at home, school, a single building or several buildings.

A network which consists of less than 500 interconnected devices across several buildings, is still recognised as a LAN. Inexpensive hardware used in LAN previously include twisted pair, coaxial cables and the higher end is fiber optic or wireless. However, coaxial cables are now being replaced by a higher speed cabling system such as CAT 5 using RJ 45 connectors.

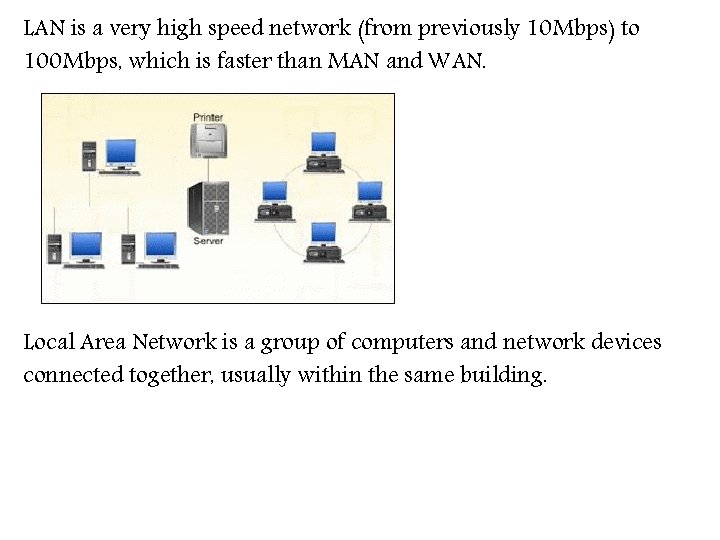

LAN is a very high speed network (from previously 10 Mbps) to 100 Mbps, which is faster than MAN and WAN. Local Area Network is a group of computers and network devices connected together, usually within the same building.
