Suite z TPFGI Suite Update 2012 www tpfsoftware

Suite z. TPFGI Suite Update 2012 www. tpfsoftware. com

Suite • Loadsets § Loadsets View § Shared SOs & Shared Selective Loadsets • New Trace Options § Trace Store § Address Stop • Export Data § From z. TREX § From Trace Output Viewer • Additional Enhancements § Overlay Panels for Core Blocks § File Compare from Script § More Enhancements www. tpfsoftware. com 2

Suite Loadsets www. tpfsoftware. com 3

Suite • Selective & System-Wide Load § Selective – private, programmer-specific § System-Wide – available to all programmers • What is a Shared SO? § Base/system-wide SOs • What is a Shared Selective Loadset? § § Shared private loadsets Programmer A selectively loads a loadset Programmer B can view and use Programmer A’s loadset Only Programmer A can delete their loadset www. tpfsoftware. com 4

Suite Loadsets View • Tree-view of available loadsets, SOs and Members • Types of Loadsets § § www. tpfsoftware. com Selective Loadsets System-wide Loadsets Shared SOs Shared Selective Loadsets 5

Suite Sharing Selective Loadsets: Illustration • Right-click Loadsets View & Select from Menu • Search available loadsets • Select required loadset & Click “Load” • Shared Selective Loadset is added to view www. tpfsoftware. com

Suite New Trace Options www. tpfsoftware. com 7

Suite Existing Trace Options • Specify macros or macro groups to trace • Specify which programs to trace www. tpfsoftware. com

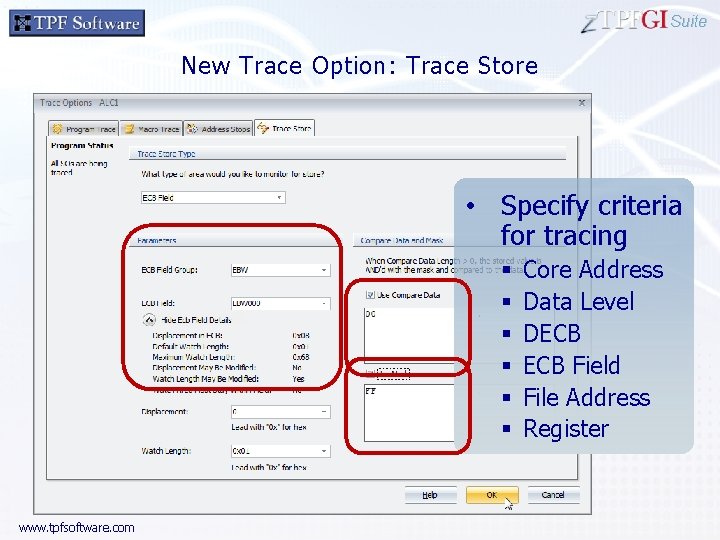

Suite New Trace Option: Trace Store • Specify criteria for tracing § § § www. tpfsoftware. com Core Address Data Level DECB Field File Address Register

Suite New Trace Option: Address Stop • Stop at specific displacements within programs www. tpfsoftware. com

Suite Export Data in z. TREX & Trace Output Viewer www. tpfsoftware. com 11

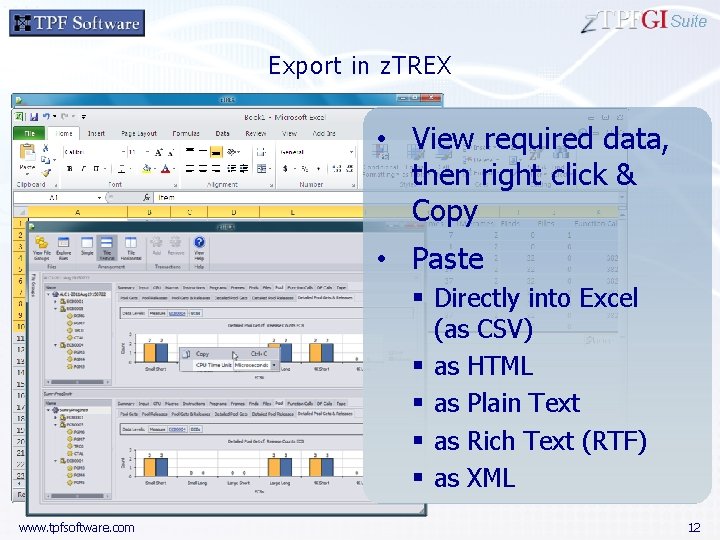

Suite Export in z. TREX • View required data, then right click & Copy • Paste § Directly into Excel (as CSV) § as HTML § as Plain Text § as Rich Text (RTF) § as XML www. tpfsoftware. com 12

Suite Export in Trace Output Viewer • Allows programmers to analyze z. TPFGI trace • To export data: § View/Select required data, right click & copy § Paste – Directly into Excel (as CSV) – as HTML – as Plain Text – as Rich Text (RTF) – as XML www. tpfsoftware. com 13

Suite Additional Enhancements www. tpfsoftware. com 14

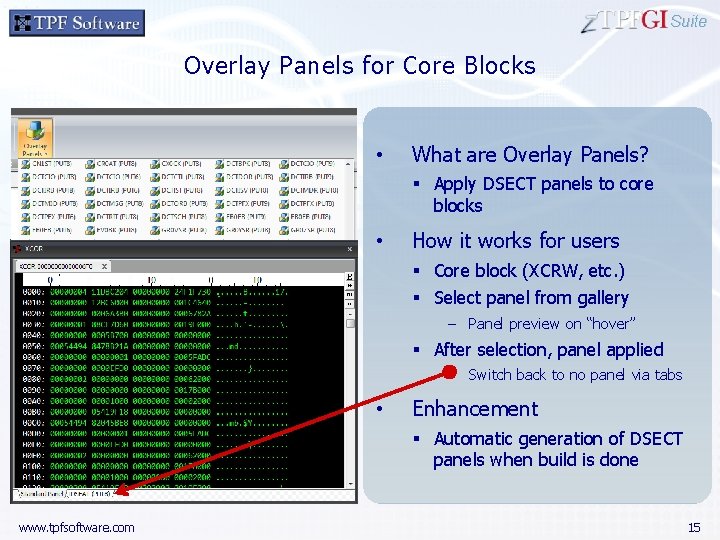

Suite Overlay Panels for Core Blocks • What are Overlay Panels? § Apply DSECT panels to core blocks • How it works for users § Core block (XCRW, etc. ) § Select panel from gallery – Panel preview on “hover” § After selection, panel applied – Switch back to no panel via tabs • Enhancement § Automatic generation of DSECT panels when build is done www. tpfsoftware. com 15

Suite File Compare from Script • What is File Compare? § Quickly diff two text files sideby-side § Move changes from left to right § Compare to remote files, local files or locally saved revisions • Enhancement § Admins writing remote scripts wanted to programmatically start compare & provide files § New API allows this www. tpfsoftware. com 16

Suite • New Trace Options § Trace specific TPFDF macros § Include C function call/return in the ENTER-BACK trace group • z. TTFS Enhancements § Works across VPARs on different VM systems § Based on customer request, retrofitted z. TTFS to work on TPF 4. 1 system • Other § Removed maximum limit of 100 programs in z. TREX § Display loadset name of the SO in the call stack panel www. tpfsoftware. com 17

Questions ? Suite For more information, contact: Thirupuvanam TPF Software, Inc. information@tpfsoftware. com 919 -676 -5501 http: //tpfsoftware. com http: //youtube. com/tpfsoftware www. tpfsoftware. com 18
