Subsystem Design Review 10/18/2021 Subsystem Design Review Deployment and Intelligent Nanosatellite Operations (DINO) Drawing Package

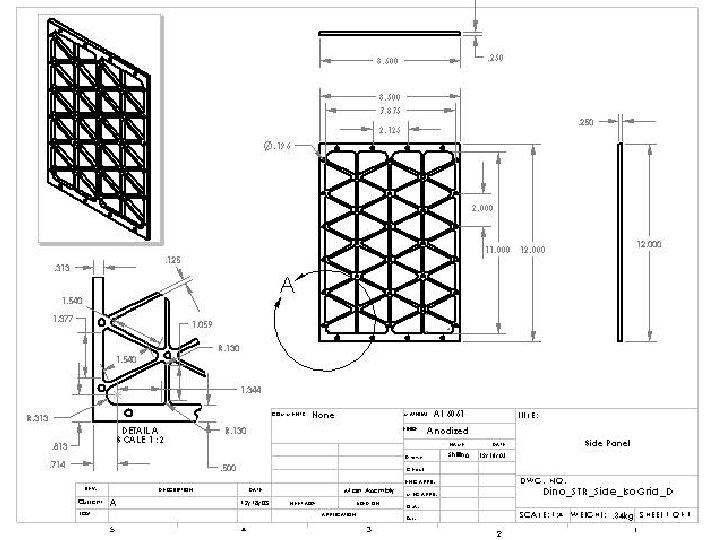

Subsystem Design Review 10/18/2021 Drawing Package Structures

Subsystem Design Review 10/18/2021 Drawing Package ADCS

ADCS Electronics Magnetometer Flight Computer (3) 0 -5 V analog Honeywell HMC 2003 12 V@20 m. A w/ 40μG resolution Sensor Analog Inputs Sensor ADC Controller Att. Det. Likely a P-D or LQR IGRF Magnetic Model Orbit Propagator Rate Gyros 3 single-axis MEMS gyros +5 V input @ 6 m. A (3) 0 -5 V analog Current Control Circuit Output cmds to turn rods on/off and current direction Possibly use multiple voltage levels requiring a D/A Converter 0 -300 m. A Compare Expected And actual B Fields Damp rates Torque Rods (3) 3/4’’ x 10’’ @ max 150 m. A nominal 12 V and 5 V supply to board Org/Date POWER REA/Date ADCS Block Diagram I&T/Date Safety/Date DINO-ADCS-DRAW-ADCSBD, Rev. A Sys/Date 11/20/03 CM/Date

Org/Date REA/Date Rate Gyros I&T/Date Safety/Date DINO-ADCS-DRAW-GYRO, Rev. A Sys/Date 11/15/03 CM/Date

Org/Date REA/Date Magnetometer Circuit I&T/Date Safety/Date DINO-ADCS-DRAW-MAG, Rev. A Sys/Date 11/20/03 CM/Date

Org/Date REA/Date Torque Rod Control I&T/Date Safety/Date DINO-ADCS-DRAW-TRC, Rev. A Sys/Date 11/20/03 CM/Date

Subsystem Design Review 10/18/2021 Drawing Package Communications

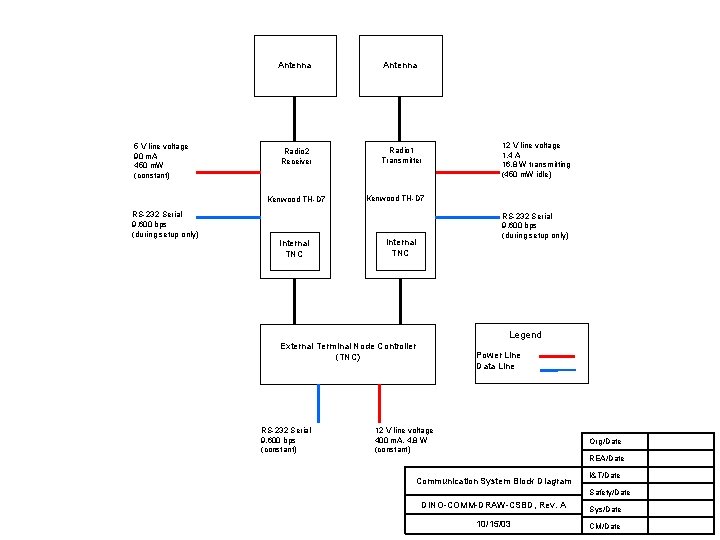

5 V line voltage 90 m. A 450 m. W (constant) Antenna Radio 2 Receiver Radio 1 Transmitter Kenwood TH-D 7 RS-232 Serial 9, 600 bps (during setup only) Internal TNC 12 V line voltage 1. 4 A 16. 8 W transmitting (450 m. W idle) Kenwood TH-D 7 RS-232 Serial 9, 600 bps (during setup only) Internal TNC Legend External Terminal Node Controller (TNC) RS-232 Serial 9, 600 bps (constant) Power Line Data Line 12 V line voltage 400 m. A, 4. 8 W (constant) Org/Date REA/Date Communication System Block Diagram I&T/Date Safety/Date DINO-COMM-DRAW-CSBD, Rev. A Sys/Date 10/15/03 CM/Date

Subsystem Design Review 10/18/2021 Drawing Package C&DH

Org/Date REA/Date C&DH System Block Diagram I&T/Date Safety/Date DINO-CDH-DRAW-CDHBD, Rev. A Sys/Date 12/4/03 CM/Date

Subsystem Design Review 10/18/2021 Drawing Package Power

Org/Date REA/Date Inhibits Diagram I&T/Date Safety/Date DINO-PWR-DRAW-INHD, Rev. A Sys/Date 11/20/03 CM/Date

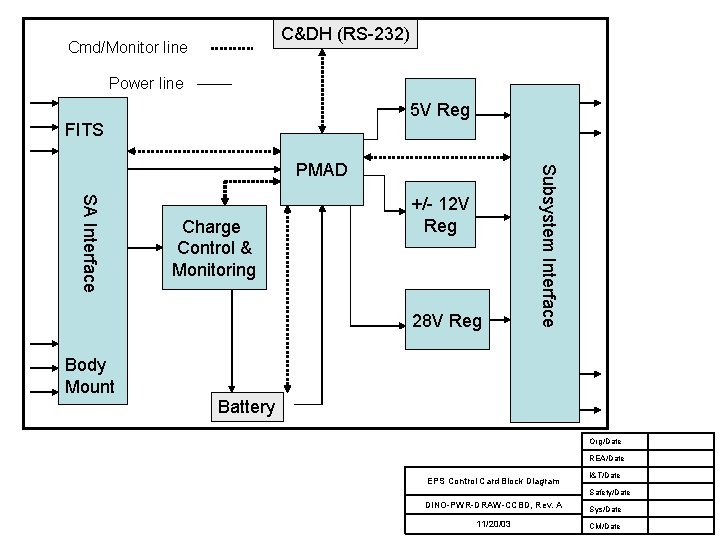

C&DH (RS-232) Cmd/Monitor line Power line 5 V Reg FITS SA Interface Charge Control & Monitoring +/- 12 V Reg 28 V Reg Subsystem Interface PMAD Body Mount Battery Org/Date REA/Date EPS Control Card Block Diagram I&T/Date Safety/Date DINO-PWR-DRAW-CCBD, Rev. A Sys/Date 11/20/03 CM/Date

Org/Date REA/Date Secondary Battery Schematic I&T/Date Safety/Date DINO-PWR-DRAW-SBS, Rev. A Sys/Date 11/20/03 CM/Date

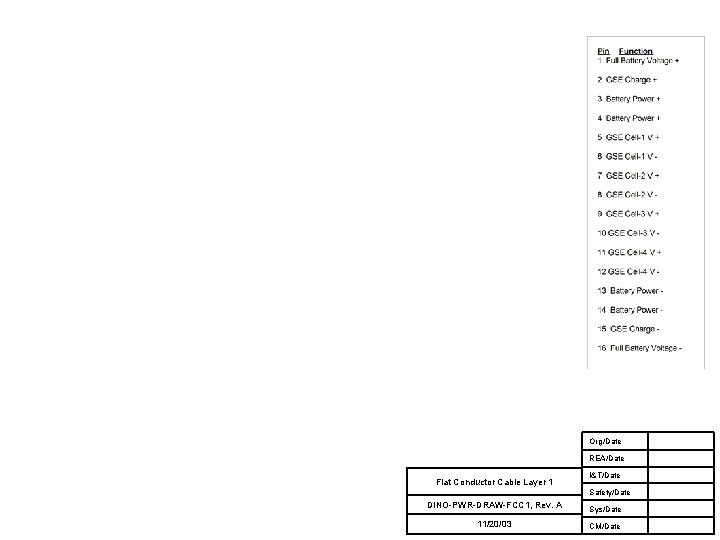

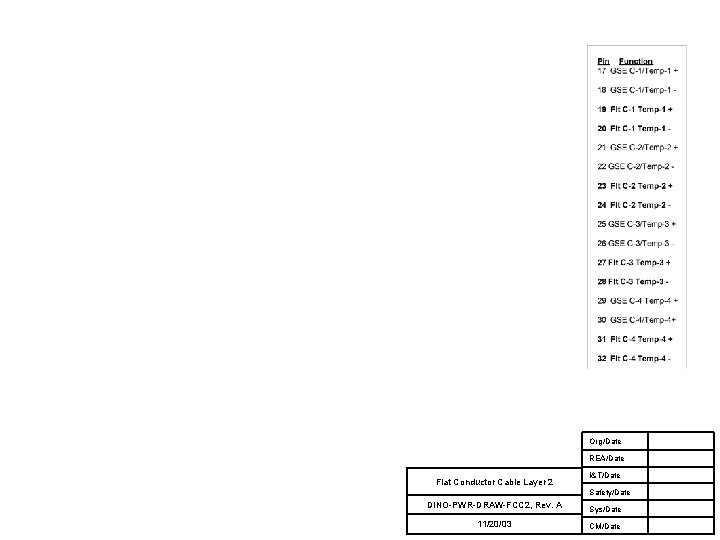

Org/Date REA/Date Flat Conductor Cable Layer 1 I&T/Date Safety/Date DINO-PWR-DRAW-FCC 1, Rev. A Sys/Date 11/20/03 CM/Date

Org/Date REA/Date Flat Conductor Cable Layer 2 I&T/Date Safety/Date DINO-PWR-DRAW-FCC 2, Rev. A Sys/Date 11/20/03 CM/Date

Subsystem Design Review 10/18/2021 Drawing Package Tip Mass

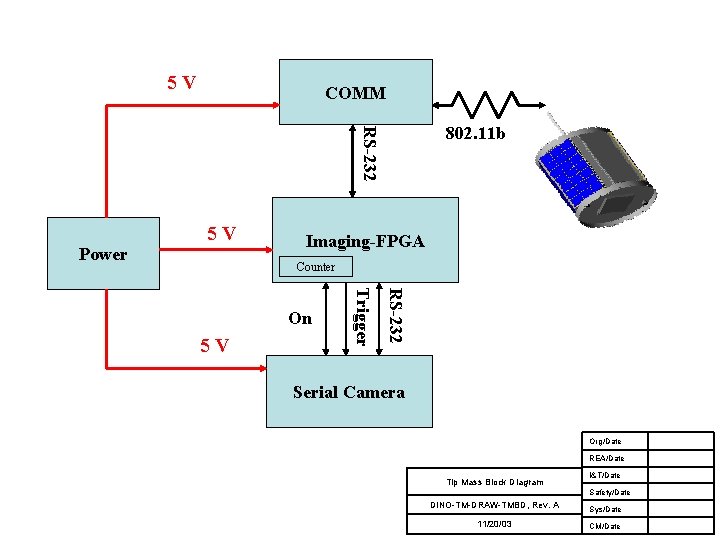

5 V COMM RS-232 802. 11 b Power 5 V Imaging-FPGA Counter RS-232 5 V Trigger On Serial Camera Org/Date REA/Date Tip Mass Block Diagram I&T/Date Safety/Date DINO-TM-DRAW-TMBD, Rev. A Sys/Date 11/20/03 CM/Date

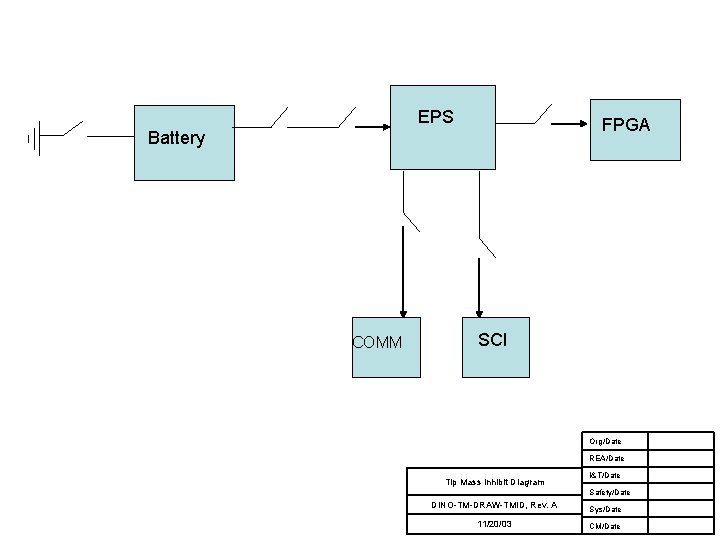

EPS FPGA Battery COMM SCI Org/Date REA/Date Tip Mass Inhibit Diagram I&T/Date Safety/Date DINO-TM-DRAW-TMID, Rev. A Sys/Date 11/20/03 CM/Date
