Subspace Clustering Ali Sekmen and Ghan S. Bhatt Computer Science and Mathematical Sciences College of Engineering Tennessee State University 1 st Annual Workshop on Data Sciences

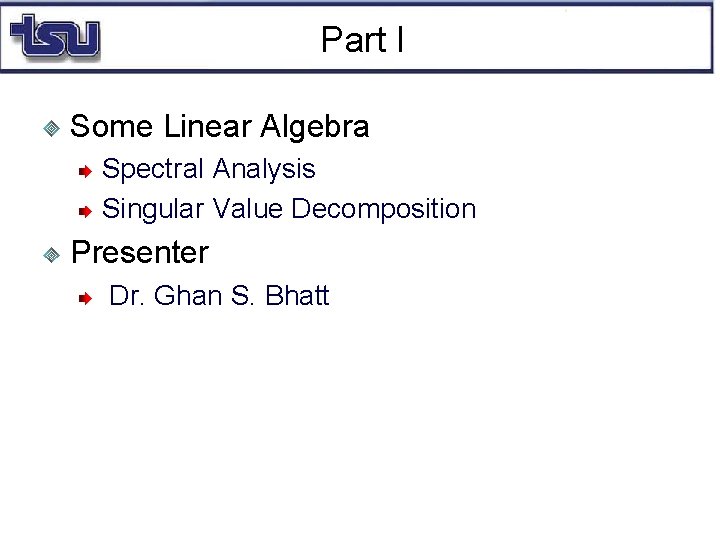

Part I Some Linear Algebra Spectral Analysis Singular Value Decomposition Presenter Dr. Ghan S. Bhatt

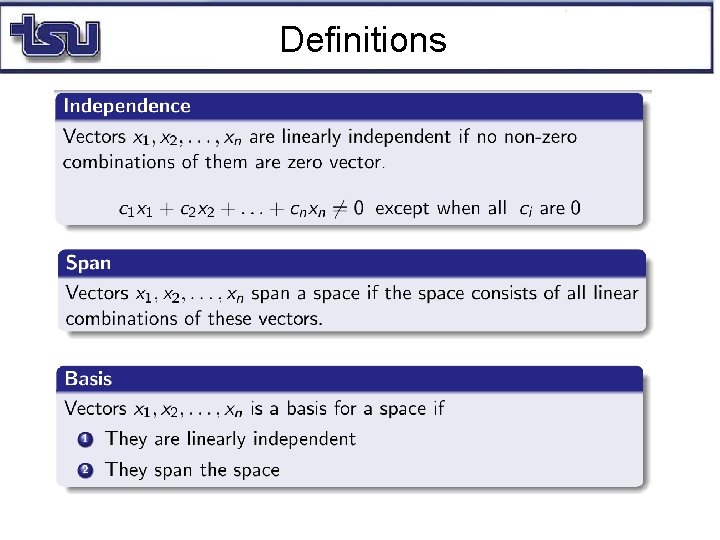

Definitions

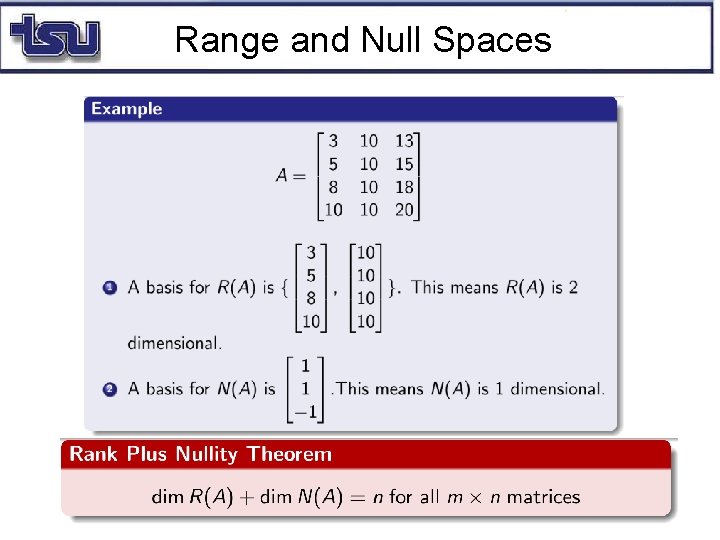

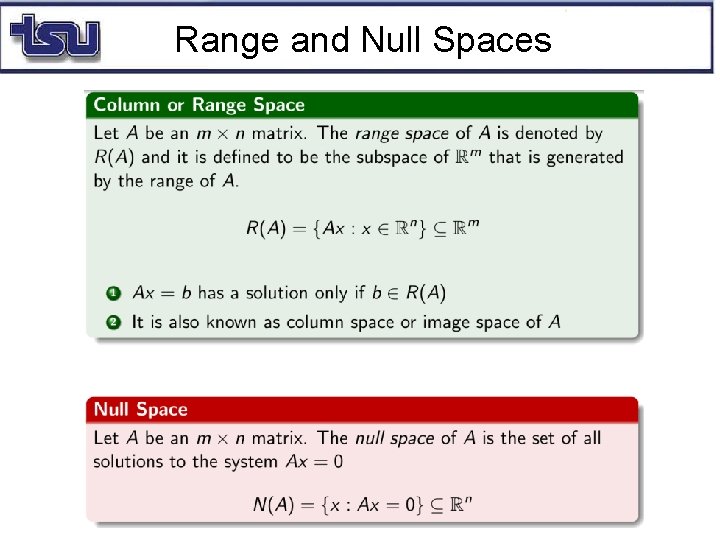

Range and Null Spaces

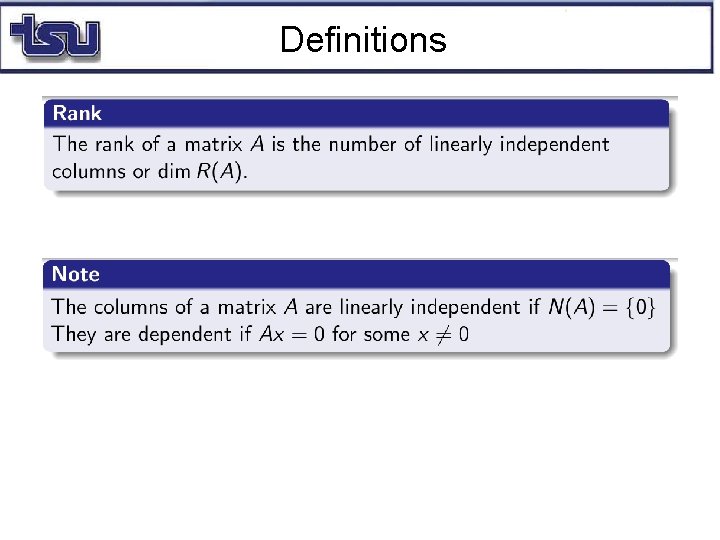

Definitions

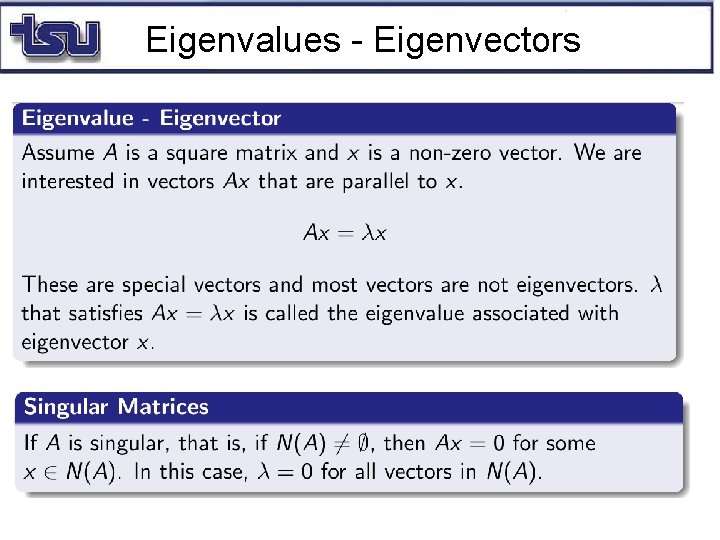

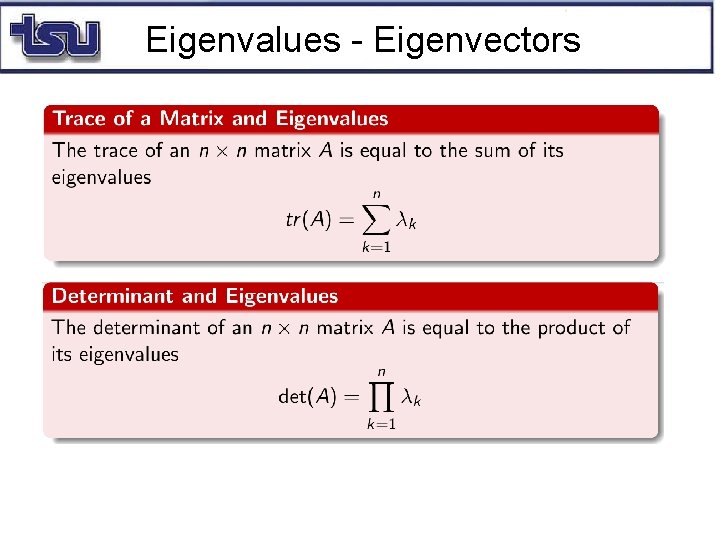

Eigenvalues - Eigenvectors

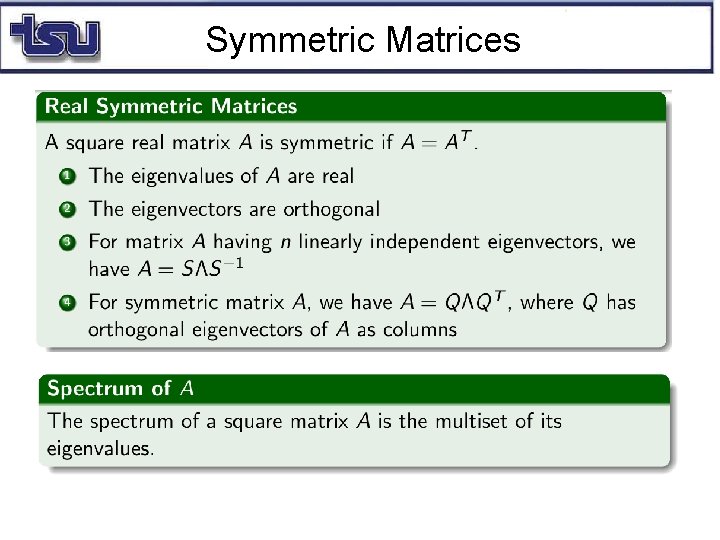

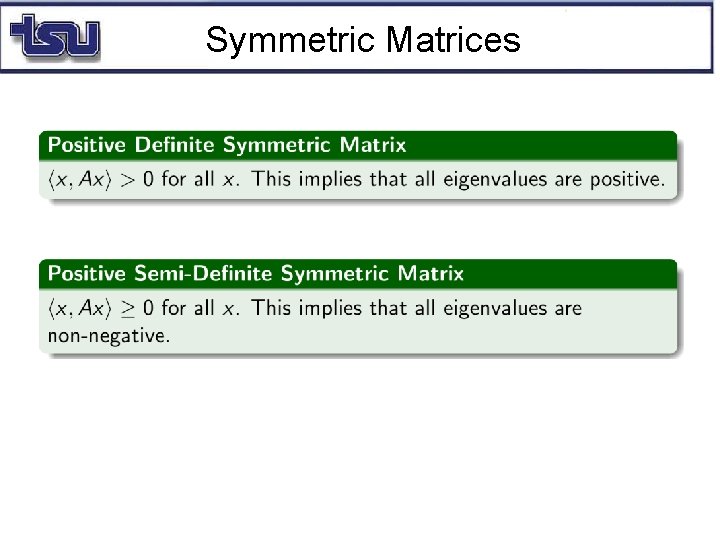

Symmetric Matrices

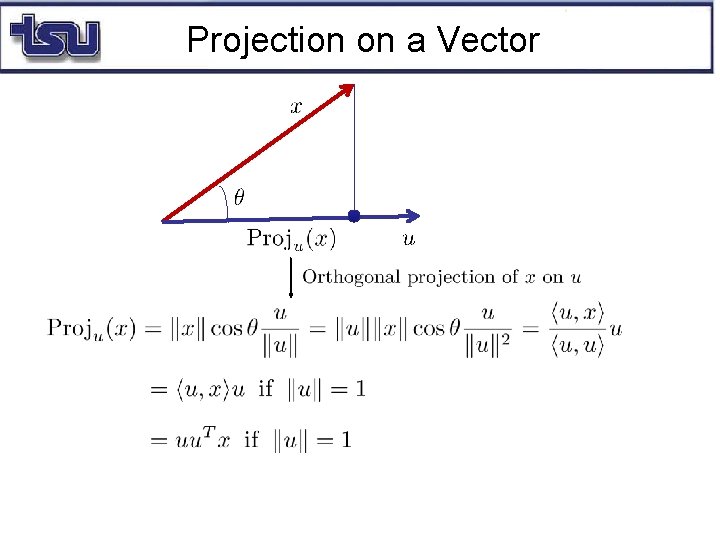

Projection on a Vector

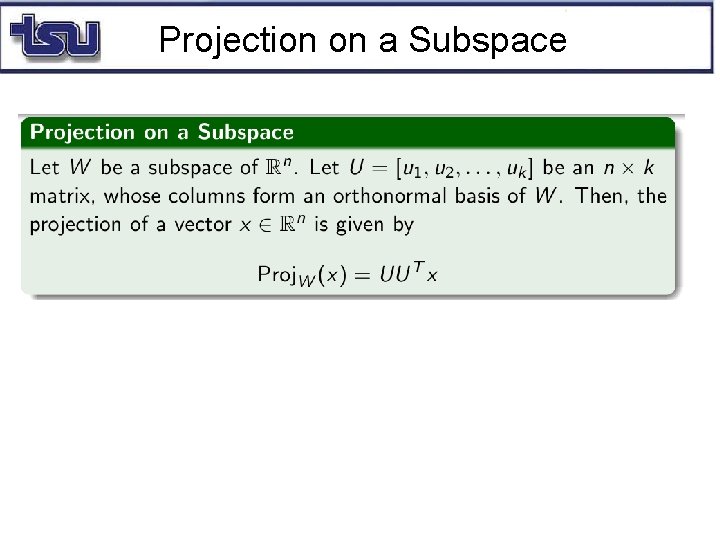

Projection on a Subspace

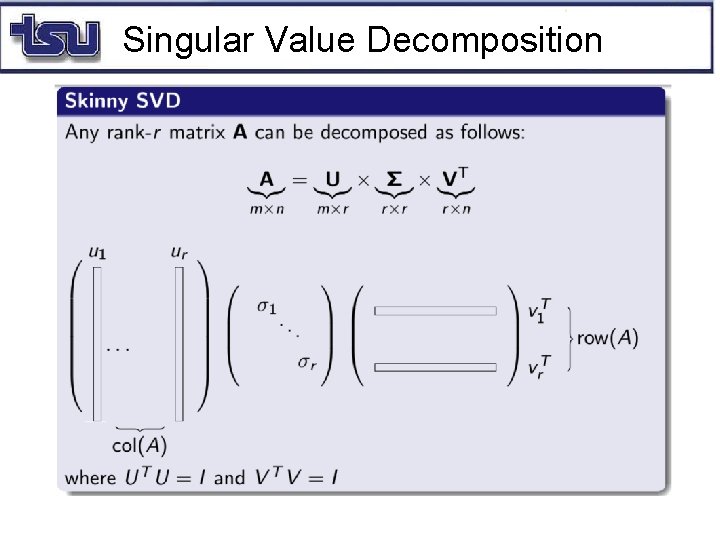

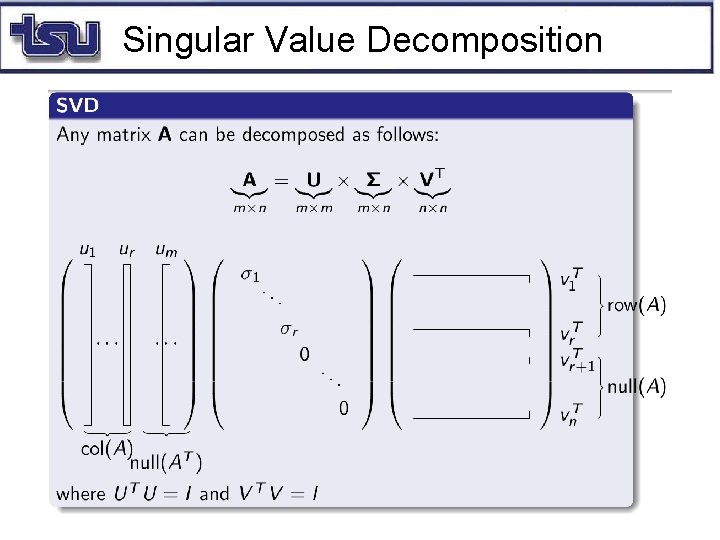

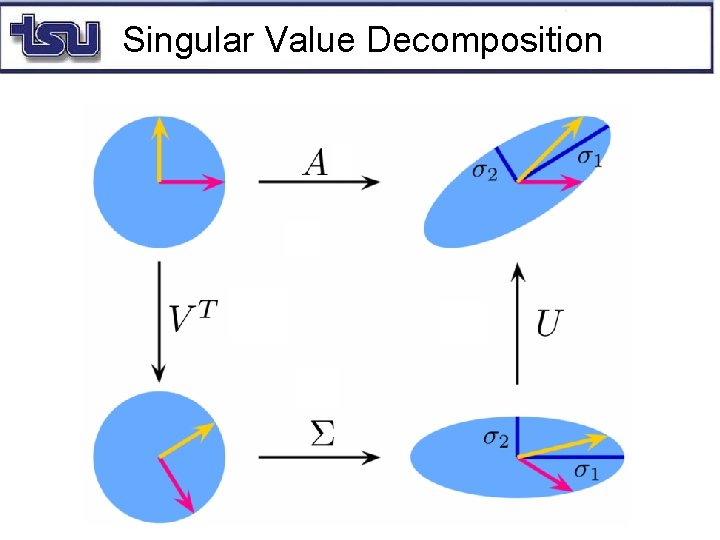

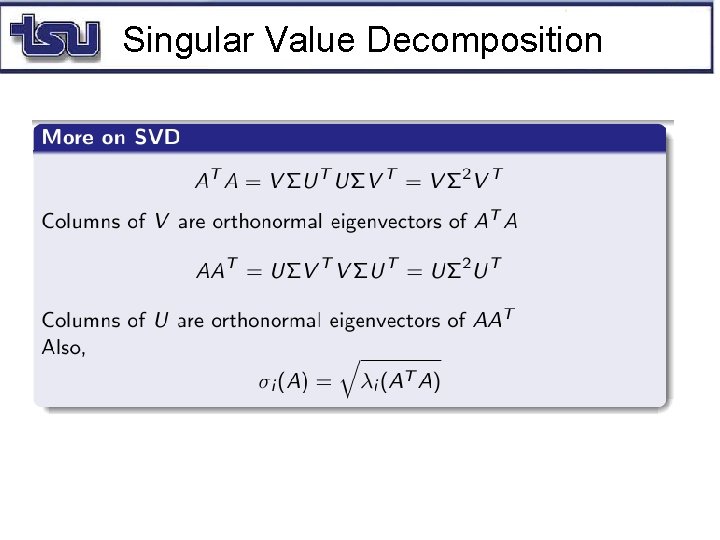

Singular Value Decomposition

Important Lemma

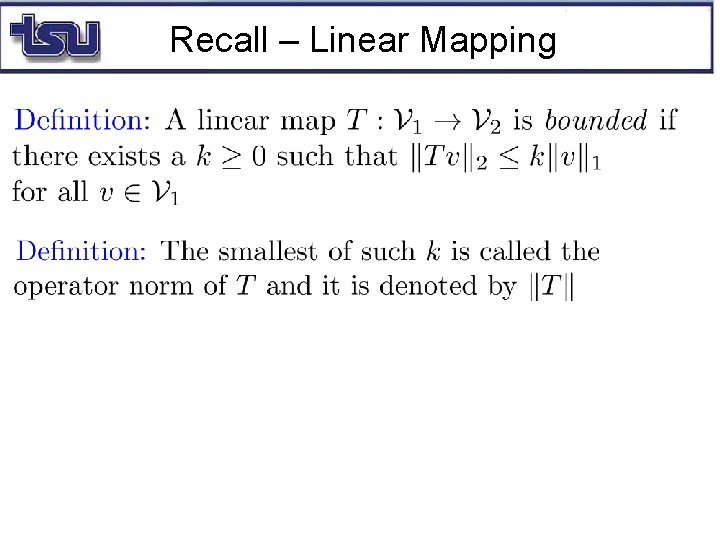

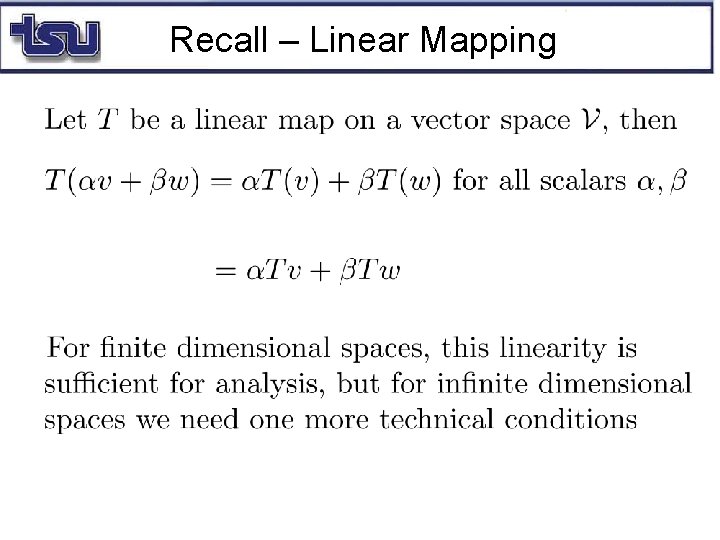

Recall – Linear Mapping

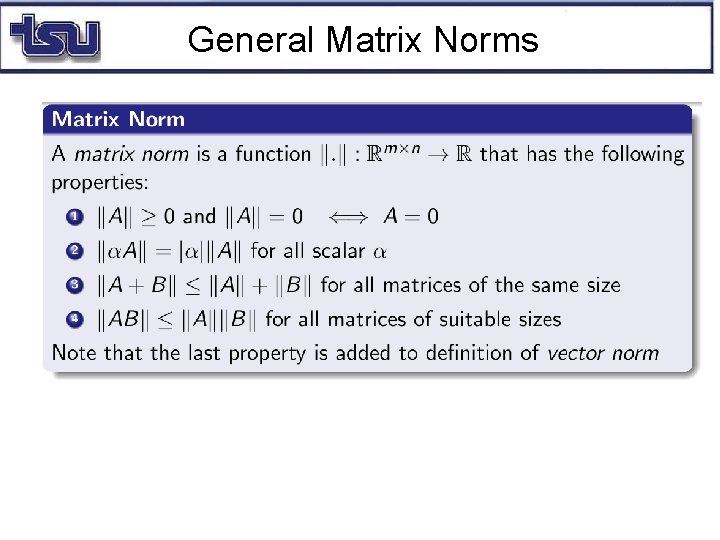

General Matrix Norms

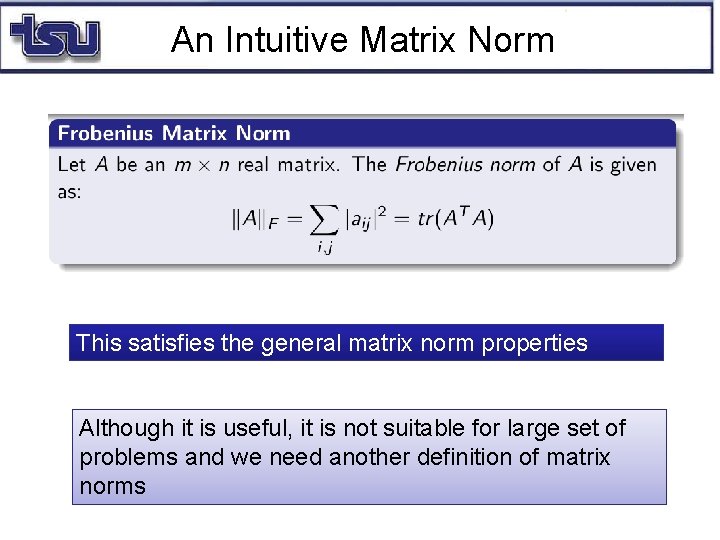

An Intuitive Matrix Norm This satisfies the general matrix norm properties Although it is useful, it is not suitable for large set of problems and we need another definition of matrix norms

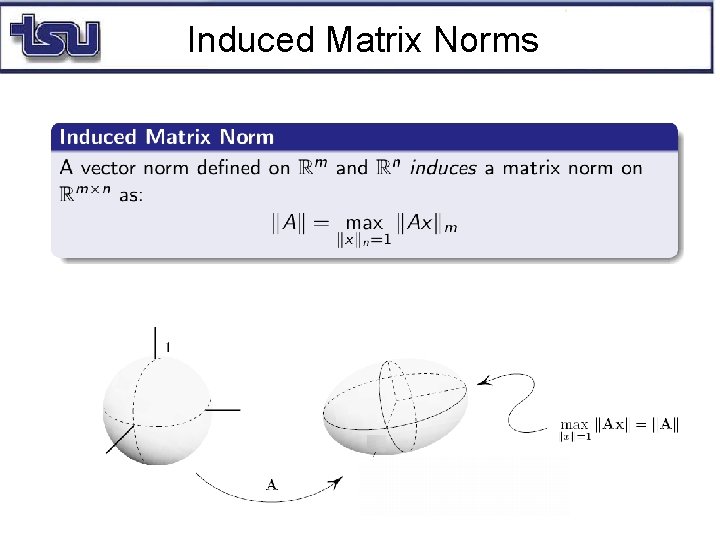

Induced Matrix Norms

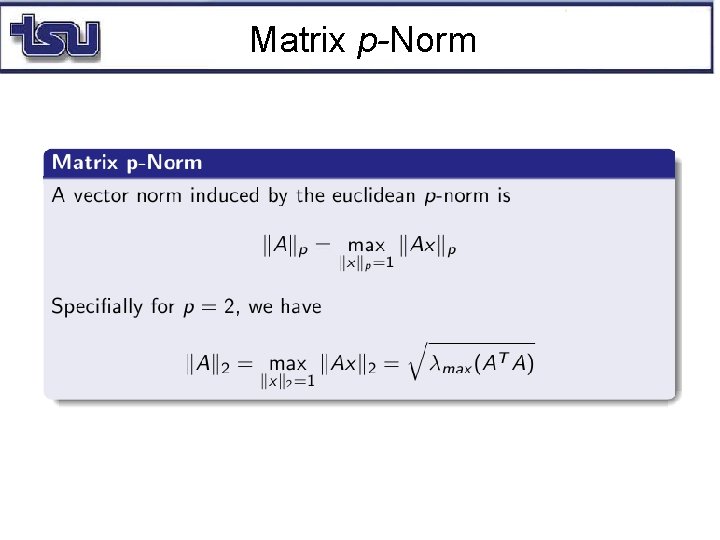

Matrix p-Norm

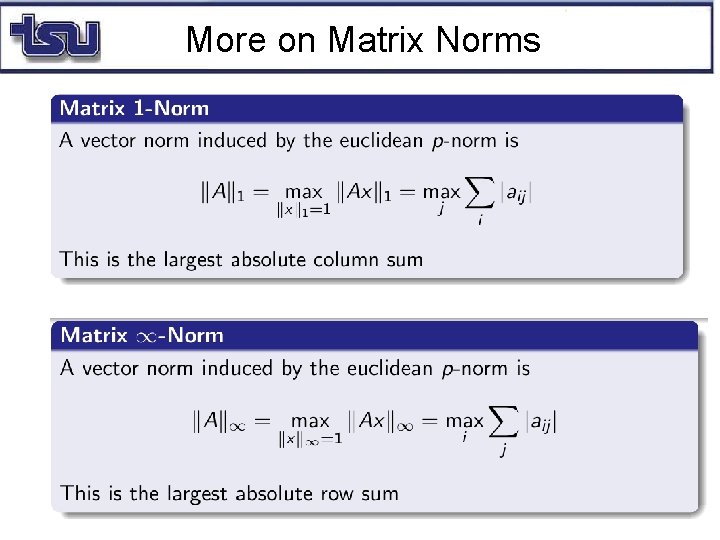

More on Matrix Norms

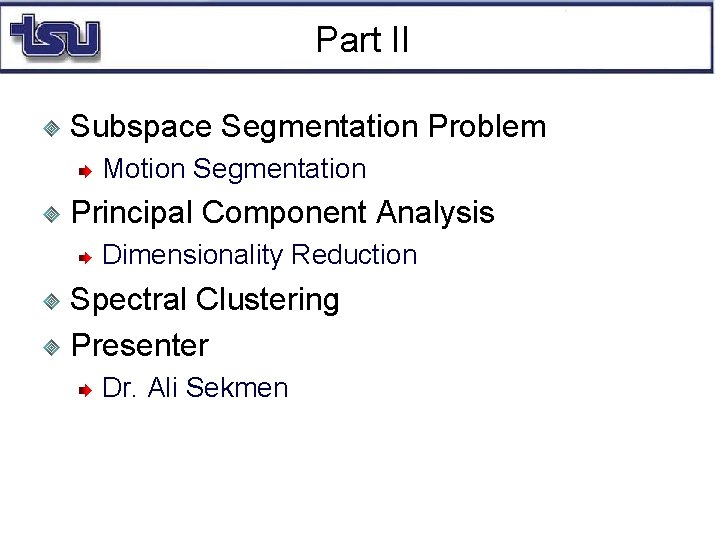

Part II Subspace Segmentation Problem Motion Segmentation Principal Component Analysis Dimensionality Reduction Spectral Clustering Presenter Dr. Ali Sekmen

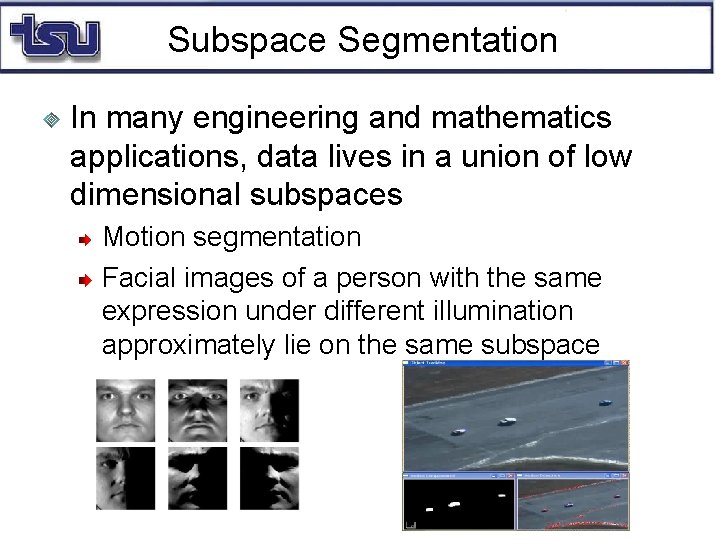

Subspace Segmentation In many engineering and mathematics applications, data lives in a union of low dimensional subspaces Motion segmentation Facial images of a person with the same expression under different illumination approximately lie on the same subspace

Face Recognition

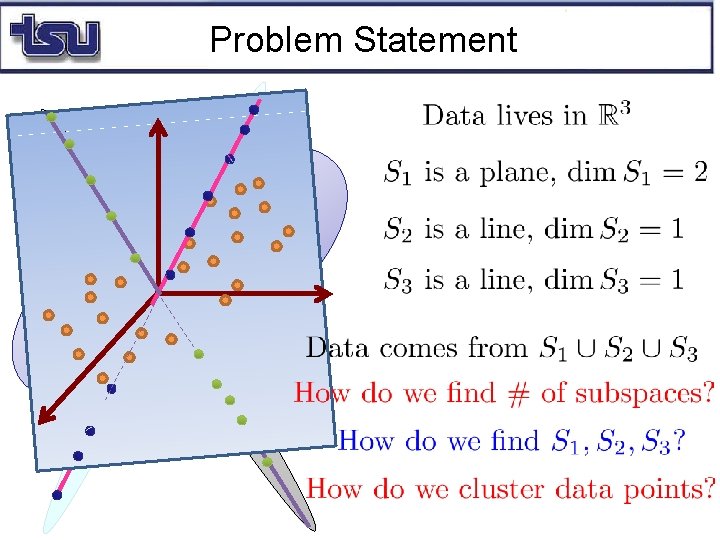

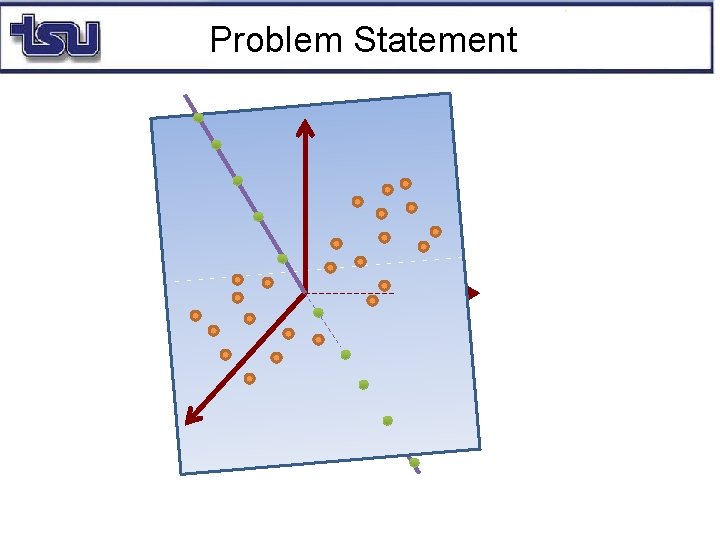

Problem Statement

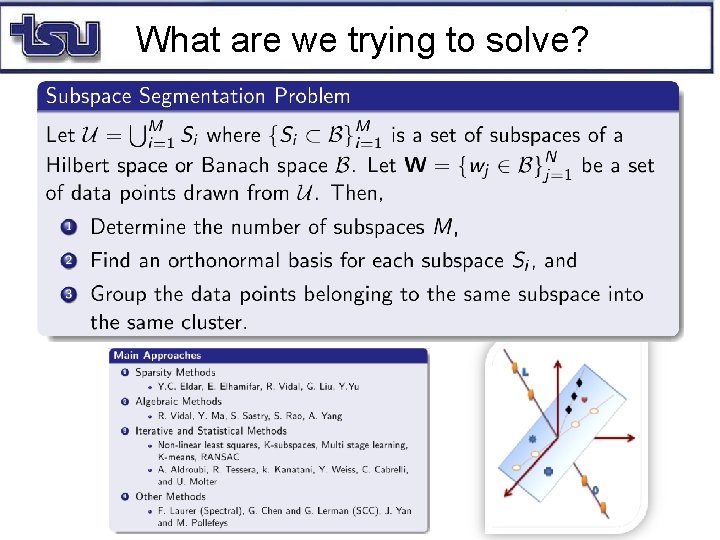

What are we trying to solve?

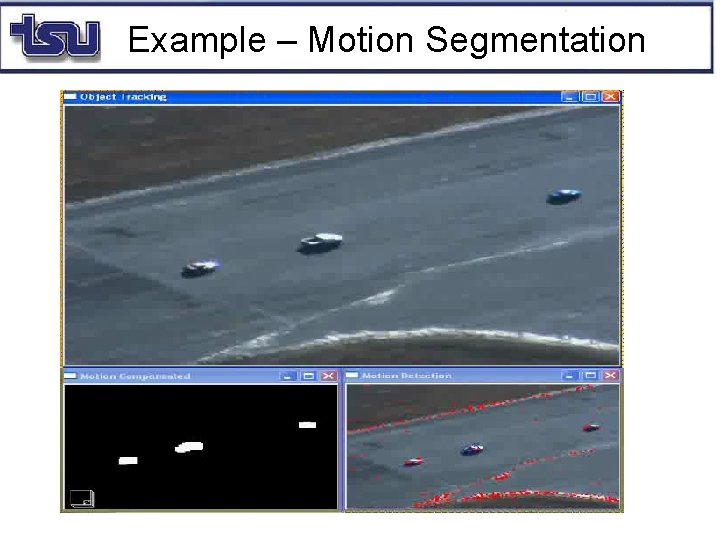

Example – Motion Segmentation

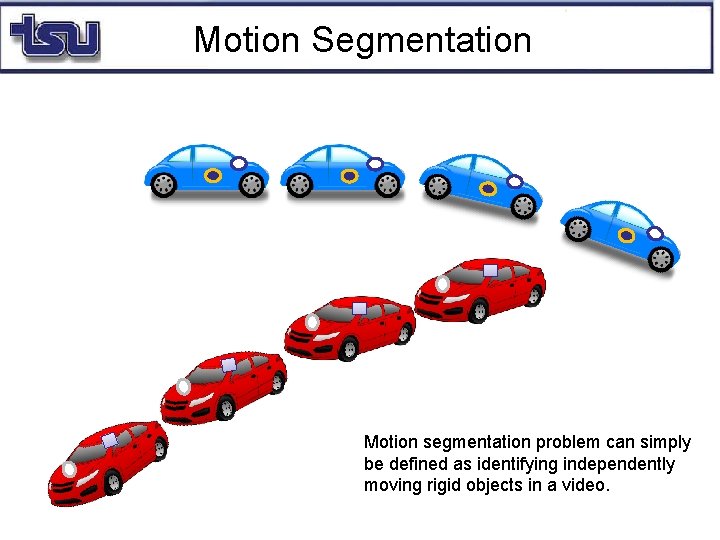

Motion Segmentation Motion segmentation problem can simply be defined as identifying independently moving rigid objects in a video.

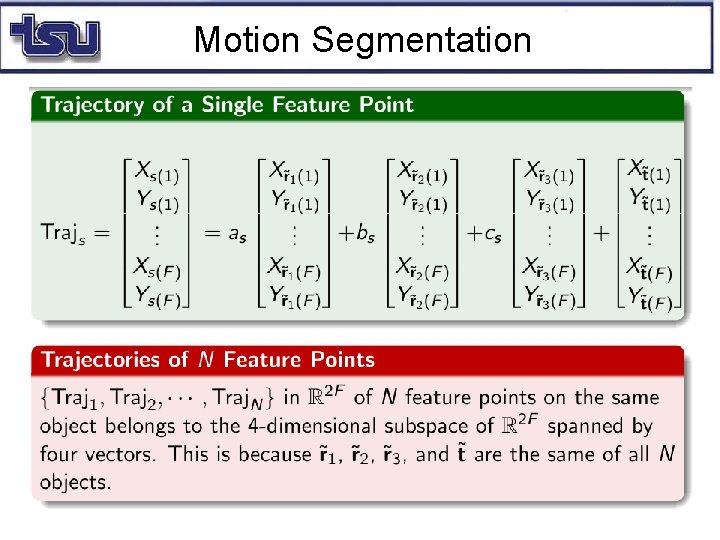

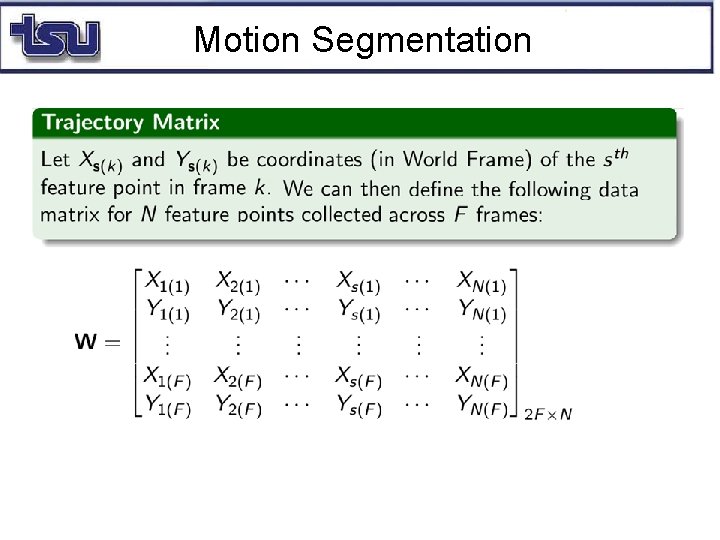

Motion Segmentation We will show that all trajectories lie in a 4 -dim subspace of

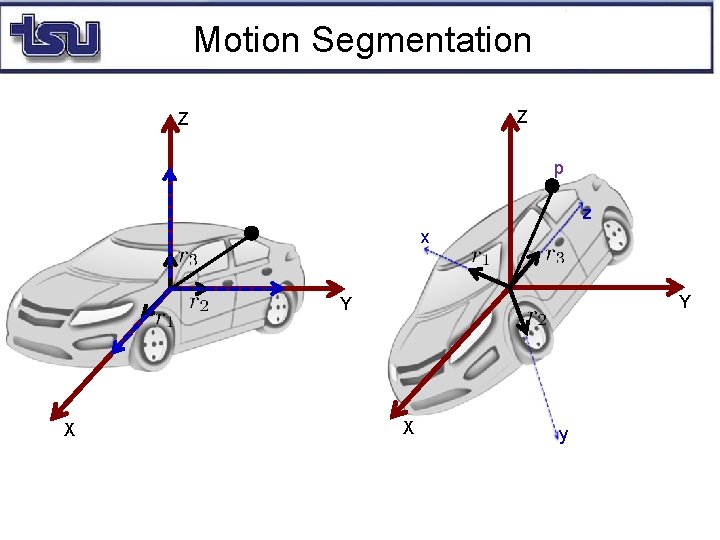

Motion Segmentation Z Z p z x Y Y X X y

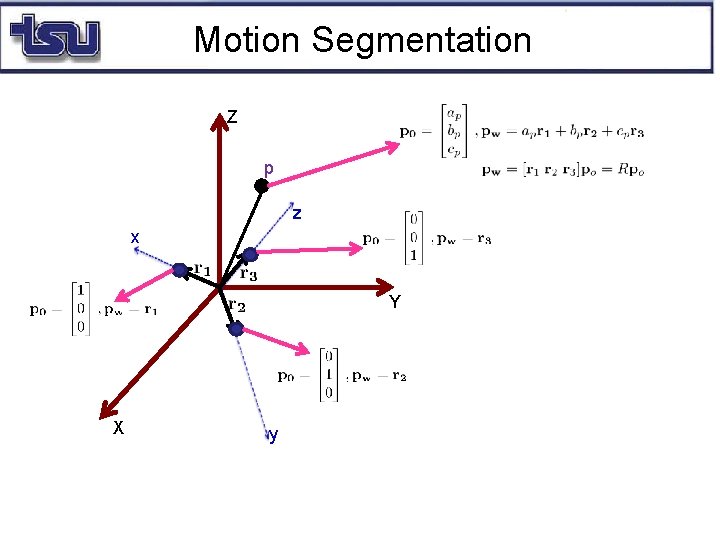

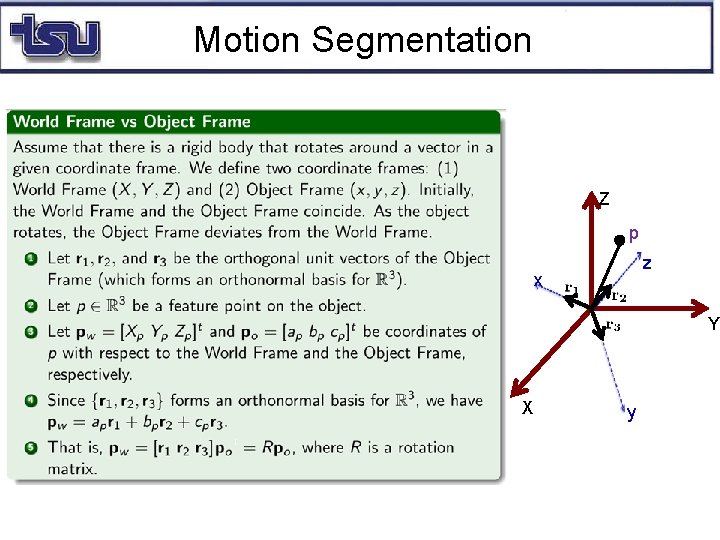

Motion Segmentation Z p z x Y X y

Motion Segmentation

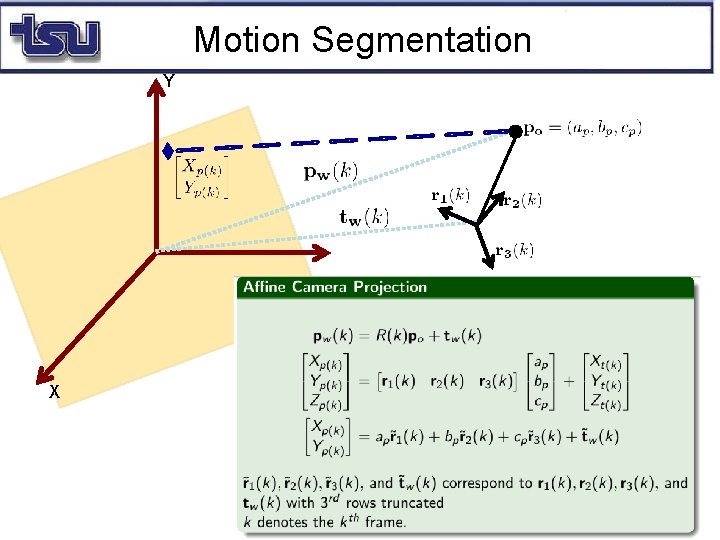

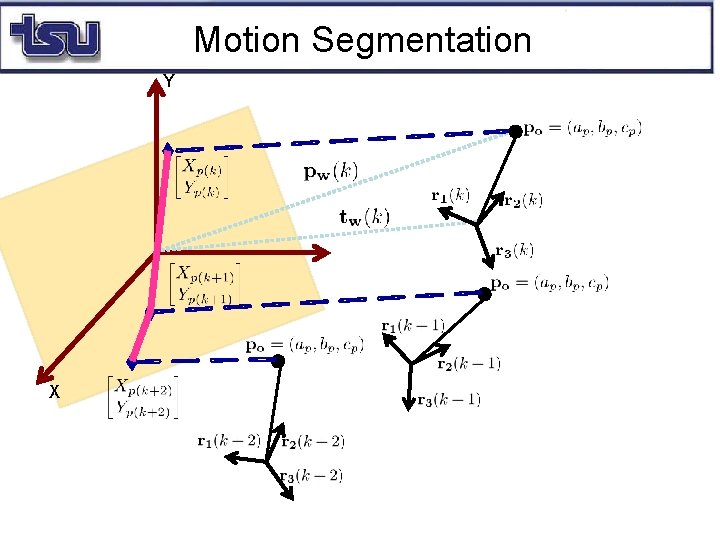

Motion Segmentation Y X

Motion Segmentation

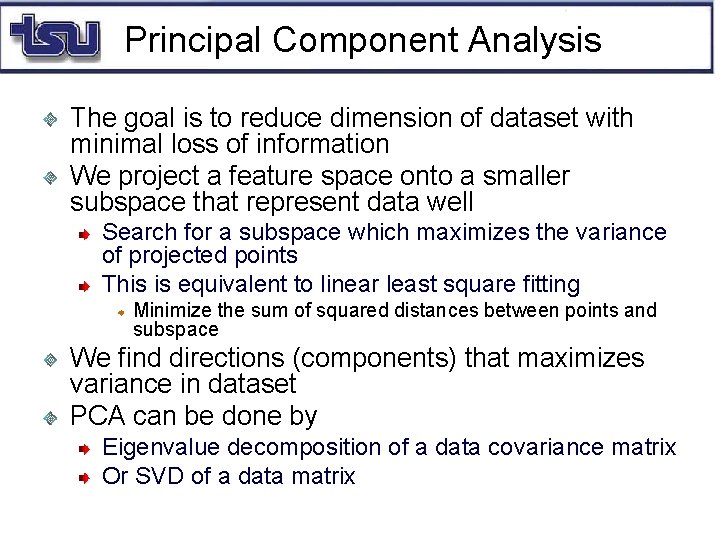

Principal Component Analysis The goal is to reduce dimension of dataset with minimal loss of information We project a feature space onto a smaller subspace that represent data well Search for a subspace which maximizes the variance of projected points This is equivalent to linear least square fitting Minimize the sum of squared distances between points and subspace We find directions (components) that maximizes variance in dataset PCA can be done by Eigenvalue decomposition of a data covariance matrix Or SVD of a data matrix

Least Square Approximation

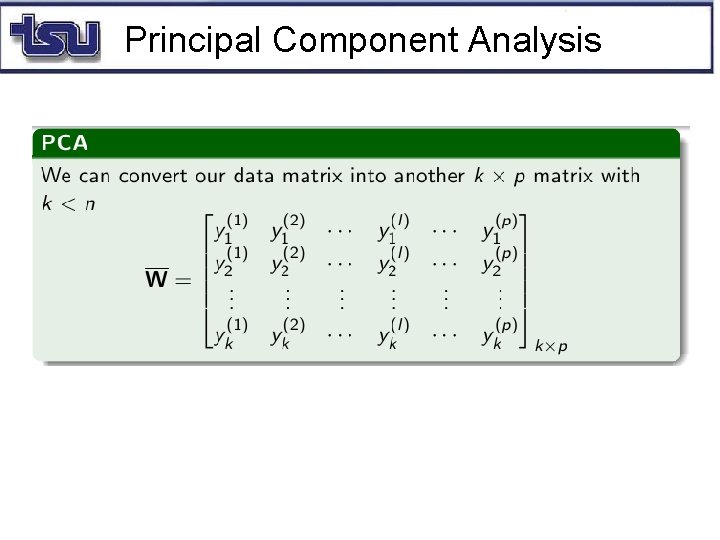

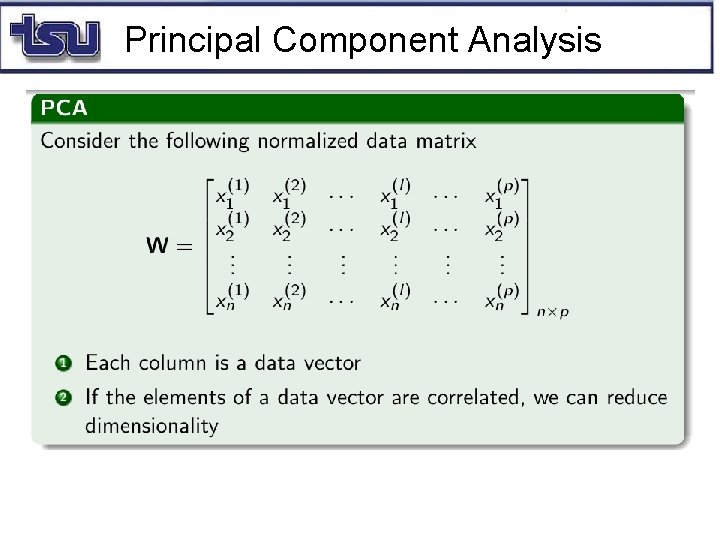

Principal Component Analysis

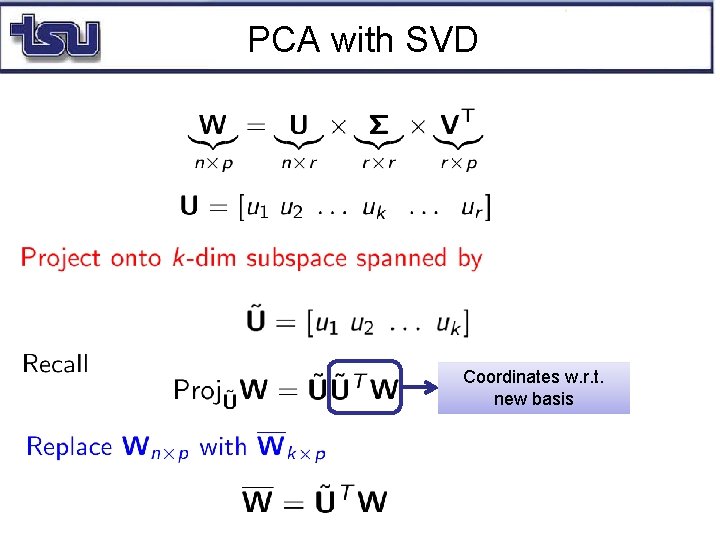

PCA with SVD Coordinates w. r. t. new basis

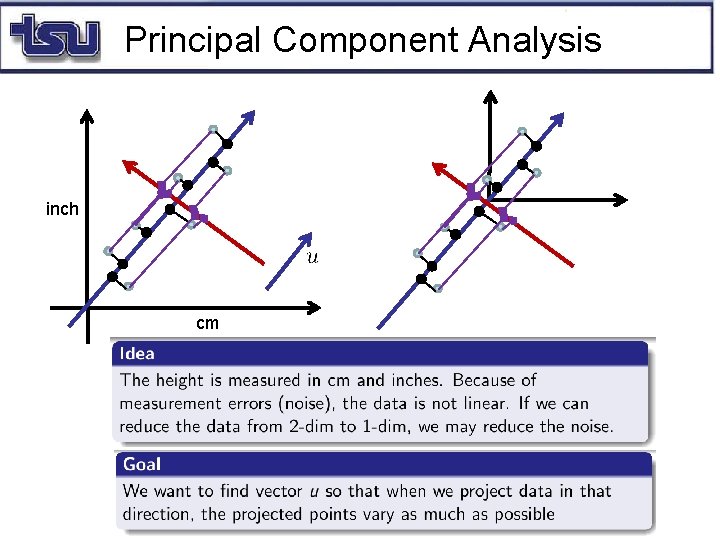

Principal Component Analysis inch cm

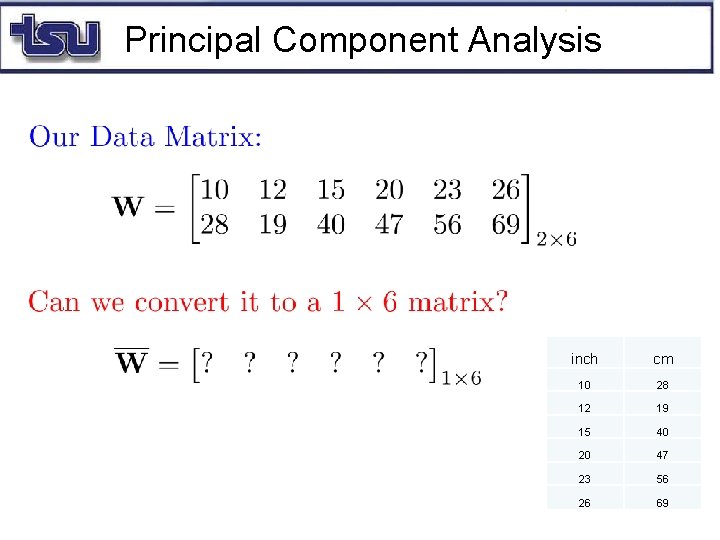

Principal Component Analysis inch cm 10 28 12 19 15 40 20 47 23 56 26 69

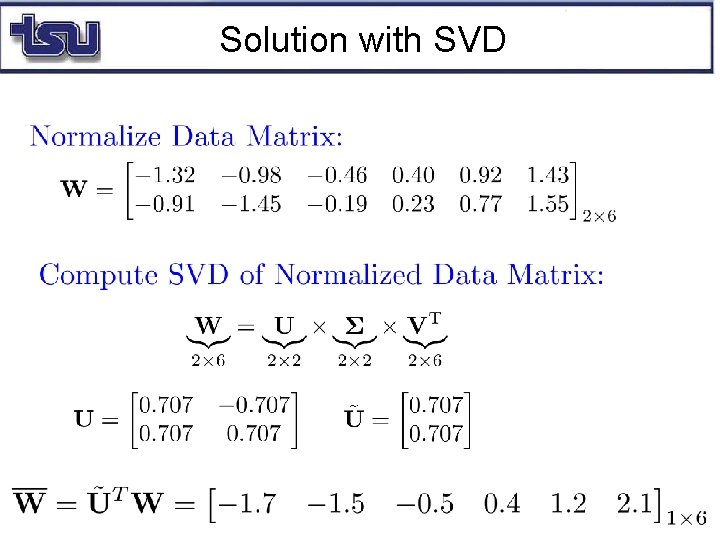

Solution with SVD

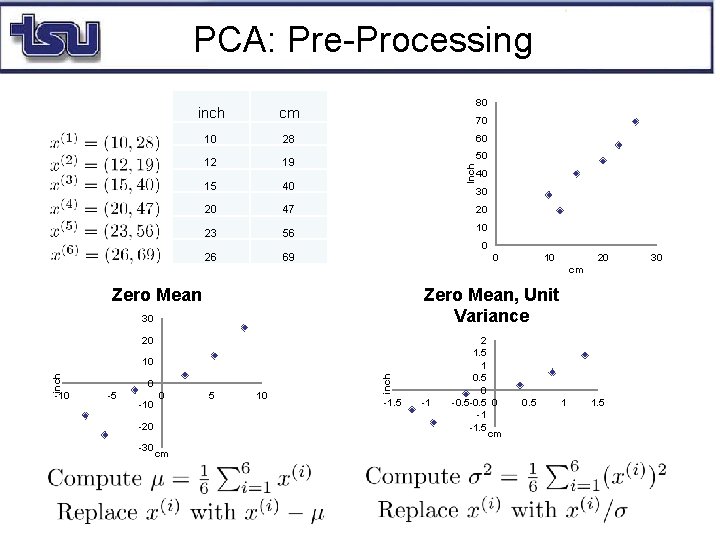

PCA: Pre-Processing 80 inch cm 10 28 12 19 15 40 20 47 20 23 56 10 26 69 70 60 Inch 50 40 30 0 0 Zero Mean, Unit Variance 30 20 0 -10 0 -20 -30 cm 5 10 inch 10 -5 20 cm Zero Mean -10 10 -1. 5 -1 2 1. 5 1 0. 5 0 -0. 5 0 -1 -1. 5 cm 0. 5 1 1. 5 30

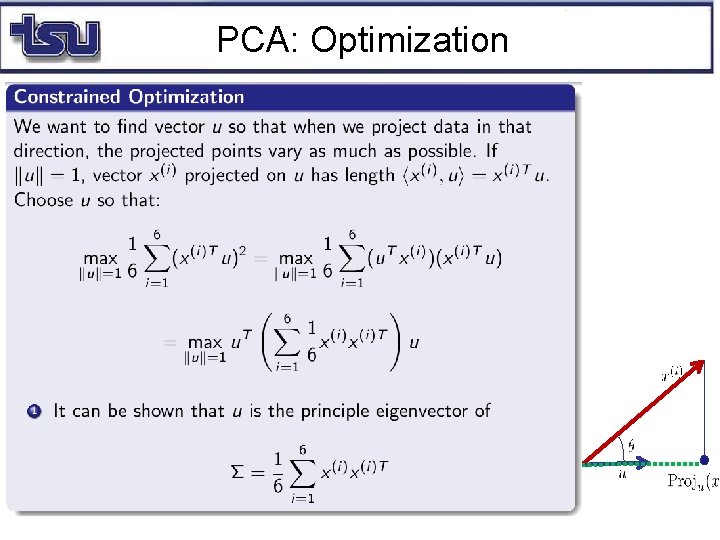

PCA: Optimization

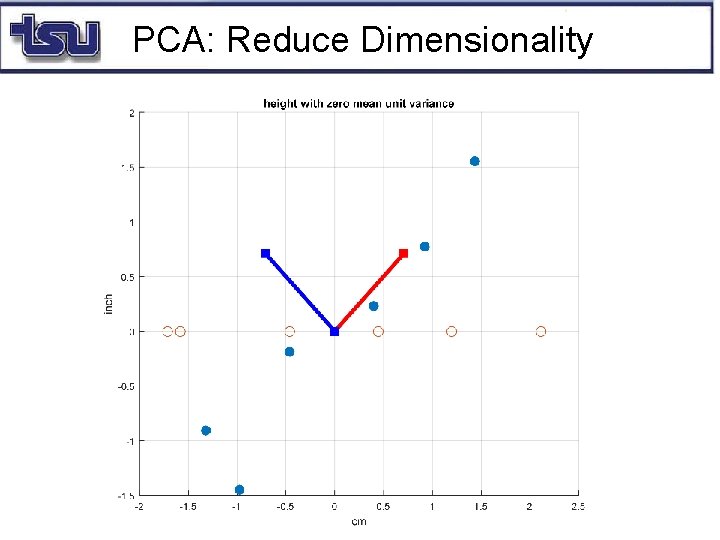

PCA: Reduce Dimensionality

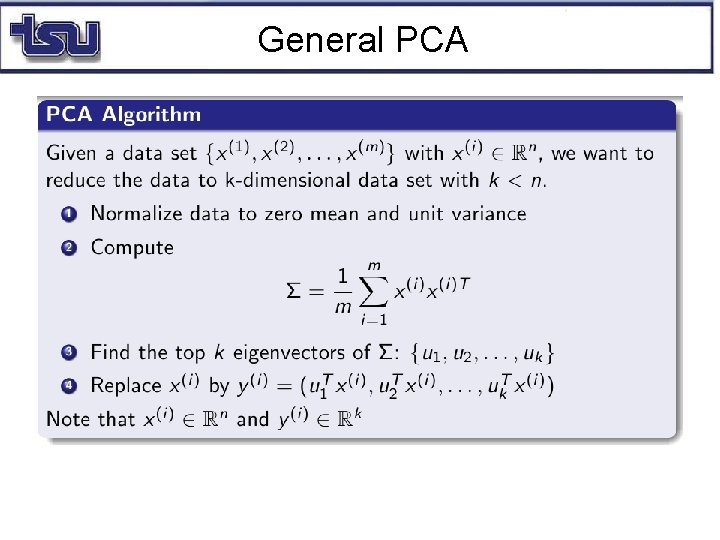

General PCA

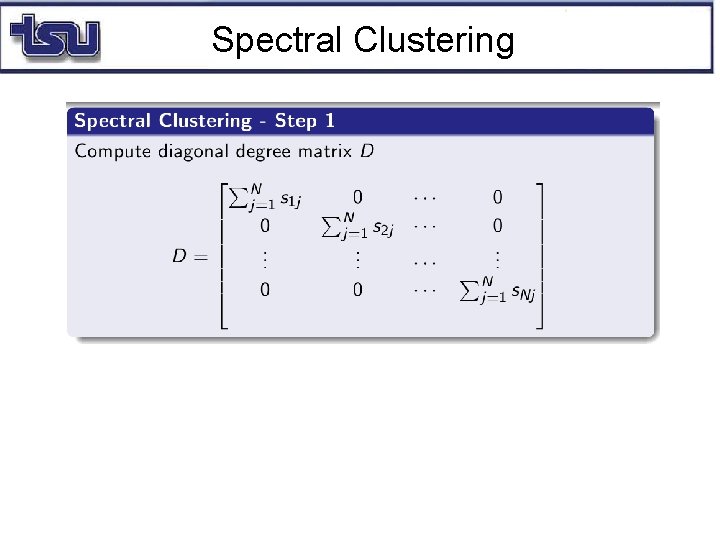

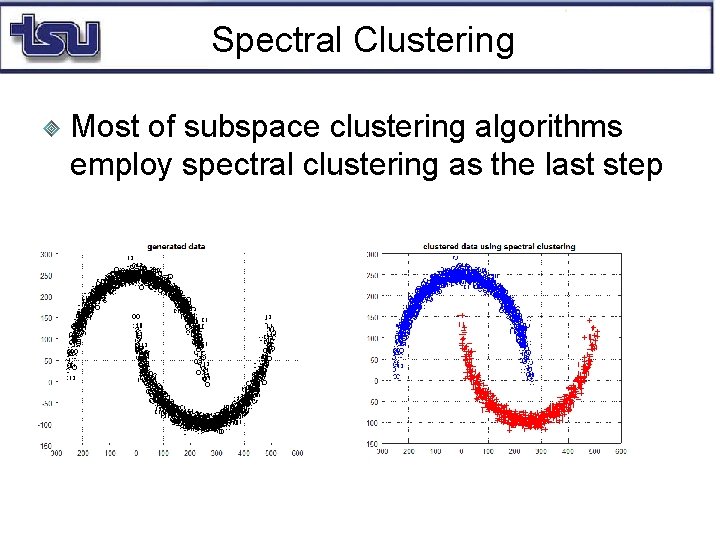

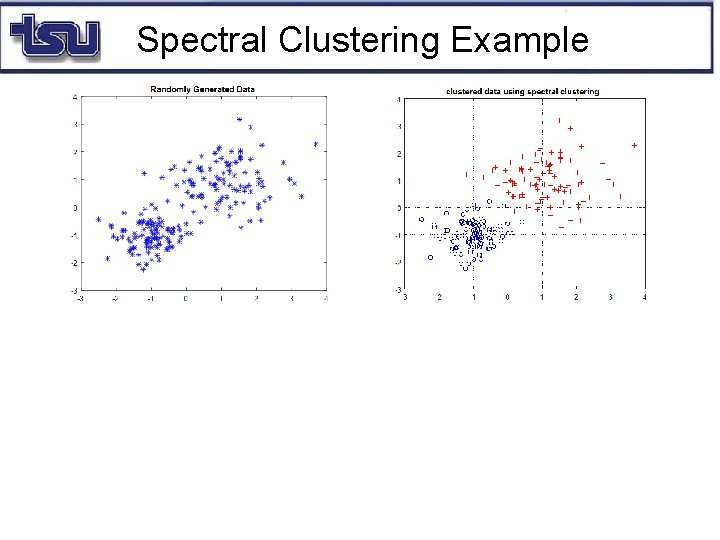

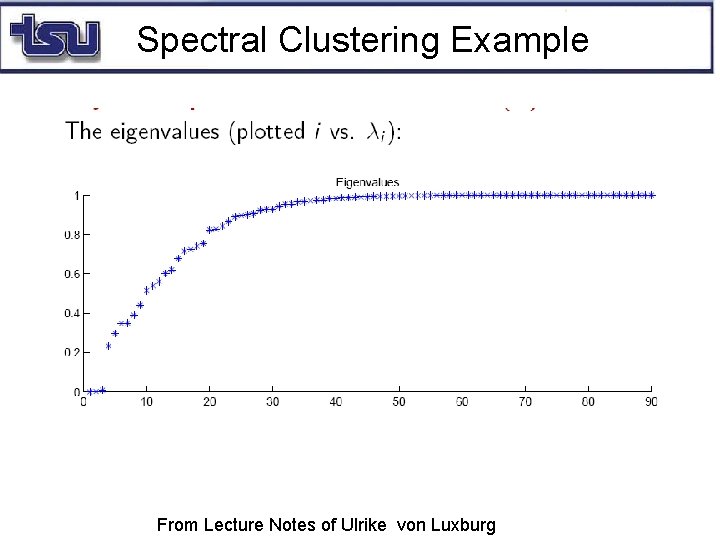

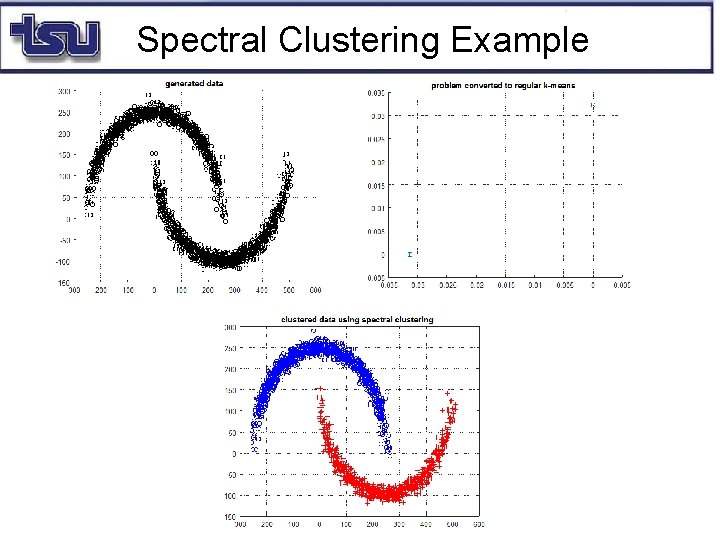

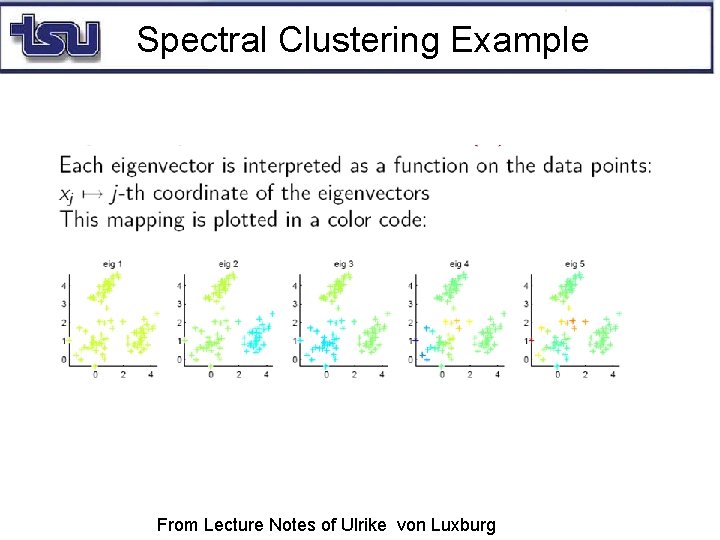

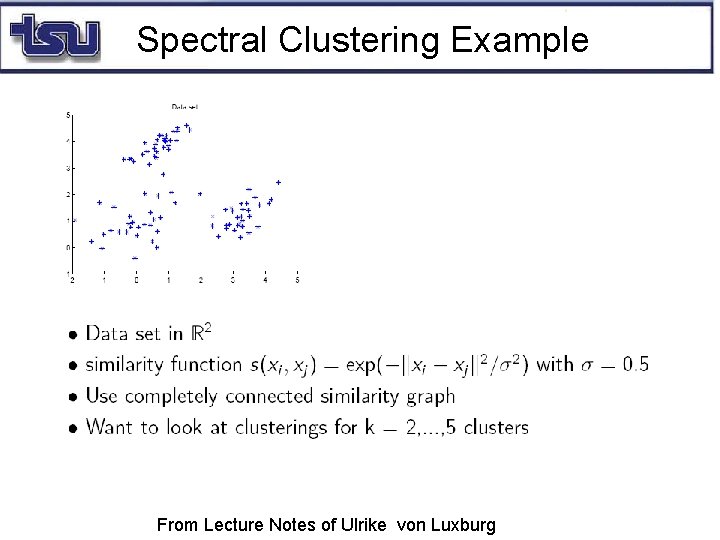

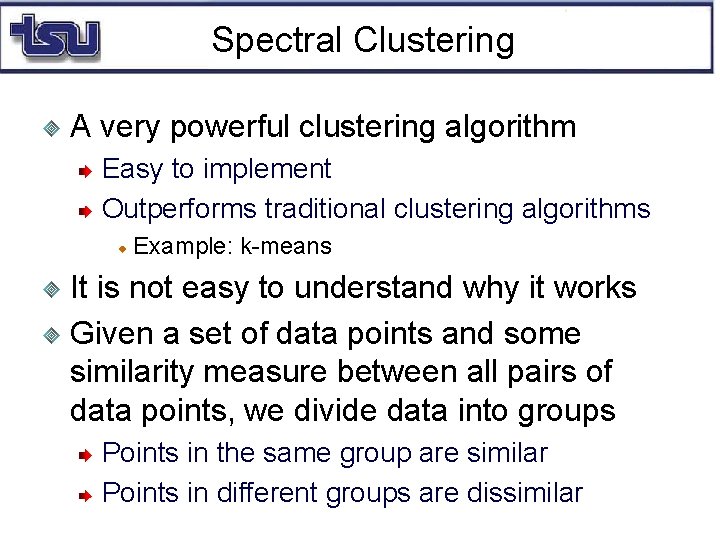

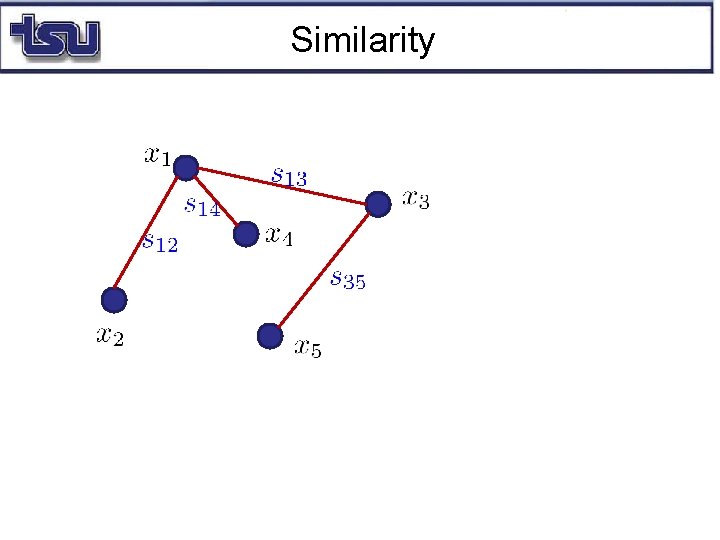

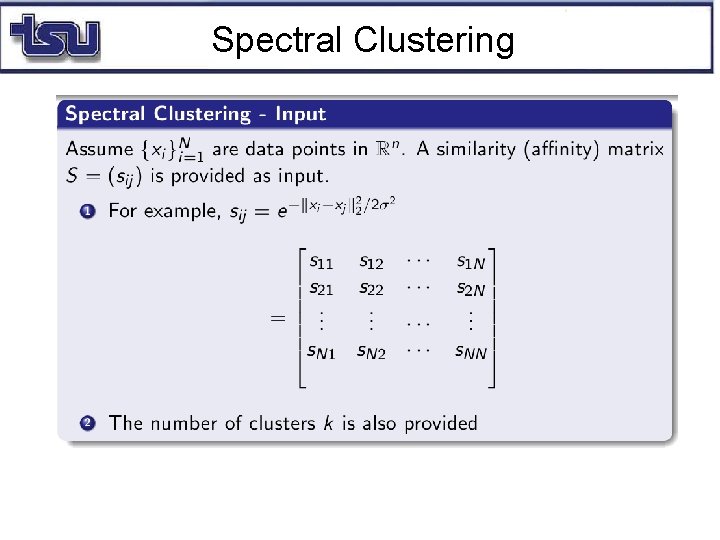

Spectral Clustering A very powerful clustering algorithm Easy to implement Outperforms traditional clustering algorithms Example: k-means It is not easy to understand why it works Given a set of data points and some similarity measure between all pairs of data points, we divide data into groups Points in the same group are similar Points in different groups are dissimilar
