Subsite® Electronics Field Scout™ Bore Planning App Adding Scout. View™ to an existing Commander™ 7 display. Quick Start Guide Learning how to use Field Scout to add Scout. View to an existing Commander 7 display.
Adding Scout. View to an existing Commander 7 display. Start by downloading the Field Scout app from the appropriate app store. Once Field Scout has been installed on mobile device, you are now ready to connect to the Commander 7 display. Connecting to Commander 7 Display If using an i. OS mobile device, connect via Bluetooth to the Commander 7 display from Settings. If using an android mobile device, open Field Scout and select “Connect” from the main menu. i. OS Connection Select “Bluetooth” in the Settings menu and then find the Bluetooth ID for the Commander 7. Mobile device is now paired and connected to Commander 7 display.
Adding Scout. View to an existing Commander 7 display. Connecting in Field Scout and Updating Software • Open Field Scout. • Select “Connect” from the main menu. • Select display ID • “New Software Available” popup will appear. Select “Yes”. Note: TK Recon™ trackers will need to be updated as well.

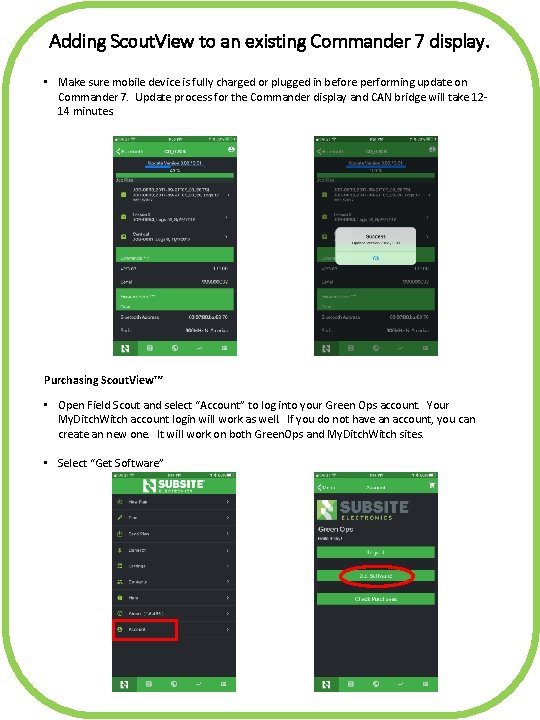

Adding Scout. View to an existing Commander 7 display. • Make sure mobile device is fully charged or plugged in before performing update on Commander 7. Update process for the Commander display and CAN bridge will take 1214 minutes. Purchasing Scout. View™ • Open Field Scout and select “Account” to log into your Green Ops account. Your My. Ditch. Witch account login will work as well. If you do not have an account, you can create an new one. It will work on both Green. Ops and My. Ditch. Witch sites. • Select “Get Software”
Adding Scout. View to an existing Commander 7 display. • Add Scout view to cart. • Adjust “Quantity” as needed for number of Commander 7 displays. • Follow instructions to complete purchase. Adding Scout. View to Commander 7 display. • Once purchase is complete, reconnect to Commander 7 display using previous instructions. • From the display information screen as shown below, select “Check for Features”.

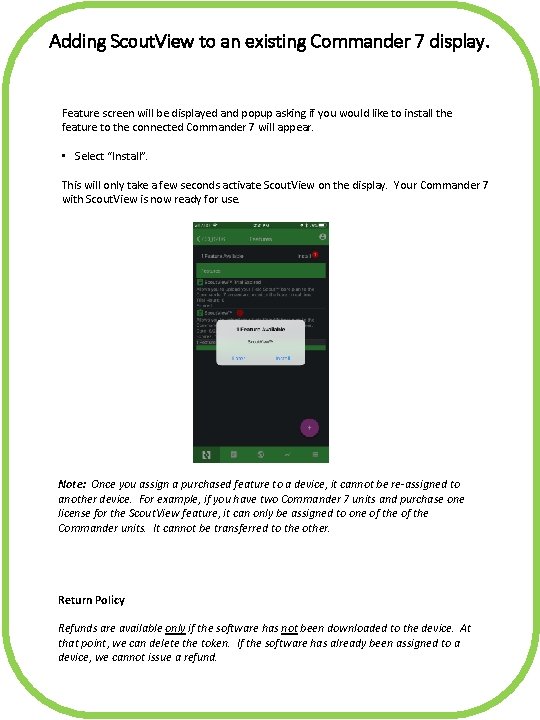

Adding Scout. View to an existing Commander 7 display. Feature screen will be displayed and popup asking if you would like to install the feature to the connected Commander 7 will appear. • Select “Install”. This will only take a few seconds activate Scout. View on the display. Your Commander 7 with Scout. View is now ready for use. Note: Once you assign a purchased feature to a device, it cannot be re-assigned to another device. For example, if you have two Commander 7 units and purchase one license for the Scout. View feature, it can only be assigned to one of the Commander units. It cannot be transferred to the other. Return Policy Refunds are available only if the software has not been downloaded to the device. At that point, we can delete the token. If the software has already been assigned to a device, we cannot issue a refund.
