Subroutines, Part 2 CSE 262, Spring 2003 © G. Drew Kessler and William M. Pottenger 1

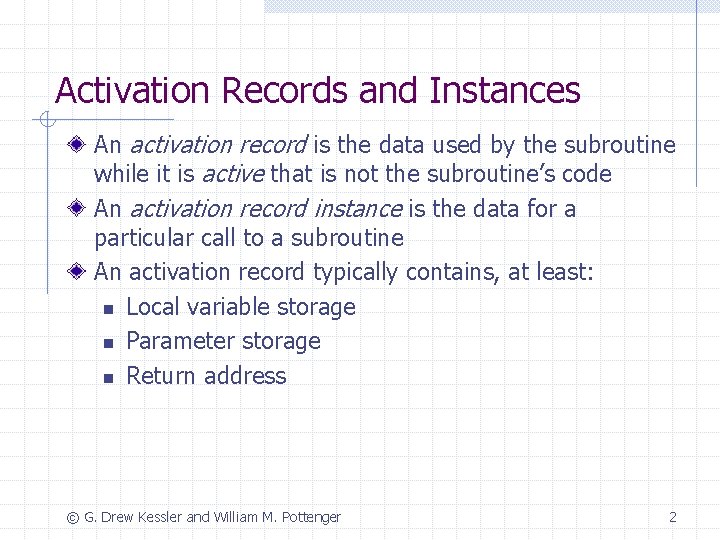

Activation Records and Instances An activation record is the data used by the subroutine while it is active that is not the subroutine’s code An activation record instance is the data for a particular call to a subroutine An activation record typically contains, at least: n Local variable storage n Parameter storage n Return address © G. Drew Kessler and William M. Pottenger 2

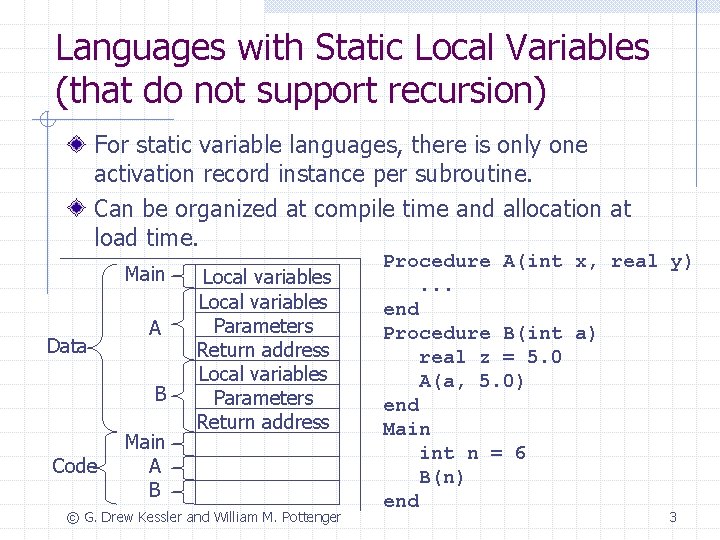

Languages with Static Local Variables (that do not support recursion) For static variable languages, there is only one activation record instance per subroutine. Can be organized at compile time and allocation at load time. Main Data A B Code Main A B Local variables Parameters Return address © G. Drew Kessler and William M. Pottenger Procedure A(int x, real y). . . end Procedure B(int a) real z = 5. 0 A(a, 5. 0) end Main int n = 6 B(n) end 3

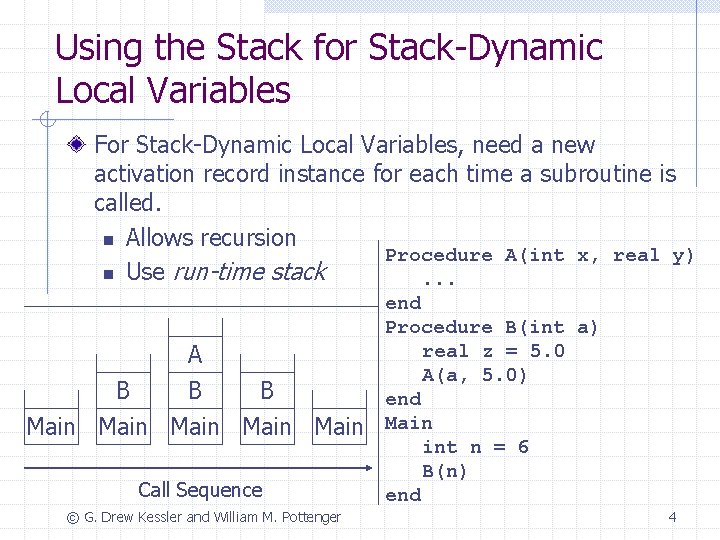

Using the Stack for Stack-Dynamic Local Variables For Stack-Dynamic Local Variables, need a new activation record instance for each time a subroutine is called. n Allows recursion Procedure A(int x, real y) n Use run-time stack. . . A B B B Main Main Call Sequence © G. Drew Kessler and William M. Pottenger end Procedure B(int a) real z = 5. 0 A(a, 5. 0) end Main int n = 6 B(n) end 4

Activation Record (AR) for Stack. Dynamic Variables Local variables Stack built upward Parameters Dynamic Link Top of previous AR Static Link Return Address Memory Addresses Local variables Parameters 0 Bottom of AR of parent scope . . . Local variables and parameters are located by (address of activation record, local_offset) pair © G. Drew Kessler and William M. Pottenger 5

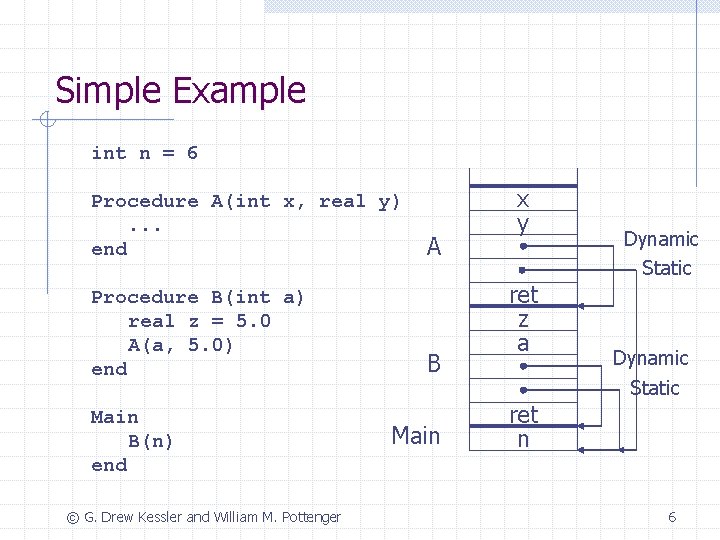

Simple Example int n = 6 Procedure A(int x, real y). . . end Procedure B(int a) real z = 5. 0 A(a, 5. 0) end Main B(n) end © G. Drew Kessler and William M. Pottenger A B Main x y ret z a ret n Dynamic Static 6

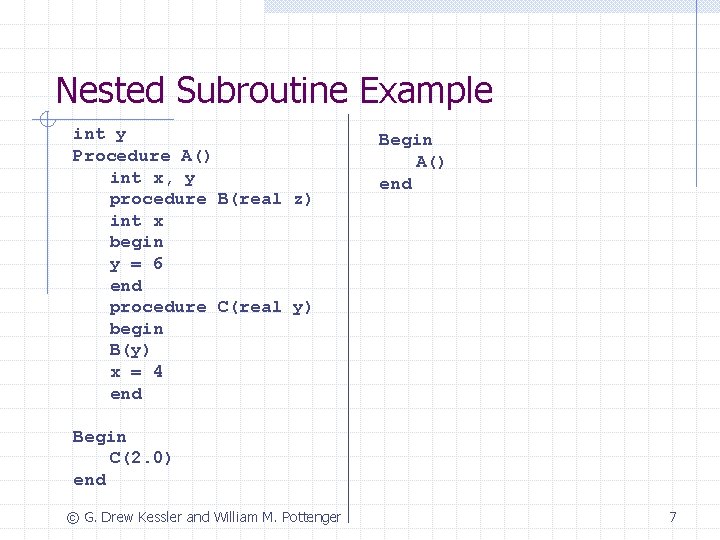

Nested Subroutine Example int y Procedure A() int x, y procedure B(real z) int x begin y = 6 end procedure C(real y) begin B(y) x = 4 end Begin A() end Begin C(2. 0) end © G. Drew Kessler and William M. Pottenger 7
![Example with Recursion Procedure Merge(int A[], int L, int M, int R) /* Merge Example with Recursion Procedure Merge(int A[], int L, int M, int R) /* Merge](http://slidetodoc.com/presentation_image_h2/c626453147abe2bcb0fc7a707cd9f317/image-8.jpg)

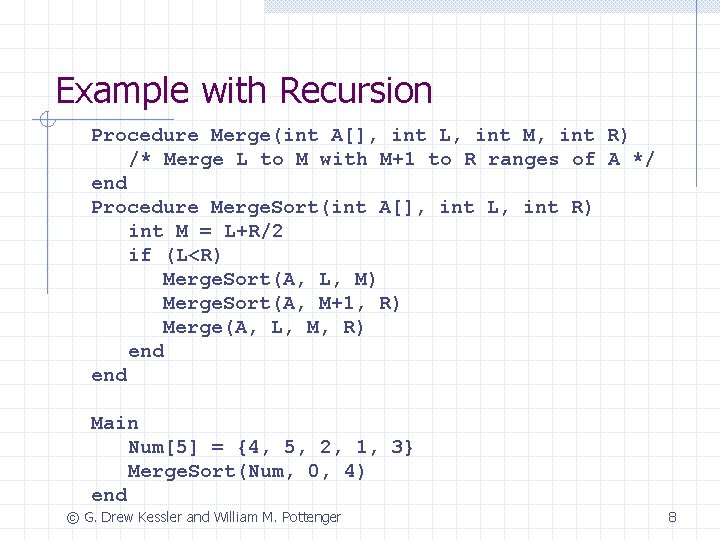

Example with Recursion Procedure Merge(int A[], int L, int M, int R) /* Merge L to M with M+1 to R ranges of A */ end Procedure Merge. Sort(int A[], int L, int R) int M = L+R/2 if (L<R) Merge. Sort(A, L, M) Merge. Sort(A, M+1, R) Merge(A, L, M, R) end Main Num[5] = {4, 5, 2, 1, 3} Merge. Sort(Num, 0, 4) end © G. Drew Kessler and William M. Pottenger 8

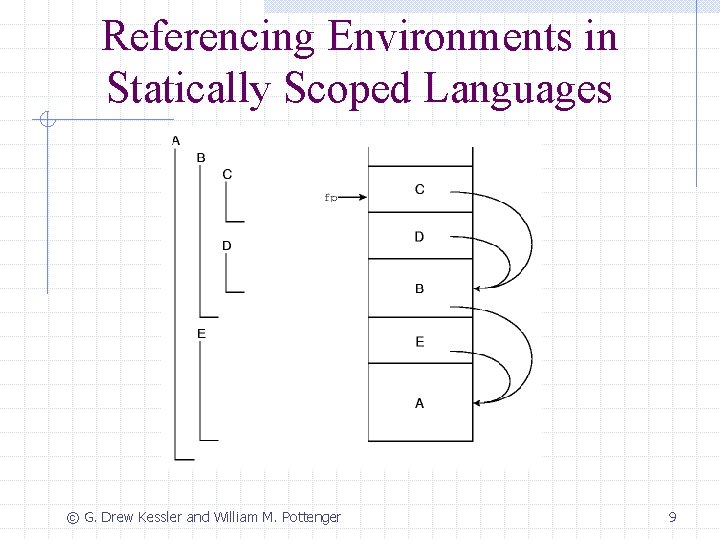

Referencing Environments in Statically Scoped Languages © G. Drew Kessler and William M. Pottenger 9

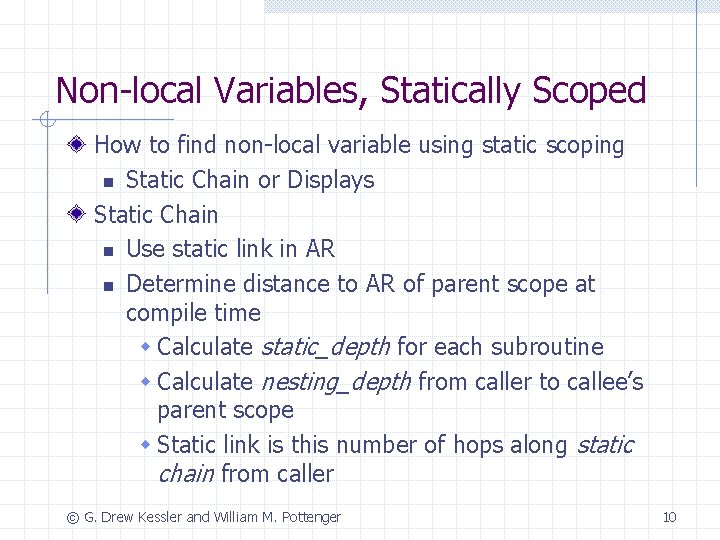

Non-local Variables, Statically Scoped How to find non-local variable using static scoping n Static Chain or Displays Static Chain n Use static link in AR n Determine distance to AR of parent scope at compile time w Calculate static_depth for each subroutine w Calculate nesting_depth from caller to callee’s parent scope w Static link is this number of hops along static chain from caller © G. Drew Kessler and William M. Pottenger 10

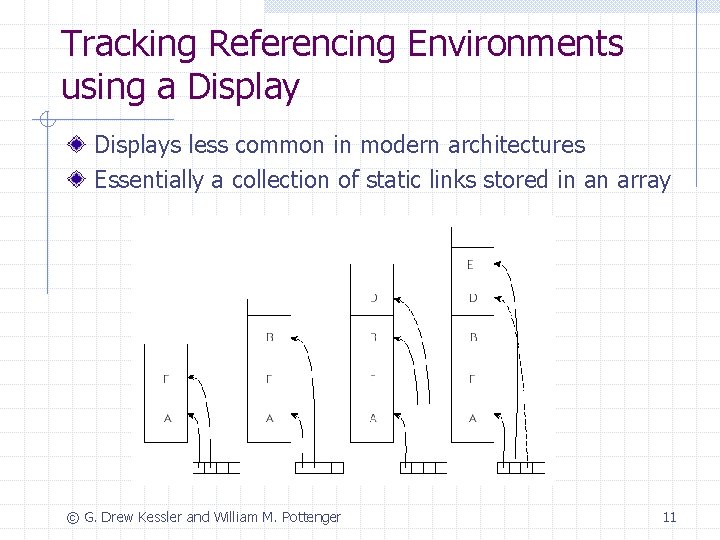

Tracking Referencing Environments using a Displays less common in modern architectures Essentially a collection of static links stored in an array © G. Drew Kessler and William M. Pottenger 11

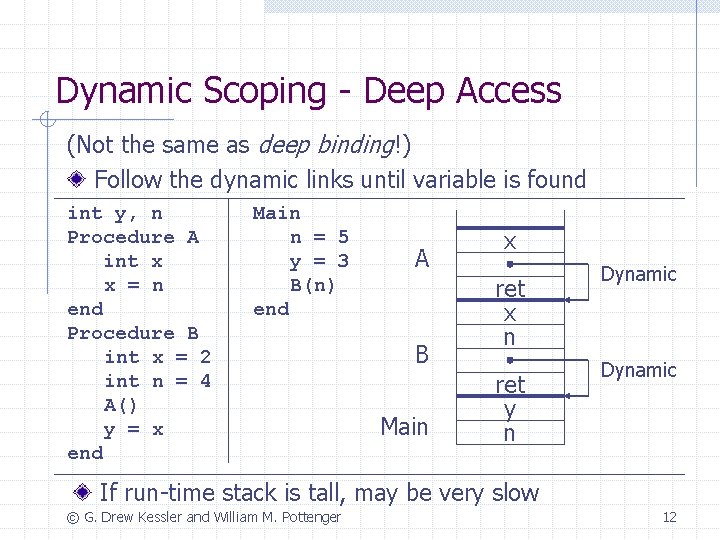

Dynamic Scoping - Deep Access (Not the same as deep binding!) Follow the dynamic links until variable is found int y, n Procedure A int x x = n end Procedure B int x = 2 int n = 4 A() y = x end Main n = 5 y = 3 B(n) end A B Main x ret x n ret y n Dynamic If run-time stack is tall, may be very slow © G. Drew Kessler and William M. Pottenger 12

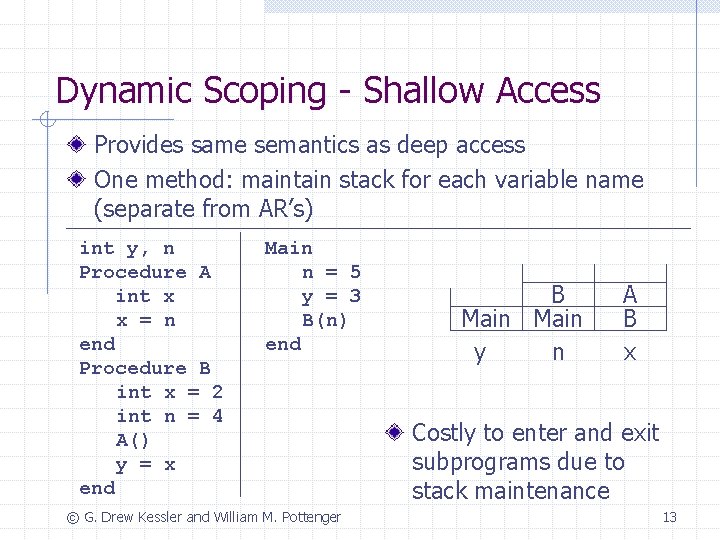

Dynamic Scoping - Shallow Access Provides same semantics as deep access One method: maintain stack for each variable name (separate from AR’s) int y, n Procedure A int x x = n end Procedure B int x = 2 int n = 4 A() y = x end Main n = 5 y = 3 B(n) end © G. Drew Kessler and William M. Pottenger B Main y n A B x Costly to enter and exit subprograms due to stack maintenance 13

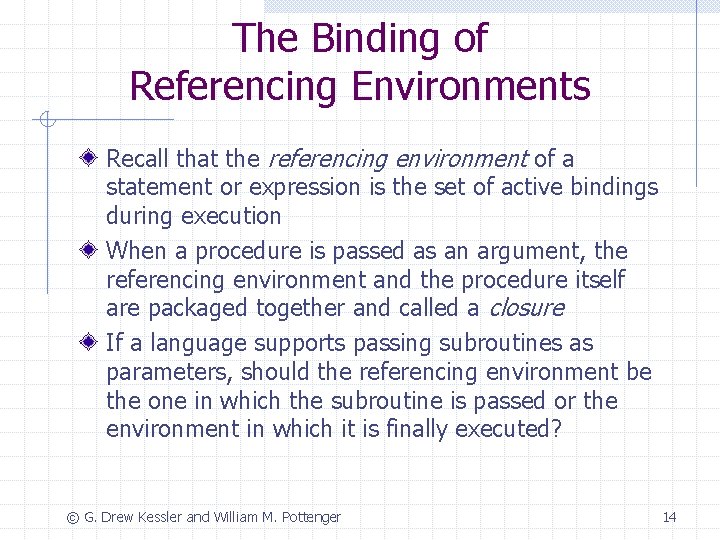

The Binding of Referencing Environments Recall that the referencing environment of a statement or expression is the set of active bindings during execution When a procedure is passed as an argument, the referencing environment and the procedure itself are packaged together and called a closure If a language supports passing subroutines as parameters, should the referencing environment be the one in which the subroutine is passed or the environment in which it is finally executed? © G. Drew Kessler and William M. Pottenger 14

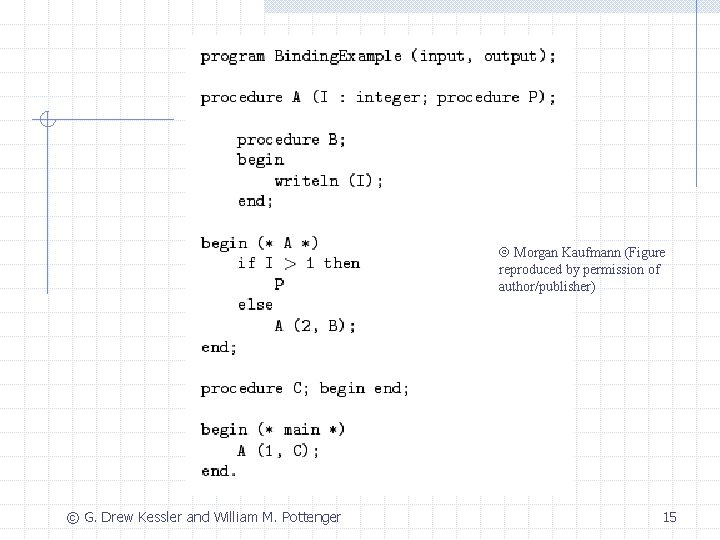

Ó Morgan Kaufmann (Figure reproduced by permission of author/publisher) © G. Drew Kessler and William M. Pottenger 15

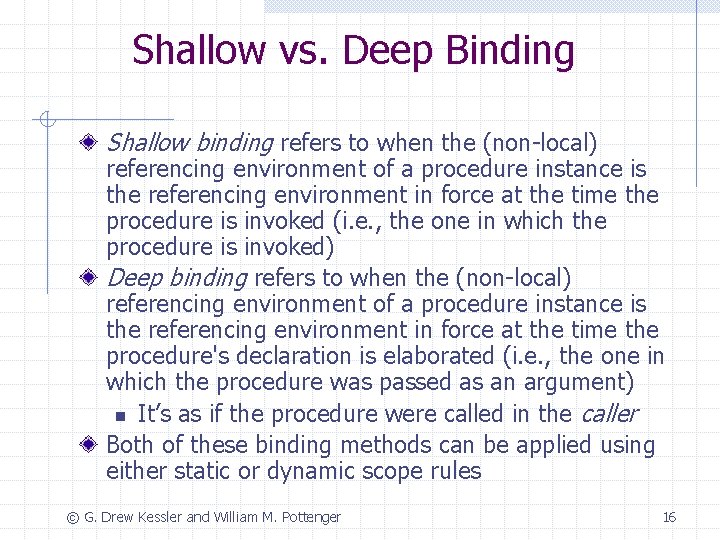

Shallow vs. Deep Binding Shallow binding refers to when the (non-local) referencing environment of a procedure instance is the referencing environment in force at the time the procedure is invoked (i. e. , the one in which the procedure is invoked) Deep binding refers to when the (non-local) referencing environment of a procedure instance is the referencing environment in force at the time the procedure's declaration is elaborated (i. e. , the one in which the procedure was passed as an argument) n It’s as if the procedure were called in the caller Both of these binding methods can be applied using either static or dynamic scope rules © G. Drew Kessler and William M. Pottenger 16

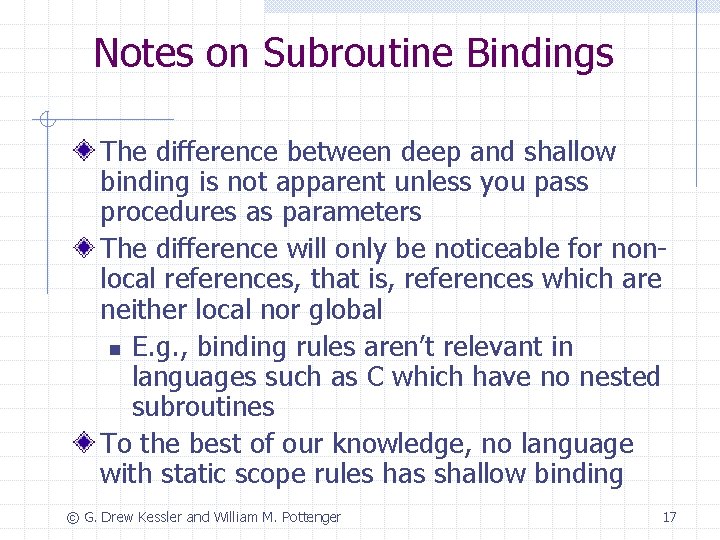

Notes on Subroutine Bindings The difference between deep and shallow binding is not apparent unless you pass procedures as parameters The difference will only be noticeable for nonlocal references, that is, references which are neither local nor global n E. g. , binding rules aren’t relevant in languages such as C which have no nested subroutines To the best of our knowledge, no language with static scope rules has shallow binding © G. Drew Kessler and William M. Pottenger 17

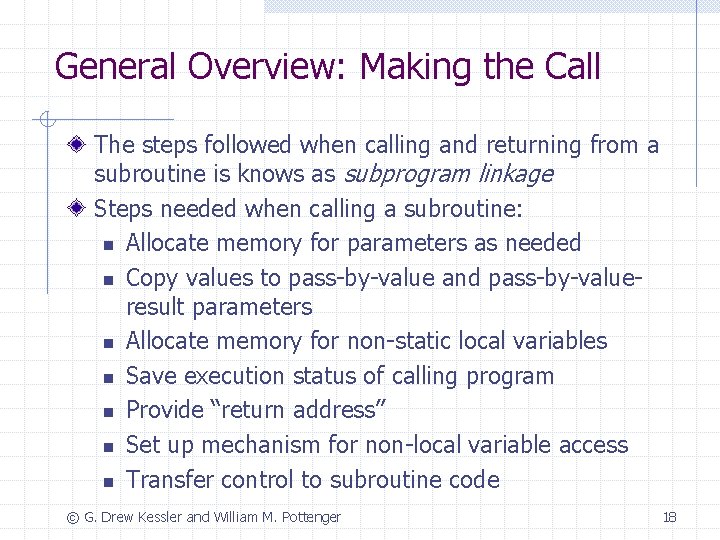

General Overview: Making the Call The steps followed when calling and returning from a subroutine is knows as subprogram linkage Steps needed when calling a subroutine: n Allocate memory for parameters as needed n Copy values to pass-by-value and pass-by-valueresult parameters n Allocate memory for non-static local variables n Save execution status of calling program n Provide “return address” n Set up mechanism for non-local variable access n Transfer control to subroutine code © G. Drew Kessler and William M. Pottenger 18

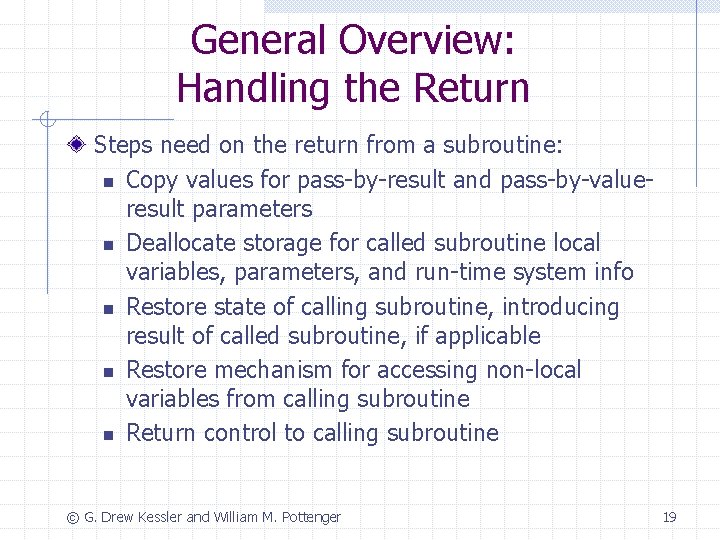

General Overview: Handling the Return Steps need on the return from a subroutine: n Copy values for pass-by-result and pass-by-valueresult parameters n Deallocate storage for called subroutine local variables, parameters, and run-time system info n Restore state of calling subroutine, introducing result of called subroutine, if applicable n Restore mechanism for accessing non-local variables from calling subroutine n Return control to calling subroutine © G. Drew Kessler and William M. Pottenger 19

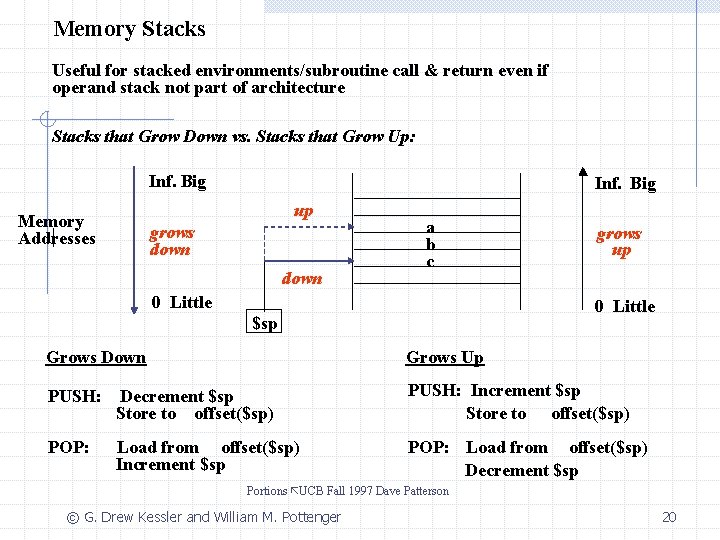

Memory Stacks Useful for stacked environments/subroutine call & return even if operand stack not part of architecture Stacks that Grow Down vs. Stacks that Grow Up: Inf. Big up Memory Addresses grows down a b c 0 Little grows up 0 Little $sp Grows Down Grows Up PUSH: Decrement $sp Store to offset($sp) PUSH: Increment $sp Store to offset($sp) POP: Load from offset($sp) Increment $sp POP: Load from offset($sp) Decrement $sp Portions UCB Fall 1997 Dave Patterson © G. Drew Kessler and William M. Pottenger 20

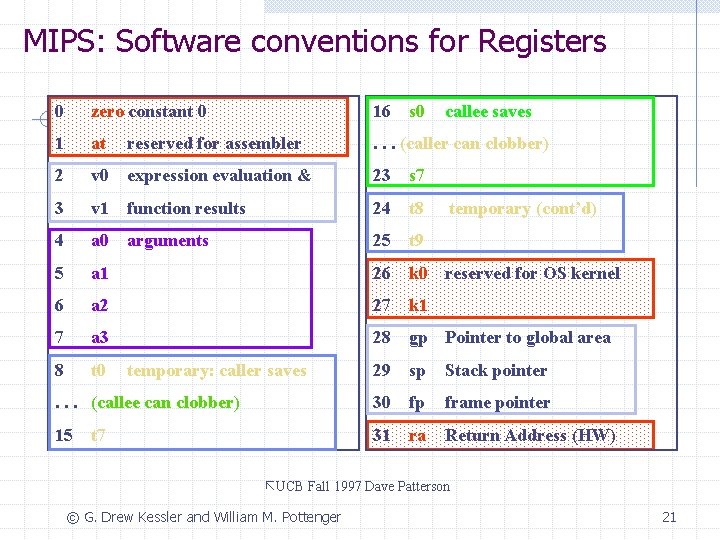

MIPS: Software conventions for Registers 0 zero constant 0 16 1 at reserved for assembler . . . (caller can clobber) 2 v 0 expression evaluation & 23 s 7 3 v 1 function results 24 t 8 4 a 0 arguments 25 t 9 5 a 1 26 k 0 reserved for OS kernel 6 a 2 27 k 1 7 a 3 28 gp Pointer to global area 8 t 0 29 sp Stack pointer . . . (callee can clobber) 30 fp frame pointer 15 31 ra Return Address (HW) temporary: caller saves t 7 s 0 callee saves temporary (cont’d) UCB Fall 1997 Dave Patterson © G. Drew Kessler and William M. Pottenger 21

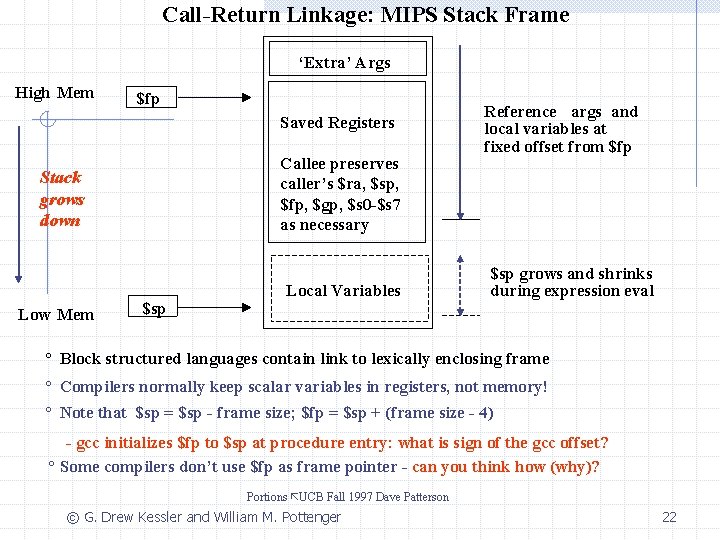

Call-Return Linkage: MIPS Stack Frame ‘Extra’ Args High Mem $fp Saved Registers Callee preserves caller’s $ra, $sp, $fp, $gp, $s 0 -$s 7 as necessary Stack grows down Low Mem $sp Local Variables Reference args and local variables at fixed offset from $fp $sp grows and shrinks during expression eval ° Block structured languages contain link to lexically enclosing frame ° Compilers normally keep scalar variables in registers, not memory! ° Note that $sp = $sp - frame size; $fp = $sp + (frame size - 4) - gcc initializes $fp to $sp at procedure entry: what is sign of the gcc offset? ° Some compilers don’t use $fp as frame pointer - can you think how (why)? Portions UCB Fall 1997 Dave Patterson © G. Drew Kessler and William M. Pottenger 22

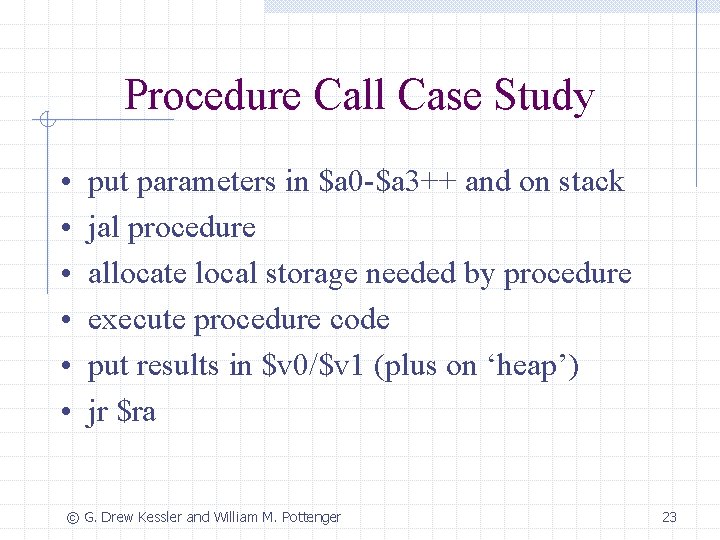

Procedure Call Case Study • • • put parameters in $a 0 -$a 3++ and on stack jal procedure allocate local storage needed by procedure execute procedure code put results in $v 0/$v 1 (plus on ‘heap’) jr $ra © G. Drew Kessler and William M. Pottenger 23

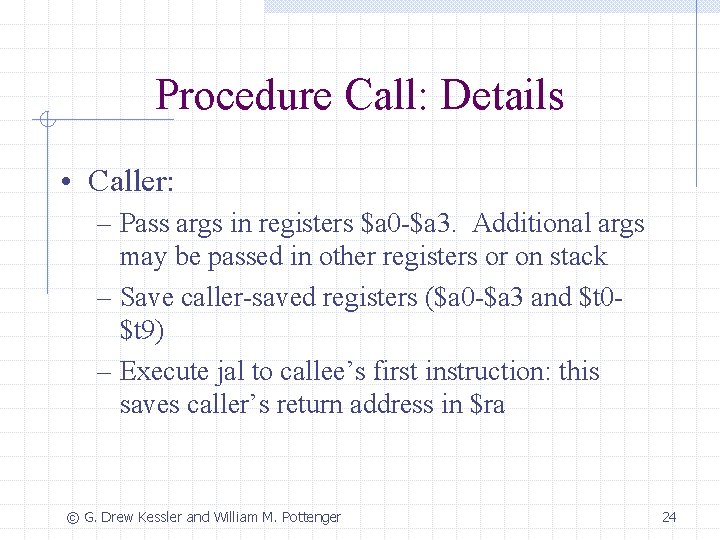

Procedure Call: Details • Caller: – Pass args in registers $a 0 -$a 3. Additional args may be passed in other registers or on stack – Save caller-saved registers ($a 0 -$a 3 and $t 0$t 9) – Execute jal to callee’s first instruction: this saves caller’s return address in $ra © G. Drew Kessler and William M. Pottenger 24

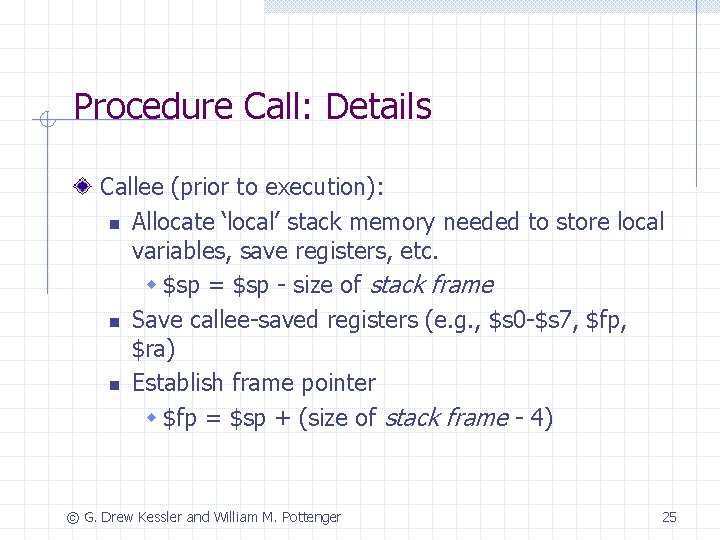

Procedure Call: Details Callee (prior to execution): n Allocate ‘local’ stack memory needed to store local variables, save registers, etc. w $sp = $sp - size of stack frame n Save callee-saved registers (e. g. , $s 0 -$s 7, $fp, $ra) n Establish frame pointer w $fp = $sp + (size of stack frame - 4) © G. Drew Kessler and William M. Pottenger 25

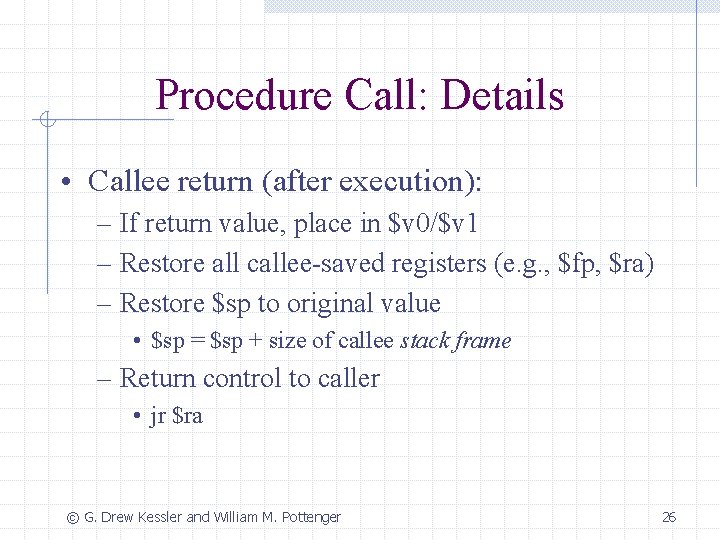

Procedure Call: Details • Callee return (after execution): – If return value, place in $v 0/$v 1 – Restore all callee-saved registers (e. g. , $fp, $ra) – Restore $sp to original value • $sp = $sp + size of callee stack frame – Return control to caller • jr $ra © G. Drew Kessler and William M. Pottenger 26

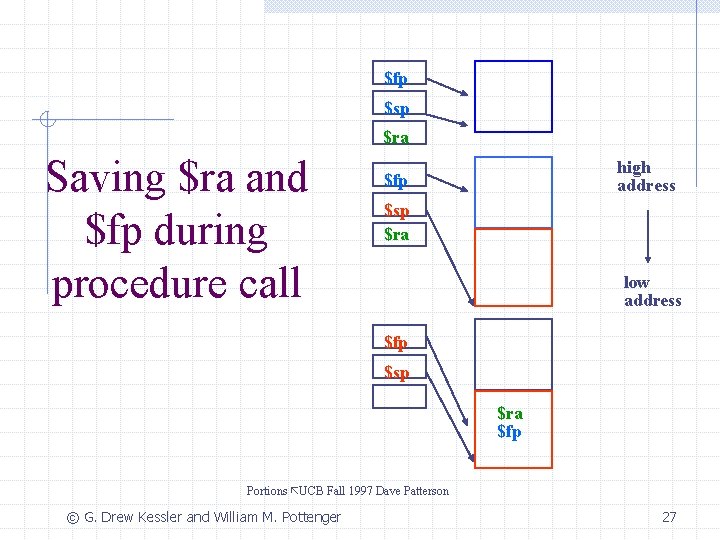

$fp $sp $ra Saving $ra and $fp during procedure call high address $fp $sp $ra low address $fp $sp $ra $fp Portions UCB Fall 1997 Dave Patterson © G. Drew Kessler and William M. Pottenger 27
