Subnetting/ Supernetting and Classful Addressing Prof. Choong Seon HONG Kyung Hee University 1

Introduction q. Subnetting A network is divided into several smaller networks with each subnetwork (or subnet) having its subnetwork address q. Supernetting Combining several class C addresses to create a larger range of addresses q IP Addresses are designed with two levels of hierarchy Kyung Hee University 2

Subnetting q Classes A, B, C in IP addressing are designed with two levels of hierarchy (not subnetted) Netid and Hostid Kyung Hee University 3

Subnetting (cont’d) q Further division of a network into smaller networks called subnetworks q R 1 differentiating subnets Kyung Hee University 4

Subnetting (cont’d) q Three levels of hierarchy : netid, subnetid, and hostid Kyung Hee University 5

Subnetting (cont’d) q. Three steps of the routing for an IP datagram Delivery to the site, delivery to the subnetwork, and delivery to the host q. Hierarchy concept in a telephone number 031 Kyung Hee University 6

Subnet Mask q A process that extracts the address of the physical network (network/subnetwork portion) from an IP address Kyung Hee University 7

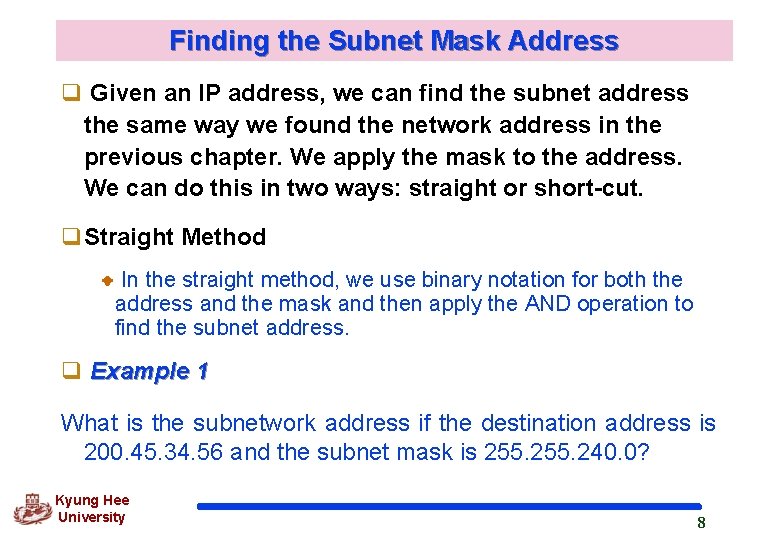

Finding the Subnet Mask Address q Given an IP address, we can find the subnet address the same way we found the network address in the previous chapter. We apply the mask to the address. We can do this in two ways: straight or short-cut. q. Straight Method In the straight method, we use binary notation for both the address and the mask and then apply the AND operation to find the subnet address. q Example 1 What is the subnetwork address if the destination address is 200. 45. 34. 56 and the subnet mask is 255. 240. 0? Kyung Hee University 8

Finding the Subnet Mask Address (cont’d) q. Solution 11001000 00101101 0010 00111000 111111110000 11001000 00101101 00100000 The subnetwork address is 200. 45. 32. 0. Kyung Hee University 9

Short-Cut Method q If the byte in the mask is 255, copy the byte in the address. q If the byte in the mask is 0, replace the byte in the address with 0. q If the byte in the mask is neither 255 nor 0, we write the mask and the address in binary and apply the AND operation. Kyung Hee University 10

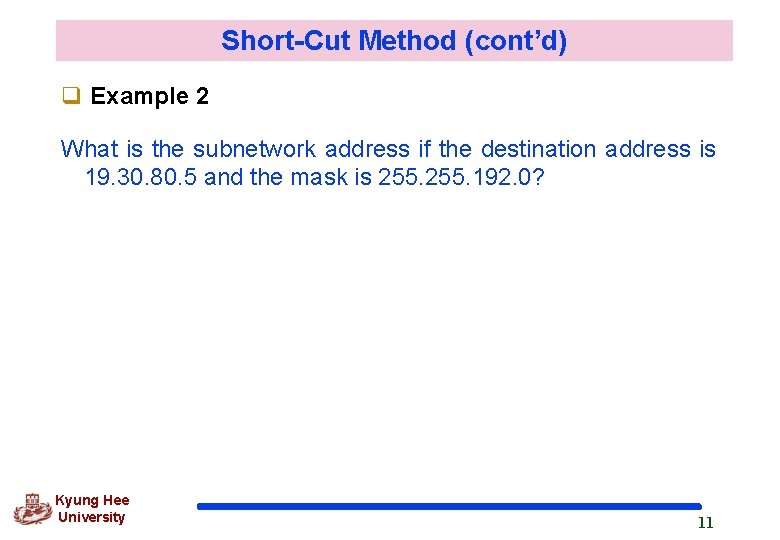

Short-Cut Method (cont’d) q Example 2 What is the subnetwork address if the destination address is 19. 30. 80. 5 and the mask is 255. 192. 0? Kyung Hee University 11

Short-Cut Method (cont’d) q Solution Kyung Hee University 12

Comparison of a default mask and a subnet mask q Kyung Hee University 13

Designing Subnets q Deciding the Number of Subnetworks The number of subnets must be a power of 2. q Finding the Subnet Mask 1. Find the number of 1 s in the default mask 2. Find the number of 1 s that defines the subnets 3. Add the number of 1 s in steps 1 and 2 4. Find the number of 0 s by subtracting the number of 1 s in step 3 from 32 Kyung Hee University 14

Designing Subnets (cont’d) q Example 3 A company is granted the site address 201. 70. 64. 0 (class C). The company needs six subnets. Design the subnets. Solution The number of 1 s in the default mask is 24 (class C). q. The company needs six subnets. This number 6 is not a power of 2. The next number that is a power of 2 is 8 (23). We need 3 more 1 s in the subnet mask. The total number of 1 s in the subnet mask is 27 (24 + 3). The total number of 0 s is 5 (32 - 27). The mask is Kyung Hee University 15

Designing Subnets (cont’d) q. Example 3 (cont’d) 11111111 11100000 or 255. 224 l l Kyung Hee University The number of subnets is 8. The number of addresses in each subnet is 25 (5 is the number of 0 s) or 32. 16

Example 3 (cont’d) Kyung Hee University 17

Example 4 q A company is granted the site address 181. 56. 0. 0 (class B). The company needs 1000 subnets. Design the subnets. q. Solution The number of 1 s in the default mask is 16 (class B). The company needs 1000 subnets. This number is not a power of 2. The next number that is a power of 2 is 1024 (210). We need 10 more 1 s in the subnet mask. The total number of 1 s in the subnet mask is 26 (16 + 10). The total number of 0 s is 6 (32 - 26). Kyung Hee University 18

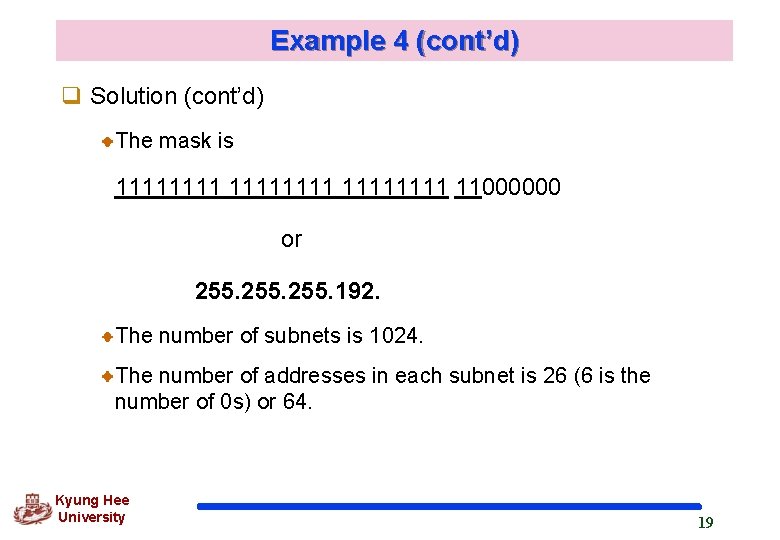

Example 4 (cont’d) q Solution (cont’d) The mask is 11111111 11000000 or 255. 192. The number of subnets is 1024. The number of addresses in each subnet is 26 (6 is the number of 0 s) or 64. Kyung Hee University 19

Example 4 (cont’d) q Kyung Hee University 20

Variable Length Subnetting q 5 subnets with following number of hosts : 60, 60, 30 q. Applying 2 different masks The first, using the mask with 26 1 s (11111111 11000000) Then, applying the mask with 27 1 s (11111111 11100000) to one of subnets to divide it into two smaller subnets Kyung Hee University 21

Variable Length Subnetting (cont’d) Kyung Hee University 22

5. 2 Supernetting q. A block of class x addresses q. For example, An organization that needs 1, 000 addresses can be granted four class C addresses Kyung Hee University 23

Supernetting (cont’d) q 4 class C addresses combine to make one supernetwork Kyung Hee University 24

Supernetting (cont’d) q Supernetting Rules: ** The number of blocks must be a power of 2 (1, 2, 4, 8, 16, . . . ). ** The blocks must be contiguous in the address space (no gaps between the blocks). ** The third byte of the first address in the superblock must be evenly divisible by the number of blocks. In other words, if the number of blocks is N, the third byte must be divisible by N. Kyung Hee University 25

Example 5 q A company needs 600 addresses. Which of the following set of class C blocks can be used to form a supernet for this company? a. 198. 47. 32. 0 198. 47. 33. 0 198. 47. 34. 0 b. 198. 47. 32. 0 198. 47. 42. 0 198. 47. 52. 0 198. 47. 62. 0 c. 198. 47. 31. 0 198. 47. 32. 0 198. 47. 33. 0 198. 47. 52. 0 d. 198. 47. 32. 0 198. 47. 33. 0 198. 47. 34. 0 198. 47. 35. 0 Kyung Hee University 26

Example 5 (cont’d) q Solution a: No, there are only three blocks. b: No, the blocks are not contiguous. c: No, 31 in the first block is not divisible by 4. d: Yes, all three requirements are fulfilled. Kyung Hee University 27

Supernet Mask q. In subnetting, we need the first address of the subnet and the subnet mask to define the range of addresses. q In supernetting, we need the first address of the supernet and the supernet mask to define the range of addresses. Kyung Hee University 28

Supernet Mask (cont’d) q Comparison of subnet, default, and supernet masks Kyung Hee University 29

Example 6 q We need to make a supernetwork out of 16 class C blocks. What is the supernet mask? q Solution We need 16 blocks. For 16 blocks we need to change four 1 s to 0 s in the default mask. So the mask is 11111111 11110000 or 255. 240. 0 Kyung Hee University 30

Example 7 q A supernet has a first address of 205. 16. 32. 0 and a supernet mask of 255. 248. 0. A router receives three packets with the following destination addresses: l 205. 16. 37. 44 l 205. 16. 42. 56 l 205. 17. 33. 76 Which packet belongs to the supernet? Kyung Hee University 31

Example 7 (cont’d) q Solution We apply the supernet mask to see if we can find the beginning address. 205. 16. 37. 44 AND 255. 248. 0 205. 16. 32. 0 205. 16. 42. 56 AND 255. 248. 0 205. 16. 40. 0 205. 17. 33. 76 AND 255. 248. 0 205. 17. 32. 0 Only the first address belongs to this supernet. Kyung Hee University 32

Example 8 q. A supernet has a first address of 205. 16. 32. 0 and a supernet mask of 255. 248. 0. How many blocks are in this supernet and what is the range of addresses? q The supernet has 21 1 s. The default mask has 24 1 s. Since the difference is 3, there are 23 or 8 blocks in this supernet. The blocks are 205. 16. 32. 0 to 205. 16. 39. 0. The first address is 205. 16. 32. 0. The last address is 205. 16. 39. 255. Kyung Hee University 33

5. 3 CLASSLESS ADDRESSING q The whole idea of classless addressing is to have variable-length blocks that belong to no class. q Variable-length blocks q Number of Addresses in a Block There is only one condition on the number of addresses in a block; it must be a power of 2 (2, 4, 8, . . . ). A household may be given a block of 2 addresses. A small business may be given 16 addresses. A large organization may be given 1024 addresses Kyung Hee University 34

CLASSLESS ADDRESSING (cont’d) q Beginning address The beginning address must be evenly divisible by the number of addresses. For example, if a block contains 4 addresses, the beginning address must be divisible by 4. If the block has less than 256 addresses, we need to check only the rightmost byte. If it has less than 65, 536 addresses, we need to check only the two rightmost bytes, and so on. Kyung Hee University 35

CLASSLESS ADDRESSING (cont’d) q Example 9 Which of the following can be the beginning address of a block that contains 16 addresses? 205. 16. 37. 32 190. 16. 42. 44 17. 33. 80 123. 45. 24. 52 Solution The address 205. 16. 37. 32 is eligible because 32 is divisible by 16. The address 17. 33. 80 is eligible because 80 is divisible by 16. Kyung Hee University 36

CLASSLESS ADDRESSING (cont’d) q Example 10 Which of the following can be the beginning address of a block that contains 1024 addresses? 205. 16. 37. 32 190. 16. 42. 0 17. 32. 0 123. 45. 24. 52 Solution To be divisible by 1024, the rightmost byte of an address should be 0 and the second rightmost byte must be divisible by 4. Only the address 17. 32. 0 meets this condition. Kyung Hee University 37

CLASSLESS ADDRESSING (cont’d) q Slash notation is also called CIDR (Classless Interdomain Routing) notation. Kyung Hee University 38

CLASSLESS ADDRESSING (cont’d) q Example 11 A small organization is given a block with the beginning address and the prefix length 205. 16. 37. 24/29 (in slash notation). What is the range of the block? Solution The beginning address is 205. 16. 37. 24. To find the last address we keep the first 29 bits and change the last 3 bits to 1 s. Beginning: 11001111 00010000 00100101 00011000 Ending : 11001111 00010000 00100101 00011111 There are only 8 addresses in this block. Kyung Hee University 39

CLASSLESS ADDRESSING (cont’d) q. Example 12 We can find the range of addresses in Example 11 by another method. We can argue that the length of the suffix is 32 - 29 or 3. So there are 23 = 8 addresses in this block. If the first address is 205. 16. 37. 24, the last address is 205. 16. 37. 31 (24 + 7 = 31). Kyung Hee University 40

CLASSLESS ADDRESSING (cont’d) v A block in classes A, B, and C can easily be represented in slash notation as A. B. C. D/ n where n is either 8 (class A), 16 (class B), or 24 (class C). Kyung Hee University 41

CLASSLESS ADDRESSING (cont’d) q Prefix Length and The Mask Kyung Hee University 42

CLASSLESS ADDRESSING (cont’d) q Example 13 What is the network address if one of the addresses is 167. 199. 170. 82/27? q. Solution The prefix length is 27, which means that we must keep the first 27 bits as is and change the remaining bits (5) to 0 s. The 5 bits affect only the last byte. The last byte is 01010010. Changing the last 5 bits to 0 s, we get 01000000 or 64. The network address is 167. 199. 170. 64/27. Kyung Hee University 43

CLASSLESS ADDRESSING (cont’d) q Example 14 An organization is granted the block 130. 34. 12. 64/26. The organization needs to have four subnets. What are the subnet addresses and the range of addresses for each subnet? Solution The suffix length is 6. This means the total number of addresses in the block is 64 (26). If we create four subnets, each subnet will have 16 addresses. Kyung Hee University 44

CLASSLESS ADDRESSING (cont’d) Solution (cont’d) Let us first find the subnet prefix (subnet mask). We need four subnets, which means we need to add two more 1 s to the site prefix. The subnet prefix is then /28. Subnet 1: 130. 34. 12. 64/28 to 130. 34. 12. 79/28. Subnet 2 : 130. 34. 12. 80/28 to 130. 34. 12. 95/28. Subnet 3: 130. 34. 12. 96/28 to 130. 34. 12. 111/28. Subnet 4: 130. 34. 12. 112/28 to 130. 34. 127/28 Kyung Hee University 45

CLASSLESS ADDRESSING (cont’d) Solution (cont’d) Kyung Hee University 46

CLASSLESS ADDRESSING (cont’d) q Example 14 190. 100. 0. 0/16. The ISP needs to distribute these addresses to three groups of customers as follows: 1. The first group has 64 customers; each needs 256 addresses. 2. The second group has 128 customers; each needs 128 addresses. 3. The third group has 128 customers; each needs 64 addresses. Design the subblocks and give the slash notation for each subblock. Find out how many addresses are still available after these allocations. Kyung Hee University 47

CLASSLESS ADDRESSING (cont’d) q Solution Group 1 For this group, each customer needs 256 addresses. This means the suffix length is 8 (28 = 256). The prefix length is then 32 - 8 = 24. 01: 190. 100. 0. 0/24 190. 100. 0. 255/24 02: 190. 100. 1. 0/24 190. 100. 1. 255/24 …………………. . 64: 190. 100. 63. 0/24 190. 100. 63. 255/24 Total = 64 256 = 16, 384 Kyung Hee University 48

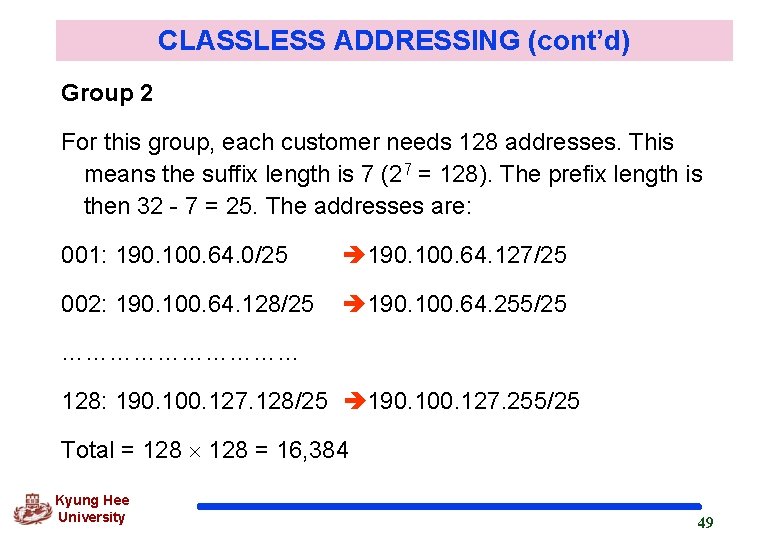

CLASSLESS ADDRESSING (cont’d) Group 2 For this group, each customer needs 128 addresses. This means the suffix length is 7 (27 = 128). The prefix length is then 32 - 7 = 25. The addresses are: 001: 190. 100. 64. 0/25 190. 100. 64. 127/25 002: 190. 100. 64. 128/25 190. 100. 64. 255/25 …………… 128: 190. 100. 127. 128/25 190. 100. 127. 255/25 Total = 128 = 16, 384 Kyung Hee University 49

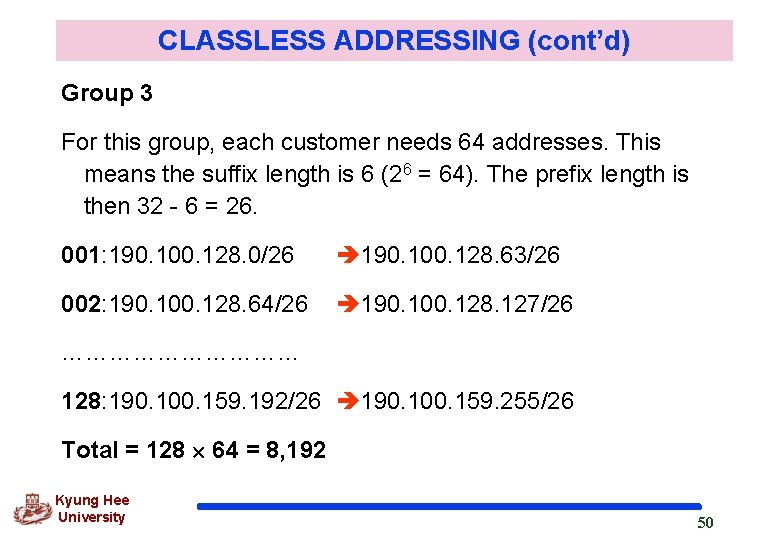

CLASSLESS ADDRESSING (cont’d) Group 3 For this group, each customer needs 64 addresses. This means the suffix length is 6 (26 = 64). The prefix length is then 32 - 6 = 26. 001: 190. 100. 128. 0/26 190. 100. 128. 63/26 002: 190. 100. 128. 64/26 190. 100. 128. 127/26 …………… 128: 190. 100. 159. 192/26 190. 100. 159. 255/26 Total = 128 64 = 8, 192 Kyung Hee University 50

CLASSLESS ADDRESSING (cont’d) Number of granted addresses: 65, 536 Number of allocated addresses: 40, 960 Number of available addresses: 24, 576 Kyung Hee University 51
