SUBLUXATED LENS Dr Rekha Gyanchand Consultant Lions Eye Hospital, Bangalore

ANATOMY OF SUBLUXATION n n n The lens is suspended in its anatomic position by ciliary zonules (zonules of Zinn or suspensory ligament of Zinn) Zonules fibers which run from ciliary body and fuse into the outer layer of the lens capsule around the equatorial zone. The bundles that insert into the anterior capsule are stronger than those that insert in the posterior capsule. The insertion of zonules extends 1. 5 mm anterior to the equator and 1 mm posterior. Each zonule measures 5 to 30µm in diameter and is composed of bundles of microfibrils. Biochemically they are composed of fibrillin, a protein product of the gene linked to Marfan’s syndrome.

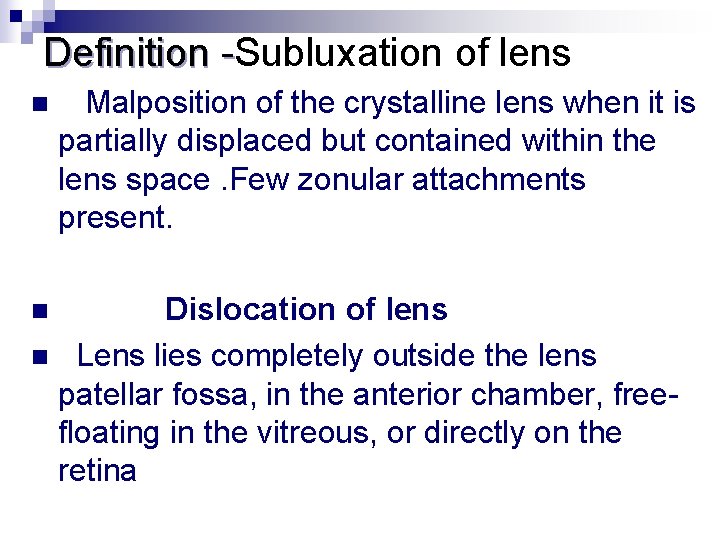

Definition -Subluxation of lens Definition n Malposition of the crystalline lens when it is partially displaced but contained within the lens space. Few zonular attachments present. Dislocation of lens n Lens lies completely outside the lens patellar fossa, in the anterior chamber, freefloating in the vitreous, or directly on the retina n

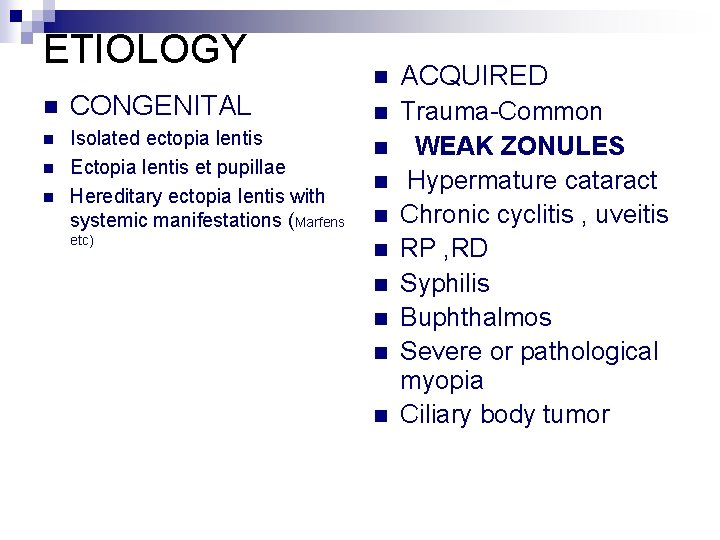

ETIOLOGY n CONGENITAL n Isolated ectopia lentis Ectopia lentis et pupillae Hereditary ectopia lentis with systemic manifestations (Marfens n n etc) n ACQUIRED n Trauma-Common WEAK ZONULES Hypermature cataract Chronic cyclitis , uveitis RP , RD Syphilis Buphthalmos Severe or pathological myopia Ciliary body tumor n n n n

Congenital -Single (isolated) ectopia lentis Congenital n Autosomal dominant inheritance n Birth, late onset has been described n Dysfunctional zonular apparatus n Superotemporal displacement

Congenital - Symmetric eccentric pupils Autosomal recessive n Bilateral n Irides often appear, Atrophic & Transillumination n defects Dysfunctional zonular fibers n Displaced in the opposite direction of the lens subluxation. n

Congenital- Hereditary ectopia lentis with systemic manifestations Systemic disorders Marfan’s syndrome Homocystinuria Weil Marchesani syndrome Reiger’s anomaly Ehler Danlos syndrome Hyperlysinemia Sulfite oxidase deficiency Sturge Weber’s syndrome Craniosynostosis

Marfan Syndrome- Heritable Ectopia lentis Lens subluxated - 75% bilateral, symmetrical, supertemporal Axial myopia , Increase incidence of RD

Homocystinuria- In born metabolic error Inborn error of metabolism near absence of cystathionine b-synthetase (the enzyme that converts homocysteine to cystathionine) Deficient zonular integrity secondary to the enzymatic defect Thromboembolic events constitute the major threat to survival, especially following general anesthesia. Fair skin with coarse hair Osteoporosis MR (50 %) Seizure disorder Marfanoid habitus Poor circulation Lens subluxated – 90% Bilateral, Symmetrical Inferonasal,

Weil Marchesani Syndrome Ectopia lentis n Microspherophakia skeletal malformations n lenticular myopia n High incidence of lens short stature subluxation occurs inferiorly, often progressing to brachycephaly complete dislocation. n Pupillary block limited joint mobility glaucoma is common; therefore, prophylactic laser peripheral well-developed muscular appearance iridotomies are recommended. n

ASSOCIATED OCULAR ANOMALIES Congenital glaucoma/buphthalmos n Pseudoexfoliation syndrome n Chronic uveitis n Retinitis pigmentosa n Megalocornea n Aniridia n Hypermature cataract n High myopia n

Others. . Sulfite oxidase deficiency n Extremely rare n Defect in sulfur metabolism. n Progressive CNS abnormalities - within the first year of life in concert with ectopia lentis Hyperlysinemia n Autosomal recessive n Enzymatic defect of amino acid metabolism n Mental retardation n Lens dislocation. Diagnosis: increased plasma levels of lysine.

Cause for decrease VA • Fluctuating vision dramatically as the vision may alternate between phakia and aphakic • Progressive movement of the lens -Extreme hyperopic or myopic shift , astigmatism • Monocular diplopia • Poor near vision (loss of accommodative power)

COMPLICATION Pupillary block glaucoma n Forwards displacement-Endothelial damage, sec. Ac angle closure n

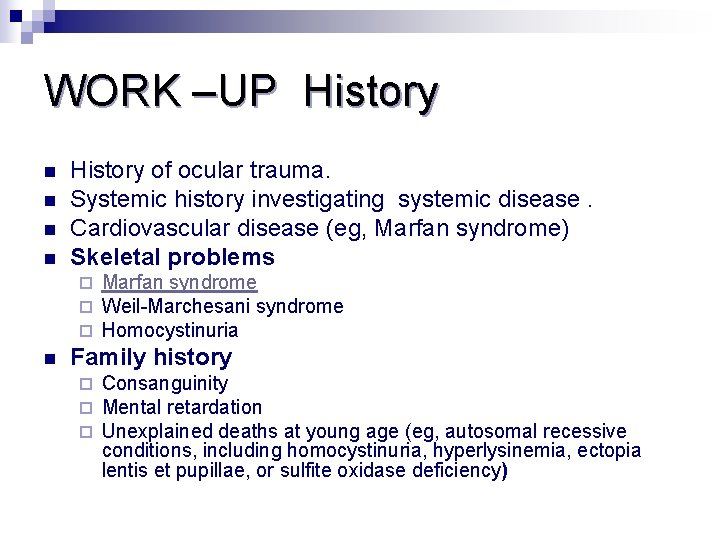

WORK –UP History n n History of ocular trauma. Systemic history investigating systemic disease. Cardiovascular disease (eg, Marfan syndrome) Skeletal problems ¨ ¨ ¨ n Marfan syndrome Weil-Marchesani syndrome Homocystinuria Family history ¨ ¨ ¨ Consanguinity Mental retardation Unexplained deaths at young age (eg, autosomal recessive conditions, including homocystinuria, hyperlysinemia, ectopia lentis et pupillae, or sulfite oxidase deficiency)

Ocular Examination Attention to orbital anatomy : evaluate for hereditary malformations (eg, enophthalmos with facial myopathic appearance seen in patients with Marfan syndrome). n Measure corneal diameter (megalocornea is associated with Marfan syndrome). n Strabismus (amblyopia). n Careful retinoscopy and refraction is essential, often revealing myopia with astigmatism. n Keratometry may help ascertain degree of corneal astigmatism. n

Ocular Evaluation n VA Near /distant BCVA, Best vision with aphakic correction n Gonioscopy note any developmental defects, pseudoexfoliative material and deformities secondary to trauma or as a sequlae to subluxation. n Fundus examination is done to look for lattice degeneration, cyclitic membranes, retinal detachment or posttraumatic pathology. Retinal detachments occur in 10% eyes with Marfan’s syndrome and Homocystinuria. n Bscan ultrasonography is indicated in opaque ocular media. n Presence if any of uveitis, glaucoma, corneal edema and amblyopia should also be ascertained n Ultrasound biomicroscopy /anterior segment OCT, are especially useful for zonular and angle assessment in patients where the pupil fails to dilate n A-Scan Axial length measurement Causes of glaucoma in ectopia lentis pupillary block , phacoanaphylaxis or phacolytic , posttraumatic angle recession poorly developed angle structures , lens in the anterior chamber. n

Preoperative Evaluation n n Evaluate lens position, and identify phacodonesis or cataract Exact degree of zonular loss Vitreous in the anterior chamber. An inferior subluxation often indicates 360 degrees of zonular insufficiency combined with the effect of gravity.

OTHER INVESTIGATIONS Laboratory Studies n Perform appropriate diagnostic and laboratory evaluation, if a hereditary condition is suspected - cardiac evaluation for Marfan syndrome - check serum and urine levels of homocysteine or methionine for homocystinuria). n Imaging Studies n Echography n

Conservative Measures For stable induced refractive errors, visual correction with glasses or contact lenses may be an option. n Partially occluding contact lenses n Cycloplegics/miotics n Enlarge aphakic portion - Nd YAG zonulolysis - Optical iridectomy n

Indication for Lensectomy Lens in the anterior chamber n Lens-induced uveitis n Lens-induced glaucoma n Lenticular opacity with poor visual function n Cataract n Anisometropia or unstable refractive error n Impending dislocation of the lens : large zonular dialysis n

Dos and Don’ts - Cataract Incisions n n n Preferably away from area of zonular weakness Use high molecular weight viscoelastic Capsulorrhexis should be initiated in an area remote from the dialysis , Capsulorrhexis is more easily performed with forceps than with cystitome & should be made "off-center" in an eye with significant lens subluxation

CAPSULAR TENSION RINGS Morcher CTR n Alcon CTR n Cionni CTR n CTR Ringmorcher n

Choice of surgical procedure Degree of Zonular dehicense Procedure chosen n n n Superior upto 4 clock hours 1 st choice: CTR with IOL implantation 2 st choice: IOL implantation with haptic being used to stretch the bag Inferior upto 3 clock hours CTR with IOL implantation Anywhere> 3 to 6 clock hours Modified CTR with single loop Anywhere >6 to >9 clock hours Modified CTR with double loop with IOL implantation 9 or more clock hours /generalized weakness of zonules. Intracapsular cataract extraction with scleral fixated IOL/Iris fixated IOL/anterior chamber IOL

Surgical Technique Anterior limbal approach n ICCE n ECCE n SICS n PHACO Posterior pars plana approach n Vitrectomy : soft lens n Phacofragmentome

Surgical tips Good sized rhexis err on larger side … they develop capsule contraction n Use a chop or supracapsular technique, because it allows to raise the nucleus above the capsule, putting less stress on the zonules. n Another technique is viscoelevation. n

Counselling Patient Education n Genetic counselling n Follow up with physician to rule out lifethreatening disorders. n Safety glasses are advocated when risk of eye injury is possible. n
