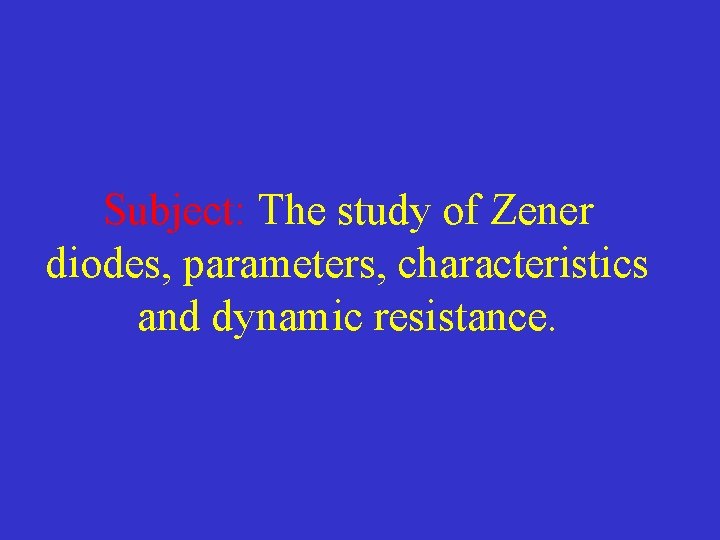

Subject: The study of Zener diodes, parameters, characteristics and dynamic resistance.

Zener diodes General description: Stabilitron (Zener) diodes are designed to stabilize or reduce voltage. It is a special kind of diode which permits current to flow in the forward direction as normal, but will also allow it to flow in the reverse direction when the voltage is above a certain value - the breakdown voltage known as the Zener voltage.

Zener diode Parameters: a) breakdown voltage - UZ b) breakdown current - IZ c) forward bias voltage UF d) reverse current IR e) the dynamic resistance whose value changes with the change of voltage stability f) Temperature ratio voltage stabilization factor - a. Uz.

Zener diode The V-I characteristics UZ – breakdown voltage UF – forward voltage IR – reverse current

Zener diode Examples of Zener diode stabilization Zener diodes are used to regulate voltage across small circuits. Zener diodes are often used as stable references . for more advanced voltage regulator circuits a) diagram c) Current-voltage characteristic of a zener diode
