Subgroup Discovery Finding Local Patterns in Data Exploratory
Subgroup Discovery Finding Local Patterns in Data
Exploratory Data Analysis § Scan the data without much prior focus § Find unusual parts of the data § Analyse attribute dependencies § interpret this as ‘rule’: if X=x and Y=y then Z is unusual § Complex data: nominal, numeric, relational? the Subgroup
Exploratory Data Analysis § Classification: model the dependency of the target on the remaining attributes. § problem: sometimes classifier is a black-box, or uses only some of the available dependencies. § for example: in decision trees, some attributes may not appear because of overshadowing. § Exploratory Data Analysis: understanding the effects of all attributes on the target.

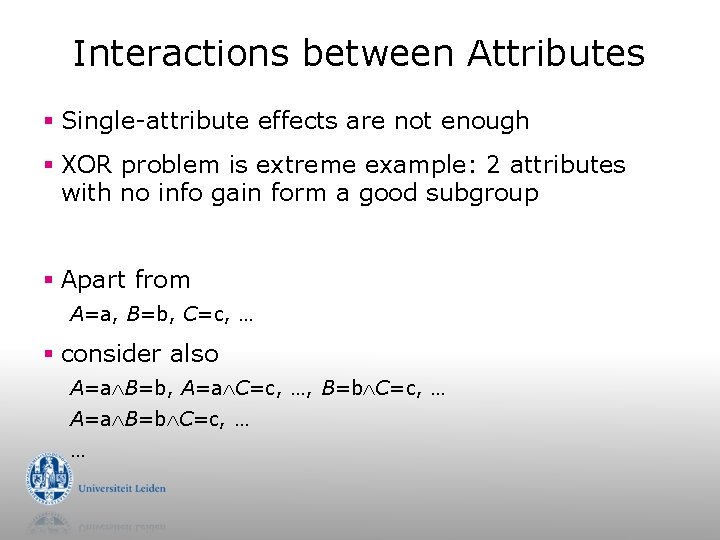

Interactions between Attributes § Single-attribute effects are not enough § XOR problem is extreme example: 2 attributes with no info gain form a good subgroup § Apart from A=a, B=b, C=c, … § consider also A=a B=b, A=a C=c, …, B=b C=c, … A=a B=b C=c, … …
Subgroup Discovery Task “Find all subgroups within the inductive constraints that show a significant deviation in the distribution of the target attributes” § Inductive constraints: § Minimum support § (Maximum support) § Minimum quality (Information gain, X 2, WRAcc) § Maximum complexity § …
Subgroup Discovery: the Binary Target Case
Confusion Matrix § A confusion matrix (or contingency table) describes the frequency of the four combinations of subgroup and target: § within subgroup, positive § within subgroup, negative § outside subgroup, positive § outside subgroup, negative target subgroup T F T . 42 . 13 F . 12 . 33 . 54 . 55 1. 0
Confusion Matrix § High numbers along the TT-FF diagonal means a positive correlation between subgroup and target § High numbers along the TF-FT diagonal means a negative correlation between subgroup and target § Target distribution on DB is fixed § Only two degrees of freedom target subgroup T F T . 42 . 13 . 55 F . 12 . 33 . 45 . 54 . 46 1. 0
Quality Measures A quality measure for subgroups summarizes the interestingness of its confusion matrix into a single number WRAcc, weighted relative accuracy § Balance between coverage and unexpectedness § WRAcc(S, T) = p(ST) – p(S) p(T) § between −. 25 and. 25, 0 means uninteresting target subgroup T F T . 42 . 13 F . 12 . 33 . 54 . 55 1. 0 WRAcc(S, T) = p(ST)−p(S) p(T) =. 42 −. 297 =. 123
Quality Measures § WRAcc: Weighted Relative Accuracy § Information gain § X 2 § Correlation Coefficient § Laplace § Jaccard § Specificity §…
Subgroup Discovery as Search true A=a 1 B=b 1 C=c 1 A=a 2 A=a 1 B=b 2 B=b 1 … B=b 2 C=c 1 A=a 2 B=b 1 … … T F T . 42 . 13 F . 12 . 33 . 54 minimum support level reached … . 55 1. 0
Refinements are (anti-)monotonic entire database Refinements are (anti-) monotonic in their support… target concept S 3 refinement of S 2 refinement of S 1 subgroup S 1 …but not in interestingness. This may go up or down.
Subgroup Discovery and ROC space
ROC Space ROC = Receiver Operating Characteristics Each subgroup forms a point in ROC space, in terms of its False Positive Rate, and True Positive Rate. TPR = TP/Pos = TP/TP+FN (fraction of positive cases in the subgroup) FPR = FP/Neg = FP/FP+TN (fraction of negative cases in the subgroup)
ROC Space Properties entire database ‘ROC heaven’ perfect subgroup ‘ROC hell’ random subgroup perfect negative subgroup empty subgroup minimum support threshold
source: Flach & Fürnkranz Measures in ROC Space 0 positive negative WRAcc Information Gain isometric

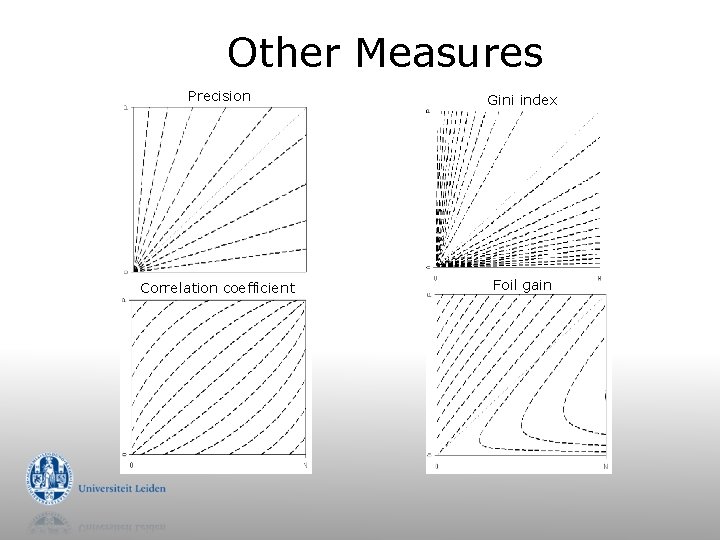

Other Measures Precision Gini index Correlation coefficient Foil gain
Refinements in ROC Space Refinements of S will reduce the FPR and TPR, so will appear to the left and below S. . . Blue polygon represents possible refinements of S. With a convex measure, f is bounded by measure of corners. If corners are not above minimum quality or current best (top k? ), prune search space below S.
Multi-class problems § Generalising to problems with more than 2 classes is fairly staightforward: target T F X 2 C 3 . 27 . 06 . 22 . 55 . 03 . 19 . 23 . 45 . 3 . 25 . 45 1. 0 combine values to quality measure Information gain source: Nijssen & Kok subgroup C 1
Subgroup Discovery for Numeric targets
Numeric Subgroup Discovery § Target is numeric: find subgroups with significantly higher or lower average value § Trade-off between size of subgroup and average target value h = 3600 h = 3100 h = 2200
Types of SD for Numeric Targets § Regression subgroup discovery § numeric target has order and scale § Ordinal subgroup discovery § numeric target has order § Ranked subgroup discovery § numeric target has order or scale
Vancouver 2010 Winter Olympics ordinal target Partial ranking objects share a rank regression target

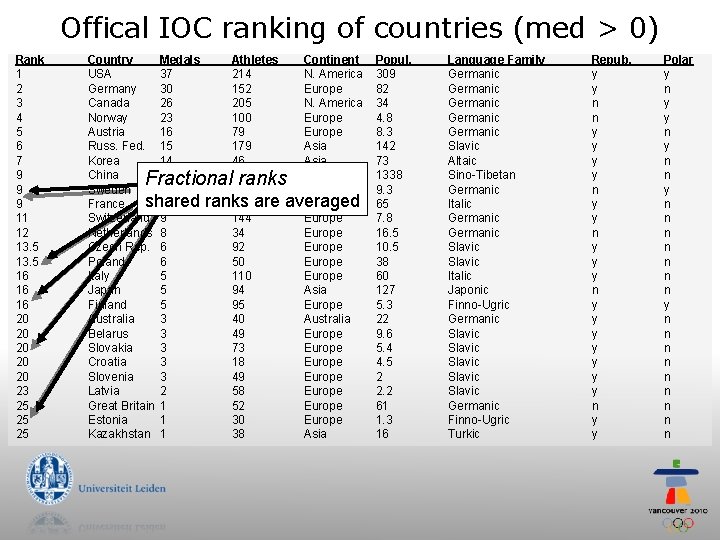

Offical IOC ranking of countries (med > 0) Rank 1 2 3 4 5 6 7 9 9 9 11 12 13. 5 16 16 16 20 20 20 23 25 25 25 Country Medals USA 37 Germany 30 Canada 26 Norway 23 Austria 16 Russ. Fed. 15 Korea 14 China 11 Sweden 11 shared France 11 Switzerland 9 Netherlands 8 Czech Rep. 6 Poland 6 Italy 5 Japan 5 Finland 5 Australia 3 Belarus 3 Slovakia 3 Croatia 3 Slovenia 3 Latvia 2 Great Britain 1 Estonia 1 Kazakhstan 1 Athletes 214 152 205 100 79 179 46 90 107 ranks 107 are 144 34 92 50 110 94 95 40 49 73 18 49 58 52 30 38 Continent N. America Europe Asia Europe averaged Europe Europe Asia Europe Australia Europe Europe Asia Fractional ranks Popul. 309 82 34 4. 8 8. 3 142 73 1338 9. 3 65 7. 8 16. 5 10. 5 38 60 127 5. 3 22 9. 6 5. 4 4. 5 2 2. 2 61 1. 3 16 Language Family Germanic Germanic Slavic Altaic Sino-Tibetan Germanic Italic Germanic Slavic Italic Japonic Finno-Ugric Germanic Slavic Slavic Germanic Finno-Ugric Turkic Repub. y y n n y y y n y y y y n y y Polar y n y n n n n
Interesting Subgroups ‘polar = yes’ 1. United States 3. Canada 4. Norway 6. Russian Federation 9. Sweden 16 Finland ‘language_family = Germanic & athletes 60’ 1. United States 2. Germany 3. Canada 4. Norway 5. Austria 9. Sweden 11. Switzerland
Intuitions § Size: larger subgroups are more reliable * § Rank: majority of objects appear at the top language_family = Slavic § Position: ‘middle’ of subgroup should differ from middle of ranking § Deviation: objects should have similar rank ** ** ** *
Intuitions § Size: larger subgroups are more reliable § Rank: majority of objects appear at the top * ** * * polar = yes § Position: ‘middle’ of subgroup should differ from middle of ranking § Deviation: objects should have similar rank *
Intuitions § Size: larger subgroups are more reliable population 10 M § Rank: majority of objects appear at the top § Position: ‘middle’ of subgroup should differ from middle of ranking § Deviation: objects should have similar rank ** * * ** ** * *
Intuitions § Size: larger subgroups are more reliable § Rank: majority of objects appear at the top language_family = Slavic & population 10 M § Position: ‘middle’ of subgroup should differ from middle of ranking § Deviation: objects should have similar rank ** ** *

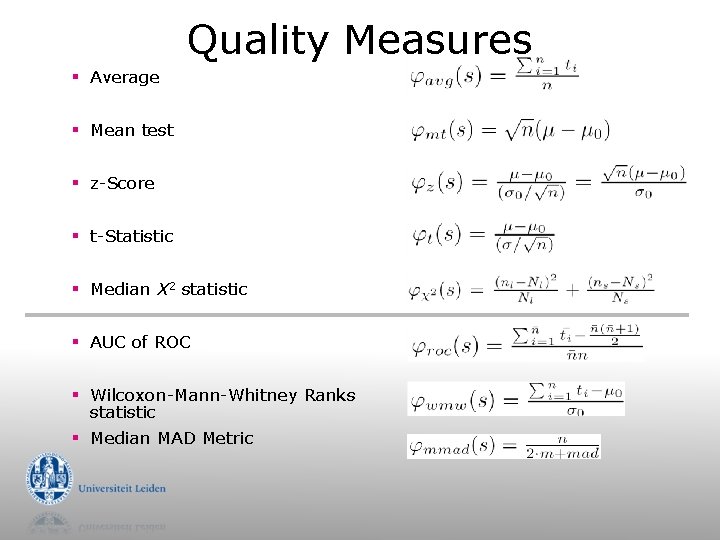

Quality Measures § Average § Mean test § z-Score § t-Statistic § Median X 2 statistic § AUC of ROC § Wilcoxon-Mann-Whitney Ranks statistic § Median MAD Metric
Meet Cortana the open source Subgroup Discovery tool
Cortana Features § Generic Subgroup Discovery algorithm § quality measure § search strategy § inductive constraints § Flat file, . txt, . arff, (DB connection to come) § Support for complex targets § 41 quality measures § ROC plots § Statistical validation
Target Concepts § ‘Classical’ Subgroup Discovery § nominal targets (classification) § numeric targets (regression) § Exceptional Model Mining § multiple targets § regression, correlation § multi-label classification (to be discussed in a few slides)
Mixed Data § Data types § binary § nominal § numeric § Numeric data is treated dynamically (no discretisation as preprocessing) § all: consider all available thresholds § bins: discretise the current candidate subgroup § best: find best threshold, and search from there
Statistical Validation § Determine distribution of random results § random subsets § random conditions § swap-randomization § Determine minimum quality § Significance of individual results § Validate quality measures § how exceptional?
Open Source § You can § Use Cortana binary datamining. liacs. nl/cortana. html § Use and modify Cortana sources (Java)
Exceptional Model Mining Subgroup Discovery with multiple target attributes

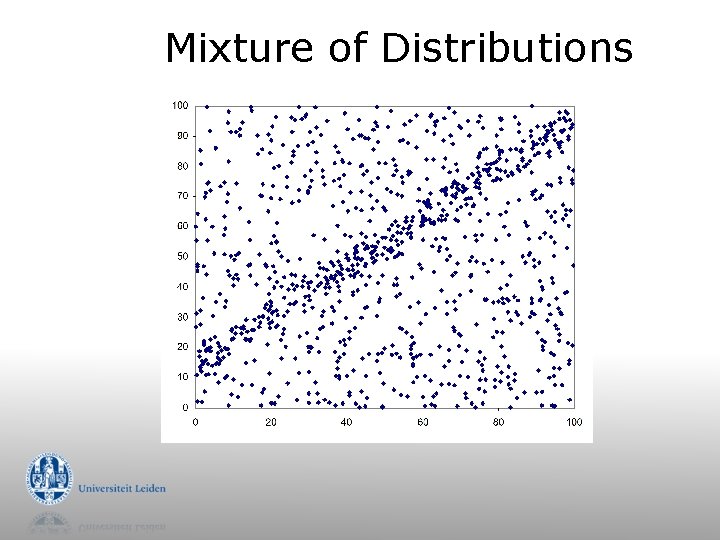

Mixture of Distributions
Mixture of Distributions
Mixture of Distributions § For each datapoint it is unclear whether it belongs to G or G § Intensional description of exceptional subgroup G? § Model class unknown § Model parameters unknown
Solution: extend Subgroup Discovery § Use other information than X and Y: object desciptions D § Use Subgroup Discovery to scan sub-populations in terms of D Subgroup Discovery: find subgroups of the database where the target attribute shows an unusual distribution.
Solution: extend Subgroup Discovery § Use other information than X and Y: object desciptions D § Use Subgroup Discovery to scan sub-populations in terms of D § Model over subgroup becomes target of SD Exceptional Model Mining Subgroup Discovery: find subgroups of the database where the target attributes show an unusual distribution, by means of modeling over the target attributes.
Exceptional Model Mining object description target concept X § Define a target concept (X and y) y

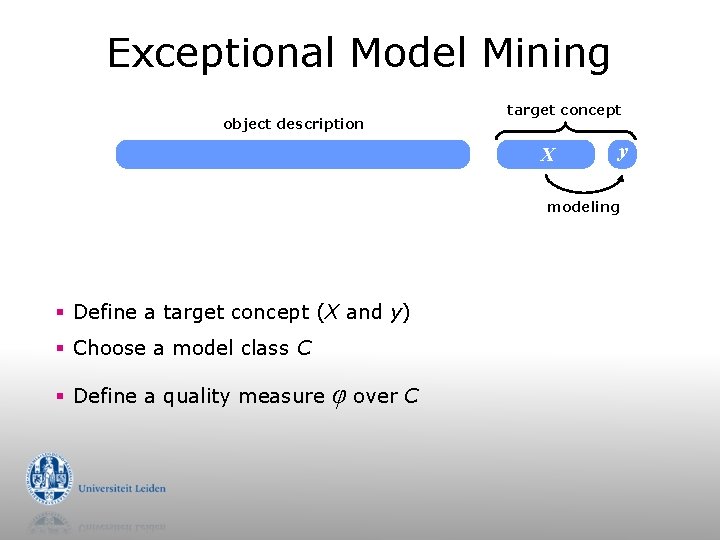

Exceptional Model Mining object description target concept X y modeling § Define a target concept (X and y) § Choose a model class C § Define a quality measure φ over C
Exceptional Model Mining target concept object description X y modeling Subgroup Discovery § Define a target concept (X and y) § Choose a model class C § Define a quality measure φ over C § Use Subgroup Discovery to find exceptional subgroups G and associated model M
Quality Measure § Specify what defines an exceptional subgroup G based on properties of model M § Absolute measure (absolute quality of M) § Correlation coefficient § Predictive accuracy § Difference measure (difference between M and M) § Difference in slope § qualitative properties of classifier § Reliable results § Minimum support level § Statistical significance of G
Correlation Model § Correlation coefficient φρ = ρ(G) § Absolute difference in correlation φabs = |ρ(G) - ρ(G)| § Entropy weighted absolute difference φent = H(p)·|ρ(G) - ρ(G)| § Statistical significance of correlation difference φscd § compute z-score from ρ through Fisher transform § compute p-value from z-score

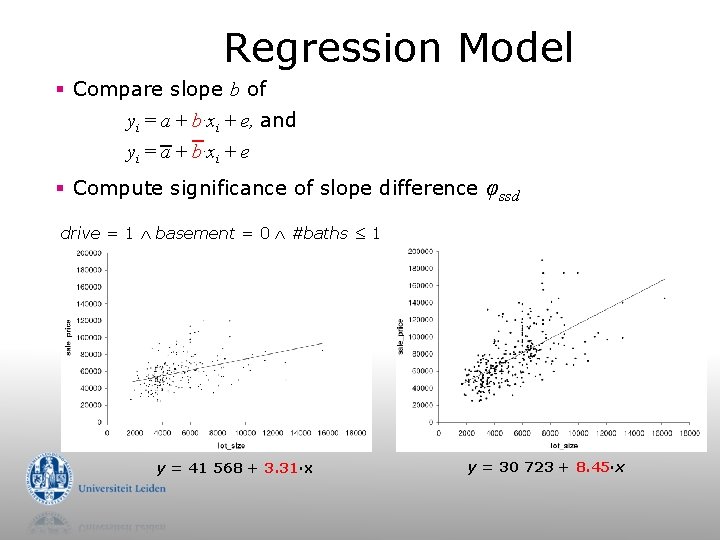

Regression Model § Compare slope b of yi = a + b·xi + e, and yi = a + b·xi + e § Compute significance of slope difference φssd drive = 1 basement = 0 #baths ≤ 1 y = 41 568 + 3. 31·x y = 30 723 + 8. 45·x
Gene Expression Data 11_band = ‘no deletion’ survival time ≤ 1919 XP_498569. 1 ≤ 57 y = 3313 - 1. 77·x y = 360 + 0. 40·x
Classification Model § Decision Table Majority classifier § BDeu measure (predictiveness) whole database RIF 1 160. 45 § Hellinger (unusual distribution) prognosis = ‘unknown’
General Framework object description target concept X y modeling Subgroup Discovery
General Framework object description target concept X Subgroup Discovery y Regression ● Classification ● Clustering Association Graphical modeling ● …
General Framework object description target concept X Subgroup Discovery ● Decision Trees SVM … y Regression Classification Clustering Association Graphical modeling …
General Framework propositional ● multi-relational ● … target concept X Subgroup Discovery Decision Trees SVM … y Regression Classification Clustering Association Graphical modeling …
