Sub-aerial and submarine volcanic eruptions and climatic variability Wyss Yim Department of Earth Sciences,

Sub-aerial and submarine volcanic eruptions and climatic variability Wyss Yim Department of Earth Sciences, The University of Hong Kong / Institute of Space and Earth Information Science, Chinese University of Hong Kong / Association for Geoconservation, Hong Kong Presentation at the London Climate Change Conference, Conway Hall on September 8 -9, 2016

Plan (1) Introduction (2) Case study of a sub-aerial eruption (3) Case study of

Plan (1) Introduction (2) Case study of a sub-aerial eruption (3) Case study of a submarine/subaerial eruption (4) Conclusions

Why study present day volcanic eruptions? Eyjafjallajökull (E-15) April 14, 2010 eruption Effect –

Why study present day volcanic eruptions? Eyjafjallajökull (E-15) April 14, 2010 eruption Effect – Slovakia wettest year since 1881 Most reliable record – Information age Applications – Farming/climatic variability ( Meteorological observations ( Satellite observations since ~1980 ( Weather disaster media reports ( Aviation safety

Volcanic Explosivity Index (VEI) Estimation of explosiveness of sub-aerial volcanic eruptions Above VEI 2

Volcanic Explosivity Index (VEI) Estimation of explosiveness of sub-aerial volcanic eruptions Above VEI 2 regional impacts on weather/climate may already be detectable (Newhall and Self 1982) Acidic magma most explosive 8

1958 -1994 solar radiation record from Mauna Loa Why I am interested in volcanic

1958 -1994 solar radiation record from Mauna Loa Why I am interested in volcanic eruptions? Agung 1963 VEI 4 Comparison Pinatubo 1991 VEI 6 El Chichón 1982 VEI 4 VEI – Volcanic explosivity index

Hong Kong’s rainfall record during the 3 volcanic eruptions Agung 1963 VEI 4 Driest

Hong Kong’s rainfall record during the 3 volcanic eruptions Agung 1963 VEI 4 Driest year on record Comparison 11 th driest on record Pinatubo 1991 VEI 6 El Chichón 1982 VEI 4 VEI – Volcanic explosivity index 2 nd wettest on record

Classification of volcanic eruptions – (1) Sub-aerial / land - switches on hot air

Classification of volcanic eruptions – (1) Sub-aerial / land - switches on hot air followed by cooling (atmospheric warming, injection of ash, gases and aerosols, blockage of shortwave radiation, pressure changes, moisture redistribution, continental cooling, ozone depletion, circulation changes, severe weather) (2) Submarine / sea floor - switches on hot seawater (cause of sea-surface temperature anomalies, pressure changes, ocean and air circulation changes, moisture redistribution, continental warming, severe weather events including cyclones) (3) Mixed - initially submarine later sub-aerial (combination of 1 and 2).

Sub-aerial Thermal plume ↑ model Ash & aerosols reduces solar radiation leading to cooling

Sub-aerial Thermal plume ↑ model Ash & aerosols reduces solar radiation leading to cooling Warm air stores more moisture – water vapour redistribution Air pressure changes (low) Eruption changes normal air circulation / creats clouds / destroys O 3 SO 2, HCl & H 2 O → ← El Chichón, Mexico 1982 USGS Cool air stores less moisture Cooler air Impact longer lasting if major

June 15, 1991 Pinatubo eruption VEI 6

June 15, 1991 Pinatubo eruption VEI 6

Track of Yunya (Oswalt et al. 1999) Day of eruption Two days before eruption

Track of Yunya (Oswalt et al. 1999) Day of eruption Two days before eruption

↓ Pinatubo eruption cloud Typhoon Yunya Why 1991 was a global drought year? Water

↓ Pinatubo eruption cloud Typhoon Yunya Why 1991 was a global drought year? Water vapour transfer into the stratosphere creating atmospheric rivers

Pinatubo eruption cloud maximum elevation 55 km Oswalt et al. (1999)

Pinatubo eruption cloud maximum elevation 55 km Oswalt et al. (1999)

Space shuttle photo over South America taken on August 8, 1991, showing double layer

Space shuttle photo over South America taken on August 8, 1991, showing double layer of Pinatubo aerosol cloud (dark streaks) above high cumulonimbus tops Global temperature drop of ~0. 5 o C NASA

Submarine model* * Initially submarine later sub-aerial, basaltic magma hotter Examples studied – El

Submarine model* * Initially submarine later sub-aerial, basaltic magma hotter Examples studied – El Hierro, Canary Islands 10/2011 -3/2012 Hunga, Tonga* 12/2014 -1/2015 Nishinoshima, Japan* 11/2013 -8/2015 Action – Switching on of hot seawater causing ocean and air circulation changes El Hierro NASA

Nishinoshima submarine/sub-aerial eruption 940 km south of Tokyo November 2013 to August 2015 (Wikipedia)

Nishinoshima submarine/sub-aerial eruption 940 km south of Tokyo November 2013 to August 2015 (Wikipedia) Image on November 13, 2013: Japan Coast Guard Image on December 8, 2013: NASA

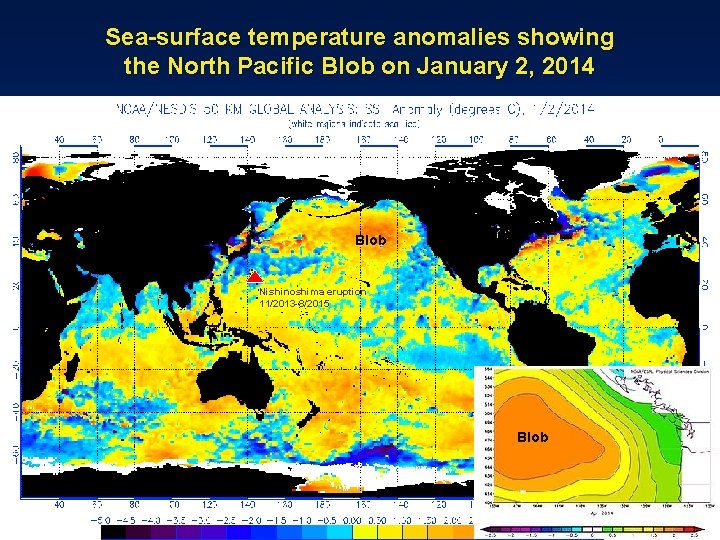

Sea-surface temperature anomalies showing the North Pacific Blob on January 2, 2014 Blob Nishinoshima

Sea-surface temperature anomalies showing the North Pacific Blob on January 2, 2014 Blob Nishinoshima eruption 11/2013 -8/2015 Blob

Observations connecting Nishinoshima with the Blob _____________________________________________________ Date Eruption activity Northern Pacific Blob _____________________________________________________

Observations connecting Nishinoshima with the Blob _____________________________________________________ Date Eruption activity Northern Pacific Blob _____________________________________________________ November 2013 Submarine eruption created new island Initial Blob 800 km wide and 91 m deep December 2013 Island area reached 5. 6 km 2 and ~25 m above sea level - February 2014 - Temperature was ~2. 5 o. C above normal June 2014 - Name Blob was coined by Nicholas Bond Size reached 1600 km x 1600 km and 91 m deep Spread to the coast of North America with patches off Alaska, Victoria/California and Mexico December 2014 Island now ~2. 3 km in diameter and ~110 m above sea level Year without winter in western North America coast and first mass bleaching of Hawaiian coral reefs January. August 2015 Episodic eruption with lava flows - Early Blob persisted and ended 2016 _____________________________________________________ Source: Wikipedia

The Blob separated into three parts on September 1, 2014 1 Warm water build

The Blob separated into three parts on September 1, 2014 1 Warm water build up in slack areas of gyres 2 3 Ocean circulation

Impact of the Blob on September 1, 2014 - nature’s way of neutralizing hot

Impact of the Blob on September 1, 2014 - nature’s way of neutralizing hot and cold Contraction of Arctic sea ice 1 2 3 Expansion of Antarctic sea ice

Sea-surface temperature anomalies on June 29, 2015 after the Wolf eruption ended Wolf eruption

Sea-surface temperature anomalies on June 29, 2015 after the Wolf eruption ended Wolf eruption 5 -6/2015 with lava flow entering the ocean

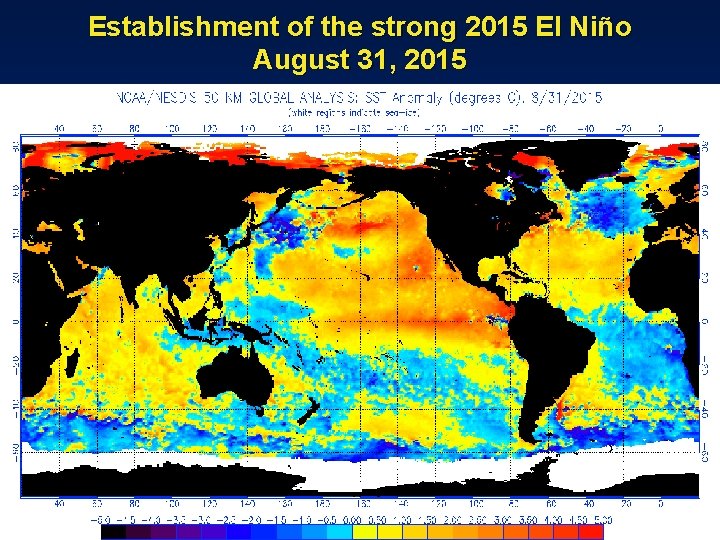

Establishment of the strong 2015 El Niño August 31, 2015

Establishment of the strong 2015 El Niño August 31, 2015

Main conclusions (1) Sub-aerial and submarine volcanic eruptions are underestimated natural causes of climatic

Main conclusions (1) Sub-aerial and submarine volcanic eruptions are underestimated natural causes of climatic variability. (2) Volcanic eruptions may be the cause of air and ocean circulation changes, extreme weather events, and polar sea ice changes. (3) The release of volcanic aerosols including water vapour into the atmosphere is important in regional/global climatic variability. (4) Possible contributors to the strong 2015 El Niño year include the Nishinoshima eruption during November 2013 to August 2015, the Hunga eruption during December 2014 to January 2015 and the Wolf eruption during May to June 2015. (5) Volcanic eruptions are a timely reminder of Earth systems science geoethics. Acknowledgements Thanks are due to the records available including NASA, NOAA and Wikipedia.

Volcanic eruptions – A natural experiment to learn from NASA May 23, 2006 Cleveland,

Volcanic eruptions – A natural experiment to learn from NASA May 23, 2006 Cleveland, Aleutian islands Thank you
