STUDYING EVOLUTION THROUGH COMPUTATIONAL PHYLOGENY Yulia Newton University of California Santa Cruz ynewton@soe. ucsc. edu http: //users. soe. ucsc. edu/~ynewton/

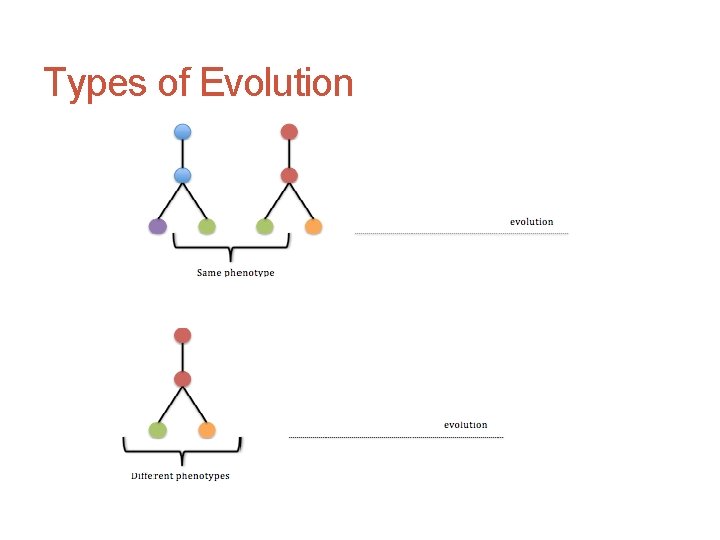

Types of Evolution
Types of Evolution
Different Ways to Draw an Evolutionary Tree and many more …
Tree Anatomy clade edge nodes root
Roots Common ancestor http: //www. snowballearth. org/
Root Placement
Outgroup Use http: //www. cscs. umich. edu/
Outgroup Use (Cont’d) Da-Fei Feng, Glen Cho, and Russell F. Doolittle. Determining divergence times with a protein clock: Update and reevaluation, PNAS, 1997.
Cladogram • Cladogram – all taxa are at the same level • Tells us how long ago speciation for each taxa happened http: //evolution. berkeley. edu/
Phylogram • Phylogram – the length of the edge indicates how much evolution happened since the last common ancestor • Tells us how closely two species are related
Phylogram (cont’d) http: //scientopia. org/
Cladogram vs. Phylogram http: //www. mrent. org/
Cladogram vs. Phylogram
Steps for Building Phylogenetic Trees
Newick Format output Text format representation of the tree: (((A, C), (B, D)), (E, F)) input
Drawing Tree From Newick Format (((A, C), (B, D)), (E, F))
Drawing Tree From Newick Format (((A, C), (B, D)), (E, F))
Drawing Tree From Newick Format (((A, C), (B, D)), (E, F))
Drawing Tree From Newick Format (((A, C), (B, D)), (E, F))
Drawing Tree From Newick Format (((A, C), (B, D)), (E, F))
Drawing Tree From Newick Format (((A, C), (B, D)), (E, F))
