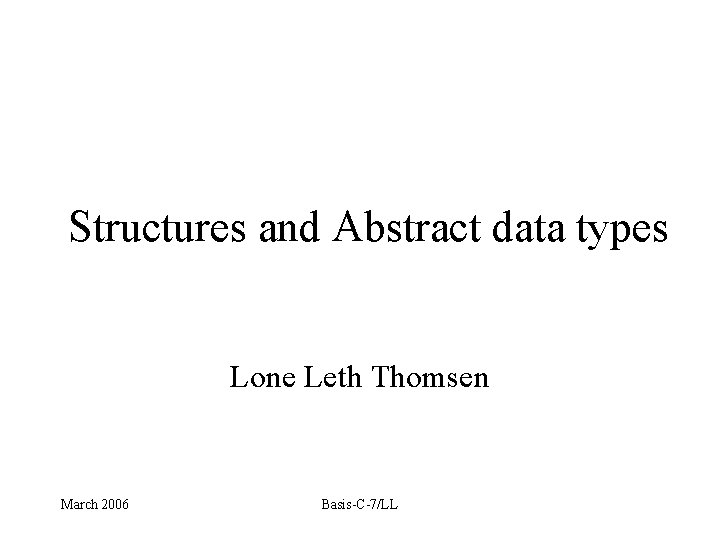

Structures and Abstract data types Lone Leth Thomsen

Structures and Abstract data types Lone Leth Thomsen March 2006 Basis-C-7/LL

Structured types • You should be familiar with basic types in C, e. g. int, char and double • A structured type is a data type that is built from other types. Two main kinds, one you already know – Arrays are a structured type comprising a number of elements of the same type, normally identified by an array subscript or index – Structures are a structured type comprising a number of members (or fields) of possibly different types, normally identified by a member name March 2006 Basis-C-7/LL 2

Structures • Structures are a way of aggregating a collection of “things” of (maybe) different types • The keyword struct introduces a structure declaration, which is a list of declarations enclosed in { } • An optional name – a structure tag – may follow the keyword struct • Variable names in a structure are called members March 2006 Basis-C-7/LL 3

struct • A declaration containing struct defines a type structure_tag { type_1 member_1; type_2 member_2; … type_n member_n; } variable_name; • A structure declaration not followed by a list of variables is just a template structure_tag variable_name; March 2006 Basis-C-7/LL 4

struct 2 • A member of a structure is referred to by structure_name. member • It is used as a variable just as a simple variable or an array element – e. g. print it out, set it, use it in expressions, etc. • The “. ” is called the structure member operator, connecting the structure name and the member name March 2006 Basis-C-7/LL 5

struct 3 • Declare any new struct types at the beginning of a program file (usually before function prototypes) • You can make as many struct types as you want and as many variables of that type as you want • You can have as many members (fields) in a struct as you like March 2006 Basis-C-7/LL 6

Declaring a structure • A structure is a collection of (possibly) unlike data elements that are related in some way struct card{ int pips; char suit; }; // Number of spots on the card // S = Spades, H = Hearts, C = Clubs, D = Diamonds – This statement introduces a new derived data type with the structure tag of card. It does not reserve any storage, instead it simply describes what a card “looks like” – The pips and the suit of a card will now be kept in contiguous storage March 2006 Basis-C-7/LL 7

Declaring a structure 2 • Declarations can now use struct card as if it were built into the language just as int and double are struct card deck[ 52], Three. Of. Spades = { 3, ‘S’ }; – Storage is reserved for • deck which is an array of 52 elements of data type struct card • Three. Of. Spades which is a single initialized instance of data type struct card March 2006 Basis-C-7/LL 8

Declaring a structure 3 • Example struct date { unsigned day; unsigned month; unsigned year; }; // NB. The semicolon has to be there • This declares a type, not a variable • In the example, date is called a structure tag, the type is struct date March 2006 Basis-C-7/LL 9

Declaring structure variables • Given the previous example, we could write struct date today; • Alternatively, we could use a typedef struct date DATE; and then declare the variable DATE today; • Either the typedef or the variable definition could be combined with the original struct declaration March 2006 Basis-C-7/LL 10

Members • Any type including arrays, structures and pointers, can be structure members • Example struct Employee { int ident; char name[30]; double pay_rate; char *dept_name; }; March 2006 Basis-C-7/LL 11

Structures within structures • A structure member can be any type, so another structure is also possible • Example struct Employee { int ident; char name[30]; double pay_rate; date start_date; // date was defined earlier char *dept_name; }; March 2006 Basis-C-7/LL 12

Initialising structures • Structures can be initialised with a list of values, one for each member • Initialisers can be nested in nested structures • Example Employee new_emp = { 99, // ident “A. Nonymous”, // name 100. 45, // pay_rate {1, 4, 2003}, // start_date “Sales” // department }; March 2006 Basis-C-7/LL 13

Accessing members • Simple member access uses the “dot” or member (. ) operator, e. g. new_emp. ident = next_number; printf(“Enter employee name: ”); gets(new_emp. name); printf (“New employee’s name is %sn”, new_emp. name); printf (“Enter start date: ”); scanf("%u/%u/%u", &new_emp. start_date. day, &new_emp. start_date. month, &new_emp. start_date. year); March 2006 Basis-C-7/LL 14

Assigning structures • We can assign one structure variable to another of the same type, meaning that all members will be copied • E. g. , if we have already initialised today, this is valid new_emp. start_date = today; • No need to assign the individual members March 2006 Basis-C-7/LL 15

Passing structures to functions • Unlike an array, a structure variable name is not a pointer but represents the actual structure • If we pass a structure to a function as a parameter, the entire structure gets copied • (all parameters are passed by value) • Changes made to a structure by the called function will be made to the copy and will not affect the original structure March 2006 Basis-C-7/LL 16

Pointers to structures • We can have pointers to structures • Example Employee *current_emp; • Remember that an uninitialised pointer does not point anywhere. So we have to initialise, e. g. Employee employee_list[100]; current_emp = employee_list; or current_emp = &employee_list[23]; March 2006 Basis-C-7/LL 17

Accessing members using pointers • If we have a pointer to a structure, members are accessed using the -> operator, e. g. printf (“Employee name: %sn”, current_emp->name); printf (“Start date: %u/%u/%un”, current_emp->start_date. day, current_emp->start_date. month, current_emp->start_date. year); • Note the mixing of “->” and “. ” March 2006 Basis-C-7/LL 18

The use of -> • -> is the structure pointer operator, providing access to members of a structure via a pointer • Note that current_emp->name is equivalent to (*current_emp). name • But *current_emp. name is illegal since the member operator (. ) has higher precedence than the dereference operator (*) • Much more convenient to use -> March 2006 Basis-C-7/LL 19

Abstraction • “Abstraction arises from a recognition of similarities between certain objects, situations or processes … and the decision to concentrate upon these similarities and ignore for the time being the differences” C. A. R. Hoare March 2006 Basis-C-7/LL 20

Introduction to ADTs (Abstract data types) • All built-in types are ADTs – Consider the floating point – treated similarly as integer yet implemented entirely differently – All built-in types are abstractions on their binary storage • User-defined ADTs marked the beginning of true data abstraction March 2006 Basis-C-7/LL 21

ADT definition • Representation (definition) of the type and the operations on objects of that type are contained within a single syntactic unit • Other program units can create objects of this type • Representation of the type is hidden from program units that use the type so that only the operations of the ADT can affect/access objects of the ADT • ADTs increase reliability March 2006 Basis-C-7/LL 22

ADTs • An abstract data type is a new type that is defined in terms of the operations that can be performed on items of that particular type • Creating new types with public properties allows the software that uses those types to be insulated from the details of the implementation (private properties) of the type • This encourages – clean interfaces and modularisation of software – reuse of the ADT code by separate programs – more maintainable code because the impact of changes is limited March 2006 Basis-C-7/LL 23

ADTs 2 • We know a conceptual idea of a data type • We can work with objects of this type by using a set of predefined operations • We do not really care (and know) how it is implemented • An ADT can have several (different) implementations • Implementation details are hidden • Interface functions are the same • Application programs will not see any difference March 2006 Basis-C-7/LL 24

The Employee example • Build an ADT that implements the Employee type • Operations might include – – – input an employee’s details output an employee’s details give the employee a pay rise specify an employee’s manager get the employee’s name or start date or pay rate or. . • We put the declarations of the data type and the function prototypes in the employee. h file • The implementation of the functions will go in the employee. c file March 2006 Basis-C-7/LL 25

employee. h struct Employee { int ident; char name[30]; double pay_rate; date start_date; char *dept_name; Employee *manager; }; void input_employee_details(Employee *emp); void output_employee_details(Employee *emp); void pay_rise(Employee *emp, double percent); void set_manager(Employee *emp, Employee *mgr); char *get_name(Employee *emp); double get_pay_rate(Employee *emp); date get_start_date(Employee *emp); March 2006 Basis-C-7/LL 26

Using the “Employee” • A program that wants to create and perform operations on the employee data type will – define or more variables of type employee – use the supplied functions to carry out all operations on those variables. • E. g. , if the program wants to keep track of all the employees, it may define an array of employees, Employee employee_list[MAX_EMPLOYEES]; March 2006 Basis-C-7/LL 27

Self-referential structures • Self-referential structures – Structure that contains a pointer to a structure of the same type – Can be linked together to form useful data structures such as lists, queues, stacks and trees – Terminated with a NULL pointer (0) struct node { int data; struct node *next. Ptr; }; March 2006 Basis-C-7/LL 28

Linked lists facts • A linked list is a linear collection of self referential nodes, connected by pointer links • It is accessed by a pointer to the start of the list • Subsequent nodes are accessed via the link pointer member stored in each node • The link pointer in the last node is set to NULL to indicate the end of the list • Data is stored in a linked list dynamically – each node is created as necessary March 2006 Basis-C-7/LL 29

Linked lists • A list is a sequence of 0 or more elements of a given type • One way of implementing a list is the “linked list” 5 -> 20 -> 45 -> 2 -> 32 -> 14 • Linked lists are like treasure trails – They can be thought of as a chain of nodes – Given the start of the list you can find the next node in the list – That then directs you to the next node etc. March 2006 Basis-C-7/LL 30

Linked lists 2 • You cannot directly access a node in the middle of a list • You ‘find the next node’ by having, as part of each node, a pointer variable containing the address of the next node • Each node is a structure with a least two fields – a data value – a pointer to the next node • Use a linked list instead of an array when – You have an unpredictable number of data elements March 2006 Basis-C-7/LL 31

Linked lists 3 struct clist { char item; struct clist *next; }; • The ‘next’ part of the clist structure contains a pointer to the next clist structure March 2006 Basis-C-7/LL 32

Linked lists 4 Assume that the variable ‘front’ holds the address 120 front->item is ‘a’ front->next = 130 March 2006 Basis-C-7/LL a 130 33

Linked lists 5 • ‘next’ contains the address of the next clist structure • We are not interested in the actual address and can show it pictorially by an arrow to the next structure front March 2006 a b Basis-C-7/LL c 34

Linked lists 6 front a b c • The earth (ground) symbol at the end of the list denotes the value NULL – NULL is conventionally used to terminate a list – NULL is defined in stdio. h and has the value zero – it has the special property that it is automatically coerced to any pointer type when necessary • front is a pointer to the start of the list March 2006 Basis-C-7/LL 35

Inserting • Insertion involves cutting the link between two nodes and adding in a new node front a b new March 2006 Basis-C-7/LL c z 36

Inserting 2 • Adding in the new node front a b c z March 2006 Basis-C-7/LL 37

Deleting • To delete the node containing 'b', we need a pointer p to the previous node front a b c p • We move the link pointer of p to by-pass the node that is no longer required March 2006 Basis-C-7/LL 38

Deleting 2 • The node containing b is no longer part of the list front a b c p • If it is no longer required elsewhere, we could delete it using the free() function March 2006 Basis-C-7/LL 39

Deleting 3 • The node containing b is no longer part of the list front a c p • The node has been deleted March 2006 Basis-C-7/LL 40

Linear linked lists – dynamic storage allocation • We can use malloc to acquire storage for structures (or arrays for that matter) only when they are required typedef. ELEMENT * LINK; LINK head; head = malloc (sizeof(ELEMENT)); // allocate instance of ELEMENT head ->d head->next March 2006 = ‘n’; // set value of data in instance =NULL; // No other items in list Basis-C-7/LL 41

Now something we all know • Bugs …. March 2006 Basis-C-7/LL 42

Debugging • Programming errors are called bugs • The process of correcting them is called debugging – Sometimes much harder than creating the program • To get rid of a bug, the following is needed – Some way of reproducing the bug – Information from the program that helps finding and correcting the program • Always save the old copy of your program in a safe place before you start debugging/fiddling March 2006 Basis-C-7/LL 43

Debugging 2 • I have mentioned using printf for debugging before. Inserting temporary printf statements and checking the output helps finding “where it goes wrong” • Remember to delete the printf statements when everything is fine March 2006 Basis-C-7/LL 44

Compiler messages • Compiler messages appear when a program is being compiled. They normally mean that something was not correct C syntax or not understood by the compiler • One problem can cause many errors. This does not always mean that you have many errors in your program • Two types of compiler messages – Compiler warnings – Compiler errors March 2006 Basis-C-7/LL 45

Compiler messages 2 • Compiler warnings – Indicate that something “bad” has been done but the code can still be compiled – You should fix whatever causes a warning since it might lead to other (harder to find) problems later on – The compiler labels warnings appropriately to distinguish them from serious errors March 2006 Basis-C-7/LL 46

Compiler messages 3 • Compiler errors – An error message is produced if the compiler finds something in your source file that does not conform to valid C syntax – A compiler error indicates that something has to be fixed before the code can be compiled as it should – The first few warnings and errors might cause the others, so fix the first ones first! March 2006 Basis-C-7/LL 47

Compiler messages 4 • Normally, compiler messages also include the file and line number where a problem has been found. However, sometimes the error is in the line(s) just above what has been indicated. • Compilers do not agree! Some compilers find errors that others call warnings, and some won’t even complain …. March 2006 Basis-C-7/LL 48

Compiler messages 5 • You’ve all seen “syntax error”, but what is it? – It is caused when you have written something that doesn’t follow the formatting rules of C • So – why do you get syntax errors? ? – Because …. . • • March 2006 Missing ; Mismatched (), {}, [] etc Missing values in assignments Many more and a very long list! Basis-C-7/LL 49

Run time errors • A run time error is what happens when you run the executable and something goes wrong – It only happens when the program is actually run, i. e. after compilation and linking has succeeded (no errors) – Again there are two types • Fatal errors • Logical errors March 2006 Basis-C-7/LL 50

Run time errors 2 • Fatal errors – The executable crashes! – Segmentation faults • Trying to access illegal memory • Improper use of arrays and pointers – Stack overflow • Infinite recursion • Too many temporary variables – Core dump • Sometimes an image of the running program (core) is written out. • Should be deleted (maybe analysed first) • Happens e. g. when “divide by zero” March 2006 Basis-C-7/LL 51

Run time errors 3 • Logic errors – A logic or semantic error in meaning • It doesn’t make sense! – Occurs when a program doesn’t do what you want it to do! – There probably won’t be any semantic errors if the constructs are “legal” but do not make sense March 2006 Basis-C-7/LL 52

Run time errors 4 • So – why do you get logic errors? ? – Because • • • March 2006 Infinite loops Misunderstood operator precedence Iteration mistakes Code inside a loop by mistake Using = instead of == …. Basis-C-7/LL 53

Warnings and errors • The warnings and error messages produced by the C compiler, and by Unix, are not always especially helpful. The main reasons for this are – The writer of a compiler cannot anticipate all of the reasons why certain errors might occur – So the error messages cannot indicate anything except the most general aspects of the reason for the problem, but this is unlikely to be very helpful finding the cause of a specific error March 2006 Basis-C-7/LL 54
