Structured COBOL Programming John Wiley Sons Inc 10
Structured COBOL Programming John Wiley & Sons, Inc. 10 th edition Nancy Stern Hofstra University Robert A. Stern Nassau Community College James P. Ley University of Wisconsin-Stout - Modified by Bob Roggio for pedagogical reasons only… Power. Point Presentation Winifred J. Rex Bowling Green State University 57 1
Chapter 3 The DATA DIVISION 57 3 -2
Chapter Objectives To familiarize you with • Systems design considerations • Ways in which data is organized • Rules forming data-names • Defining input and output files in DATA DIVISION • Defining storage for work fields and constants 57 3
Interactive and Batch Programs • Fully Interactive Programs – Use ACCEPT to get input from keyboard – Use DISPLAY to display output on screen • Full Batch Programs – Get input from files on disk – Direct output to files on disk • Hybrid Programs – Use combination of interactive and batch input and output methods 57 4
COBOL Data Organization • Field - group of characters forming a meaningful unit or basic fact – Characters in a name or digits in an amount • Records - group of related fields – All fields related to customer • File - group of related records – Customer file made up of customer records 57 5
Categories of Data • Data categories in COBOL are each assigned user-defined name – Files, records, fields in batch programs – Fields keyed in or displayed in interactive programs • Data-name or identifier for user-defined name in DATA DIVISION must follow certain rules 57 6
User-Defined Data-Name Rules 1. 2. 3. 4. 5. 6. 1 to 30 characters Letters, digits, hyphens (-) only No embedded blanks At least one alphabetic character May not begin or end with hyphen May not be COBOL reserved word 57 7
Identify the valid data-names 1. Date-Of-Birth 2. Amount$Out 3. Section 4. -First-Name 5. 98 -6 6. Time out 7. r 2 d 2 8. Amount-in See examples, p. 65 57 8
Data-Name Guidelines 1. Use meaningful data-names that describe contents of field • Amount-Due-In instead of A 1 2. Use prefixes or suffixes in data-names when appropriate • -IN and -OUT for fields (Emp-Salary-IN and Emp. Salary-OUT) • -FILE and -RECORD for file and record names (Emp-File and Emp-Record) • See our local standards_ two character prefix associated with record name. 57 9

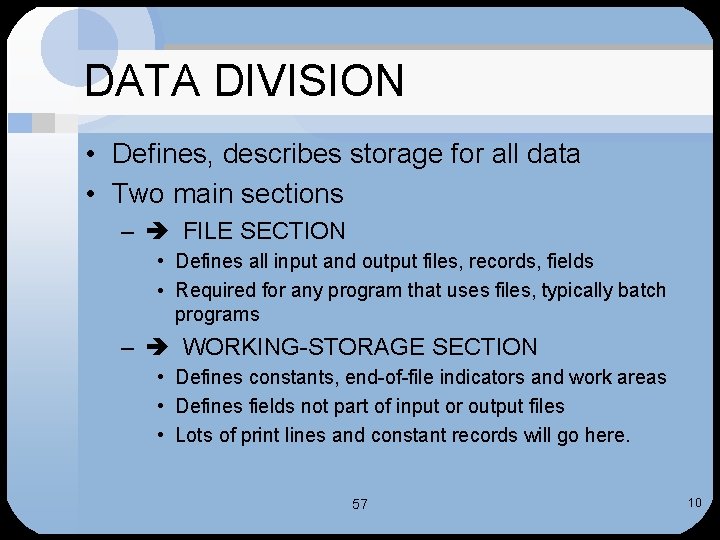

DATA DIVISION • Defines, describes storage for all data • Two main sections – FILE SECTION • Defines all input and output files, records, fields • Required for any program that uses files, typically batch programs – WORKING-STORAGE SECTION • Defines constants, end-of-file indicators and work areas • Defines fields not part of input or output files • Lots of print lines and constant records will go here. 57 10
Types of Files to Define • Input files • Master files • Transaction files Add, Change, and Delete records to the Master File • Output files • New Master files • Report files 57 11
Old Master File Sample System Flow Chart Traditional Batch Processing New Master File Transaction File Input Actual names of files would be used rather than generic names as I have entered here. The Program Name Report 1 Master File Register 57 Report 2 Change List Report 3 Error List 12
File Description Entries • Each file described with an FD (File Descriptor) sentence • One FD for each SELECT statement in ENVIRONMENT DIVISION • FD followed by • File-name • Optional clauses to describe file and format of its records 57 13
File Description Format FD file-name LABEL RECORD IS OMITTED RECORDS ARE STANDARD RECORD CONTAINS integer-1 CHARACTERS BLOCK CONTAINS integer-2 RECORDS. What does the syntax tell you about these entries? What is required? 57 What is optional? 14
File Description clauses • LABEL RECORDS clause • Used if labels stored in file • Label Records are Standard • Label Records are Omitted • BLOCKS CONTAINS clause – Indicates blocking factor for disk files Discuss • Block contains 40 Records • Block 100 • Both labels and blocking usually handled by 57 operating systems so clauses will be omitted 15
RECORD CONTAINS clause • Indicates size of each record • Optional but recommended since it provides check on record size • Given this FD FD Sales-File Record Contains 75 Characters. • If PICTURE clauses mistakenly add up to 76, compiler will report a syntax error and this is desirable! 57 16
Defining a Record • Each FD followed by record description entries for the file • Data grouped in COBOL by levels • Record-name defined at the 01 level • Considered highest level of data • Fields within a record defined at subordinate level with level numbers from 02 to 49 57 17
Record Description Example 01 Employee-Rec-In. 05 Name-In … 05 Annual-Salary-In … 05 Job-Description-In …Why 05? • Fields at 05 level subordinate to 01 level entry • All fields at same level (05), independent or not subordinate to each other • The order of the fields also indicates the corresponding expected order of fields in the actual data! These must correspond. 18 57
SELECT, FD, 01 entries & fields • SELECT names file, assigns it to hardware device • FD describes file • 01 names record • 02 -49 describes fields within record 57 19
Elementary and Group Items • Items defined with a level number are one of two types – Elementary item - field that is not further subdivided • Must include a PICTURE clause – Group item - field that is further subdivided • Has no PICTURE clause – And it is via the pic clause that you tell them apart. Of course, a group item will also have elementary items beneath it 57 all with higher level numbers too! 20
Elementary and Group Items 01 Employee-Rec-In. 05 Name-In … 10 First-Name-In (Picture clause) 10 Last-Name-In (Picture clause) 05 Annual-Salary-In (Picture clause) • Name-In is group item since it is subdivided into first and last name • Employee-Rec-In also group item • First-Name-In is elementary item since it is not further subdivided 57 21
Invalid Level Numbers 01 Employee-Rec-In. 05 Name-In … 10 First-Name-In (Picture clause) 12 Last-Name-In (Picture clause) 05 Annual-Salary-In (Picture clause) • Last-Name-In level number is invalid since it is not subordinate to First-Name-In yet its level number implies that it IS. • Both first and last name are at same level and should have same level number 57 22
PICTURE (PIC) clauses • Specify type of data stored in field • numeric, alphabetic • Indicate size of field • number of Xs or 9 s implies length in characters of the field. 57 23
Types of data fields • Alphabetic • Only letters or blanks • For name, item description, etc. • Alphanumeric • Any character - letters, digits, special characters • For an address like 123 N. Main St. • Numeric • Only digits • For fields used in arithmetic operations 57 24
Data Types in PICTURE clause • A for alphabetic • X for alphanumeric • 9 for numeric 57 25
Size of Data Fields Denote size of field by: • Number of A’s, X’s or 9’s used in PICTURE 01 Cust-Rec-In. 05 Cust-ID-In Picture XXXX. 05 Amt-In Picture 99999. Cust-Rec-In is a group item, but Cust-ID-In is a four position, alphanumeric field, while Amt-In is a five 26 position numeric 57 field.

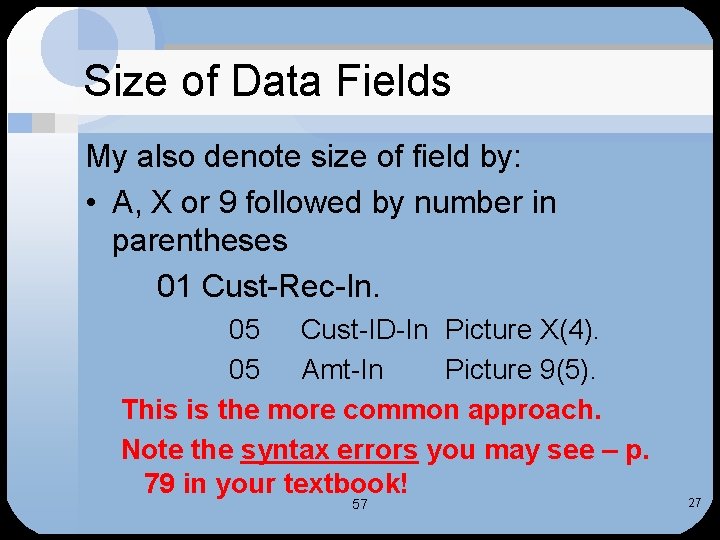

Size of Data Fields My also denote size of field by: • A, X or 9 followed by number in parentheses 01 Cust-Rec-In. 05 Cust-ID-In Picture X(4). 05 Amt-In Picture 9(5). This is the more common approach. Note the syntax errors you may see – p. 79 in your textbook! 57 27
Defining Fields in Record • Must account for all positions defined in record layout • Must describe fields in order they appear in record • Field names should be unique • For fields not used by program – Data-name may be left blank (preferable) – May use reserved word FILLER as data-name • Discuss…. – Positions must still be defined using PIC clause 57 28
01 Employee-Rec-In. 05 Employee-Name-In 05 05 Hours-Worked-In 05 pic x(25). pic x(5) pic 9(5). pic x(45). or 01 Employee-Rec-In. 05 Employee-Name-In 05 Filler 05 Hours-Worked-In 05 Filler pic x(25). pic x(5) pic 9(5). pic x(45). This is the old way, but you will see a LOT of this in practice! 57 names must be unique? Note: violates the fact that data 29
Implied Decimal Point • For fields used in arithmetic operations • Symbol V used in PIC clause to denote location of implied decimal point • Decimal point itself not stored as part of number • To store value 26. 79 in field AMT-IN, code entry as 05 Amt-In Pic 99 V 99. • and, reading the value for Amt-In in would require four positions, that is, 1264 would be read into Amt-In and be ‘treated’ as if it were 12. 64. 57 30

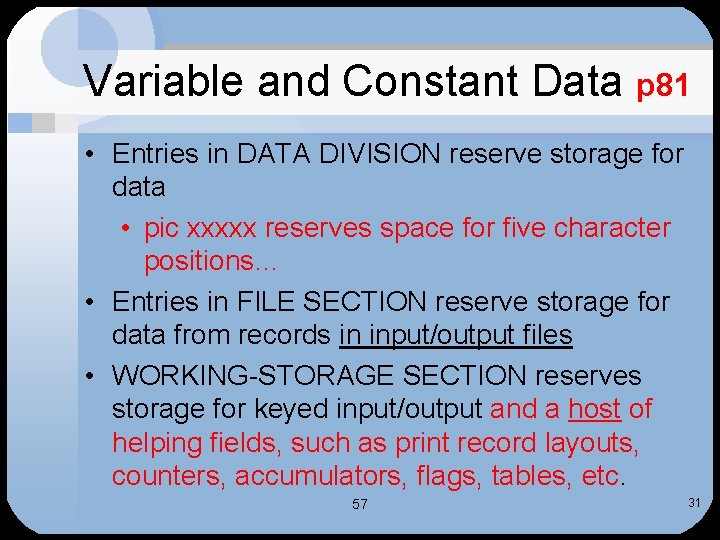

Variable and Constant Data p 81 • Entries in DATA DIVISION reserve storage for data • pic xxxxx reserves space for five character positions… • Entries in FILE SECTION reserve storage for data from records in input/output files • WORKING-STORAGE SECTION reserves storage for keyed input/output and a host of helping fields, such as print record layouts, counters, accumulators, flags, tables, etc. 57 31
Variable Data • Entries in both SECTIONs define variable data; that is, variables whose value may change during the course of program execution. • Contents of field change (vary) with each new record read or new value keyed in or values computed. • Contents in input records unknown until program begins execution 57 32

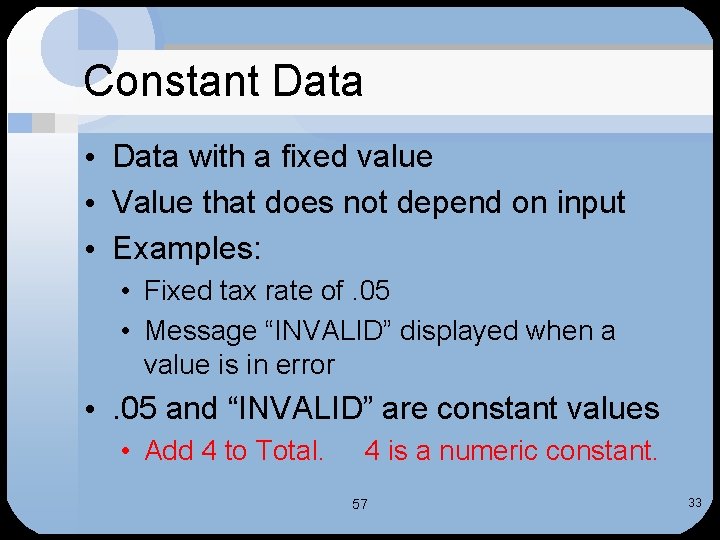

Constant Data • Data with a fixed value • Value that does not depend on input • Examples: • Fixed tax rate of. 05 • Message “INVALID” displayed when a value is in error • . 05 and “INVALID” are constant values • Add 4 to Total. 4 is a numeric constant. 57 33
Types of Constants • Numeric literal • Examples: . 05 5280 199. 99 • Constant used for arithmetic operations • Nonnumeric (alphanumeric) literal • Examples: “INVALID” “Enter your name” • Constant used for all operations except arithmetic • Figurative constant • SPACES ZEROS • Reserved word for commonly used values 57 34
Rules for Numeric Literals 1. 1 to 18 digits. 2. + or - sign may be included to left of first digit. 3. Decimal point permitted within literal. May not follow last digit. Valid numeric literals 23 +2359. 4. 125 4. Invalid: 1234. 57 -68734 35

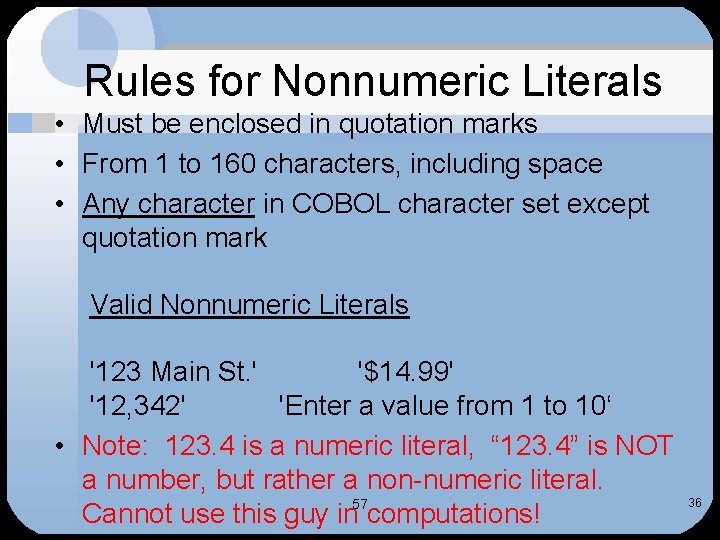

Rules for Nonnumeric Literals • Must be enclosed in quotation marks • From 1 to 160 characters, including space • Any character in COBOL character set except quotation mark Valid Nonnumeric Literals '123 Main St. ' '$14. 99' '12, 342' 'Enter a value from 1 to 10‘ • Note: 123. 4 is a numeric literal, “ 123. 4” is NOT a number, but rather a non-numeric literal. Cannot use this guy in 57 computations! 36
Nonnumeric Literals • Only characters within quotes are moved or displayed • May contain all numbers ('125') but not same as numeric literal (125) – Cannot be used in arithmetic operations – Cannot be moved to field with PIC of 9’s • Are not data-names – 'Amount-In' not same as field defined in DATA DIVISION called Amount-In – former is a non-numeric constant, the second is a variable or data-name for 57 variable data. 37
Figurative Constants - ZERO • ZERO, ZEROS or ZEROES means all zeros Example Move Zeros To Total-Out • Fills each position in Total-Out with a zero • May be used with both numeric and alphanumeric fields 57 • Often use to ‘clear’ or ‘zero out’ a field. 38
Figurative Constants - SPACE • SPACE or SPACES means all spaces or blanks Example Move Spaces To Code-Out • Fills each position in Code-Out with a space or blank • Use only with alphanumeric fields since blank is invalid numeric character 57 39
WORKING-STORAGE SECTION • • Follows FILE SECTION Begins with heading on line by itself Starts in Area A, ends with period All items must be defined at 01 level or in entries subordinate to 01 level entry 57 40
WORKING-STORAGE SECTION • Rules for user-defined data-names apply • Elementary items: – Must include PICTURE clause – May be assigned initial value with VALUE clause 57 41
Uses of WORKING-STORAGE To define fields used for • Keyed input and displayed output for interactive programming, • Intermediate arithmetic results • Counters and totals • End-Of-File Indicators and much more. 57 42
VALUE clause • To define initial value for field • If omitted, field’s value undefined when program begins execution • May be used only in WORKINGSTORAGE SECTION • (actually, this is not true. Can use Value clauses as part of 88 level entries in File Section… but later. ) 57 43
VALUE vs MOVE • VALUE clause used in DATA DIVISION – Gives initial value before execution begins • MOVE used in PROCEDURE DIVISION – Assigns value to field after program begins • MOVE may change initial value of field 57 44
VALUE Clause • Contains literal or figurative constant • Data type must match PICTURE • Numeric literals or ZEROS used with PIC 9 fields 01 WS-Tax-Rate Pic V 99 Value. 06. 01 WS-Total Pic 999 Value Zeros. The value clause must be compatible with the picture clause. Value 06 would NOT be compatible with a pic of V 99; would 57 be okay with pic 99. 45
VALUE Clause • Nonnumeric literals, ZEROS or SPACES used with PIC X fields 01 WS-EOF Pic X(3) Value ‘YES’. 01 WS-Descrip Pic X(8) Value Spaces. Please note that many field values will be initialized (with Value clauses) in Working Storage. This is absolutely the norm – not ALL fields, but many. 57 46
Defining Constants or Literals Define a literal of. 28 (28%) for a tax rate • Method 1 - code as literal in PROCEDURE DIVISION Multiply. 28 by WS-Salary Giving WS-Tax (here, . 28 is a numeric literal (numeric constant) • Method 2 - store in data item in WORKINGSTORAGE SECTION 01 WS-Rate Pic V 99 Value. 28. Here, WS-RATE is a numeric variable with an initial value. 57 47
Defining Constants or Literals • Method 2 - use data-name in place of literal in PROCEDURE DIVISION Multiply WS-Rate by WS-Salary Giving WS-Tax – Preferable for literals used more than once – Allows meaningful name to be associated with number 57 48
Continuation of Literals • Nonnumeric literals may be up to 160 characters (enclosed in quotes) • Long literals may not fit on one typed line • Subdividing long literals into separate fields is recommended 57 49
Continuation of Literals Example Separate this report title into two fields "Transaction Report for XYZ Corporation" Note the space… 01 Report-Title. 05 Pic X 18) Value 'Transaction Report'. 05 Pic X(20) Value ' for XYZ Corporation'. but you may continue non-numeric literals across lines. But be careful. Above is best way. 57 50
Continuation of Literals • Long literals may be continued from one line to next, although this is not recommended • Rules for continuation of literals from one line to next – Begin literal with quotation mark. – Continue literal to position 72. Do not end with quotation mark. – Place hyphen on next line in position 7. – Continue literal with quotation mark starting anywhere in Area B. – End literal with quotation mark. – You should try this 57 and be familiar with it, even if you elect not to use this form… 51
COBOL 2002+ Changes 1. LABEL RECORDS clause will be phased out entirely 2. VALUE clause will be allowed in FILE SECTION 3. Way to continue nonnumeric literals will change 4. Margins A and B rules will be guidelines rather than requirements 5. Commas and dollar signs will be permissible in numeric literals 57 52
Chapter Summary • Data organized into files, records and fields • Variable data changes with each run depending on input values • Constant or literal data defined within program, not entered as input 57 53
Chapter Summary • FILE SECTION includes FD entry for each file used by program • Record names coded at 01 level • Field names coded at 02 -49 level • Fields must be defined in order they appear in record 57 54
Chapter Summary • Group items are further subdivided • Elementary items are not subdivided • Elementary items have PICTURE clause • Codes X, A, 9, V used to describe data 57 55
Chapter Summary • WORKING-STORAGE SECTION used for storing – Intermediate results, counters – End-of-file indicators – Interactive data accepted as input or displayed • VALUE clauses may be used in this section to initialize fields 57 56
