Structured COBOL Programming 10 th edition John Wiley
Structured COBOL Programming 10 th edition John Wiley & Sons, Inc. Nancy Stern Hofstra University Robert A. Stern Nassau Community College James P. Ley University of Wisconsin-Stout Power. Point Presentation Winifred J. Rex Bowling Green State University 1
Chapter 7 Computing in COBOL: The Arithmetic Verbs and Intrinsic Functions 7 -2
Chapter Objectives To familiarize you with • Ways in which arithmetic may be performed in COBOL • Formats and options available with arithmetic verbs 3
Chapter Contents • • Basic Arithmetic Verbs Options Available with Arithmetic Verbs COMPUTE Statement Signed Numbers in Arithmetic Operations • Intrinsic Functions 4

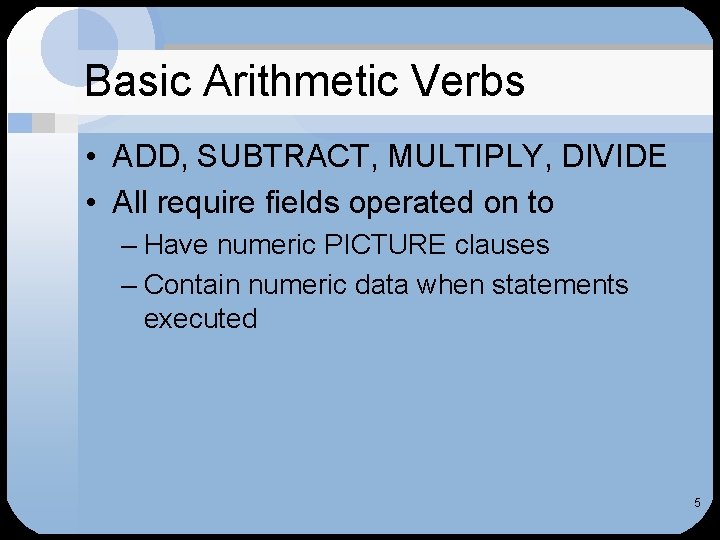

Basic Arithmetic Verbs • ADD, SUBTRACT, MULTIPLY, DIVIDE • All require fields operated on to – Have numeric PICTURE clauses – Contain numeric data when statements executed 5
ADD … TO Statement Format 1 ADD identifier-1 literal-1 … TO identifier-2. . . • identifier-1 or literal-1 added to identifier -2 • Result stored in identifier-2 • What does the syntax tell you? 6

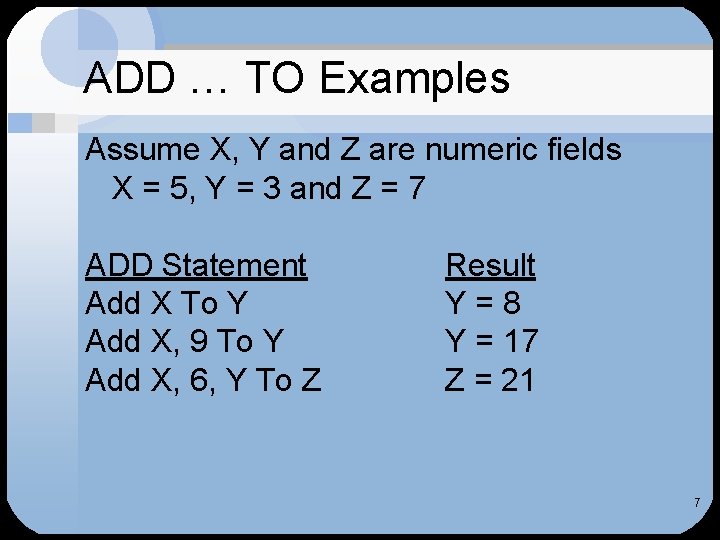

ADD … TO Examples Assume X, Y and Z are numeric fields X = 5, Y = 3 and Z = 7 ADD Statement Add X To Y Add X, 9 To Y Add X, 6, Y To Z Result Y=8 Y = 17 Z = 21 7

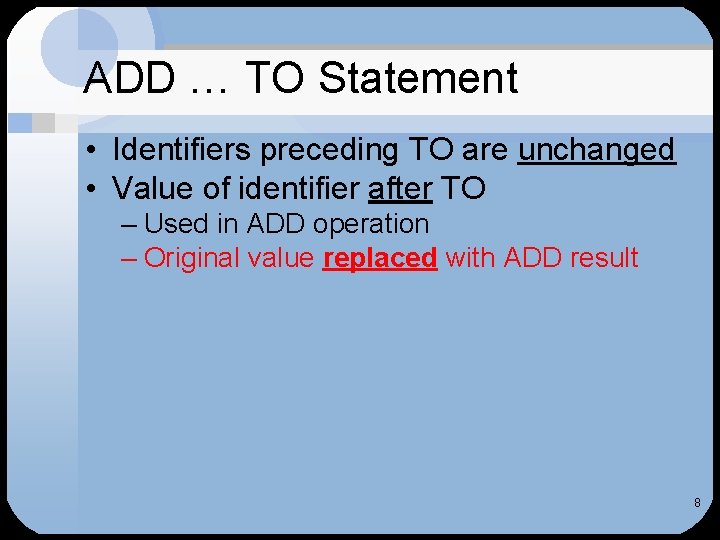

ADD … TO Statement • Identifiers preceding TO are unchanged • Value of identifier after TO – Used in ADD operation – Original value replaced with ADD result 8

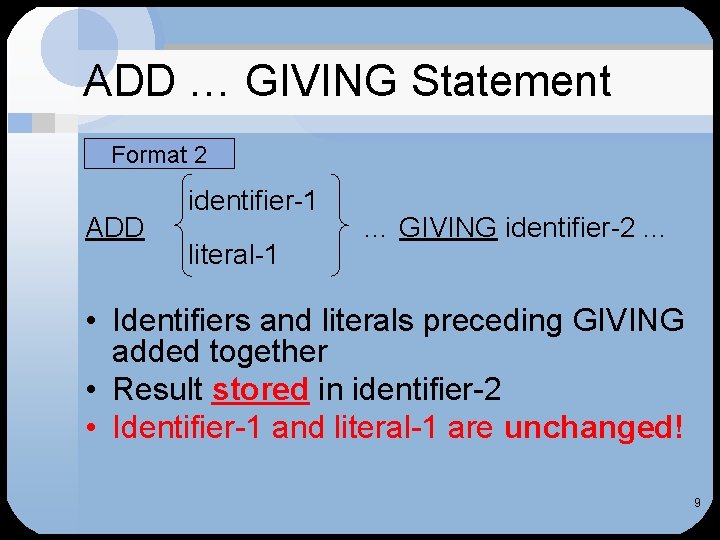

ADD … GIVING Statement Format 2 ADD identifier-1 literal-1 … GIVING identifier-2. . . • Identifiers and literals preceding GIVING added together • Result stored in identifier-2 • Identifier-1 and literal-1 are unchanged! 9
ADD … GIVING Examples Assume X, Y and Z are numeric fields X = 5, Y = 3 and Z = 7 ADD Statement Result Add X, Y Giving Z Z=8 Add X, 10 Giving Y Y = 15 Add X, 4, Y Giving Z Z = 12 X, Y, 10, etc. are all unchanged! 10
ADD … GIVING Statement • Identifiers preceding GIVING are unchanged • Value of identifier after GIVING – Not part of ADD operation – Original value replaced with ADD result – May be report-item with edit symbols 11
ADD … GIVING Statement • TO may be included before last identifier or literal preceding GIVING • For example: Add X, 4 To Y Giving Z – Adds values of X, 4 and Y together – Stores result in Z – X, 4, and Y are UNCHANGED! 12
ADD Statement • Comma followed by one space may be used to separate operands • Result of ADD always placed in field(s) after TO or GIVING • Result field must be data-name, not a literal 13

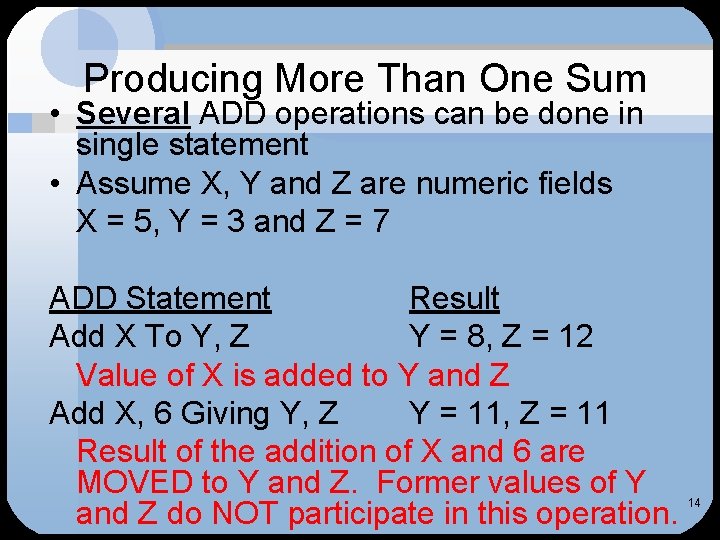

Producing More Than One Sum • Several ADD operations can be done in single statement • Assume X, Y and Z are numeric fields X = 5, Y = 3 and Z = 7 ADD Statement Result Add X To Y, Z Y = 8, Z = 12 Value of X is added to Y and Z Add X, 6 Giving Y, Z Y = 11, Z = 11 Result of the addition of X and 6 are MOVED to Y and Z. Former values of Y and Z do NOT participate in this operation. 14
ADD … TO vs ADD … GIVING • Use ADD … TO when original contents of result operand – Need to be included in operation – But are not needed after operation – All operands must be numeric. • Use ADD … GIVING when – Original contents of all operands except result field are to be retained – Operands following the GIVI NG need NOT be numeric and will frequently be reportitem fields. 15
SUBTRACT Statement Format 1 SUBTRACT identifier-1 literal-1 … FROM identifier-2. . . • identifier-1 or literal-1 subtracted from identifier-2 • Result stored in identifier-2 16

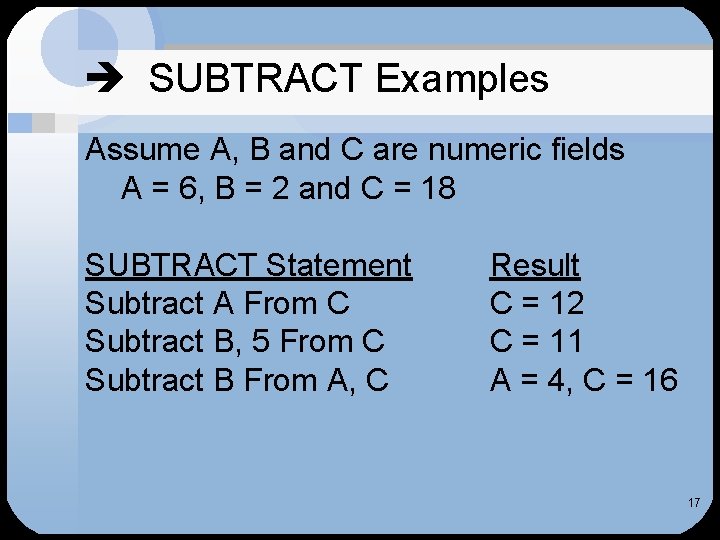

SUBTRACT Examples Assume A, B and C are numeric fields A = 6, B = 2 and C = 18 SUBTRACT Statement Subtract A From C Subtract B, 5 From C Subtract B From A, C Result C = 12 C = 11 A = 4, C = 16 17

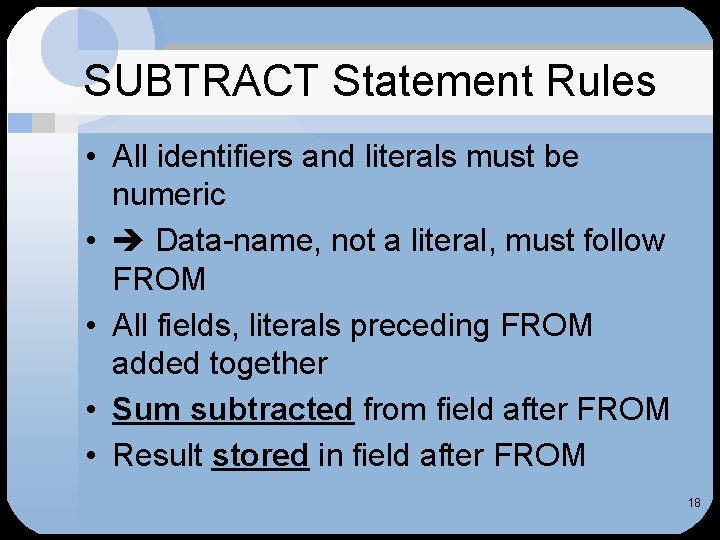

SUBTRACT Statement Rules • All identifiers and literals must be numeric • Data-name, not a literal, must follow FROM • All fields, literals preceding FROM added together • Sum subtracted from field after FROM • Result stored in field after FROM 18

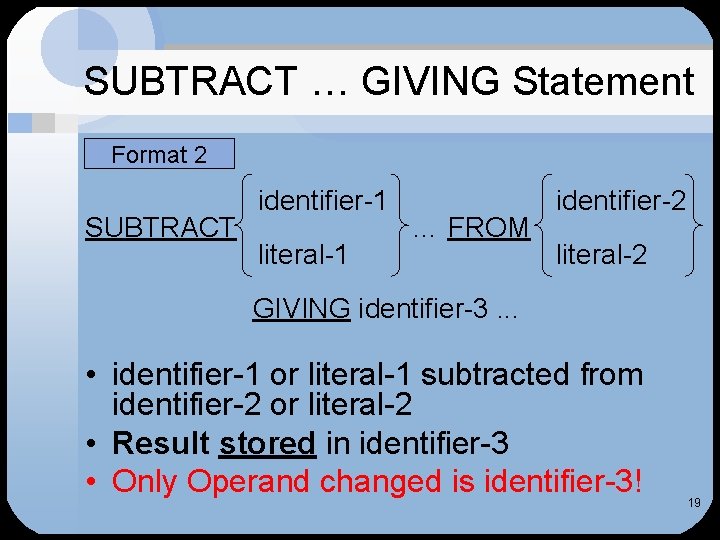

SUBTRACT … GIVING Statement Format 2 SUBTRACT identifier-1 literal-1 … FROM identifier-2 literal-2 GIVING identifier-3. . . • identifier-1 or literal-1 subtracted from identifier-2 or literal-2 • Result stored in identifier-3 • Only Operand changed is identifier-3! 19
SUBTRACT … GIVING Examples Assume A, B and C are numeric fields A = 6, B = 2 and C = 18 SUBTRACT Statement Subtract B From A Giving C Subtract A From 15 Giving C Subtract A, 4 From C Giving B Result C=4 C=9 B=8 20

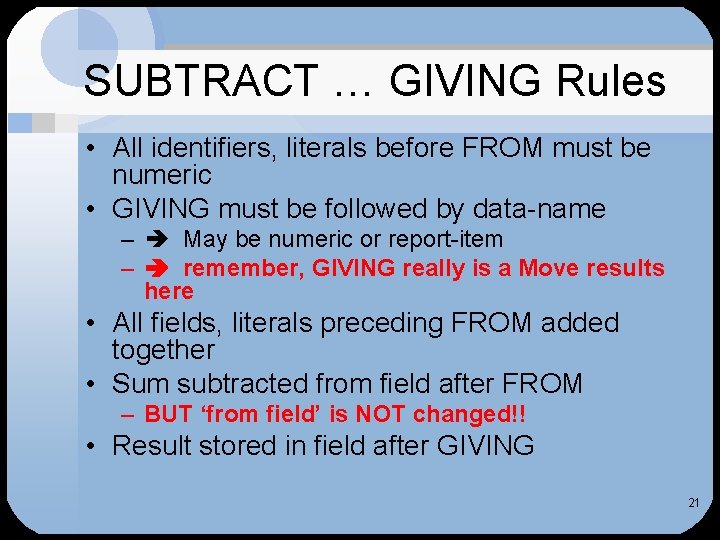

SUBTRACT … GIVING Rules • All identifiers, literals before FROM must be numeric • GIVING must be followed by data-name – May be numeric or report-item – remember, GIVING really is a Move results here • All fields, literals preceding FROM added together • Sum subtracted from field after FROM – BUT ‘from field’ is NOT changed!! • Result stored in field after GIVING 21

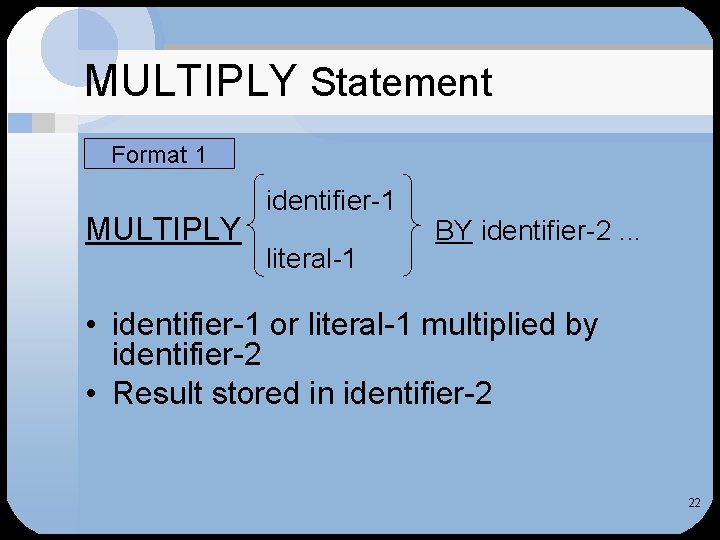

MULTIPLY Statement Format 1 MULTIPLY identifier-1 literal-1 BY identifier-2. . . • identifier-1 or literal-1 multiplied by identifier-2 • Result stored in identifier-2 22

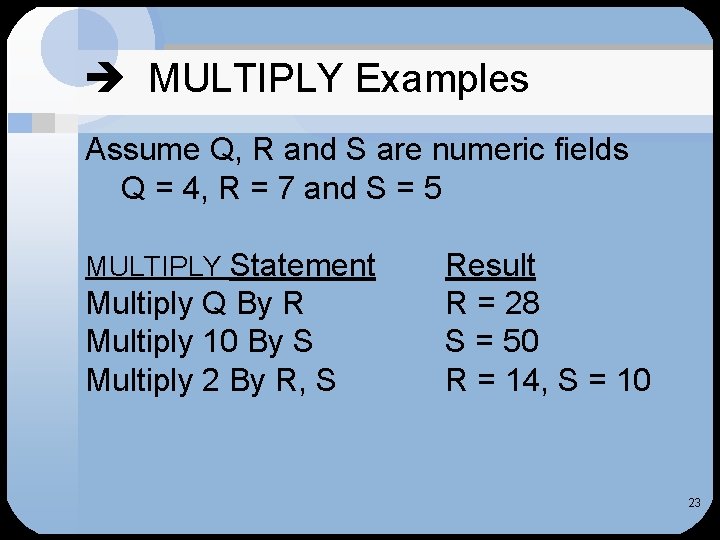

MULTIPLY Examples Assume Q, R and S are numeric fields Q = 4, R = 7 and S = 5 MULTIPLY Statement Multiply Q By R Multiply 10 By S Multiply 2 By R, S Result R = 28 S = 50 R = 14, S = 10 23

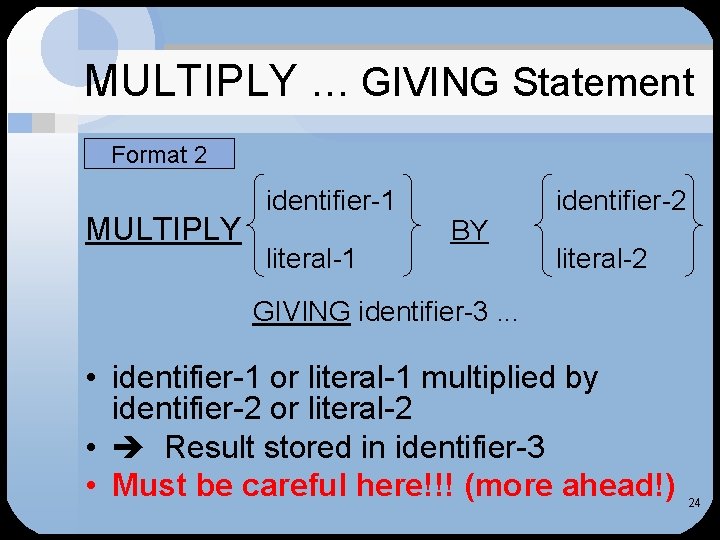

MULTIPLY … GIVING Statement Format 2 MULTIPLY identifier-1 literal-1 BY identifier-2 literal-2 GIVING identifier-3. . . • identifier-1 or literal-1 multiplied by identifier-2 or literal-2 • Result stored in identifier-3 • Must be careful here!!! (more ahead!) 24
MULTIPLY … GIVING Examples Assume Q, R and S are numeric fields Q = 4, R = 7 and S = 5 MULTIPLY Statement Multiply Q By R Giving S Multiply Q By 3 Giving S Multiply 6 By Q Giving R, S Result S = 28 S = 12 R = 24 S = 24 25

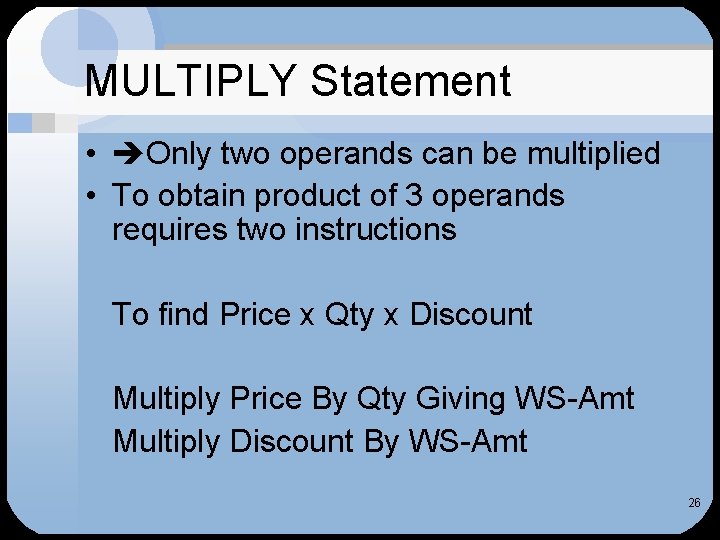

MULTIPLY Statement • Only two operands can be multiplied • To obtain product of 3 operands requires two instructions To find Price x Qty x Discount Multiply Price By Qty Giving WS-Amt Multiply Discount By WS-Amt 26

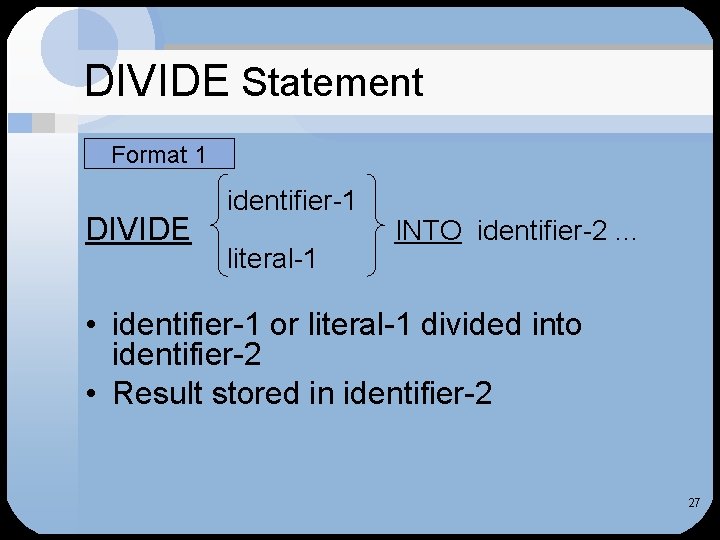

DIVIDE Statement Format 1 DIVIDE identifier-1 literal-1 INTO identifier-2. . . • identifier-1 or literal-1 divided into identifier-2 • Result stored in identifier-2 27
DIVIDE Examples Assume X, Y and Z are numeric fields X = 2, Y = 12 and Z = 8 DIVIDE Statement Divide X Into Y Divide 3 Into Y Divide 2 Into Y, Z Result Y=6 Y=4 Y = 6, Z = 4 28

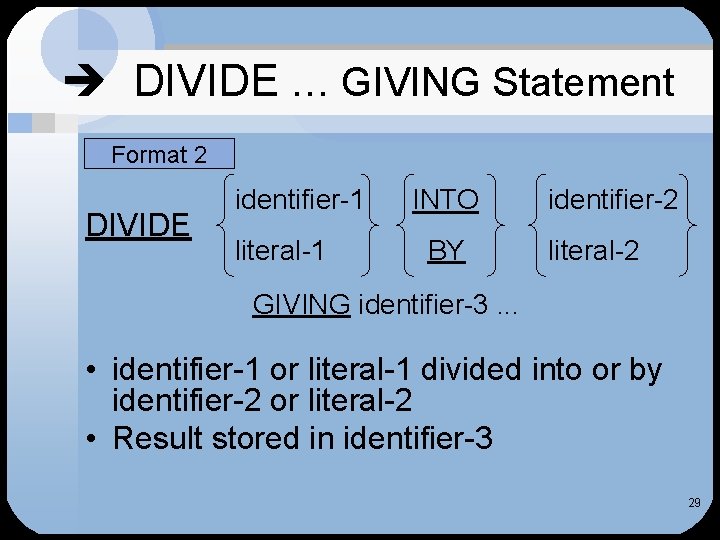

DIVIDE … GIVING Statement Format 2 DIVIDE identifier-1 literal-1 INTO BY identifier-2 literal-2 GIVING identifier-3. . . • identifier-1 or literal-1 divided into or by identifier-2 or literal-2 • Result stored in identifier-3 29

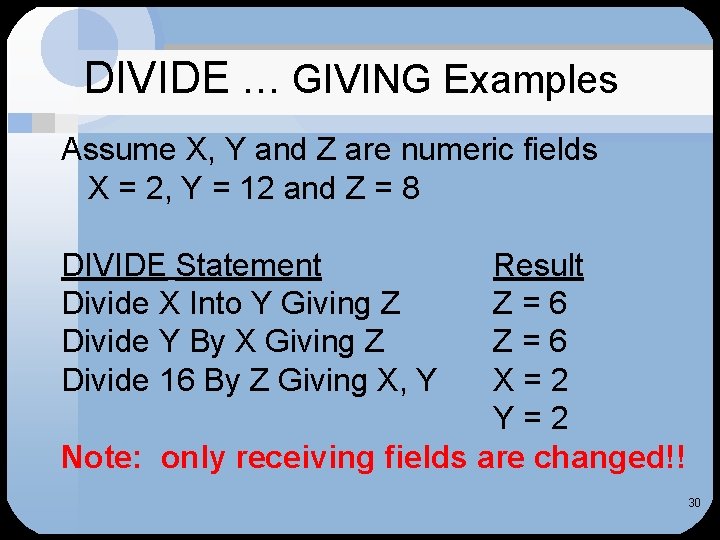

DIVIDE … GIVING Examples Assume X, Y and Z are numeric fields X = 2, Y = 12 and Z = 8 DIVIDE Statement Divide X Into Y Giving Z Divide Y By X Giving Z Divide 16 By Z Giving X, Y Result Z=6 X=2 Y=2 Note: only receiving fields are changed!! 30

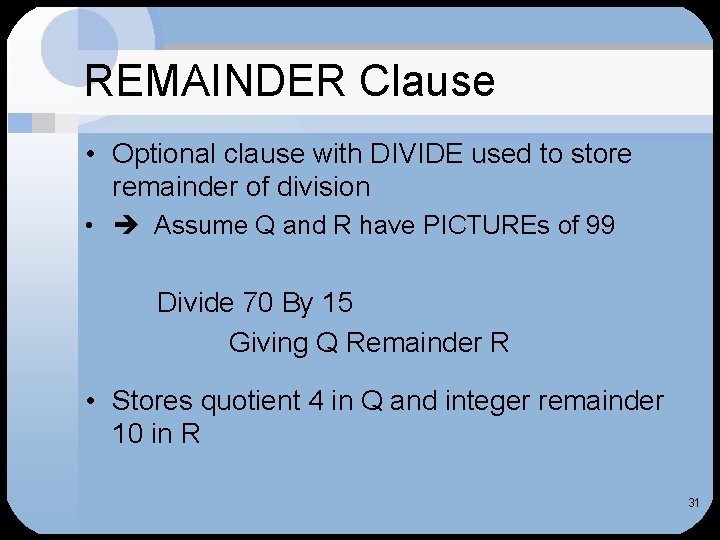

REMAINDER Clause • Optional clause with DIVIDE used to store remainder of division • Assume Q and R have PICTUREs of 99 Divide 70 By 15 Giving Q Remainder R • Stores quotient 4 in Q and integer remainder 10 in R 31

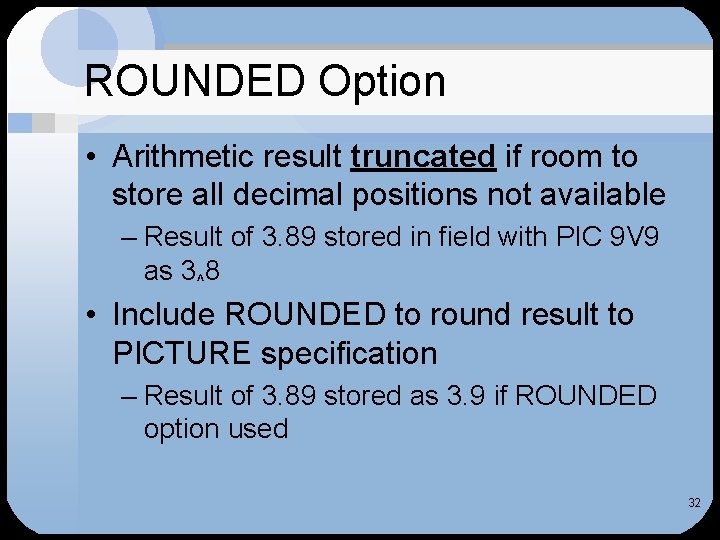

ROUNDED Option • Arithmetic result truncated if room to store all decimal positions not available – Result of 3. 89 stored in field with PIC 9 V 9 as 3^8 • Include ROUNDED to round result to PICTURE specification – Result of 3. 89 stored as 3. 9 if ROUNDED option used 32
ROUNDED Option Examples 01 Amt 1 01 Amt 2 Pic 9 V 99 Pic 999. Value 2. 25. Arithmetic statement Multiply. 3 By Amt 1 Rounded Divide 150 By 9 Giving Amt 2 Rounded Result. 675 Value Stored Amt 1 = 0^67 Amt 1 = 0^68 16. 66… Amt 2 = 017 33
Overflow or Size Error • Occurs when result value too large to be stored in result field • Result of this ADD statement is 1, 075 Add 350 To 725 Giving Num • If Num has PICTURE of 999, only 3 digits can be stored • High-order digits truncated so 075 stored in Num 34
Checking for Overflow • Any arithmetic statement may include one or both size error clauses • ON SIZE ERROR statement(s) – Specifies one or more statements to be executed if overflow (size error) occurs • NOT ON SIZE ERROR statement(s) – Specifies one or more statements to be executed if overflow (size error) does not occur 35
SIZE ERROR Clause Example Add X To Y Giving Z On Size Error Display ' Result too large' Not On Size Error Perform Calc-Para End-Add • If sum of X and Y too large to store in Z, Display statement executed • If Z large enough for result, Calc-Para is performed 36

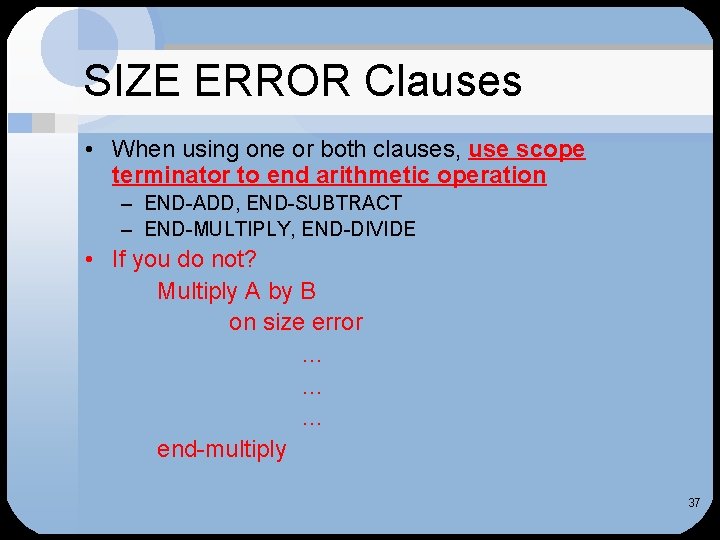

SIZE ERROR Clauses • When using one or both clauses, use scope terminator to end arithmetic operation – END-ADD, END-SUBTRACT – END-MULTIPLY, END-DIVIDE • If you do not? Multiply A by B on size error … … … end-multiply 37

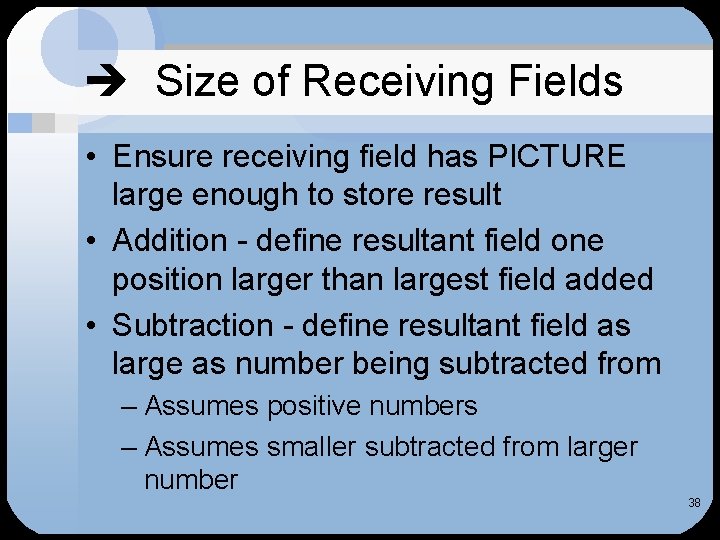

Size of Receiving Fields • Ensure receiving field has PICTURE large enough to store result • Addition - define resultant field one position larger than largest field added • Subtraction - define resultant field as large as number being subtracted from – Assumes positive numbers – Assumes smaller subtracted from larger number 38

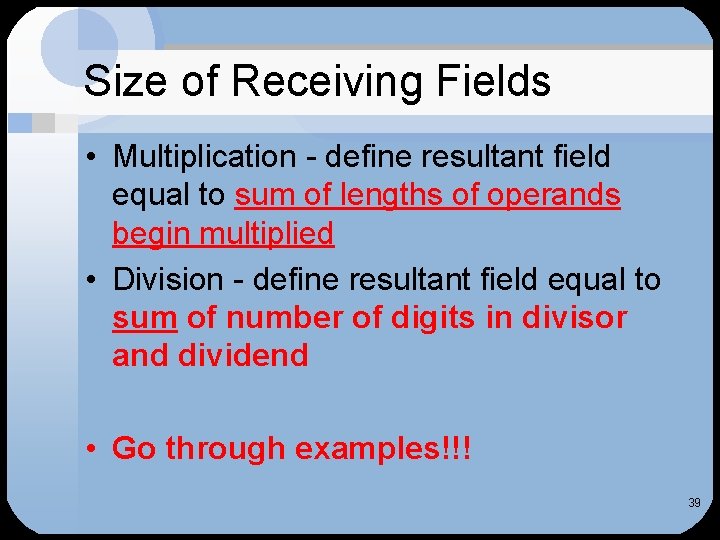

Size of Receiving Fields • Multiplication - define resultant field equal to sum of lengths of operands begin multiplied • Division - define resultant field equal to sum of number of digits in divisor and dividend • Go through examples!!! 39

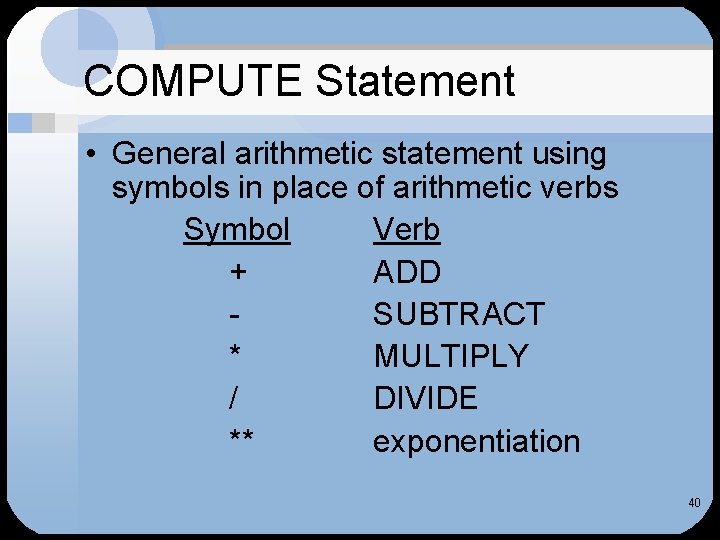

COMPUTE Statement • General arithmetic statement using symbols in place of arithmetic verbs Symbol Verb + ADD SUBTRACT * MULTIPLY / DIVIDE ** exponentiation 40

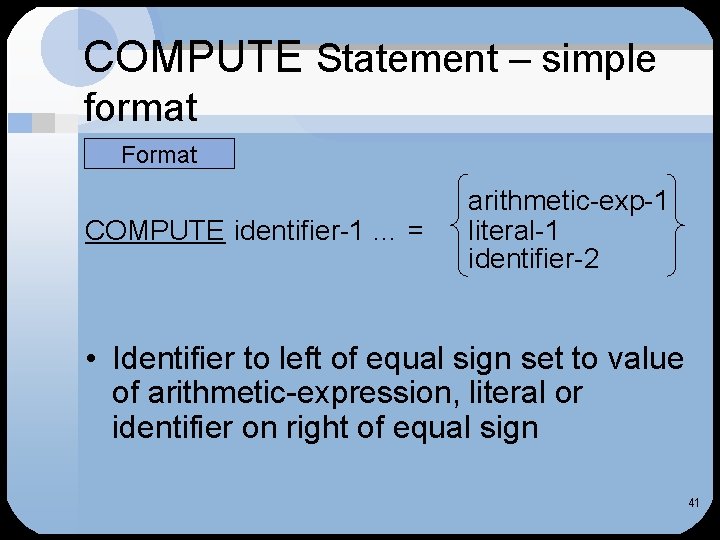

COMPUTE Statement – simple format Format COMPUTE identifier-1 … = arithmetic-exp-1 literal-1 identifier-2 • Identifier to left of equal sign set to value of arithmetic-expression, literal or identifier on right of equal sign 41

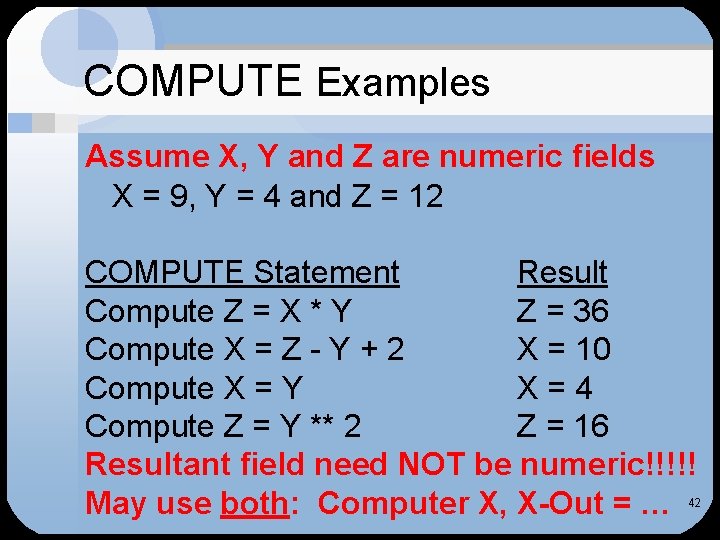

COMPUTE Examples Assume X, Y and Z are numeric fields X = 9, Y = 4 and Z = 12 COMPUTE Statement Result Compute Z = X * Y Z = 36 Compute X = Z - Y + 2 X = 10 Compute X = Y X=4 Compute Z = Y ** 2 Z = 16 Resultant field need NOT be numeric!!!!! May use both: Computer X, X-Out = … 42

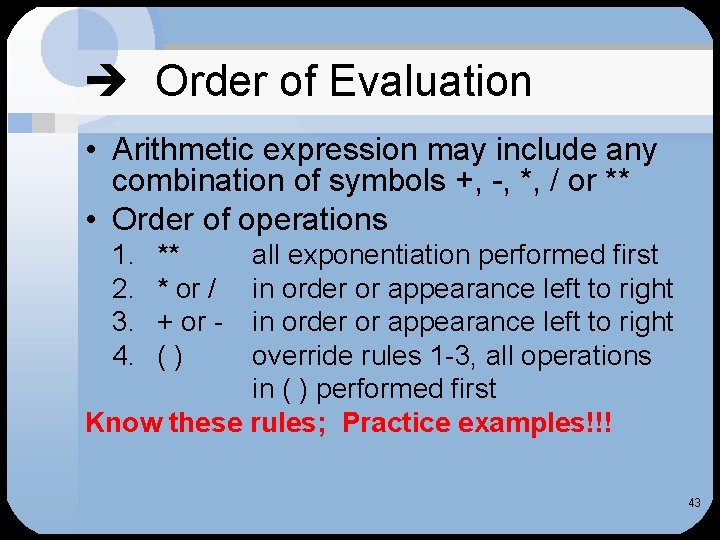

Order of Evaluation • Arithmetic expression may include any combination of symbols +, -, *, / or ** • Order of operations 1. 2. 3. 4. ** * or / + or () all exponentiation performed first in order or appearance left to right override rules 1 -3, all operations in ( ) performed first Know these rules; Practice examples!!! 43
COMPUTE Examples Assume X, Y and Z are numeric fields X = 6, Y = 18 and Z = 5 What are the order of operations? ? ? COMPUTE Statement Compute Z = Y / X + 3 Compute Z = Y / (X + 3) Compute Y = Z + X * 10 Compute Y = Z * X / 10 Result Z=6 Z=2 Y = 65 Y=3 44

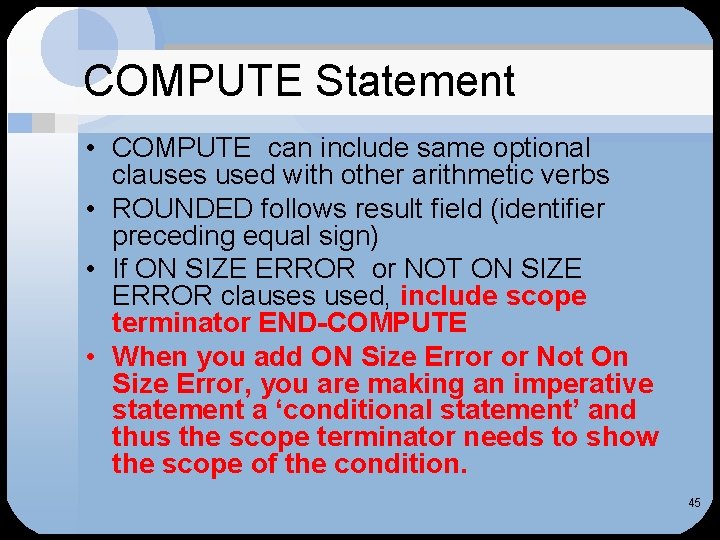

COMPUTE Statement • COMPUTE can include same optional clauses used with other arithmetic verbs • ROUNDED follows result field (identifier preceding equal sign) • If ON SIZE ERROR or NOT ON SIZE ERROR clauses used, include scope terminator END-COMPUTE • When you add ON Size Error or Not On Size Error, you are making an imperative statement a ‘conditional statement’ and thus the scope terminator needs to show the scope of the condition. 45
Signed Numbers • Use S in PIC clause of result field if – Numbers used in calculation may be negative – Calculation may produce negative results • PIC clause without S assumed to be unsigned – If negative result stored in unsigned field, sign not retained 46
Intrinsic Functions • Built-in procedures to perform particular task like – Find square root of number – Convert letters to uppercase – Get current date • Approved as extensions to COBOL standard in 1989 • Now included in many compilers 47

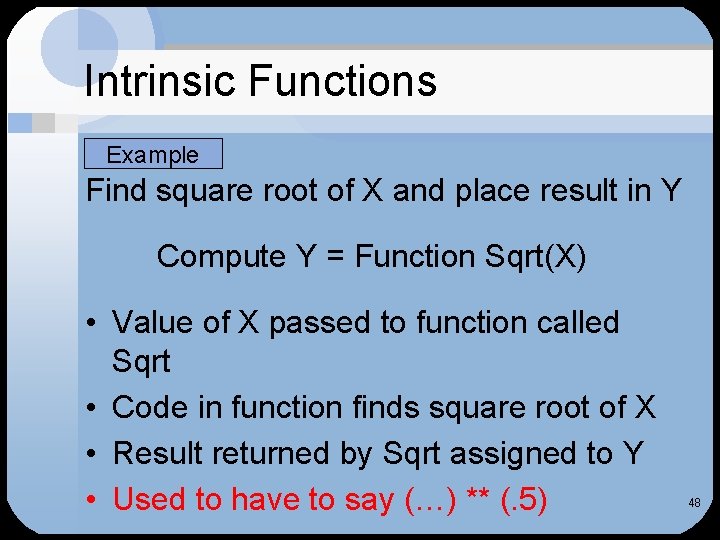

Intrinsic Functions Example Find square root of X and place result in Y Compute Y = Function Sqrt(X) • Value of X passed to function called Sqrt • Code in function finds square root of X • Result returned by Sqrt assigned to Y • Used to have to say (…) ** (. 5) 48

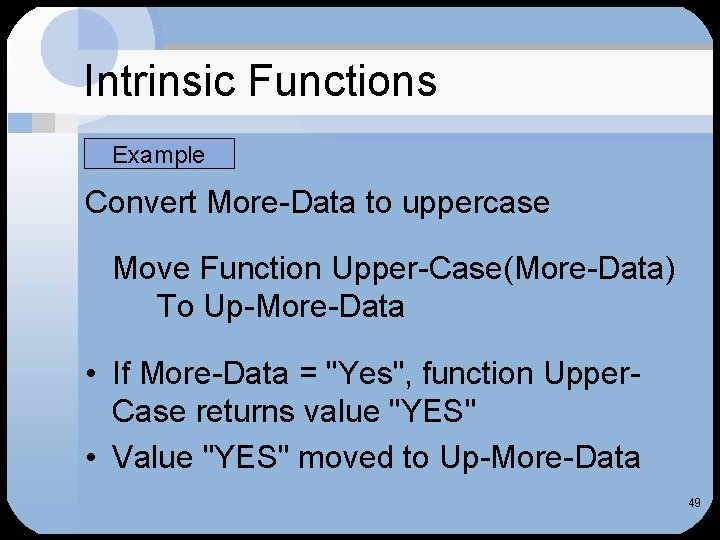

Intrinsic Functions Example Convert More-Data to uppercase Move Function Upper-Case(More-Data) To Up-More-Data • If More-Data = "Yes", function Upper. Case returns value "YES" • Value "YES" moved to Up-More-Data 49
Intrinsic Functions – format!! Format FUNCTION function-name (argument) • Argument - input to function – May be numeric or alpha-numeric depending on function – Functions may have 0, 1 or more arguments. 50
Intrinsic Functions • Output of function - result returned after function performs its task • Function returning alphanumeric result used in statements using alphanumeric data-items (like Upper. Case) • Function returning numeric result can be used only in arithmetic expressions like SQRT( ) 51

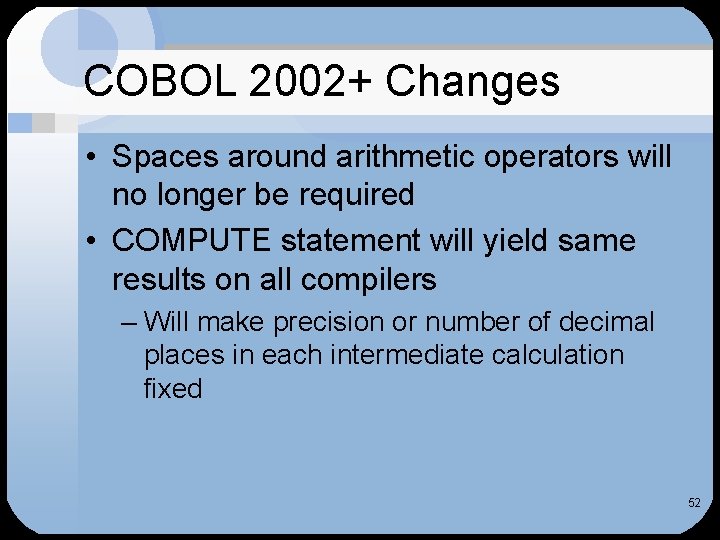

COBOL 2002+ Changes • Spaces around arithmetic operators will no longer be required • COMPUTE statement will yield same results on all compilers – Will make precision or number of decimal places in each intermediate calculation fixed 52
Chapter Summary • ADD, SUBTRACT, MULTIPLY, and DIVIDE verbs – format without GIVING • Receiving field is part of arithmetic • May not be report-item – with GIVING format • Receiving field is not part of arithmetic • May be report-item 53

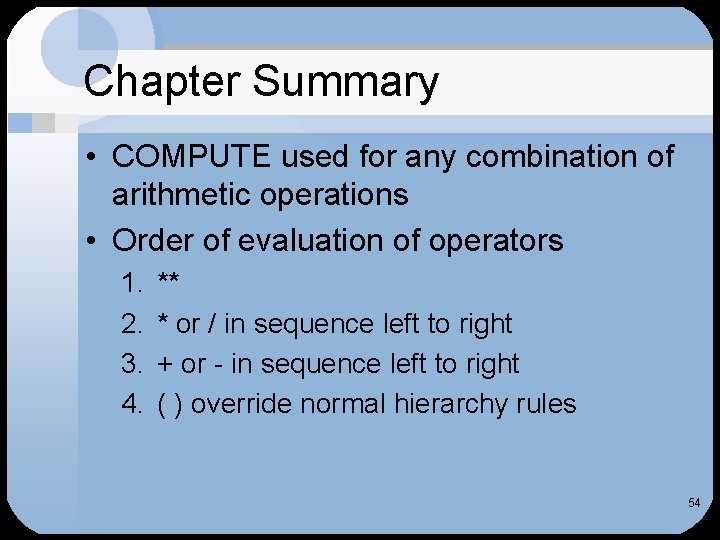

Chapter Summary • COMPUTE used for any combination of arithmetic operations • Order of evaluation of operators 1. 2. 3. 4. ** * or / in sequence left to right + or - in sequence left to right ( ) override normal hierarchy rules 54
Chapter Summary • ROUNDED can follow receiving field in any arithmetic verb • ON SIZE ERROR, NOT ON SIZE ERROR – Can be used with any arithmetic verb – Include scope terminator (e. g. , END-ADD) 55

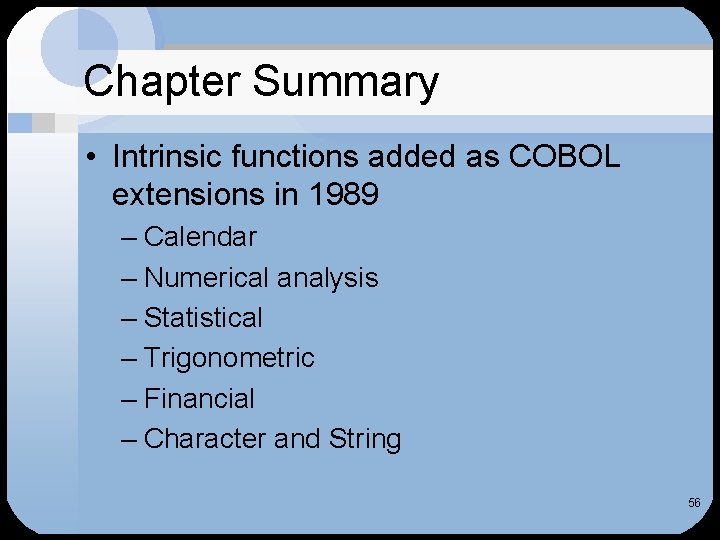

Chapter Summary • Intrinsic functions added as COBOL extensions in 1989 – Calendar – Numerical analysis – Statistical – Trigonometric – Financial – Character and String 56
