Structure of Programming Languages Names Bindings Type Checking

Structure of Programming Languages Names, Bindings, Type Checking, and Scopes

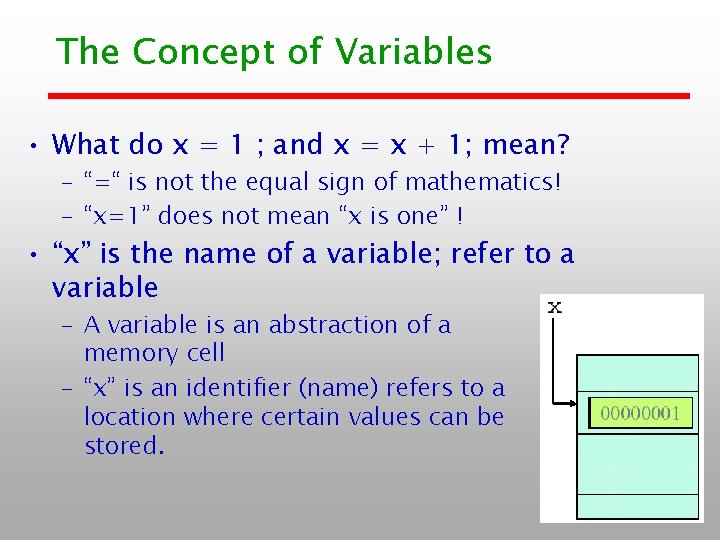

The Concept of Variables • What do x = 1 ; and x = x + 1; mean? – “=“ is not the equal sign of mathematics! – “x=1” does not mean “x is one” ! • “x” is the name of a variable; refer to a variable – A variable is an abstraction of a memory cell – “x” is an identifier (name) refers to a location where certain values can be stored. 2

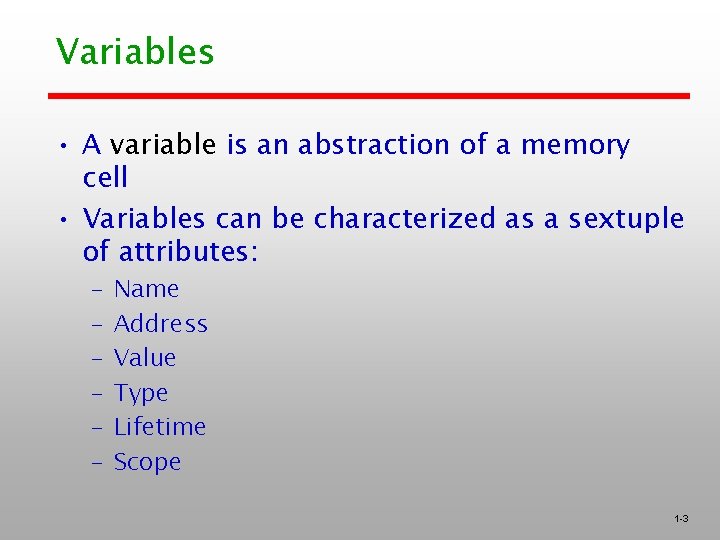

Variables • A variable is an abstraction of a memory cell • Variables can be characterized as a sextuple of attributes: – – – Name Address Value Type Lifetime Scope 1 -3

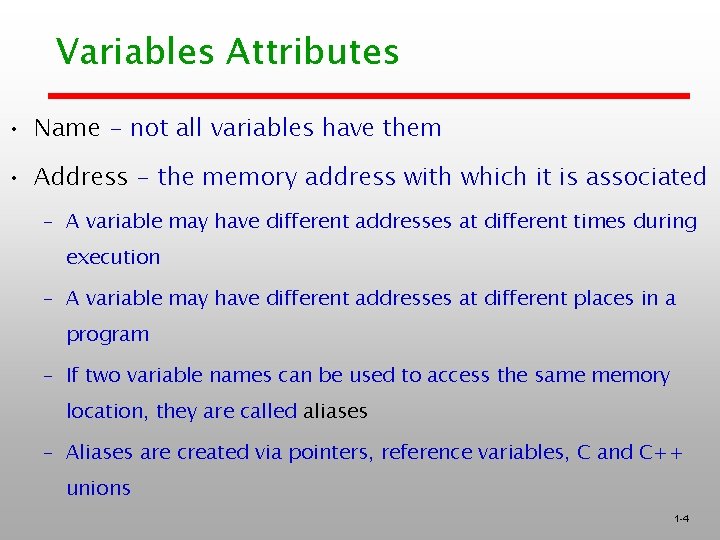

Variables Attributes • Name - not all variables have them • Address - the memory address with which it is associated – A variable may have different addresses at different times during execution – A variable may have different addresses at different places in a program – If two variable names can be used to access the same memory location, they are called aliases – Aliases are created via pointers, reference variables, C and C++ unions 1 -4

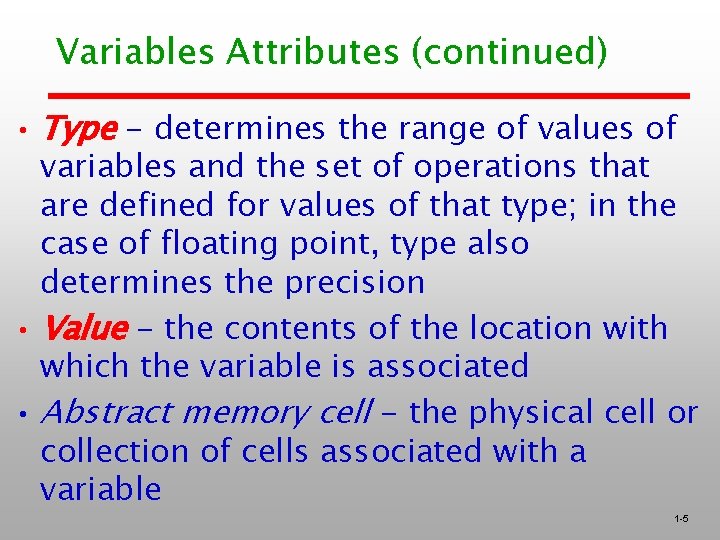

Variables Attributes (continued) • Type - determines the range of values of variables and the set of operations that are defined for values of that type; in the case of floating point, type also determines the precision • Value - the contents of the location with which the variable is associated • Abstract memory cell - the physical cell or collection of cells associated with a variable 1 -5

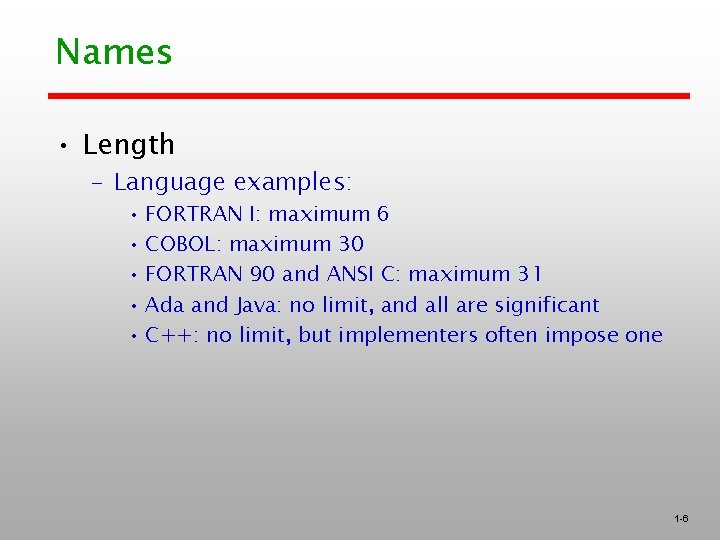

Names • Length – Language examples: • FORTRAN I: maximum 6 • COBOL: maximum 30 • FORTRAN 90 and ANSI C: maximum 31 • Ada and Java: no limit, and all are significant • C++: no limit, but implementers often impose one 1 -6

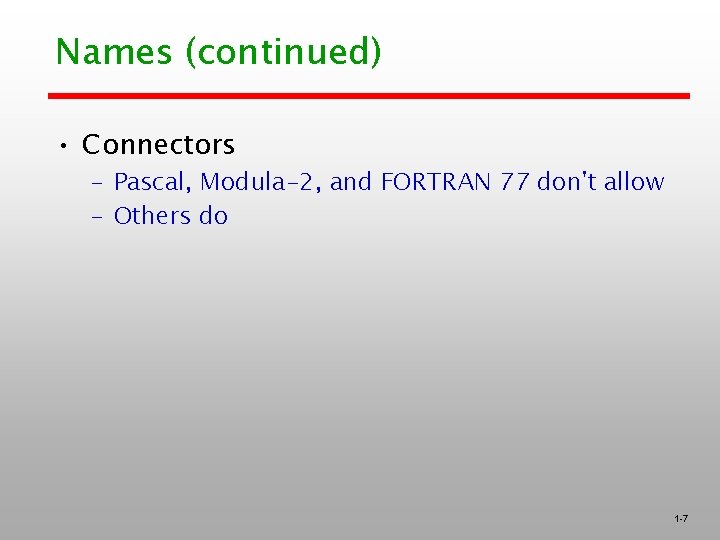

Names (continued) • Connectors – Pascal, Modula-2, and FORTRAN 77 don't allow – Others do 1 -7

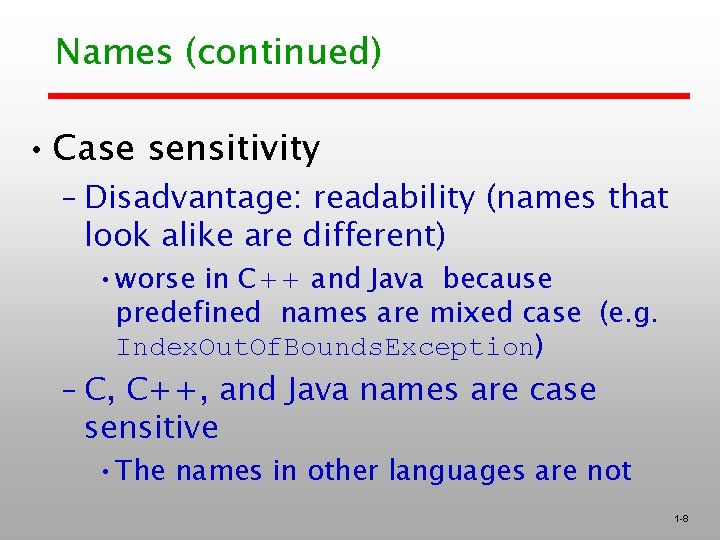

Names (continued) • Case sensitivity – Disadvantage: readability (names that look alike are different) • worse in C++ and Java because predefined names are mixed case (e. g. Index. Out. Of. Bounds. Exception) – C, C++, and Java names are case sensitive • The names in other languages are not 1 -8

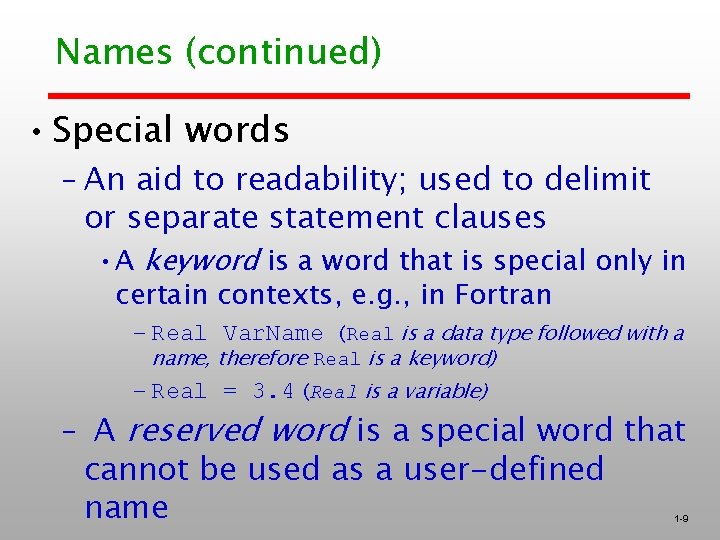

Names (continued) • Special words – An aid to readability; used to delimit or separate statement clauses • A keyword is a word that is special only in certain contexts, e. g. , in Fortran – Real Var. Name (Real is a data type followed with a name, therefore Real is a keyword) – Real = 3. 4 (Real is a variable) – A reserved word is a special word that cannot be used as a user-defined name 1 -9

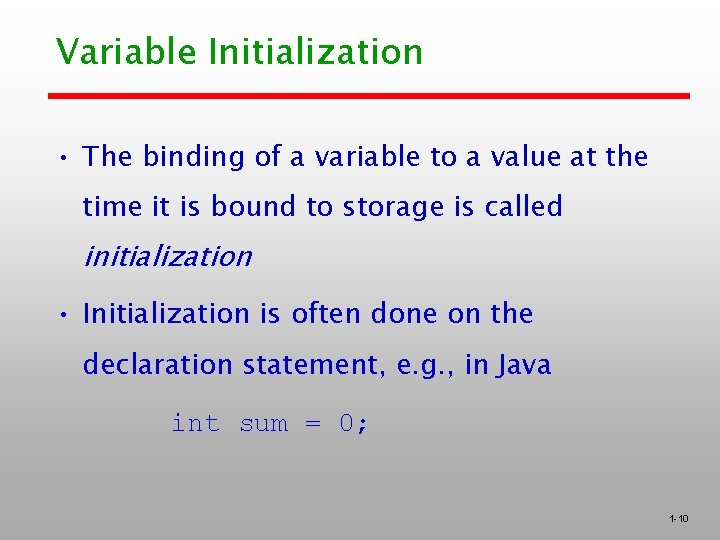

Variable Initialization • The binding of a variable to a value at the time it is bound to storage is called initialization • Initialization is often done on the declaration statement, e. g. , in Java int sum = 0; 1 -10

The Concept of Binding • A binding is an association between a name and the object its represents, such as between an attribute and an entity, or between an operation and a symbol • Binding time is the time at which a binding takes place. 1 -11

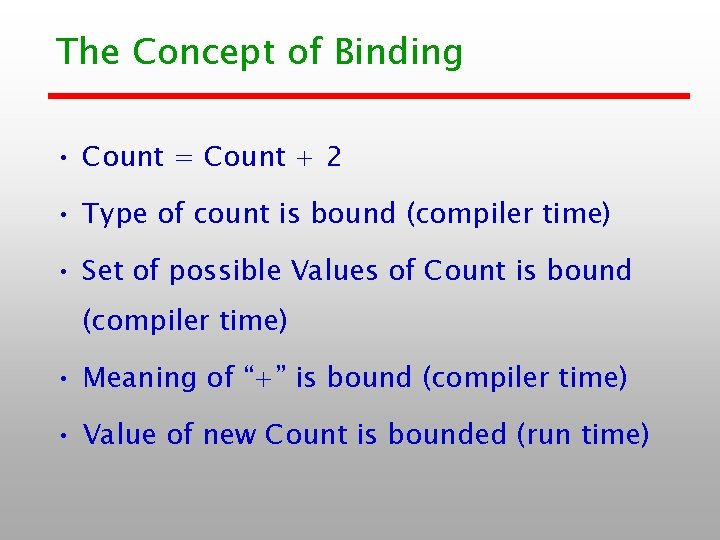

The Concept of Binding • Count = Count + 2 • Type of count is bound (compiler time) • Set of possible Values of Count is bound (compiler time) • Meaning of “+” is bound (compiler time) • Value of new Count is bounded (run time)

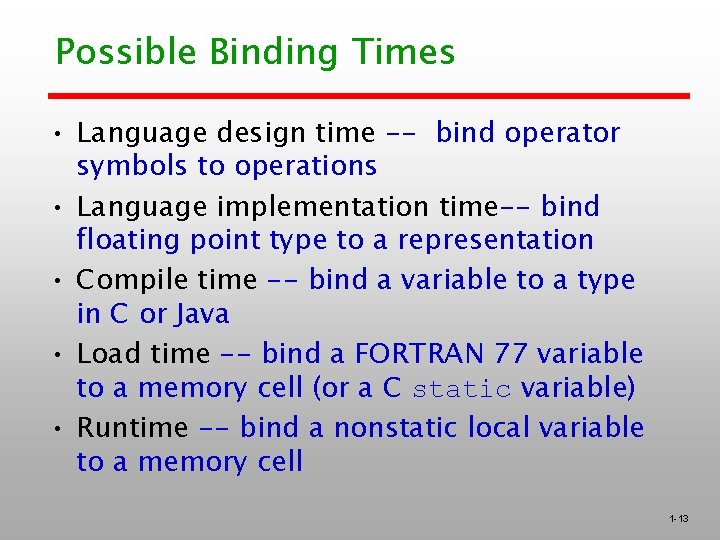

Possible Binding Times • Language design time -- bind operator symbols to operations • Language implementation time-- bind floating point type to a representation • Compile time -- bind a variable to a type in C or Java • Load time -- bind a FORTRAN 77 variable to a memory cell (or a C static variable) • Runtime -- bind a nonstatic local variable to a memory cell 1 -13

Static and Dynamic Binding • A binding is static if it first occurs before run time and remains unchanged throughout program execution. 1 -14

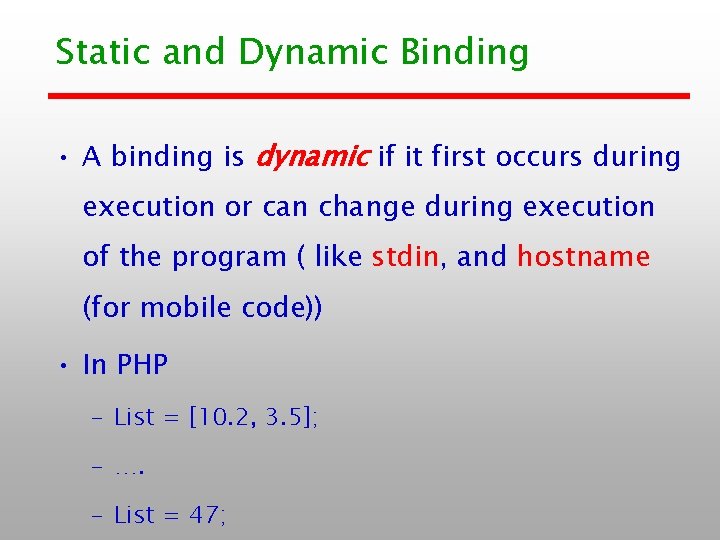

Static and Dynamic Binding • A binding is dynamic if it first occurs during execution or can change during execution of the program ( like stdin, and hostname (for mobile code)) • In PHP – List = [10. 2, 3. 5]; – …. – List = 47;

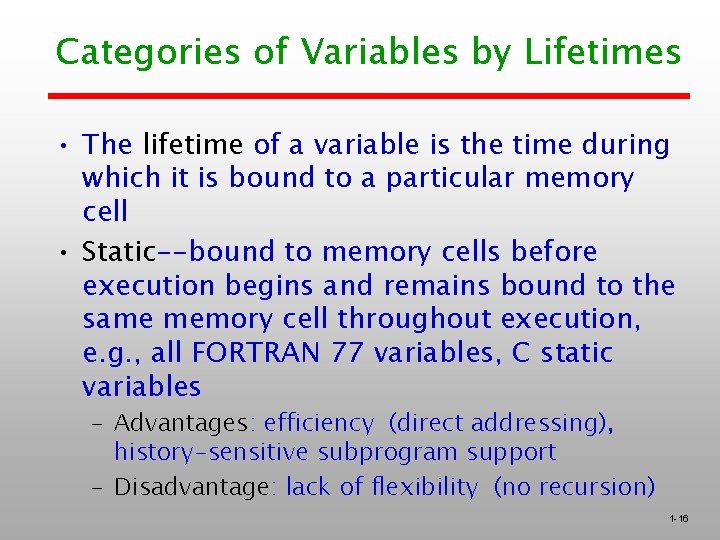

Categories of Variables by Lifetimes • The lifetime of a variable is the time during which it is bound to a particular memory cell • Static--bound to memory cells before execution begins and remains bound to the same memory cell throughout execution, e. g. , all FORTRAN 77 variables, C static variables – Advantages: efficiency (direct addressing), history-sensitive subprogram support – Disadvantage: lack of flexibility (no recursion) 1 -16

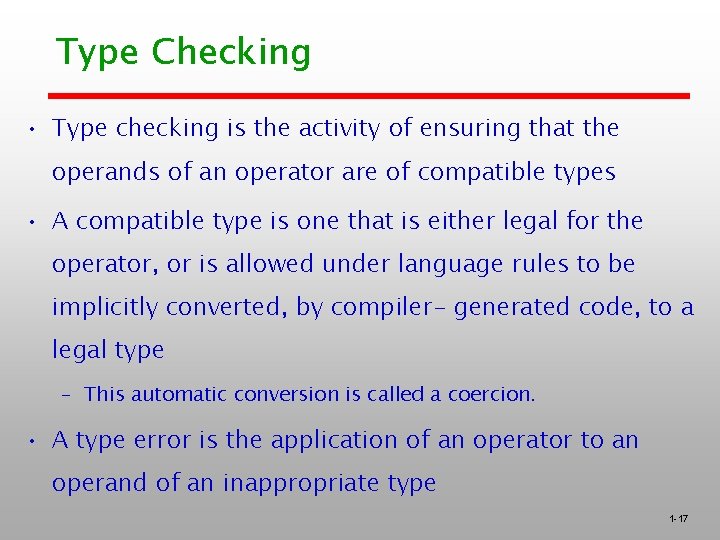

Type Checking • Type checking is the activity of ensuring that the operands of an operator are of compatible types • A compatible type is one that is either legal for the operator, or is allowed under language rules to be implicitly converted, by compiler- generated code, to a legal type – This automatic conversion is called a coercion. • A type error is the application of an operator to an operand of an inappropriate type 1 -17

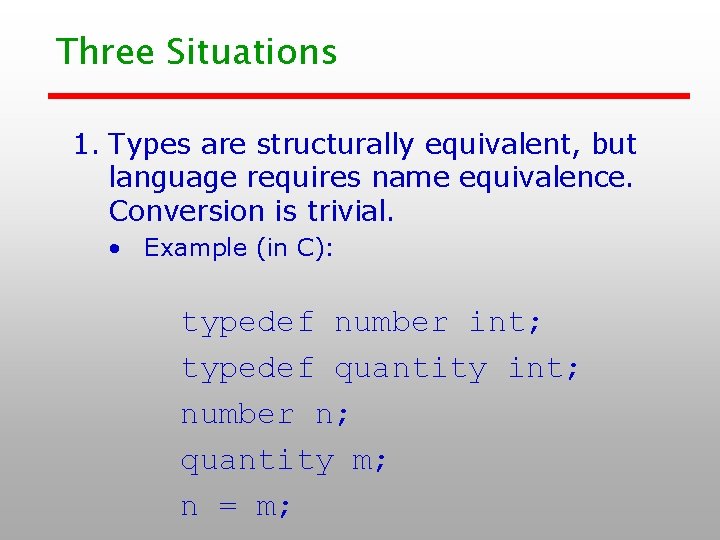

Three Situations 1. Types are structurally equivalent, but language requires name equivalence. Conversion is trivial. • Example (in C): typedef number int; typedef quantity int; number n; quantity m; n = m;

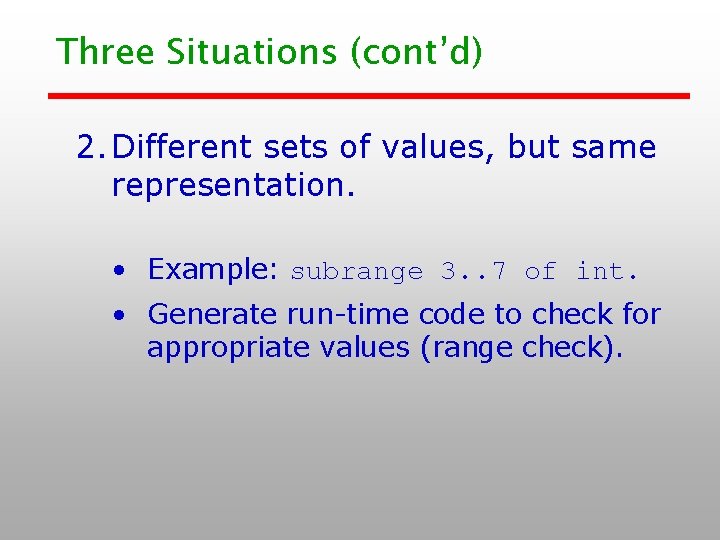

Three Situations (cont’d) 2. Different sets of values, but same representation. • Example: subrange 3. . 7 of int. • Generate run-time code to check for appropriate values (range check).

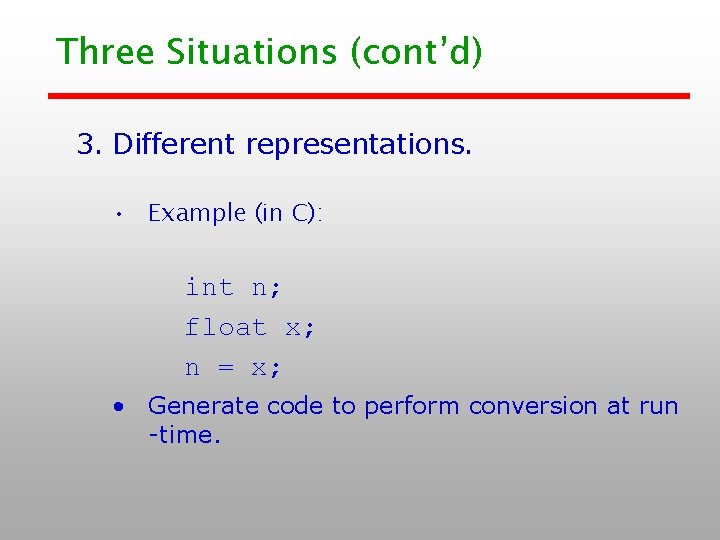

Three Situations (cont’d) 3. Different representations. • Example (in C): int n; float x; n = x; • Generate code to perform conversion at run -time.

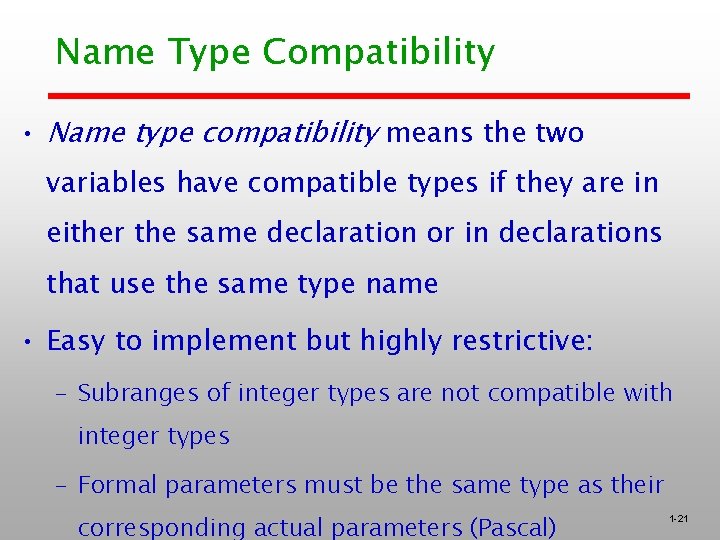

Name Type Compatibility • Name type compatibility means the two variables have compatible types if they are in either the same declaration or in declarations that use the same type name • Easy to implement but highly restrictive: – Subranges of integer types are not compatible with integer types – Formal parameters must be the same type as their corresponding actual parameters (Pascal) 1 -21

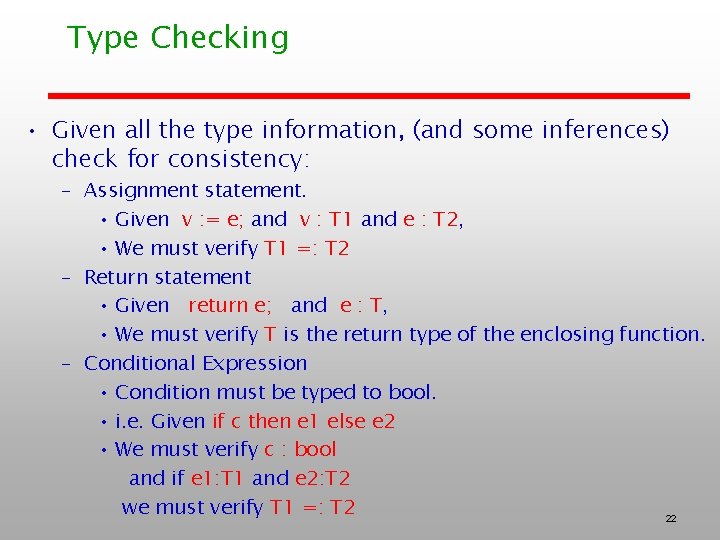

Type Checking • Given all the type information, (and some inferences) check for consistency: – Assignment statement. • Given v : = e; and v : T 1 and e : T 2, • We must verify T 1 =: T 2 – Return statement • Given return e; and e : T, • We must verify T is the return type of the enclosing function. – Conditional Expression • Condition must be typed to bool. • i. e. Given if c then e 1 else e 2 • We must verify c : bool and if e 1: T 1 and e 2: T 2 we must verify T 1 =: T 2 22

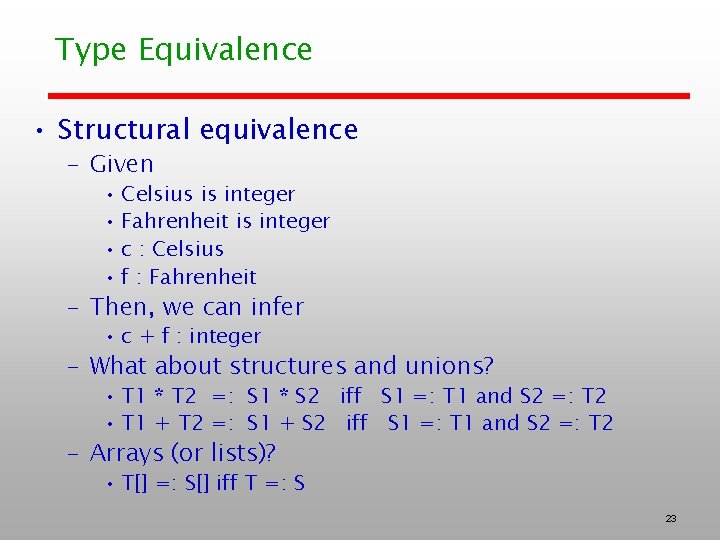

Type Equivalence • Structural equivalence – Given • Celsius is integer • Fahrenheit is integer • c : Celsius • f : Fahrenheit – Then, we can infer • c + f : integer – What about structures and unions? • T 1 * T 2 =: S 1 * S 2 iff S 1 =: T 1 and S 2 =: T 2 • T 1 + T 2 =: S 1 + S 2 iff S 1 =: T 1 and S 2 =: T 2 – Arrays (or lists)? • T[] =: S[] iff T =: S 23

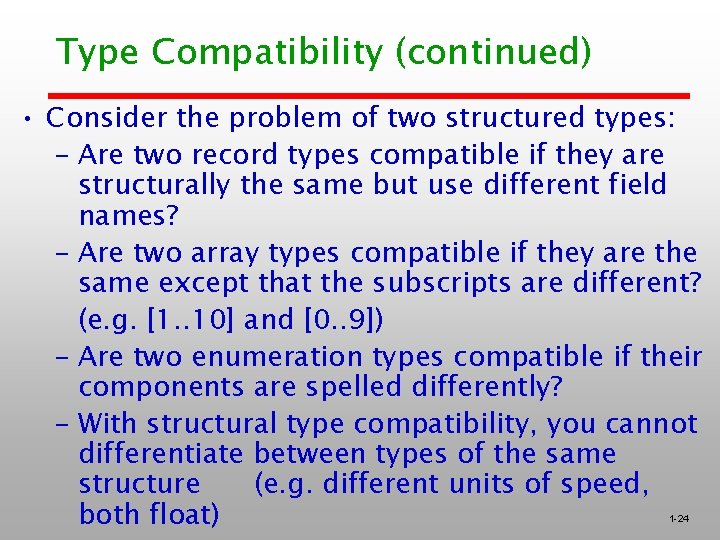

Type Compatibility (continued) • Consider the problem of two structured types: – Are two record types compatible if they are structurally the same but use different field names? – Are two array types compatible if they are the same except that the subscripts are different? (e. g. [1. . 10] and [0. . 9]) – Are two enumeration types compatible if their components are spelled differently? – With structural type compatibility, you cannot differentiate between types of the same structure (e. g. different units of speed, both float) 1 -24

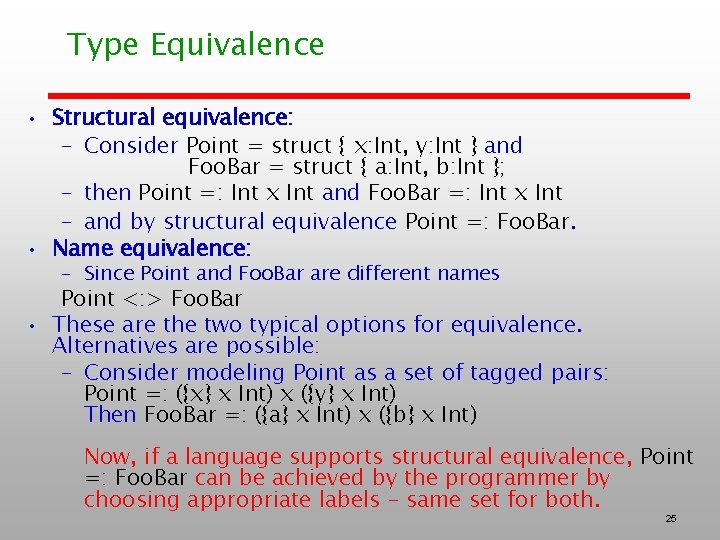

Type Equivalence • Structural equivalence: – Consider Point = struct { x: Int, y: Int } and Foo. Bar = struct { a: Int, b: Int }; – then Point =: Int x Int and Foo. Bar =: Int x Int – and by structural equivalence Point =: Foo. Bar. • Name equivalence: – Since Point and Foo. Bar are different names Point <: > Foo. Bar • These are the two typical options for equivalence. Alternatives are possible: – Consider modeling Point as a set of tagged pairs: Point =: ({x} x Int) x ({y} x Int) Then Foo. Bar =: ({a} x Int) x ({b} x Int) Now, if a language supports structural equivalence, Point =: Foo. Bar can be achieved by the programmer by choosing appropriate labels – same set for both. 25

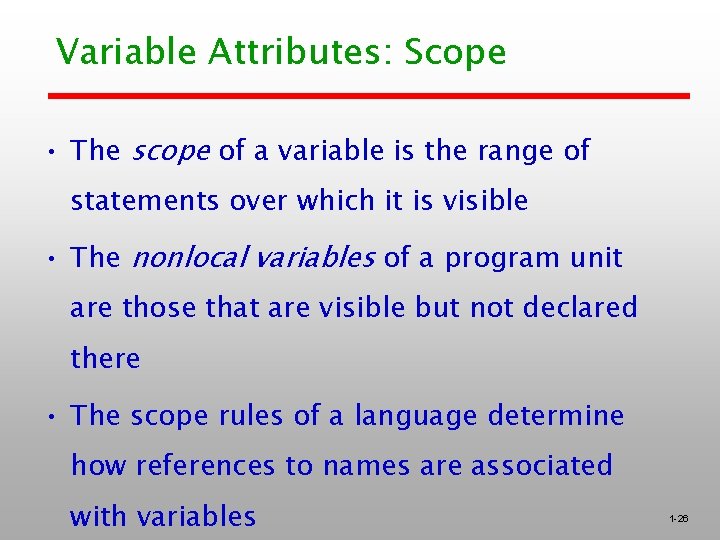

Variable Attributes: Scope • The scope of a variable is the range of statements over which it is visible • The nonlocal variables of a program unit are those that are visible but not declared there • The scope rules of a language determine how references to names are associated with variables 1 -26

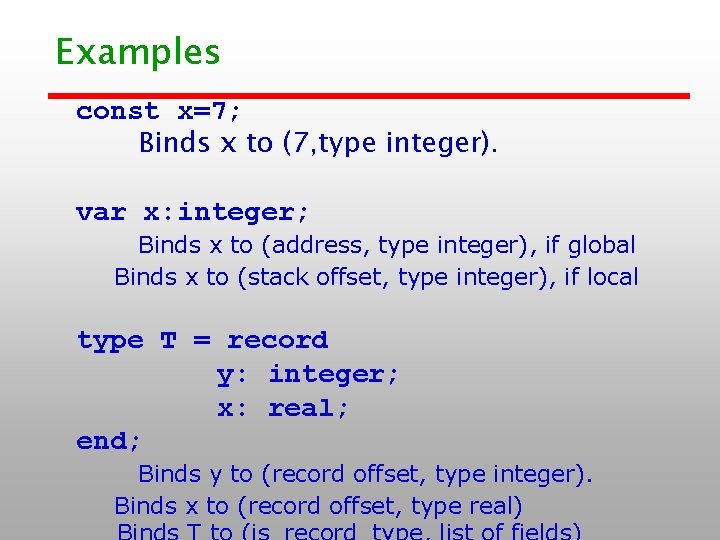

Examples const x=7; Binds x to (7, type integer). var x: integer; Binds x to (address, type integer), if global Binds x to (stack offset, type integer), if local type T = record y: integer; x: real; end; Binds y to (record offset, type integer). Binds x to (record offset, type real)

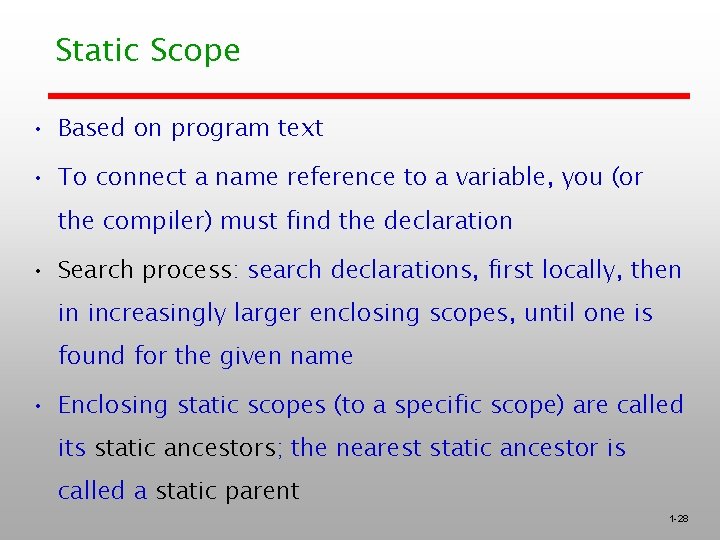

Static Scope • Based on program text • To connect a name reference to a variable, you (or the compiler) must find the declaration • Search process: search declarations, first locally, then in increasingly larger enclosing scopes, until one is found for the given name • Enclosing static scopes (to a specific scope) are called its static ancestors; the nearest static ancestor is called a static parent 1 -28

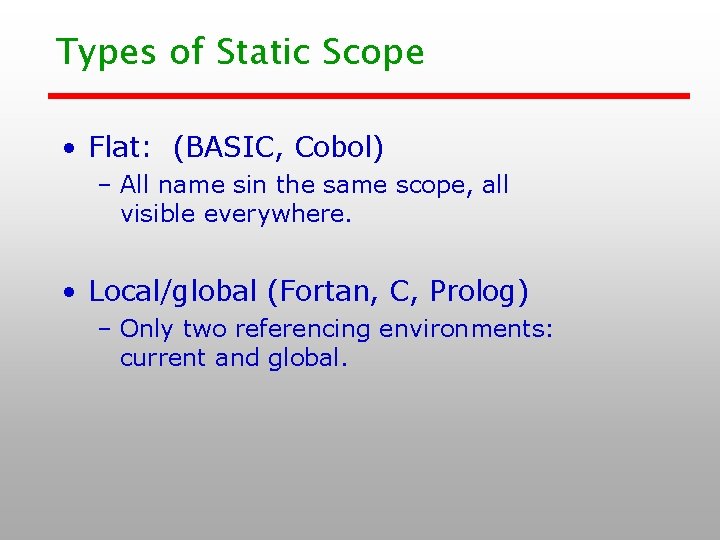

Types of Static Scope • Flat: (BASIC, Cobol) – All name sin the same scope, all visible everywhere. • Local/global (Fortan, C, Prolog) – Only two referencing environments: current and global.

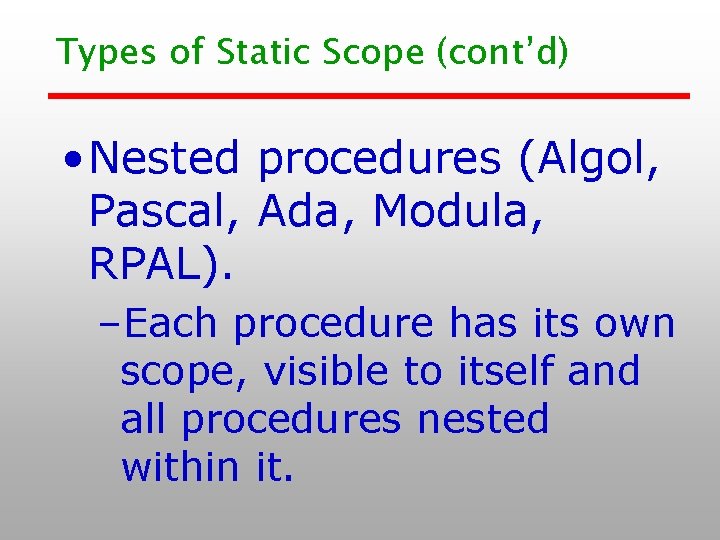

Types of Static Scope (cont’d) • Nested procedures (Algol, Pascal, Ada, Modula, RPAL). –Each procedure has its own scope, visible to itself and all procedures nested within it.

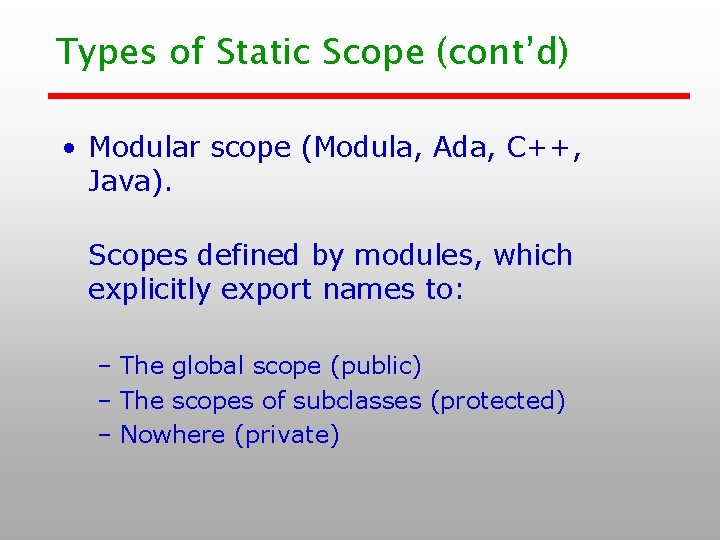

Types of Static Scope (cont’d) • Modular scope (Modula, Ada, C++, Java). Scopes defined by modules, which explicitly export names to: – The global scope (public) – The scopes of subclasses (protected) – Nowhere (private)

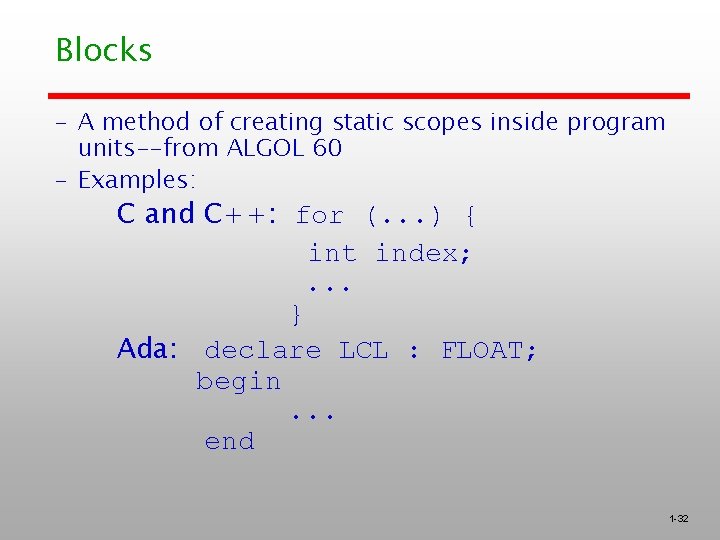

Blocks – A method of creating static scopes inside program units--from ALGOL 60 – Examples: C and C++: for (. . . ) { int index; . . . } Ada: declare LCL : FLOAT; begin. . . end 1 -32

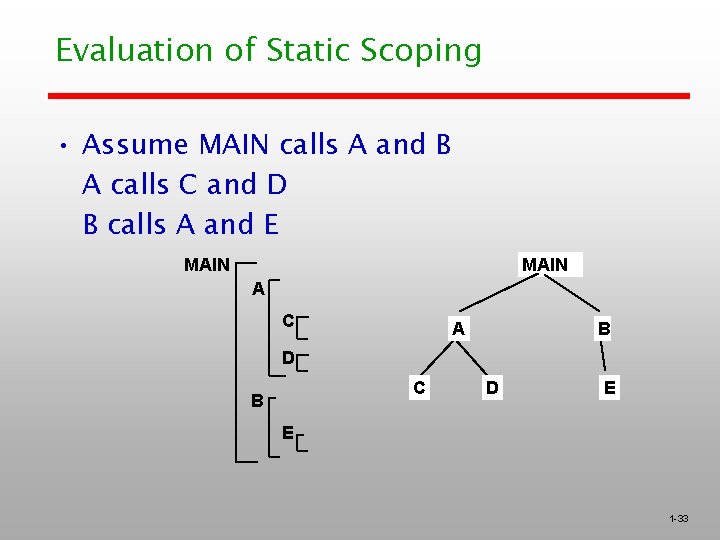

Evaluation of Static Scoping • Assume MAIN calls A and B A calls C and D B calls A and E MAIN A C A B D C B D E E 1 -33

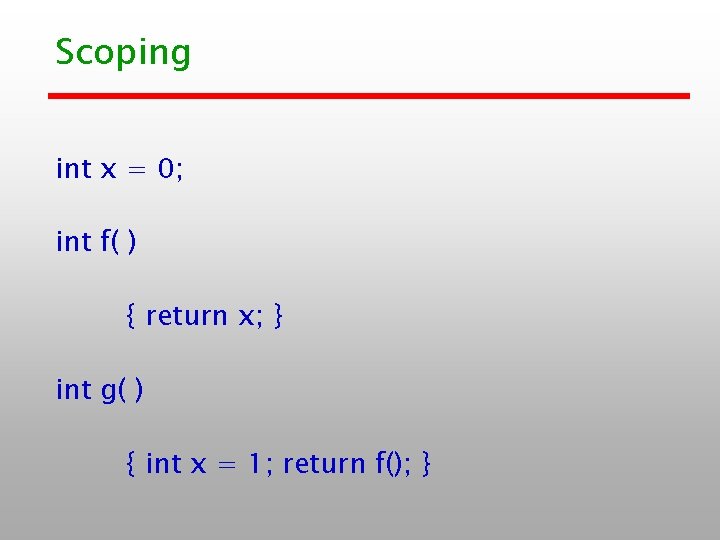

Scoping int x = 0; int f( ) { return x; } int g( ) { int x = 1; return f(); }

Why Scope? • Given multiple bindings of a single name, how do we know which binding does an occurrence of this name refer to?

An Example of Block Scope in C

Static vs. Dynamic Scoping 37

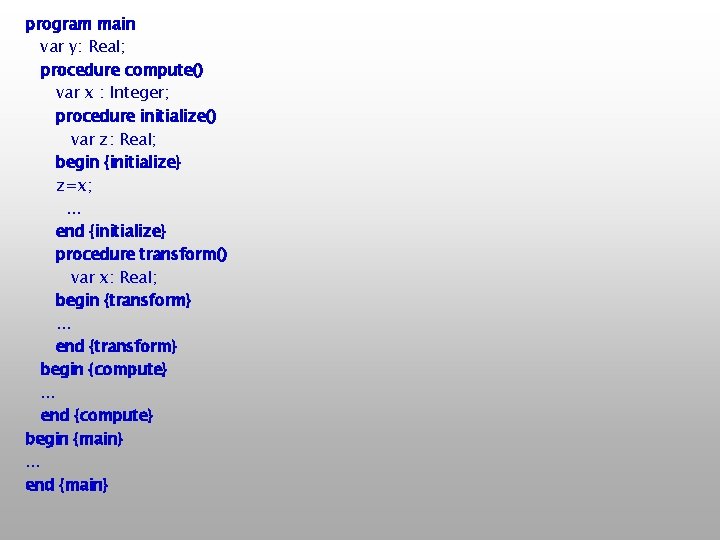

program main var y: Real; procedure compute() var x : Integer; procedure initialize() var z: Real; begin {initialize} z=x; . . . end {initialize} procedure transform() var x: Real; begin {transform}. . . end {transform} begin {compute}. . . end {compute} begin {main}. . . end {main}

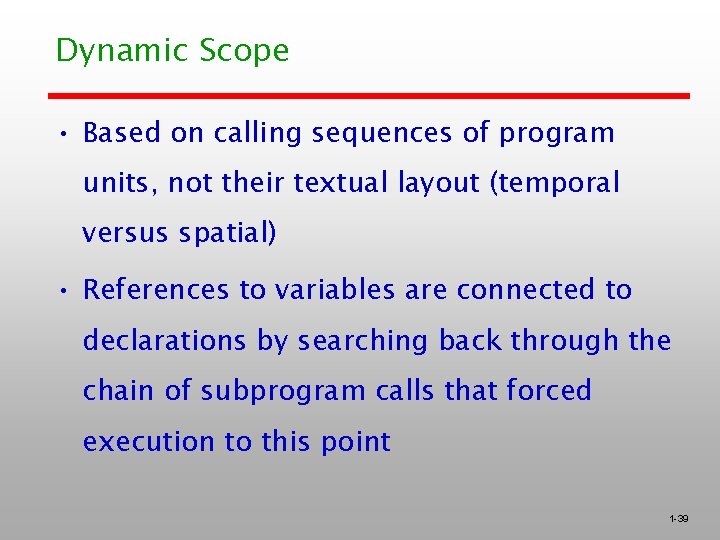

Dynamic Scope • Based on calling sequences of program units, not their textual layout (temporal versus spatial) • References to variables are connected to declarations by searching back through the chain of subprogram calls that forced execution to this point 1 -39

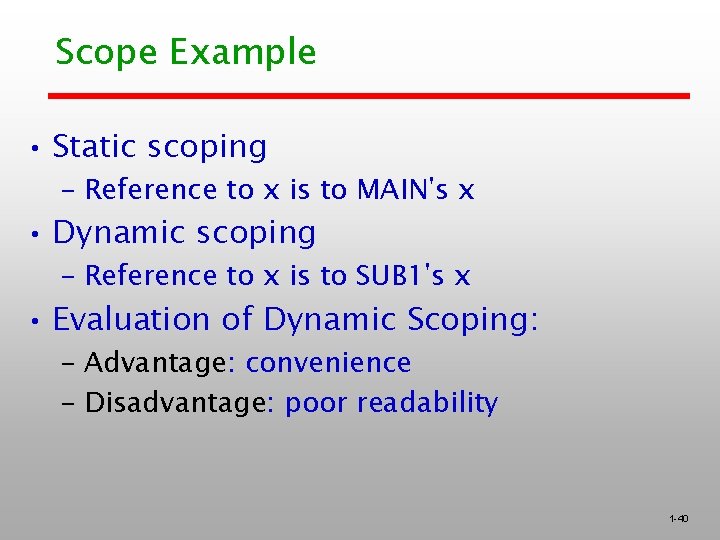

Scope Example • Static scoping – Reference to x is to MAIN's x • Dynamic scoping – Reference to x is to SUB 1's x • Evaluation of Dynamic Scoping: – Advantage: convenience – Disadvantage: poor readability 1 -40

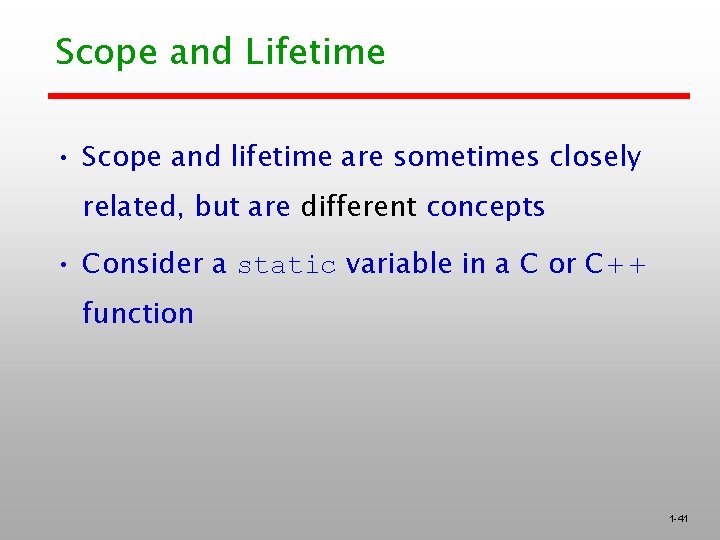

Scope and Lifetime • Scope and lifetime are sometimes closely related, but are different concepts • Consider a static variable in a C or C++ function 1 -41

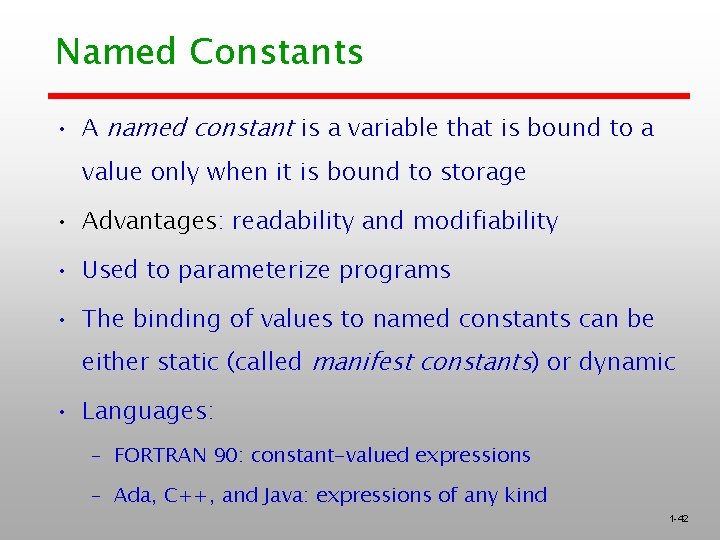

Named Constants • A named constant is a variable that is bound to a value only when it is bound to storage • Advantages: readability and modifiability • Used to parameterize programs • The binding of values to named constants can be either static (called manifest constants) or dynamic • Languages: – FORTRAN 90: constant-valued expressions – Ada, C++, and Java: expressions of any kind 1 -42

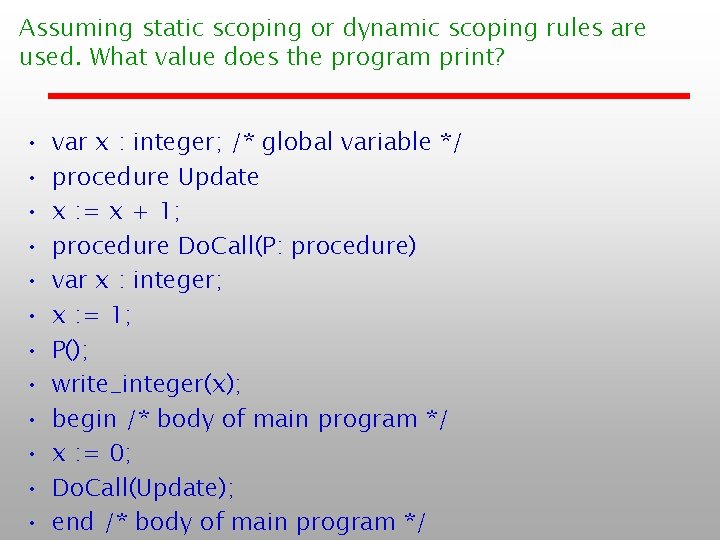

Assuming static scoping or dynamic scoping rules are used. What value does the program print? • • • var x : integer; /* global variable */ procedure Update x : = x + 1; procedure Do. Call(P: procedure) var x : integer; x : = 1; P(); write_integer(x); begin /* body of main program */ x : = 0; Do. Call(Update); end /* body of main program */

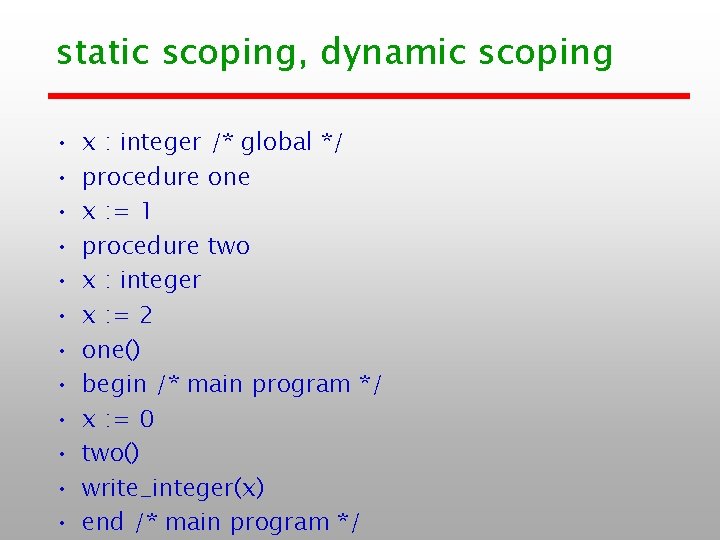

static scoping, dynamic scoping • • • x : integer /* global */ procedure one x : = 1 procedure two x : integer x : = 2 one() begin /* main program */ x : = 0 two() write_integer(x) end /* main program */

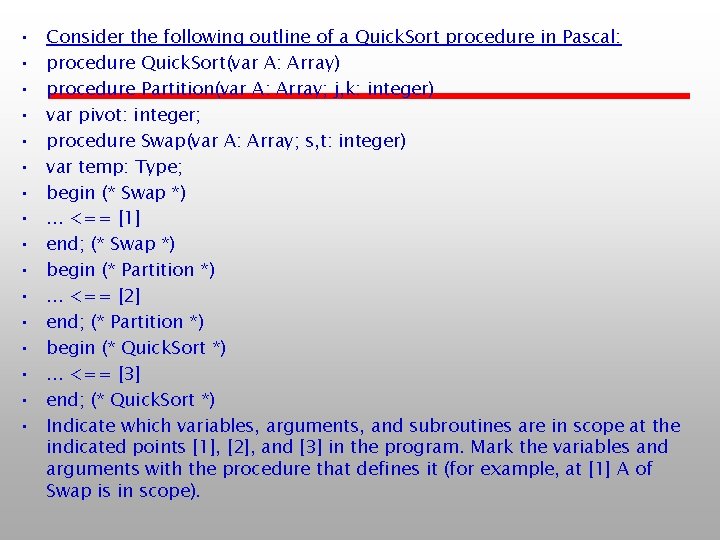

• • • • Consider the following outline of a Quick. Sort procedure in Pascal: procedure Quick. Sort(var A: Array) procedure Partition(var A: Array; j, k: integer) var pivot: integer; procedure Swap(var A: Array; s, t: integer) var temp: Type; begin (* Swap *). . . <== [1] end; (* Swap *) begin (* Partition *). . . <== [2] end; (* Partition *) begin (* Quick. Sort *). . . <== [3] end; (* Quick. Sort *) Indicate which variables, arguments, and subroutines are in scope at the indicated points [1], [2], and [3] in the program. Mark the variables and arguments with the procedure that defines it (for example, at [1] A of Swap is in scope).
