STRUCTURE OF MOTOR VARIABILITY Kyung Koh BACKGROUND Motor

STRUCTURE OF MOTOR VARIABILITY Kyung Koh

BACKGROUND Motor variability A commonly seen features in human movements Bernstein “repetition without repetition” In the past, motor variability is thought to be the result of error. Scholz and Schöner (2002) developed the uncontrolled manifold analysis (UCM) Variability which creates error Variability which does not

MOTOR VARIABILITY

EXAMPLE – KINETIC VARIABLE F 1 F 2 + error

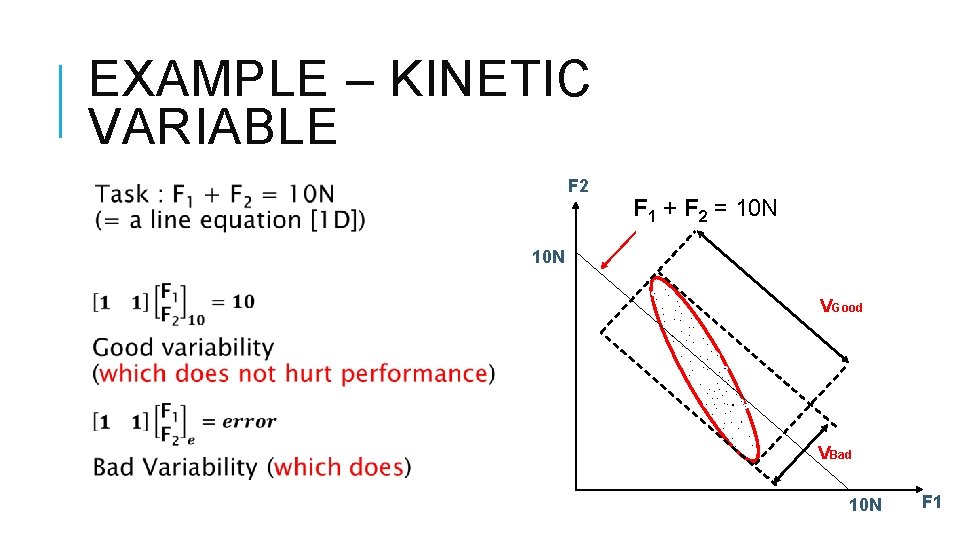

EXAMPLE – KINETIC VARIABLE F 2 F 1 + F 2 = 10 N VGood VBad 10 N F 1

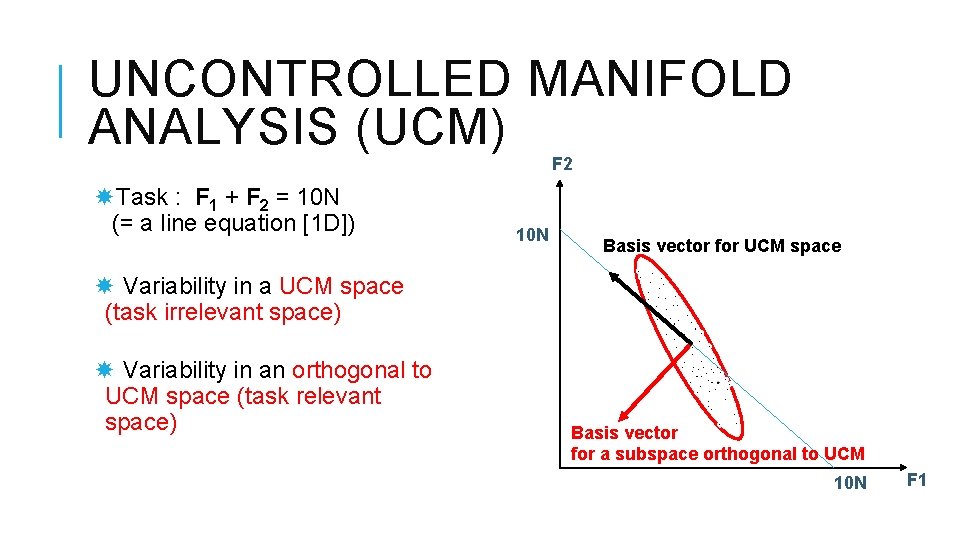

UNCONTROLLED MANIFOLD ANALYSIS (UCM) F 2 Task : F 1 + F 2 = 10 N (= a line equation [1 D]) 10 N Basis vector for UCM space Variability in a UCM space (task irrelevant space) Variability in an orthogonal to UCM space (task relevant space) Basis vector for a subspace orthogonal to UCM 10 N F 1

UNCONTROLLED MANIFOLD ANALYSIS (UCM) F 3 Task : F 1 + F 2 + F 3 = 10 N (= a plane equation [2 D]) 10 N Variability in a UCM space (task irrelevant space) Basis vectors for UCM space Variability in an orthogonal to UCM space (task relevant space) 10 N F 2 10 N F 1 Basis vector for orthogonal to UCM space

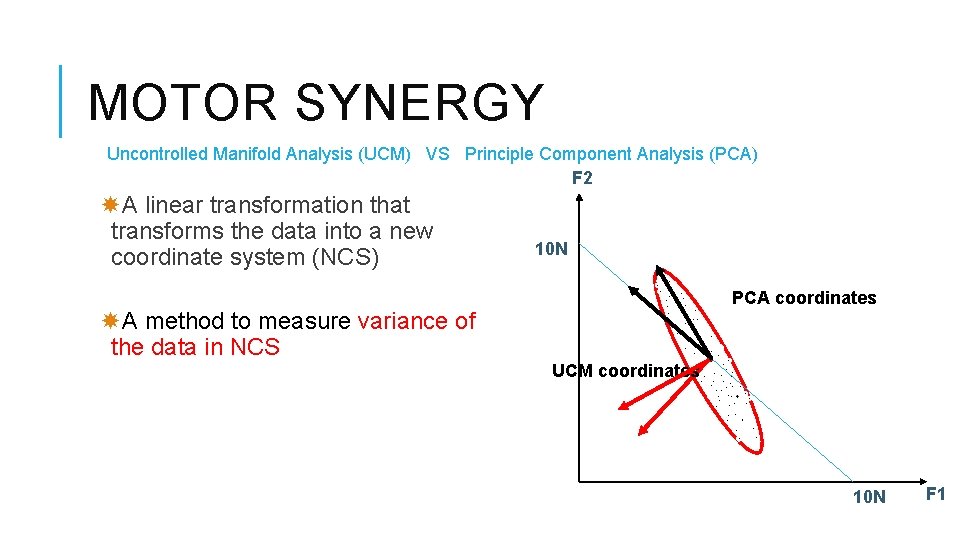

MOTOR SYNERGY Uncontrolled Manifold Analysis (UCM) VS Principle Component Analysis (PCA) F 2 A linear transformation that transforms the data into a new coordinate system (NCS) 10 N PCA coordinates A method to measure variance of the data in NCS UCM coordinates 10 N F 1

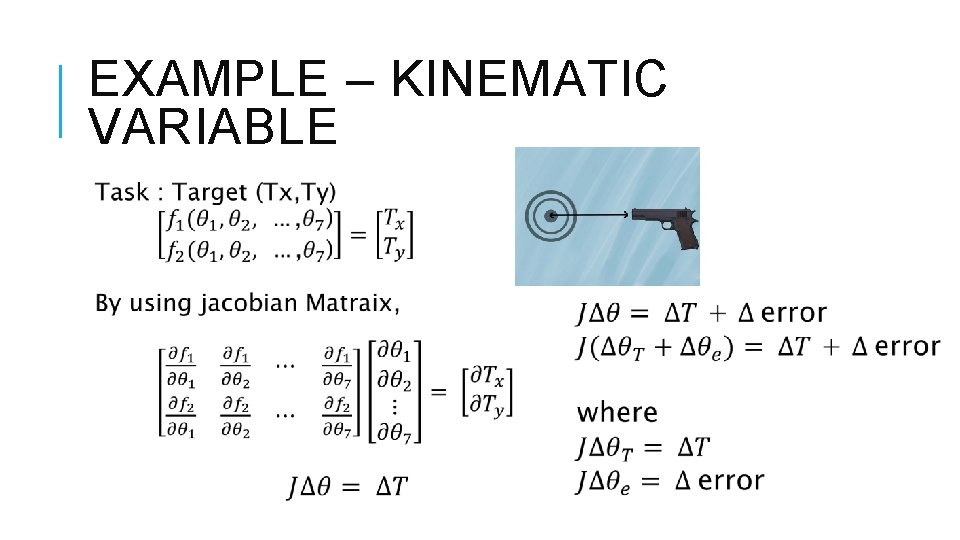

EXAMPLE – KINEMATIC VARIABLE

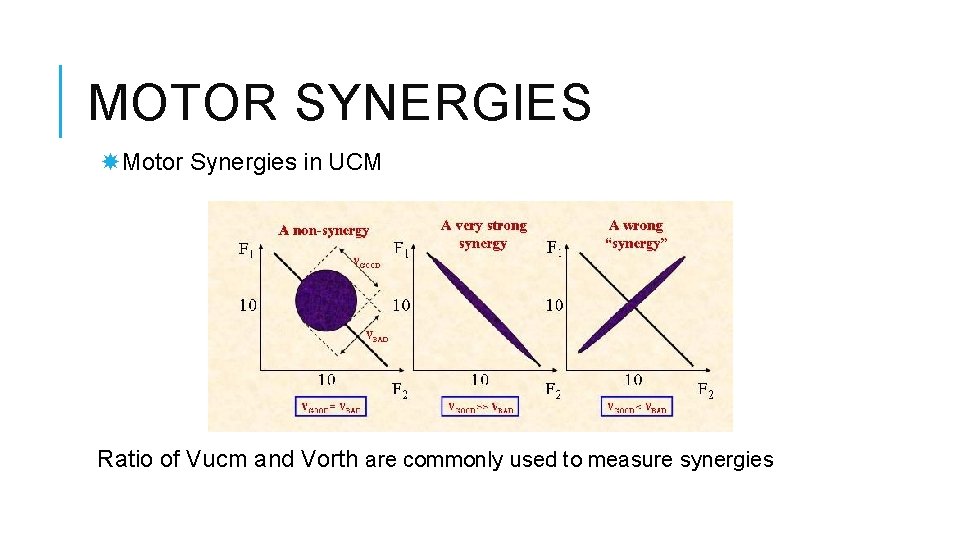

MOTOR SYNERGIES Motor Synergies in UCM Ratio of Vucm and Vorth are commonly used to measure synergies

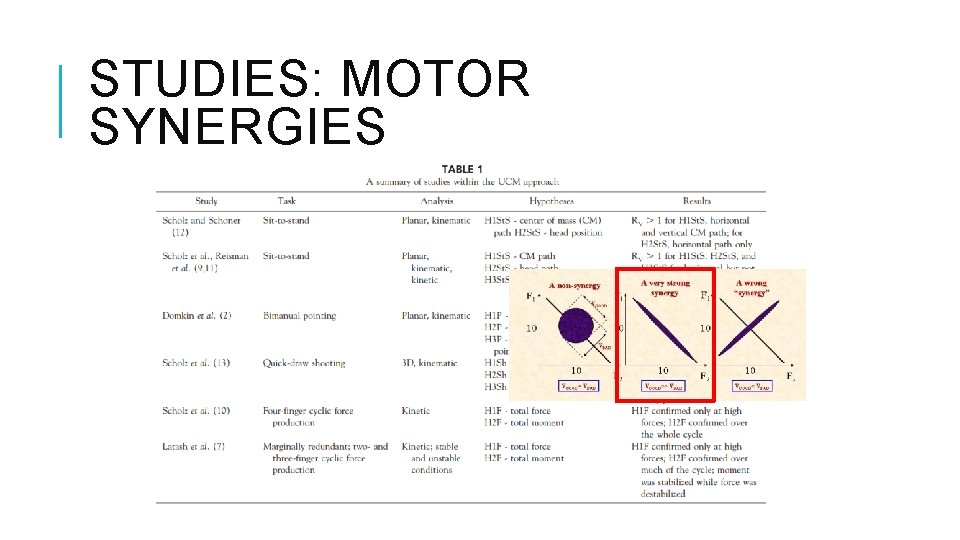

STUDIES: MOTOR SYNERGIES

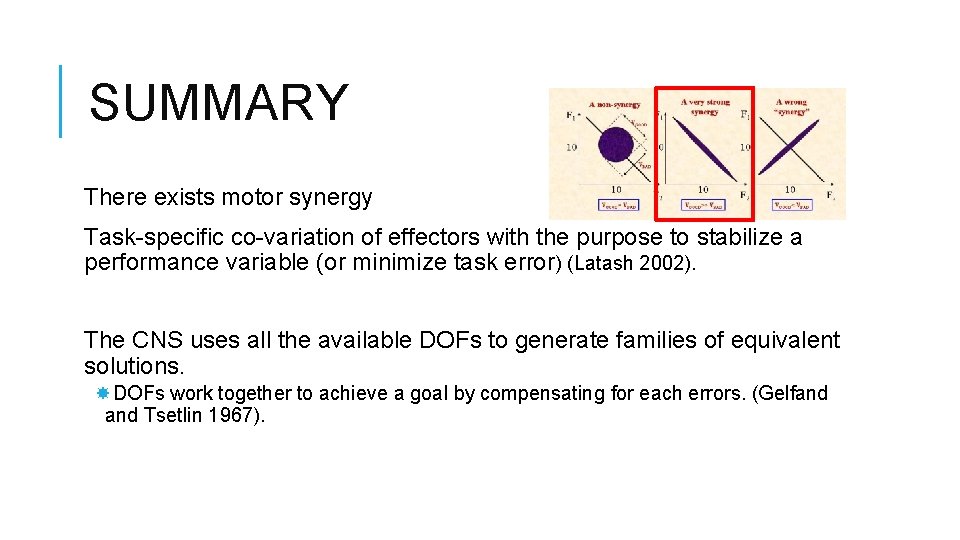

SUMMARY There exists motor synergy Task-specific co-variation of effectors with the purpose to stabilize a performance variable (or minimize task error) (Latash 2002). The CNS uses all the available DOFs to generate families of equivalent solutions. DOFs work together to achieve a goal by compensating for each errors. (Gelfand Tsetlin 1967).

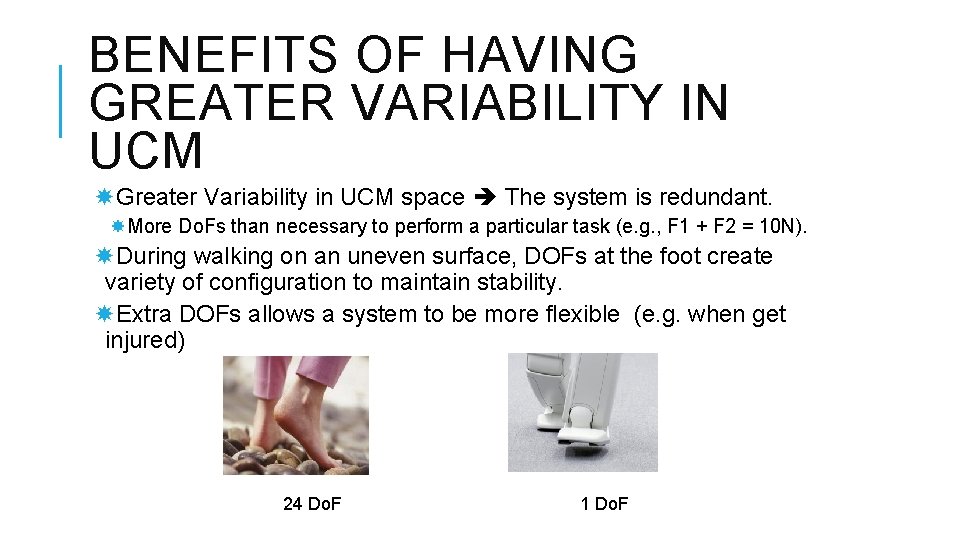

BENEFITS OF HAVING GREATER VARIABILITY IN UCM Greater Variability in UCM space The system is redundant. More Do. Fs than necessary to perform a particular task (e. g. , F 1 + F 2 = 10 N). During walking on an uneven surface, DOFs at the foot create variety of configuration to maintain stability. Extra DOFs allows a system to be more flexible (e. g. when get injured) 24 Do. F 1 Do. F
