Structure of an Atom Test Questions: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14

What Is an Atom? An atom is often referred to as the building blocks of matter Atoms are composed of smaller subatomic particles such as the proton, proton neutron, neutron and electron They have a nucleus surrounded by an electron cloud Each element is composed of one type of atom and can not be broken down into a simpler substance

Inner Structure of an Atom • Nucleus - Small, dense, positively charged center of the atom which contains most of the atom’s mass • The nucleus contains subatomic particles have certain characteristics: ØProtons - positively charged particles in the nucleus of the atom ØNeutrons - particles in the nucleus that have no charge but contribute to the atom’s mass

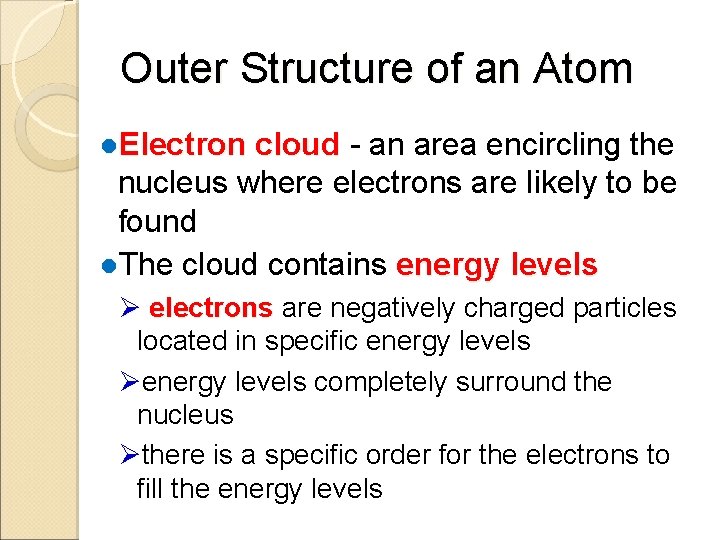

Outer Structure of an Atom ●Electron cloud - an area encircling the nucleus where electrons are likely to be found ●The cloud contains energy levels Ø electrons are negatively charged particles located in specific energy levels Øenergy levels completely surround the nucleus Øthere is a specific order for the electrons to fill the energy levels

Outer Structure of an Atom ●Energy levels completely surround the nucleus Maximum of 2 electrons Maximum of 50 electrons Maximum of 8 electrons Nucleus Maximum of 18 electrons Maximum of 32 electrons

Outer Structure of an Atom ●valence electrons are in the outermost energy level and are the electrons involved in bonding Øvalence is the number of bonds an atom can form Ø an atom is most stable when its outermost energy level is full

Atom Characteristics The number of protons in the nucleus is the atomic number of that atom. The number of protons (+) equals the number of electrons (-) The atomic mass is the mass of the protons plus the mass of the neutrons ØAtomic mass is reported in the SI units atomic mass units (amu) amu ØProtons and neutrons each are given an amu of 1 ØElectrons have a mass of nearly zero

Decoding Atom Information # of protons Atomic mass 6 C carbon 12. 0 Atom’s symbol Atom’s name

Decoding Atom Information cont: # of protons = # of electrons 6 C carbon Atomic mass = # of protons plus the # of neutrons 12. 0
