Structure of aliphatic hydrocarbons

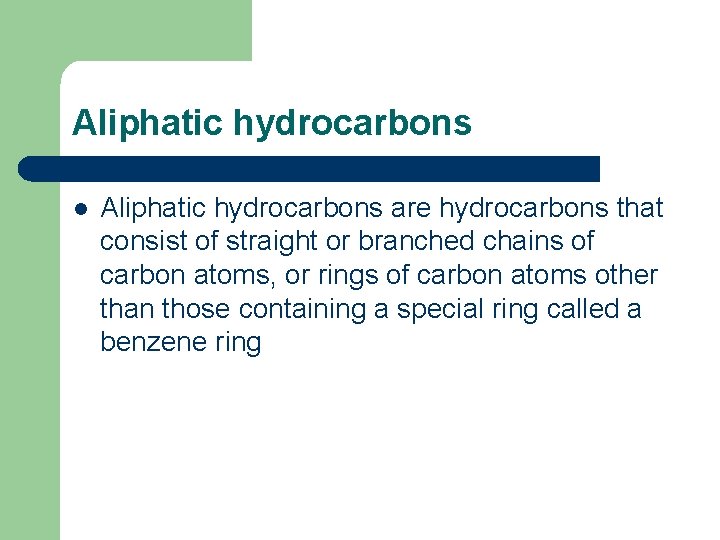

Aliphatic hydrocarbons l Aliphatic hydrocarbons are hydrocarbons that consist of straight or branched chains of carbon atoms, or rings of carbon atoms other than those containing a special ring called a benzene ring

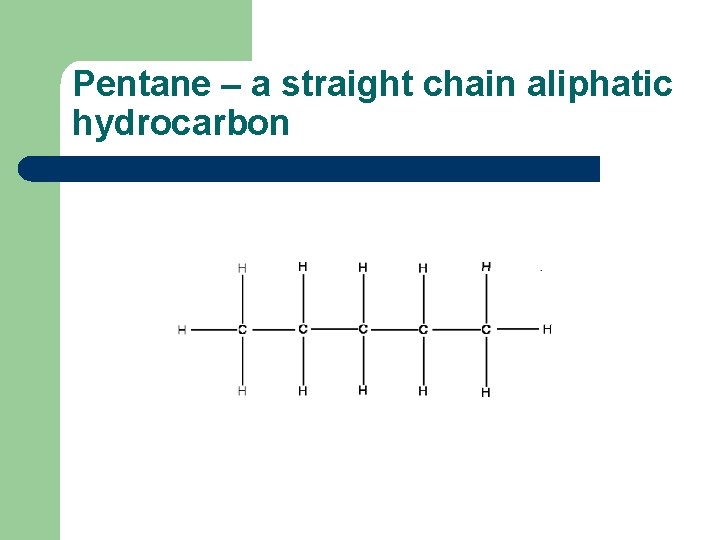

Pentane – a straight chain aliphatic hydrocarbon

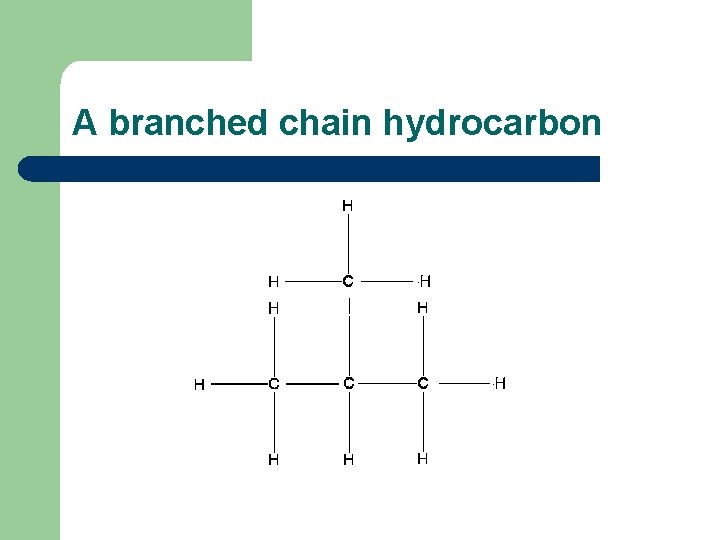

A branched chain hydrocarbon

Cyclohexane – a cyclic aliphatic hydrocarbon

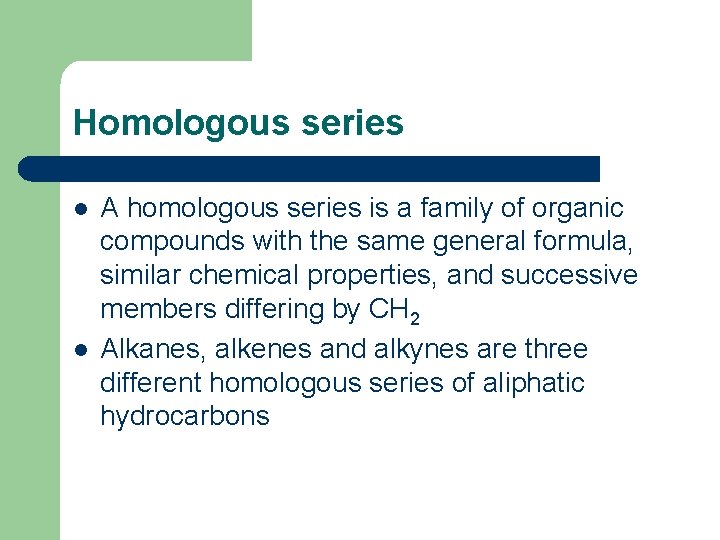

Homologous series l l A homologous series is a family of organic compounds with the same general formula, similar chemical properties, and successive members differing by CH 2 Alkanes, alkenes and alkynes are three different homologous series of aliphatic hydrocarbons

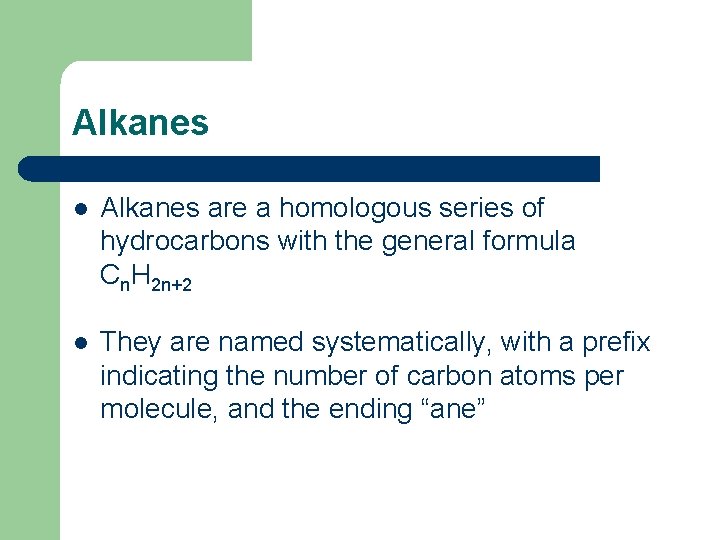

Alkanes l Alkanes are a homologous series of hydrocarbons with the general formula Cn. H 2 n+2 l They are named systematically, with a prefix indicating the number of carbon atoms per molecule, and the ending “ane”

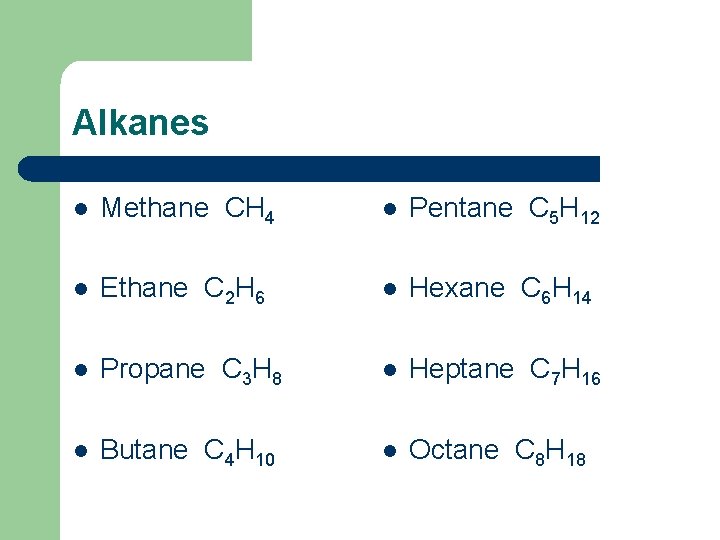

Alkanes l Methane CH 4 l Pentane C 5 H 12 l Ethane C 2 H 6 l Hexane C 6 H 14 l Propane C 3 H 8 l Heptane C 7 H 16 l Butane C 4 H 10 l Octane C 8 H 18

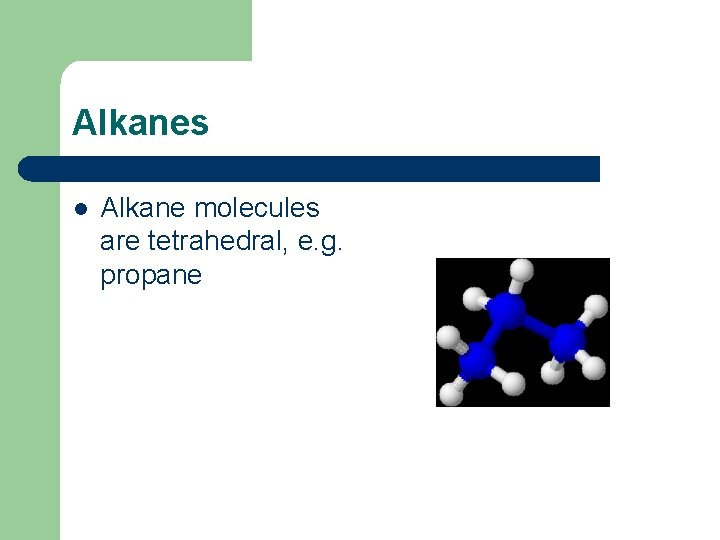

Alkanes l Alkane molecules are tetrahedral, e. g. propane

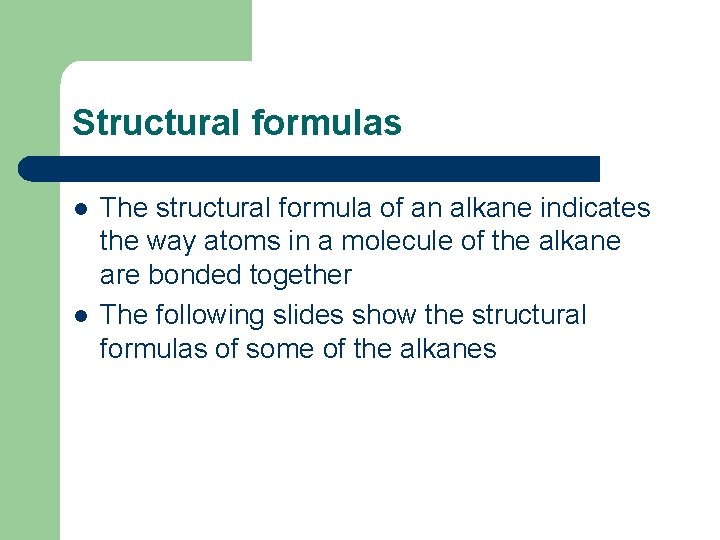

Structural formulas l l The structural formula of an alkane indicates the way atoms in a molecule of the alkane are bonded together The following slides show the structural formulas of some of the alkanes

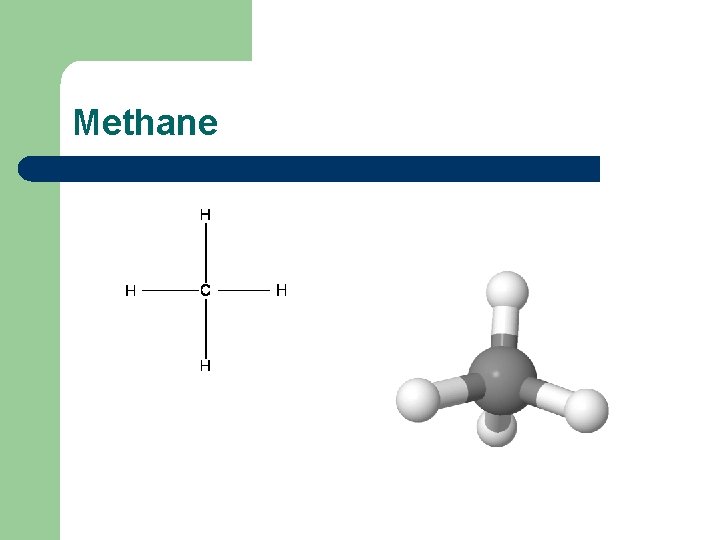

Methane

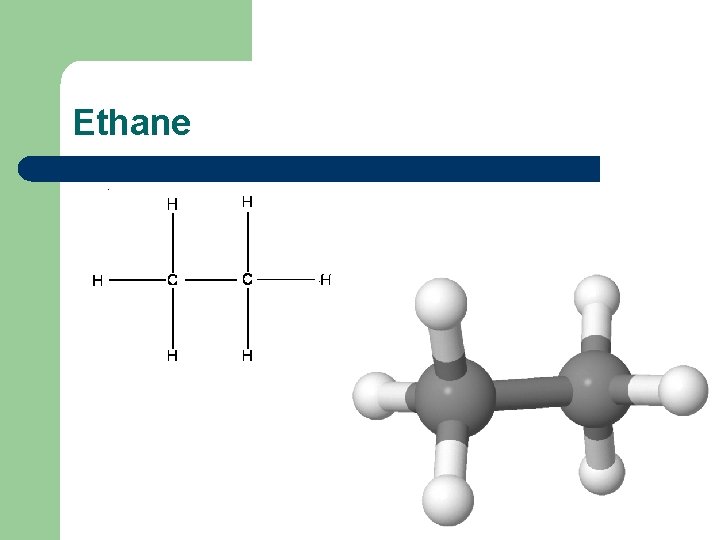

Ethane

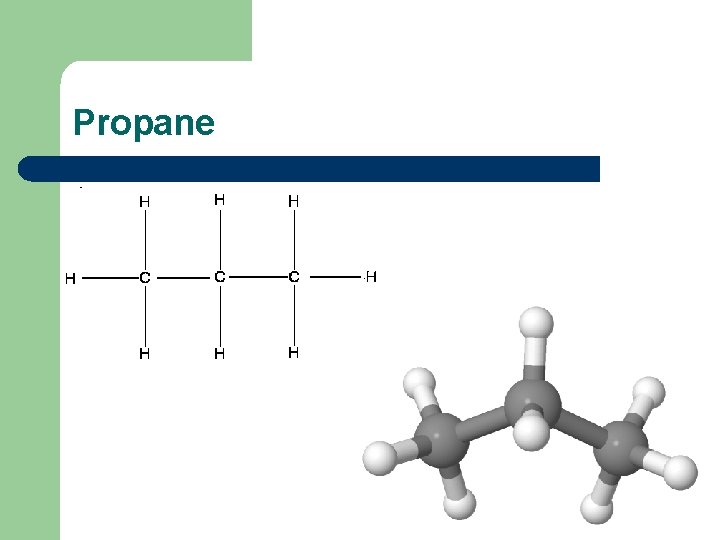

Propane

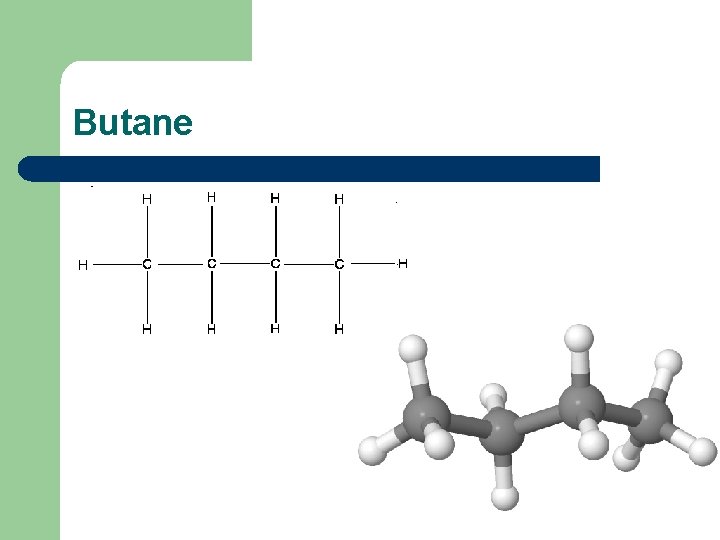

Butane

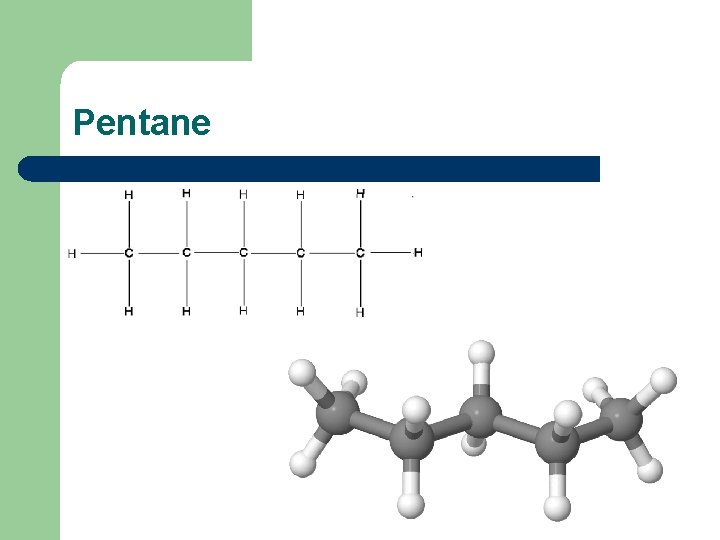

Pentane

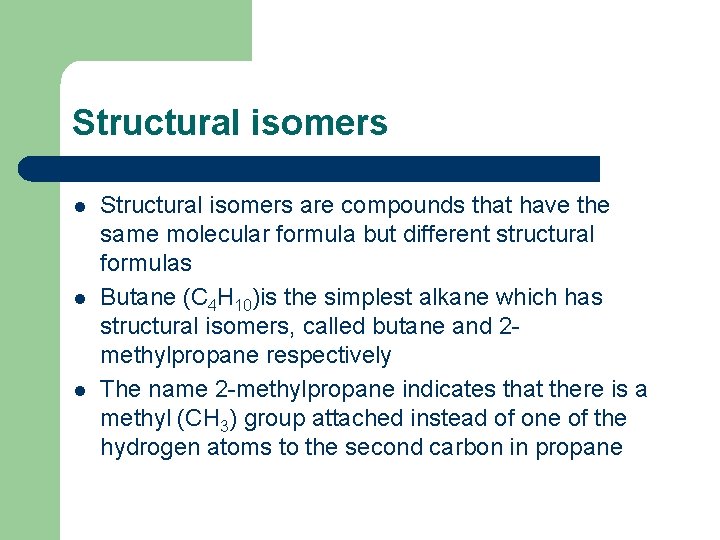

Structural isomers l l l Structural isomers are compounds that have the same molecular formula but different structural formulas Butane (C 4 H 10)is the simplest alkane which has structural isomers, called butane and 2 methylpropane respectively The name 2 -methylpropane indicates that there is a methyl (CH 3) group attached instead of one of the hydrogen atoms to the second carbon in propane

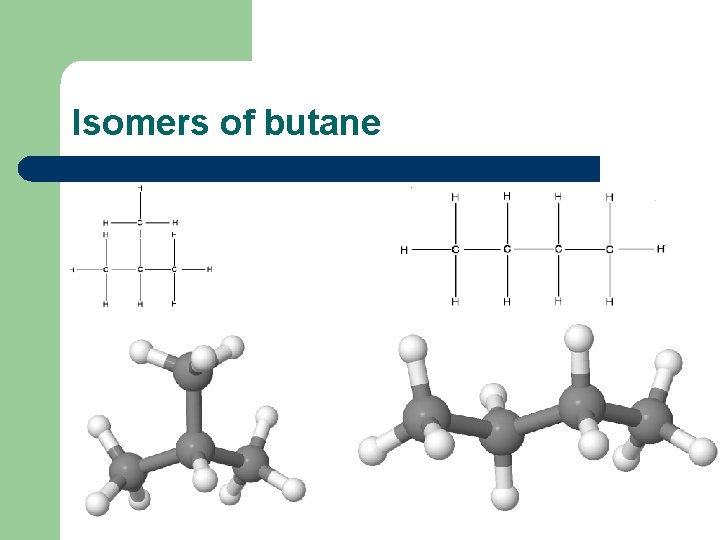

Isomers of butane

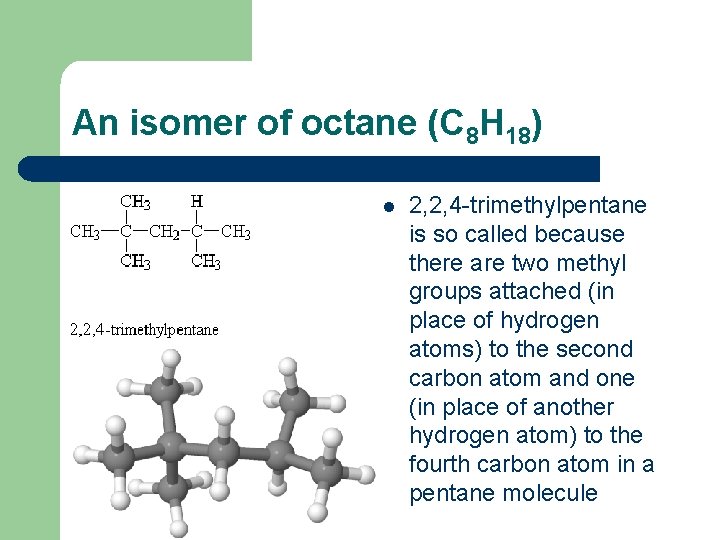

An isomer of octane (C 8 H 18) l 2, 2, 4 -trimethylpentane is so called because there are two methyl groups attached (in place of hydrogen atoms) to the second carbon atom and one (in place of another hydrogen atom) to the fourth carbon atom in a pentane molecule

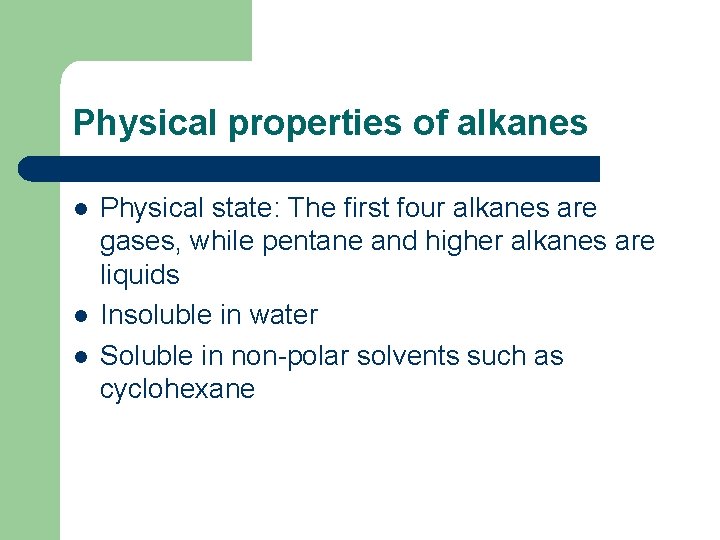

Physical properties of alkanes l l l Physical state: The first four alkanes are gases, while pentane and higher alkanes are liquids Insoluble in water Soluble in non-polar solvents such as cyclohexane

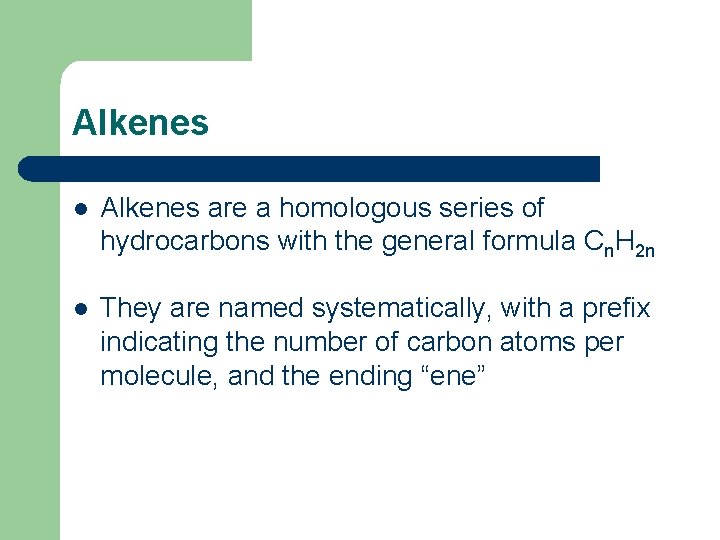

Alkenes l Alkenes are a homologous series of hydrocarbons with the general formula Cn. H 2 n l They are named systematically, with a prefix indicating the number of carbon atoms per molecule, and the ending “ene”

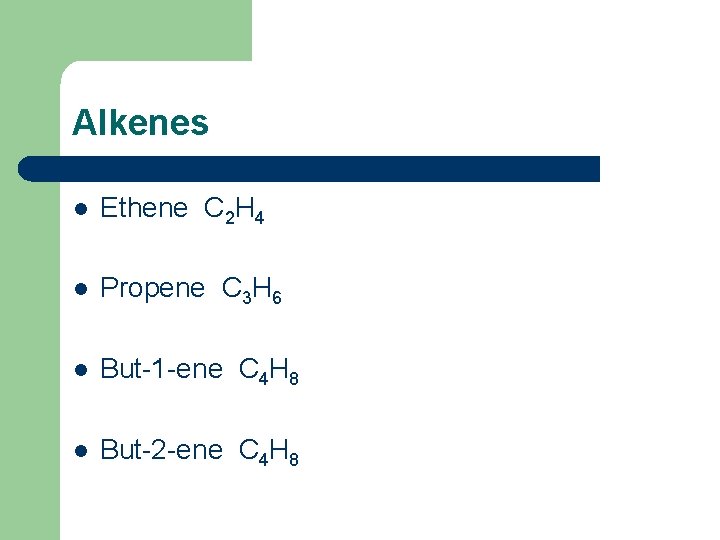

Alkenes l Ethene C 2 H 4 l Propene C 3 H 6 l But-1 -ene C 4 H 8 l But-2 -ene C 4 H 8

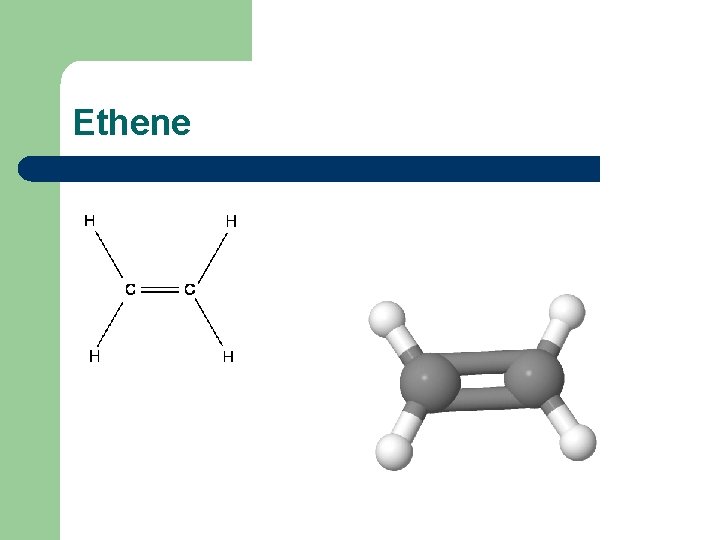

Ethene

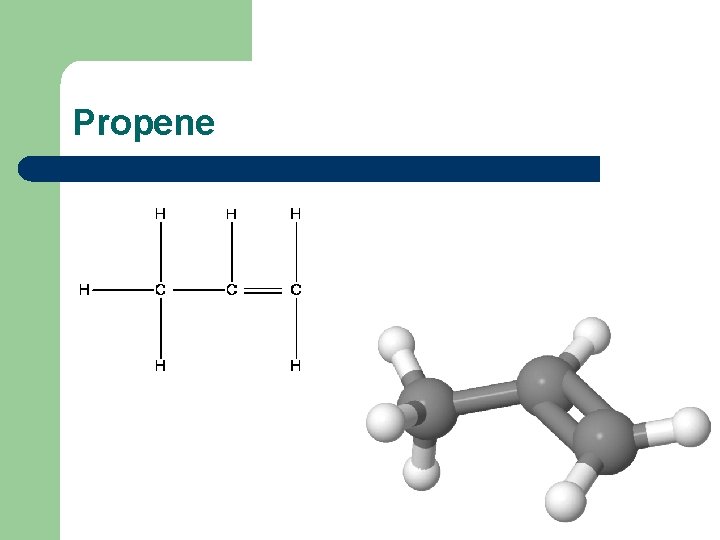

Propene

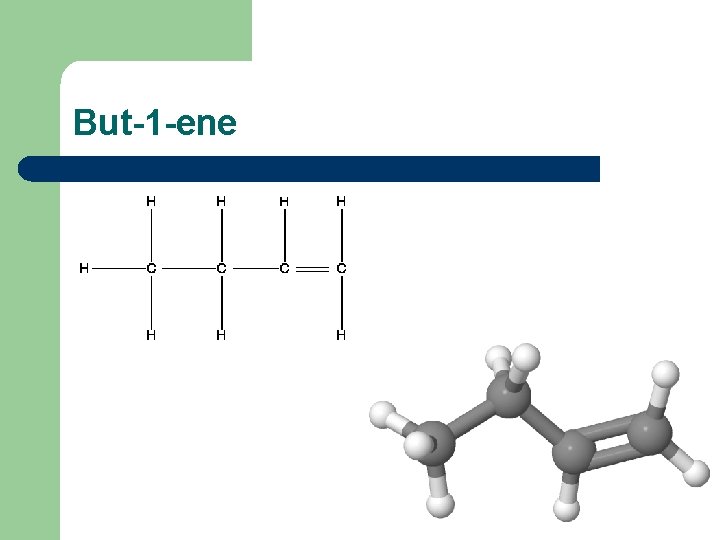

But-1 -ene

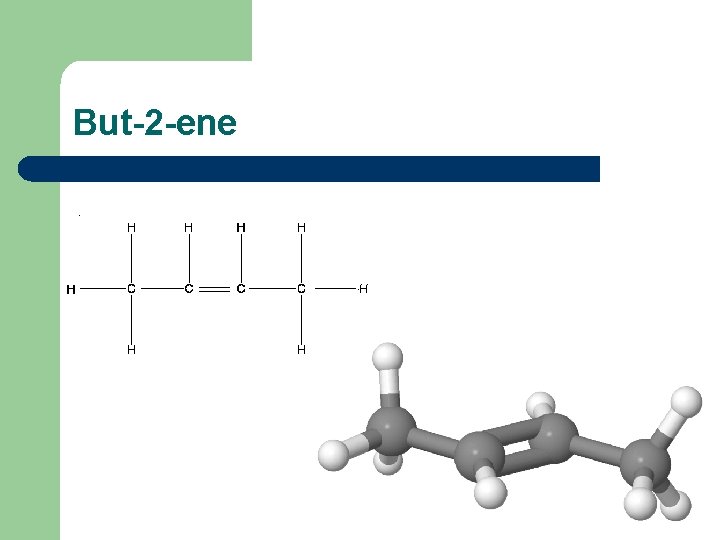

But-2 -ene

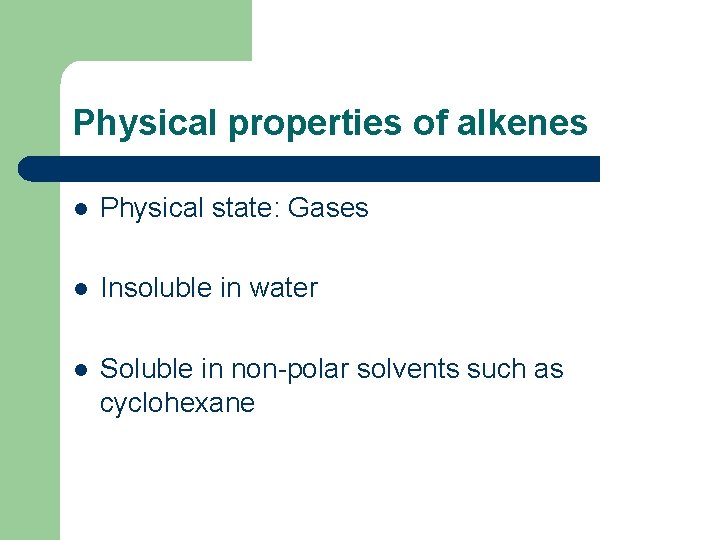

Physical properties of alkenes l Physical state: Gases l Insoluble in water l Soluble in non-polar solvents such as cyclohexane

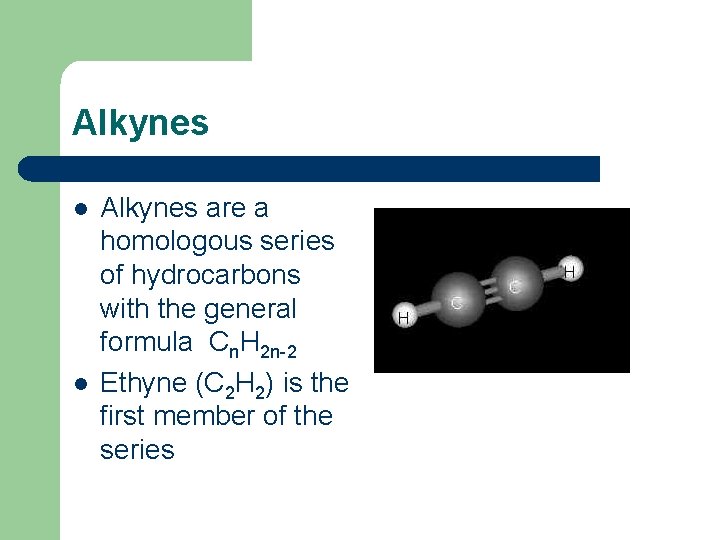

Alkynes l l Alkynes are a homologous series of hydrocarbons with the general formula Cn. H 2 n-2 Ethyne (C 2 H 2) is the first member of the series

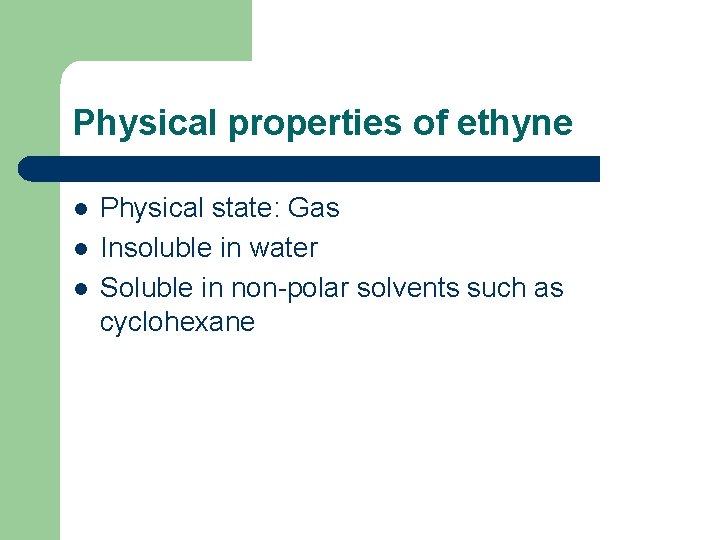

Physical properties of ethyne l l l Physical state: Gas Insoluble in water Soluble in non-polar solvents such as cyclohexane
