Structure and Bonding in Organic Chemistry Electron Configurations
Structure and Bonding in Organic Chemistry Electron Configurations Lewis Dot Structures Hybridization Orbital depictions

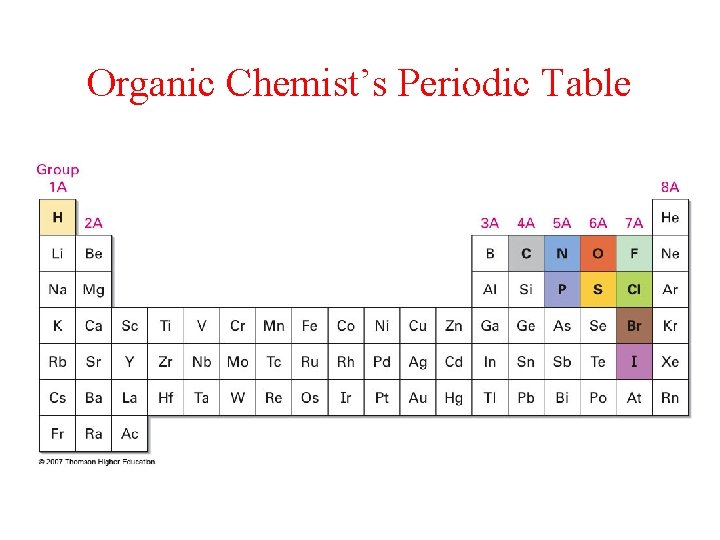

Organic Chemist’s Periodic Table

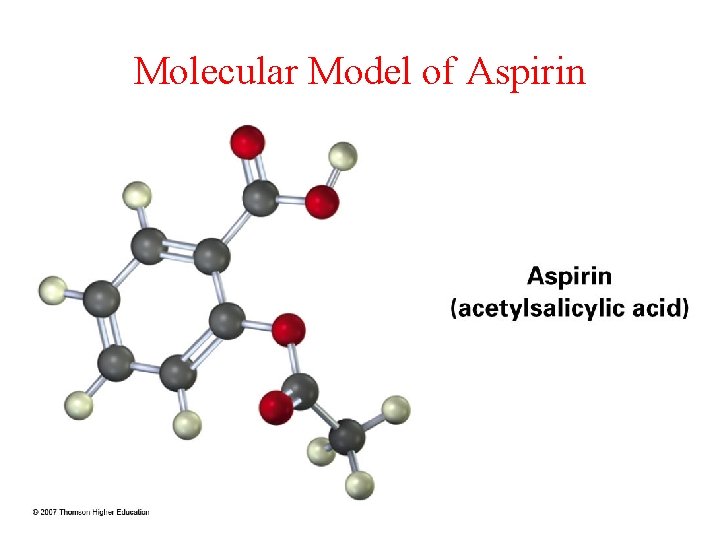

Molecular Model of Aspirin

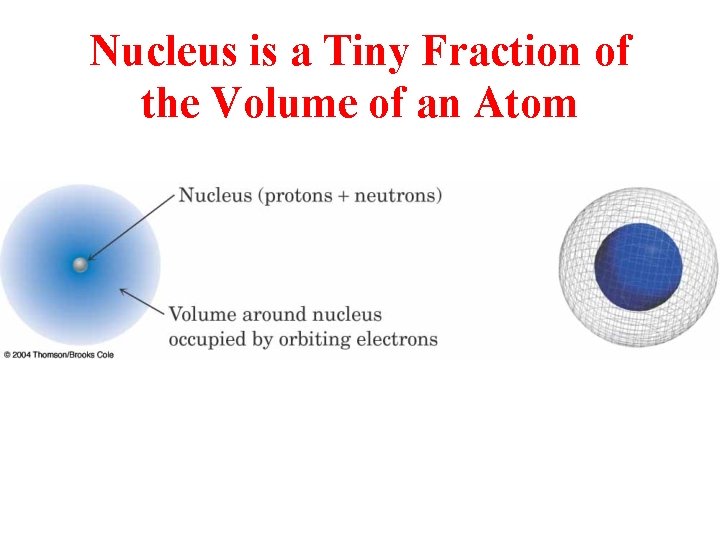

Nucleus is a Tiny Fraction of the Volume of an Atom

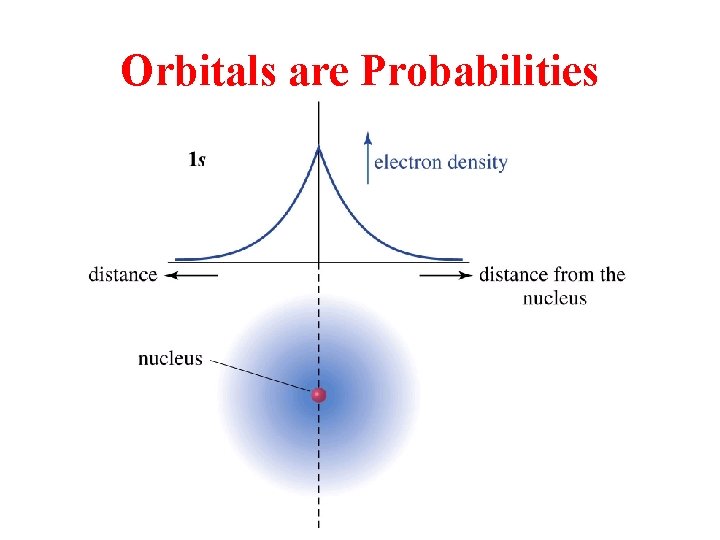

Orbitals are Probabilities

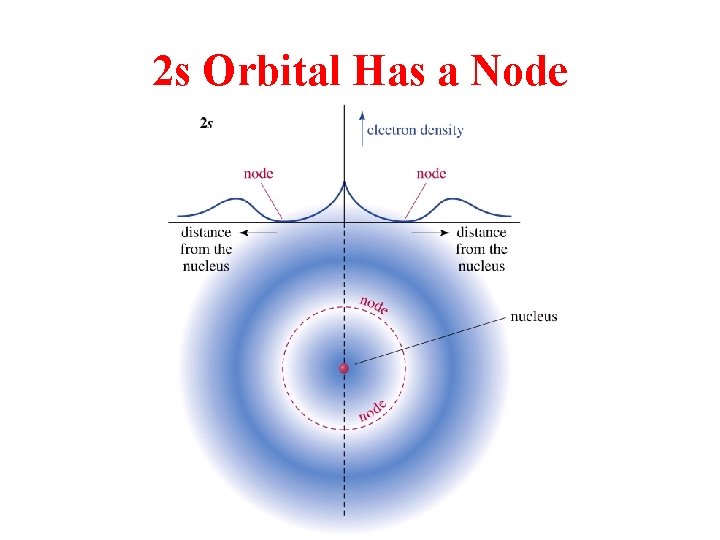

2 s Orbital Has a Node

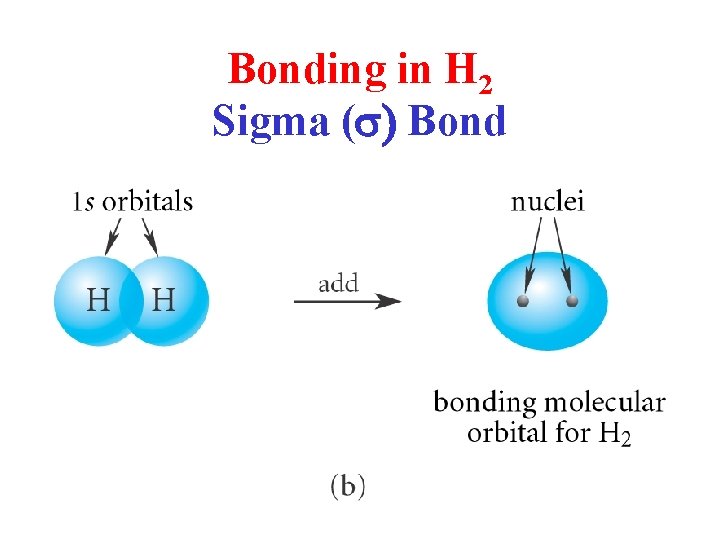

Bonding in H 2 Sigma (s) Bond

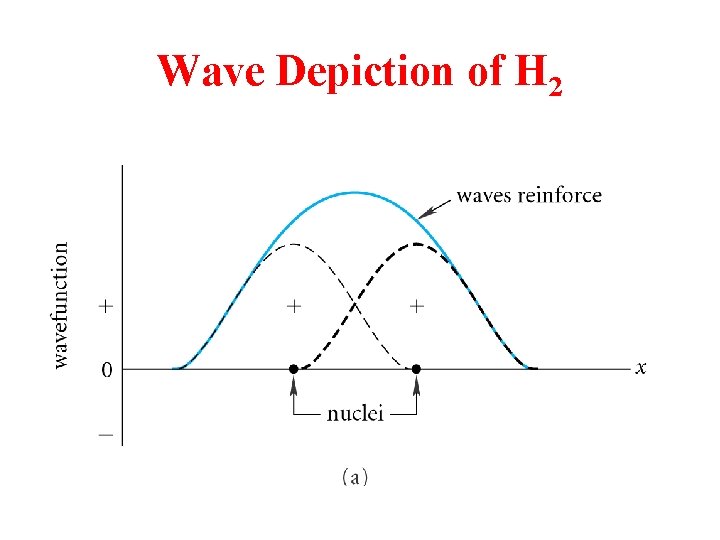

Wave Depiction of H 2

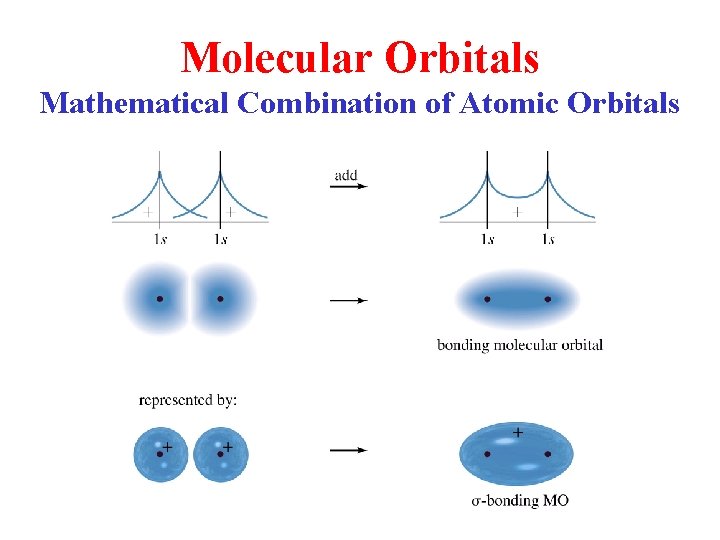

Molecular Orbitals Mathematical Combination of Atomic Orbitals

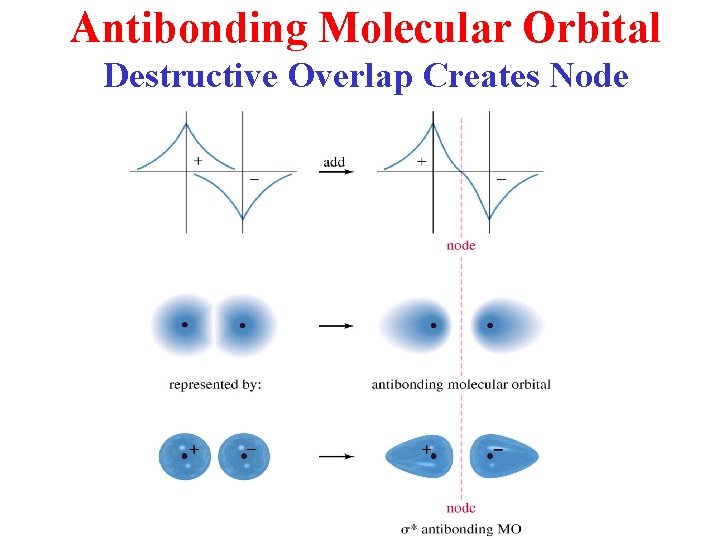

Antibonding Molecular Orbital Destructive Overlap Creates Node

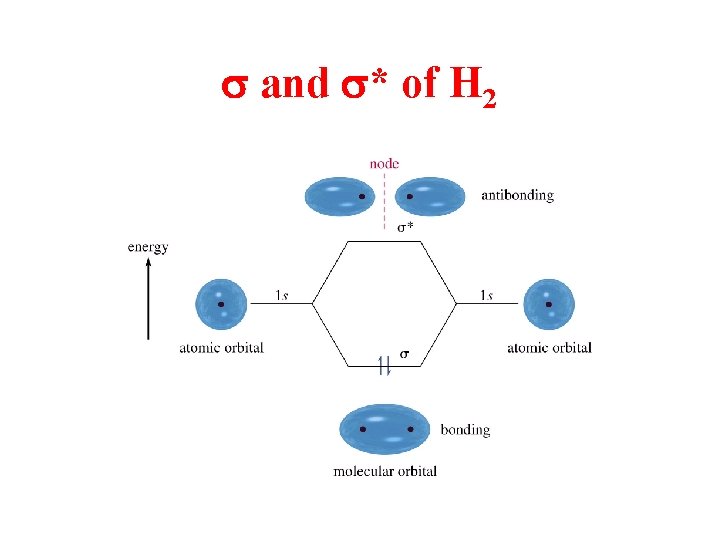

s and s* of H 2

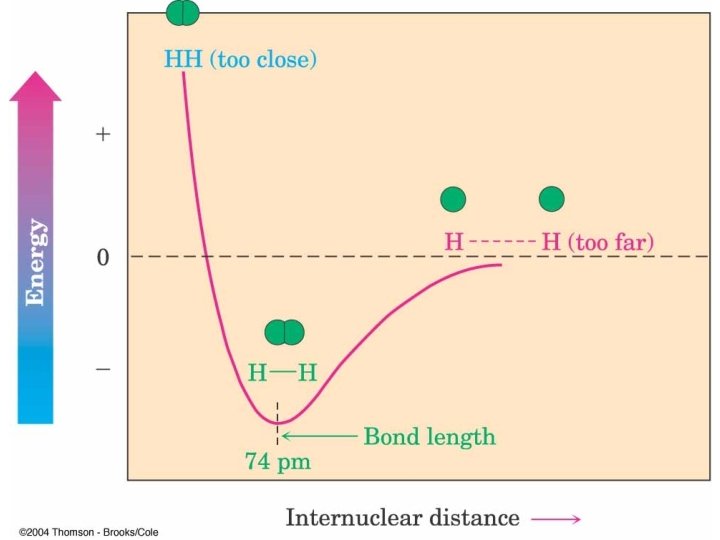

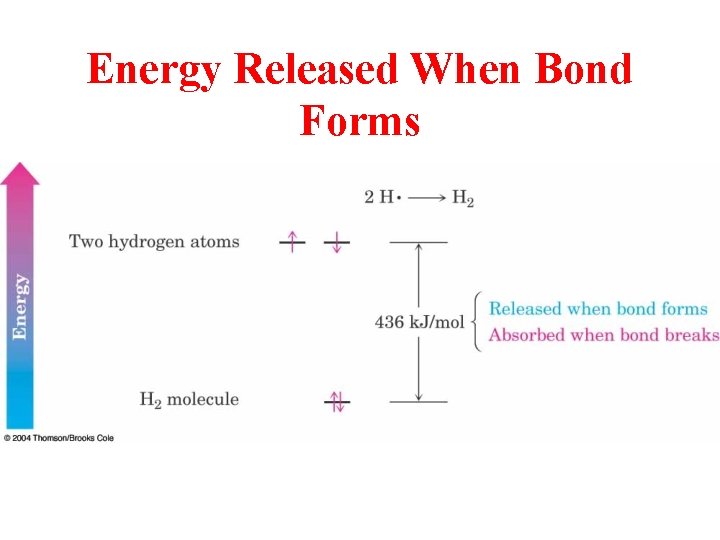

Energy Released When Bond Forms

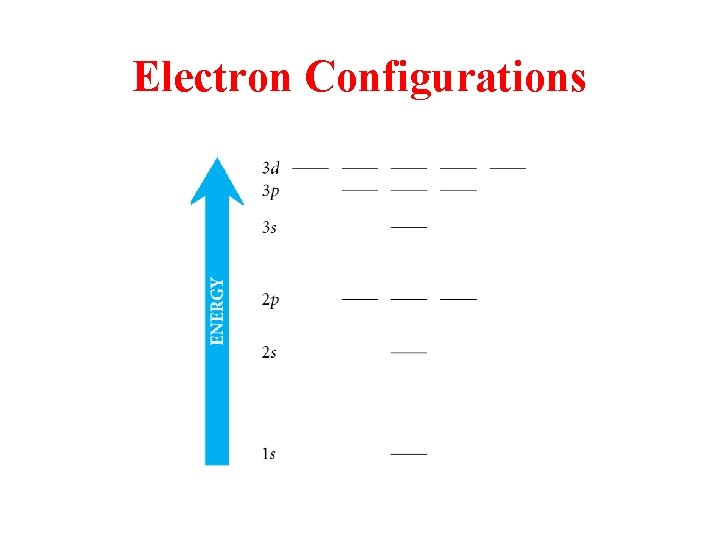

Electron Configurations

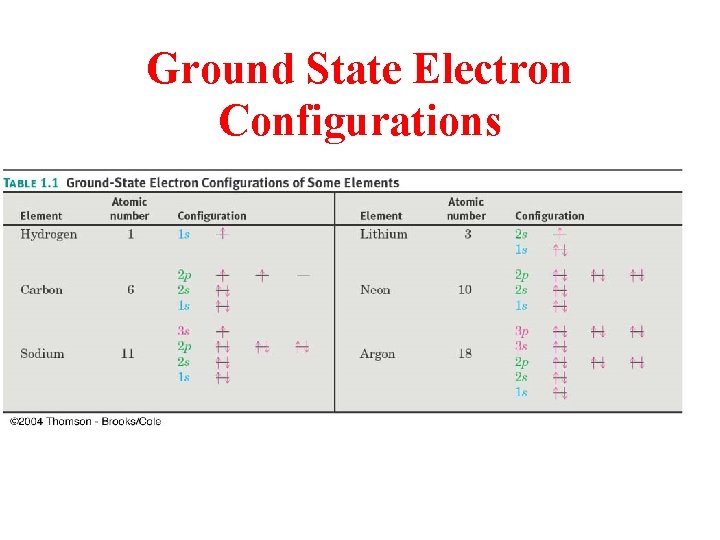

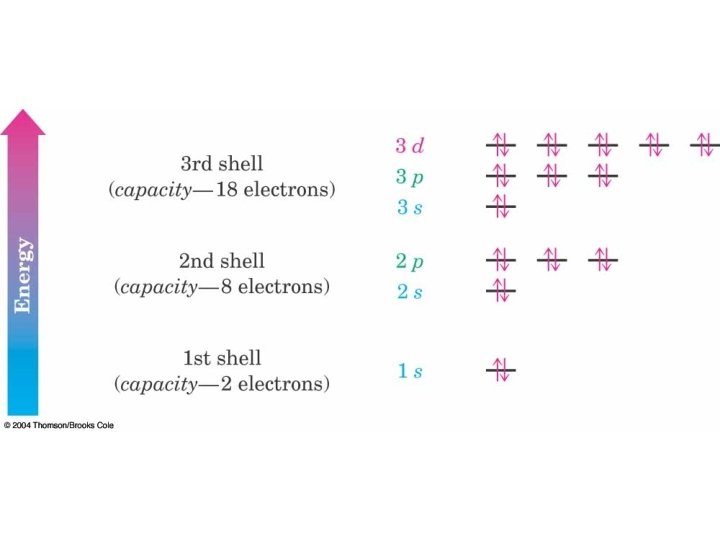

Ground State Electron Configurations

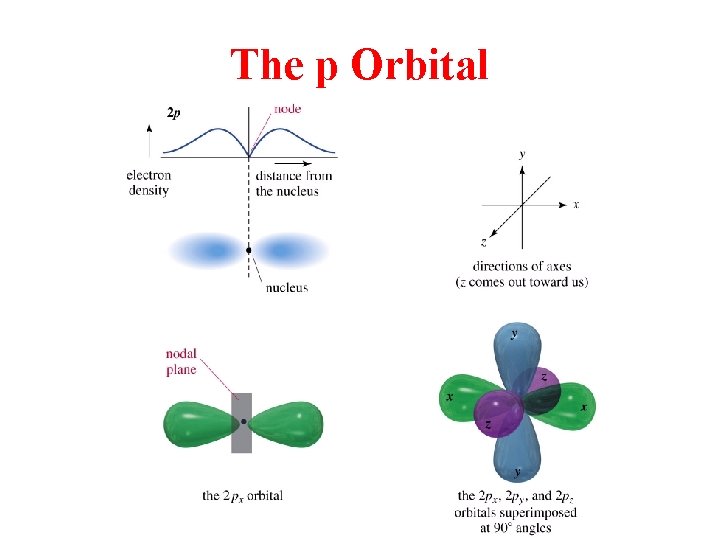

The p Orbital

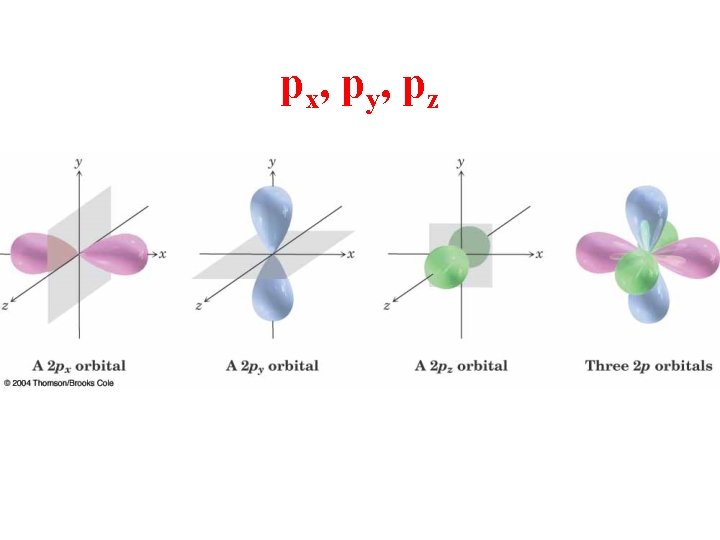

px, py, pz

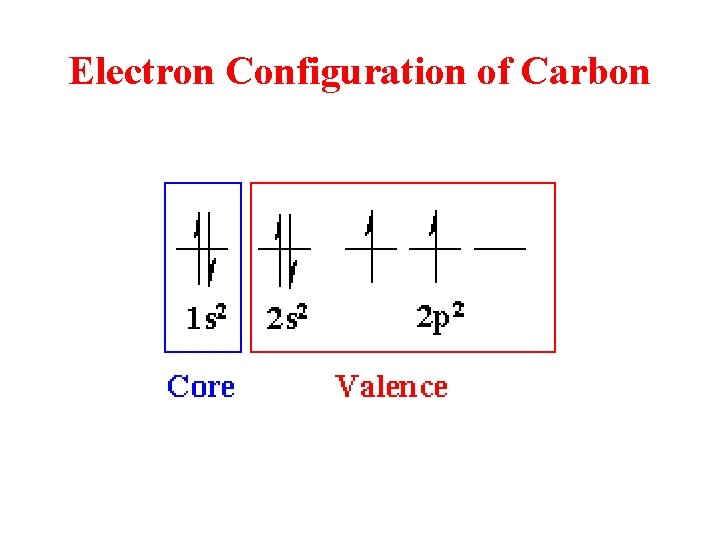

Electron Configuration of Carbon
Lewis Dot Structure of Methane

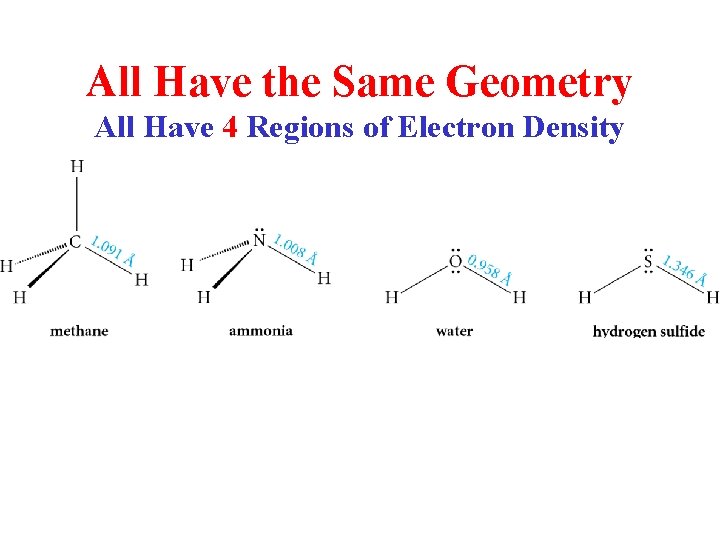

All Have the Same Geometry All Have 4 Regions of Electron Density

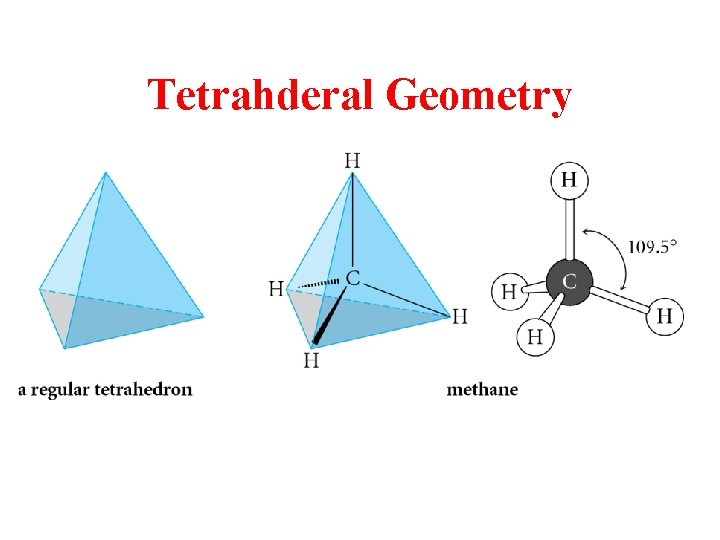

Tetrahderal Geometry

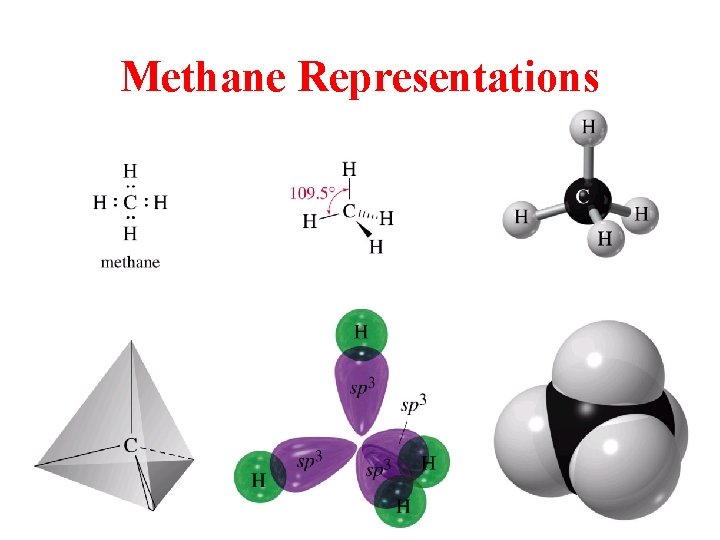

Methane Representations

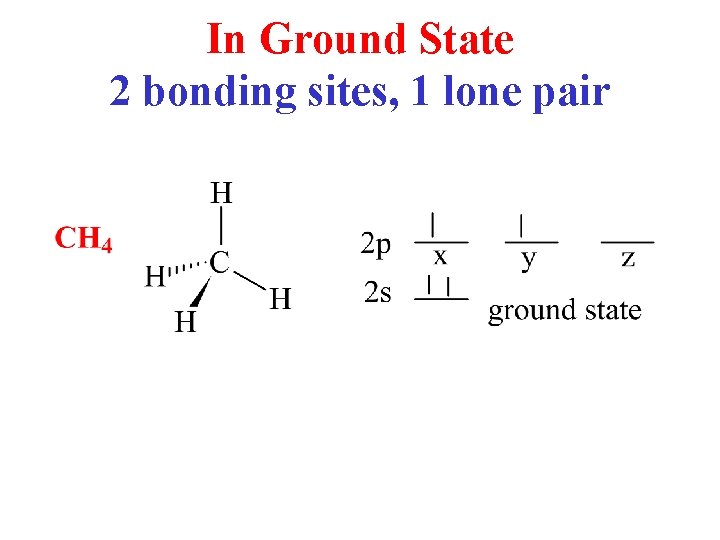

In Ground State 2 bonding sites, 1 lone pair

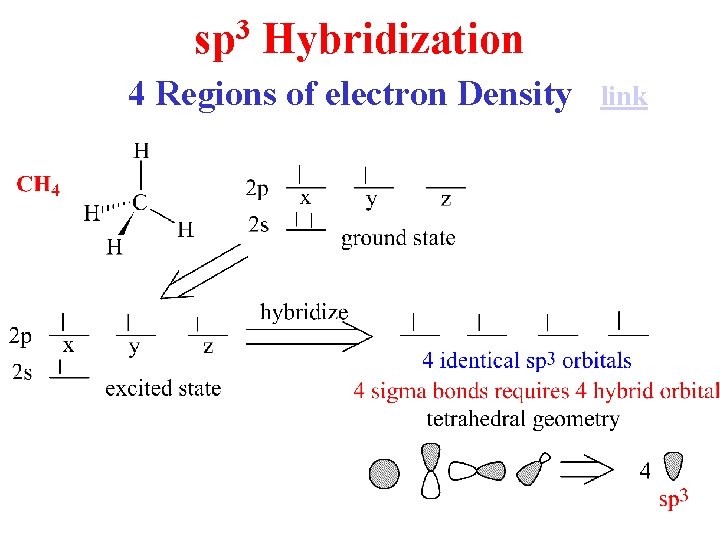

3 sp Hybridization 4 Regions of electron Density link

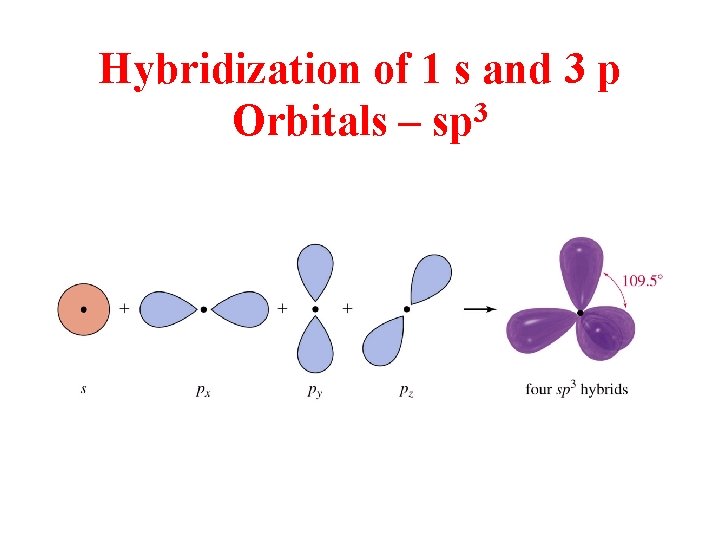

Hybridization of 1 s and 3 p Orbitals – sp 3

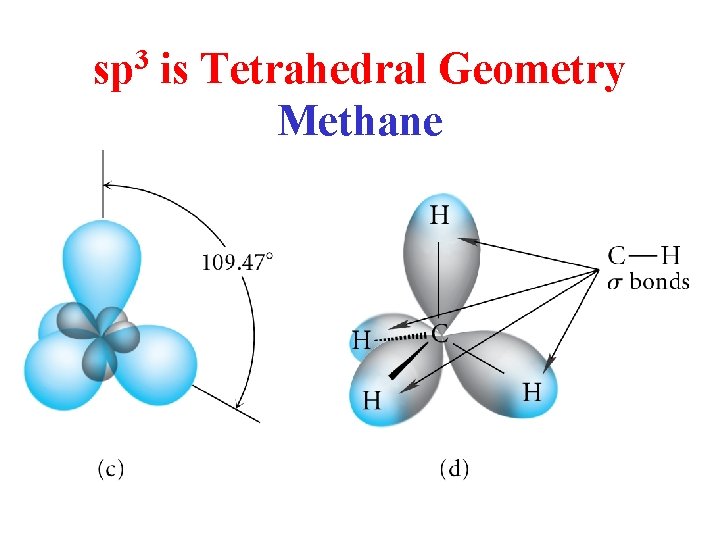

sp 3 is Tetrahedral Geometry Methane

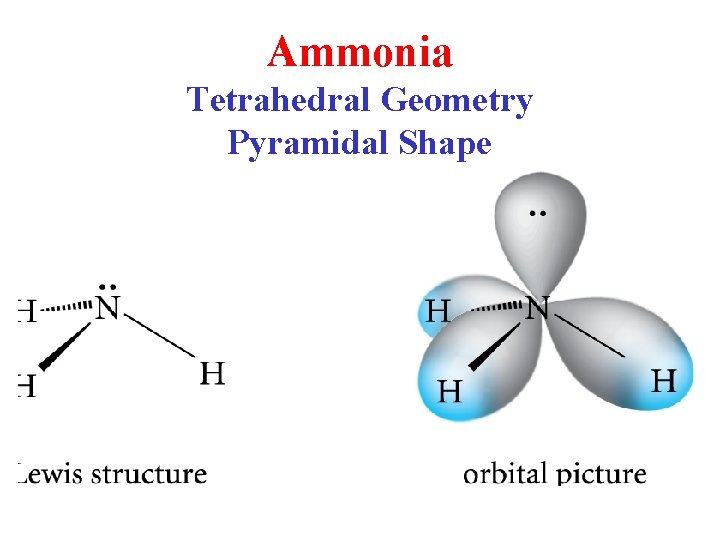

Ammonia Tetrahedral Geometry Pyramidal Shape

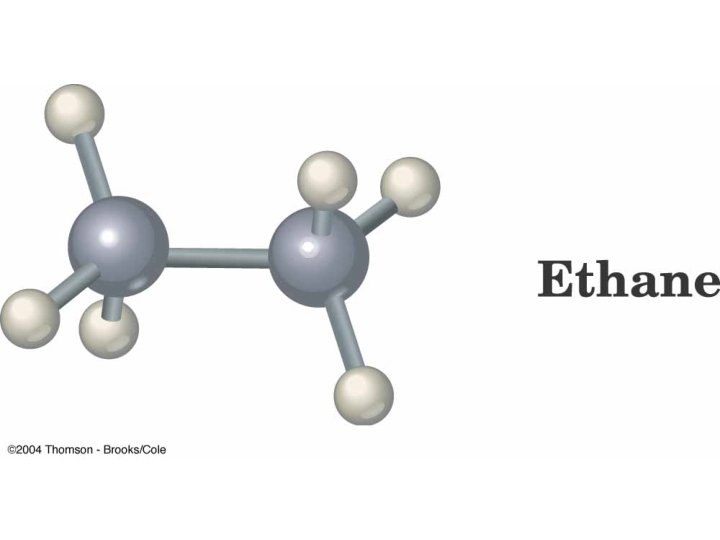

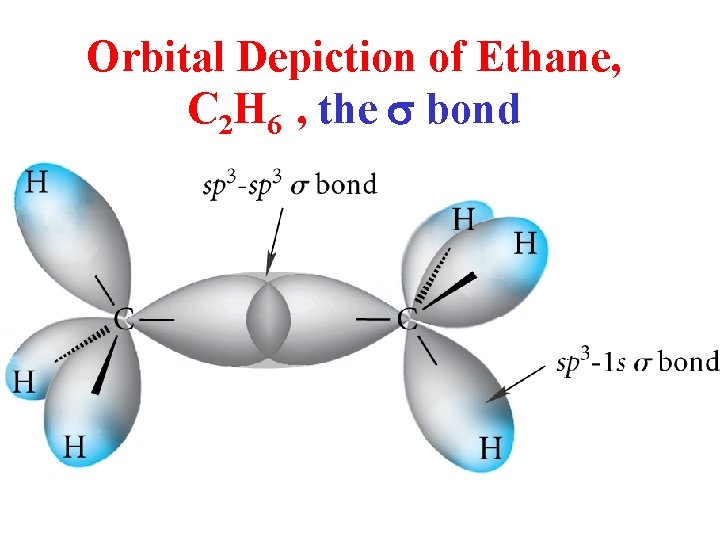

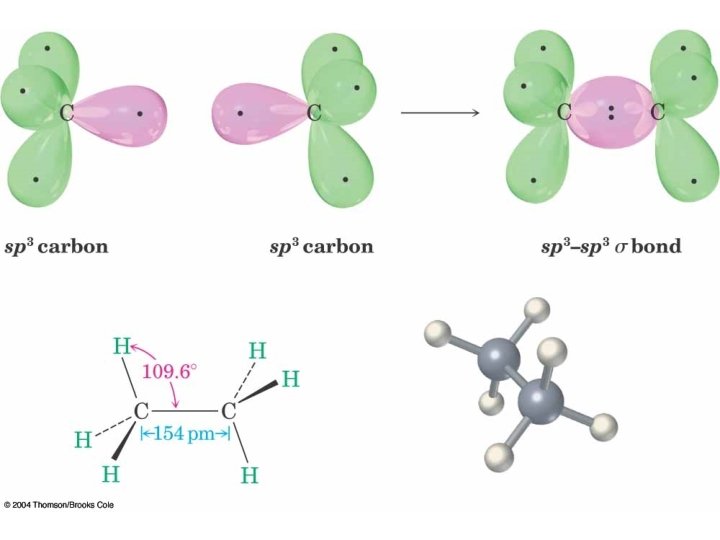

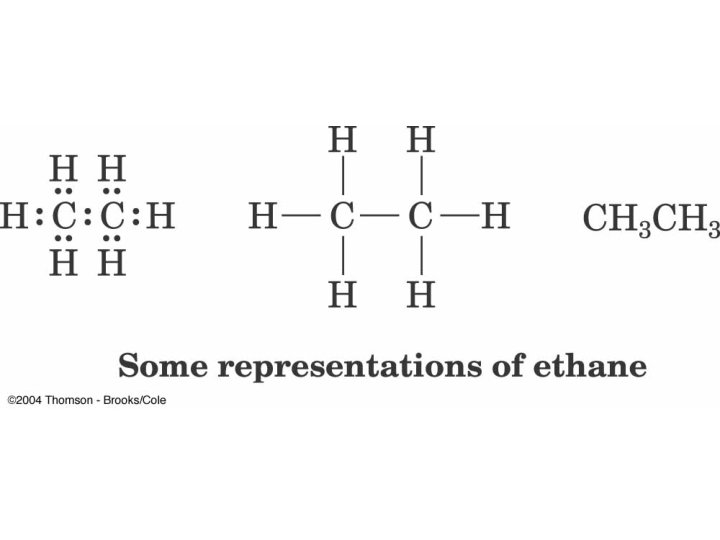

Orbital Depiction of Ethane, C 2 H 6 , the s bond

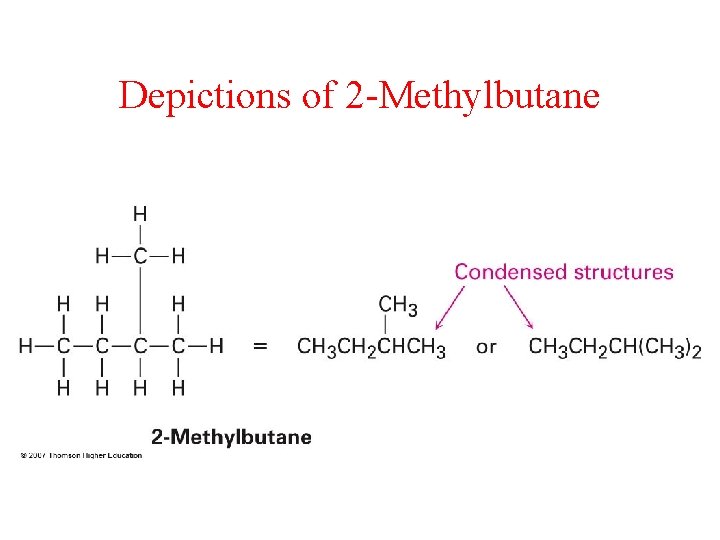

Depictions of 2 -Methylbutane

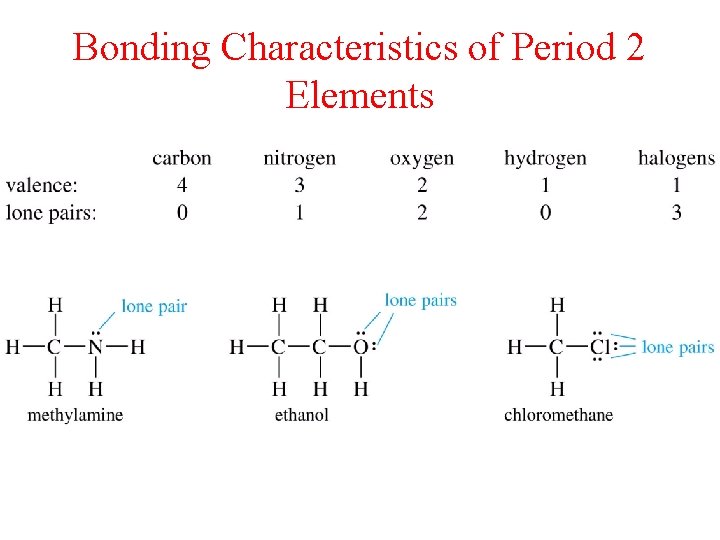

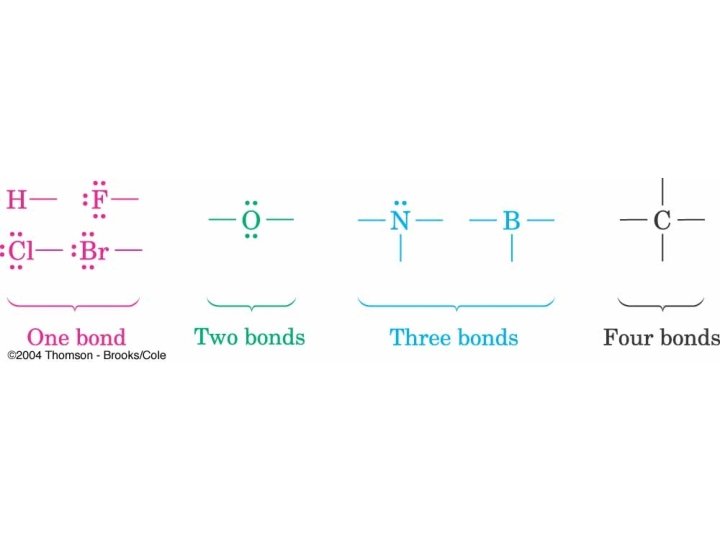

Bonding Characteristics of Period 2 Elements

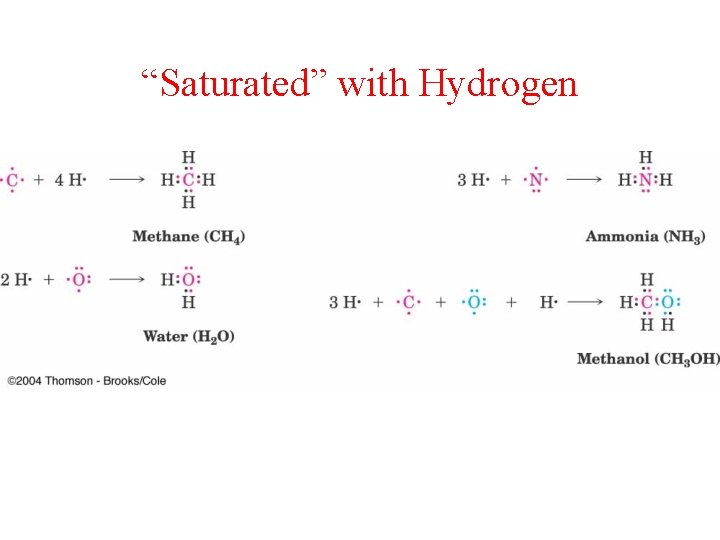

“Saturated” with Hydrogen

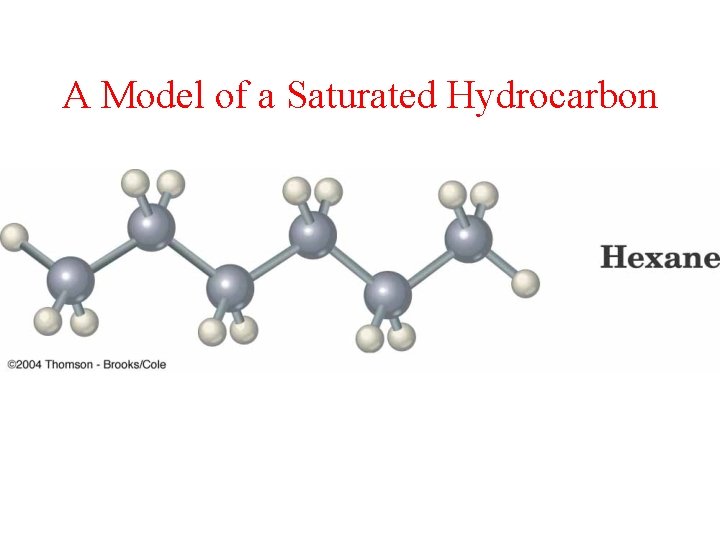

A Model of a Saturated Hydrocarbon

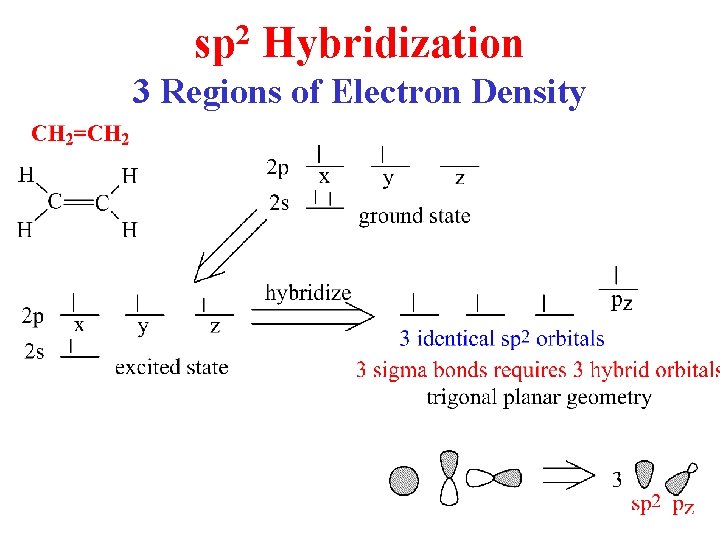

sp 2 Hybridization 3 Regions of Electron Density

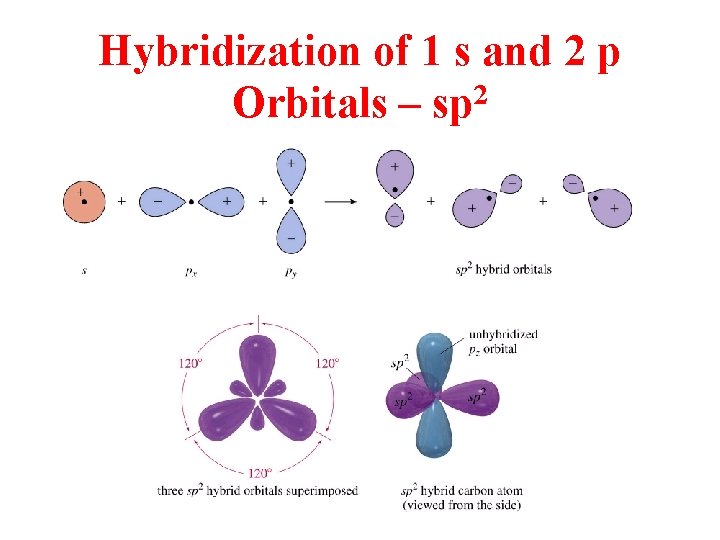

Hybridization of 1 s and 2 p Orbitals – sp 2

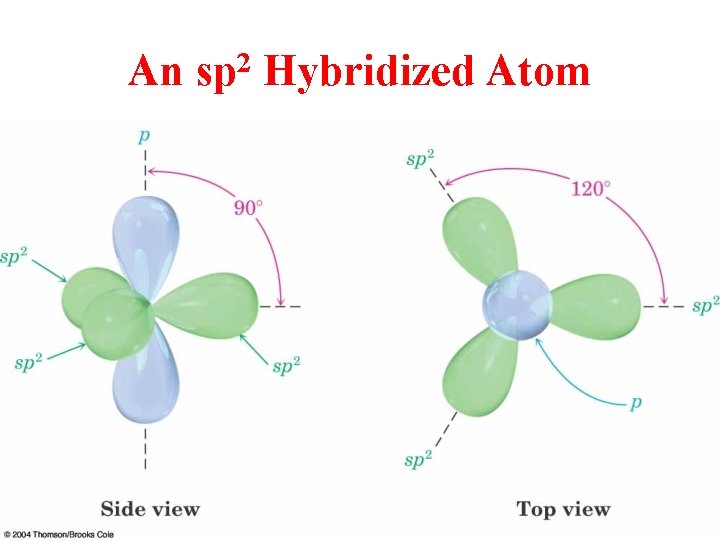

An 2 sp Hybridized Atom

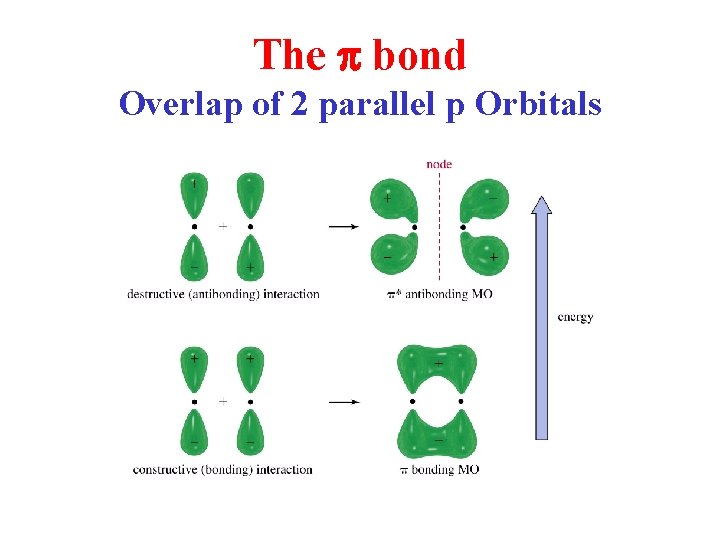

The p bond Overlap of 2 parallel p Orbitals

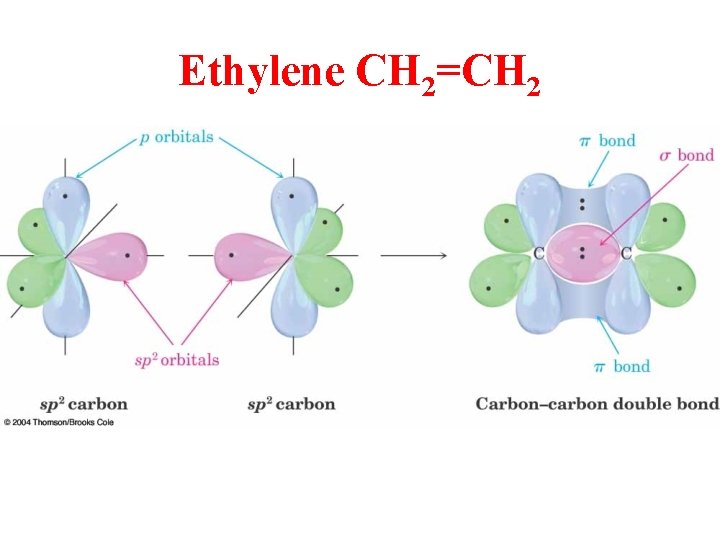

Ethylene CH 2=CH 2

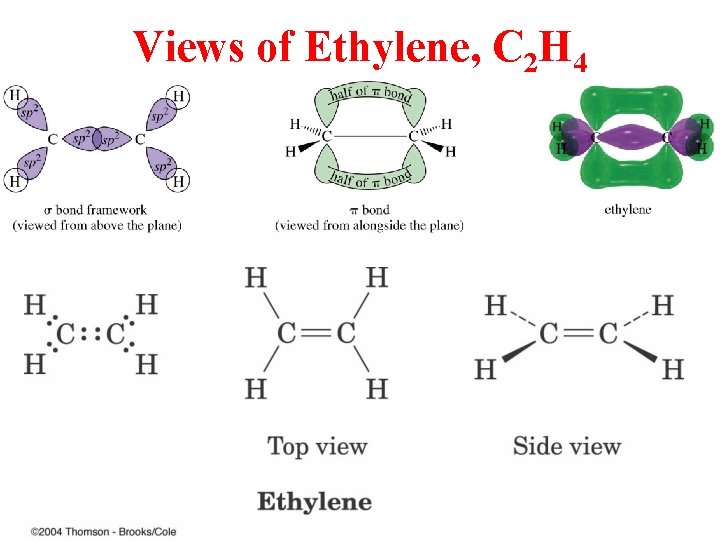

Views of Ethylene, C 2 H 4

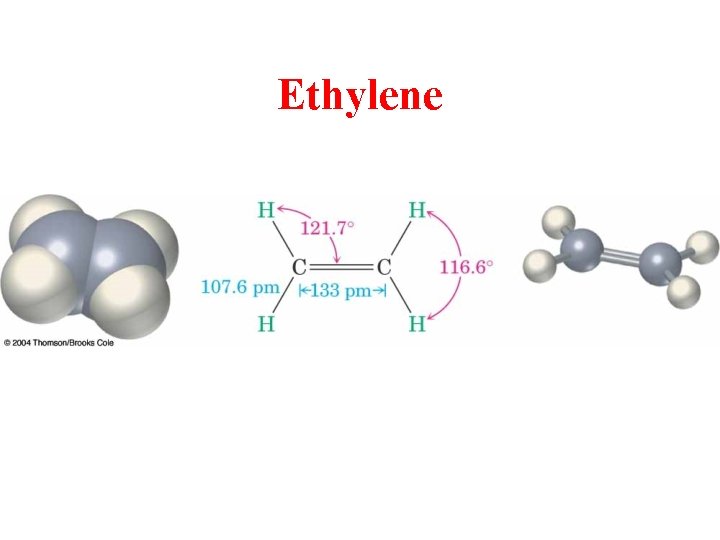

Ethylene

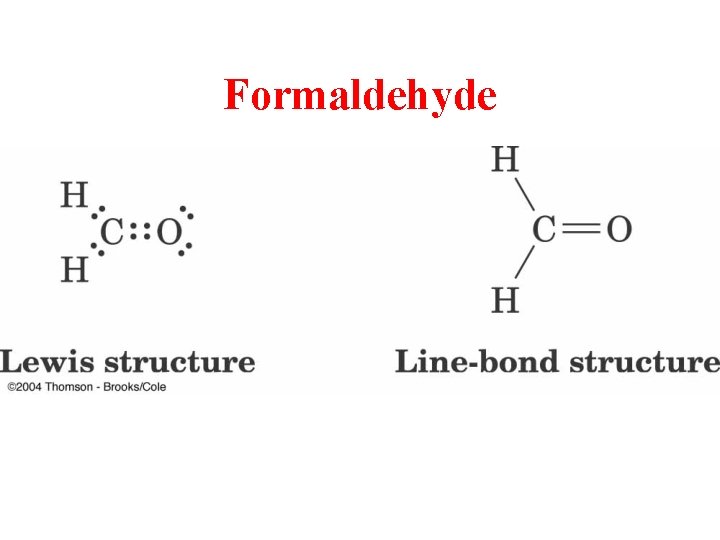

Formaldehyde

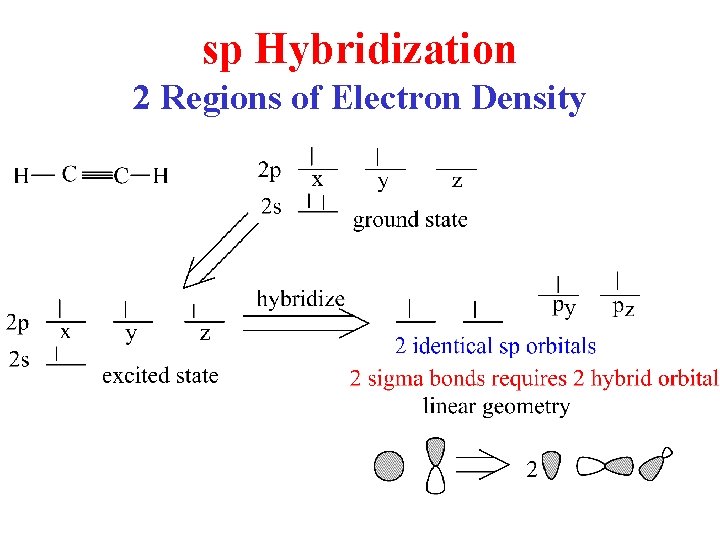

sp Hybridization 2 Regions of Electron Density

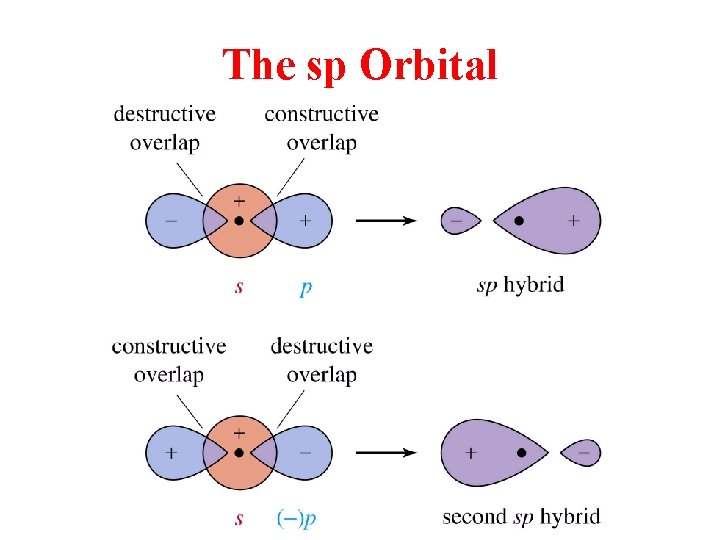

The sp Orbital

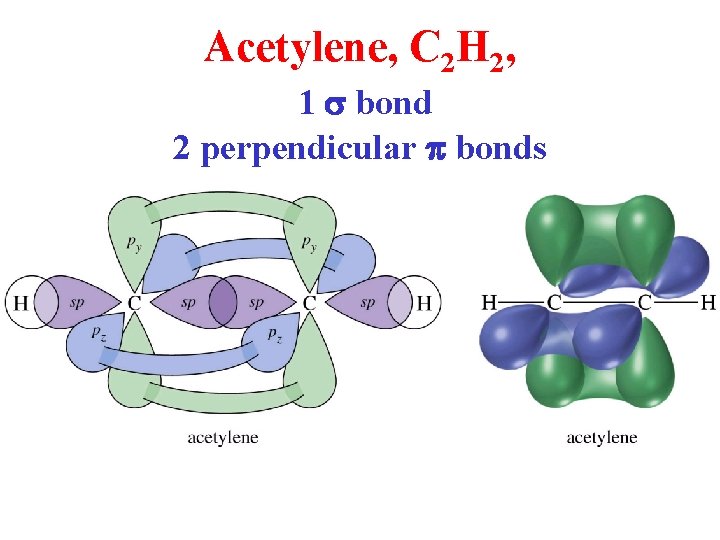

Acetylene, C 2 H 2, 1 s bond 2 perpendicular p bonds

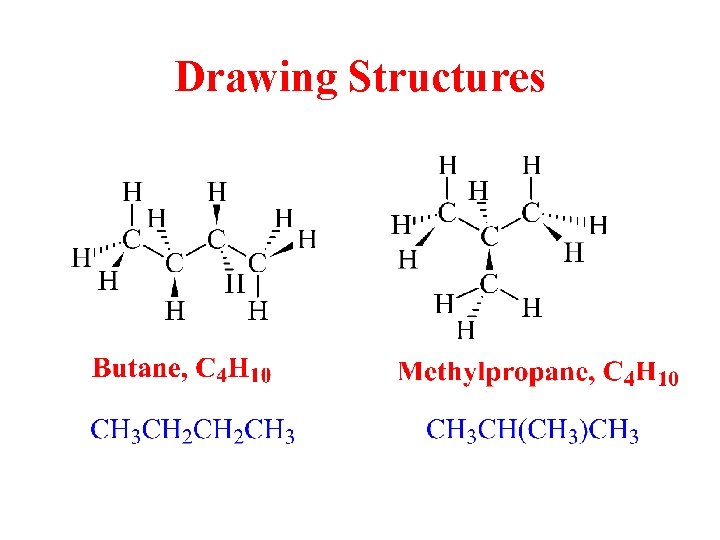

Drawing Structures

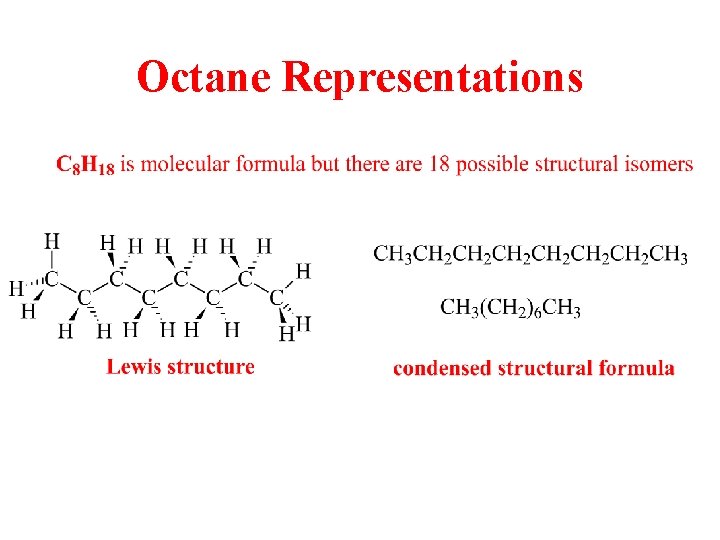

Octane Representations

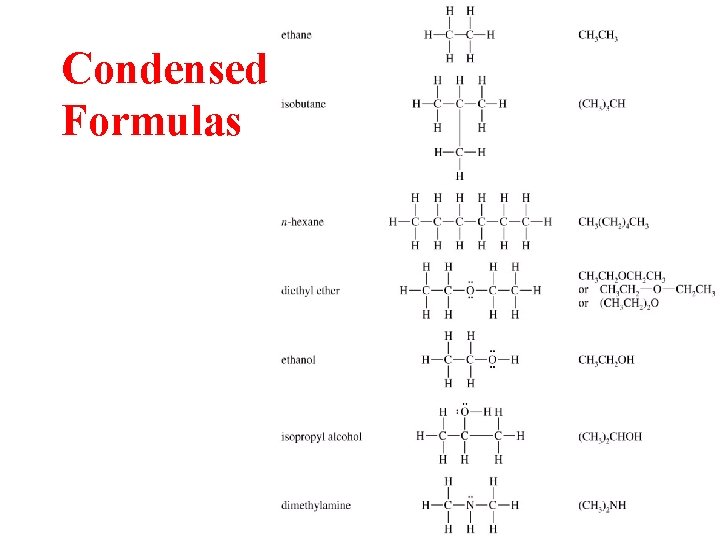

Condensed Formulas

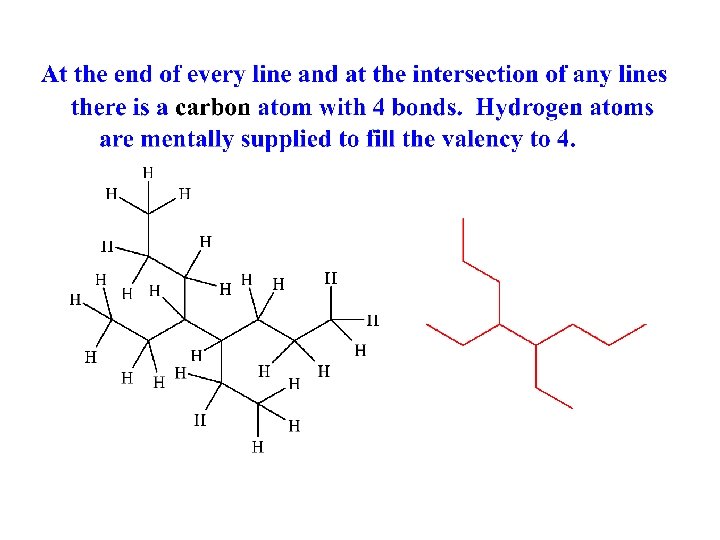

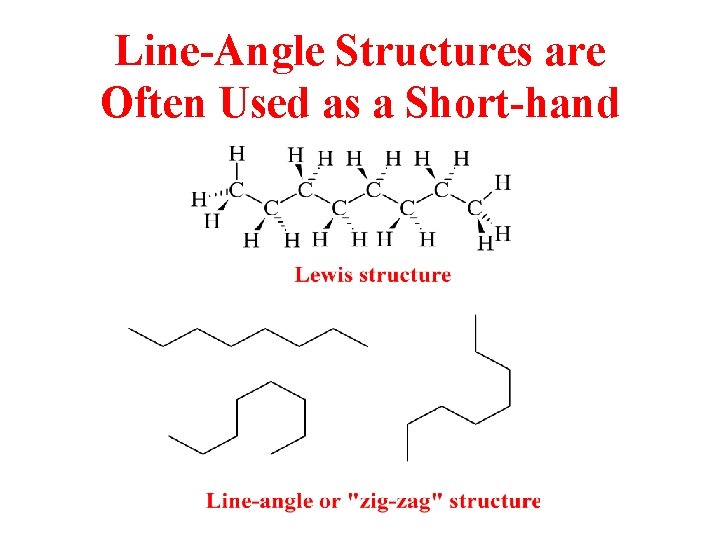

Line-Angle Structures are Often Used as a Short-hand

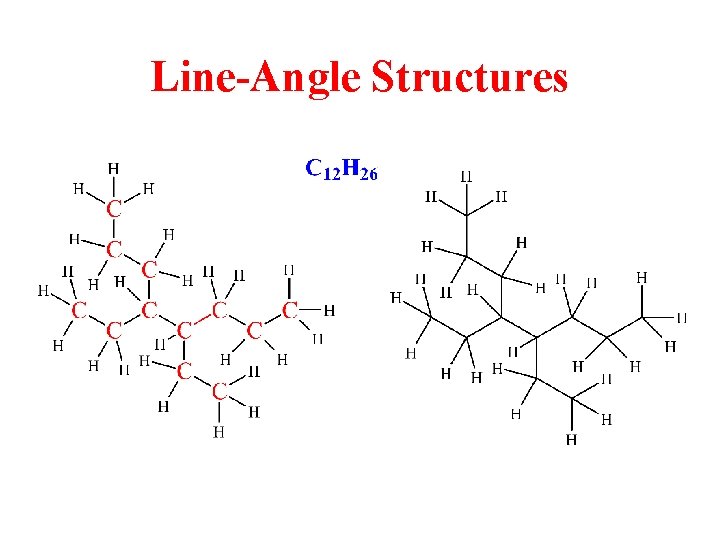

Line-Angle Structures

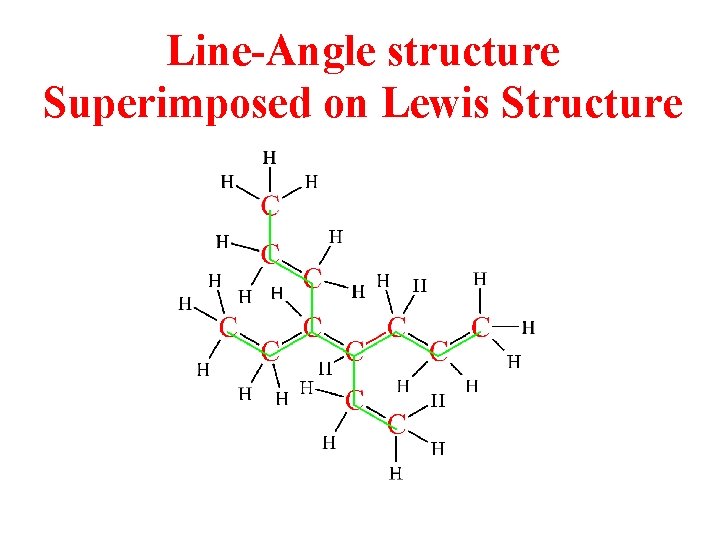

Line-Angle structure Superimposed on Lewis Structure

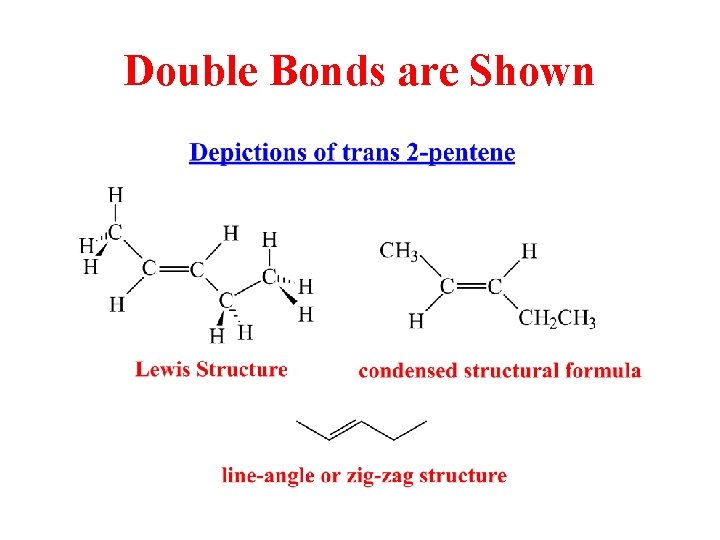

Double Bonds are Shown

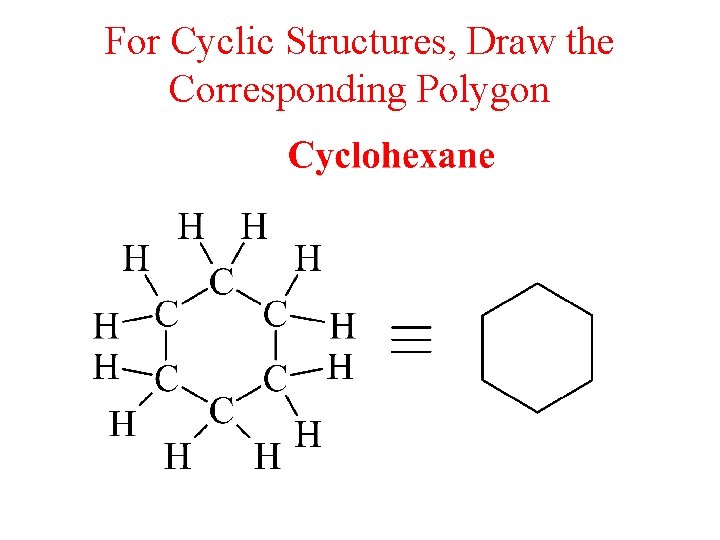

For Cyclic Structures, Draw the Corresponding Polygon

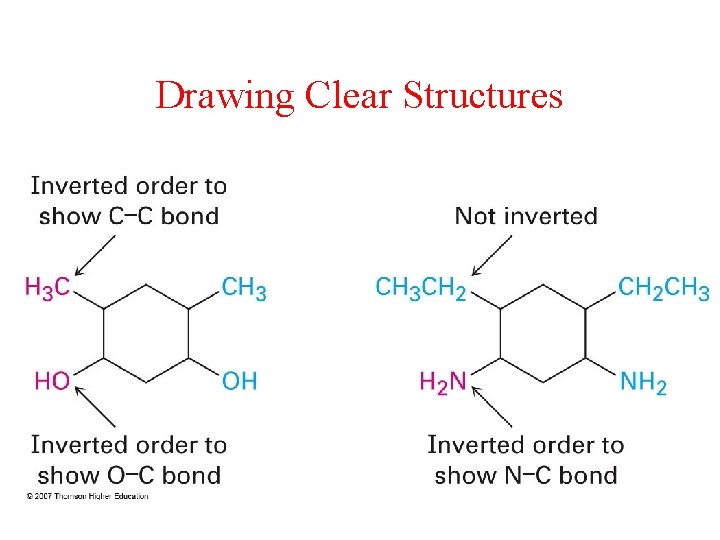

Drawing Clear Structures

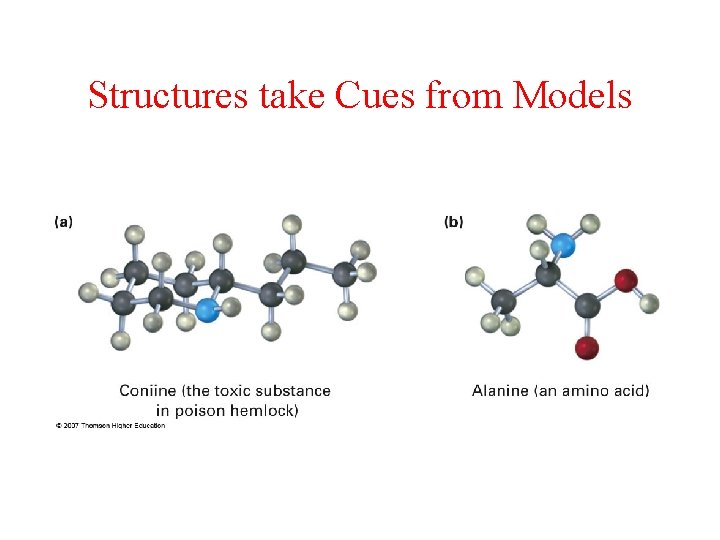

Structures take Cues from Models

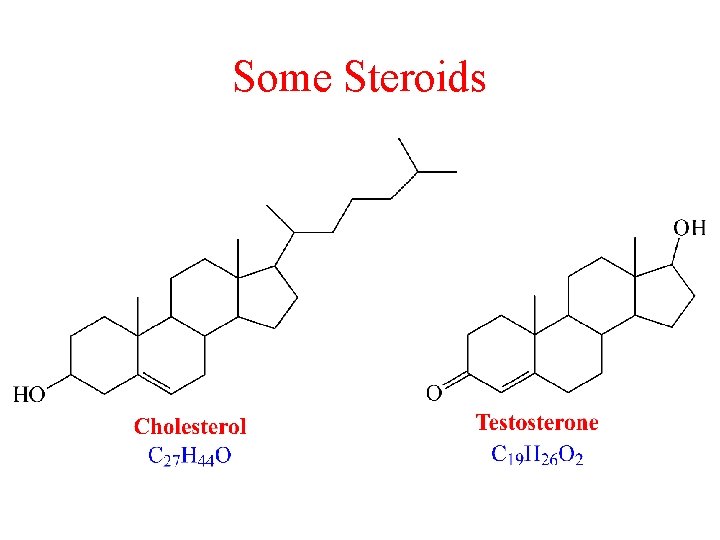

Some Steroids

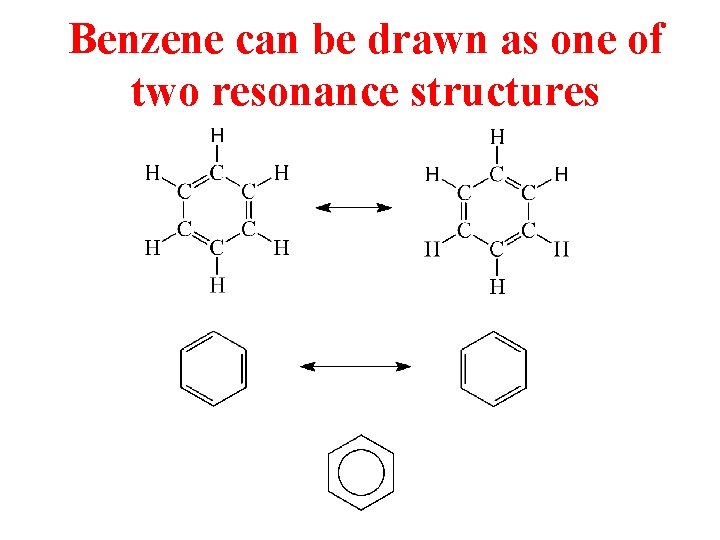

Benzene can be drawn as one of two resonance structures

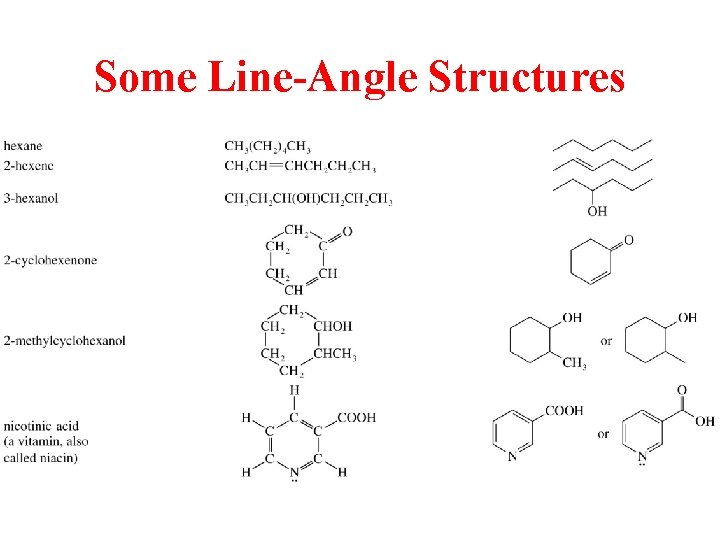

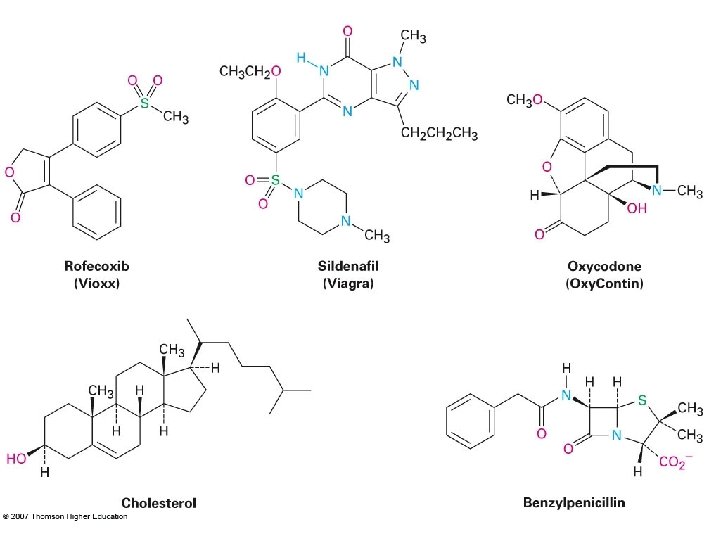

Some Line-Angle Structures
- Slides: 63
