STRUCTURAL FEATURE DENSITY PROFILING Hopewell and Flemington Faults

STRUCTURAL FEATURE DENSITY PROFILING Hopewell and Flemington Faults Flemington Hopewell

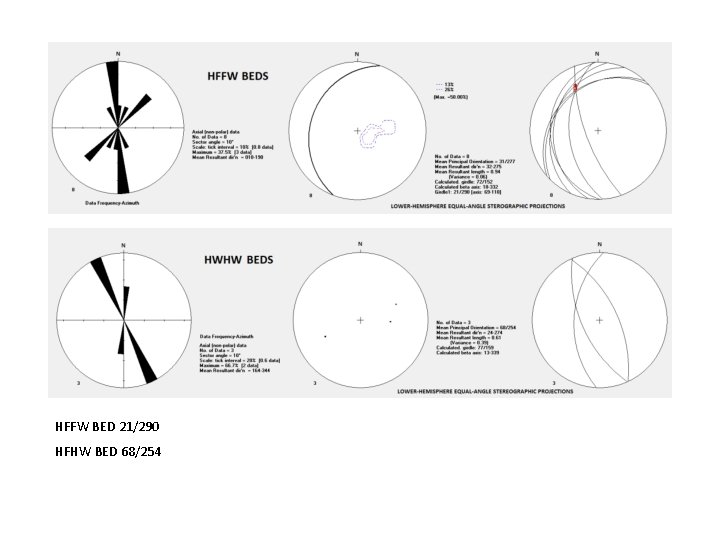

HFFW BED 21/290 HFHW BED 68/254

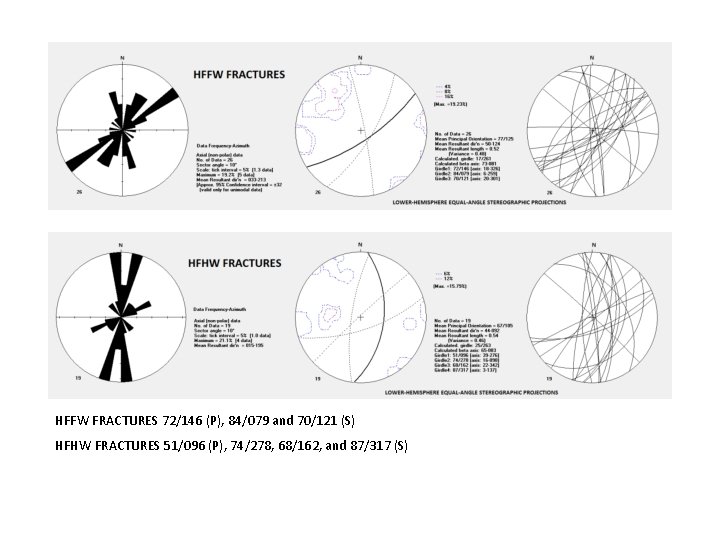

HFFW FRACTURES 72/146 (P), 84/079 and 70/121 (S) HFHW FRACTURES 51/096 (P), 74/278, 68/162, and 87/317 (S)

FFFW BED 09/315, FFHW BED 20/045

FFFW FRACTURES 77/129 (P), 81/066 and 70/102 (S), 75/105 (T) FFHW FRACTURES 87/263, 78/327, 66/120, 66/038, and 84/064 (S)

Hopewell cross-section trace angle = 140/320 o NW SE Hopewell Fault 100 FR 69 E PASSAIC FM LOCKATONG FM -900 Bed 18 W FR 78 E FT MEAN SEA LEVEL Explanation FR 66 E FR 69 W FR 42 E FR 87 W FR 72 E Bed trace Primary fracture trace PROFILE Subordinate fracture trace Apparent dip (AD) = COT((TAN d) * COS (a)) HFFW BED 21(18)/290 HFHW BED 68(45)/254 N A 21 FW HFFW FRACTURES 72(72)/146 (P); (P), 84(78)/079 and 70(69)/121 (S) HFHW FRACTURES 51(42)/096 (P); (P), 74(69)/278, 68(66)/162, and 87(87)/317 MAP 68 HW A’ Rider Structural Geology 310 2012 GCHERMAN

Flemington cross-section trace angle = 090/270 o Flemington Fault Splay Fault E W 100 LOCKATONG FM -900 PASSAIC FM FT MEAN SEA LEVEL Explanation PROFILE Bed trace Primary fracture trace Subordinate fracture trace FFFW BED 09(06)/315 FFHW BED 20(14)/045 FFFW FRACTURES (P) 77(73)/129; (S) 81(80)/066, 70(70)/102, and 75/185 FFHW FRACTURES (P) 87(87)/263, 78(69)/327, 60(56)/120, 66(54)/038, and 84(18)/064. 0 1000 2000 ft Apparent dip (AD) = COT((TAN d) * COS (a)) 09/315 N MAP FW B 20/045 HW B’ Rider Structural Geology 310 2012 GCHERMAN
